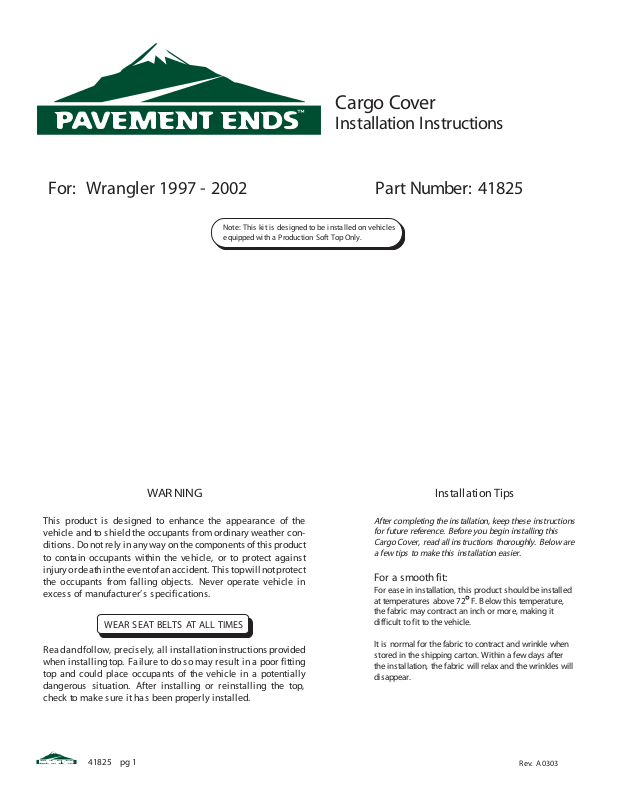

Page 1
Cargo Cover
Installation Instructions
For: Wrangler 1997 - 2002 Part Number: 41825
Note: This kit is designed to be installed on vehicles
equipped with a Production Soft Top Only.
WARNING
This product is designed to enhance the appearance of the
vehicle and to shield the occupants from ordinary weather conditi ons. Do not rel y in any way on the components of this product
to contain occupants within the vehicle, or to protect against
injury or death in the event of an acci dent. This top wil l not protect
the occupants from falling objects. Never operate vehicle in
excess of manufacturer’s specifications.
WEAR SEAT BELTS AT ALL TIMES
R ead a nd fol low, precisel y, all installa tion instructions provided
when installing top. Failure to do so may result in a poor fitting
top and could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling the top,
check to make sure it has been properly installed.
41825 pg 1
Installation Tips
After completing the installation, keep these instructions
for future reference. Before you begin installing this
Cargo Cover, read all instructions thoroughly. Below are
a few tips to make this installation easier.
For a smooth fit:
For ease in installation, this product should be installed
at temperatures above 72 F. Below this temperature,
the fabric may contract an inch or more, making it
difficult to fit to the vehicle.
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after
the installation, the fabric will relax and the wrinkles will
disappear.
Rev. A 0303
Page 2
Parts Kit
Cargo Cover Qty - 1

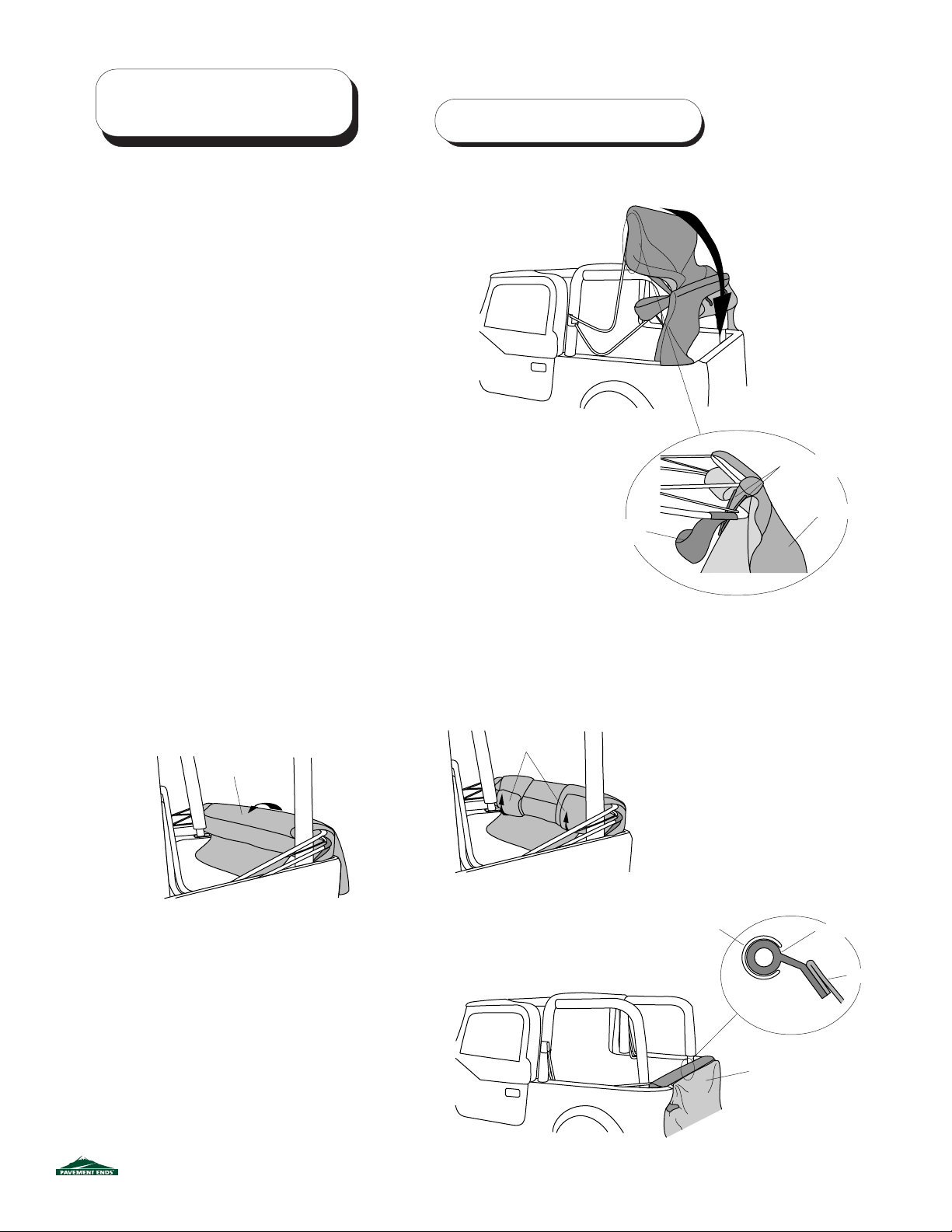

Step One
Unzip and remove the Side Panels and R ear Window from
the top. Remove the Tailgate Retainer from the R ear
Window. Cover the “glass” in the Side Panels and the
Rear Window and store them while not in use. Release the
front of the top from the windshield. Raise the front of the
deck and collapse the rear bows, tucking the two plastic
strips above the door openings and the stay pad on the
rear bow inside of the bows,
Note: This product is designed for a "Custom Fit".
Be patient during the installation, it fits tight!
Collapse bows and fold
toward rear
Tuck stay pad inside
bows
Tuck plastic strips
inside bows
Top Fabric
Step Two
Lay the bows down along the rear of the vehicle. Wrap the fold of fabric from
the rear of the vehicle up around the bows. Then tuck the rear legs of the top
under the bows and wrap them around the deck fabric as tight as possible.
Tuck the fabric and bows down into the tub as far as possible.
Wrap fabric up
around bows
Step Three
Fold down the rear seat. From the back of the vehicle,
hold the Cargo Cover with the backing side toward you.
Slide the tubing into the channel in the Tailgate Retainer
and install the retainer into the Tailgate Retainer Mount.
Wrap rear legs under
bows as tight as
pos sible
Tailgate Retainer
Channel
Detail of Tail gate
Retainer
Tubing
Cargo Cover - Backing
side out
Fabric
41825 pg 2
Rev. A 0303
Page 3

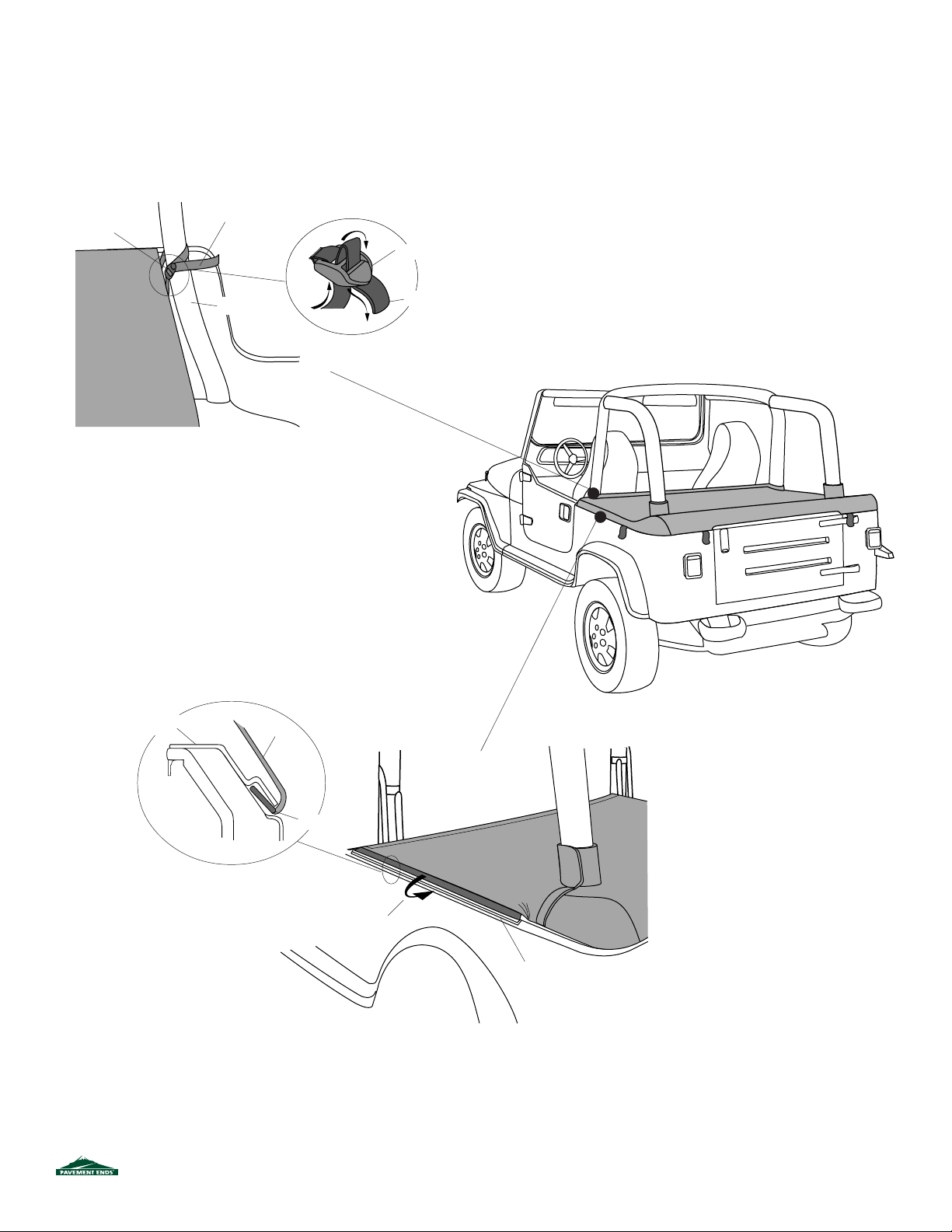

Step Four
Drape the fabric forward over the rear of the vehicle and
locate the web straps, with buckles attached, on the front of
the Cargo Cover. Wrap the straps around the front sport bars
and thread the ends loosely through the buckles. Do not pull
the straps tight at this time.
Buckle
Web S trap
Buckle
Side Retainer
Front Sport Bar
Fabric
Threading S trap
through B uckle
Strap
Detail of
Plas tic Strip
Plastic Strip
Roll Plastic Strip
into S ide Retainer
Step Five
Locate the plastic strip sewn to the Cargo Cover along
each side of the vehicle. Start at one end on each side
and roll the plastic strip into the Side Retainers.
41825 pg 3
Plastic Strip
Rev. A 0303
Page 4

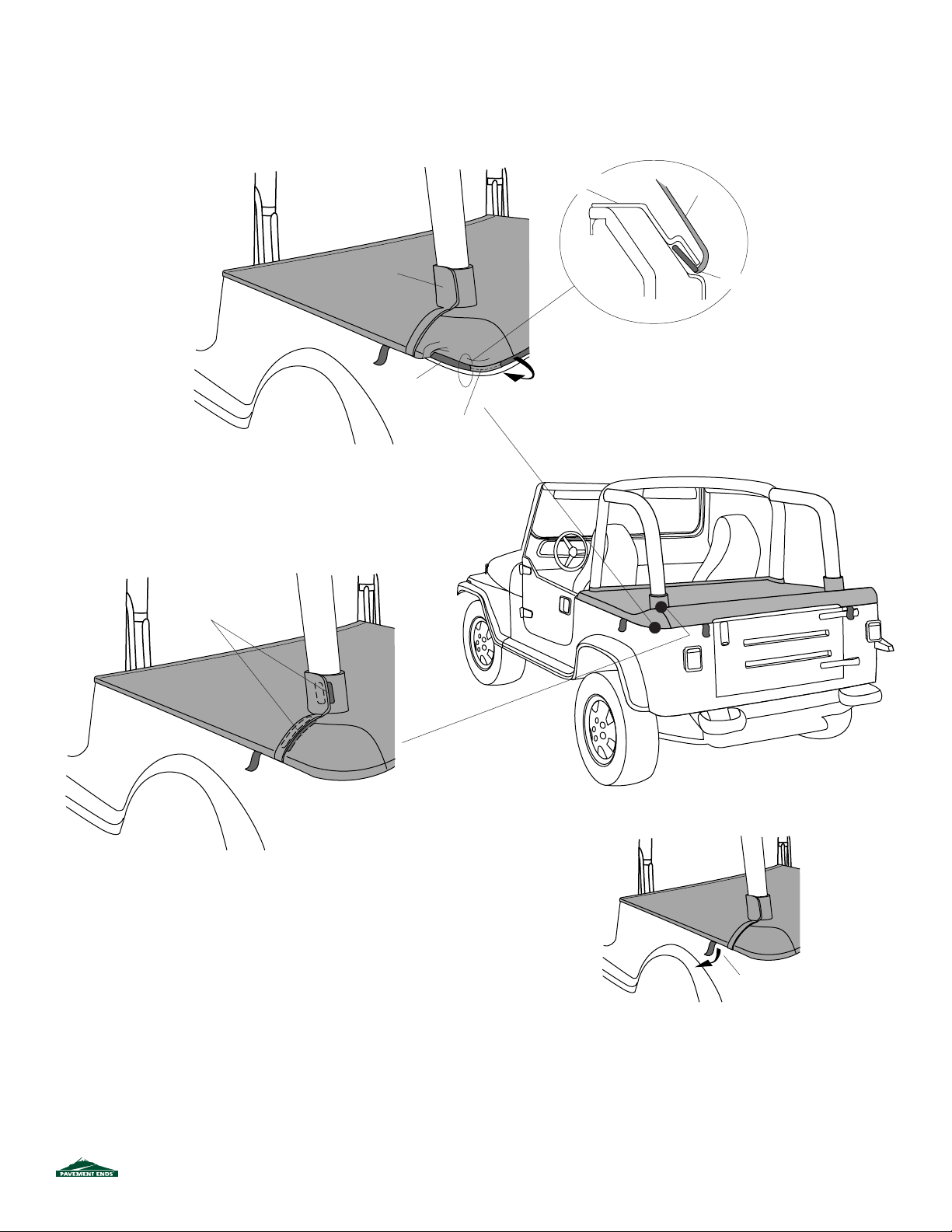

Step Six
Roll the plastic strips, sewn into the rear corners of the Cargo Cover into the
Corner Retainers. Smooth the hemmed corner area of the Cargo Cover over
retainer by sliding the strips towards the front and rear. Make sure the plastic
strip fits up into the retainer so that the collar fits properly.
Collar
Rear Corner
Retainer
Fabric
Detail of
Plas tic Strip
Plastic Strip
Hook and Loop
Strips
Plastic
Strip
Hemmed
Corner
Roll Plastic Strips into
Rear Corner R etainer
Step Seven
Tuck the seat belt assemblies into the rear sport bar
collars and close the rear sport bar collars by pulling
firmly on the fabric and fastening the Hook and Loop
Strips to each other.
Tighten the straps on the front of the Cargo Cover.
41825 pg 4
Pull gently down, then out to
release plastic strip
To Remove Cargo Cover
When removing the Cargo Cover, use the loops sewn
to the fabric to release the plastic strips. Pull gently
down, then straight out to release the plastic strip
from the retainers.
Rev. A 0303
Page 5

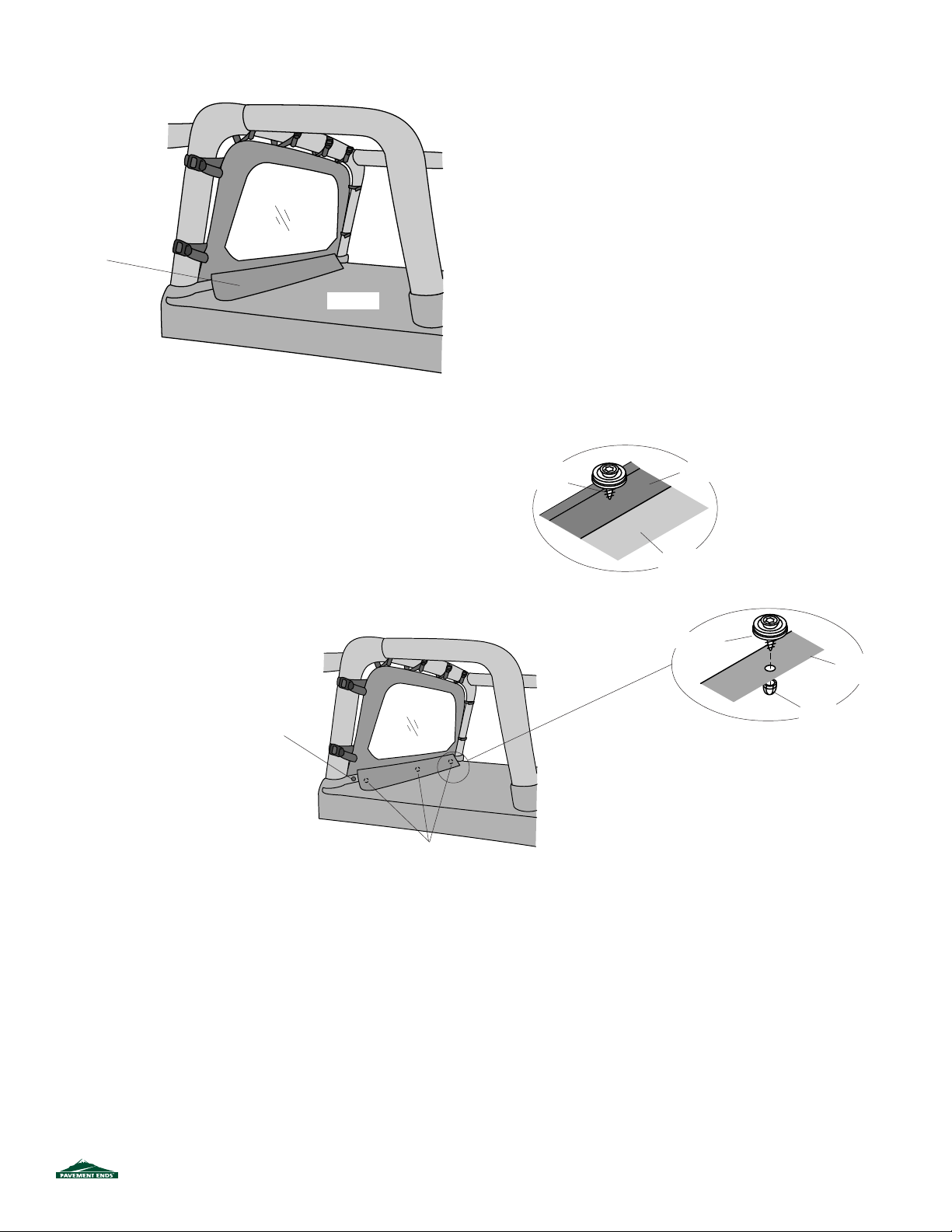

If You Have a New Cab Curtain on Your Vehicle
Step One
Cab Curtain From R ear
Locate Attaching Snaps from Hardware Kit supplied
with the Cab Curtain.
Pull Flap out and Over
Cargo Cover
Step Three - Optional
Pull up on the front, edge of the Cargo Cover and mark
the locations matching the three snaps on the Cab Curtain
flap, on the fabric along the top of the Cargo Cover.
Cargo Cover
Step Two
Locate the flap sewn to the rear of the Cab Curtain.
Pull the flap out over the top of the front edge of the
Cargo Cover.
Push Snap Head Screw
through to form a hole
Fabric R einforcement
Fabric - Backing Up
Snap Head Screw
Fabric Vinyl Up
Install Studs on Webbing
Reinforced Front Edge
Snaps - on underside of
flap
Acorn Locknut
Step Four - Optional
At the marked locations, push the sharp end of a Snap Head
Screw through the Cargo Cover from the vinyl side so that
the snap is on top of the vinyl. Thread an Acorn Locknut
over the pointed end of the Snap Head Screw. Snap the
Cargo Cover and the Cab Curtain together with the three
snaps.
41825 pg 5
Rev. A 0303
Page 6
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specified below, provided there has been normal use and
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specified.
If you have a warranty claim, first you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, fire, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND S COPE AS THE EXPR ESS WRITTEN WARRANTY. OUR COMPANY S HALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
*All or a portion of this product may have been produced in China
41825 pg 6
Rev. A 0303
