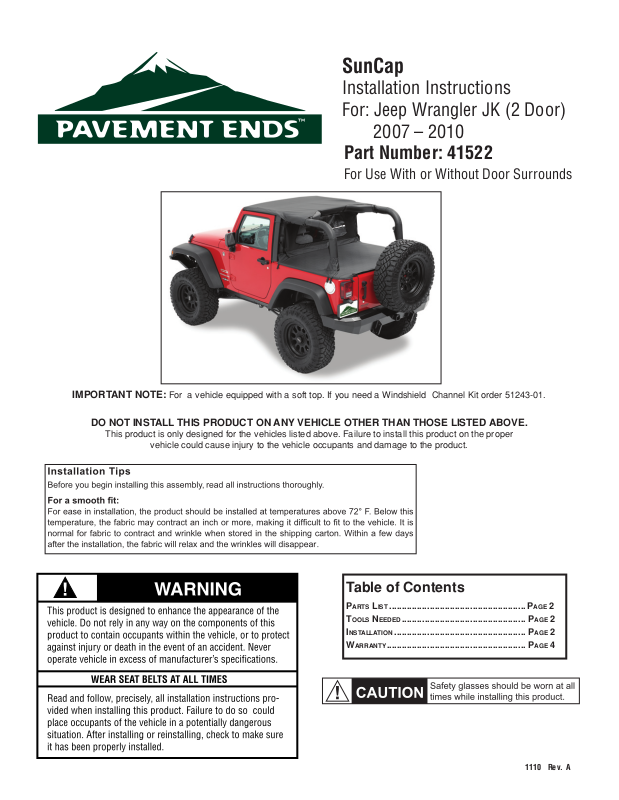

SunCap
Installation Instructions
For: Jeep Wrangler JK (2 Door)
2007 – 2010
Part Number: 41522
For Use With or Without Door Surrounds
IMPORTANT NOTE: For a vehicle equipped with a soft top. If you need a Windshield Channel Kit order 51243-01.
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
TOOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 4
41522 pg 1
1110 Rev. A
Page 2
SunCap Qty - 1
Parts List
Long Tension Strap, Part Number 424.14 Qty - 2
Short Tension Strap, Part Number 460.37 Qty - 2
Step One
SNAP SUNCAP TO HEADER
Slide the pocket sewn along the front of the
SunCap over the edge of the header and
snap it to the snaps.
Snap Fabric
to Header
Step Two
SECURE HEADER TO WINDSHIELD
Center the SunCap on the vehicle. Place the tabs on
the Header Knob Bases above the footman loops in the
windshield frame. Place a Header Knob Plate under a
footman loop. Install a Header Knob through the plate
and footman loop and thread it into the Header Knob
Base. Repeat this with both Header Knob Bases.
Header
Header
Knob Base
Footman
Loop
Header
Knob Plate
Header
Knob
Step Three
INSTALL SHORT TENSION STRAPS
Drape the SunCap over the speaker pod. Thread a
Short Tension Strap through the two buckles sewn to
the rear of the SunCap. Pull the straps under the pod
and hook each strap into the opening as shown. Pull
the end of each strap to tighten securely
View from Rear
Hook Strap
into Hole
SunCap
SunCap
Step Four
SECURE FLAPS
Wrap the fl ap above the door opening around
the horizontal sport bar and fasten the hook
and loop. Repeat on both sides.
Pull End
of Strap
to Tighten
41522 pg 2
Thread Strap
through Buckle
Wrap Flaps around
bars and fasten
Hook and Loop
1110 Rev. A
Page 3
Thread Strap
through Buckle
Step Five
INSTALL LONG TENSION STRAPS
Thread a Long Tension Strap through the
buckle on the side of the SunCap. Pull the
strap under the pod and hook it into the
same hole as the right rear buckle strap.
Repeat on the other side of the vehicle.
Step Six

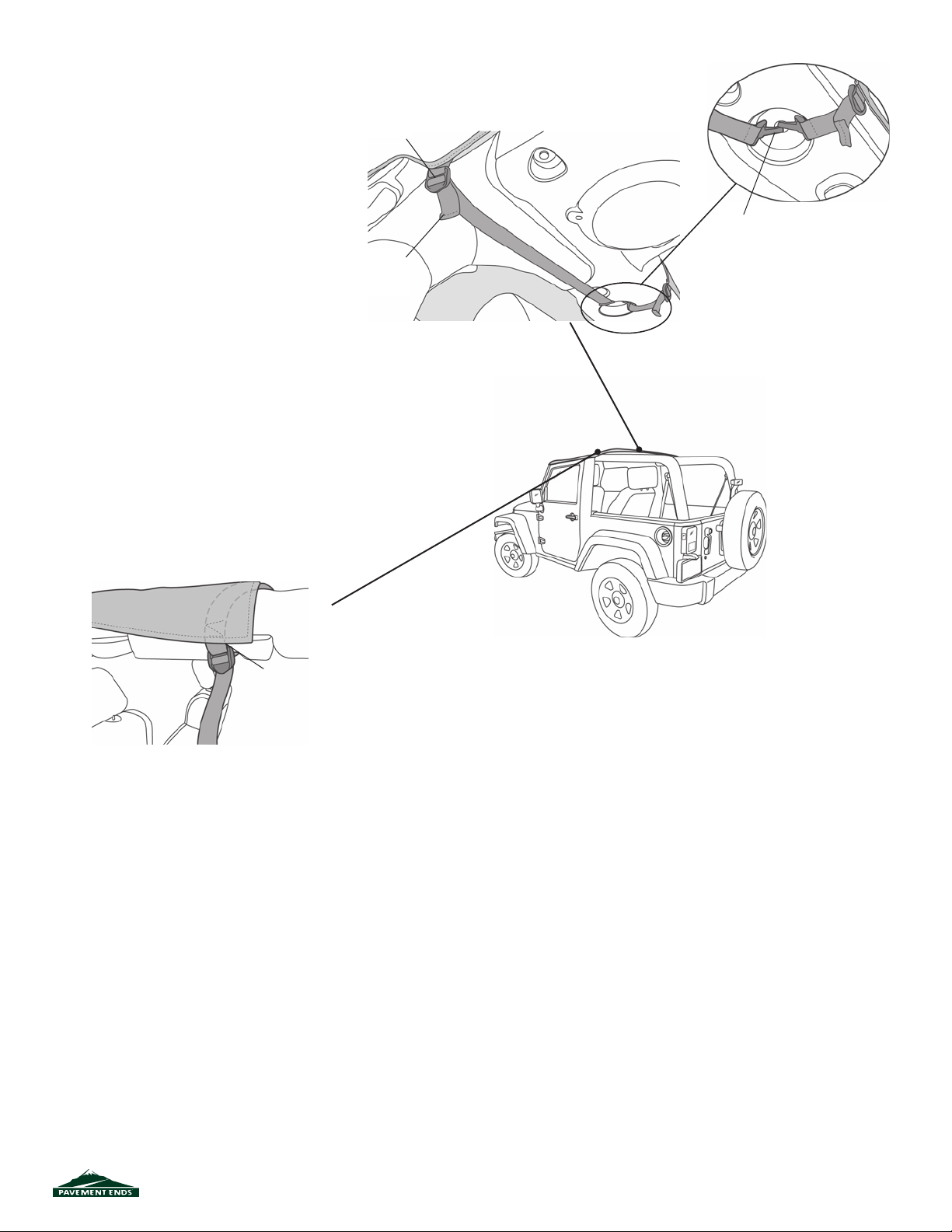

SECURE REAR CORNER STRAPS
Locate the buckle straps sewn to the rear
corners of the SunCap . Wrap the strap under
the SunCap and around the sport bars. Thread
the end of the strap through the buckle and pull
it tight. Repeat on the other side.
Hook Strap into Hole
Pull End
of Strap
to Tighten
Wrap Strap around
Horizontal Sport Bar
and Thread Through
Buckle
41522 pg 3
1110 Rev. A
Page 4
Care and Maintenance of your New SunCap
Your SunCap is made of the fi nest materials available. To keep it looking new and for the maximum possible wear, it will need periodic
cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all
traces of soap.
Water: Seeping through at the seams may be stopped by applying 3-M Scotchgard® on the inside of the seams. Rips in the fabric
may be repaired with Bondex® iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex® instructions.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for terms specifi ed below, provided
there has been normal use and proper mainte nance. This warranty applies to the original purchaser only. All
remedies under this warranty are limited to the repair or replacement of any item or items found by the factory to
be defective within the time period specifi ed.
If you have a warranty claim, fi rst you must call our factory at the number below for instructions. You must retain
proof of purchase and submit a copy with any items returned for warranty work. Upon completion of warranty
work, if any, we will return the repaired or replaced item or items to you freight prepaid. Damage to our products
caused by accidents, fi re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective parts not
manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “GOODS” MANUFACTURED BY OUR COMPANY: ONE
YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE
CREATED HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS
WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
For further information, please contact: Customer Service
877-638-9509
41522 pg 4
