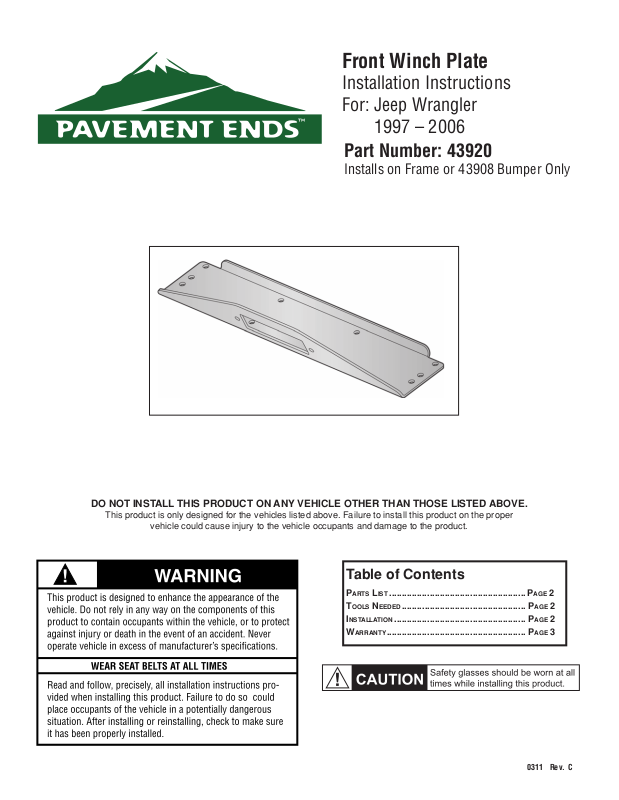

Front Winch Plate
Installation Instructions
For: Jeep Wrangler
1997 – 2006
Part Number: 43920
Installs on Frame or 43908 Bumper Only
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 3
43920 pg 1
0311 Rev. C
Page 2
Parts List
Winch Plate, Part
Number 481.41, Qty - 1
Washer, Part Number
485.60, Qty - 4
3/8", Part Number
481.43, Qty - 4
Used for Winch Installation
Installation of Winch Plate Only
Step One
REMOVE THE ORIGINAL BUMPER
Use a socket wrench with an T55 Torx Socket to remove the two (2)
bolts on the top of the bumper on each side, four (4) bolts altogether.
When these are removed, use a 19mm socket to remove the bolt
underneath the bumper on each side. Remove the 15mm hex bolt
on each side. Set these bolts aside to be used to install the Front
Bumper.
Remove 15mm
Hex Bolt
Remove Torx
Bumper
Bolts
Ratchet
Tools Needed
15mm and 19mm Sockets
T55 Torx Socket
3/16" Allen Wrenches
Safety Glasses
Two or more
people may be
required to lift the bumper safely.
Bumper
Remove 19mm
Bolt
Step Two
PLACE WASHERS
Place a Washer over each of the holes
for the Torx Bolts to act as a spacer.
Place Washers
over holes.
Step Three
INSTALL WINCH PLATE
Set the Winch Plate on top of the vehicle frame. Use
the remaining Washers and reinstall the hardware
that was removed in Step 1.
Make sure Winch Plate
is over bracket
Reinstall 15mm
Hex Bolt
Reinstall Torx Bolts
with Washers
Winch
Plate
43920 pg 2
0311 Rev. C
Page 3

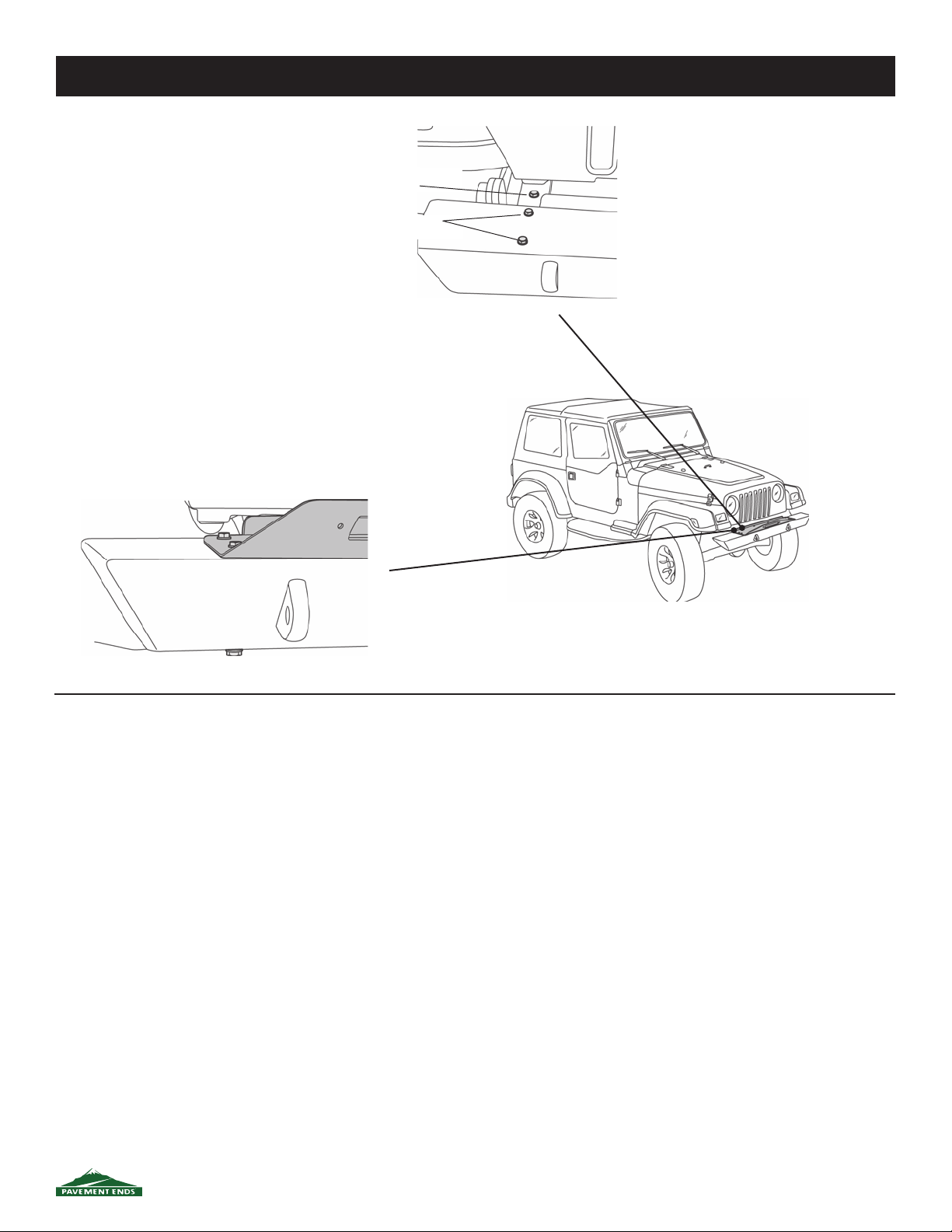

Installation of Winch Plate with 43908 Front Bumper
Step One
REMOVE THE BUMPER HARDWARE
Use a socket wrench with an T55 Torx Socket
to remove the two (2) bolts on the top of the
bumper on each side, four (4) bolts altogether.
Remove the 15mm hex bolt on each side.
Set these bolts aside to be used to install the
Winch Plate.
Step Two
INSTALL WINCH PLATE
Set the Winch Plate on top of the bumper. Reinstall
the hardware that was removed in Step 1.
Remove 15mm
Hex Bolt
Remove Torx
Bolts
