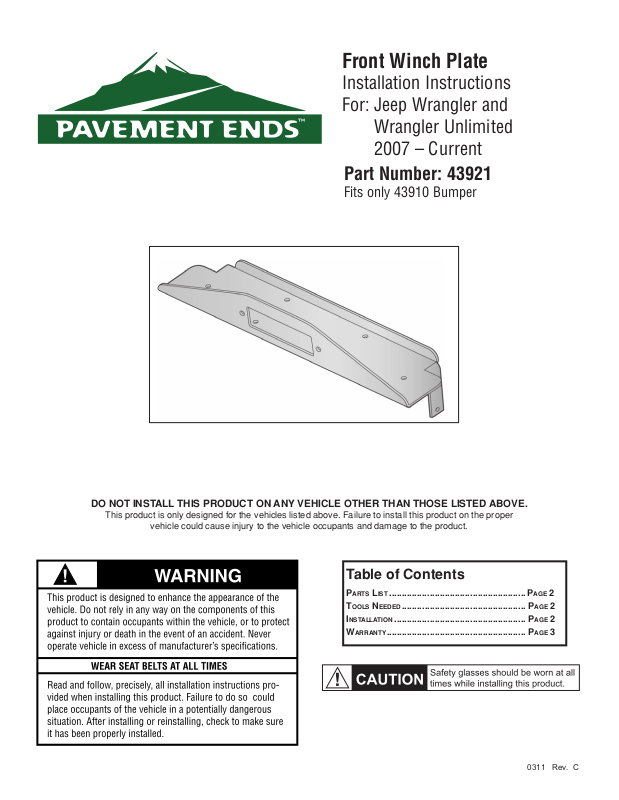

Front Winch Plate
Installation Instructions
For: Jeep Wrangler and
Wrangler Unlimited
2007 – Current
Part Number: 43921
Fits only 43910 Bumper
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 3
43921 pg 1
0311 Rev. C
Page 2
Parts List
Winch Plate, Part
Number 481.42, Qty - 1
M10 Washer, Part
Number 481.58, Qty - 4
M10 Screw, Part
Number 485.46, Qty - 4
Tools Needed
Ratchet
17mm Socket
17mm Wrench
Safety Glasses
3/8", Part Number
481.43, Qty - 4
Used for Winch Installation
M10 Nut, Part Number
482.16, Qty - 2
Step One
S ECURE W INCH P LATE TO B UMPER
Place the Winch Plate on top of the bumper. Line up the
outside holes in the plate with the holes in the bumper.
Install an M10 Screw and washer through top of bumper
then install a M10 Nut and Lock washer on bottom of bumper.
M10 Screws, Washers,
and M10 Nuts
M10 Lock Washer, Part
Number 481.59, Qty - 4
Step Two
S ECURE W INCH P LATE TO F RAME
Use an M10 Screw, M10 Lock Washer
and M10 Washer to secure each leg of the
Winch Plate to the frame of the vehicle.
43921 pg 2
Winch Plate Inside of Frame
M10 Screw, M10
Washer and M10
Lock Washer
Frame
Underside of
Bumper
0311 Rev. C
Page 3
