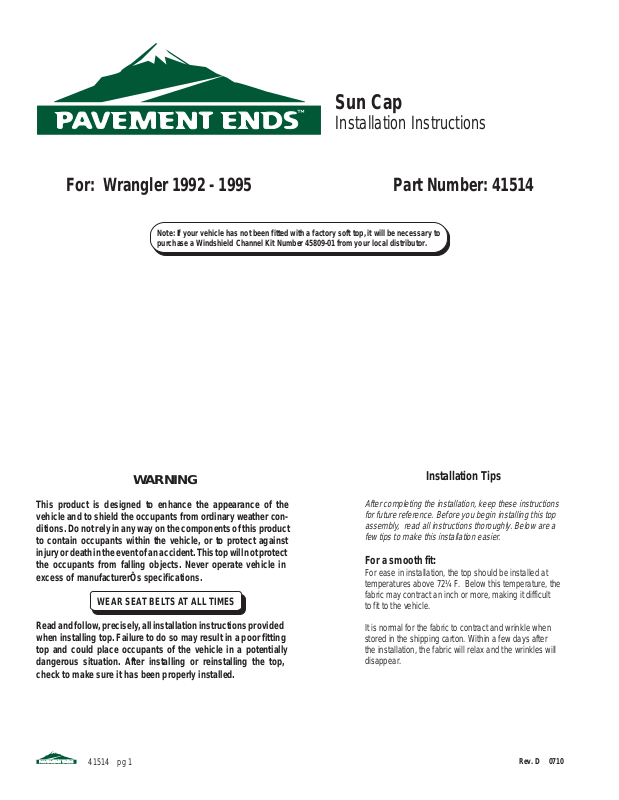

Page 1
Sun Cap
Installation Instructions
For: Wrangler 1992 - 1995 Part Number: 41514
Note: If your vehicle has not been fitted with a factory soft top, it will be necessary to
purchase a Windshield Channel Kit Number 45809-01 from your local distributor.
WARNING
This product is designed to enhance the appearance of the
vehicle and to shield the occupants from ordinary weather conditions. Do not rely in any way on the components of this product
to contain occupants within the vehicle, or to protect against
injury or death in the event of an accident. This top will not protect
the occupants from falling objects. Never operate vehicle in
excess of manufacturerÕs specifications.
WEAR SEAT BELTS AT ALL TIMES
Read and follow, precisely , all installation instructions provided
when installing top. Failure to do so may result in a poor fitting
top and could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling the top,
check to make sure it has been properly installed.
41514 pg 1
Installation Tips
After completing the installation, keep these instructions
for future reference. Before you begin installing this top
assembly, read all instructions thoroughly. Below are a
few tips to make this installation easier.
For a smooth fit:
For ease in installation, the top should be installed at
temperatures above 72¼ F. Below this temperature, the
fabric may contract an inch or more, making it difficult
to fit to the vehicle.
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after
the installation, the fabric will relax and the wrinkles will
disappear.
Rev. D 0710
Page 2
Step One
Locate the Sun Cap and orient it on the vehicle. Drape it over
the sport bar and insert front edge into windshield channel.
Plastic
Strip
Windshield Channel
Fabric
Windshield
Driver's Side of Vehicle
Rear
Web Strap
Inside of Sun Cap
Buckle
Step Two
Locate the long web strap sewn to the center, rear
of the top. Wrap the strap around the horizontal
tube of the sport bar and pull it toward the front of
the vehicle. Thread it through the footman loop
located above the windshield. Pull the end of the
strap back and thread it through the buckle on the
strap. Pull the strap tight.
41514 pg 2
Sport Bar
Threading Strap
through Buckle
Footman Loop
Windshield
Buckle
Strap
Rev. D 0710
Page 3

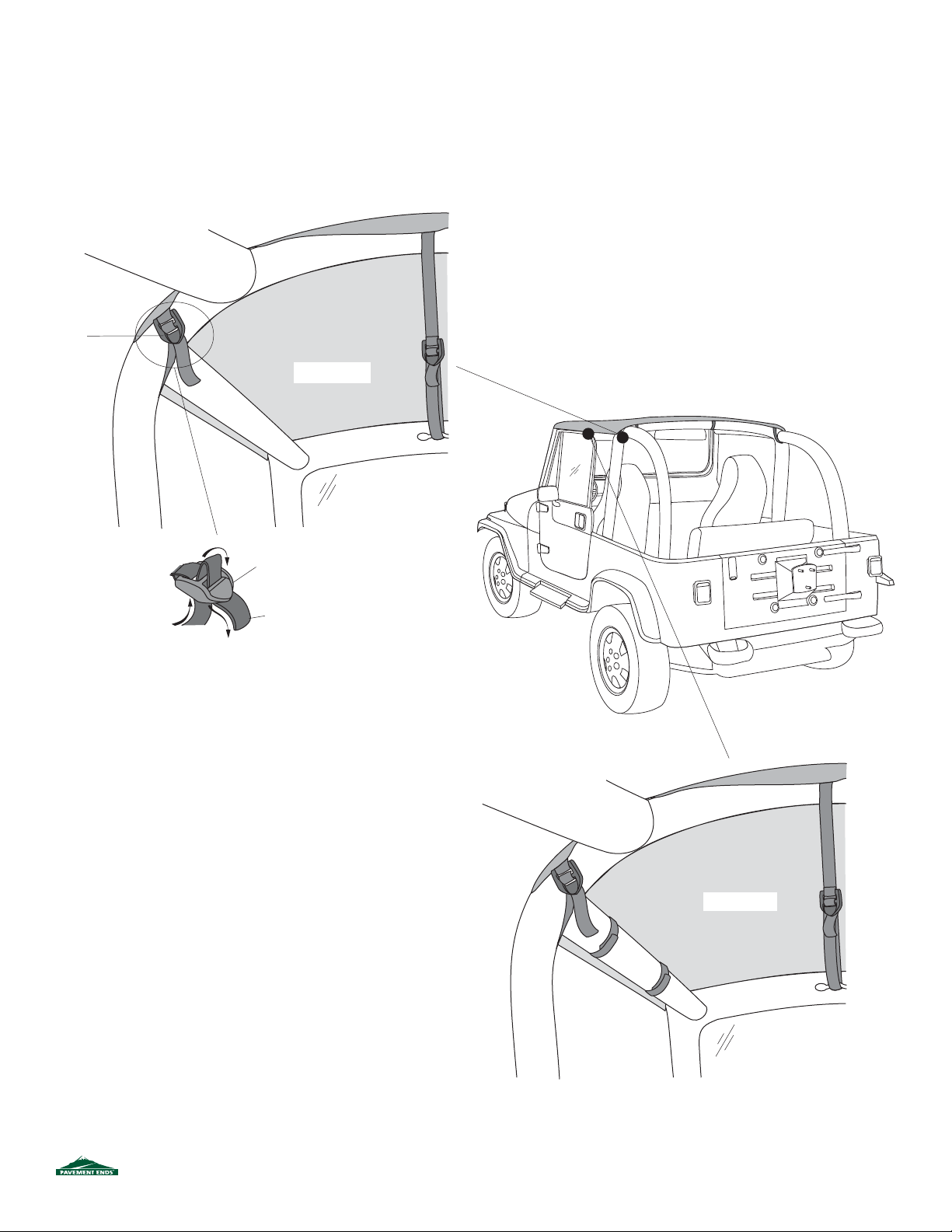

Step Three
Locate the straps sewn near the rear corners of the Sun Cap. Wrap
them under the sport bar, through the loop, under the rear sport bar
and thread the end of each strap through the buckle. Do this on both
sides of the vehicle. Then pull the straps tight through the loops as
well as the buckles.
Buckle
Inside of Sun Cap
Center Strap
Windshield
Threading Strap
through Buckle
Buckle
Strap
Step Four
Locate the two pairs of hook and loop strips sewn to each
side of the top. Wrap them around the bar above the door
openings as tight as possible and fasten them.
Make sure that the center strap is as tight as possible.
Inside of Sun Cap
41514 pg 3
Hook and Loop Strips Wrap around bar and fasten
Windshield
Rev. D 0710
Page 4
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specied below, provided there has been normal use and
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specied.
If you have a warranty claim, rst you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
41514 pg 4
*All or a portion of this product may be made in China.
Rev. D 0710
