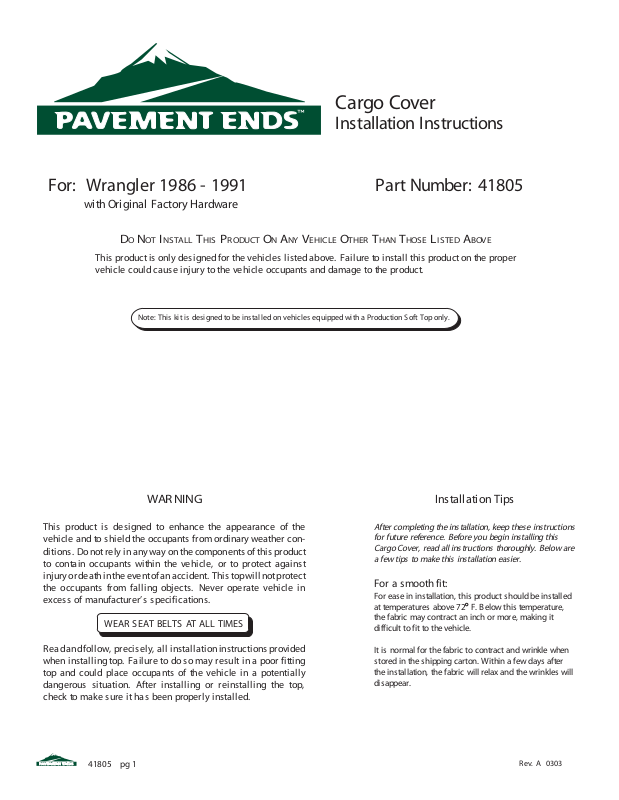

Cargo Cover
Installation Instructions
For: Wrangler 1986 - 1991 Part Number: 41805
with Original Factory Hardware
DO NOT I
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
NSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE
Note: This kit is designed to be installed on vehicles equipped with a Production Soft Top only.
WARNING
This product is designed to enhance the appearance of the
vehicle and to shield the occupants from ordinary weather conditi ons. Do not rel y in any way on the components of this product
to contain occupants within the vehicle, or to protect against
injury or death in the event of an acci dent. This top wil l not protect
the occupants from falling objects. Never operate vehicle in
excess of manufacturer’s specifications.
WEAR SEAT BELTS AT ALL TIMES
Installation Tips
After completing the installation, keep these instructions
for future reference. Before you begin installing this
Cargo Cover, read all instructions thoroughly. Below are
a few tips to make this installation easier.
For a smooth fit:
For ease in installation, this product should be installed
at temperatures above 72 F. Below this temperature,
the fabric may contract an inch or more, making it
difficult to fit to the vehicle.
R ead a nd fol low, precisel y, all installa tion instructions provided
when installing top. Failure to do so may result in a poor fitting
top and could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling the top,
check to make sure it has been properly installed.
41805 pg 1
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after
the installation, the fabric will relax and the wrinkles will
disappear.
Rev. A 0303
Page 2
Parts Kit
Cargo Cover Qty - 1
Step One
Remove your soft top from the hardware. Fold the top and store. Fold the
factory hardware system down onto the vehicle body. Make sure the
hardware system lies as flat as possible, with the bow assembly resting
against the tailgate retainer.
Step Two
Fold down or remove the rear seat. From the back of
the vehicle, hold the cover with the backing side
toward you. Slide the tubing into the channel in the
tailgate retainer.
Plastic Strip
Web S traps
Side Retainer
Fabric
Plastic Strip
Tailgate Retainer
Channel
Step Three
Drape the fabric forward over the rear of the vehicle.
Use the web straps s ewn to the cover, to slide the
plastic strips on the sides into the Side Retainers.
Tubing
Fabric
41805 pg 2
Rev. A 0303
Page 3
Step Four
Locate the web straps with buckles attached
on the front of the Cargo Cover. Wrap the
straps around the front sport bars and thread
the ends through the buckles.
Threading S trap
through B uckle
Buckle
Strap
Buckle
Front Sport Bar
Web S trap
Step Five
Slide the plastic strips, s ewn into the rear corners
of the cover into the Corner Retainers. Smooth the
hemmed corner area of the Cargo Cover over the
retainer by sliding the strips towards the front and
rear. Make sure that the plastic strip fits up into the
retainer so that the collar fits properly.
Hook and Loop
Strips
Rear Corner
Retainer
Fabric
Plastic Strip
Hemmed
Corner
Roll Plastic Strips into
Rear Corner R etainer
Web S traps
Step Six
Close the rear sport bar collars by pulling firmly on the fabric
and fastening the Hook and Loop Strips to each other.
41805 pg 3
Rev. A 0303
Page 4
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specified below, provided there has been normal use and
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specified.
If you have a warranty claim, first you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, fire, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND S COPE AS THE EXPR ESS WRITTEN WARRANTY. OUR COMPANY S HALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
*All or a portion of this product may have been produced in China
41805 pg 4
Rev. A 0303
