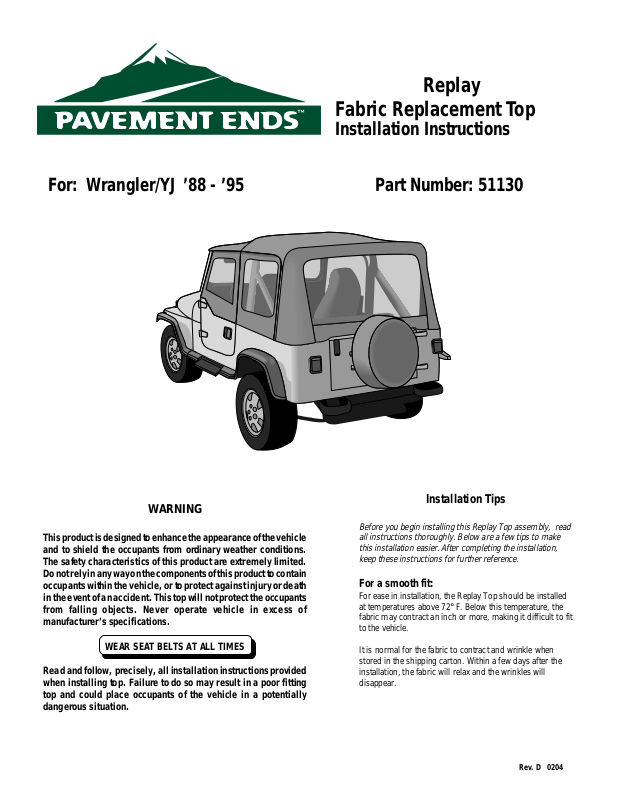

Page 1
Replay
Fabric Replacement Top
Installation Instructions
For: Wrangler/YJ ’88 - ’95 Part Number: 51130
WARNING
This product is designed to enhance the appearance of the vehicle
and to shield the occupants from ordinary weather conditions.
The safety characteristics of this product are extremely limited.
Do not rely in any way on the components of this product to contain
occupants within the vehicle, or to protect against injury or death
in the event of an accident. This top will not protect the occupants
from falling objects. Never operate vehicle in excess of
manufacturer’s specifications.
WEAR SEAT BELTS AT ALL TIMES
Read and follow, precisely, all installation instructions provided
when installing top. Failure to do so may result in a poor fitting
top and could place occupants of the vehicle in a potentially
dangerous situation.
51130 pg 1
Installation Tips
Before you begin installing this Replay Top assembly, read
all instructions thoroughly. Below are a few tips to make
this installation easier. After completing the installation,
keep these instructions for further reference.
For a smooth fit:
For ease in installation, the Replay Top should be installed
at temperatures above 72° F. Below this temperature, the
fabric may contract an inch or more, making it difficult to fit
to the vehicle.
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after the
installation, the fabric will relax and the wrinkles will
disappear.
Rev. D 0204
Page 2
Parts Kit
Top Fabric Assembly Qty - 1
Quarter Window, Right Qty - 1
Quarter Window, Left Qty - 1
Rear Curtain (Window) Qty - 1
Door Assembly, Rt. Qty - 1
Door Assembly, Lt. Qty - 1

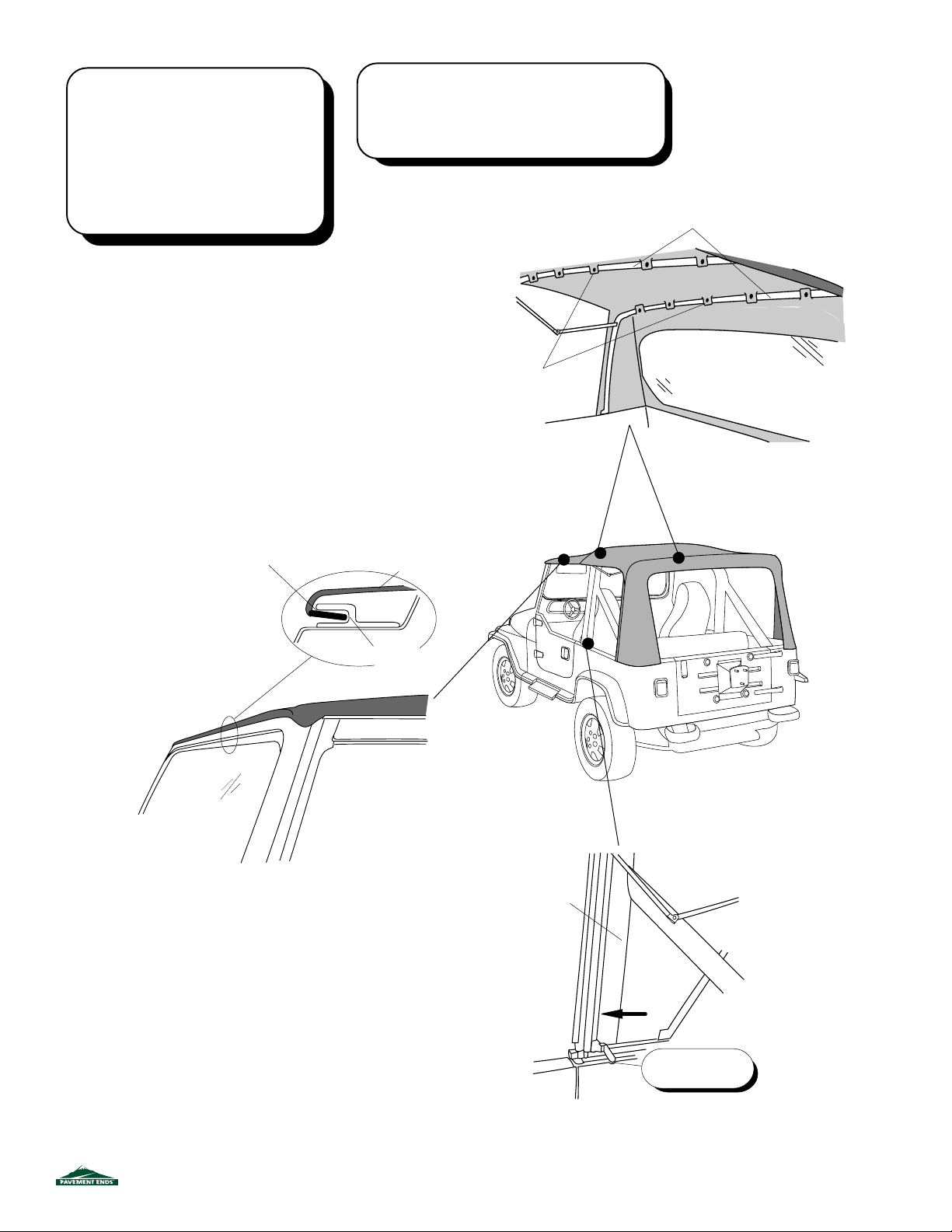

Step One
Locate the top and orient it on
the vehicle. Snap it to the bows.
Note: Before beginning this installation,
remove the old top and make sure all hardware is in place and that the Drip Rails are
locked into the Windshield Frame.
Snap to bows
Bows
View from inside top
Step Two
Insert front of top into
windshield retainer.
Windshield
Plastic Strip
Fabric
Windshield
Retainer
Driver's Side of Vehicle
Step Three
Push front support bow
all the way forward.
Front Support
Bow
Front
Bow must slip into
notch in belt rail
51130 pg 2
Rev. D 0204
Page 3

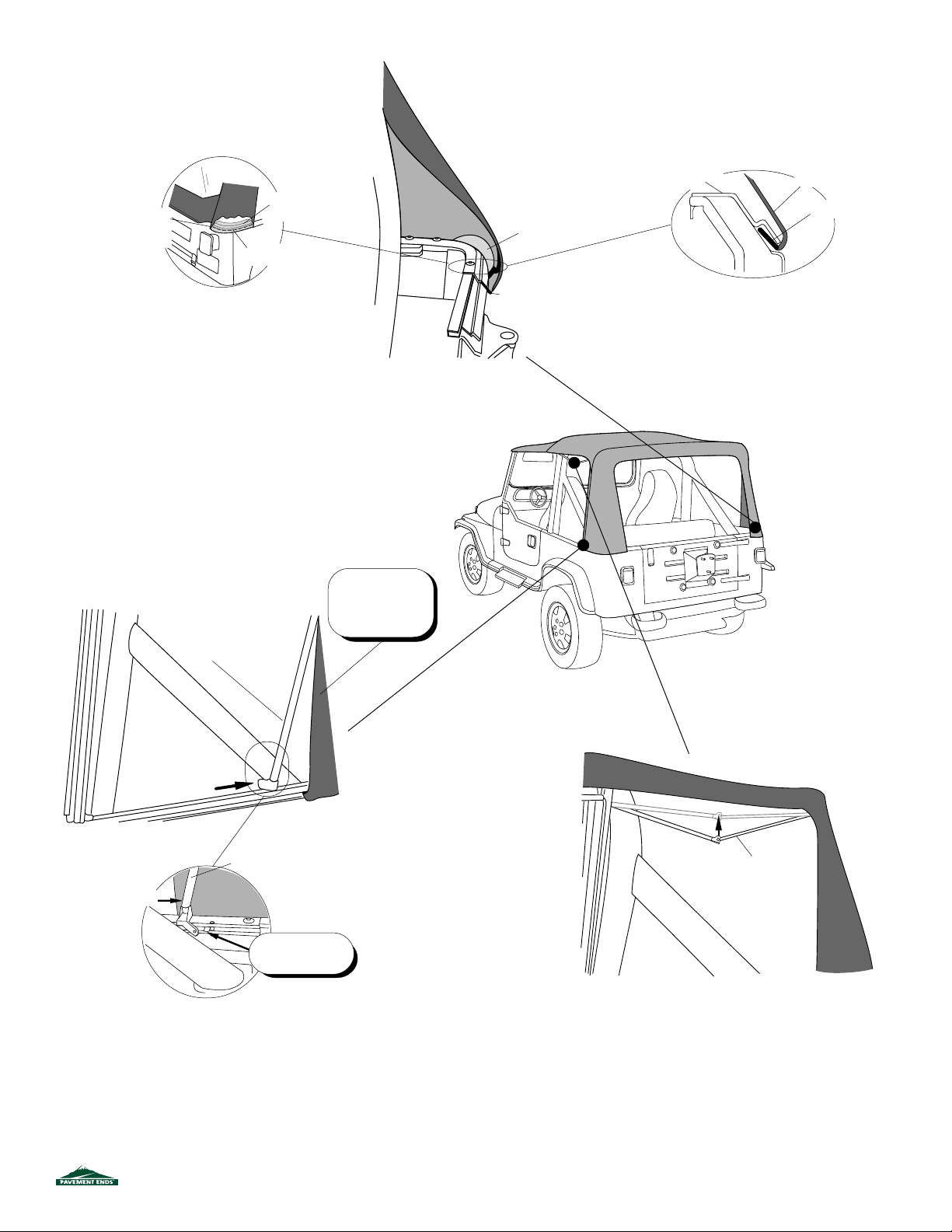

Step Four
Insert rear corners of top into rear
corner retainer.
Rear Corner
Edge of Plastic Strip
must line up with edge
of retainer
Retainer
Plastic Strip under retainer
Step Five
Pull the bottom of the rear support bow back
until it snaps into the notch in the side rail.
Rear Support Bow
Zippers must not
be caught or
folded behind
rear support bow.
Plastic Reinforcement not
caught under retainer
Plastic Strip under
retainer
Rear of Vehicle
Rear Corner
Retainer
Fabric
Plastic Strip
Push bow
back
Rear Support Bow
Spreader Bar
Bow must slip into
notch in belt rail
View from inside vehicle
Step Six
Push the spreader bars up
until they snap into place.
51130 pg 3
Rev. D 0204
Page 4

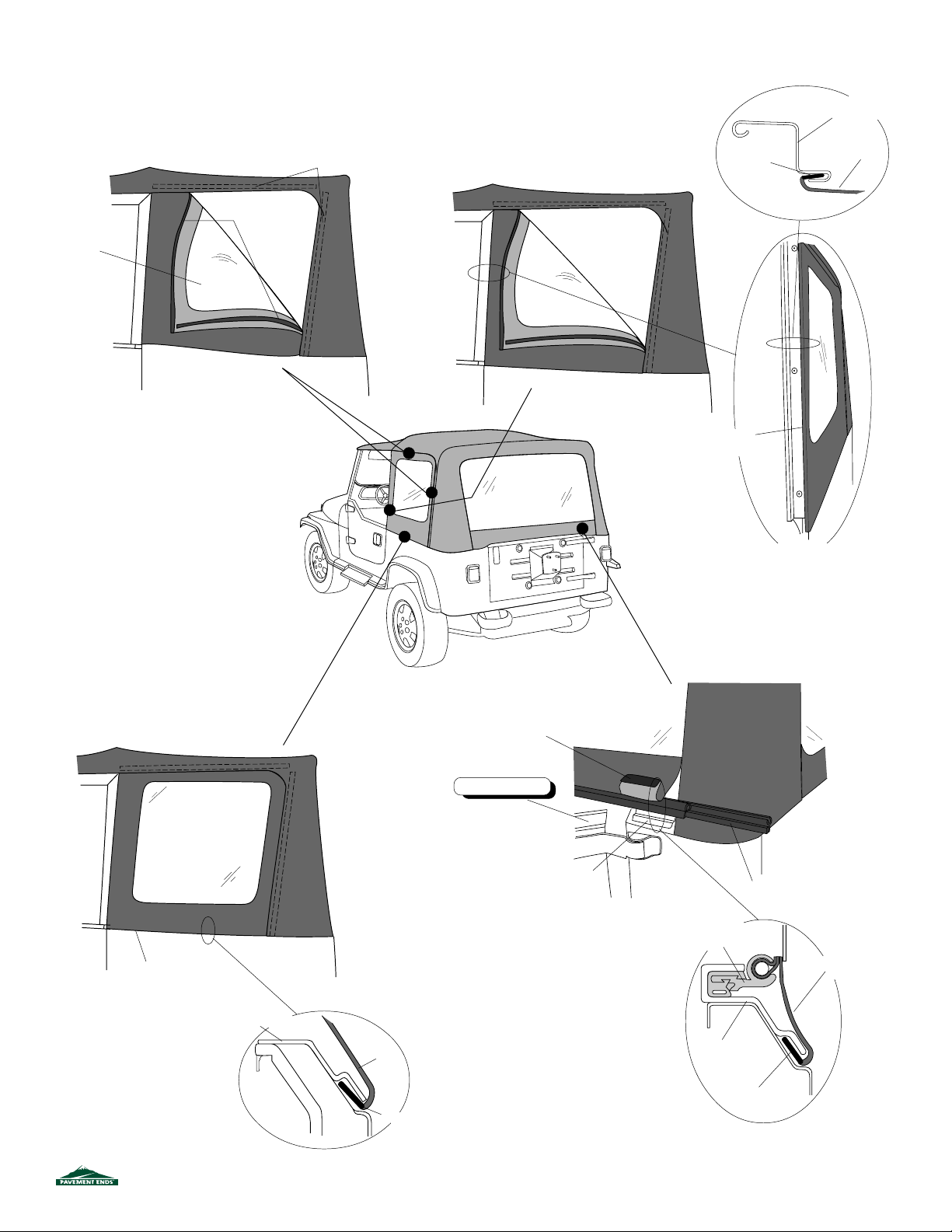

Step Seven
Start the zippers 2-3 inches on the
top and rear of the side curtain.
Zippers under flaps
Step Eight
Pop the plastic strip on the front of
the side curtain into the retainer
channel on the front support bow.
Cross Section View
Looking Down
Plastic Strip
Retainer
Channel
Fabric
Start top and rear
zippers
Side Curtain
Step Nine
Slip the plastic strip on the bottom of
the side curtain into the side retainer.
Close the top and rear zippers on the
side curtain.
Slip Plastic Strip into
Tailgate Retainer
Rear Curtain
Plastic Strip into
Retainer Channel
Outside of vehicle
View of Side Curtain
from Front
Tailgate must be open
Tailgate Retainer
Rear Curtain
Retainer
Start at one end of the strip
and work along it to the
other end.
Side Retainer
Step Ten
Open the tailgate. Slide the rear
curtain retainer onto the bottom of
the rear curtain. Close the rear
curtain zippers. Push the rear
curtain retainer into the top of the
tailgate retainer. Slip the plastic on
Fabric
the bottom of the corners under the
Tailgate Retainer
bottom of the tailgate retainer.
Plastic Strip
Plastic Strip
51130 pg 4
Slide Rear Curtain Retainer onto
Rear Curtain. Push Rear Curtain
Retainer into top of Tailgate
Retainer.
Rear Curtain Retainer
Rear Curtain Fabric
Rev. D 0204
Page 5

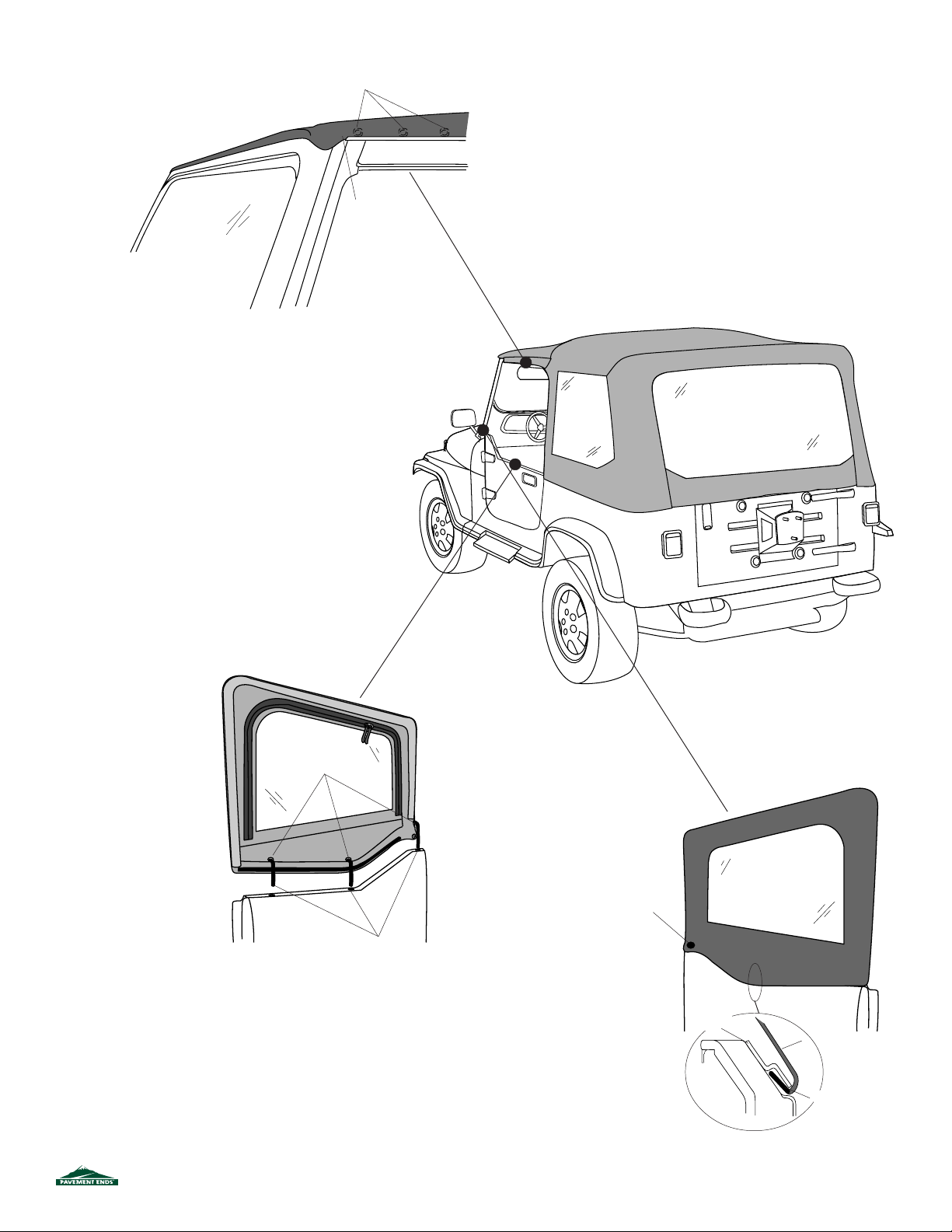

Step Eleven
Fasten snaps on top, above doors, to studs on
vehicle. Studs will slide to match location of
snaps on top.
Snaps
Front of Vehicle
Windshield
Tuck edge of fabric into
drip rail.
Step Thirteen
Separate the hook and loop fasteners on the door covers
and slide the new cover onto the frame, starting at the
top. Work from corner to corner, wrapping the fabric
around the frame and fastening the hook to the loop as
you work around the door.
Step Twelve
Unfasten the plastic retainer at the bottom of the fabric door
and remove it from the vehicle. Use a razor knife to cut the
stitches on the old door covers and remove them from the
door frames.
Step Fourteen
Reinstall the upper doors.
Insert the pins into the
grommets in the lower
door.
51130 pg 5
Pins
Grommets
Snap to Door
Step Fifteen
Fasten the snap at front of upper
door. Slip plastic strip on the
bottom of the soft door into the
retainer on the steel door.
Door
Retainer
Fabric
Plastic Strip
Rev. D 0204
Page 6
Care and Maintenance of your New Top
Your top is made of the finest materials available. To keep it looking new and for the
maximum possible wear, it will need periodic cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle
brush. Rinse with clear water to remove all traces of soap.

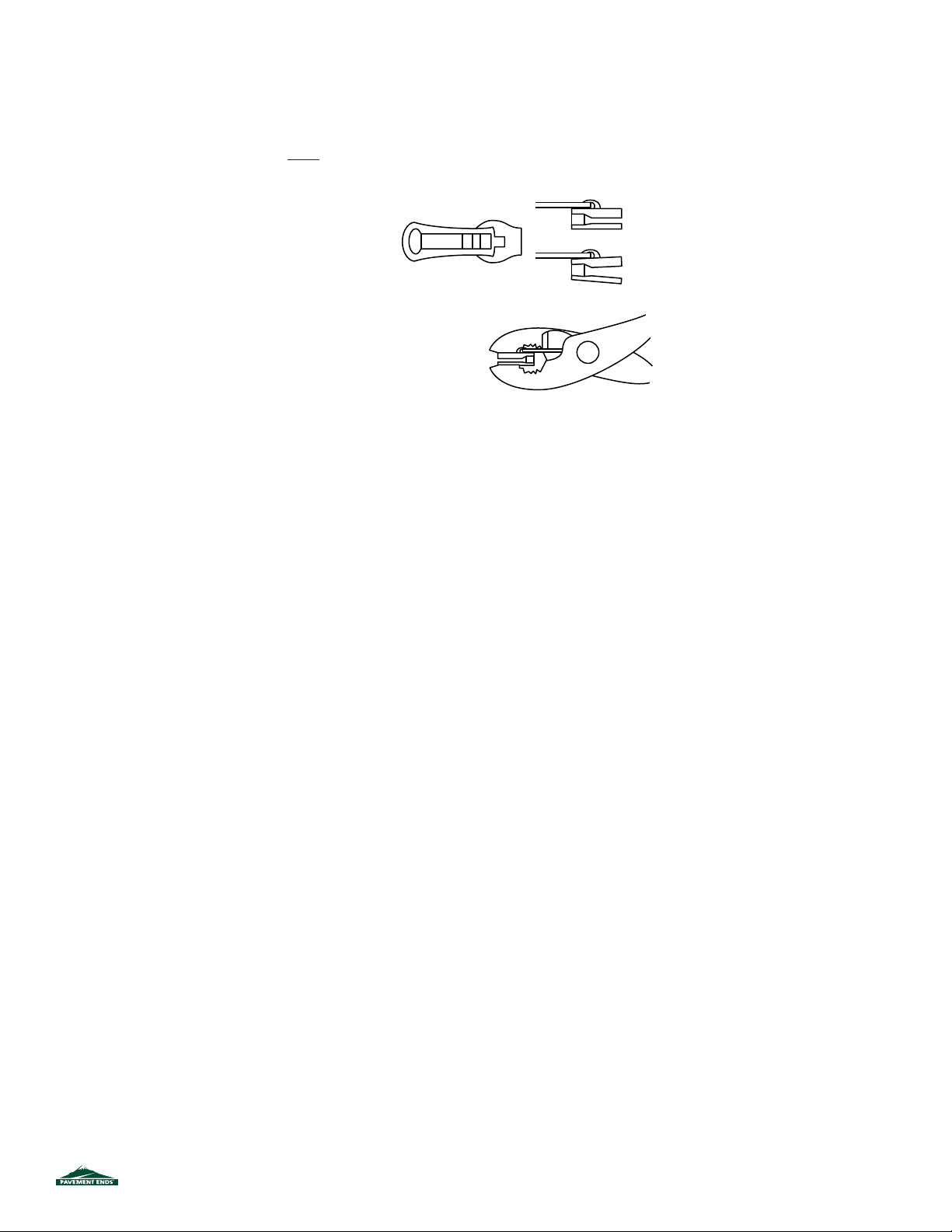

Zippers: Keeping the zipper cleaned and
lubricated with a silicone
Normal Slider Jaws Parallel
lubricant will help prevent
damage and keep the zippers
in a smooth working condition.
If a zipper opens behind the slider, the slider
Damaged Slider Jaws Spread Apart
(sometimes broken)
may have been spread apart. This problem
can usually be repaired by using an ordinary
pair of pliers to bring the sides back into
parallel. Return slider to the end of the zipper
in the normal Open position. Squeeze lightly
at first and test the zipper. If the zipper
continues to remain open squeeze more
firmly with the pliers and try the zipper again. Repeat this procedure until the zipper
operates correctly.
Water: In the event of seeping through the seams, 3M Scotchgard® may be applied on the
inside of the seams to stop the seepage. Rips in the fabric may be repaired with Bondex®
iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex®
instructions.
Snaps: Keep snaps cleaned and lubricated with silicone to help prevent snaps from sticking
to the studs. If a snap does become stuck to a stud, use a screwdriver and GENTLY pry
apart to prevent permanent damage to the snap or the top fabric.
Windows: Keep windows clean to avoid scratching. DO NOT use a brush on the windows!
Wash with a water soaked cloth or sponge and a mild dish washing detergent. NEVER WIPE
THE WINDOWS WHEN THEY ARE DRY. Be careful when cleaning snow or frost from the
vinyl windows since they are easily scratched and may crack at low temperatures. DO NOT
roll the sides or rear window in cold weather. The windows become stiff and will crack.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specified below, provided there has been normal use and
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specified.
If you have a warranty claim, first you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, fire, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
*All or a portion of this product may be made in China.
51130 pg 6
Rev D 0204
