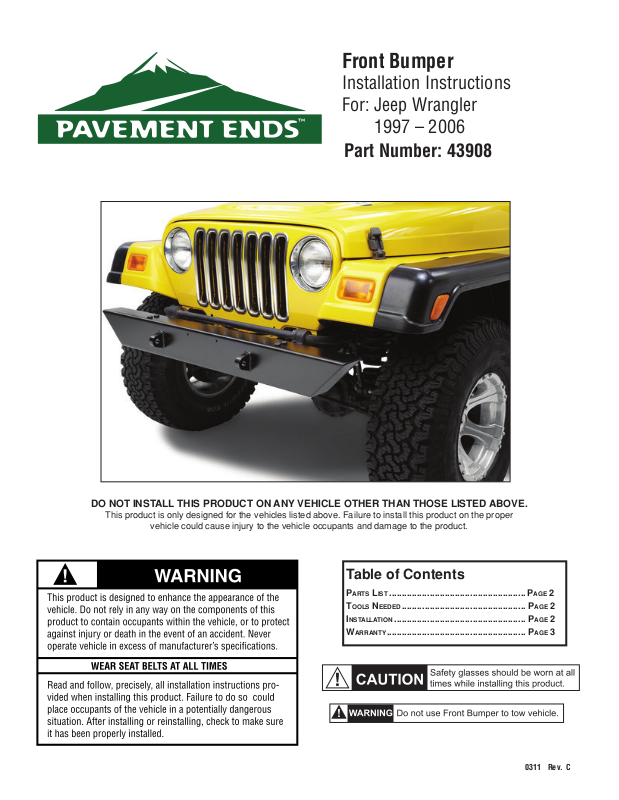

Page 1
Front Bumper
Installation Instructions
For: Jeep Wrangler
1997 – 2006
Part Number: 43908
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 3
43908 pg 1
0311 Rev. C
Page 2
Parts List
Front Bumper, Part
Number 479.14, Qty - 1
Ratchet
Tools Needed
19mm Sockets
T55 Torx Socket
3/16" Allen Wrenches
Safety Glasses
Step One
REMOVE THE ORIGINAL BUMPER
Use a socket wrench with an T55 Torx Socket to remove the
two (2) bolts on the top of the bumper on each side, four (4)
bolts altogether. When these are removed, use a 19mm socket to remove the bolt underneath the bumper on each side.
Set these bolts aside to be used to install the Front Bumper.
Bumper
Bumper
Two or more
people may be
required to lift the bumper safely.
Remove Torx
Bolts
Remove 19mm
Bolt
Step Two
INSTALL BUMPER
Lift the Front Bumper Assembly onto the
front frame rails on the vehicle. Reinstall
the hardware that was removed in Step 1.
43908 pg 2
0311 Rev. C
Page 3
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for terms specifi ed below, provided
there has been normal use and proper mainte nance. This warranty applies to the original purchaser only. All
remedies under this warranty are limited to the repair or replacement of any item or items found by the factory to
be defective within the time period specifi ed.
If you have a warranty claim, fi rst you must call our factory at the number below for instructions. You must retain
proof of purchase and submit a copy with any items returned for warranty work. Upon completion of warranty
work, if any, we will return the repaired or replaced item or items to you freight prepaid. Damage to our products
caused by accidents, fi re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective parts not
manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “GOODS” MANUFACTURED BY OUR COMPANY: ONE
YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE
CREATED HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS
WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
For further information, please contact: Customer Service
877-638-9509
43908 pg 3
All or a portion of this product may have been made in China.
0311 Rev. C
