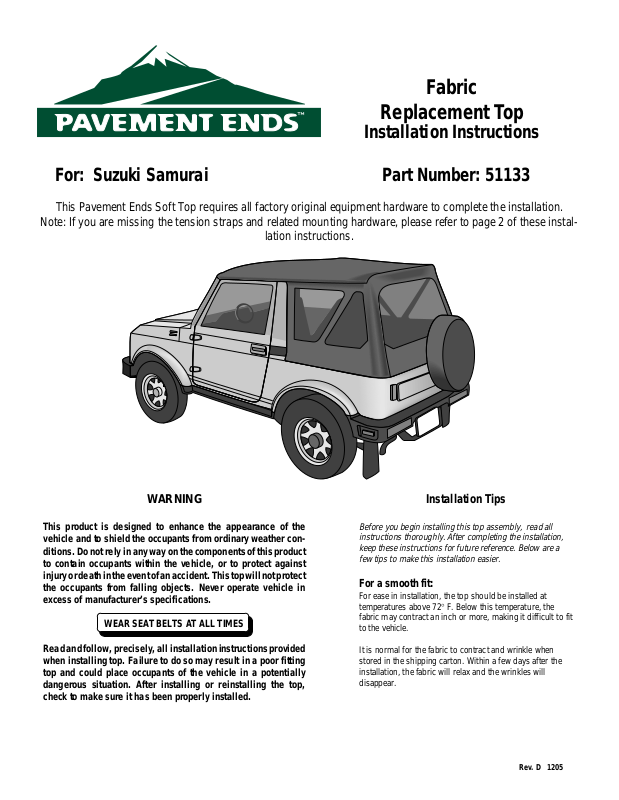

Fabric
Replacement Top
Installation Instructions
For: Suzuki Samurai Part Number: 51133
This Pavement Ends Soft Top requires all factory original equipment hardware to complete the installation.
Note: If you are missing the tension straps and related mounting hardware, please refer to page 2 of these instal-
lation instructions.
WARNING
This product is designed to enhance the appearance of the
vehicle and to shield the occupants from ordinary weather conditions. Do not rely in any way on the components of this product
to contain occupants within the vehicle, or to protect against
injury or death in the event of an accident. This top will not protect
the occupants from falling objects. Never operate vehicle in
excess of manufacturer’s specifications.
WEAR SEAT BELTS AT ALL TIMES
Read and follow, precisely, all installation instructions provided
when installing top. Failure to do so may result in a poor fitting
top and could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling the top,
check to make sure it has been properly installed.
51133 pg 1
Installation Tips
Before you begin installing this top assembly, read all
instructions thoroughly. After completing the installation,
keep these instructions for future reference. Below are a
few tips to make this installation easier.
For a smooth fit:
For ease in installation, the top should be installed at
temperatures above 72° F. Below this temperature, the
fabric may contract an inch or more, making it difficult to fit
to the vehicle.
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after the
installation, the fabric will relax and the wrinkles will
disappear.
Rev. D 1205
Page 2
Parts List
Fabric Top Qty - 1
Safety glasses should be worn at all times
CAUTION
while installing this product.

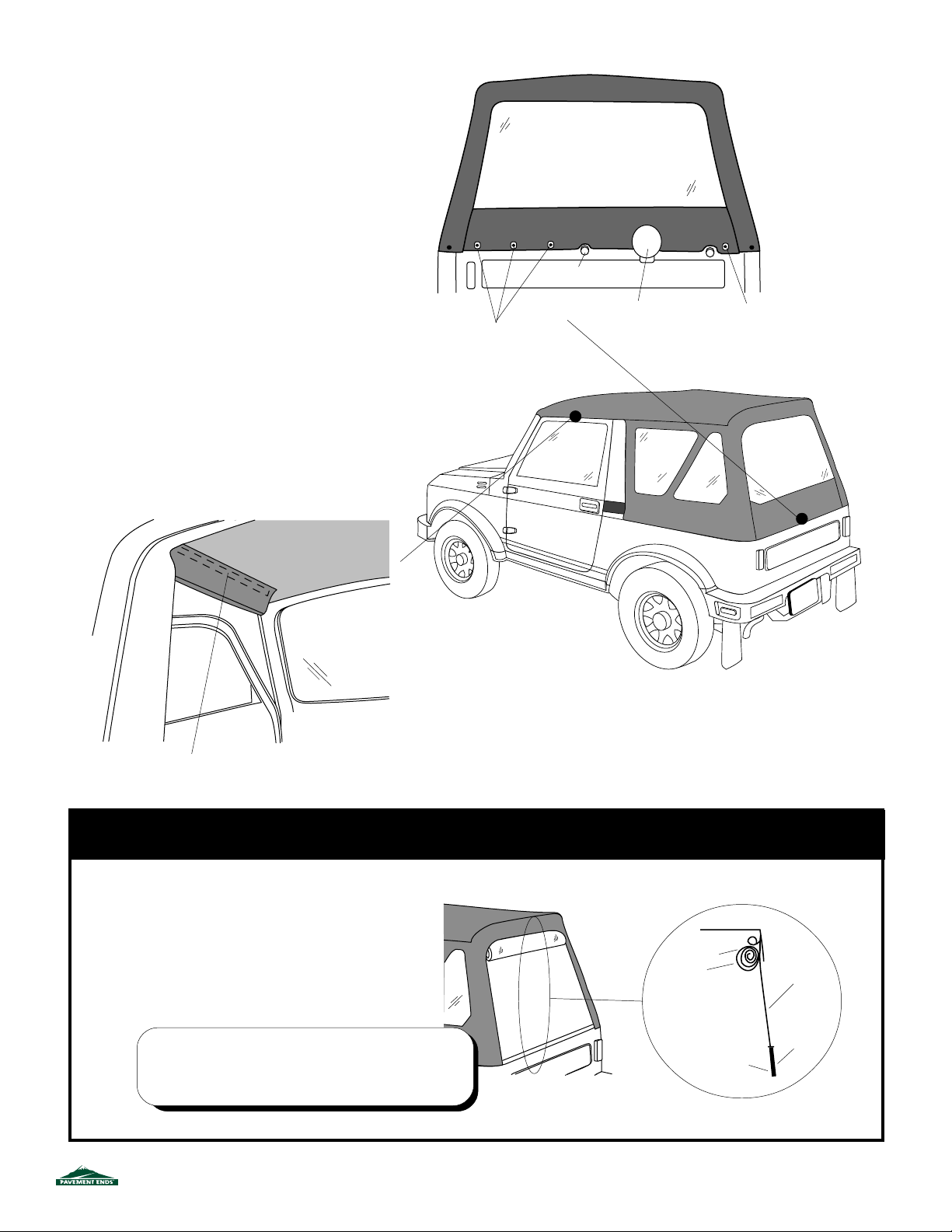

Step One
Orient the top with the two snaps toward the front of the
vehicle. Drape it over the vehicle. Open the hook and loop
flaps over the doors. Snap the front snaps to the vehicle.
Center the plastic strip and slip only the plastic into the
channel along the top of the windshield.
Step Two
Drape the top over the rear bow. Slide the front edges of the
side panels into the channel on the rear of the Sport Bar.
Slide fr ont edge of Sid e
Panel into channel on
Sport Bar
Slip pla stic str ip into retainer
Windshie ld
Snap to vehicle
Open Flaps
51133 pg 2
Rev. D 1205
Page 3

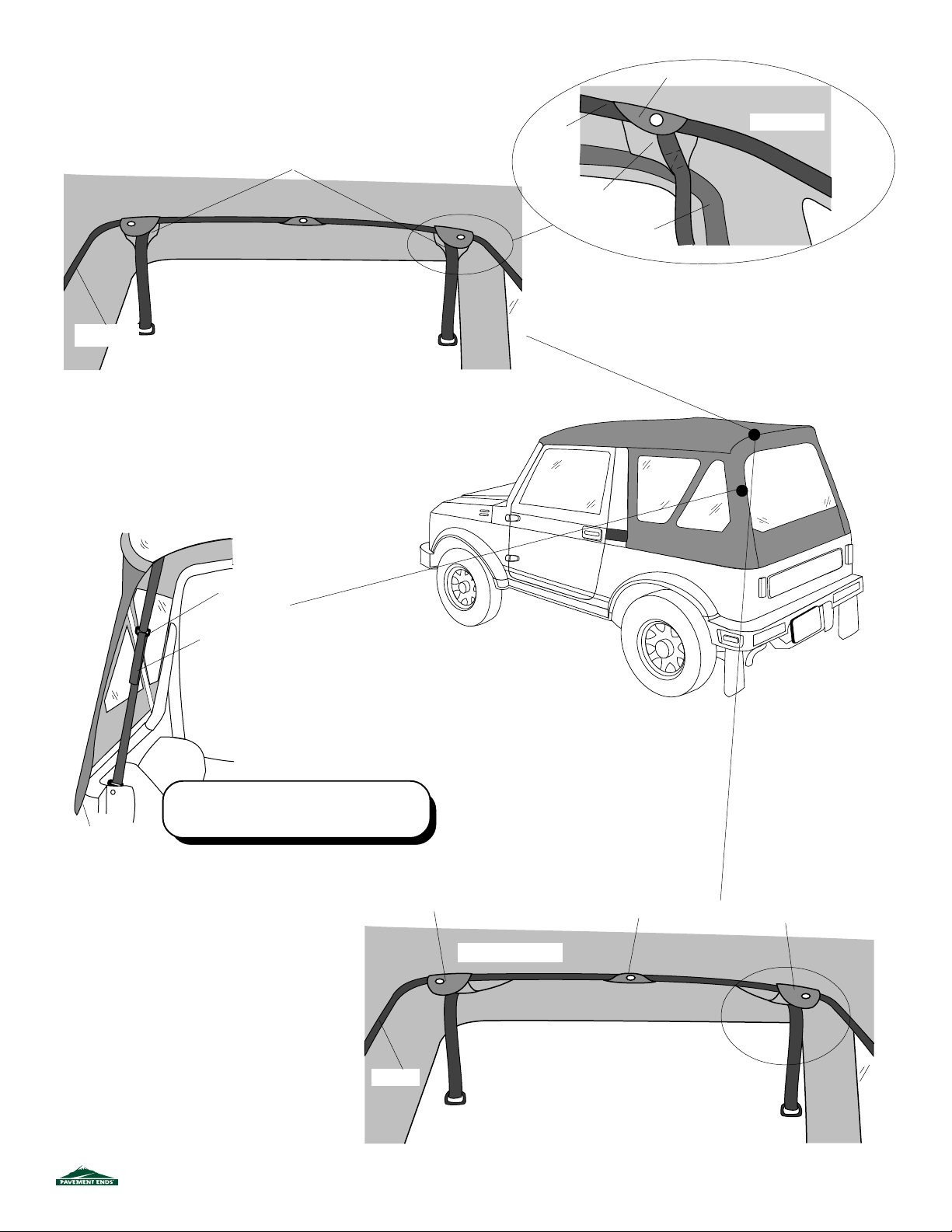

Step Three
Make sure that the straps sewn into the rear of the
top are behind the rear bow.
Straps must be
behind bow
Rear Bow
Strap tab must be
behind bow
Zipper
Snap tab
Inside of Vehicle
Rear Bow
View from inside vehicle
Step Four
Thread the Tension Strap through the loop on the
strap sewn into the rear of the top. Pull the strap tight
and secure it in place with the hook and loop sewn to
the strap.
Rear Curtain folded up over
top
Thread Strap
through loop
Fasten the end of the
strap back on itself
Inside of Vehicle
Note: Pull the strap tight. Do not put excessive
downward pressure on this rear strap. It is not
Left Rear Corner
designed to pull the bow assembly downward.
Step Five
Snap the top to the rear bow. The center snap
flap will wrap around the bow from behind and
the two outer snap flaps will wrap around the
bow from the front.
51133 pg 3
Snap from front
Rear Bow
View from inside vehicle
Snap from back
Snap from front
Rev. D 1205
Page 4
Step Six
Snap the snaps on the bottom of the side
panels from front to back.
Rear Curtain
Rear
Fasten the bottom of the Rear Curtain to the
Lift-A-Dots on the rear of the vehicle.
Step Seven
Wrap flaps around door frames and
attach hook strips to loop strips.
Front
Lift-A-Dots
Spare Tire Bumper
Spare Tire Carrier
Lift-A-Dot
View from Inside Top
Wrap flap around door frame
and fasten hook and loop
Adjusting the Top
Rear Curtain
To roll up the Rear Curtain, start at the bottom and roll it
to the inside. Avoid wrinkles in the fabric and window.
Secure it in place with the curtain straps inside of the top.
WARNING: When operating the vehicle with the
rear window open, one or more door windows
should be open for proper ventilation.
51133 pg 4
Detail of Rear
Curtain
Curtain Up
Strap
Curtain Down
Rear Window
Fabric
Side View
Rev. D 1205
Page 5
Care and Maintenance of your New Top
Your top is made of the finest materials available. To keep it looking new and for the
maximum possible wear, it will need periodic cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle
brush. Rinse with clear water to remove all traces of soap.

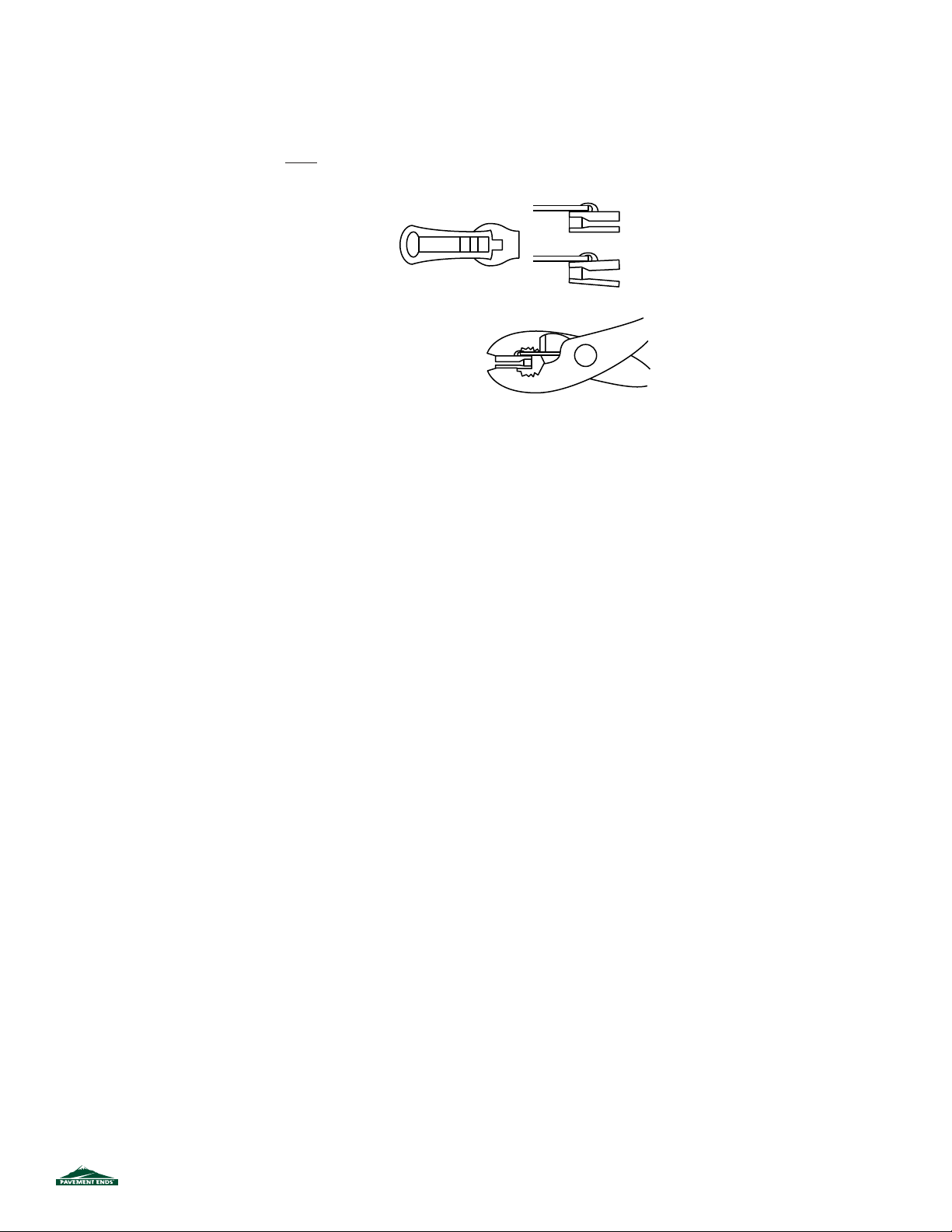

Zippers: Keeping the zipper cleaned and
lubricated with a silicone
Normal Slider Jaws Parallel
lubricant will help prevent
damage and keep the zippers
in a smooth working condition.
If a zipper opens behind the slider, the slider
Damaged Slider Jaws Spread Apart
(sometimes broken)
may have been spread apart. This problem
can usually be repaired by using an ordinary
pair of pliers to bring the sides back into
parallel. Return slider to the end of the zipper
in the normal Open position. Squeeze lightly
at first and test the zipper. If the zipper
continues to remain open squeeze more
firmly with the pliers and try the zipper again. Repeat this procedure until the zipper
operates correctly.
Water: In the event of seeping through the seams, 3M Scotchgard® may be applied on the
inside of the seams to stop the seepage. Rips in the fabric may be repaired with Bondex®
iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex®
instructions.
Snaps: Keep snaps cleaned and lubricated with silicone to help prevent snaps from sticking
to the studs. If a snap does become stuck to a stud, use a screwdriver and GENTLY pry
apart to prevent permanent damage to the snap or the top fabric.
Windows: Keep windows clean to avoid scratching. DO NOT use a brush on the windows!
Wash with a water soaked cloth or sponge and a mild dish washing detergent. NEVER WIPE
THE WINDOWS WHEN THEY ARE DRY. Be careful when cleaning snow or frost from the
vinyl windows since they are easily scratched and may crack at low temperatures. DO NOT
roll the sides or rear window in cold weather. The windows become stiff and will crack.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specified below, provided there has been normal use and
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specified.
If you have a warranty claim, first you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, fire, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
*All or a portion of this product may be made in China.
51133 pg 5
Rev. D 1205
