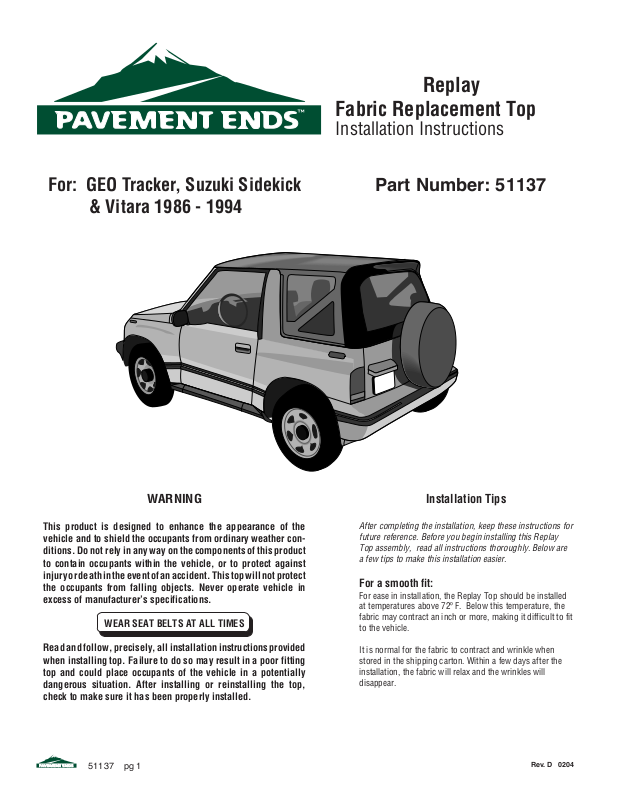

Page 1
Replay
Fabric Replacement Top
Installation Instructions
For: GEO Tracker, Suzuki Sidekick Part Number: 51137
& Vitara 1986 - 1994
WARNING
This product is designed to enhance the appearance of the
vehicle and to shield the occupants from ordinary weather conditions. Do not rely in any way on the components of this product
to contain occupants within the vehicle, or to protect against
injury or death in the event of an accident. This top will not protect
the occupants from falling objects. Never operate vehicle in
excess of manufacturer’s specifications.
WEAR SEAT BELTS AT ALL TIMES
Read and follow, precisely, all installation instructions provided
when installing top. Failure to do so may result in a poor fitting
top and could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling the top,
check to make sure it has been properly installed.
51137 pg 1
Installation Tips
After completing the installation, keep these instructions for
future reference. Before you begin installing this Replay
Top assembly, read all instructions thoroughly. Below are
a few tips to make this installation easier.
For a smooth fit:
For ease in installation, the Replay Top should be installed
at temperatures above 72º F. Below this temperature, the
fabric may contract an inch or more, making it difficult to fit
to the vehicle.
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after the
installation, the fabric will relax and the wrinkles will
disappear.
Rev. D 0204
Page 2
Parts Kit
Top Fabric Assembly Qty - 1
Rear Curtain (Window) Qty - 1
Step One
Unlock the windshield retainer and
open it back.
Sun Visor
Windshield Retainer
Push buttons on windshield latch to
release windshield retainer
Note: Before beginning this installation,
remove the old top. Keep the white
fiberglass rod from the old top for use
in Step 10.
Step Two
With the bow up and the hardware in place, drape the top over the
hardware. Hook the five clips on the front of the top into the slots
in the windshield header.
Hook clips into slots in
windshield header
Step Three
Snap the five snaps on the inside of
the top to the studs on the rear bow.
Rear Bow
View from inside top
51137 pg 2
Snap to rear
bow
The stop on the plastic clip, sewn to the top,
must line up with the edge of the Rear Corner
Retainer.
Rear Corner Retainer
Slip plastic clip under
retainer
Step Four
Locate the plastic clips sewn into each rear corner of the top. Pull down and
back on the top fabric and slip them into the space under the plastic corner
retainer attached to the vehicle. The stop on the inside edge of the plastic clip
on the top should line up with the inside edge of the retainer.
Rev. D 0204
Page 3
Step Five
Pull the Side Window Retainer away from the vehicle body. Slip
the Side Window of the top over the retainer. Separate the hook
and loop sewn along the front edge of the Side Window, slide the
retainer into place and fasten the hook and loop together around
it. Then fit the corner of the retainer into place and fasten the hook
and loop sewn along the bottom of the panel around the retainer.
Note: To open Side Window Retainer,
pull out and up on the retainer to release
it from the clip mounted to the body.
Wrap flap around retainer and fasten
loop strip to hook strip
Slip retainer into corner of
Side Panel
Wrap flap around retainer and
fasten loop strip to hook strip

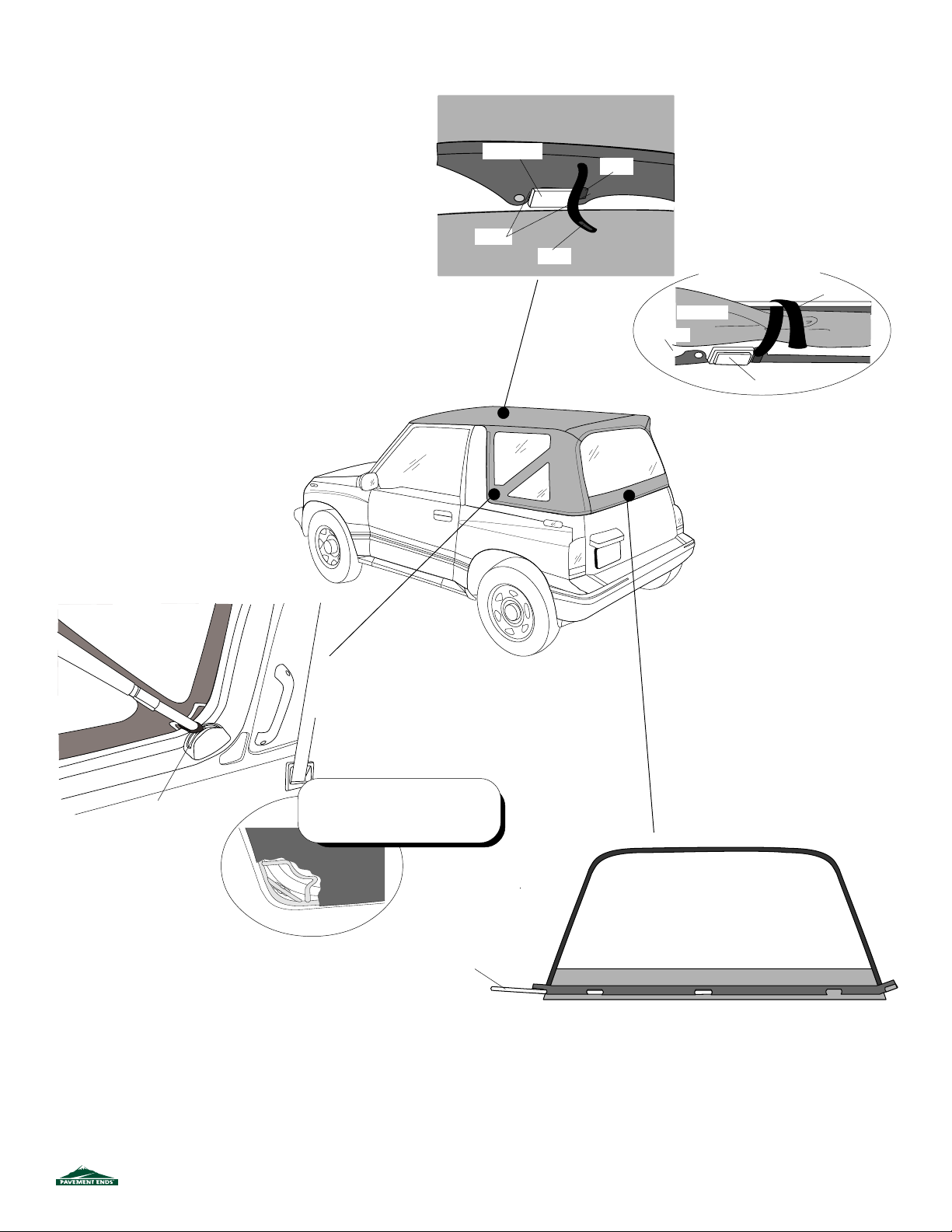

Step Six
Locate the straps, sewn to each side of
the top, above the doors. Without
twisting the straps, thread them through
the loops on the tension assembly. Pull
the end of the strap back and snap it to
itself.
51137 pg 3
Tension Loop
Tension Assembly
Front
Snap strap to itself
Do not twist strap when
threading through loop
Rev. D 0204
Page 4
Step Seven
Pull the windshield retainer down and fasten the snaps
inside the top to the studs on the center bar.
The hook and loop strap is to hold the windshield
retainer securely when the sun roof is open. To use the
sun roof, unlock the windshield retainer from the
windshield and open it back, folding the fabric top
underneath. Locate the small slot in the center of the
windshield retainer. Slip the strap through the slot and
fasten the hook to the loop sewn to the center flap.

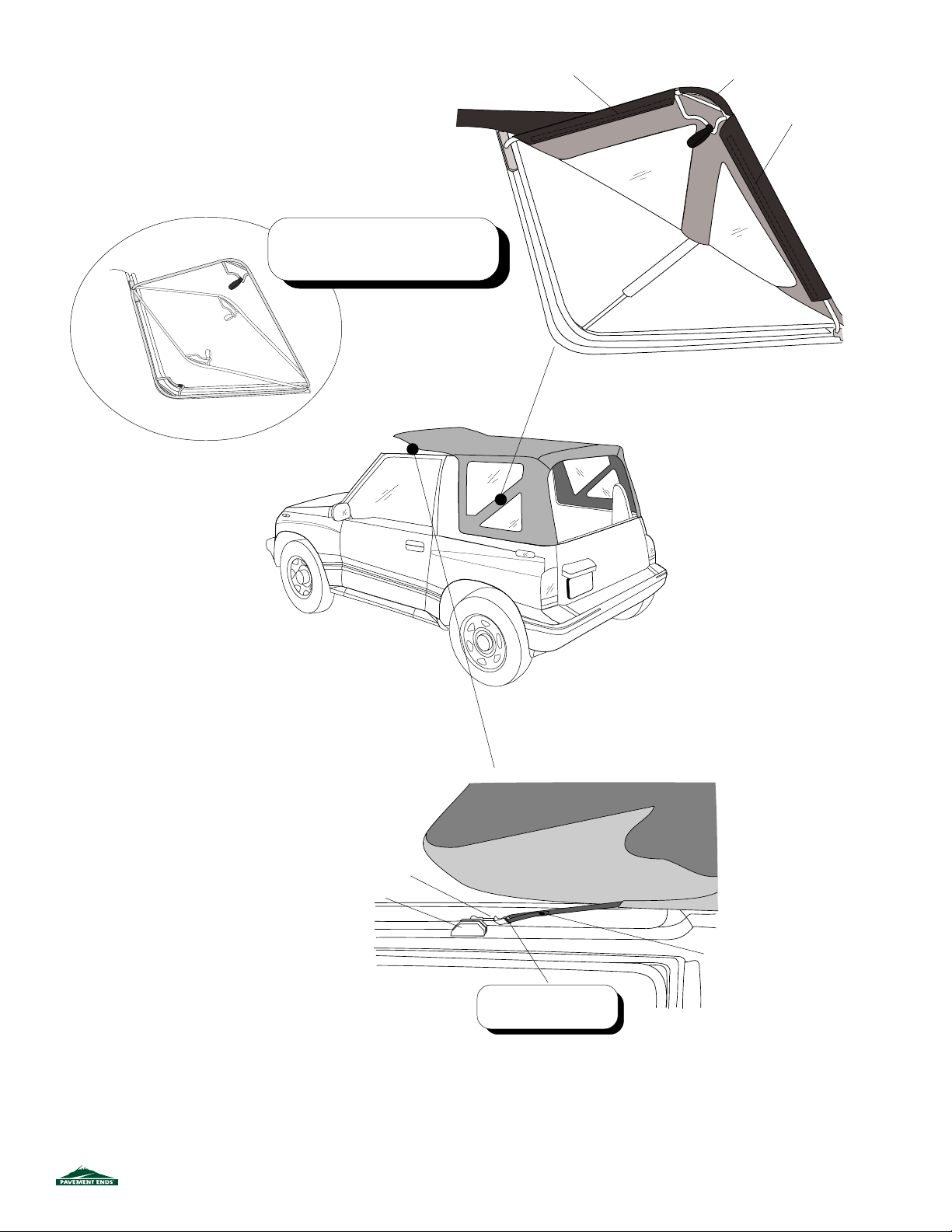

Step Eight
Clip the Side Panel Retainer to the
bracket on the vehicle. Wrap the web
strap on the retainer around the bow
and snap the strap to itself.
Rear
Front
Dome Light
Loop
Center Bar
Snaps
Hook
Sun Roof Open
Strap
Top Fabric
Center Bar
Dome Light
View from inside
vehicle
Wrap web strap around bow
and snap to itself
Step Nine
Close and latch the Windshield
Retainer securely in place.
Note: To close Side Panel Retainer,
push the retainer into the clip
mounted to the body.
Rear Window Retainer Rod Slide into sleeve
Rear Window
Step Ten
Slip the white fiberglass rod from the original top into the sleeve
along the bottom of the Rear Window.
51137 pg 4
Rev. D 0204
Page 5

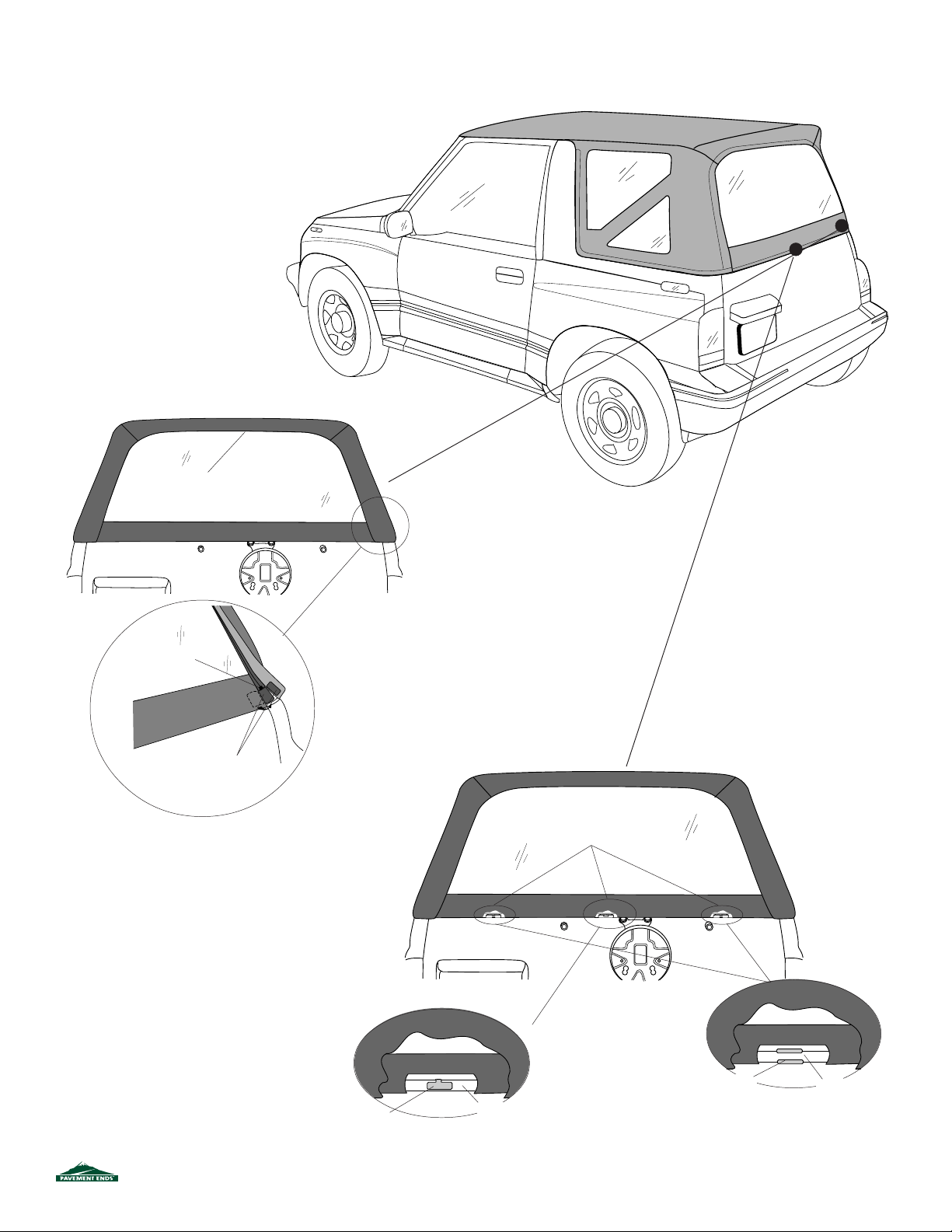

Step Eleven
Starting the zipper on the left hand side, close the zipper on
the Rear Window. Tuck the rod sleeve on the Rear Window
under the zipper. Pull the hook tab around from inside the
rear window, below the zipper, and attach it to the loop sewn
to the inside of the side panels.
Close Zipper
Tuck Rod Strip
under zipper
Fasten Hook and Loop Strips to
each other
Step Twelve
Hook the Rear Window Retainer Rod into
the center bracket on the tailgate and then
into the bracket on each side of the tailgate.
Detail of Rear Window Retainer
Rod into center tailgate bracket
Center
Bracket
Rear Window
Retainer Rod
Hook Rear Window Retainer Rod
into clips on tailgate
Detail of Rear Window Retainer
Rod into side tailgate brackets
Side Bracket
Rear Window
Retainer Rod
51137 pg 5
Rev. D 0204
Page 6
Care and Maintenance of your New Top
Your top is made of the finest materials available. To keep it looking new and for the
maximum possible wear, it will need periodic cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle
brush. Rinse with clear water to remove all traces of soap.

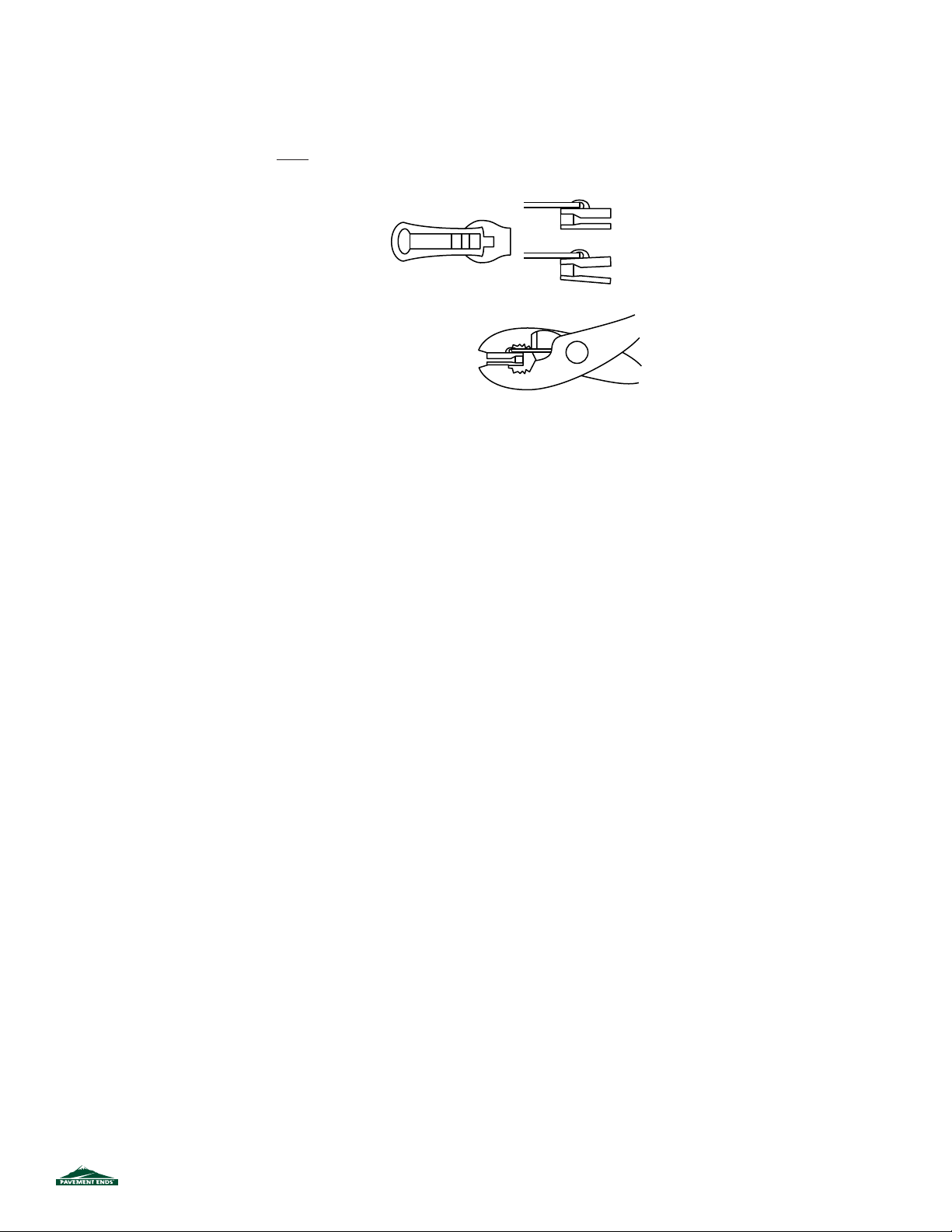

Zippers: Keeping the zipper cleaned and
lubricated with a silicone
Normal Slider Jaws Parallel
lubricant will help prevent
damage and keep the zippers
in a smooth working condition.
If a zipper opens behind the slider, the slider
Damaged Slider Jaws Spread Apart
(sometimes broken)
may have been spread apart. This problem
can usually be repaired by using an ordinary
pair of pliers to bring the sides back into
parallel. Return slider to the end of the zipper
in the normal Open position. Squeeze lightly
at first and test the zipper. If the zipper
continues to remain open squeeze more
firmly with the pliers and try the zipper again. Repeat this procedure until the zipper
operates correctly.
Water: In the event of seeping through the seams, 3M Scotchgard® may be applied on the
inside of the seams to stop the seepage. Rips in the fabric may be repaired with Bondex®
iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex®
instructions.
Snaps: Keep snaps cleaned and lubricated with silicone to help prevent snaps from sticking
to the studs. If a snap does become stuck to a stud, use a screwdriver and GENTLY pry
apart to prevent permanent damage to the snap or the top fabric.
Windows: Keep windows clean to avoid scratching. DO NOT use a brush on the windows!
Wash with a water soaked cloth or sponge and a mild dish washing detergent. NEVER WIPE
THE WINDOWS WHEN THEY ARE DRY. Be careful when cleaning snow or frost from the
vinyl windows since they are easily scratched and may crack at low temperatures. DO NOT
roll the sides or rear window in cold weather. The windows become stiff and will crack.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specified below, provided there has been normal use and
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specified.
If you have a warranty claim, first you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, fire, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
*All or a portion of this product may be made in China.
51137 pg 6
Rev. D 0204
