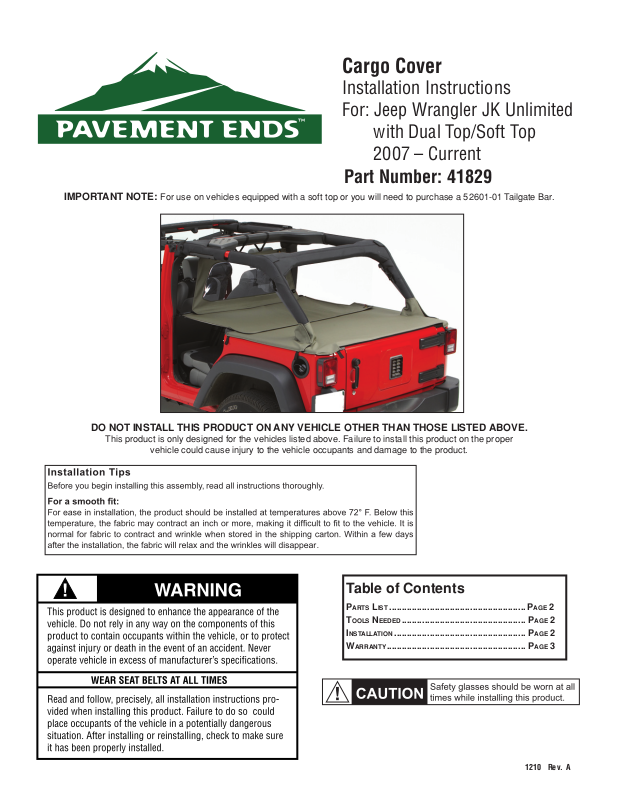

Pavement Ends 41829 User Manual

Cargo Cover

Installation Instructions
For: Jeep Wrangler JK Unlimited
with Dual Top/Soft Top
2007 – Current

Part Number: 41829

IMPORTANT NOTE: For use on vehicles equipped with a soft top or you will need to purchase a 52601-01 Tailgate Bar.

DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.

This product is only designed for the vehicles listed above. Failure to install this product on the proper

vehicle could cause injury to the vehicle occupants and damage to the product.

Table of Contents

PARTS LIST ...................................................... PAGE 2

TOOLS NEEDED ................................................. PAGE 2

NSTALLATION .................................................... PAGE 2

I
W

ARRANTY ....................................................... PAGE 3

41829 pg 1

1210 Rev. A

Parts List

Cargo Cover Qty - 1

Step One

REMOVE SOFT TOP

Remove the soft top and hardware. Set
the Tailgate Bar aside to be used to
install the Cargo Cover.

Step Two

SECURE CARGO COVER WITH EXTENSION TO CAB CURTAIN ­OPTIONAL

If you have a Cab Curtain on your vehicle, slide the
plastic hook inside the bottom of the Cab Curtain
onto the plastic hook along the front of the Cargo
Cover.

Step Three

INSTALL TAILGATE BAR

Slide the "C" channel on the Tailgate Bar onto the
tubed strip sewn to the rear of the Cargo Cover.
Insert the Tailgate Bar into the mounts on each
side of the tailgate opening.

Tailgate Bar

Cargo Cover

Tailgate Mount

Step Four

SECURE PLASTIC STRIPS

Roll the plastic strip on each side of the
Cargo Cover into the retainer channel on
the vehicle.

Slide Cab Cover on to
Cargo Cover

Cab Cover

Cargo Cover

Cargo Cover

Roll Plastic Strip
into Retainer

Step Five

SECURE REAR CORNERS

Roll the plastic strip on the
rear corners of the Cargo
Cover into the retainer
channel on the vehicle.

41829 pg 2

Cargo Cover

Roll Plastic into Rear
Corner Retainer

Step Six

SECURE COLLARS

Wrap the two (2) collars around the rear
sport bars, catching the rear seat belts,
and fasten the hook and loop strips to
each other.

Sport
Bar

Cargo Cover

Fasten Hook and Loop
Strips to each other

1210 Rev. A
