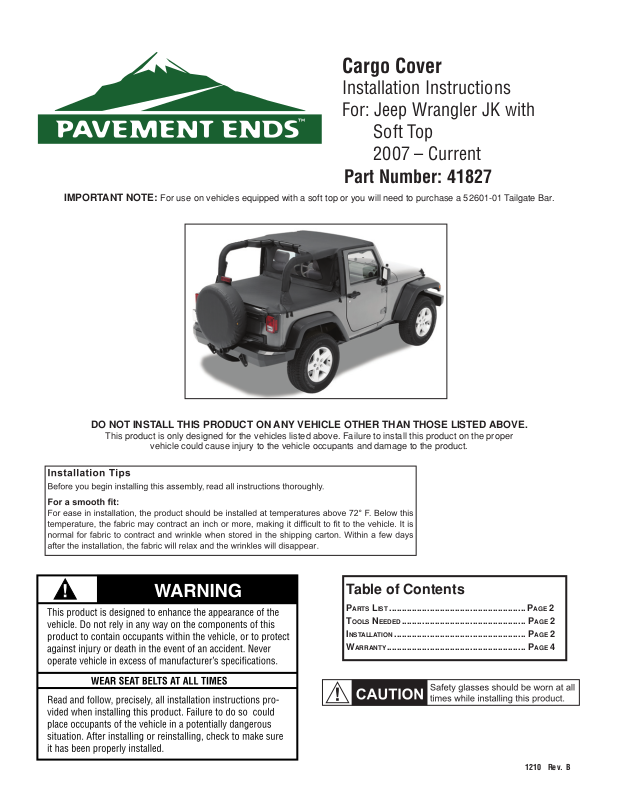

Pavement Ends 41827 User Manual

Cargo Cover

Installation Instructions
For: Jeep Wrangler JK with
Soft Top
2007 – Current

Part Number: 41827

IMPORTANT NOTE: For use on vehicles equipped with a soft top or you will need to purchase a 52601-01 Tailgate Bar.

DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.

This product is only designed for the vehicles listed above. Failure to install this product on the proper

vehicle could cause injury to the vehicle occupants and damage to the product.

Table of Contents

PARTS LIST ...................................................... PAGE 2

TOOLS NEEDED ................................................. PAGE 2

INSTALLATION .................................................... PAGE 2

WARRANTY ....................................................... PAGE 4

41827 pg 1

1210 Rev. B

Parts List

Cargo Cover Qty - 1
Seat Strap Qty - 1

Step Two

PLACE SEAT STRAP IN TRUNK

Open the trunk and lay the Seat Strap
across the bottom of the trunk.

Step Three

TUMBLE SEAT FORWARD

Fold the seat forward.

Seat

Step One

REMOVE SOFT TOP

Remove the soft top and hardware. Set the Tailgate
Bar aside to be used to install the Duster Deck Cover.

Open Trunk Lid

Seat
Strap

Trunk Lid (Closed)

View from Rear

Step Four

THREAD SEAT STRAP THROUGH CHILD SEAT
RESTRAINTS

Thread the end of the Seat Strap through
the child seat restraints and through the
buckle. Tighten the strap.

Seat

Thread Strap through Seat
Restraints and Buckle

Step Five

SECURE CARGO COVER TO CAB COVER – OPTIONAL

If you have a Cab Cover on your vehicle, zip the
Cargo Cover to the zipper under the flap on the
Cab Cover.

Cab Cover

Cargo Cover

Zip Cargo Cover to Cab Cover

View from Rear

41827 pg 2

1210 Rev. B
