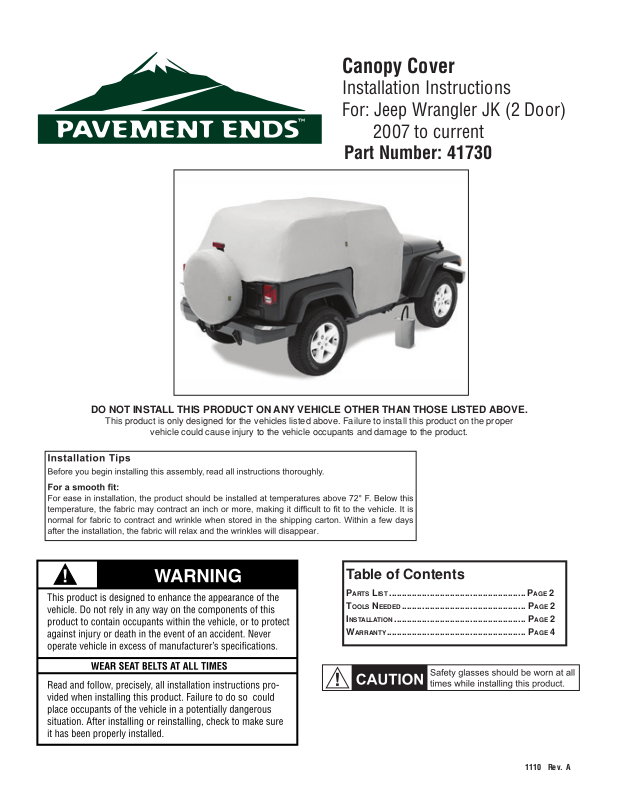

Pavement Ends 41730 User Manual
Canopy Cover
Installation Instructions
For: Jeep Wrangler JK (2 Door)
2007 to current
Part Number: 41730
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 4
41730 pg 1
1110 Rev. A
Canopy Cover Qty - 1
Stuff Sack Qty - 1
Step One
PREPARING THE VEHICLE
• Make certain that the vehicle engine
and all lights are turned off.
• Set the Emergency (Parking) Brake.
• Remove all personal possessions from
the vehicle
Step Two
PLACE CANOPY COVER ON VEHICLE
Orient the Canopy Cover with the Bestop label on the passenger's side. Fold in the mirrors on the doors. Drape the Canopy
Cover over the vehicle with the door extensions toward the front
of the vehicle.
Parts List
Step Three
SECURE SIDE STRAPS
Locate the two adjustable straps sewn on each
side of the Canopy Cover. Pull the straps down
and hook them to the bottom of the vehicle.
Make sure that the fabric fl ap inside the cover
lays fl at behind the lower grommet.
Pull the end of each strap to tighten the straps
so that the cover fi ts snugly on the vehicle.
Hook Straps to
Bottom of Vehicle
Pull Strap to
adjust Straps
Step Four
SECURE PLASTIC STRIPS –
OFT TOP VEHICLES ONLY
S
There are six (6) plastic strips sewn to each side
of the Canopy Cover. Slip them into the belt rail
retainer on the side of the vehicle.
If you have a Cargo Cover installed on
your vehicle, use only the adjustable
straps to hold the Canopy Cover in place.
Pull down gently
and slip plastic into
retainer
41730 pg 2
1110 Rev. A
