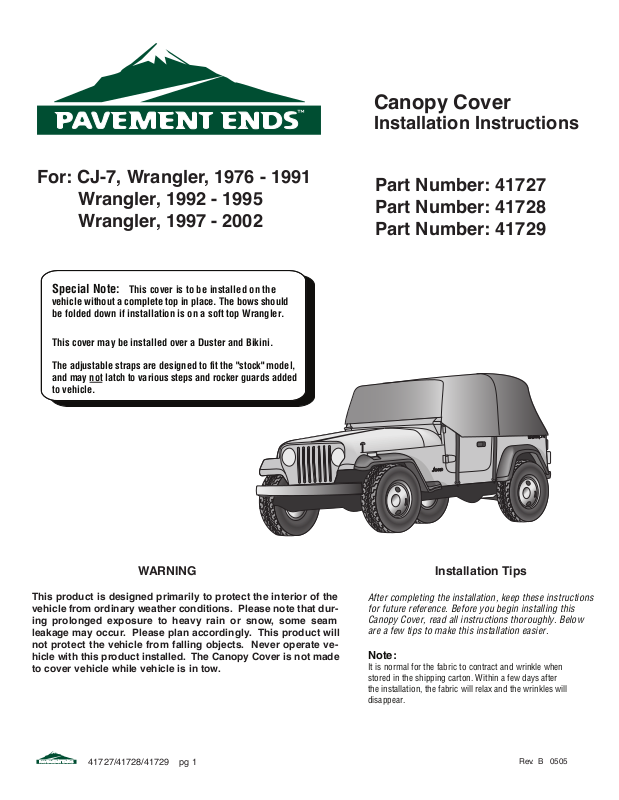

Pavement Ends 41727 User Manual
Canopy Cover
Installation Instructions
For: CJ-7, Wrangler, 1976 - 1991
Wrangler, 1992 - 1995
Wrangler, 1997 - 2002
Special Note:
vehicle without a complete top in place. The bows should
be folded down if installation is on a soft top Wrangler.
This cover may be installed over a Duster and Bikini.
The adjustable straps are designed to fit the "stock" model,
and may not latch to various steps and rocker guards added
to vehicle.
This cover is to be installed on the
Part Number: 41727
Part Number: 41728
Part Number: 41729
WARNING
This product is designed primarily to protect the interior of the
vehicle from ordinary weather conditions. Please note that during prolonged exposure to heavy rain or snow, some seam
leakage may occur. Please plan accordingly. This product will
not protect the vehicle from falling objects. Never operate vehicle with this product installed. The Canopy Cover is not made
to cover vehicle while vehicle is in tow.
41727/41728/41729 pg 1
Installation Tips
After completing the installation, keep these instructions
for future reference. Before you begin installing this
Canopy Cover, read all instructions thoroughly. Below
are a few tips to make this installation easier.
Note:
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after
the installation, the fabric will relax and the wrinkles will
disappear.
Rev. B 0505
Parts List
Canopy Cover Fabric Qty - 1
Step One
Orient the Canopy Cover with the large elastic loops
toward the back and the web straps on the sides.
Drape the Canopy Cover over the vehicle.
Step Two
Locate the two web straps sewn on each side of the
Canopy Cover. Pull the straps down and hook them
to the bottom of the vehicle. Tighten the straps by
pulling up the disengaged buckle. Secure the buckle
by flipping the tab of the buckle down.
Canopy Cover Installation
Preparing the Vehicle for Installation of the
• Make certain that the vehicle engine and all lights are turned off.
• Set the Emergency (Parking) Brake.
• Remove all personal possessions from the vehicle.
Snap- for 41728 only
attaches to the front
door.
Canopy Cover
For the late YJ model (41728) there is a snap located at
the front of the cover. This can be snapped to the front
door area of the vehicle to give additional security.
For ease of installation: Firmly hold web
and buckle up with one hand while engaging the buckle lever down with the other
Body of Vehicle
Web Straps Hook
to Bottom of Vehicle
Flip Tab Down
Web
Buckle
Slide Buckle Up
Metal Hook
41727/41728/41729 pg 2
Elastic Loops - Hook
around taillights
Elastic Strap - Hook
around tire carrier
Step Three
Locate the three elastic loops sewn to the rear of the
Canopy Cover (one small loop on each side of the
vehicle and one large loop in the center). Hook the two
outside loops around the taillights and hook the center
loop around the tire carrier.
Rev. B 0505
