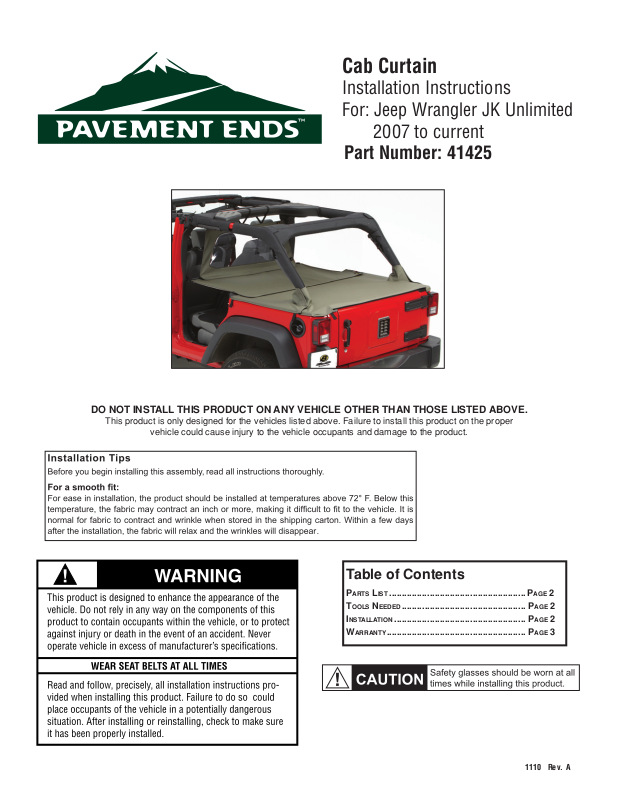

Pavement Ends 41425 User Manual

Cab Curtain

Installation Instructions
For: Jeep Wrangler JK Unlimited
2007 to current

Part Number: 41425

DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.

This product is only designed for the vehicles listed above. Failure to install this product on the proper

vehicle could cause injury to the vehicle occupants and damage to the product.

Table of Contents

PARTS LIST ...................................................... PAGE 2

T

OOLS NEEDED ................................................. PAGE 2

NSTALLATION .................................................... PAGE 2

I
W

ARRANTY ....................................................... PAGE 3

41425 pg 1

1110 Rev. A

Cab Curtain Qty - 1
Acorn Locknut, Part Number 427.11 Qty - 3
Snap Head Screw, Part Number 200.49 Qty - 3

Tools Needed

Parts List

Phillips Screwdriver
Chalk

Safety Glasses

Step Two

SECURE OUTSIDE STRAPS

Wrap the outside straps around the sport bar
to the outside and thread the ends through the
buckles.

Tighten all the straps.

To secure the loose end of the straps, roll the
ends, if necessary, and fasten the hook and loop.

Sport Bar

Step One

SECURE CENTER STRAPS

Orient the Cab Curtain with
the window toward the top
and with the vinyl side out.
Start with the center straps
and thread the end of each
strap around the sport bar
and through each buckle.
Loosely tighten each strap
to hold the Cab Curtain in
position.

Cab
Curtain

Thread Through
Buckles

Wrap Straps around
Sport Bar

Outside of Vehicle

Wrap Straps
around Sport Bar

Step Three – Optional

SECURE CARGO COVER TO CAB CURTAIN

If you have a Cargo Cover on your vehicle, slide
the plastic hook inside the bottom of the Cab
Curtain onto the plastic hook along the front of the

Cargo Cover.

Cab Curtain

Slide Cab Curtain on
to Cargo Cover

Cargo Cover

Push Snap Head
Screw through to
form a hole

Snap Head
Screw

Step Four – Optional

INSTALL SNAPS TO SECURE CARGO COVER TO CAB CURTAIN

Pull the fl ap on the rear of the Cab Curtain out over the top of
the front edge of the Cargo Cover.

Rub chalk on the snaps on the Cab Curtain fl ap. Pull up on the
front reinforced edge of the Cargo Cover and press the snaps
against the Cargo Cover to mark the locations.

At the marked locations, push the sharp end of a Snap Head
Screw through the Cargo Cover from the backing side and
through both layers of fabric, to make a hole. Once the hole
is formed, pull the screw back out of the hole. Then push the
screw through the hole from the vinyl side so that the snap is
on top of the vinyl. Install an Acorn Locknut over the pointed
end of the Snap Head Screw.

Fabric –
Backing Up

41425 pg 2

Acorn Locknut –
Under Fabric

Fabric –
Vinyl Up

1110 Rev. A
