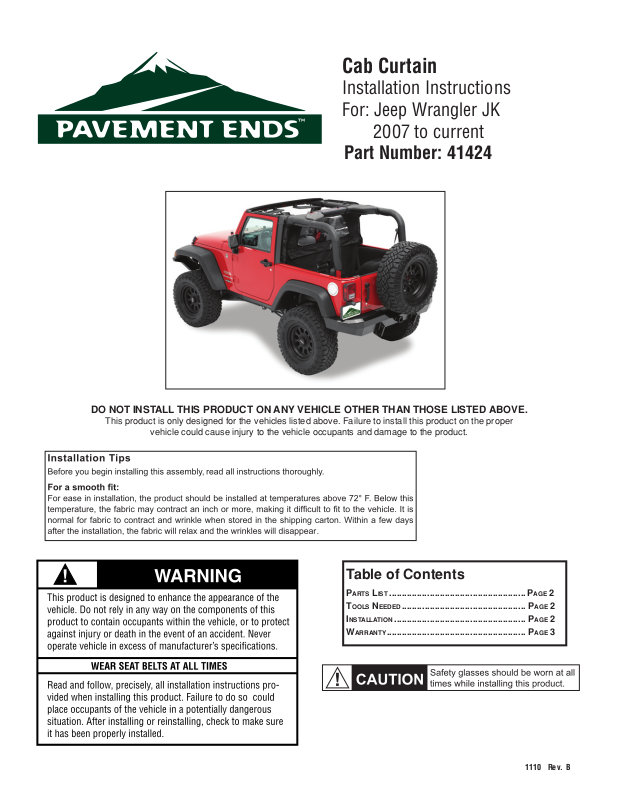

Pavement Ends 41424 User Manual

Cab Curtain

Installation Instructions
For: Jeep Wrangler JK
2007 to current

Part Number: 41424

DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.

This product is only designed for the vehicles listed above. Failure to install this product on the proper

vehicle could cause injury to the vehicle occupants and damage to the product.

Table of Contents

PARTS LIST ...................................................... PAGE 2

T

OOLS NEEDED ................................................. PAGE 2

NSTALLATION .................................................... PAGE 2

I
W

ARRANTY ....................................................... PAGE 3

41424 pg 1

1110 Rev. B

Cab Curtain Qty - 1

Parts List

Male Side Release Buckle,
Part Number 363.91 Qty - 4

Step Two

SECURE CAB CURTAIN TO TOP SPORT BAR

Orient the Cab Curtain with the window
toward the top and with the vinyl side
out. Start with the top straps and thread
the end of each strap around the sport
bar and through each buckle. Loosely
tighten each strap to hold the Cab
Curtain in position.

Step Three

SECURE CAB CURTAIN TO SIDE SPORT BARS

Thread the side straps loosely around
the side sport bars.

Step One

REMOVE SOFT TOP

Remove your soft top according to the manufacturer's instructions.

Sport Bar

Cab Curtain

Cab Curtain

Step Four

THREAD BUCKLES ON STRAPS

Thread the end of the 15" Buckle Straps
through the male half of each buckle.

Strap

Buckle

Step Five

SECURE CAB CURTAIN TO SEAT BRACKETS

Pull down gently on the fabric and thread the
straps through the back of the seat brackets.
Buckle the straps.

Tighten all straps.

Step Six – Optional

SECURE CAB CURTAIN TO CARGO COVER

If you have a Cargo Cover on your vehicle,
attach it to zipper under the fl ap on the Cab
Curtain.

Cab Curtain

Zip Cargo Cover
to Cab Curtain

Cargo Cover

41424 pg 2

Cab Curtain
