Miele WCD 660 Operating instructions

0 (0)

Operating instructions

for washing machines

To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.

en-GB

M.-Nr. 11 613 240

Contents
Caring for the environment ..............................................................................		6
Warning and Safety instructions .....................................................................		7
Operating the washing machine ......................................................................		14
Control panel.......................................................................................................		14
How the control field works.................................................................................		15
Before using for the first time ..........................................................................		16
Miele@home ........................................................................................................		17
1.	Remove the transit bars ..................................................................................	18
2.	Setting up Miele@home ..................................................................................	18
3.	Commissioning TwinDos ................................................................................	19
4.	Starting the calibration programme.................................................................	20
Washing environmentally and economically ..................................................		21
1.	Prepare the laundry.......................................................................................	22
2.	Select a programme......................................................................................	23
3.	Load the washing machine...........................................................................	24
4.	Select programme settings ..........................................................................	25

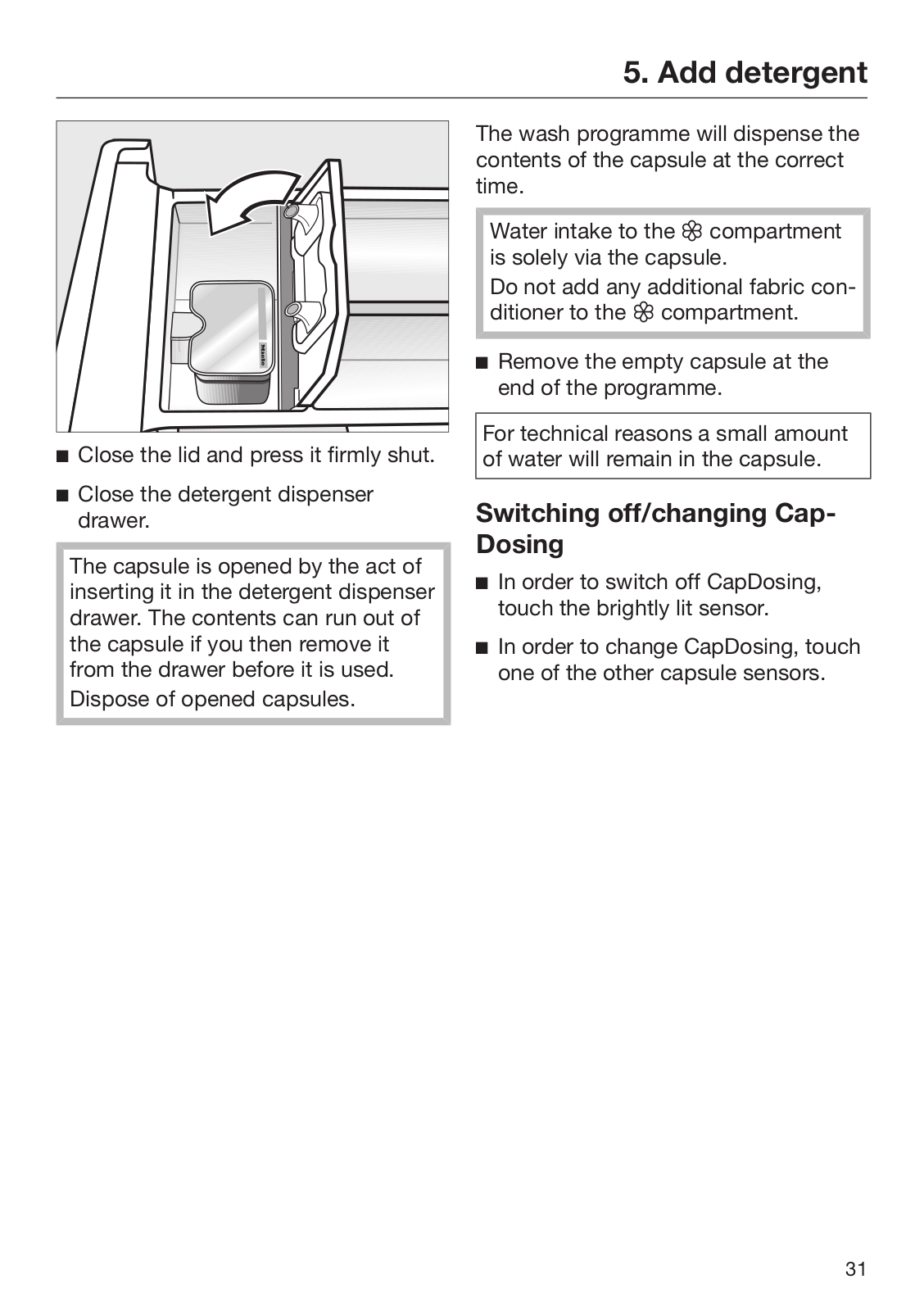

5.	Add detergent ................................................................................................	26
Degree of soiling of the laundry ..........................................................................		27
Replacing detergent cartridges ...........................................................................		27
Detergent dispenser drawer ................................................................................		28
CapDosing...........................................................................................................		30
6.	Starting the programme ...............................................................................	32
Adding laundry during a programme sequence..................................................		32
7. End of programme ........................................................................................		33
Spinning..............................................................................................................		34

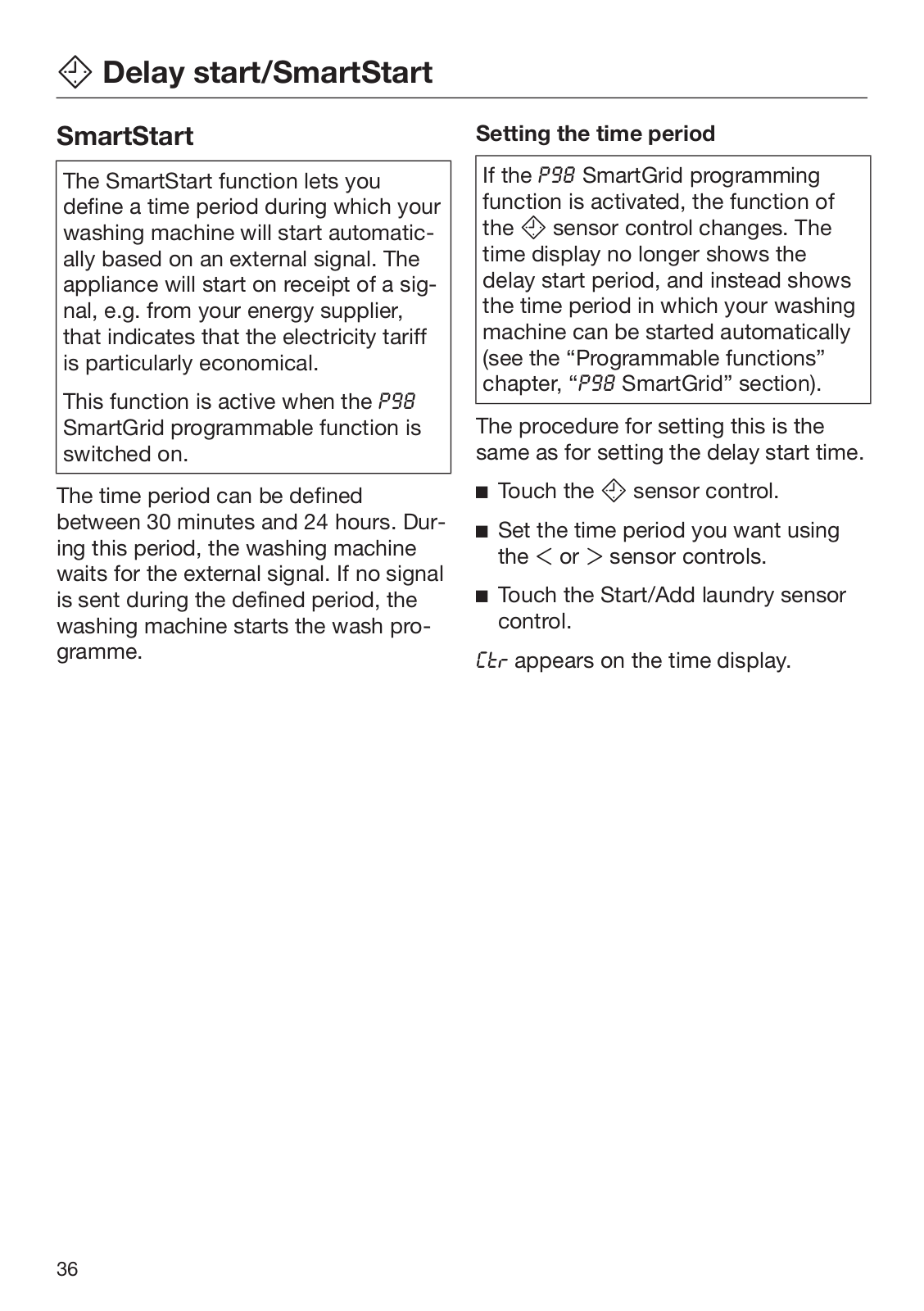

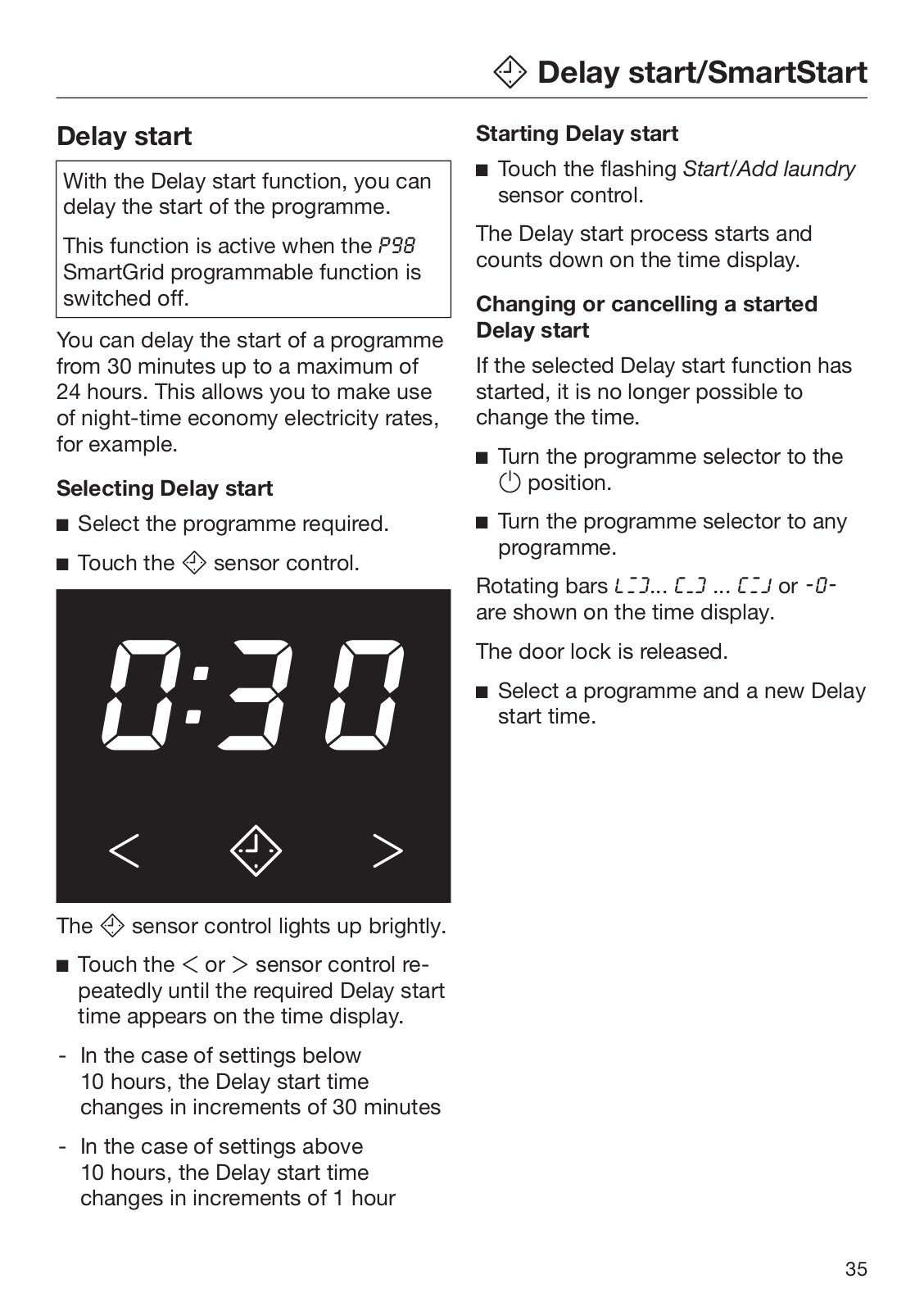

Delay start/SmartStart.................................................................................		35
Programme chart ..............................................................................................		37

Contents

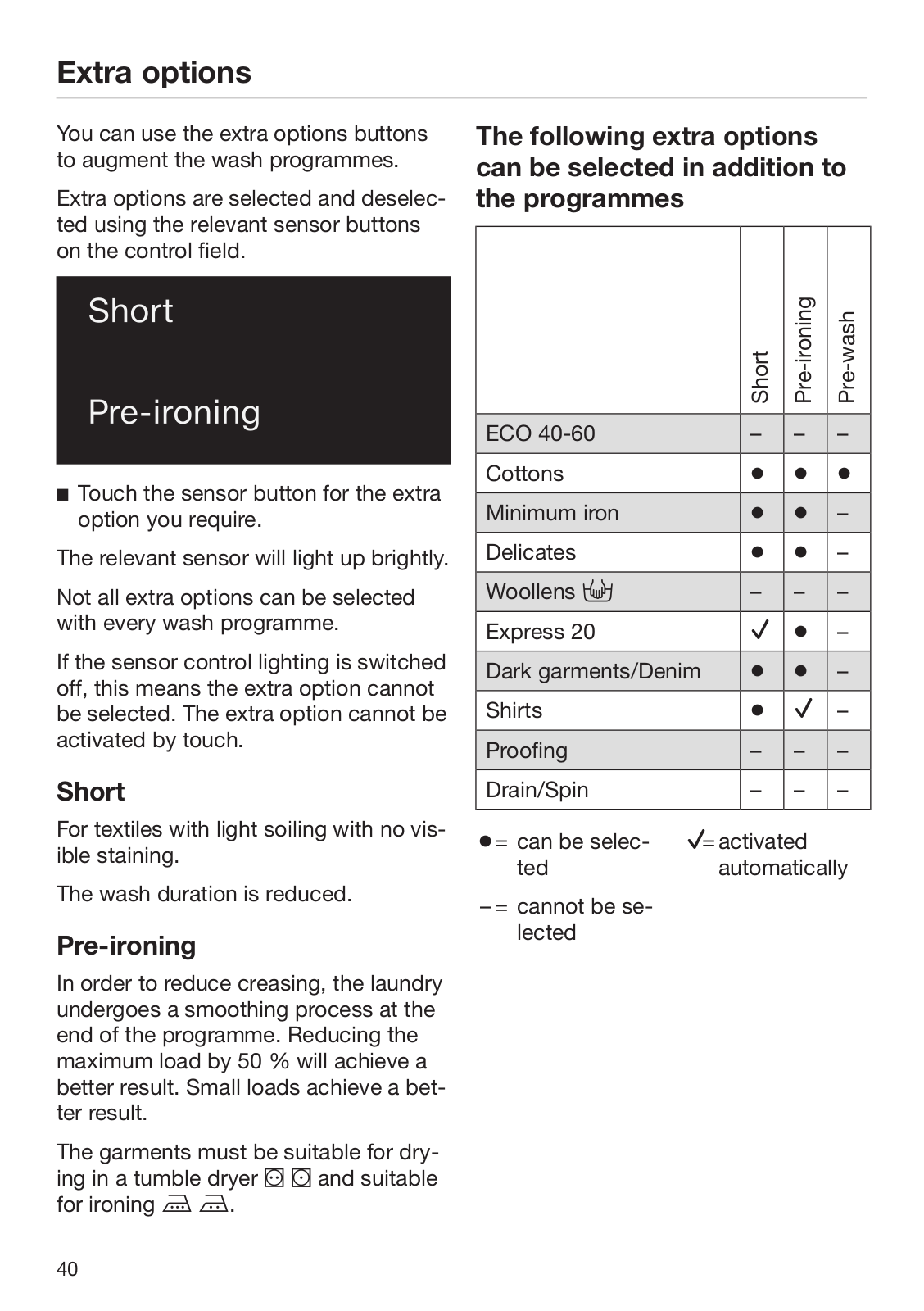

Extra options......................................................................................................	40
Short....................................................................................................................	40
Pre-ironing...........................................................................................................	40
The following extra options can be selected in addition to the programmes .....	40
Garment care label symbols.............................................................................	41

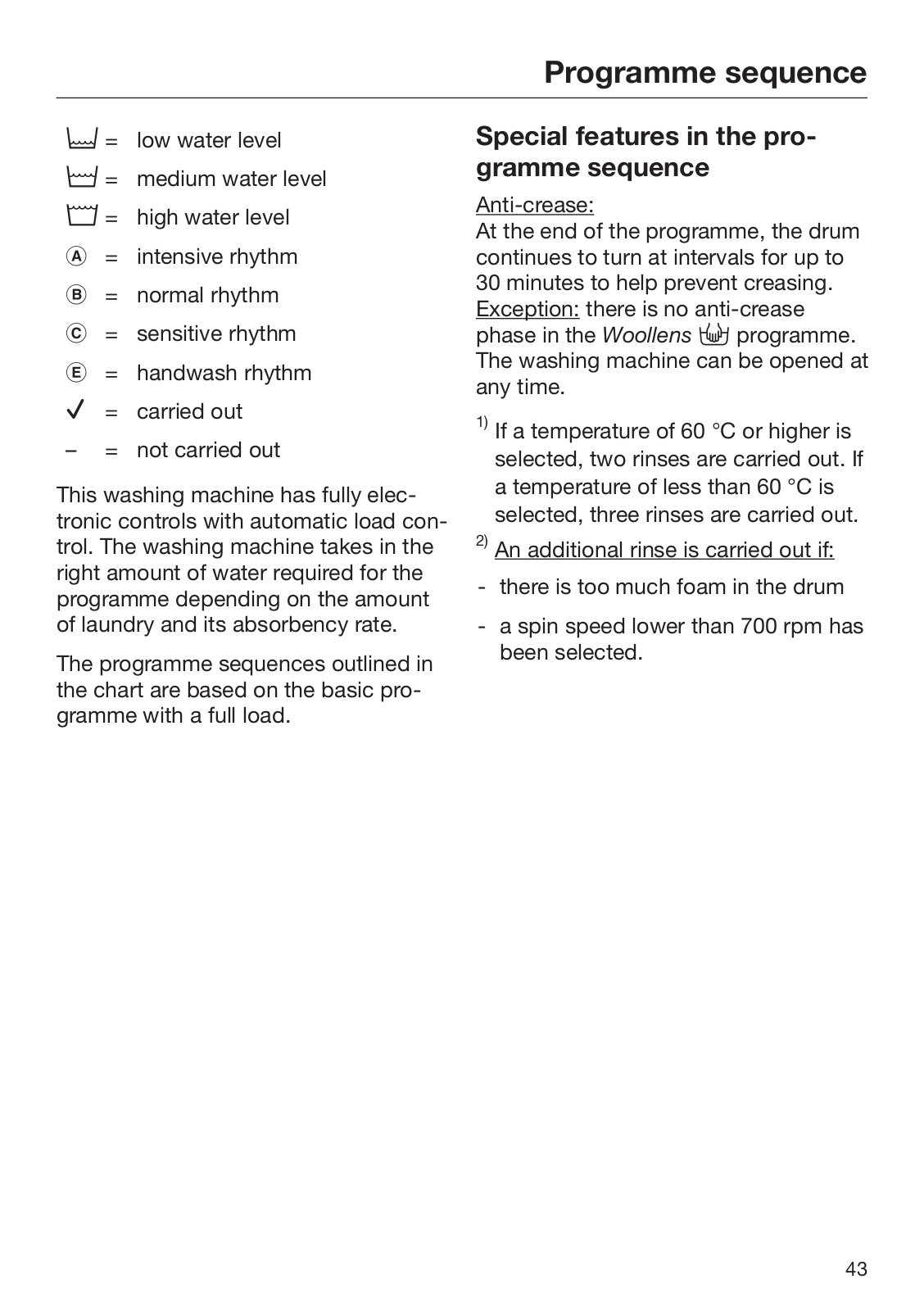

Programme sequence.......................................................................................	42
Changing the programme sequence ..............................................................	44
Changing a programme (safety lock) ..................................................................	44
Cancelling a programme .....................................................................................	44
Detergent ...........................................................................................................	45
The correct detergent..........................................................................................	45
Water softeners ...................................................................................................	45
Dispensing aids ...................................................................................................	45
Fabric conditioner and liquid starch....................................................................	45
Recommended Miele detergents ........................................................................	46
Recommended detergents in accordance with Directive (EU) Nr. 1015/2010....	47
Cleaning and care .............................................................................................	48
Cleaning the external casing and the control panel ............................................	48
Cleaning the detergent dispenser drawer ...........................................................	48
Hygiene info(Cleaning the drum) .........................................................................	50
Cleaning the water inlet filter...............................................................................	50

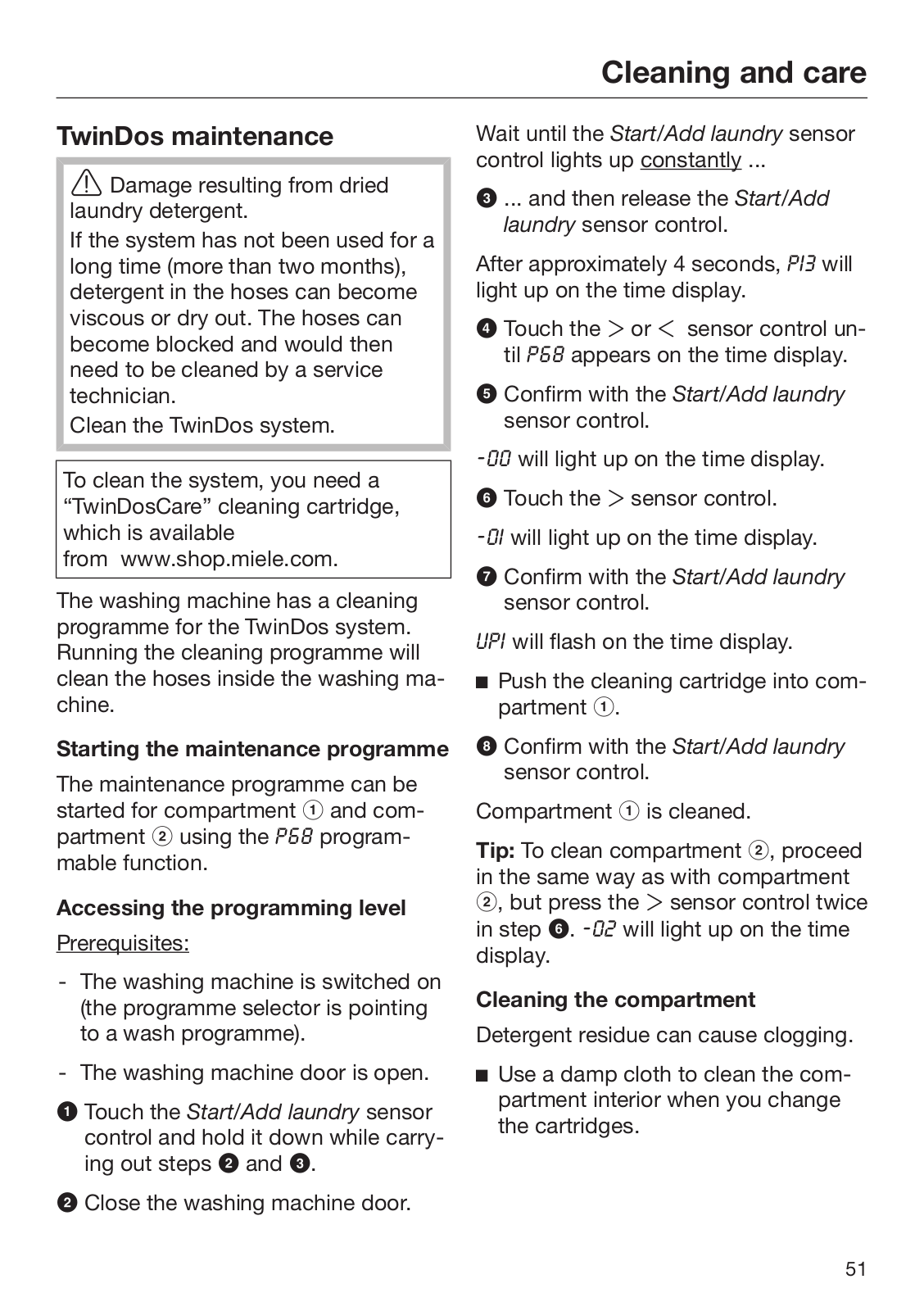

TwinDos maintenance .........................................................................................	51
Problem solving guide ......................................................................................	52
The programme does not start............................................................................	52
The programme is cancelled and a fault indicator light lights up
in the control panel..............................................................................................	53
During the programme, a symbol appears in the time display ...........................	54
At the end of the programme, an indicator light lights up in the control panel ...	54

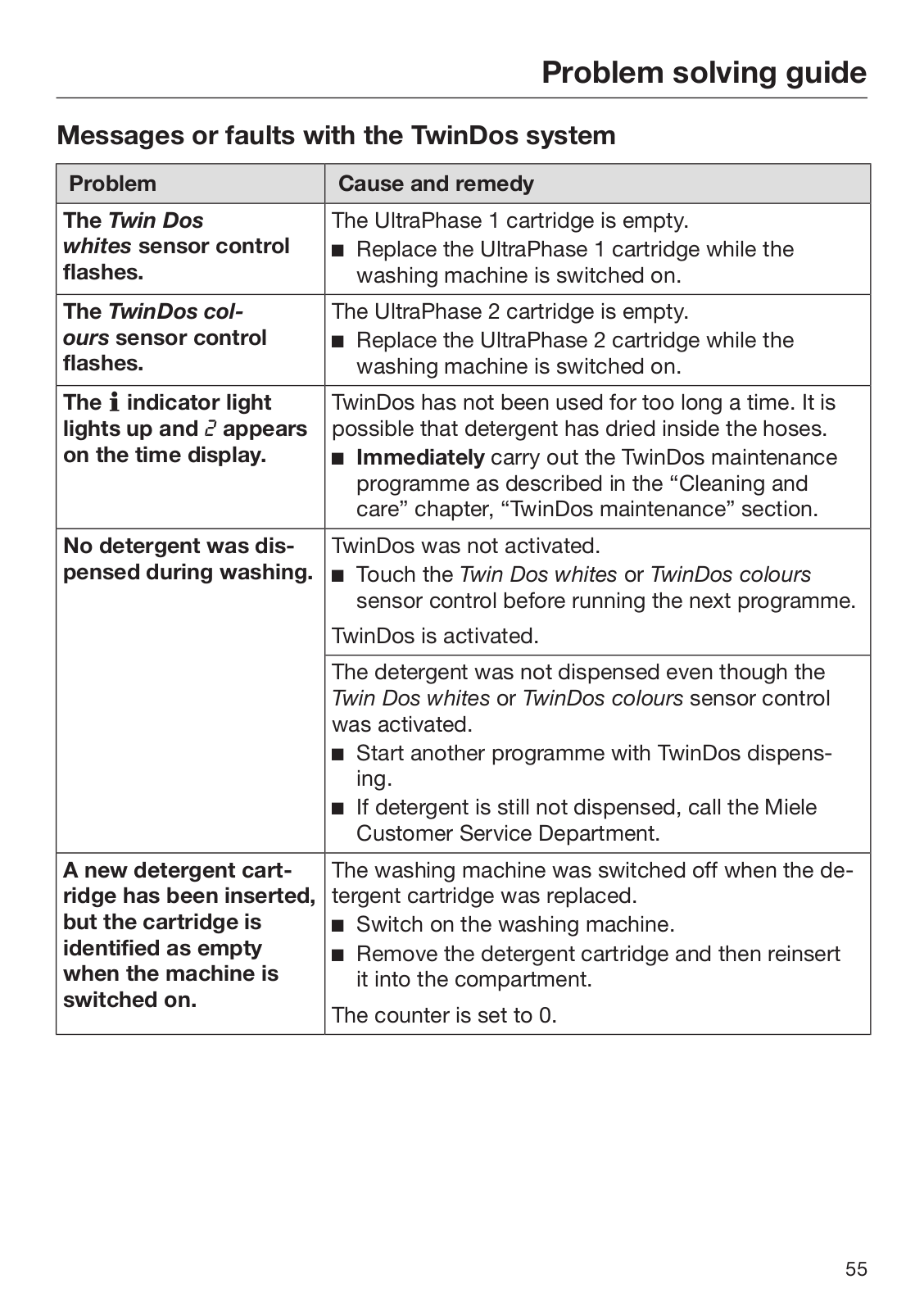

Messages or faults with the TwinDos system .....................................................	55

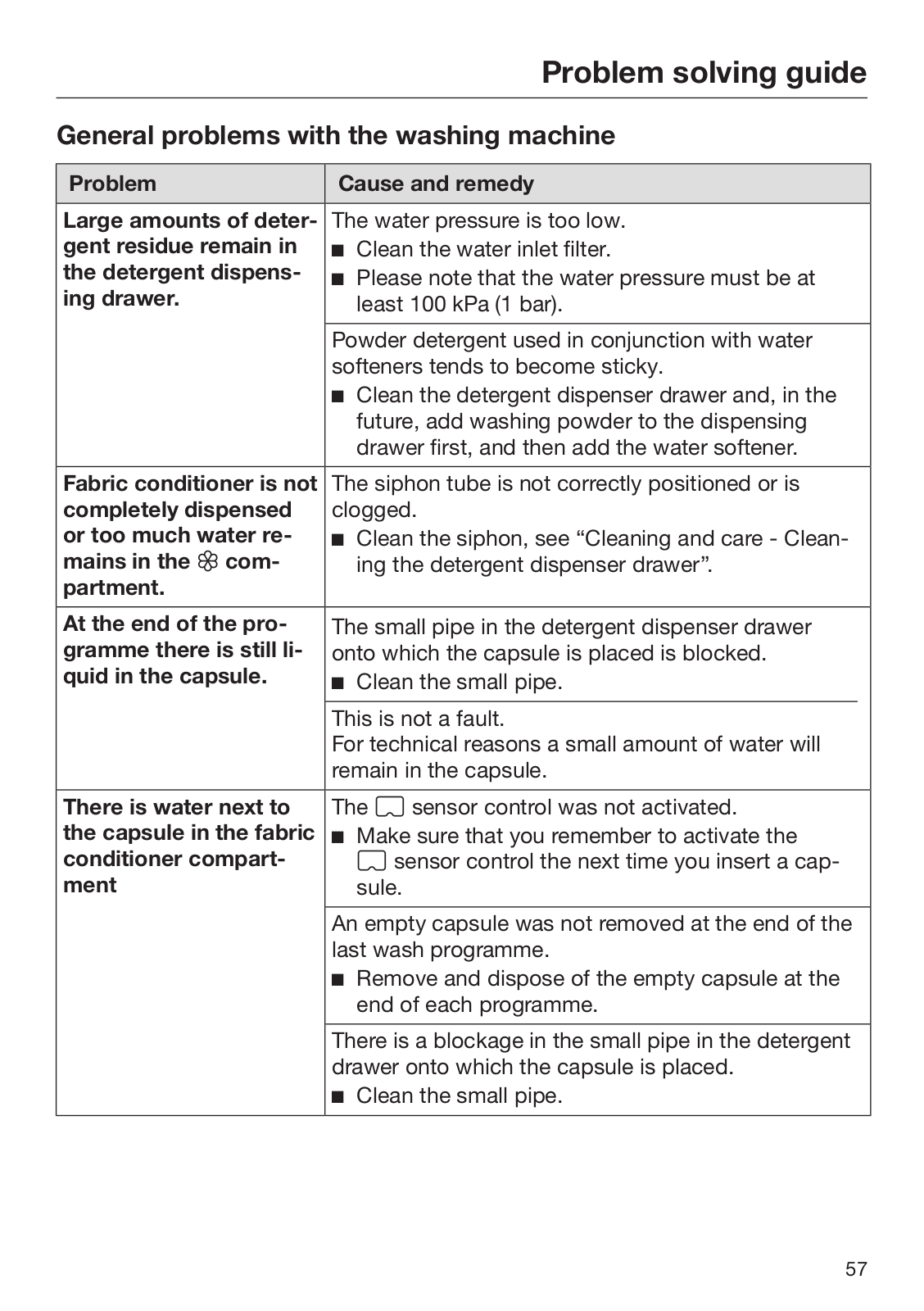

General problems with the washing machine .....................................................	56
An unsatisfactory wash result .............................................................................	58
The door will not open.........................................................................................	59
Opening the door in the event of a blocked drain outlet and/or power cut ........	60

Contents
Service................................................................................................................	62

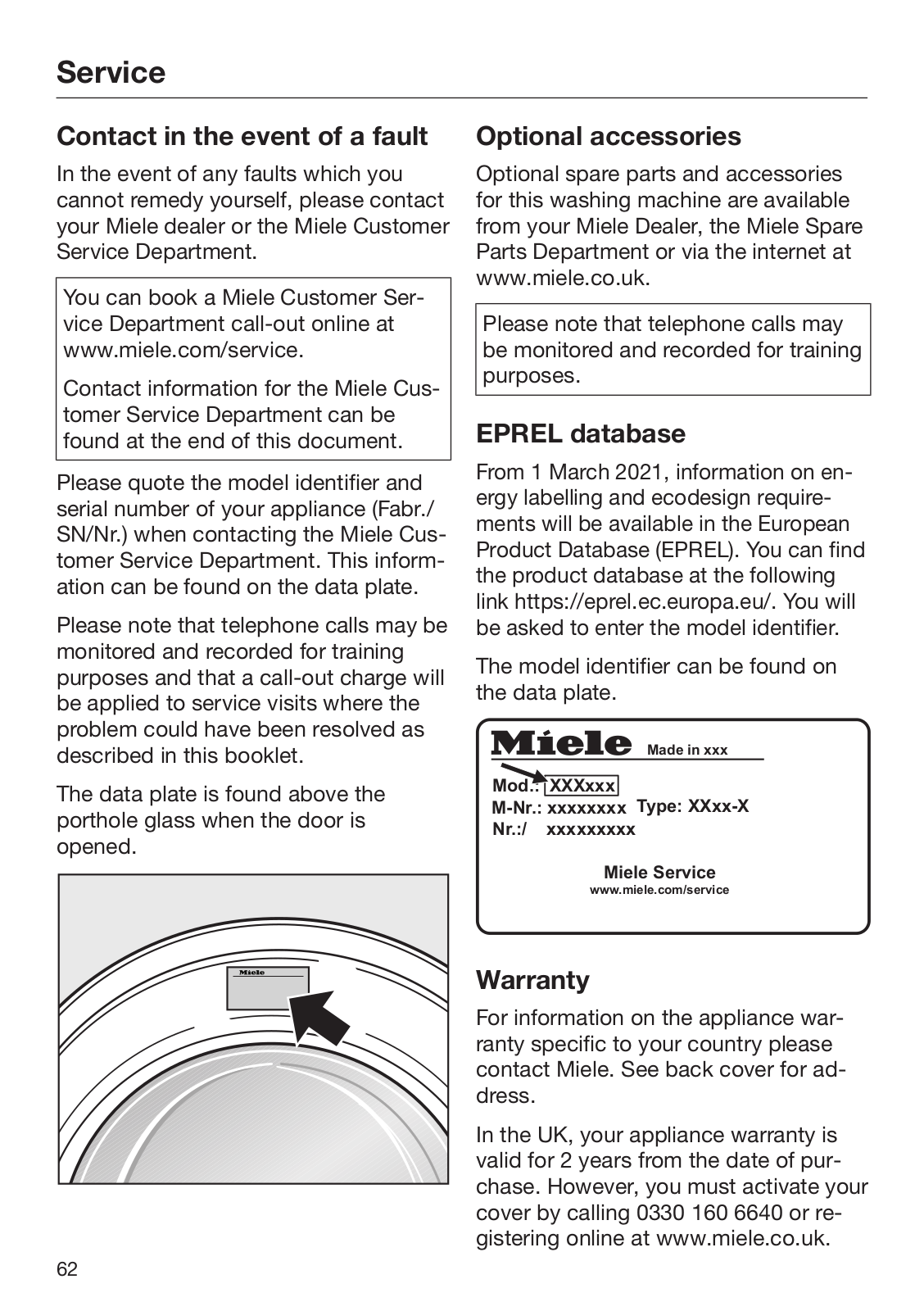

Contact in the event of a fault .............................................................................	62
Optional accessories...........................................................................................	62
EPREL database .................................................................................................	62
Warranty ..............................................................................................................	62
Installation..........................................................................................................	63
Front view ............................................................................................................	63
Rear view.............................................................................................................	64
Installation surface ..............................................................................................	65
Transporting the washing machine to its installation site....................................	65

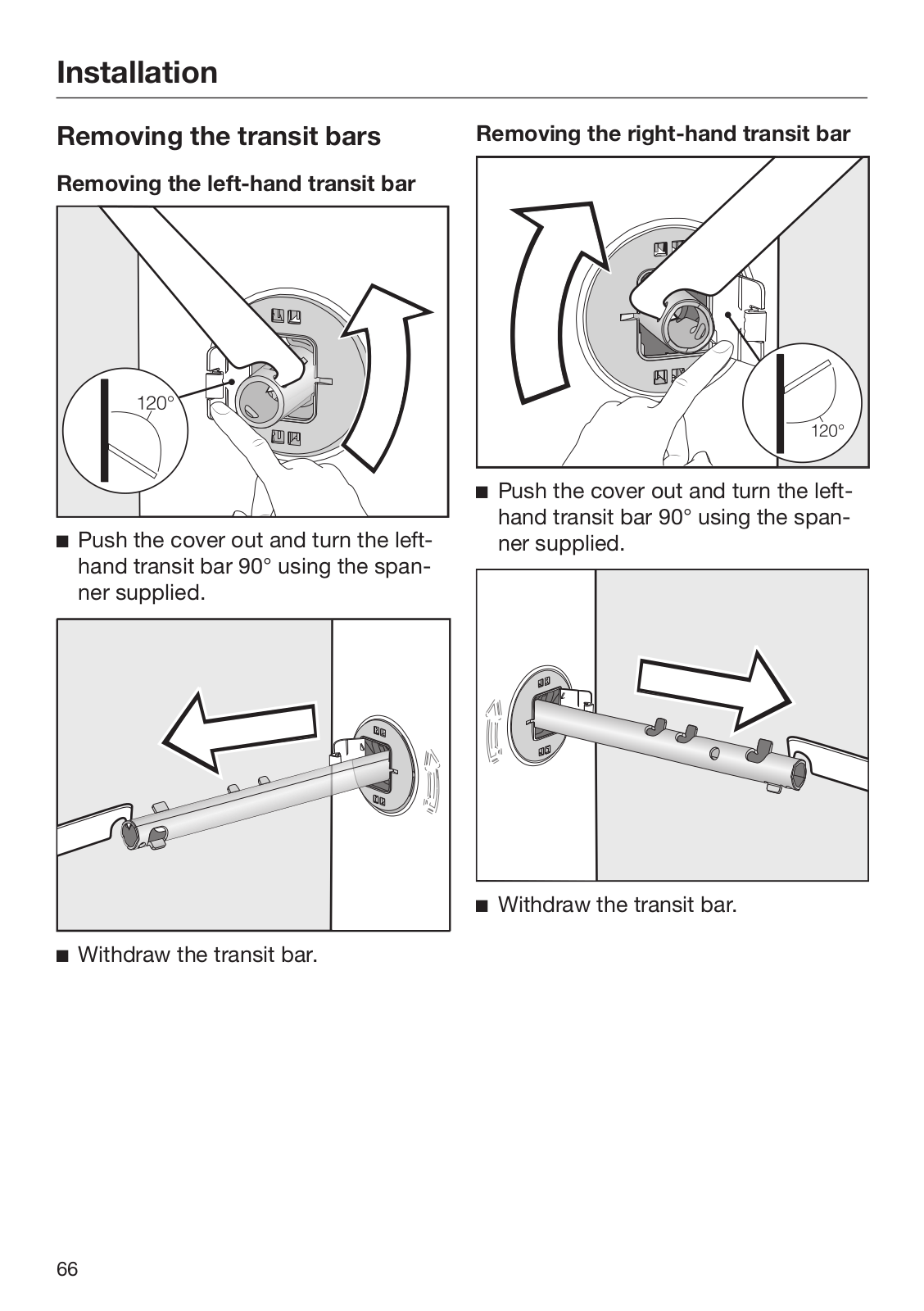

Removing the transit bars ...................................................................................	66
Fitting the transit bars .........................................................................................	68

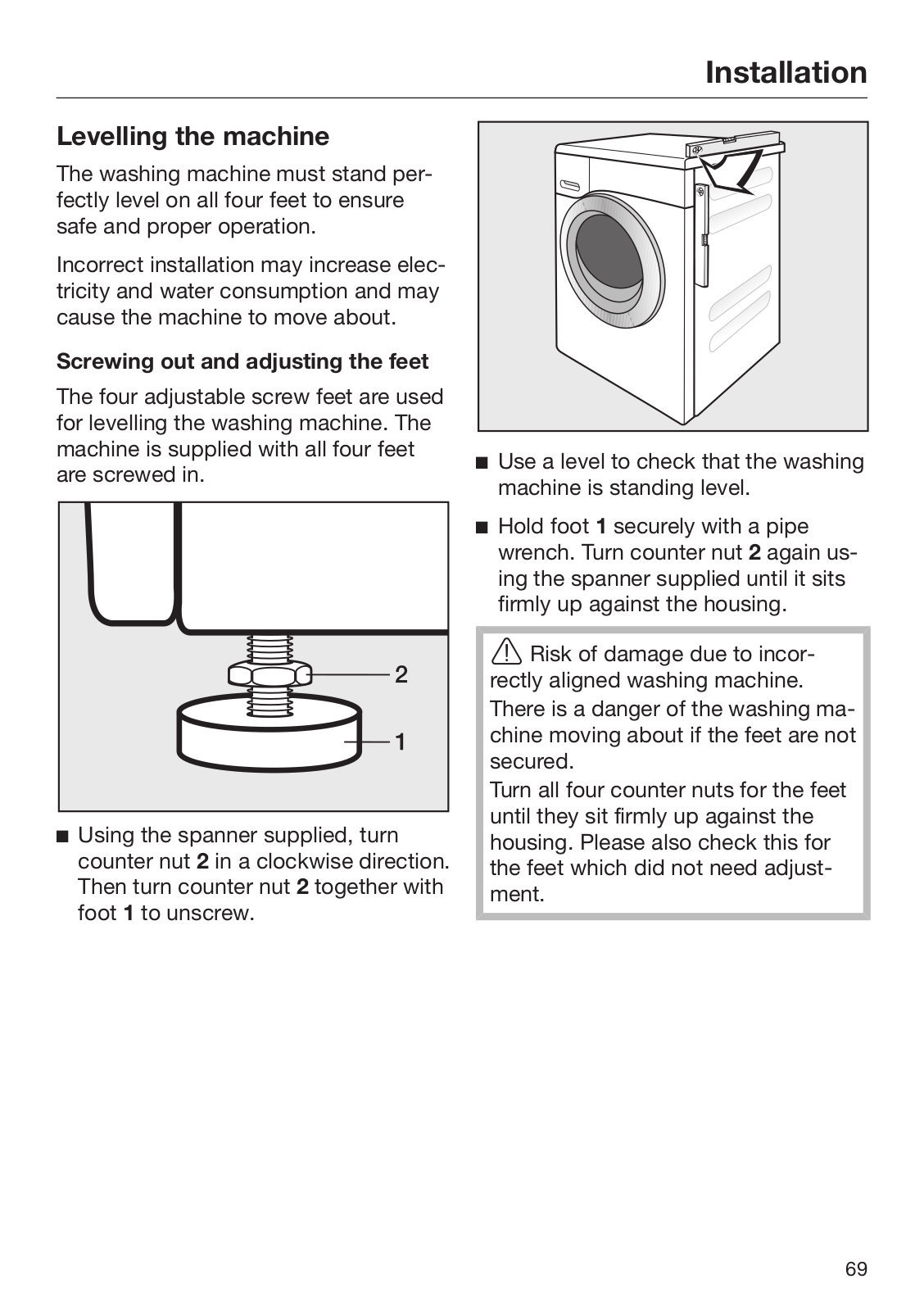

Levelling the machine..........................................................................................	69
Screwing out and adjusting the feet...............................................................	69
Installing under a continuous worktop ...........................................................	70
Washer-dryer stack ........................................................................................	70

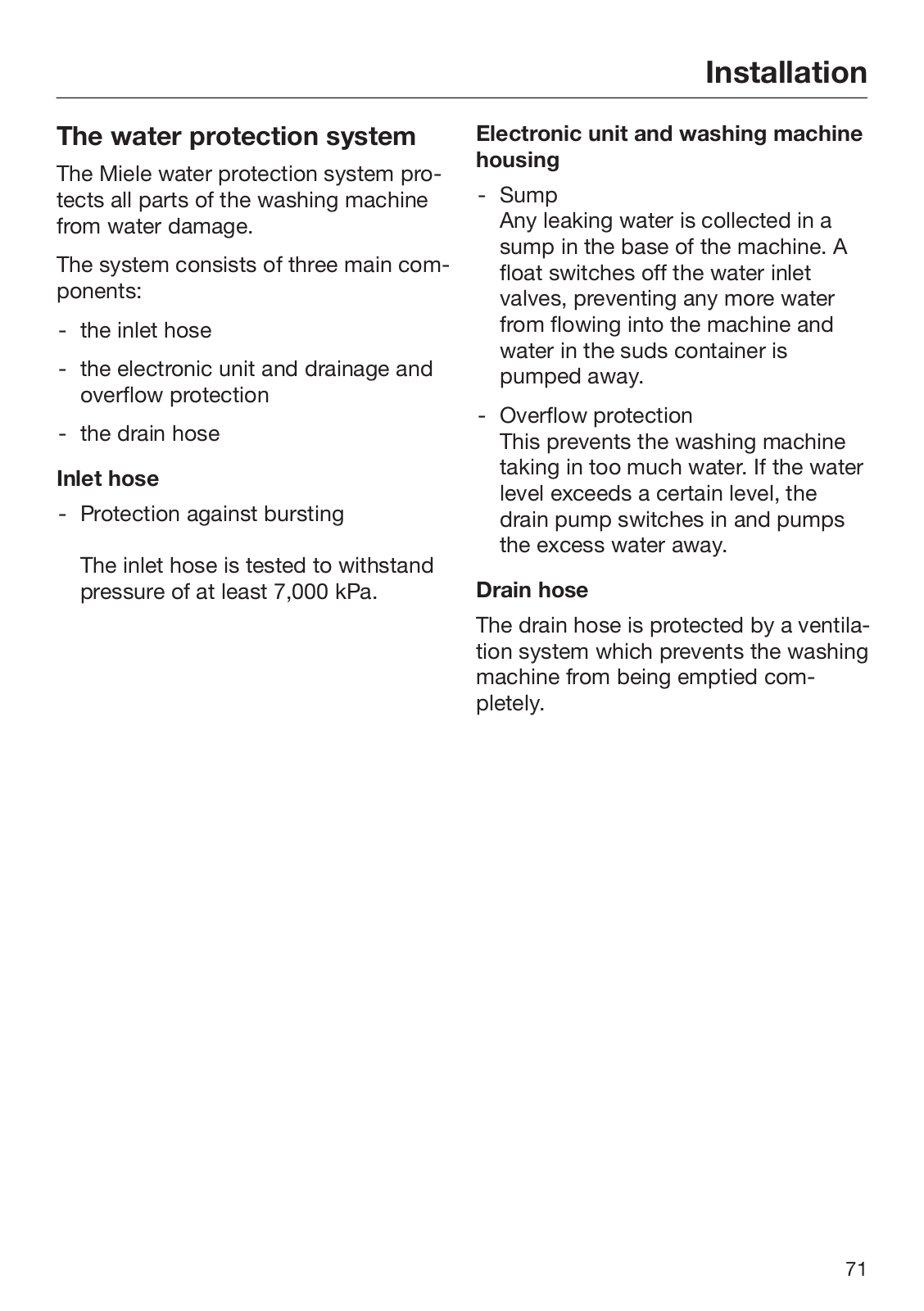

The water protection system...............................................................................	71

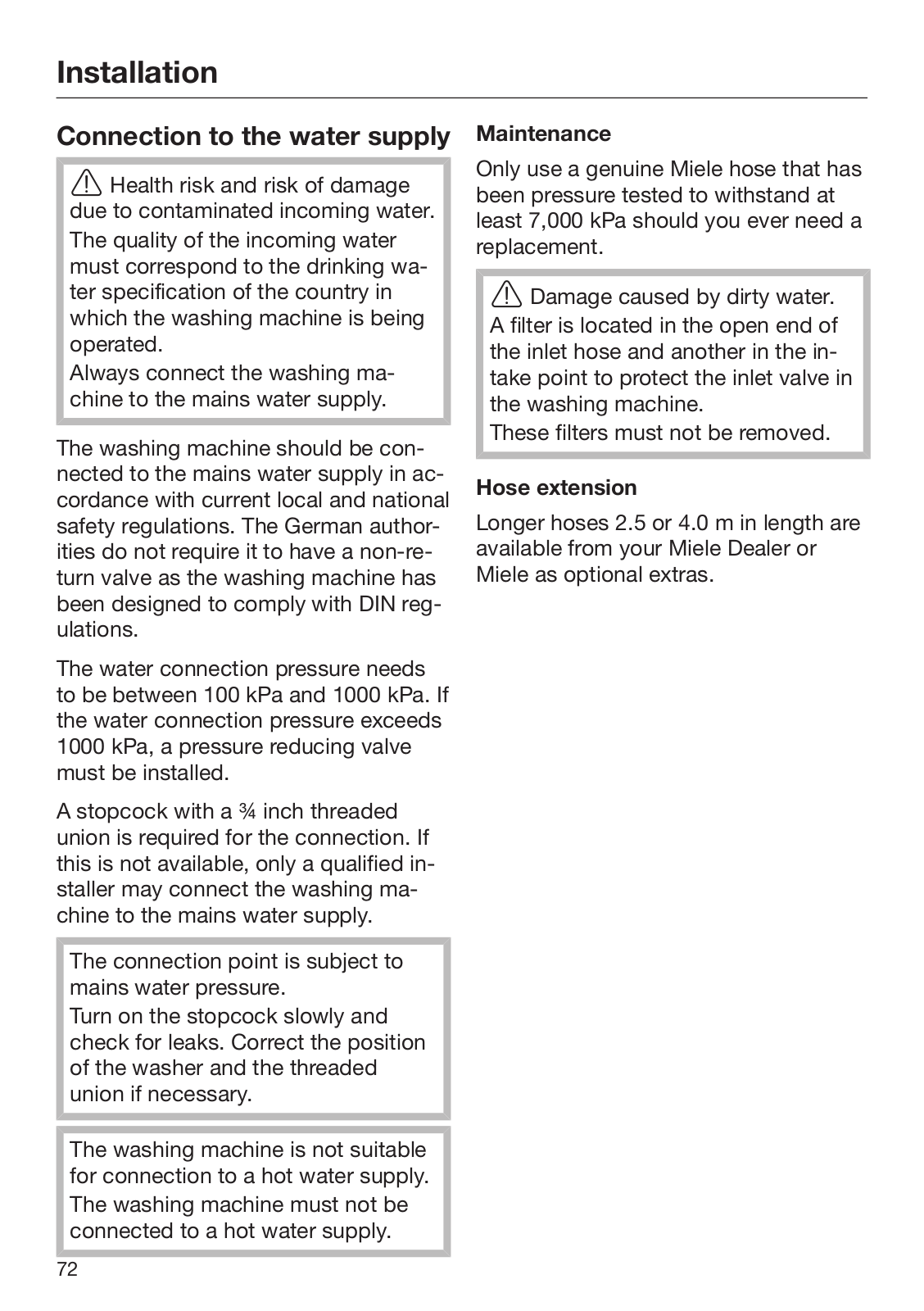

Connection to the water supply ..........................................................................	72

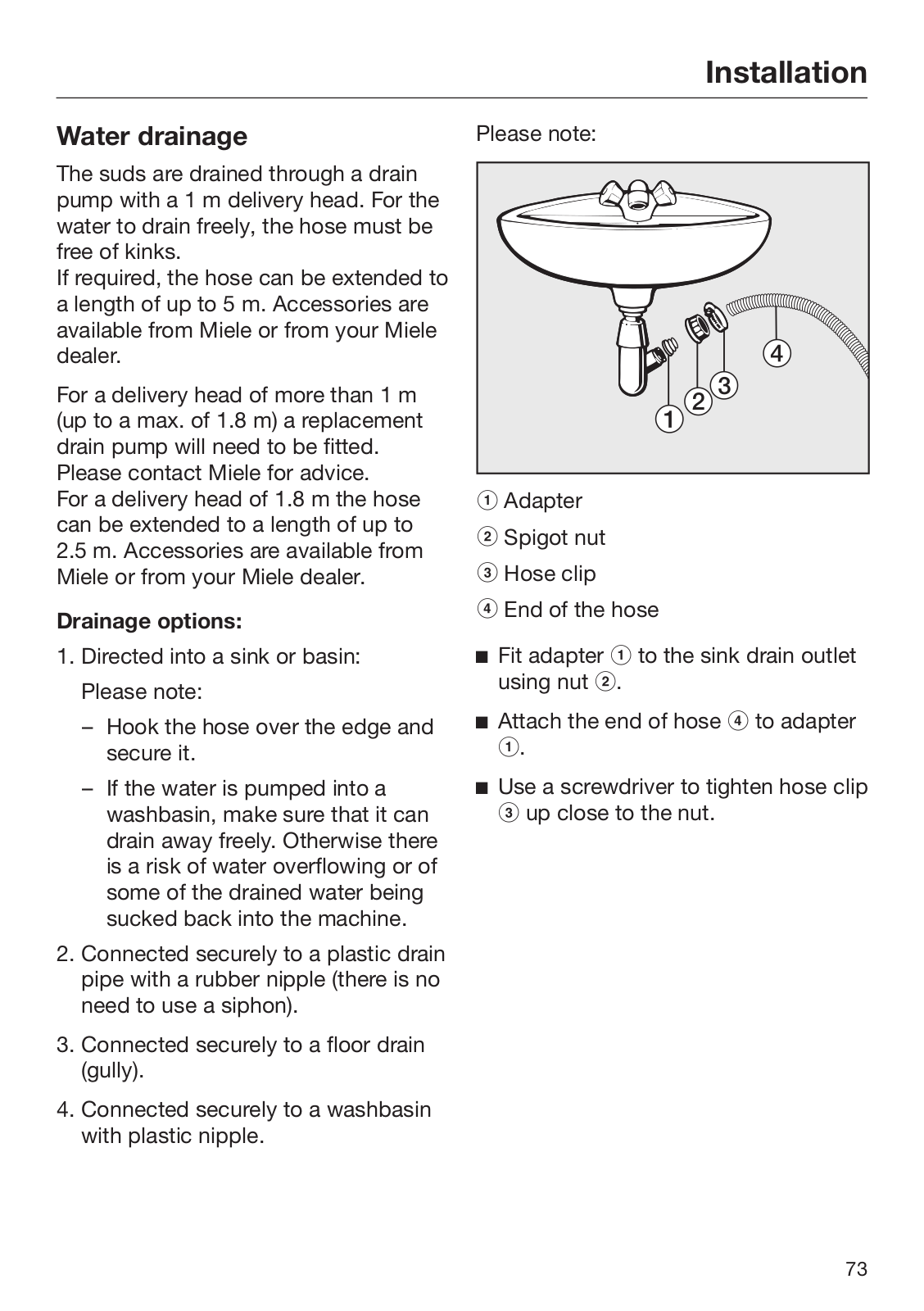

Water drainage ....................................................................................................	73
Electrical connection ..........................................................................................	74
Technical data....................................................................................................	76
Conformity declaration ........................................................................................	77
Consumption data.............................................................................................	78
Note for test institutes .........................................................................................	79
Consumption data.............................................................................................	80
Programmable functions ..................................................................................	81
Choosing and selecting a programmable function .............................................	81

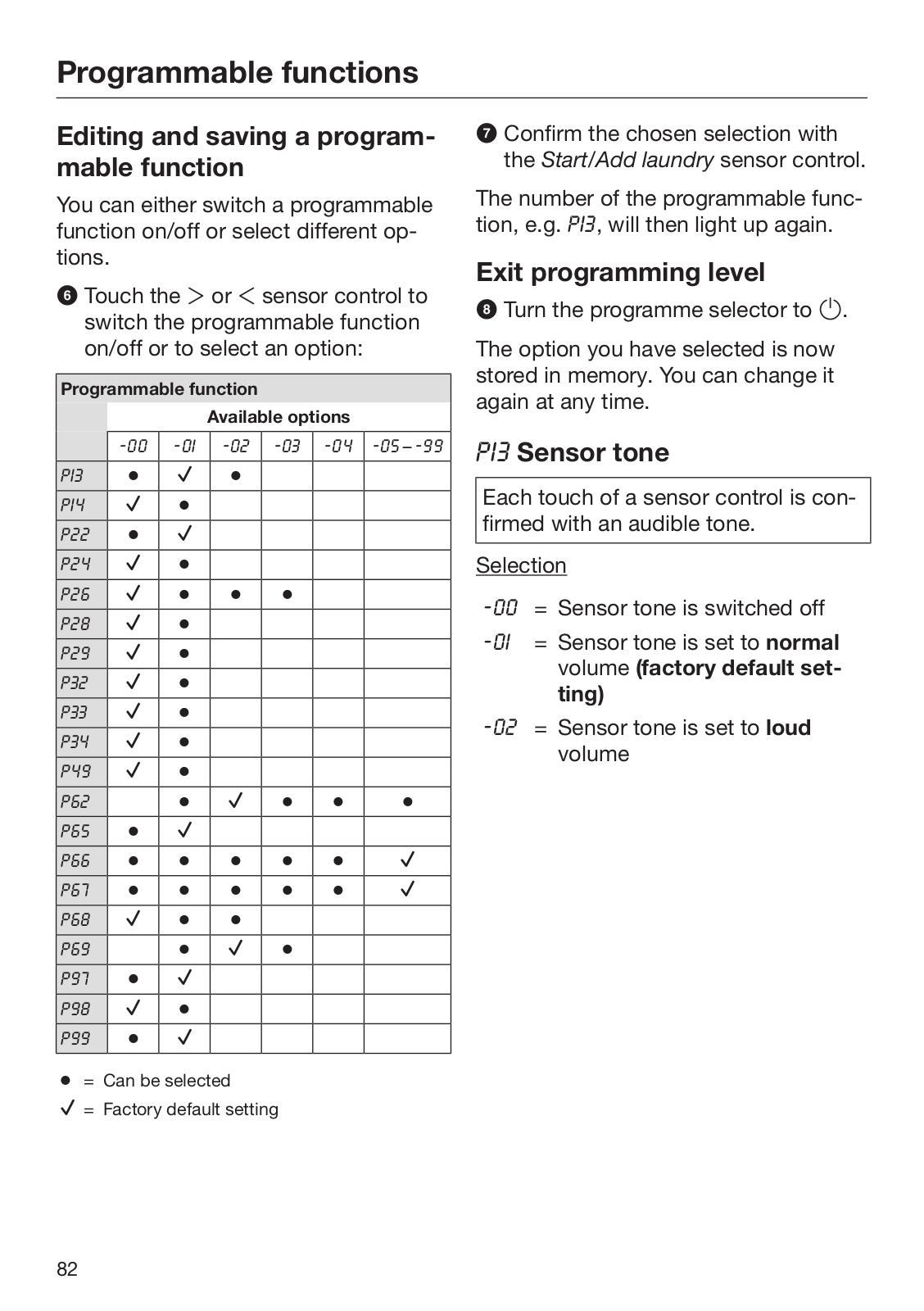

Editing and saving a programmable function......................................................	82
Exit programming level........................................................................................	82
Sensor tone ...................................................................................................	82
Lock code......................................................................................................	83
Control panel switch-off status ....................................................................	83
Memory ........................................................................................................	84
Longer pre-wash Cottons ............................................................................	84
Gentle action ................................................................................................	84

	Contents
Reduce temperature.....................................................................................	84
Maximum rinse level.....................................................................................	85
Suds cooling .................................................................................................	85
Anti-crease ...................................................................................................	85
Low water pressure......................................................................................	85
Backlight brightness dimmed ......................................................................	86
TwinDos........................................................................................................	86
UltraPhase 1 dispensing quantity ................................................................	86
UltraPhase 2 dispensing quantity.................................................................	86

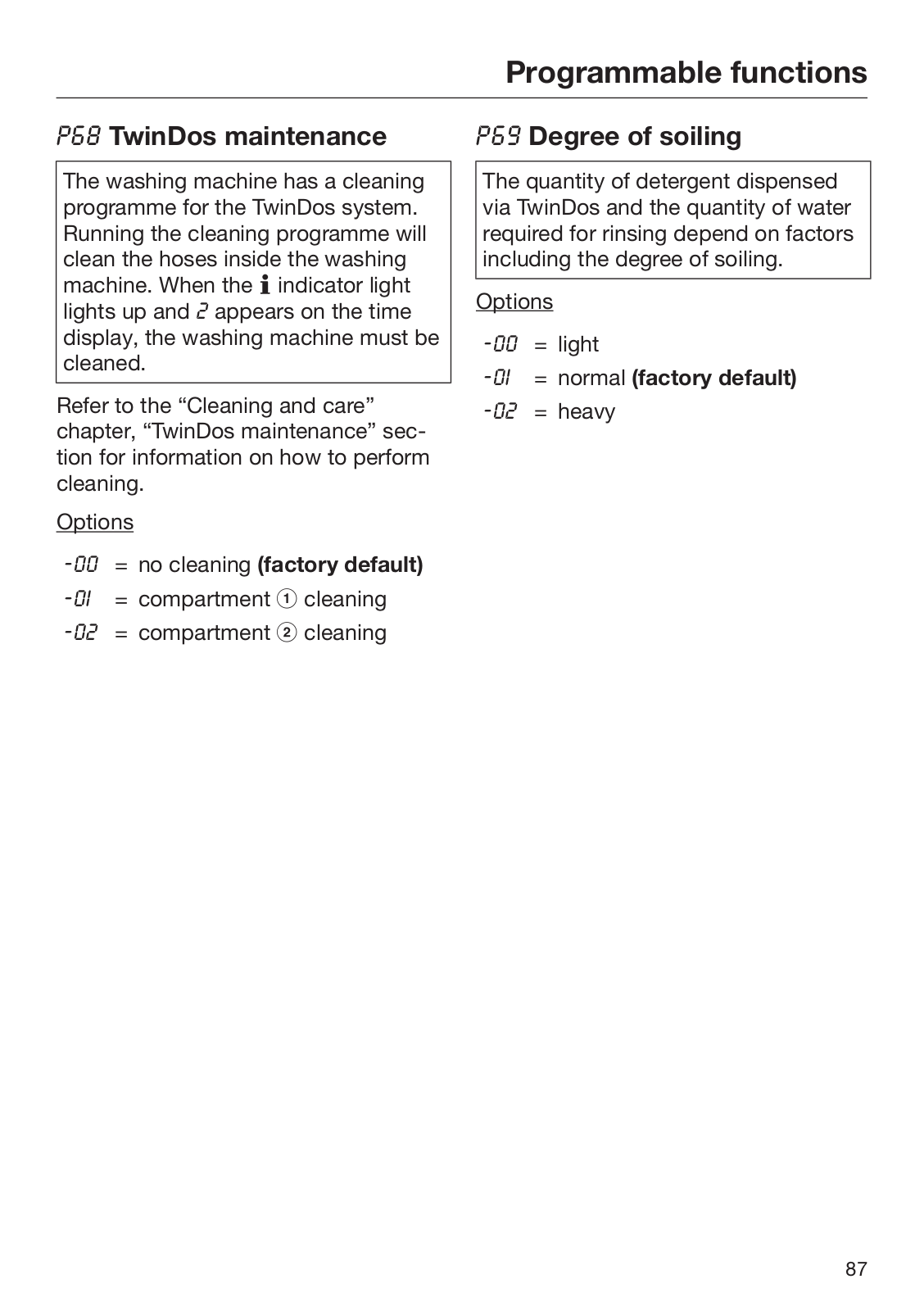

TwinDos maintenance ..................................................................................	87
Degree of soiling ..........................................................................................	87
Networking ..........................................................................................................	88
Remote control.............................................................................................	88
SmartGrid.....................................................................................................	88
RemoteUpdate .............................................................................................	89
Switching off WiFi................................................................................................	90
Detergents and care products .........................................................................	91
Detergent.............................................................................................................	91

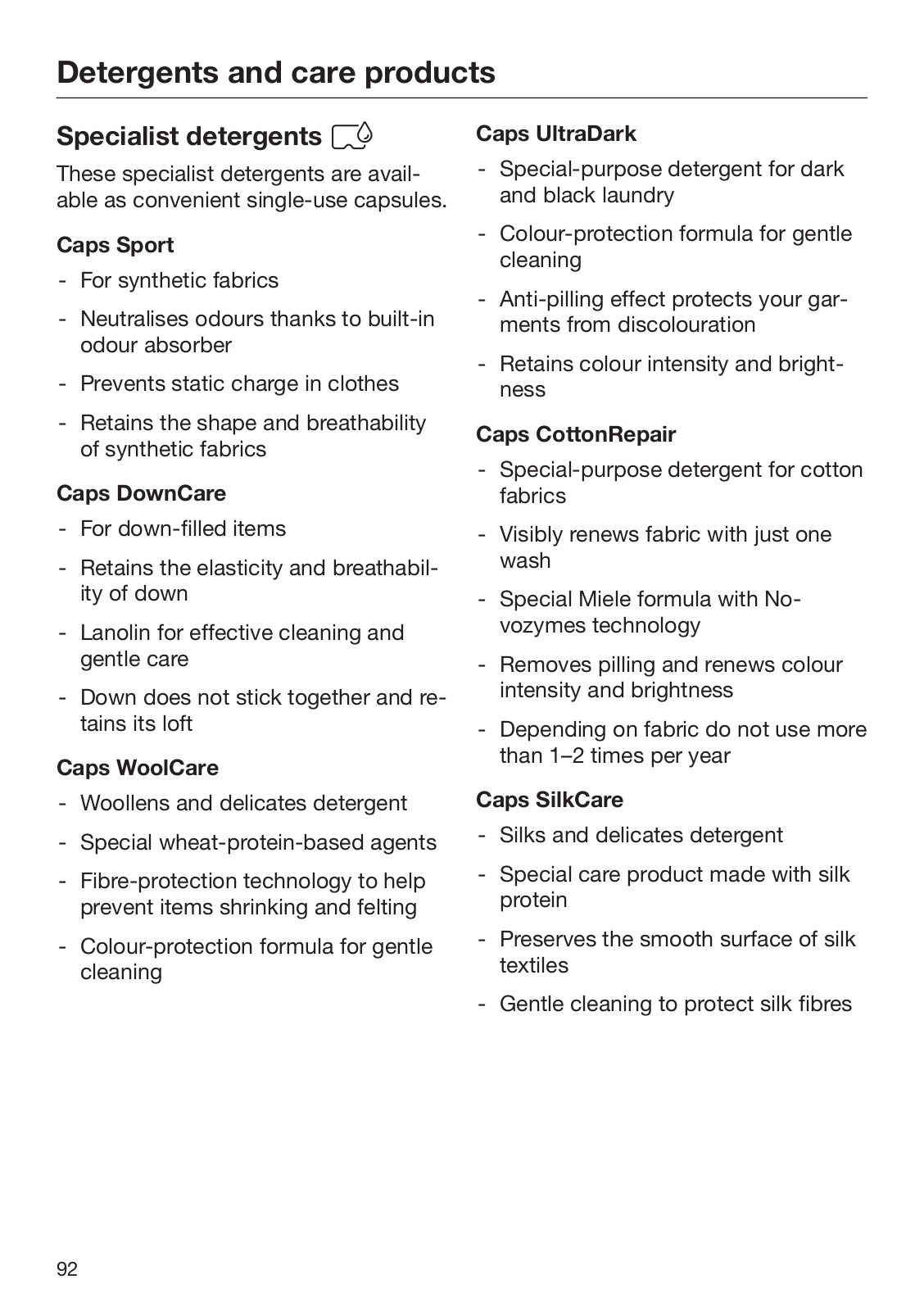

Specialist detergents ....................................................................................	92
Fabric care ....................................................................................................	93
Additives .......................................................................................................	93
Machine care.......................................................................................................	93

Caring for the environment

Disposal of the packing mater-

ial

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Disposing of your old appli-

ance

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.

Warning and Safety instructions

This washing machine complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.

Read the operating instructions carefully before using the washing machine. They contain important information on safety, installation, use and maintenance. This prevents both personal injury and damage to the washing machine.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the chapter on installing the washing machine as well as the safety instructions and warnings.

Miele cannot be held liable for damage caused by non-compliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Correct application

This washing machine is intended for use in domestic households and similar working and residential environments.

The washing machine is not intended for outdoor use.

It must be used only as a domestic appliance to wash items which are specified by the manufacturer as being washable on the wash care label. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.

Warning and Safety instructions

The washing machine can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it safely and recognise and understand the consequences of incorrect operation.

Safety with children

Children under 8 years of age must be kept away from the washing machine unless they are constantly supervised.

Children 8 years and older may only use the washing machine unsupervised if they have been shown how to use it safely and recognise and understand the consequences of incorrect operation.

Children must not be allowed to clean or maintain the washing machine unsupervised.

Please supervise children in the vicinity of the washing machine and do not let them play with it.

Technical safety

Please observe the instructions in “Installation” and “Technical data”.

Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged machine.

Before connecting the washing machine, ensure that the connection data on the data plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.

Warning and Safety instructions

Reliable and safe operation of this washing machine can only be assured if it has been connected to the mains electricity supply.

The electrical safety of this washing machine can only be guaranteed when correctly earthed.

It is essential that this standard safety requirement is met. If in any doubt, please have the wiring system of the building tested by a qualified electrician.

Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Do not connect the washing machine to the mains electricity supply by a multi-socket adapter, extension lead or similar. These do not guarantee the required safety of the machine (fire hazard due to the risk of overheating).

Faulty components must only be replaced by genuine Miele original spare parts. Only when these parts are fitted can Miele guarantee the safety standards of the machine.

The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.

Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.

While the washing machine is under warranty, repairs should only be undertaken by a Miele authorised service technician. Otherwise the warranty will be invalidated.

Warning and Safety instructions

If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.

The machine must be isolated from the electricity supply when cleaning and maintaining the machine and in the event of a fault.

The machine must only be connected to the on-site water supply using a new hose kit. Old hose kits must not be re-used. Check the condition of the hoses regularly so that you can replace them in good time and avoid the risk of any water damage.

The water flow pressure must be at least 100 kPa and should not exceed 1000 kPa.

In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the warranty.

The machine must not be used in a non-stationary location (e.g. on a ship).

Do not make any alterations to the machine, unless authorised to do so by Miele.

Warning and Safety instructions

Correct use

Do not install the washing machine in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

Before using the machine for the first time, check that the transit bars at the rear of the machine have been removed (see “Installation - Removing the transit bars”). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances.

Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

Flooding danger.

If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.

Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum), which in turn can result in damage to the laundry.

Take care when opening the drum door after using the steam function. Danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass. Stand back away from the machine and wait until the steam has dissipated.

Warning and Safety instructions

The maximum load for this washing machine is 8.0 kg (dry weight). See the “Programme chart” for the maximum recommended loads for individual programmes.

If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use a proprietary natural citric acid based descaling agent. Miele recommends using Miele descaling agent which is available to order online at www.miele.co.uk or from Miele. Strictly observe the instructions on the packaging.

Textiles which have been pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine.

Do not use solvent based cleaning agents, e.g. those containing benzine, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and explosion hazard.

Do not use solvent based cleaning agents, e.g. those containing benzine, to clean the surfaces of the machine. They can cause damage to plastic surfaces.

Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine. Always observe the manufacturer's instructions carefully.

Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.

Warning and Safety instructions

If detergent comes into contact with the eyes, rinse them thoroughly with lukewarm water immediately. If swallowed, seek medical assistance immediately and retain the packaging or label for reference. Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent.

Accessories

Only use original Miele accessories. If other parts are used, warranty, performance and product liability claims will be invalidated.

A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.

If installing the machine on a Miele plinth, (available as an optional accessory, depending on country), please make sure you order the correct one for this washing machine.

Miele will guarantee to supply functional spare parts for 15 years following the discontinuation of your washing machine.

Miele cannot be held liable for damage caused by non-compliance

with these Warning and Safety instructions.

Operating the washing machine

Control panel

a Control field

The control field consists of a time display and various sensor controls. The individual sensor controls are explained in the following sections.

b Sensor controls – temperature for selecting the temperature.

c Sensor controls – spin speeds for selecting the spin speed.

d Sensor controls for TwinDos and extra options

You can activate TwinDos dispensing for a wash programme and add extra options to the programme.

When a wash programme is selected, the sensor controls for the TwinDos dispensing option and extra options light up dimly.

e Indicator lights

Lights up if there are faults affecting the water inlet and drainage.

Lights up if excess detergent was used.

Lights up together with in the time display as a reminder about hygiene information.

Lights up together with in the time display as a reminder about TwinDos cleaning.

The Add laundry function cannot be selected.

f Sensor controls – CapDosing

CapDosing of fabric care products (e.g. fabric conditioner, proofing agent)

CapDosing of additives (e.g. detergent enhancer)

CapDosing of detergent (for the main wash only)

Operating the washing machine

g Time display

After the programme has started, the programme duration will appear in the display in hours and minutes. When Delay start is being used, the programme duration will appear after the Delay start time has elapsed.

h Sensor controls

The Delay start time selected will appear in the time display.

After the programme has started, the Delay start time will begin to count down.

Once the Delay start time has elapsed, the programme begins and the estimated programme duration appears on the time display.

After touching the sensor control, a later start time for the programme (Delay start) can be selected. Once selected, lights up brightly.

The duration of the Delay start period is increased by touching the sensor control.

The duration of the Delay start period is reduced by touching the sensor control.

i Start/Add laundry sensor control

The programme can be started as soon as the sensor control is flashing on and off. Touching the Start/Add laundry sensor control starts the selected programme. The sensor control lights up constantly.

Once the programme has been started, the Start/Add laundry sensor control allows you to add laundry.

j Optical interface

This is used by the Service department as a transmission point.

k Programme selector

for selecting programmes and for switching off the appliance. The washing machine is switched on when you select a programme, and switched off by turning the programme selector to the position.

How the control field works

The , , , , and sensor controls react to fingertip contact. If a sensor control is illuminated, it can be selected.

If a sensor is brightly lit, this means: currently selected

If a sensor is dimly lit, this means: it can be selected

Before using for the first time

Damage resulting from incorrect installation and connection. Installing and connecting the washing machine incorrectly will cause serious property damage.

See “Installation”.

Take the two cartridges and the elbow piece out of the drum.

Protective foil and stickers re-

moval

Remove:

-The protective foil from the door

-Any stickers from the front and the lid

Please do not remove any labels (e.g. the data plate) which are visible when you open the door.

Remove the detergent cart-

ridges and the drain hose el-

bow from the drum

Two detergent cartridges for automatic detergent dispensing and an elbow piece for the drain hose are stored in the drum.

Reach under the door grip and pull the door open.

Shut the door with a gentle swing.

This washing machine has undergone a complete functional test at the factory and there will be some residual water in the drum from this process.

Before using for the first time

Miele@home

Your washing machine is equipped with an integrated WiFi module.

In order to use it you need:

-a WiFi network

-the Miele@mobile App

-a Miele user account. The user account can be created via the Miele@mobile App.

The Miele@mobile App will guide you as you connect your washing machine to your home WiFi network.

Once your washing machine is connected to your WiFi network you can use the App, for example, to carry the following activities:

-Operate your washing machine remotely

-Access information about the operating status of your washing machine

-Access information about a programme sequence on your washing machine

Connecting your washing machine to your WiFi network will increase energy consumption, even when the washing machine is switched off.

Before installing the washing machine in its final location, ensure the signal strength is sufficient for your WiFi network.

Availability of the WiFi connection

The WiFi connection shares a frequency range with other appliances (including microwave ovens and remote control toys). This can give rise to sporadic or even complete connection failures. Therefore, the availability of featured functions cannot be guaranteed.

Miele@home availability

The ability to use the Miele@mobile app depends on the availability of the Miele@home service in your country.

The Miele@home service is not available in every country.

For information about availability, please visit www.miele.com.

Miele@mobile App

The Miele@mobile App is available to download free of charge from the Apple App Store® or from the Google Play Store™.

Before using for the first time

1.Remove the transit bars

Damage resulting from failure to remove the transit bars.

Failure to remove the transit bars can result in damage to the washing machine and to adjacent cabinetry or appliances.

Remove the transit bars as described in “Installation and connection”.

2. Setting up Miele@home

There are 2 ways of connecting:

1.Via the Miele@mobile app (default)

2.Via WPS

Logging in via the Miele@mobile app

Turn the programme selector to the

MobileStart programme.

appears on the time display and the timeout starts to count down from 10 minutes. The Miele@mobile app will guide you through the remaining steps.

When you have successfully connected,

will appear on the time display.

Logging in via WPS

Turn the programme selector to the

MobileStart programme.

Touch the sensor control until appears on the time display and a short keypad tone appears.

The timeout then starts to count down from 3 minutes on the time display.

When you have successfully connected,

will appear on the time display.

Tip: If the connection has not been set up when the timeout has finished counting down, repeat the process.

Before using for the first time

3. Commissioning TwinDos

The TwinDos system can only be operated with the Miele UltraPhase 1 and UltraPhase 2 detergent cartridges. It is not possible to use any other detergent in the TwinDos system.

The dispensing quantities for UltraPhase 1 and UltraPhase 2 are preset for water hardness level 2 in the default settings.

You can change the dispensing quantity. See the “Programmable functions” chapter, “TwinDos” section.

Open the access panel for TwinDos.

Remove the film from the detergent cartridges.

Push the detergent cartridge for UltraPhase 1 into compartment 1 and the detergent cartridge for UltraPhase 2 into compartment 2.

Close the TwinDos access panel.

Before using for the first time

4. Starting the calibration pro-

gramme

For optimum water and energy consumption and excellent wash results, it is important to calibrate the washing machine.

To do this, the Cottons programme must be run without laundry and without detergent.

Open the stopcock.

Turn the programme selector to the

Cottons position.

The washing machine is now switched on and the temperature 40 and spin speed 1400 light up.

Touch the Start/Add laundry sensor control.

The wash programme will start.

After 15 minutes, the indicators dim.

Opening the door at the end of the programme

The door remains locked during the anti-crease phase. The control field lights up for the first 10 minutes. The control field then goes out and

the Start/Add laundry sensor control flashes.

Turn the programme selector to the

position.

appears on the timer display and the indicator light goes out.

The door unlocks.

Tip: After the anti-crease phase, the washing machine will have switched off and the door unlocked automatically. The control field will be completely dark.

Reach under the door grip and pull the door open.

Tip: Leave the door slightly open to allow the drum to dry.

Initial commissioning is now complete.

Washing environmentally and economically

Energy and water consumption

-To get the most out of your machine, load the maximum dry load size for the wash programme you are using. This will keep the energy and water consumption to a minimum in relation to the size of the load.

-Programmes that are more efficient with regard to energy and water consumption generally have a longer running time. By extending the programme running time, the wash temperature that is actually reached can be reduced while still providing the same wash results.

For example, the

ECO 40-60 programme has a longer running time than the Cottons 40 °C or 60 °C programme. The

ECO 40-60 programme is more efficient in terms of energy and water consumption but has a longer running time.

-Use the Express 20 programme for small, lightly soiled loads.

-Modern detergents make it possible to wash at lower temperatures (e.g. 20 °C). Using lower temperature settings will save energy.

Information about subsequent

tumble drying

The spin speed selected affects the residual moisture in the laundry and the sound emissions of the washing machine.

The higher the spin speed, the lower the residual moisture in the laundry. However, the sound emissions of the washing machine will increase.

Select the highest possible spin speed for the wash programme to save energy in the subsequent tumble dryer cycle.

Hygiene in the washing ma-

chine

Washing at low temperatures and/or using liquid detergents can cause bacteria and odours to build up in the washing machine. Miele therefore recommends cleaning the washing machine once every month.

When the indicator light lights up and

appears on the time display, the washing machine must be cleaned.

Detergent

-For precise dispensing use automatic detergent dispensing.

-Adjust the dosage to the degree of soiling of the laundry.

-Do not exceed the amounts of detergent recommended by the manufacturer on the packaging.

1. Prepare the laundry

Empty all pockets.

Damage due to foreign objects.

Nails, coins, paper clips, and so on can cause damage to garments and components in the machine.

Check the laundry before washing and remove any foreign objects.

Sort the laundry

Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

Tip: Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.

Pre-treating stains

Badly soiled areas and stains should be cleaned as soon as possible, preferably whilst still fresh. Spillages should be carefully dabbed off using a soft, colourfast cloth. Do not rub.

Tip: Stains (e.g. blood, egg, coffee, tea) can be pre-treated using some handy tricks which can be found in the Miele guide to laundry care.

Damage due to solvent-based cleaning agents

Cleaning agents containing benzine, stain remover, etc., can damage plastic parts.

When pre-treating textiles, make sure that any plastic parts (e.g. buttons) do not come into contact with cleaning agent.

Risk of explosion due to solventbased cleaning agents.

When using solvent-based cleaning agents, an explosive mixture may develop.

Never use solvent-based cleaning agents in the washing machine.

General tips

-Curtains: Remove lead weights first or place in a laundry bag.

-Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in.

-Close any zips, attach velcro fasteners, fasten hooks and eyes etc. before washing.

-Fasten duvet covers, pillow cases etc. to prevent small items from being rolled up inside them.

Do not wash any items in this washing machine which are specified by the manufacturer as not washable on the care label ( symbol).

2. Select a programme

Switching on the washing ma-

chine

Turn the programme selector to a programme.

1. Selecting wash programmes

using the programme selector

Turn the programme selector to the required programme.

The programme running time appears on the time display.

2. Selecting programmes using

the MobileStart programme

selector position and

Miele@mobile app

Tip: To use MobileStart , the washing machine must be logged on to the WiFi network and Remote control must be switched on.

Turn the programme selector to the

MobileStart position.

Once the programme has started, the washing machine can be operated with the Miele@mobile app.

3. Load the washing machine

Open the door

Close the door

Reach under the door grip and pull the door open.

Check the drum for pets or foreign objects before loading it with laundry.

The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creases.

Unfold the laundry and load loosely into the drum.

Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.

Tip: Please note the maximum load for different wash programmes.

Make sure that no items are caught between the door and the seal.

Shut the door with a gentle swing.

4. Select programme settings

Selecting a temperature and

spin speed

The wash programme’s preset temperature and spin speed light up brightly. The choice of available temperatures and spin speeds for the wash programme light up dimmed.

The temperatures reached inside the washing machine might not be the same as the temperatures selected. Perfect wash results are achieved through a combination of energy use and wash duration.

Selecting extra options

The selection of extra options available for the wash programme lights up dimly.

Touch the sensor for the extra option you want. It will then light up brightly.

Please refer to “Extra options” for more information.

Touch the sensor for the desired temperature. It will then light up brightly.

Touch the sensor for the desired spin speed. It will then light up brightly.

Switching on Delay start/

SmartStart

The start of the programme can be delayed from 30 minutes up to

24 hours. This allows you to make use of night-time economy electricity rates, for example (see the “Delay start/ SmartStart” chapter).

5. Add detergent

There are several options for adding detergent.

The washing machine has the TwinDos system.

TwinDos has to be activated as described in “Before using for the first time”.

The TwinDos system can only be operated with the Miele UltraPhase 1 and UltraPhase 2 detergents.

How UltraPhase 1 and UltraPhase 2 work

UltraPhase 1 is a liquid detergent which dissolves dirt and removes the most common stains. UltraPhase 2 is a bleaching agent and removes stubborn stains. For the best washing result, these two agents are dispensed at separate times during the washing process. UltraPhase 1 and UltraPhase 2 clean white and coloured fabrics thoroughly. UltraPhase 1 and UltraPhase 2 singleuse cartridges are available to order from Miele, your Miele dealer or via the Miele online shop.

Activating TwinDos dispensing

TwinDos dispensing is automatically activated for all programmes in which dispensing is possible.

The TwinDos colours sensor control lights up. The Twin Dos whites sensor control lights up dimly in certain wash programmes.

Tip: The detergent dispensing quantities are preset. If too much foam builds up, you can reduce the dispensing quantities using the and programmable functions.

Changing TwinDos dispensing

You can change the suggested colour composition of the laundry.

-Twin Dos whites sensor control for white or light fabrics

-TwinDos colours sensor control for colour fabrics

The brightly lit sensor control is activated.

Touch the Twin Dos whites sensor control if required.

Deactivating TwinDos dispensing

Touch the brightly lit Twin Dos whites or TwinDos colours sensor control.

Both sensor controls light up dimly and dispensing is deactivated.

5. Add detergent

Degree of soiling of the laundry

There are 3 different degrees of soiling.

The quantity of detergent dispensed via TwinDos and the quantity of water required for rinsing are preset for the normal degree of soiling.

-Light

No visible soiling or stains

-Normal

Visibly soiled and/or just a few slight stains.

-Heavy

Heavily soiled and/or clearly visible stains.

Tip: You can change the default degree of soiling using the programmable function.

Using other methods to re-

move stains

If you wish to use additional methods of stain removal, you have the following options:

-Using the Booster cap and activating the CapDosing.

-Add stain remover to the compartment.

Replacing detergent cartridges

1.An empty cartridge for compartment 1 is indicated by the Twin Dos whites sensor control flashing at the start of the programme.

2.An empty cartridge for compartment 2 is indicated by the TwinDos colours sensor control flashing at the start of the programme.

To release the lock, press the yellow button above the cartridge.

Pull out the cartridge.

Insert a new cartridge.

Touch the flashing sensor control. The counter is set to 0.

5. Add detergent

Detergent dispenser drawer

Adding fabric conditioner

Any detergent suitable for automatic front loading washing machines can be used. Please observe the instructions for use and dosage on the detergent packaging.

Adding detergent

Pull out the detergent drawer and add detergent to the compartments.

Detergent for the pre-wash

Detergent for the main wash

Fabric softener, liquid starch or

capsules

Add fabric conditioner or liquid starch to the compartment. Do not exceed the maximum level mark.

It will be automatically dispensed in the final rinse. At the end of the programme a small amount of water remains in the

compartment.

If starching frequently, thoroughly clean the dispenser compartment, especially the siphon tube, regularly.

5. Add detergent

Tips on dosing

Adjust the detergent dosage to the level of soiling of the laundry and the size of the load. Reduce the amount of detergent with smaller loads (e.g. reduce the amount of detergent by ⅓ when washing a half load).

Too little detergent:

-Results in laundry not being cleaned properly and may cause it to become grey and hard to the touch over time.

-Can lead to a build-up of mould in the washing machine.

-Results in grease not being completely removed from the laundry.

-Can lead to limescale deposits on the heater elements.

Too much detergent

-Causes poor wash, rinse, and spin results.

-Causes higher water consumption as an extra rinse cycle is automatically activated.

-Is a greater burden on the environment.

Using liquid detergent with a prewash

Liquid detergent cannot be used for the main wash if the pre-wash has been selected.

Use TwinDos dispensing if you are activating the pre-wash.

Using detergent tablets or pods

Always put detergent tablets or pods directly in the drum with the laundry. They cannot be added via the detergent dispenser drawer.

+ 67 hidden pages
