Operating instructions for washing machines
To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.
en-GB |
M.-Nr. 09 900 710 |
Caring for the environment
Disposal of the packing mate rial
The packaging is designed to protect the washing machine from damage dur ing transportation. The packaging ma terials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufactur ing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Disposal of your old machine
Electrical and electronic machines often contain valuable materials. They also contain materials which, if handled or disposed of incorrectly, could be po tentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your machine. Please do not therefore dispose of it with your household waste.
Please dispose of it at your local com munity waste collection / recycling cen tre or contact your Dealer for advice.
Ensure that it presents no danger to children while being stored for disposal.
2
|
|
Contents |
Caring for the environment ................................................................................... |
2 |
|
Warning and Safety instructions ......................................................................... |
6 |
|
Operating the washing machine......................................................................... |
13 |
|
Before using for the first time............................................................................. |
15 |
|
Running the first programme ................................................................................. |
15 |
|
Washing environmentally and economically ..................................................... |
16 |
|
1. |
Prepare the laundry ......................................................................................... |
17 |
2. |
Select a programme ........................................................................................ |
18 |
Select delay start, if required ................................................................................. |
18 |
|
3. |
Load the washing machine ............................................................................. |
19 |
Open the door........................................................................................................ |
19 |
|
4. |
Select programme settings............................................................................. |
20 |
Select an extra option(s) ........................................................................................ |
20 |
|
5. |
Add detergent................................................................................................... |
21 |
6. |
Start the programme - the end of a programme........................................... |
22 |
Extra options ........................................................................................................ |
23 |
|
Short ...................................................................................................................... |
23 |
|
Pre-wash ................................................................................................................ |
23 |
|
Soak....................................................................................................................... |
23 |
|
Water plus .............................................................................................................. |
23 |
|
Spinning ................................................................................................................ |
24 |
|
Delay start............................................................................................................. |
25 |
|
Programme chart ................................................................................................. |
26 |
|

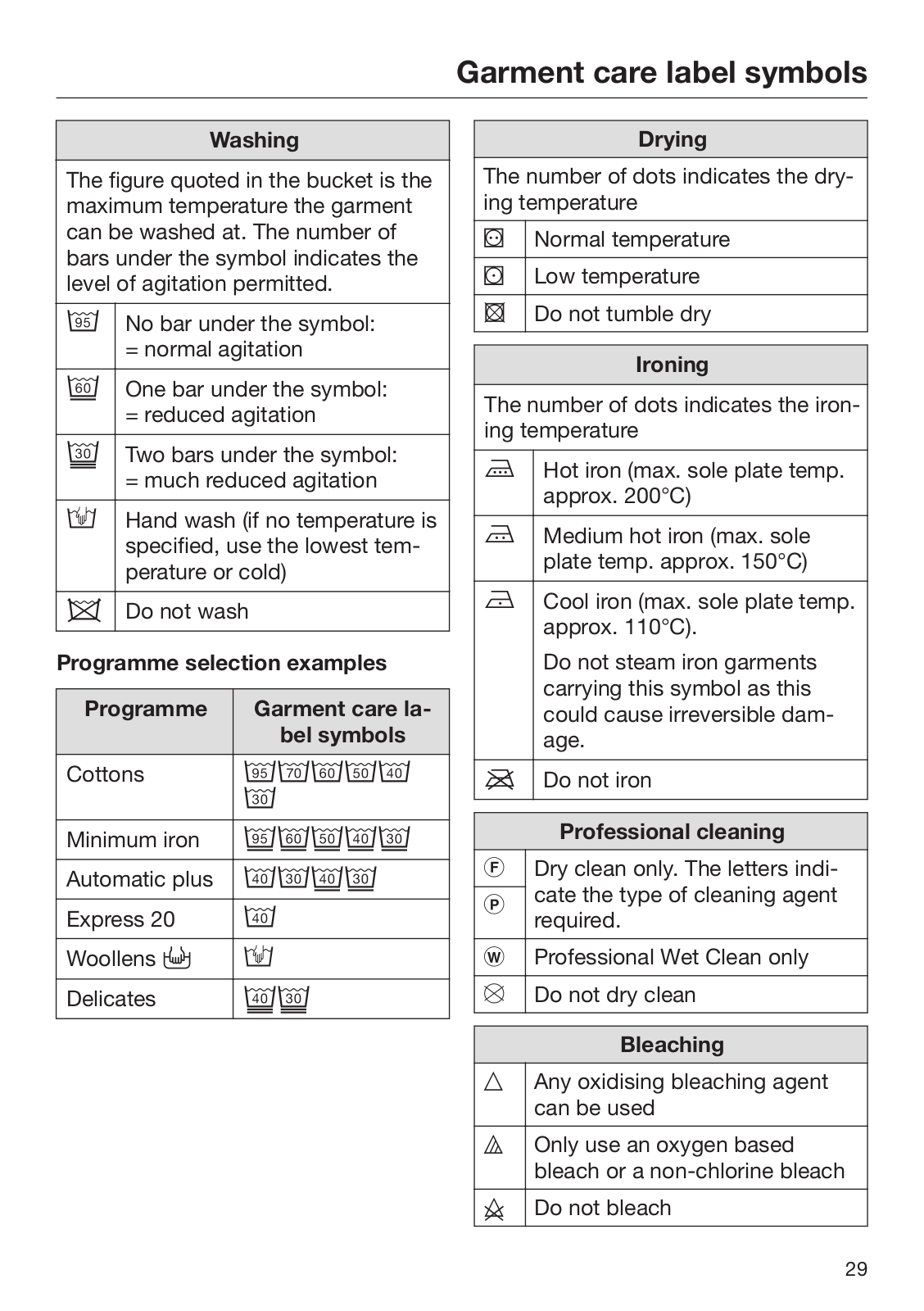

Garment care label symbols ............................................................................... |
29 |
|
Programme sequence ......................................................................................... |
30 |
|
3
Contents |
|
Changing the programme sequence ................................................................. |
32 |
Cancelling a programme........................................................................................ |
32 |
Removing laundry after cancelling the programme.......................................... |
32 |
Interrupting a programme ...................................................................................... |
32 |
Changing a programme ......................................................................................... |
32 |
Temperature ...................................................................................................... |
32 |
Spin speed........................................................................................................ |
32 |
Extra options..................................................................................................... |
32 |
Adding or removing laundry after the programme has started.............................. |
33 |
Detergent .............................................................................................................. |
34 |
The correct detergent ............................................................................................ |
34 |
Definition of the soiling level ............................................................................. |
34 |
Dispensing aids...................................................................................................... |
34 |
Water softeners...................................................................................................... |
34 |
Fabric conditioner and liquid starch ...................................................................... |
34 |
Miele recommended detergents ............................................................................ |
35 |
Recommended detergents in accordance with Directive (EU) Nr. 1015/2010 ...... |
36 |
Adding fabric conditioner or liquid starch separately ............................................ |
37 |

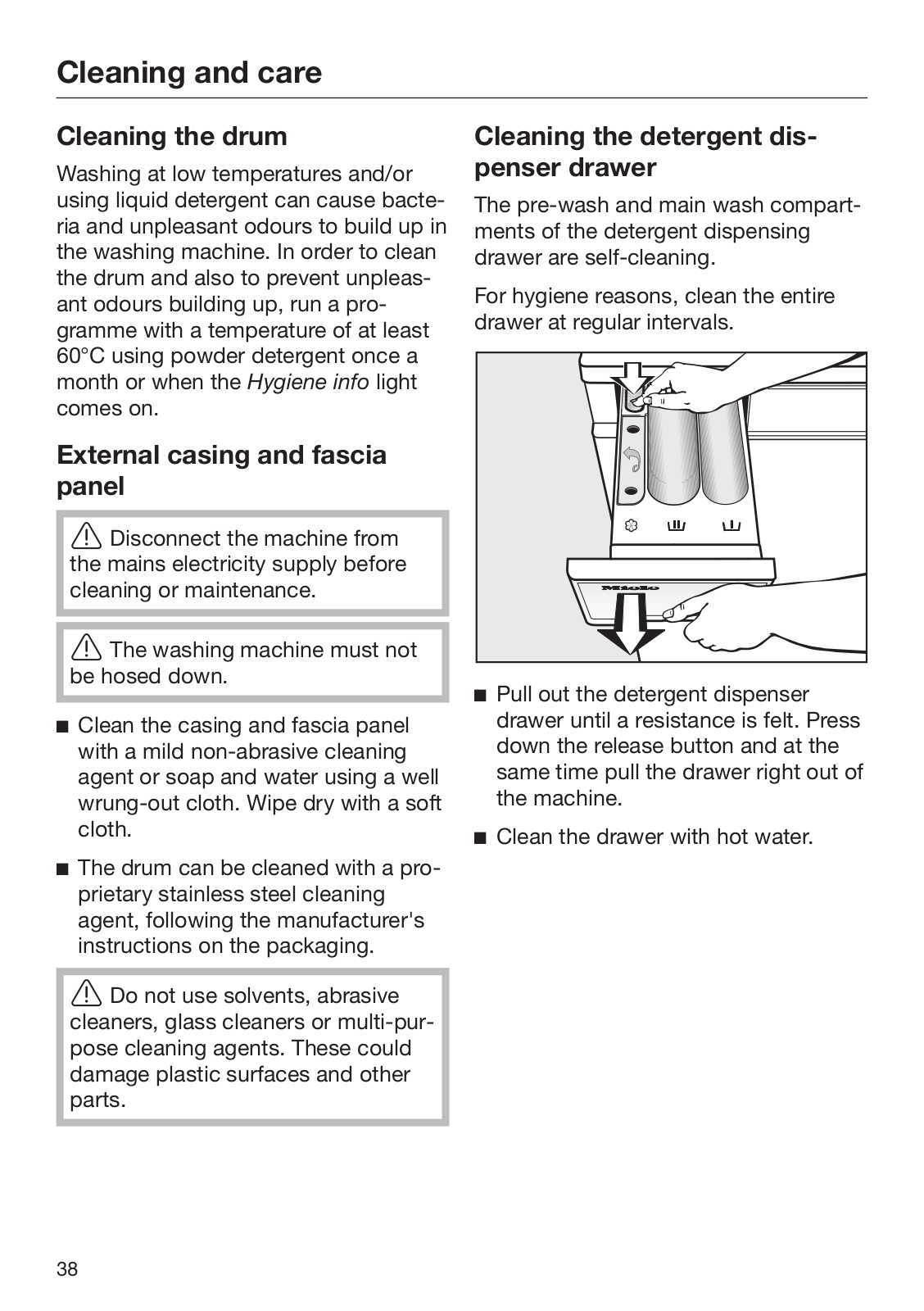

Cleaning and care ................................................................................................ |
38 |
Cleaning the drum.................................................................................................. |
38 |
External casing and fascia panel ........................................................................... |
38 |
Cleaning the detergent dispenser drawer.............................................................. |
38 |
Cleaning the water inlet filter ................................................................................. |
40 |
Problem solving guide ......................................................................................... |
41 |
The programme does not start .............................................................................. |
41 |
The wash programme stops and a fault indicator light comes on......................... |
42 |
A check or fault indicator light comes on but the wash programme |
|
continues as normal. .............................................................................................. |
43 |
General problems with the washing machine........................................................ |
44 |
An unsatisfactory wash result ................................................................................ |
45 |
The door will not open ........................................................................................... |
46 |
Opening the door in the event of a blocked drain outlet and/or power failure ...... |
47 |
Procedure for draining the washing machine ................................................... |
47 |
Opening the door.............................................................................................. |
48 |
After sales service ............................................................................................... |
49 |
Repairs................................................................................................................... |
49 |
Guarantee: U.K....................................................................................................... |
49 |
Guarantee: Other countries.................................................................................... |
49 |
Optional accessories ............................................................................................. |
49 |
4
|
Contents |
Installation and connection................................................................................. |
50 |
Front view............................................................................................................... |
50 |
Installation surface................................................................................................. |
52 |
Removing the transit bars...................................................................................... |
52 |
Re-fitting the transit bars ....................................................................................... |
54 |
Levelling the machine ............................................................................................ |
55 |
Screwing out and adjusting the feet ................................................................. |
55 |
Building under a continuous worktop/ in a kitchen run .................................... |
56 |
Washer-dryer stack........................................................................................... |
56 |
Please note: ...................................................................................................... |
56 |
The water protection system ................................................................................. |
57 |
Connection to the water supply............................................................................. |
58 |
Connection to the drainage system ....................................................................... |
59 |
Electrical connection U.K....................................................................................... |
60 |
Technical data ...................................................................................................... |
61 |
Consumption data ............................................................................................... |
62 |
Note for test institutes............................................................................................ |
62 |
Programmable functions..................................................................................... |
63 |
Water plus system ................................................................................................. |
63 |
Gentle action.......................................................................................................... |
64 |
Suds cooling .......................................................................................................... |
65 |
Memory.................................................................................................................. |
66 |
Soak duration......................................................................................................... |
67 |
Optional accessories........................................................................................... |
68 |
Detergent ............................................................................................................... |
68 |
Specialist detergents ............................................................................................. |
68 |
Fabric care ............................................................................................................. |
69 |
5
Warning and Safety instructions
This washing machine complies with current safety requirements. Inappropriate use can, however, lead to personal injury and dam age to property.
To avoid the risk of accidents and damage to the machine, please read these instructions carefully before using it for the first time. They contain important information on its safety, use and mainte nance.
Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future user.
Correct application
This washing machine is intended for use in domestic households and similar working and residential environments.
The washing machine is not intended for outdoor use.
It must be used only as a domestic appliance to wash items which are specified by the manufacturer as being washable on the wash care label. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.
The washing machine can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it safely and recognise and understand the consequen ces of incorrect operation.
6
Warning and Safety instructions
Safety with children
Children under 8 years of age must be kept away from the wash ing machine unless they are constantly supervised.
Children 8 years and older may only use the washing machine un supervised if they have been shown how to use it safely and recog nise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the washing machine unsupervised.
Please supervise children in the vicinity of the washing machine and do not let them play with it.
For machines with a 'porthole' door, remember that the porthole glass will be hot when washing at very high temperatures. Do not let children touch it.
7
Warning and Safety instructions
Technical safety
Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged machine.
Before connecting the washing machine, ensure that the connec tion data on the data plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a quali fied electrician.
The electrical safety of this washing machine can only be guaran teed when correctly earthed.
It is essential that this standard safety requirement is met. If in any doubt, please have the wiring system of the building tested by a qualified electrician.
Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
Do not connect the washing machine to the mains electricity sup ply by a multi-socket adapter, extension lead or similar. These do not guarantee the required safety of the machine (fire hazard due to the risk of overheating).
Faulty components must only be replaced by genuine Miele origi nal spare parts. Only when these parts are fitted can Miele guaran tee the safety standards of the machine.
Please observe the instructions in "Installation and connection" and "Technical data".
The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.
8
Warning and Safety instructions
Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the guar antee.
If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.
The machine must be isolated from the electricity supply when cleaning and maintaining the machine and in the event of a fault.
The Miele "Water protection system" protects from water damage provided the following conditions are met:
–the machine is correctly plumbed in and connected to the elec tricity supply.
–if a fault or damage has been identified, the machine must be ex amined by a competent person before further use, and repaired if necessary.
In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee.
The machine must not be used in a non-stationary location (e.g. on a ship).
Do not make any alterations to the machine, unless authorised to do so by Miele.
9
Warning and Safety instructions
Correct use
The maximum load for this washing machine is 7 kg (dry weight). See the "Programme chart" for the maximum recommended loads for individual programmes.
Do not install the washing machine in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the elec tronic control unit may be impaired at temperatures below freezing point.
Before using the machine for the first time, check that the transit bars at the rear of the machine have been removed (see "Installation and connection - Removing the transit bars"). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances.
Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.
Flooding danger.
If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.
Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds contain er, drum), which in turn can result in damage to the laundry.
10
Warning and Safety instructions
If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use a proprietary natural citric acid based descaling agent. Miele recommends using Miele descaling agent which is available to order online at www.miele-shop.com or from Miele. Strictly observe the instructions on the packaging.
Textiles which have been pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being wash ed in the machine.
Do not use solvent based cleaning agents, e.g. those containing benzine, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and ex plosion hazard.
Do not use solvent based cleaning agents, e.g. those containing benzine, to clean the surfaces of the machine. They can cause dam age to plastic surfaces.
Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine. Always observe the manufac turer's instructions carefully.
Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.
If detergent comes into contact with the eyes, rinse them thor oughly with lukewarm water immediately. If swallowed, seek medical assistance immediately and retain the packaging or label for refer ence. Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent.
11
Warning and Safety instructions
Accessories
Accessory parts may only be fitted when expressly approved by Miele. If other parts are used, guarantee, performance and product liability claims will be invalidated.
A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.
If installing the machine on a Miele plinth, (available as an optional accessory, depending on country), please make sure you order the correct one for this washing machine.
Miele cannot be held liable for damage caused by non-compli ance with these Warning and Safety instructions.
12
Operating the washing machine
aDisplay
See the next page for more informa tion.
bStart button
–For selecting delay start.
–For starting the wash programme.
cExtra option buttons
For selecting extra options. Use the upper button to select either Short, Pre-wash or Soak. Use the lower button to select Water plus. Indicator light on = option selected Indicator light off = option not selec ted
dSpin button with spin speed indica tor lights
For selecting the spin speed
eProgramme selector
For selecting the wash programme and temperature for that programme. The programme selector can be turned clockwise or anti-clockwise.
fProgramme sequence indicator lights
Show which stage of the programme has been reached.
gCheck / Fault indicator lights
–see "Problem solving guide".
–The PC check light is also used by service technicians to run diagnos tic checks and may be used to up date programming data in the fu ture.
hbutton
For switching the washing machine on and off.
To save energy the washing machine will switch off automatically 15 mi nutes after the end of the pro gramme/anti-crease phase or after being switched on if no other selec tion is made.
iDoor button
For opening the door.
13
Operating the washing machine
Display
The display shows:
–the programme duration (time left display)
–the delay start function
–the programmable functions
Programme duration
After the programme has started the programme duration will appear in the display in hours and minutes.
If delay start has been selected, the programme duration will appear at the end of the delay start time.
Delay start
The delay start time selected will ap pear in the display.
After the programme has started the delay start time will begin to count down.
Once the delay start time has elapsed, the estimated programme duration will appear in the display.
Programmable functions
The programmable functions can be used to tailor washing programmes to suit your personal requirements. In pro gramming mode, the display will show the function selected.
14
Before using for the first time
Before using the machine for the first time ensure that it is correctly in stalled and connected. See "Installa tion and connection". Also check that the drain filters are securely tightened to prevent the risk of water leaks during use.
This washing machine has undergone a complete functional test at the fac tory and there will be some residual water in the drum from this process.
For safety reasons, spinning is not pos sible until the machine has been pre pared for using for the first time. To ac tivate the spinning function you must run a wash programme without laundry and without detergent.
Using detergent could result in an ex cessive build-up of foam.
This also activates the ball valve. The ball valve prevents detergent escaping from the suds container into the sump during a wash programme, thus making maximum use of the detergent.
Running the first programme
Open the stopcock.
Press the button in.
Turn the programme selector to Cot tons 60°C.
Press the Start button.
When the programme has finished, your machine is ready to use for the first time.
Switch the washing machine off with the button at the end of the pro gramme.
15
Washing environmentally and economically
Energy and water consumption
–Water consumption and energy us age are determined by the size of the load.
To make the most of your machine, load the maximum dry load for the programme you are using.
–When smaller amounts of laundry are washed, the automatic load recogni tion system will reduce the amount of water and energy used.
–Use the Express 20 programme for small, lightly soiled loads.
–Modern detergents make it possible to wash at lower temperatures (e.g. 20°C). Washing using lower tempera ture settings will save energy.
–Use the Soak extra option instead of Pre-wash. If Soak is followed imme diately by a main wash, the same suds are used.
–To maintain the hygiene of the ma chine, carry out a hot wash (60°C or above) using powder detergent at regular intervals. The Hygiene info check light will appear to remind you to carry out a hot wash.
Detergent
–Do not exceed the amounts of deter gent recommended by the manufac turer on the packaging.
–Adjust the dosage to the degree of soiling of the laundry.
–Reduce the amount of detergent with
smaller loads (approx. 1/3 less than the amount recommended can be used when washing a half load).
Choosing the correct extra option (Short, Soak, Pre-wash)
Select:
–A wash programme together with the Short extra option for light to normal soiling where there are no obvious marks.
–A wash programme without any extra options for normal to heavy soiling with visible staining.
–A wash programme together with the Soak extra option for heavily soiled laundry.
–The Pre-wash extra option for laun dry with large amounts of dirt (e.g. dust, sand).
When drying with a tumble dryer
Selecting the highest possible spin speed for the wash programme will save energy when drying in a tumble dryer afterwards.
16
1. Prepare the laundry
Empty all pockets.
Foreign objects (e.g. nails, coins, paper clips, etc.) can cause damage to garments and to components in the machine.
Sort the laundry
Sort the laundry by colour and by care label. Most garments have a tex tile care label in the collar or side seam.
Tip: Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.
Pre-treat stains
Badly soiled areas, stains etc. should be cleaned as soon as possible, pref erably whilst still fresh. Spillages should be carefully dabbed off using a soft, colourfast cloth. Do not rub.
Tip: Badly soiled areas can be pre-trea ted with liquid detergent, stain remov ers etc. first, following the manufactur er's instructions. With particularly stub born stains ask your dry cleaner for ad vice.
If you use a solvent-based cleaning agent (e.g. one containing benzine) to pre-treat a stain, make sure that any plastic parts (e.g. but tons) are protected, and that the cleaning agent is rinsed off before washing the garment in the machine.
Do not use solvent-based clean ing agents in or on this machine.
General tips
–Curtains: Remove lead weights first or place in a laundry bag.
–Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiff eners, etc. should be removed or sewn in.
–Close any zips, attach velcro fasten ers, fasten hooks and eyes etc. be fore washing.
–Fasten duvet covers, pillow cases etc. to prevent small items from being rolled up inside them.
Do not wash any items in this washing machine which are specified by the manufacturer as not washable on the care label ( symbol).
17
2. Select a programme
Switch on the washing ma chine
Press the button.
Select delay start, if required
Make sure the programme selector is at the Finish position .
Press the Start button repeatedly to select the delay time you want.
Tip: Please see "Delay start" for more information.
Programme selection
Turn the programme selector to the required programme.
The display will show the estimated programme duration (unless you have selected a delay start time).
During the first 10 minutes, the machine measures how much water is being ab sorbed by the laundry. The programme duration may be longer or shorter de pending on the is absorbency rate.
18
3. Load the washing machine
Open the door
Press the Door button to open the door.
Unfold the laundry and load loosely into the drum.
Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.
Please note the maximum load for the different wash programmes. The rele vant programme load is always shown in the display when you select a pro gramme.
The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creases.
Close the door
Make sure that no items are caught between the door and the seal.
Shut the door with a gentle swing.
19
4. Select programme settings
Select an extra option(s)
Each press of the upper button selects the extra options: Soak or Pre-wash or Short or no extra option.
Use the lower button to select the Wa ter plus extra option.
Select the extra option(s) you want.
Tip: Not all the extra options are suita ble for use with every programme.
You can only select extra options which are compatible with the pro gramme being used.
Select a spin speed
You can alter the pre-set spin speed of a wash programme.
Press the Spin button repeatedly until the indicator light of the spin speed you want comes on.
20
5. Add detergent
It is important to dispense the correct amount, because . . .
. . . too little detergent results in:
–Laundry not getting properly clean and with time it may become grey and hard to the touch.
–Greasy particles clinging to laundry.
–Limescale deposits on the heater ele ments.
. . . too much detergent results in:
–Excessive foam which causes a low level of agitation and poor wash, rinse and spin results.
–High water consumption (an addi tional rinse cycle will automatically switch in).
–A burden to the environment.
Pull out the detergent dispenser drawer and add detergent to the compartments as follows:
Detergent for the pre-wash (divide the total recommended amount as follows:
add 1/3 to compartment and 2/3 to compartment )
Detergent for the main wash, including Soak, if selected
Fabric conditioner or liquid starch
Close the detergent dispenser draw er.
Tip: See "Detergent" for further infor mation.
21
6. Start the programme - the end of a programme
Start the programme
Press the flashing Start button.
–The programme duration will appear in the display once the programme has started.
–If a delay start time has been selec ted, this will count down in the dis play until the programme starts. The programme duration will then appear in the display.
At the end of a programme
When the programme has finished the
Anti-crease/Finish indicator light will light up in the programme sequence display and an 0 will appear in the dis play.
The washing machine will switch off automatically 15 minutes after the end of the anti-crease phase. Press the button to switch it back on again.
Press the Door button to open the door.
Remove the laundry.
Check that all items have been re moved from the drum. Items left in the drum could discolour other items in the next wash or become discol oured themselves.
Check the folds in the door seal for any small articles, e.g. buttons, which might be lodged there.
Switch the washing machine off with the button and turn the pro gramme selector to Finish.
Close the door. Otherwise there is a danger of objects being placed inad vertently in the drum. If these re mained unnoticed and were washed in the next load, they could damage the laundry.
22
Loading...
