870 KF Titrino plus

Manual

8.870.8005EN

Metrohm AG CH-9100 Herisau Switzerland Phone +41 71 353 85 85 Fax +41 71 353 89 01 info@metrohm.com www.metrohm.com

870 KF Titrino plus

8.870.8005EN

Manual

04.2013 jb/ebe

Teachware Metrohm AG CH-9100 Herisau teachware@metrohm.com

Although all the information given in this documentation has been checked with great care, errors cannot be entirely excluded. Should you notice any mistakes please send us your comments using the address given above.

Documentation in additional languages can be found on

http://documents.metrohm.com.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

1 Introduction 1

1.1 Instrument description ......................................................... 1

1.1.1 Titration and measuring modes ................................................ 1

1.1.2 Connectors .............................................................................. 1

1.1.3 Intended use ........................................................................... 1

1.2 About the documentation ................................................... 2

1.2.1 Symbols and conventions ........................................................ 2

1.3 Safety instructions ................................................................ 3

1.3.1 General notes on safety ........................................................... 3

1.3.2 Electrical safety ........................................................................ 3

1.3.3 Tubing and capillary connections ............................................. 4

1.3.4 Flammable solvents and chemicals ........................................... 4

1.3.5 Recycling and disposal ............................................................. 4

2 Overview of the instrument 6

Table of contents

3 Water determination according to Karl Fischer (KFT) 8

4 Installation 9

4.1 Setting up the instrument .................................................... 9

4.1.1 Packaging ................................................................................ 9

4.1.2 Checks .................................................................................... 9

4.1.3 Location .................................................................................. 9

4.2 Connecting a sensor ............................................................. 9

4.3 Connecting a stirrer ............................................................ 10

4.4 Connecting a balance ......................................................... 11

4.5 Connecting a keyboard, printer and other USB devi-

ces ........................................................................................ 11

4.6 Connecting instruments to the remote connector .......... 14

4.7 Attaching the exchange unit ............................................. 15

5 Operation 16

5.1 Switching the instrument on and off ............................... 16

5.2 Fundamentals of operation ............................................... 17

5.2.1 The keypad ............................................................................ 17

5.2.2 Structure of the dialog windows ............................................ 18

5.2.3 Navigating in the dialog ......................................................... 18

5.2.4 Entering text and numbers ..................................................... 19

5.2.5 Selecting from a selection list ................................................. 20

870 KF Titrino plus

￭￭￭￭￭￭￭￭

III

Table of contents

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5.3 Methods .............................................................................. 20

5.3.1 Method templates ................................................................. 20

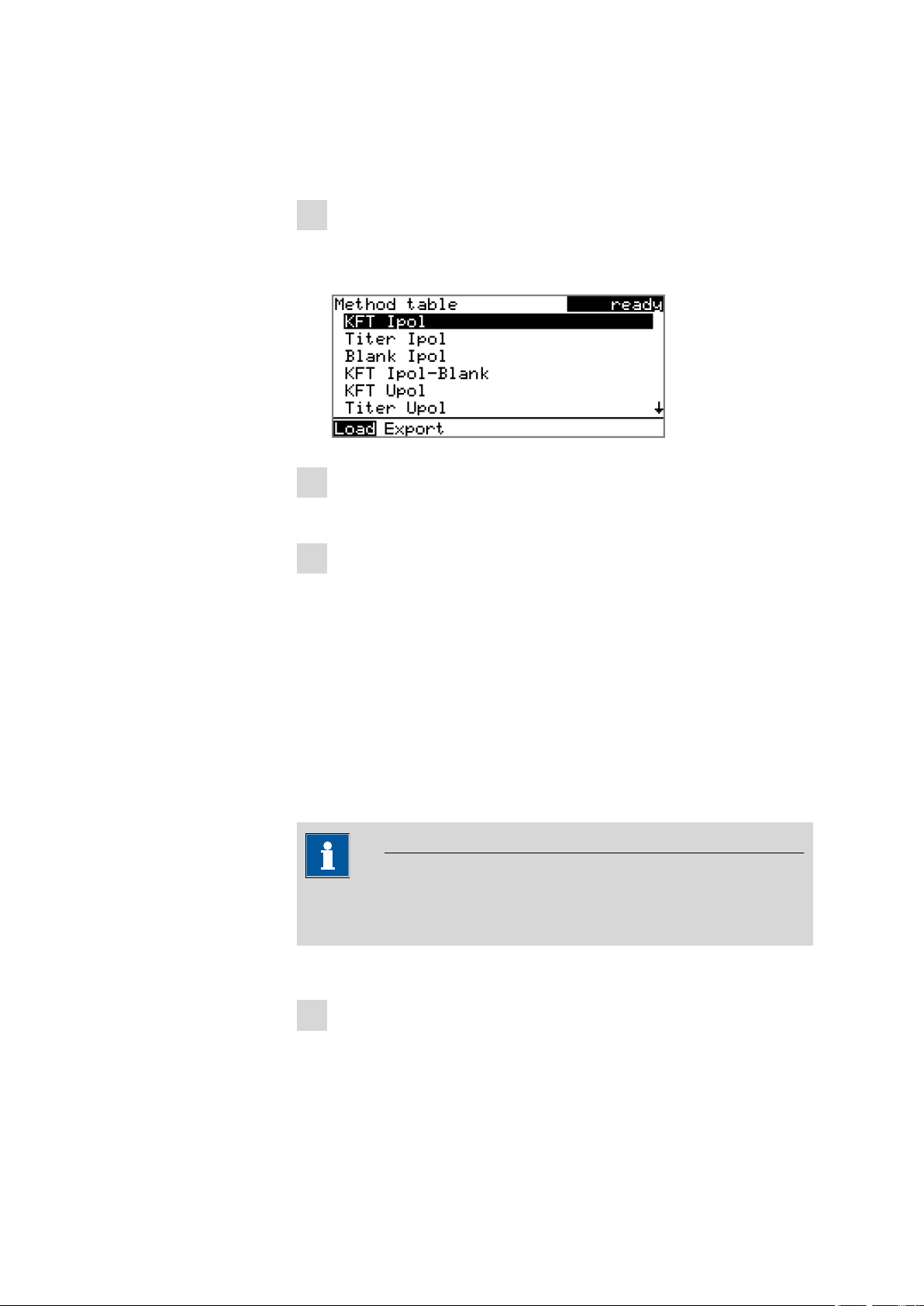

5.3.2 Loading a method ................................................................. 21

5.3.3 Saving a method ................................................................... 21

5.3.4 Exporting a method ............................................................... 21

5.4 Sample data ........................................................................ 22

5.4.1 Entering sample data in the main dialog ................................ 22

5.4.2 Requesting sample data at the start of the determination ...... 23

5.5 Carrying out a determination ............................................ 24

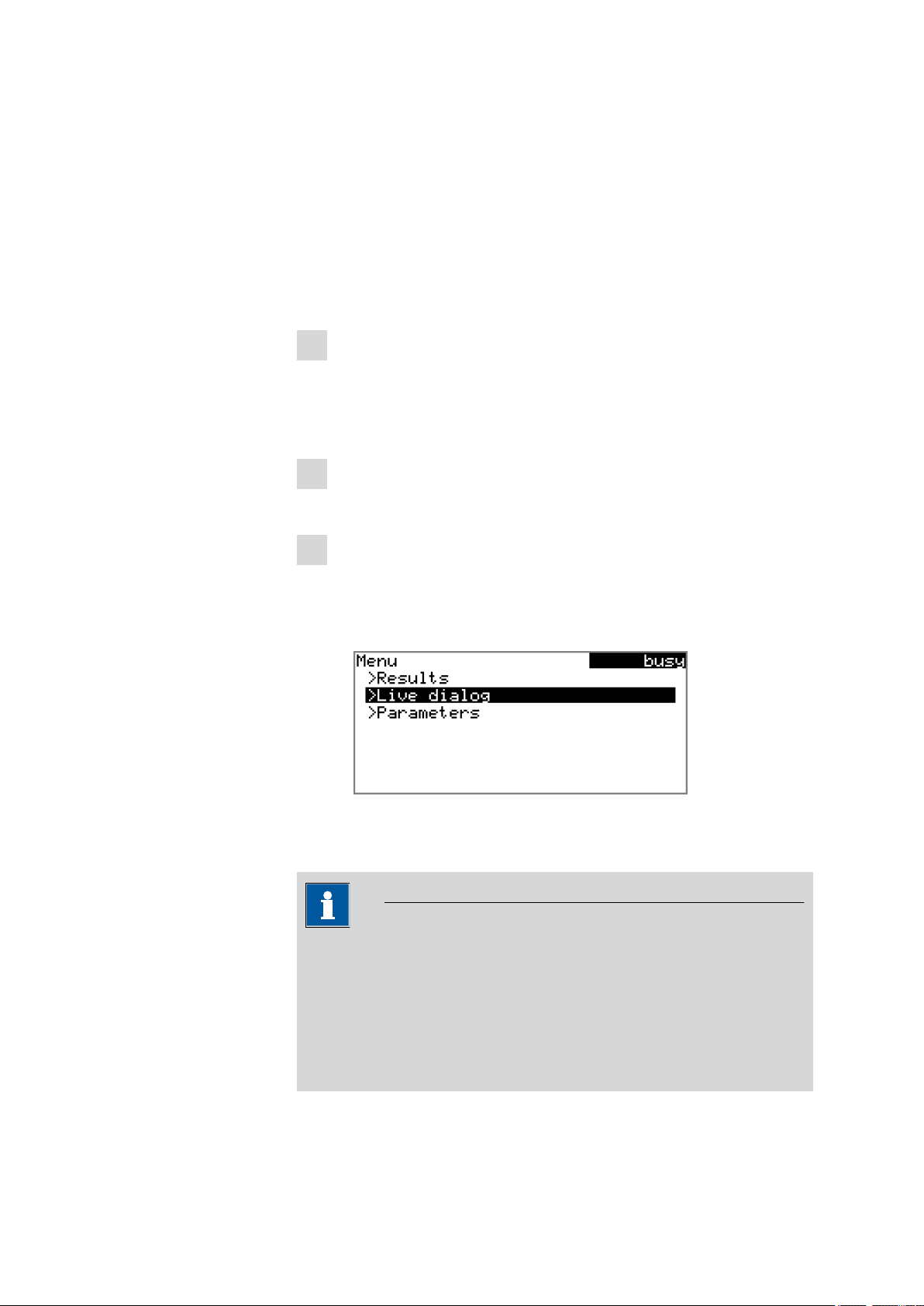

5.6 Live modifications .............................................................. 27

5.6.1 Editing the sample data of the running determination ............ 27

5.6.2 Editing the live parameters ..................................................... 28

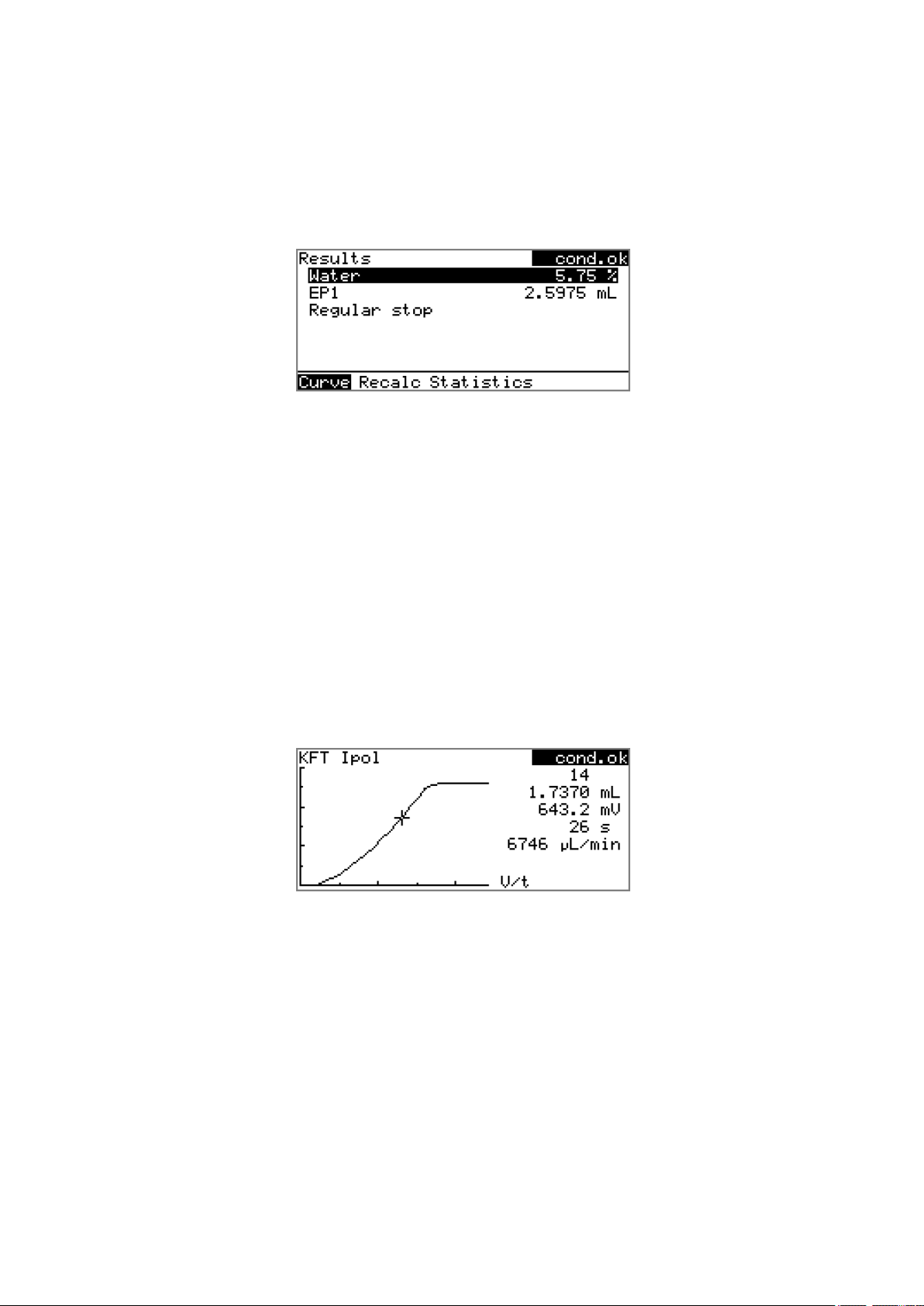

5.7 Results ................................................................................. 29

5.8 Statistics .............................................................................. 30

5.9 Printing a report manually ................................................. 31

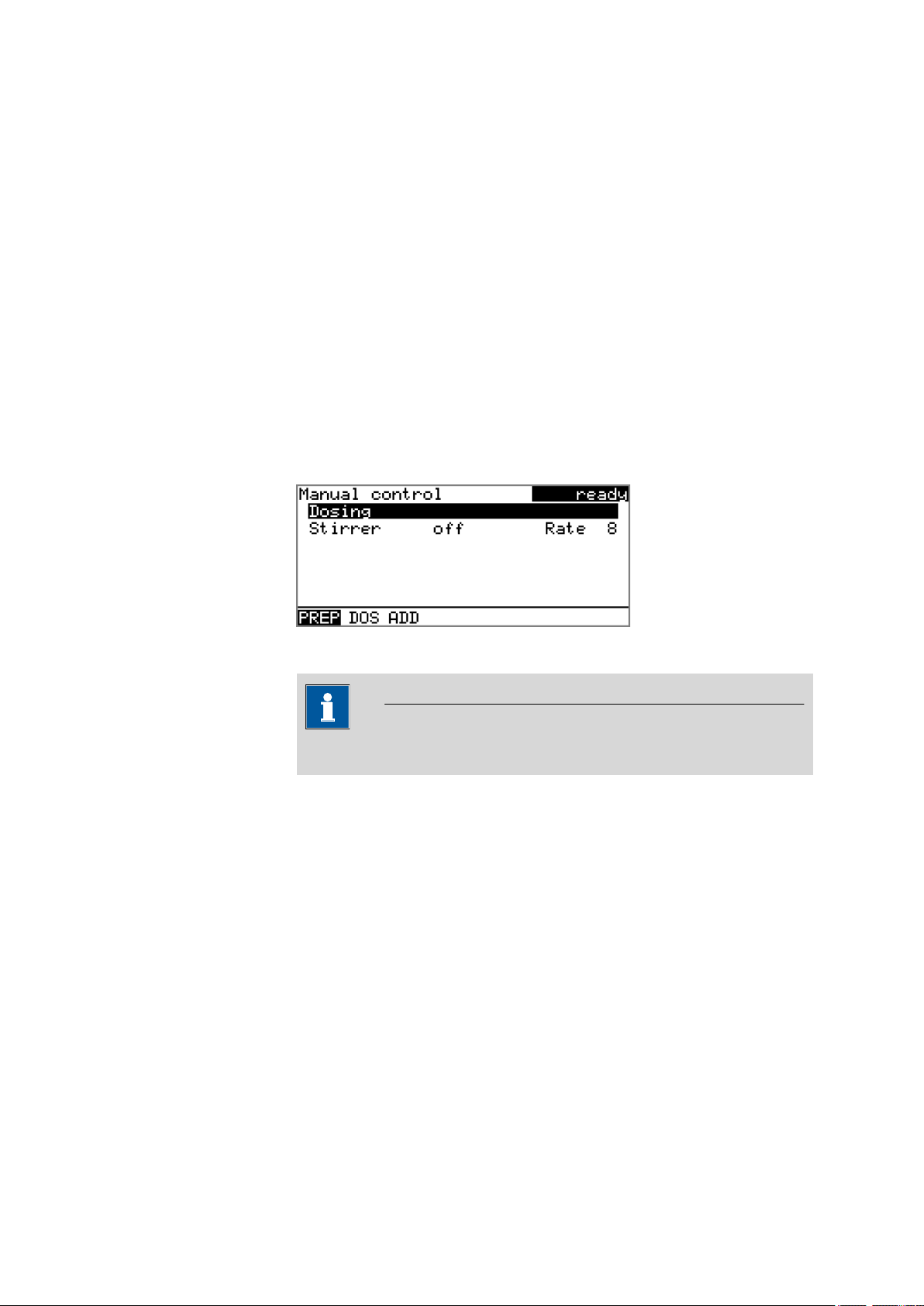

5.10 Manual control ................................................................... 33

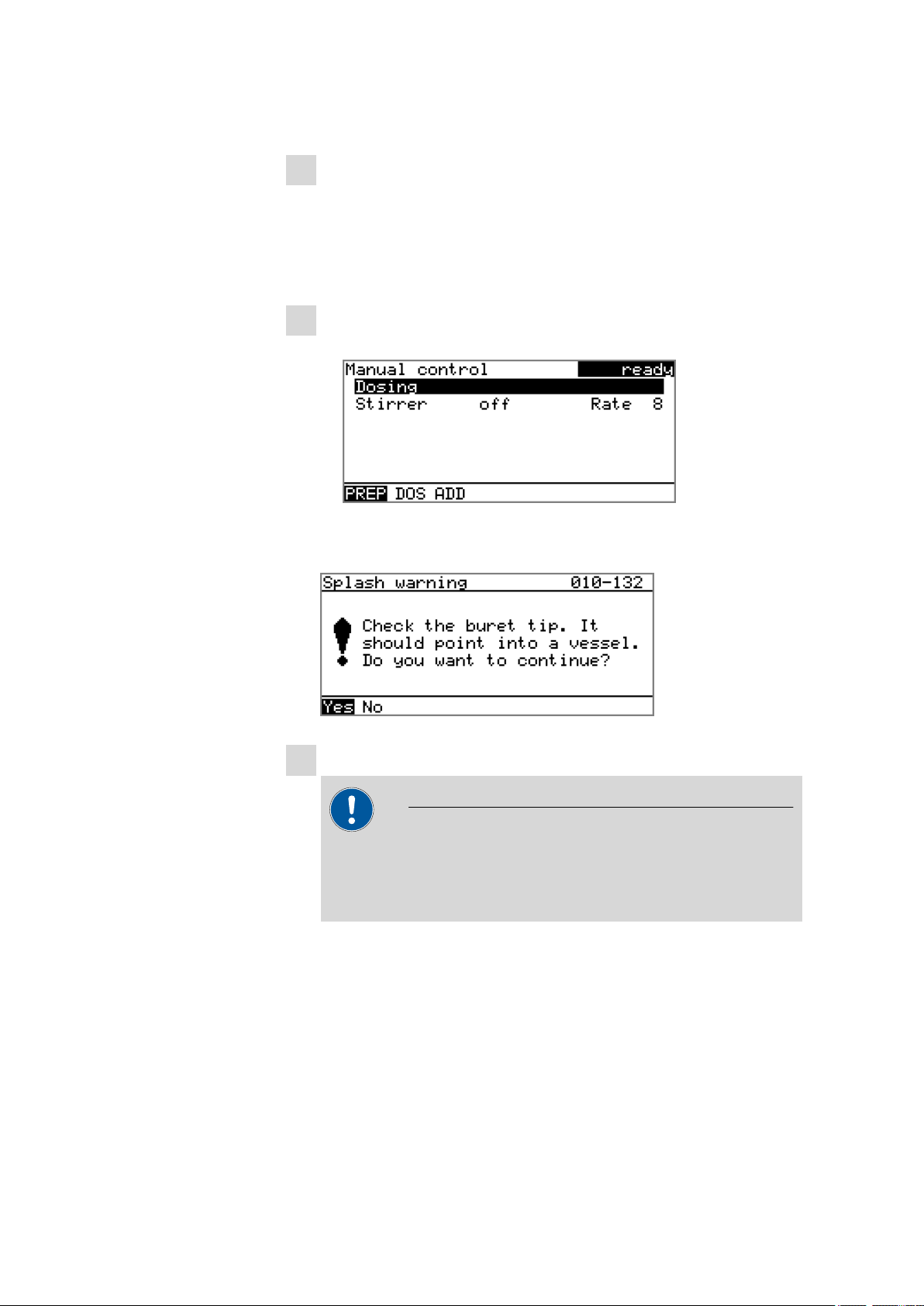

5.10.1 Dosing ................................................................................... 33

5.10.2 Stirring .................................................................................. 37

6 System settings 39

6.1 Basic settings ...................................................................... 39

6.2 Managing solutions ............................................................ 42

6.2.1 General ................................................................................. 42

6.2.2 Editing the solution data ........................................................ 43

6.3 File management ................................................................ 44

6.4 Configuring external devices ............................................. 46

6.5 Instrument diagnosis .......................................................... 49

6.5.1 Loading program versions and language files ......................... 49

6.5.2 Diagnosis functions ............................................................... 50

7 Parameters 51

7.1 Karl Fischer Titrations (KFT) .............................................. 51

7.1.1 Conditioning ......................................................................... 51

7.1.2 Start conditions ..................................................................... 52

7.1.3 Control parameters ................................................................ 53

7.1.4 Titration parameters .............................................................. 56

7.1.5 Stop conditions ..................................................................... 58

7.1.6 Calculations - Methods "Blank Ipol/Upol" ............................... 59

7.1.7 Calculations - Methods "Titer Ipol/Upol" ................................ 60

7.1.8 Calculations - Methods "KFT Ipol/Upol", "KFT Ipol/Upol–

Blank" ................................................................................... 61

7.1.9 Statistics ................................................................................ 63

7.1.10 Reports .................................................................................. 63

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

8 Operation and maintenance 66

9 Troubleshooting 67

10 Appendix 70

Table of contents

8.1 Quality Management and qualification with Metrohm .. 66

9.1 Karl Fischer titration .......................................................... 67

9.2 Miscellaneous ..................................................................... 68

10.1 Exchange unit ..................................................................... 70

10.1.1 Maximum dosing and filling rate ............................................ 70

10.1.2 Parameters for the preparing (PREP) ....................................... 70

10.2 Stirring rate ......................................................................... 71

10.3 Balance ................................................................................ 71

10.4 USB devices ......................................................................... 72

10.4.1 6.2147.000 numerical USB keypad ........................................ 72

10.4.2 Key assignment of a USB keyboard ........................................ 73

10.4.3 PC mouse .............................................................................. 73

10.4.4 Printer ................................................................................... 74

10.5 System initialization ........................................................... 74

10.6 Remote interface ................................................................ 76

10.6.1 Pin assignment of the remote interface .................................. 76

10.6.2 Status diagram of the remote interface .................................. 77

10.7 Remote control via an RS-232 connection ....................... 77

10.7.1 Commands and variables ....................................................... 78

10.8 Arithmetic algorithms in the 870 KF Titrino plus ............ 80

11 Technical specifications 83

11.1 Measuring inputs ................................................................ 83

11.1.1 Polarizer ................................................................................ 83

11.2 Dosing drive ........................................................................ 84

11.3 Interfaces ............................................................................. 84

11.4 Mains connection ............................................................... 84

11.5 Safety specifications ........................................................... 84

11.6 Electromagnetic compatibility (EMC) ................................ 85

11.7 Ambient temperature ......................................................... 85

11.8 Reference conditions .......................................................... 86

870 KF Titrino plus

11.9 Dimensions .......................................................................... 86

12 Warranty (guarantee) 87

￭￭￭￭￭￭￭￭

Table of contents

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

13 Accessories 89

13.1 Scope of delivery ................................................................ 89

13.2 Optional accessories ........................................................... 94

Index 97

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Table of figures

Figure 1 Front 870 KF Titrino plus ................................................................... 6

Figure 2 Rear 870 KF Titrino plus .................................................................... 7

Figure 3 Reagent dosing for KFT ..................................................................... 8

Figure 4 Connecting a polarizable electrode .................................................... 9

Figure 5 Connecting a stirrer ......................................................................... 10

Figure 6 Connecting a balance ...................................................................... 11

Figure 7 Connecting USB devices .................................................................. 12

Figure 8 Connecting the USB stick ................................................................ 13

Figure 9 Connecting the 6.2147.000 USB keyboard with USB stick and

printer ............................................................................................. 13

Figure 10 Connecting the USB hub with USB stick, printer and the 6.2148.030

RS-232/USB Box (for connecting balances). ...................................... 14

Figure 11 Connecting a remote cable ............................................................. 14

Figure 12 Attaching the exchange unit ........................................................... 15

Figure 13 Keypad 870 KF Titrino plus .............................................................. 17

Figure 14 Directory structure on the USB flash drive ........................................ 45

Figure 15 Rotational speed depending on stirring rate .................................... 71

Figure 16 Pin assignment of remote socket and remote plug .......................... 76

Figure 17 Remote status diagram .................................................................... 77

Figure 18 Connecting the RS-232/USB Box to the PC ...................................... 78

Table of figures

870 KF Titrino plus

￭￭￭￭￭￭￭￭

VII

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

1 Introduction

1.1 Instrument description

The 870 KF Titrino plus is an instrument used for volumetric water content determination according to Karl Fischer. There are method templates available which are already configured except for a few parameters. If parameters are changed, then these will be saved automatically. The methods can be exported to a connected USB flash drive. This function makes it possible for you to copy methods quickly and easily from one instrument to another.

1.1.1 Titration and measuring modes

The following titration and measuring modes are supported:

￭ KFT

Volumetric water content determination according to Karl Fischer.

Measuring modes:

– Ipol (voltametric measurement with selectable polarization cur-

rent)

– Upol (amperometric measurement with selectable polarization

voltage)

1 Introduction

1.1.2 Connectors

The instrument is equipped with the following connectors:

￭ MSB connector (Metrohm Serial Bus)

￭ USB (OTG) connector

￭ Electrode connector

￭ Remote connector

1.1.3 Intended use

The 870 KF Titrino plus is designed for usage as a titrator in analytical laboratories. Its main application field is volumetric titration.

This instrument is suitable for processing chemicals and flammable samples. The usage of the 870 KF Titrino plus therefore requires that the user have basic knowledge and experience in the handling of toxic and caustic substances. Knowledge with respect to the application of the fire prevention measures prescribed for laboratories is also mandatory.

For connecting a stirrer.

The 6.2151.100 adapter can be used to connect, for example, a

printer, a USB flash drive or a USB keyboard.

For connecting polarizable electrodes.

For connecting instruments with a remote interface.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

1.2 About the documentation

CAUTION

Please read through this documentation carefully before putting the instrument into operation. The documentation contains information and warnings which the user must follow in order to ensure safe operation of the instrument.

1.2.1 Symbols and conventions

The following symbols and formatting may appear in this documentation:

Cross-reference to figure legend

The first number refers to the figure number, the second to the instrument part in the figure.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Instruction step

Carry out these steps in the sequence shown.

Method Dialog text, parameter in the software

File ▶ New Menu or menu item

[Next] Button or key

WARNING

This symbol draws attention to a possible life-threatening hazard or risk of injury.

WARNING

This symbol draws attention to a possible hazard due to electrical current.

WARNING

This symbol draws attention to a possible hazard due to heat or hot instrument parts.

WARNING

This symbol draws attention to a possible biological hazard.

￭￭￭￭￭￭￭￭

CAUTION

This symbol draws attention to possible damage to instruments or instrument parts.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

1.3 Safety instructions

1.3.1 General notes on safety

WARNING

This instrument may only be operated in accordance with the specifications in this documentation.

This instrument has left the factory in a flawless state in terms of technical safety. To maintain this state and ensure non-hazardous operation of the instrument, the following instructions must be observed carefully.

1.3.2 Electrical safety

The electrical safety when working with the instrument is ensured as part of the international standard IEC 61010.

1 Introduction

NOTE

This symbol highlights additional information and tips.

WARNING

Only personnel qualified by Metrohm are authorized to carry out service work on electronic components.

WARNING

Never open the housing of the instrument. The instrument could be damaged by this. There is also a risk of serious injury if live components are touched.

There are no parts inside the housing which can be serviced or replaced by the user.

Mains voltage

WARNING

An incorrect mains voltage can damage the instrument.

870 KF Titrino plus

Only operate this instrument with a mains voltage specified for it (see rear panel of the instrument).

￭￭￭￭￭￭￭￭

1.3 Safety instructions

Protection against electrostatic charges

WARNING

Electronic components are sensitive to electrostatic charges and can be destroyed by discharges.

Do not fail to pull the mains cable out of the mains connection socket before you set up or disconnect electrical plug connections at the rear of the instrument.

1.3.3 Tubing and capillary connections

CAUTION

Leaks in tubing and capillary connections are a safety risk. Tighten all connections well by hand. Avoid applying excessive force to tubing connections. Damaged tubing ends lead to leakage. Appropriate tools can be used to loosen connections.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Check the connections regularly for leakage. If the instrument is used mainly in unattended operation, then weekly inspections are mandatory.

1.3.4 Flammable solvents and chemicals

WARNING

All relevant safety measures are to be observed when working with flammable solvents and chemicals.

￭ Set up the instrument in a well-ventilated location (e.g. fume cup-

board).

￭ Keep all sources of flame far from the workplace. ￭ Clean up spilled liquids and solids immediately. ￭ Follow the safety instructions of the chemical manufacturer.

1.3.5 Recycling and disposal

This product is covered by European Directive 2002/96/EC, WEEE – Waste from Electrical and Electronic Equipment.

￭￭￭￭￭￭￭￭

The correct disposal of your old equipment will help to prevent negative effects on the environment and public health.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

1 Introduction

More details about the disposal of your old equipment can be obtained from your local authorities, from waste disposal companies or from your local dealer.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

2 Overview of the instrument

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Figure 1 Front 870 KF Titrino plus

Piston rod

Of the dosing drive.

Coupling

For switching the flat stopcock.

Keypad

Contact pins

For the data chip.

Display

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

2 Overview of the instrument

Figure 2 Rear 870 KF Titrino plus

Type plate

Contains specifications concerning mains voltage and serial number.

USB (OTG) connector

For connecting printers, USB sticks, USB hubs, etc.

Remote connector

For connecting instruments with a remote interface. D-Sub, 9-pin.

Mains connection socket

MSB connector

Metrohm Serial Bus.

For connecting a stirrer. Mini DIN, 9-pin.

Electrode connector (Pol.)

For connecting polarizable electrodes, e.g. double Pt electrodes. Socket F.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

KFT Ipol

KFT Upol

V/mL

Continuous dosing

Initial dosing

V/mL

U/mV

t/s

I/µA

Control range

3 Water determination according to Karl Fischer

(KFT)

Karl Fischer Titration is a method for volumetric water determination. Conditioning is carried out automatically both before and after the actual titration. The reagent dosing is controlled in such a way that a predefined endpoint is reached as quickly and as accurately as possible. The volume steps and the rate of reagent dosing are regulated by the difference between the current measured value and the predefined endpoint. This means that titration is performed more slowly in the control range and that smaller volumes are added. The titration is stopped at the endpoint either drift-controlled or after a waiting time. The volume dosed until the endpoint is used to calculate the water content of the sample.

￭￭￭￭￭￭￭￭

Figure 3

Reagent dosing for KFT

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

4 Installation

4.1 Setting up the instrument

4.1.1 Packaging

The instrument is supplied in highly protective special packaging together with the separately packed accessories. Keep this packaging, as only this ensures safe transportation of the instrument.

4.1.2 Checks

Immediately after receipt, check whether the shipment has arrived complete and without damage by comparing it with the delivery note.

4.1.3 Location

The instrument has been developed for operation indoors and may not be used in explosive environments.

4 Installation

Place the instrument in a location of the laboratory which is suitable for operation, free of vibrations, protected from corrosive atmosphere, and contamination by chemicals.

The instrument should be protected against excessive temperature fluctuations and direct sunlight.

4.2 Connecting a sensor

Connecting a polarizable electrode

Figure 4

Connecting a polarizable electrode

870 KF Titrino plus

￭￭￭￭￭￭￭￭

4.3 Connecting a stirrer

NOTE

The electrode cable is protected against accidental disconnection of the cable by means of a pull-out protection feature. If you wish to remove the plug, then you must first retract the outer plug sleeve.

4.3 Connecting a stirrer

You can connect the following stirrers:

￭ 801 Stirrer ￭ 803 Ti Stand ￭ 804 Ti Stand (requires rod stirrer)

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Figure 5

Connecting a stirrer

CAUTION

Make sure that the flat side of the plug matches the marking on the socket.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

4.4 Connecting a balance

Balances are equipped with a serial RS-232 interface as a rule. To connect a balance, you require a 6.2148.030 RS-232/USB Box.

Figure 6 Connecting a balance

When a 6.2151.020 USB cable is used, then the 6.2148.030 RS-232/USB Box can be connected to the 870 KF Titrino plus by means of a USB hub or a 6.2151.100 adapter (see Chapter 4.5, page 11).

4 Installation

Connect the 9-pin plug of the respective balance connecting cable to the RS 232/1 connector. Consult the user manual of the balance in order to select the correct connecting cable.

The parameters for the RS-232 interface on the instrument must match those on the balance (see "Editing the COM1 settings", page 47). Additionally consult the user manual of the balance.

4.5 Connecting a keyboard, printer and other USB devices

The 870 KF Titrino plus has a USB (OTG) connector. Use the provided

6.2151.100 adapter USB MINI (OTG) - USB A for connecting USB devices as e.g. printers, keyboards or USB sticks, see the following figure.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

4.5 Connecting a keyboard, printer and other USB devices

6.2151.100

Figure 7 Connecting USB devices

CAUTION

Switch the instrument off before connecting or disconnecting a USB device or a USB stick.

The 870 KF Titrino plus can only recognize the device immediately after switching on.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

The following devices can be operated directly on the USB connector with the 6.2151.100 adapter:

￭ USB sticks (for the backup or storing of methods) ￭ 6.2147.000 numerical USB keypad ￭ 6.2148.030 RS-232/USB Box (for connecting balances or for the

RS-232 remote control)

￭ USB hub (with or without an own power supply)

The 6.2147.000 numerical USB keypad serves for comfortable numerical input and for navigating in the dialog. In addition, it provides two USB connectors. Connect additional USB devices to the keypad.

NOTE

Most of the USB devices need a so-called hub in order to work correctly.

A USB hub is a distributor to which several USB devices can be connected. USB hubs are available in specialty stores in a number of different models.

The USB (OTG) connector of the 870 KF Titrino plus has no such hub. The 6.2147.000 numerical USB keypad has a USB hub and two USB connectors.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

USB MINI (OTG)-USB

USB stick

6.2151.100

USB MINI (OTG)-USB

USB stick

Keypad

6.2147.000

6.2151.100

Printer

4 Installation

The following devices can only be connected to a 6.2147.000 numerical keypad or to a USB hub:

￭ Printer (with USB connector, use the 6.2151.020 connecting cable) ￭ Barcode reader (with USB cable) ￭ Mouse (PC mouse with USB cable, for navigating in the dialog)

The following devices can only be connected to a USB hub:

￭ PC keyboard (with USB cable, for the comfortable input of letters and

numbers)

￭ Keypad with numerical keypad (with USB cable)

If you wish to connect several different instruments without own power supply, then you must possibly use a USB hub with own power

supply (self powered). The USB (OTG) connector of the 870 KF Titrino plus is not designed for supplying power to several devices with elevated electricity requirements.

Also observe the instructions in chapter 10.4, page 72.

Examples:

Figure 8

Connecting the USB stick

Figure 9 Connecting the 6.2147.000 USB keyboard with USB stick and

printer

870 KF Titrino plus

￭￭￭￭￭￭￭￭

4.6 Connecting instruments to the remote connector

USB MINI (OTG)-USB

USB stick

USB-Hub

RS-232/USB Box

6.2148.030

6.2151.100

Printer

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Figure 10 Connecting the USB hub with USB stick, printer and the

6.2148.030 RS-232/USB Box (for connecting balances).

4.6 Connecting instruments to the remote connector

The 870 KF Titrino plus can be integrated in an automation system with the aid of a remote cable.

￭￭￭￭￭￭￭￭

Figure 11

Connecting a remote cable

A variety of different connecting cables are available for connecting Metrohm instruments (e.g. sample changers) (see Optional Accessories chapter).

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

4.7 Attaching the exchange unit

4 Installation

Figure 12 Attaching the exchange unit

To attach the exchange unit, proceed as follows:

Slide the exchange unit from the front onto the 870 KF Titrino plus

and push all the way to the rear.

It must snap in audibly.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.1 Switching the instrument on and off

5 Operation

5.1 Switching the instrument on and off

Switching on the instrument

Proceed as follows:

￭ Press the red [STOP] key.

The instrument is initialized and a system test performed. This process takes some time.

￭ If a buret unit has been attached, then a request appears to carry

out the PREP function:

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

All tubings and the cylinder are rinsed with the PREP (Preparing) function. The preparing of the buret unit is described in chapter "Preparing the buret unit (PREP)", page 33.

￭ Confirm the message with [OK].

The display of this message can be deactivated in the system settings (see "PREP warning", page 41).

The main dialog is displayed:

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Switching off the instrument

The instrument is switched off with the [STOP] key. The fact that the key needs to be pressed down for an extended time prevents accidental switch off.

Proceed as follows:

￭ Keep the red [STOP] key pressed down for at least 3 s.

A progress bar is displayed. If the key is released during this time, then the instrument will not be switched off.

5.2 Fundamentals of operation

5.2.1 The keypad

5 Operation

Figure 13

Keypad 870 KF Titrino plus

BACK Apply the input and exit the dialog.

⇧ ⇩ Move the selection bar either up or down by one

line at a time. Select the character to be entered in the text editor.

⇦ ⇨ Select the character to be entered in the text and

number editor. Select the individual functions in the function bar.

OK Confirm the selection.

STOP Stop an ongoing method run or a manual func-

tion. Switch the instrument on or off.

START Start a method run or a manual function.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.2 Fundamentals of operation

5.2.2 Structure of the dialog windows

The current dialog title is displayed on the left-hand side of the title bar. The current status of the system is displayed in the upper right-hand corner:

ready The instrument is in normal status.

cond.busy The working medium is being conditioned.

cond.ok The working medium is conditioned.

busy A method has been started.

Some dialogs have a so-called function bar on the bottom line. The functions contained therein can be selected with the arrow keys [⇦] or [⇨] and executed with [OK].

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5.2.3 Navigating in the dialog

The selection bar is displayed in inverted style. Use the arrow keys [⇧] and [⇩] to move the selection bar upward or downward one line at a time. If

a dialog text is marked with "＞", then additional settings are available in a subordinate dialog. Use [OK] to access this dialog.

Example: System settings

Use the [BACK] key to return to the next higher level.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5.2.4 Entering text and numbers

In the editing dialog for text input or numerical input, select the individual characters with the arrow keys. Use [OK] to apply the character in the input field. The following functions are available:

5 Operation

Editing function

Description

Accept The modification is applied and the editing dialog

is exited.

Cancel The editing dialog is exited without applying the

modification.

Clear The content of the input field is deleted com-

pletely.

The character left of the cursor is deleted (backspace).

Text editor only

The cursor within the input field is shifted to the left by one character each time that [OK] is pressed.

Text editor only

The cursor within the input field is shifted to the right by one character each time that [OK] is pressed.

870 KF Titrino plus

[BACK] The modification is applied and the editing dialog

is exited.

The [BACK] key has the same function as Accept.

A commercially available USB keyboard can be connected to make it easier to enter text and numbers. The assignment of the keys on the PC keyboard is described in chapter 10.4.2, page 73.

￭￭￭￭￭￭￭￭

5.3 Methods

5.2.5 Selecting from a selection list

In a selection list, select the individual entries with the arrow keys [⇧] and [⇩]. Accept the selection with [OK] or [BACK].

5.3 Methods

5.3.1 Method templates

The 870 KF Titrino plus contains method templates which are already configured except for a few parameters.

The following method templates can be selected:

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

KFT Ipol Method with adjustable polarization current.

The blank value is not taken into account for the calculation.

Titer Ipol Titer determination with adjustable polarization

current.

Blank Ipol Blank value determination with adjustable polari-

zation current.

KFT Ipol–Blank Method with adjustable polarization current.

The blank value is taken into account for the calculation.

KFT Upol Method with adjustable polarization voltage.

The blank value is not taken into account for the calculation.

Titer Upol Titer determination with adjustable polarization

voltage.

Blank Upol Blank value determination with adjustable polari-

zation voltage.

￭￭￭￭￭￭￭￭

KFT Upol–Blank Method with adjustable polarization voltage.

The blank value is taken into account for the calculation.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5.3.2 Loading a method

To load a method, proceed as follows:

Open the method table

￭ In the main dialog, select Method and press [OK].

The method table with the stored templates opens:

Select a method

￭ Select the desired method.

Load the method

￭ In the function bar, select Load and press [OK].

5 Operation

The method is now loaded and is displayed in the main dialog under Method.

5.3.3 Saving a method

If the method parameters are changed, then these will be saved automatically. It is not possible to save a method under a different name.

5.3.4 Exporting a method

Methods can be exported to a connected USB stick.

This function is possible only if a USB stick is connected as an external storage medium.

To export a method, proceed as follows:

Open the method table

￭ In the main dialog, select Method and press [OK].

NOTE

870 KF Titrino plus

The method table with the stored templates opens:

￭￭￭￭￭￭￭￭

5.4 Sample data

Select a method

￭ Select the desired method.

Export the method

￭ In the function bar, select Export and press [OK].

The method is exported. The directory structure on the USB stick is listed in chapter 6.3, page 44.

5.4 Sample data

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

You can enter the sample data (identification, sample size, etc.) in a variety of ways:

￭ Directly in the main dialog. ￭ Automatic request immediately after the start of the determination (see

Chapter 5.4.2, page 23).

You can also send the sample size and the unit from a connected balance in any case. With some balances, the sample identification and method can be also sent (see Chapter 10.3, page 71).

5.4.1 Entering sample data in the main dialog

For a sample, you can enter the sample data directly in the main dialog, even while the determination is running (see Chapter 5.6, page 27).

ID1

￭￭￭￭￭￭￭￭

Sample identification.

Entry max. 10 characters Default value empty

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

ID2

Sample size

Unit

5 Operation

Sample identification.

Entry max. 10 characters Default value empty

Sample size.

Input range –999999999 - 9999999999 Default value 1.0

Unit of the sample size.

Selection g | mg | µg | mL | µL | pieces | User-defined Default value g

User-defined

A user-defined unit can be created. This will be added to the selection list. The previous entry will be overwritten as soon as the new unit has been defined.

5.4.2 Requesting sample data at the start of the determination

The sample data can be requested immediately after the start of the determination in order to ensure that the sample data entry is not forgotten. This automatic request is indispensable when you reweigh your samples.

The corresponding parameters must be activated under Start conditions for this purpose. If the parameter Hold at request is activated, then the run will be paused and must be continued with [START] after the input of the sample data. If Hold at request is deactivated, then the titration will be started in the background. This dialog will be displayed until the entering of the sample data is confirmed with [START], even if the the titration is already completed. This ensures that the sample data is available for calculations.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.5 Carrying out a determination

The sample size can be entered in the following ways when a determination is carried out:

￭ Enter manually on the instrument. ￭ Send automatically from a connected balance. For this purpose, check

the manual for the balance.

Proceed as follows to carry out a determination:

Loading the method

￭ See Chapter "Loading a method", Page 21.

Starting conditioning

￭ Press [START].

Conditioning starts. Conditioning not OK is displayed until the endpoint is reached. The working medium is titrated to the endpoint. This is indicated by Conditioning OK. The status is kept stable.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

The stirring rate can be modified with the Stirrer function. The following dialog is opened by pressing [OK]:

The stirring rate can be reduced with Stir- and increased with Stir+. Off switches the stirrer off. On is now displayed instead. This can be used to switch the stirrer back on. This dialog is exited with [BACK].

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Adding sample

NOTE

Calculate the amount of the sample in such a way that a titrant consumption of 10…90% of the cylinder volume will result.

￭ If Conditioning OK is displayed, press [START].

Conditioning is stopped. The request for adding the sample will be displayed for 8 s. The sample must be added during this time.

5 Operation

￭ Add the sample.

Afterward, the request for the sample size appears:

Entering the sample size

￭ Press [OK].

The editing dialog opens.

￭ Enter the sample size and apply with Accept or [BACK].

Starting the titration

￭ Press [START].

The titration starts and the curve is displayed:

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.5 Carrying out a determination

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

The axes are scaled automatically.

The stirring rate can be modified during titration with the Stirrer function. The following dialog is opened by pressing [OK]:

After the completion of the titration, the results dialog is displayed. Conditioning is restarted automatically.

Canceling the conditioning

￭ Press [STOP].

Conditioning is canceled and the dosing cylinder is filled.

Canceling a determination manually

A determination can be canceled at any time with the [STOP] key.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5.6 Live modifications

5.6.1 Editing the sample data of the running determination

The sample data can be entered or modified in the main dialog while a determination is running. In calculations always the sample data entered at the end of the titration in the main dialog is used.

Proceed as follows to edit the sample data:

Displaying the main dialog

￭ Press [BACK].

The main dialog is displayed. The determination continues to run in the background.

Editing the sample data

￭ Edit the sample data and apply with Accept or [BACK].

Displaying the live dialog

￭ Press [BACK].

5 Operation

￭ Select Menu and press [OK].

￭ Select the menu item Live dialog and press [OK].

The live dialog is displayed once again.

NOTE

If the determination is finished while an editing dialog is opened (e.g. of the sample size), then this will be closed automatically and the results dialog will be displayed. The value entered must be entered once more and the determination must be recalculated.

Make sure that the editing dialogs are closed before the determination is finished.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.6 Live modifications

5.6.2 Editing the live parameters

Certain method parameters can be edited while a determination is being carried out. The only parameters that can be modified are those that can be selected. Nevertheless, all of the parameters are visible. The modified parameters are taken into account at once. If you modify, for instance, the start conditions after the start volume has been dosed, then these modifications will not be taken into account until the next determination.

Proceed as follows to edit the parameters:

Displaying the main dialog

￭ Press [BACK].

The main dialog is displayed. The determination continues to run in the background.

Opening the main menu

￭ Select Menu and press [OK].

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Editing the method parameters

￭ Select the menu item Parameters and press [OK]. ￭ Change the desired parameters accordingly.

Displaying the live dialog

￭ Select the menu item Live dialog in the main menu and press

[OK].

￭ Press [BACK] in the main dialog.

The live dialog is displayed once again.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5.7 Results

Curve

Recalculate

5 Operation

Menu ▶ Results

After the completion of the titration, the results dialog is displayed:

The calculated result and the endpoint volume are shown in the overview.

Display the curve of the current determination.

Recalculate the current determination. The procedure will be executed immediately.

Statistics

Display the statistical overview of a determination series (see Chapter 5.8, page 30).

Displaying the curve

The curve of the current determination can be displayed with the Curve function.

The arrow keys [⇦] and [⇨] can be used to move to the individual measuring points. A cross hair is used to show the current position on the curve. The data (volume, measured value, time, etc.) for the respective measuring point is indicated on the right-hand side.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.8 Statistics

Recalculating

All of the results are recalculated with the Recalculate function. This is necessary if, for example, the calculation, the titer or the sample size has been modified.

5.8 Statistics

Menu ▶ Results ▶ Statistics

The statistical overview of a determination series can be displayed in the Results dialog with the Statistics function.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

NOTE

Recalculation cannot be undone.

NOTE

Details

Reset

This function is visible only if statistics has been activated.

The mean value (Mean), the absolute and the relative standard deviation (s abs and s rel) are displayed in the overview. For the mean value, the number of individual results from which it has been calculated is displayed in parentheses. In this example, it is 3. The Statistics line shows how many determinations have already been carried out and how many determinations are to be carried out in total. All three determinations were carried out in this example.

Display additional data.

Delete all statistics data.

Increase

￭￭￭￭￭￭￭￭

Add a further determination to the determination series.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

On/Off

5 Operation

Displaying statistical details

Additional data from the determination series can be displayed with the Details function.

The result and the sample size of each determination are shown.

Remove the selected determination from the statistics. The line will then be marked with an asterisk (*), the statistics will be recalculated automatically.

Deleting statistical data

All statistical data is deleted with the Reset function. The statistics data is deleted automatically in the following cases:

￭ When all of the determinations of the determination series have been

carried out and a new determination has been started afterwards.

￭ When a new method is loaded.

Adding a determination to a determination series

You can use the function Increase to add an additional sample to a determination series, e.g. because a determination was faulty and had to be removed from the statistics. The second number in the Statistics line will be increased automatically by one.

5.9 Printing a report manually

Menu ▶ Print reports

Proceed as follows to print a report manually:

Opening the main menu

￭ In the main dialog, select Menu and press [OK].

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.9 Printing a report manually

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Opening the print dialog

￭ Select the menu item Print reports and press [OK].

The dialog window with the available reports opens:

Selecting the report

￭ Select the desired report and press [OK].

The report is printed out.

The following reports can be printed out manually:

Results Result report with determination properties,

sample data, calculated results, etc.

Curve Curve report. The width of the curve is defined in

the system settings (see "Graphics width", page

46).

Measuring point

Measuring point list report.

list

Parameters Report with all method parameters of the loaded

method.

System System report with system settings, solution list,

external devices, etc.

Calculations/Statistics

Calculation report. The statistics are also printed out in the case of multiple determinations. The individual determinations with the respective sample size, the mean value, the absolute and the relative standard deviation are printed out for each result.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5 Operation

PC/LIMS Machine-readable report with all of the data for

a determination. This report can be saved as a TXT file to a connected USB flash drive or sent to a terminal program or a LIMS via an RS-232 interface. The definition is made in the system settings (see "PC/LIMS report", page 46).

Report as in method

5.10 Manual control

Menu ▶ Manual control

The following functions are available in the manual control:

￭ Dosing ￭ Stirring

The available subfunctions are listed for each function in the function bar.

The reports that are defined in the method will be printed out.

NOTE

5.10.1 Dosing

870 KF Titrino plus

The Stirrer function can only be selected if a stirrer is connected.

The following dosing functions are available in the manual control:

Prepare the buret unit (PREP)

Continuous dosing

Rinse the cylinder and tubings of the buret unit (see Chapter 10.1.2, page 70).

Dose while the [START] key is pressed.

(DOS)

Dose a fixed vol-

Dose a specified volume.

ume (ADD)

Preparing the buret unit (PREP)

The PREP function is used to rinse the cylinder and tubings of the buret unit and fill them air bubble-free. You should carry out this function before the first determination or once per day.

￭￭￭￭￭￭￭￭

5.10 Manual control

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Proceed as follows:

Open the manual control

￭ In the main dialog, select Menu and press [OK].

The main menu opens.

￭ Select the menu item Manual control and press [OK].

Manual control opens.

Select the dosing function

￭ Select the Dosing item.

￭ In the function bar, select PREP and press [OK].

The following message is displayed:

Start the preparing

CAUTION

Make sure that the buret tip is directed into a vessel that can accommodate the cylinder volume of your buret unit several times over.

￭ Select Yes and confirm the message with [OK].

Preparing is carried out.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

5 Operation

Continuous dosing (DOS)

Continuous dosing will be carried out with the DOS function for as long as you keep the [START] key pressed down.

Proceed as follows:

Open the manual control

￭ In the main dialog, select Menu and press [OK].

The main menu opens.

￭ Select the menu item Manual control and press [OK].

Manual control opens.

Select the dosing function

￭ Select the Dosing item.

￭ In the function bar, select DOS and press [OK].

Configure the dosing function

NOTE

￭ The dosing and filling rates should be decreased for viscous liq-

uids.

￭ The maximum dosing and filling rates depend on the cylinder

volume (see Chapter 10.1.1, page 70).

￭ Enter the dosing rate. ￭ Enter the filling rate.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.10 Manual control

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Start dosing

￭ Press [START].

The status changes to busy, the dosed volume is displayed. When the volume of one cylinder has been dosed, the dosing cylinder will be refilled automatically.

Fill the cylinder

￭ Press [STOP] or [BACK].

The dosing cylinder is filled. If you start the filling with [BACK], then the dialog will also be exited.

Dosing a particular volume (ADD)

You can dose a particular volume with the ADD function.

Proceed as follows:

Open the manual control

￭ In the main dialog, select Menu and press [OK].

The main menu opens.

￭ Select the menu item Manual control and press [OK].

Manual control opens.

Select the dosing function

￭ Select the Dosing item.

￭ In the function bar, select ADD and press [OK].

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Configure the dosing function

NOTE

￭ The dosing and filling rates should be decreased for viscous liq-

uids.

￭ The maximum dosing and filling rates depend on the cylinder

volume (see Chapter 10.1.1, page 70).

￭ Enter the desired volume. ￭ Enter the dosing rate. ￭ Enter the filling rate.

Start dosing

￭ Press [START].

The status changes to busy, the dosed volume is displayed. When the volume of one cylinder has been dosed, the dosing cylinder will be refilled automatically.

Fill the cylinder

￭ Press [STOP] or [BACK].

5 Operation

5.10.2 Stirring

The dosing cylinder is filled. If you start the filling with [BACK], then the dialog will also be exited.

You can control a connected stirrer manually.

Proceed as follows:

Opening the manual control

￭ In the main dialog, select Menu and press [OK].

The main menu opens.

￭ Select the menu item Manual control and press [OK].

Manual control opens.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

5.10 Manual control

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Setting the stirring rate

￭ Select the Stirrer item.

￭ In the function bar, select Stir- or Stir+.

The stirring rate will be increased or decreased by one step each time the [OK] key is pressed. The algebraic sign changes the direction in which the stirring is done. When viewing the stirrer from above, this means:

– "+": counterclockwise rotation – "–": clockwise rotation

Switching on the stirrer

￭ In the function bar, select On and press [OK].

The stirrer is started and stirs at the rate which has been set. Off is now displayed in the function bar.

Switching off the stirrer

￭ In the function bar, select Off and confirm with [OK].

The stirrer is stopped.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

6 System settings

6.1 Basic settings

Menu ▶ System ▶ Settings

This chapter contains a description of general instrument settings.

User name

A user name can be entered here for the report. This parameter will only be printed if a user has been defined.

Entry max. 12 characters Default value empty

Instrument name

A instrument name can be entered here for the report. This parameter will only be printed if a designation has been defined.

6 System settings

Serial number

Program version

Time

Date

Language

Entry max. 10 characters Default value empty

Serial number of the instrument. This is printed as a part of the instrument identification in the report header.

Version number of the instrument software. This is printed as a part of the instrument identification in the report header.

Current time. Only valid numbers can be entered.

Format: hh:mm:ss

Current date. Only valid numbers can be entered.

Format: YYYY:MM:DD

Setting the dialog language. An additional language can be selected besides English.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

6.1 Basic settings

Dialog type

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

NOTE

In order to ensure that a second language can be selected, it must first be installed. This installation must be carried out by specialist personnel. In chapter Language files, page 49, you will find details regarding the installation of a second language.

The user dialog can be limited for routine operations. One can operate normally with methods in the limited dialog. However, no settings can be made or methods deleted.

The resetting of the dialog will take effect as soon as you exit the main menu.

The limitation of the dialog results in the following:

￭ The menu items System and Parameters are not shown in the main

menu.

￭ Methods can only be loaded, but not deleted, exported or created.

NOTE

If the limited dialog for routine operation is activated, then the expert dialog cannot be activated during ongoing operation. To change the dialog type, the 870 KF Titrino plus must be switched off and then back on again. The expert dialog can be forced as soon as the instrument is started up again. Then it is possible to enter whatever settings one wishes, e.g. the changing of the dialog type. If the instrument is switched off again without changing the dialog type, then the routine dialog will remain activated.

Forcing the expert dialog:

￭ Switch on the instrument. ￭ Wait for the display of the instrument logo with the lettering easy,

safe, precise.

￭ Press the [STOP] key once again and hold it down while also briefly

pressing the [BACK] key.

￭ Release both keys once again.

Selection

Expert | Routine

Default value Expert

￭￭￭￭￭￭￭￭

Expert

Complete dialog.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Contrast

6 System settings

Routine

Limited dialog for routine operations.

The contrast of the display can be adjusted with the arrow keys [⇦] and

[⇨].

￭ [⇦]: the contrast will be decreased by one step each time the key is

pressed.

￭ [⇨]: the contrast will be increased by one step each time the key is

pressed.

Input range 150 - 240 Default value 212

NOTE

Alternatively, the contrast can also be modified in the following manner:

Beep

PREP warning

Keep the red [STOP] key pressed down. As soon as the progress bar appears, also press the arrow key [⇩] or [⇧] repeatedly.

This method will, however, cause the contrast to be modified by several steps.

If this parameter is activated, then a short beep will sound in the following cases:

￭ When a key is pressed. ￭ At the end of the determination. ￭ When the system remains conditioned without interruption for 10 sec-

onds.

Selection on | off Default value on

If this parameter is activated, then the recommendation will be made to carry out the function PREP (Preparing):

￭ After the instrument is switched on. ￭ Each time a buret unit is attached.

870 KF Titrino plus

All tubing and the cylinder are rinsed with this function (see Chapter

10.1.2, page 70).

￭￭￭￭￭￭￭￭

6.2 Managing solutions

Selection on | off Default value on

6.2 Managing solutions

6.2.1 General

Menu ▶ System ▶ Solutions

Solutions can be used in intelligent buret units or in non-intelligent buret units. Intelligent buret units have a built-in data chip on which the data for the reagent is stored. This data is automatically read out during attachment and entered in the solution list.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Edit

New

The name and the type are specified for each solution in the solution list. The asterisk (*) on the right-hand side indicates that this buret unit is attached (only for intelligent buret units). An unlimited number of solutions in buret units with data chip can be added to the solution list. The number of solutions in buret units without data chip is limited to 10 items.

Meaning of the type:

￭ EU: exchange unit without data chip ￭ IEU: exchange unit with integrated data chip

not defined is the standard solution. It can be used to carry out determinations without having configured a solution. If you carry out a titer determination with the titration parameter Solution = not defined, then the result will be saved as titer of this solution. If you carry out a titration with the titration parameter Solution = not defined, then the data of this solution will be used for the calculation. The titer and the concentration can be edited, but this standard solution can neither be renamed nor deleted.

Edit the data of the selected solution, see following chapter.

Add a new solution to the list, see following chapter.

Delete

￭￭￭￭￭￭￭￭

Delete the selected solution from the list.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

6.2.2 Editing the solution data

Name

The designation of the solution is used for unambiguous identification.

Entry max. 24 characters Default value empty

Type

The model of the buret unit is displayed.

Cylinder volume

Cylinder volume of the buret unit in mL. The cylinder volume is automatically read out with intelligent buret units.

Selection 1 | 5 | 10 | 20 | 50 Default value 20

Concentration

Concentration of the solution.

6 System settings

Concentration unit

Titer

Titer unit

Input range –999999999 - 9999999999 Default value 1.000

Unit of the concentration.

µg/L | ppm | % | mEq/L | User-defined

Default value mol/L

User-defined

A user-defined unit can be created. This will be added to the selection list. The previous entry will be overwritten as soon as the new unit has been defined. A blank entry can be generated this way as well.

Titer of the solution.

Input range –999999999 - 9999999999 Default value 1.000

Unit of the titer.

870 KF Titrino plus

µg/L | ppm | % | mEq/L | empty | User-defined

Default value empty

￭￭￭￭￭￭￭￭

6.3 File management

Date titer det.

Monitoring

Time interval

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

User-defined

Date of the last titer determination.

Activating and deactivating the titer monitoring.

Selection on | off Default value off

This parameter is visible only when Monitoring = on.

You will be notified that this time interval (in days) has elapsed when starting a method. You can then select whether or not you would still like to start the method.

Input range 1 - 999 d Default value 999 d

6.3 File management

Menu ▶ System ▶ File management

NOTE

This menu item is visible only if a USB flash drive has been connected as an external storage medium.

Methods can be imported and deleted from a USB flash drive in this dialog. Only methods located in the Files directory are displayed in the list (see "Directory structure on the USB flash drive", page 45).

A backup of the system can be created (all data and settings). Similarly, an existing backup can be reloaded.

Import

Import the selected method.

Delete

Backup

￭￭￭￭￭￭￭￭

Delete the selected method.

Create a backup of all data and settings on the USB flash drive.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Restore

6 System settings

NOTE

Only one backup can be created on the same USB flash drive.

If a backup is already stored on the flash drive, then this will be overwritten as soon as the function is performed once again.

Load the backup from a connected USB flash drive.

Directory structure on the USB flash drive

A directory with the instrument number will be created on the USB flash drive. The structure within this directory appears as follows:

Figure 14

Directory structure on the USB flash drive

Backup All of the files of the backup are stored in this

directory. The directory is created as soon as a backup is created for the first time.

Files Exported methods are stored in this directory.

The directory is created as soon as a backup is exported for the first time.

Only methods located in this directory can be imported.

pc_lims_report PC/LIMS reports are stored in this directory as

TXT files. The directory is created as soon as a PC/LIMS report is printed for the first time.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

6.4 Configuring external devices

Menu ▶ System ▶ External devices

PC/LIMS report

Specification of the storage location for the PC/LIMS report. The PC/LIMS report is a machine-readable report with all of the important data for a determination. It can be saved as follows:

￭ as a TXT file on a USB flash drive. ￭ to a LIMS via an RS-232 interface. The 6.2148.030 RS-232/USB Box is

required for this purpose.

Selection COM2 | USB Stick Default value USB Stick

COM2

The report is sent via the serial COM2 interface. The interface parameters set in the dialog COM2 settings are used (see "Editing the COM2 settings", page 48).

USB Stick

The report will be saved as a TXT file on the USB flash drive in the folder pc_lims_report.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Printer

Graphics width

Keyboard layout

If a printer is connected, then the printer type needs to be defined here in order for the reports to be printed out correctly.

The printers that have the designation ESC-POS are so-called POS printers (point-of-sale printers), i.e. they print on continuous paper.

Selection Citizen (ESC-POS) | Custom (ESC-POS) | Epson |

Epson (ESC-POS) | HP DeskJet | HP LaserJet | Seiko (ESC-POS)

Default value HP DeskJet

Adjust the width of the curve to be printed out to the paper width of the printer to be used. The default value depends on the selected printer. The height of the curve is 2/3 of the width.

Input range 100 - 3000 Pixels

A commercially available USB keyboard can be connected to make it easier to enter text and numbers. Specify the country-specific keyboard layout.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Balance

6 System settings

Selection English US | French FR | German CH | German

DE | Spanish ES

Default value English US

If you have connected a balance, then you must define the balance type here.

Selection AND | Mettler | Mettler AT | Mettler AX |

Ohaus | Precisa | Sartorius | Shimadzu

Default value Sartorius

The following table indicates the balance type that needs to be selected for the balance model:

Balance

Balance type

AND AND

Mettler AB, AE, AG, AM,

Mettler

AJ, PE, PM, PJ, PR, XP, XS

Mettler AT Mettler AT

Mettler AX, MX, UMX, PG,

Mettler AX

AB-S, PB-S

Ohaus Voyager, Explorer,

Ohaus

Analytical Plus

Precisa Precisa

Sartorius Sartorius

Shimadzu BX, BW Shimadzu

Editing the COM1 settings

Menu ▶ System ▶ External devices ▶ COM1 settings

The interface parameters for the connected balance are set under COM1 settings.

Baud rate

Data bits

870 KF Titrino plus

Transfer rate in characters per second.

Selection 1200 | 2400 | 4800 | 9600 | 19200 | 38400 |

57600 | 115200

Default value 9600

Number of data bits.

￭￭￭￭￭￭￭￭

6.4 Configuring external devices

Stop bits

Parity

Handshake

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Selection 7 | 8 Default value 8

Number of stop bits.

Selection 1 | 2 Default value 1

Type of parity testing.

Selection even | none | odd Default value none

Type of the data transfer protocol.

Selection hardware | software | none Default value hardware

NOTE

If communications problems occur, set the parameter Handshake to software, and make another attempt.

Editing the COM2 settings

Menu ▶ System ▶ External devices ▶ COM2 settings

The interface parameters for instruments connected to the RS-232/2 connector of the RS-232/USB Box (e.g. PC) are set under COM2 settings. The parameters and input ranges are identical to those for the COM1 interface.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

6.5 Instrument diagnosis

6.5.1 Loading program versions and language files

Menu ▶ System ▶ Diagnosis

New program versions or language files can be loaded from a USB flash drive. The corresponding file must be saved on the USB flash drive in a directory with the instrument number (e.g. 848 or 863).

You can distinguish between language files and program files by noting how the file name is constructed.

Program files

They are instrument-specific. The file name has the following structure:

5XXXyyyy.bin where

6 System settings

XXX =

yyyy =

Instrument type (e.g. 848 for the 848 Titrino plus)

Program version

Language files

They can be recognized by means of the two-digit language code in the file name. A language file contains the dialog texts for various instrument types. It is not instrument-specific. The file name has the following structure:

5848xxxxYY.bin where

xxxx =

YY =

Version number

Language, e.g. DE (German), FR (French), ES (Spanish)

Loading a file

Proceed as follows:

Connecting the USB flash drive

￭ Plug in the USB flash drive with the 6.2151.100 adapter (USB

MINI (OTG) - USB A) at the instrument's USB port.

￭ Switch on the instrument.

Opening the update dialog

￭ Under Menu ▶ System ▶ Diagnosis, select the menu item

Software update.

￭ Press [OK].

870 KF Titrino plus

￭￭￭￭￭￭￭￭

6.5 Instrument diagnosis

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Opening the file selection

￭ Press [OK].

The selection list with the program and language files present on the USB flash drive opens.

Selecting the file

￭ Use the arrow keys to select the required file. ￭ Press [OK].

Starting the update

￭ Press [START].

The update process is started, it runs automatically. At the end of the process, the instrument will be switched off automatically and switched back on again. No user intervention is required.

6.5.2 Diagnosis functions

Electronic and mechanical functional groups in Metrohm instruments can and should be checked as part of regular maintenance by specialist personnel from Metrohm. Please ask your local Metrohm representative regarding the precise terms and conditions involved in concluding a corresponding maintenance agreement.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

7 Parameters

7.1 Karl Fischer Titrations (KFT)

7.1.1 Conditioning

Menu ▶ Parameters ▶ Conditioning

Under Conditioning, the conditions required for conditioning are defined.

Conditioning

If this parameter is switched on, then the first time the titration is started the working medium will be titrated to the endpoint with the specified control parameters. The status is kept stable. The actual method run does not begin until [START] has been pressed once more. Conditioning will be carried out again automatically after the titration.

7 Parameters

Start drift

Drift correction

Selection on | off Default value on

Conditioning OK will be displayed as soon as this volume drift has been reached and the titration can be started.

Input range 1 - 999 µL/min Default value 20 µL/min

The endpoint volume can be corrected by taking the drift value into account. For this, the volume drift is multiplied with the drift correction time and this value is then subtracted from the endpoint volume. The drift correction time is the time interval between the end of conditioning and the end of the determination.

Selection auto | manual | off Default value off

auto

The value of the current volume drift is applied automatically at the start of the titration.

manual

If the volume drift is known throughout a prolonged period of time, then this can be entered manually.

off

No drift correction takes place.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

Drift value

Cond. stop volume

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

This parameter is visible only when Drift correction = manual.

Volume drift for manual drift correction.

Input range 0.0 - 99.9 µL/min Default value 0.0 µL/min

Maximum permissible volume that can be dosed during conditioning. Conditioning is stopped when the specified volume is dosed. If conditioning is continued by pressing [START] once again, then the titrant volume that has already been dosed will not be taken into account; i.e. the dosing starts again at zero. The stop volume should be adjusted to the size of the titration cell in order to prevent any overflow.

Input range 0.00000 - 9999.99 mL Default value 20.0000 mL Selection off

Cond. stop time

Maximum permissible time over which conditioning may take place. Conditioning is stopped when the specified time has elapsed.

Input range 0 - 999999 s Selection off Default value off

7.1.2 Start conditions

Menu ▶ Parameters ▶ Start conditions

The parameters that are carried out before the start of titration are defined under Start conditions.

Start volume

Volume that is dosed prior to the start of the titration.

Input range 0.00000 - 9999.99 mL Default value 0.00000 mL

Dosing rate

Rate at which the start volume is dosed. The maximum dosing rate depends on the cylinder volume (see Chapter 10.1.1, page 70).

￭￭￭￭￭￭￭￭

Input range 0.01 - 166.00 mL/min Selection max. Default value max.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Pause

Request sample ID

Request sample size

7 Parameters

Waiting time, e.g. in case of a slow response of the electrode after the start or reaction time after the dosing of a start volume.

Input range 0 - 999999 s Default value 0 s

Selection of the sample identification that is queried in the method run.

Selection off | ID1 | ID2 | ID1&ID2 Default value off

If this parameter is switched on, then the value for the sample size will be queried.

Selection on | off Default value on

For the methods "Blank Ipol" and "Blank Upol" the default value is off.

Request sample unit

If this parameter is switched on, then the unit for the sample size will be queried.

Selection on | off Default value off

Hold at request

If this parameter is switched on, then the method run will be paused during the query. If the parameter is switched off, the titration will be started in the background.

Selection on | off Default value on

7.1.3 Control parameters

Menu ▶ Parameters ▶ Control parameters

Under Control parameters, the control parameters for the endpoint are defined.

Endpoint at

870 KF Titrino plus

Measured value for the endpoint.

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

Titration rate

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Measuring mode Ipol:

Input range –1250.0 - 1250.0 mV Default value 250.0 mV Selection off

Measuring mode Upol:

Input range –125.00 - 125.00 µA Default value 25.00 µA Selection off

Three predefined sets of parameters can be selected for the titration rate.

Selection slow | optimal | fast | user Default value optimal

slow

For samples with a low water content or samples which release their moisture only slowly.

optimal

For all standard titrations. The parameters have been optimized for the most frequent applications.

fast

For uncritical samples with high water content.

user

The individual titration parameters can be modified.

The settings of the individual titration rates are listed in table 1, page

55.

Dynamics

￭￭￭￭￭￭￭￭

This parameter is visible only when Titration rate = user.

This parameter defines the control range before the specified endpoint. Individual volume steps are dosed in the control range, the dosing is finely controlled. The closer the endpoint, the slower the dosing until the volume increment defined under Min. increment has been reached. The larger the control range, the slower the titration. Outside the control range, dosing is carried out continuously, and the dosing rate is defined under Max. rate.

Measuring mode Ipol:

Input range

0.1 - 1250.0 mV

Default value 100.0 mV Selection off

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Max. rate

Min. increment

7 Parameters

Measuring mode Upol:

Input range 0.01 - 125.00 µA Default value 10.00 µA Selection off

This parameter is visible only when Titration rate = user.

Rate at which dosing is carried out outside of the control range. The maximum dosing rate depends on the cylinder volume (see Chapter 10.1.1, page 70) .

Input range 0.01 - 166.00 mL/min Selection max. Default value max.

This parameter is visible only when Titration rate = user.

Minimum volume increment that is dosed at the beginning of the titration and in the control range at the end of the titration. This parameter has a decisive influence on the titration rate and thus also on the accuracy. The smaller the selected minimum increment, the slower the titration.

Input range 0.1 - 99.90 µL Selection min. Default value min.

Table 1 Default values of the predefined titration rates for KFT

Titration rate

slow optimal fast

Dynamics

– Ipol

– Upol

300.0 mV

40.00 µA

100.0 mV

10.00 µA

30.0 mV

5.00 µA

Max. rate 1.00 mL/min maximum maximum

Min. increment minimum (= cylinder

volume/10000)

minimum (= cylinder volume/10000)

5.00 µL

Stop criterion

The titration is stopped when the endpoint has been reached and this stop criterion has been fulfilled. If no stop criterion has been selected then the titration will not be stopped. The stop conditions (see Chapter 7.1.5, page 58) always lead to a stop, even if the stop criterion has not been reached.

870 KF Titrino plus

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

Stop drift

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Selection drift | time | rel. drift | off Default value drift

drift

The titration is stopped when the stop drift has been reached.

time

The titration is stopped when the endpoint has been exceeded during a certain period of time (Delay time).

rel. drift

The titration is stopped when the sum of the drift at the start of the titration and the relative stop drift has been reached.

off

The titration will not be stopped until the stop conditions have been fulfilled.

This parameter is visible only when Stop criterion = drift.

Titration is stopped when the endpoint and the stop drift have been reached.

Input range 1 - 999 µL/min Default value 20 µL/min

Delay time

This parameter is visible only when Stop criterion = time.

When the endpoint is reached, the specified time is allowed to elapse after the last dosing and the titration is then stopped.

Input range 0 - 999 s Default value 10 s

Relative stop drift

This parameter is visible only when Stop criterion = rel. drift.

The titration is stopped when the endpoint and the sum of the drift at the start of the titration and the relative stop drift have been reached.

Input range 1 - 999 µL/min Default value 10 µL/min

7.1.4 Titration parameters

Menu ▶ Parameters ▶ Titration parameters

￭￭￭￭￭￭￭￭

Under Titration parameters, the parameters influencing the sequence of the entire titration are defined.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Solution

7 Parameters

Selection of the solution from the solution list. We recommend always selecting the solution. This ensures that the correct data (titer, concentration, etc.) is always used for the calculation. Solutions are defined under System ▶ Solutions.

For buret units with integrated data chip, a check is made in the method run to verify whether the correct solution has been attached and whether the type of dosing drive matches. For buret units without integrated data chip, the cylinder volume and the type of dosing drive are checked. The validity of the titer is checked for the selected solution at the start of the determination.

I(pol)

U(pol)

Electrode test

Selection

Selection of configured solution | not defined

Default value not defined

not defined

No check takes place.

The polarization current is the current that is applied to a polarizable electrode during the voltametric measurement. This parameter is available only with I(pol) determinations.

Input range –125 - 125 µA (Increment: 1) Default value 50 µA

The polarization voltage is the voltage applied to the polarizable electrode during an amperometric measurement. This parameter is available only with U(pol) determinations.

Input range –1250 - 1250 mV (Increment: 10) Default value 400 mV

For polarizable electrodes, an electrode test can be carried out. A check is made that the electrode is properly connected and that no short-circuit is present. The electrode test is carried out when the determination is started. This parameter is available only with I(pol) and U(pol) determinations.

Stirrer

870 KF Titrino plus

Selection on | off Default value off

When this parameter is switched on, then the stirrer is switched on at the start of the determination.

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

Stirring rate

Temperature

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Selection on | off Default value on

Setting the stirring rate. It can be set in steps of –15 to +15. The default setting 8 corresponds to 1000 U/min. The formula for calculating the rotational speed is specified in chapter 10.2, page 71. The optimum stirring rate can be tested in the manual control.

The algebraic sign of the stirring rate changes the direction in which the stirring is done. When the stirrer is viewed from above, this means:

￭ "+": counterclockwise rotation ￭ "–": clockwise rotation

Input range –15 - 15 Default value 8

Manually entered titration temperature.

Input range –20.0 - 150.0 °C Default value 25.0 °C

Extraction time

Minimum duration of the titration. The titration will not be stopped during the extraction time, even if the endpoint has already been reached. The titration is however stopped if a stop condition is fulfilled during this time (see Chapter 7.1.5, page 58). The entering of an extraction time is e.g. recommended with samples that release water slowly or if a Karl Fischer oven is used.

Input range 0 - 999999 s Default value 0 s

7.1.5 Stop conditions

Menu ▶ Parameters ▶ Stop conditions

Under Stop conditions, the conditions for stopping a titration are defined, if this does not occur automatically. This could be the case when the endpoint set is not reached or if the stop criterion (see "Stop crite- rion", page 55) is not fulfilled.

Stop volume

￭￭￭￭￭￭￭￭

The titration is stopped when the specified volume has been dosed since the start of the titration. This volume should be adjusted to the size of the titration vessel in order to prevent the contents from running over.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Stop time

Filling rate

7 Parameters

Input range 0.00000 - 9999.99 mL Default value 100.000 mL Selection off

The titration is stopped when the specified time has elapsed following the termination of the start conditions.

Input range 0 - 999999 s Selection off Default value off

Rate at which the dosing cylinder is filled after the titration. The maximum filling rate depends on the cylinder volume (see Chapter 10.1.1, page

70).

Input range 0.01 - 166.00 mL/min Selection max. Default value max.

7.1.6 Calculations - Methods "Blank Ipol/Upol"

Menu ▶ Parameters ▶ Calculation

Calculation formula

EP1*FCT

The calculation formula is predefined and cannot be edited.

The calculated result is saved as a variable Blank CV01 or Blank CV02 for each measuring mode separately (see page 62).

Factor (FCT)

If a larger amount of solvent is used for determining the blank value than is later used for the sample, then this factor must be used to convert the endpoint volume accordingly.

Input range –999999999 - 9999999999 Default value 1.0

Decimal places

Number of decimal places used to display the result.

Input range 0 - 5 Default value 2

870 KF Titrino plus

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

Result unit

The result unit is displayed and saved together with the result. It cannot be modified.

Selection mL

7.1.7 Calculations - Methods "Titer Ipol/Upol"

Menu ▶ Parameters ▶ Calculation

Calculation formula

(C00*FCT)/EP1

The calculation formula is predefined and cannot be edited.

The calculated result (value and unit) is saved as the titer of the solution used.

The Factor (FCT) parameter must be adjusted according to what is used to determine the titer of the reagent and which unit the sample size has. If the calculation formula is selected and the [OK] key is pressed, then a table with the conversion factors will be displayed:

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Factor (FCT)

Decimal places

Table 2

Standard used Sample size

Conversion table

Factor (FCT)

in …

Water Standard 10 mg/g g Water content in mg/g

(see certificate)

Water g 1000

Water µL Density of water in

g/mL

Sodium tartrate dihydrate g 156.6

Sodium tartrate dihydrate mg 0.1566

Conversion factor, see table above.

Input range –999999999 - 9999999999 Default value 1.0

Number of decimal places used to display the result.

￭￭￭￭￭￭￭￭

Input range 0 - 5 Default value 4

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

7 Parameters

Result unit

The result unit is displayed and saved together with the result.

Selection % | ppm | mg/mL | g | mg | mL | mg/piece |

User-defined

Default value mg/mL

User-defined

7.1.8 Calculations - Methods "KFT Ipol/Upol", "KFT Ipol/Upol–Blank"

Menu ▶ Parameters ▶ Calculation

Calculation formula for KFT Ipol/Upol

EP1*TITER*FCT/(C00*DIV)

Calculation formula for KFT Ipol–Blank

(EP1–CV01)*TITER*FCT/(C00*DIV)

Calculation formula for KFT Upol–Blank

(EP1–CV02)*TITER*FCT/(C00*DIV)

The calculation formulas are predefined and cannot be modified.

The Factor (FCT) and Divisor (DIV) parameters need to be adjusted, depending on the unit used for the sample size and the result. If the calculation formula is selected and the [OK] key is pressed, then a table with the conversion factors will be displayed:

Table 3

Result unit Sample size

Conversion table

Factor (FCT) Divisor (DIV)

in …

% g 0.1 1

% mg 100 1

% mL 0.1 Density of the

sample in g/mL

ppm g 1000 1

870 KF Titrino plus

ppm mL 1000 Density of the

sample in g/mL

mg/mL g Density of the

sample in g/mL

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Factor (FCT)

Divisor (DIV)

Titer

Result unit Sample size

Factor (FCT) Divisor (DIV)

in …

mg/mL mL 1 1

mg/piece pieces 1 1

Conversion factor, see table above.

Input range –999999999 - 9999999999 Default value 0.1

Conversion factor, see table above.

Input range –999999999 - 9999999999 Default value 1.0

Titer of the solution used. As soon as a solution has been selected under Titration parameters, the value and the unit will be read out from the solution data under System ▶ Solutions and displayed here. If the titer is changed here manually, then the solution data will be updated.

Blank (CV01/2)

Decimal places

NOTE

Only the numerical value is taken into account in the calculation formula. The calculation will then provide a correct result only if the unit of the titer is mg/mL.

Input range

0.00000001 - 9999999999

Default value 1.000

This parameter is visible only with the methods KFT Ipol–Blank and KFT Upol–Blank.

This value is calculated with the blank value determination (methods Blank Ipol and Blank Upol) and entered here. The value can also be modified manually.

Input range –999999999 - 9999999999 mL Default value 0.0 mL

Number of decimal places used to display the result.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

Result unit

7.1.9 Statistics

7 Parameters

Input range 0 - 5 Default value 2

The result unit is displayed and saved together with the result.

Selection % | ppm | mg/mL | g | mg | mL | mg/piece |

User-defined

Default value %

User-defined

Menu ▶ Parameters ▶ Statistics

The statistics calculation of a multiple determination is switched on under

Statistics and it is defined how many determinations the series contains.

Statistics

Number of samples

7.1.10 Reports

If this funtion is switched on, then statistics calculations will be carried out for all of the defined results.

Selection on | off Default value off

For the methods "Titer Ipol" and "Titer Upol" the default value is on.

The number of determinations that are carried out for the statistics calculations.

If an additional determination must be added to the determination series, because one determination was incorrect, for example, then this can be accomplished in the statistical overview (see Chapter 5.8, page 30).

Input range 2 - 20 Default value 3

Menu ▶ Parameters ▶ Reports

870 KF Titrino plus

The reports that will be printed out automatically in connection with a determination are defined under Reports.

￭￭￭￭￭￭￭￭

7.1 Karl Fischer Titrations (KFT)

Results

Curve

Calculations/Statistics

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

The result report contains the calculated results, equivalence points and endpoints, sample data, etc.

Selection on | off Default value off

Curve report. The width of the curve is defined in the system settings (see "Graphics width", page 46).

Selection on | off Default value off

Output of the calculation formulas for the individual results. The results are printed with the maximum resolution. This makes recalculation with an external program possible. The following data is printed out in addition when statistics is switched on:

Measuring point list

Parameters

PC/LIMS

￭ Result and sample size of the individual determinations ￭ Mean value as well as absolute and relative standard deviation

Selection on | off Default value off

Output of the measuring point list.

Selection on | off Default value off

All of the parameters of the current method are printed out with the parameter report.

Selection on | off Default value off

The PC/LIMS report is a machine-readable report with all of the data important for a determination. The PC/LIMS report can be saved as a TXT file on a USB storage medium or sent via an RS-232 interface to a LIMS. The output location is defined in the system settings (see "PC/LIMS report", page 46).

￭￭￭￭￭￭￭￭

The file name of the TXT file is constructed as follows: PC_LIMS_ReportID1-YYYYMMDD-hhmmss.txt.

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

7 Parameters

Selection on | off Default value off

870 KF Titrino plus

￭￭￭￭￭￭￭￭

8.1 Quality Management and qualification with Metrohm

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

8 Operation and maintenance

8.1 Quality Management and qualification with Metrohm

Quality management

Metrohm offers you comprehensive support in implementing quality management measures for instruments and software. Further information on this can be found in the brochure "Metrohm Quality Management" available from your local Metrohm representative.

Qualification

Please contact your local Metrohm representative for support in qualification of instruments and software. The Installation Qualification (IQ) and Operational Qualification (OQ) are offered by Metrohm representatives as a service. They are carried out by trained employees using standardized qualification documents and in accordance with the currently applicable requirements of the regulated industry. Further information on this can be found in the brochure "Analytical Instrument Qualifica- tion – Confidence in quality with IQ/OQ".

Maintenance

The electronic and mechanical functional groups of Metrohm instruments can and should be checked by specialist personnel from Metrohm as part of a regular preventive maintenance schedule. Please ask your local Metrohm representative regarding the precise terms and conditions involved in concluding a corresponding maintenance agreement. Further information on this can be found in the brochure "Metrohm Care Con- tracts – Protect your investment the smart way" available from your local Metrohm representative.

￭￭￭￭￭￭￭￭

870 KF Titrino plus

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

9 Troubleshooting

9.1 Karl Fischer titration

Problem Cause Remedy

9 Troubleshooting

The drift is very high during conditioning.

The drift becomes greater after each titration.

The titration will not be finished.

The titration cell is leaking. ￭ Check seals and septum. If necessary,

replace.

￭ Replace molecular sieve.

The sample releases water very slowly.
