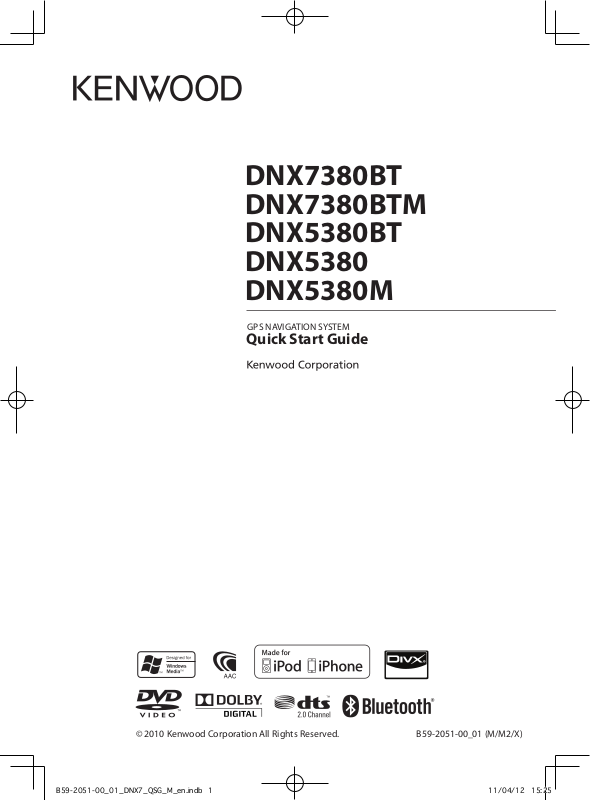

Kenwood DNX5380, DNX5380BT, DNX5380M, DNX7380BT, DNX7380BTM Quick Start Guide

DNX7380BT

DNX7380BTM

DNX5380BT

DNX5380

DNX5380M

GPS NAVIGATION SYSTEM

Quick Start Guide

© 2010 Kenwood Corporation All Rights Reserved.									B59-2051-00_01 (M/M2/X)

Quick Start Guide

AboutThe Quick Start Guide

This Quick Start Guide explains the basic functions of this unit. For functions not covered in this guide,

refer to the Instruction Manual (PDF file) contained in the included CDROM “Instruction Manual”.

To refer to the Instruction Manual contained in the CD-ROM, a PC loaded with Microsoft® Windows XP/ Vista/7 or Mac OS X® 10.4 or later

is required in addition to Adobe® Reader™ 7.1 or Adobe® Acrobat® 7.1 or later.

The Instruction Manual is subject to change for modification of specifications and so forth. You can download the latest version of the Instruction Manual from www. kenwood.com/cs/ce/.

NOTE

•The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

•In this manual, each model name is abbreviated as follows.

DNX7380BT and DNX7380BTM: DNX5380BT, DNX5380 and DNX5380M:

If above icons are showed, read the article applicable to the unit you use.

•In operation procedures, bracket shape indicates the key or button you should control.

<>: indicates the name of panel buttons.

[ ]: indicates the name of touch keys.

Contents

About The Quick Start Guide
		2
Contents
		2
Precautions
		3
2WARNING_ _______________________		3
Cleaning The Unit____________________		4
How To Reset Your Unit_ ______________		4
Safety Precautions and
Important Information
		5
2WARNINGS_ ______________________		5
2CAUTIONS________________________		5
IMPORTANT INFORMATION____________		5
First Step
		6
Basic Operations
		8
Functions Of The Buttons
On The Front Panel___________________		8
Common Operations_________________		12
Detaching The Front Panel____________		13
How To Use The Navigation
System
		14
Other Features_ _____________________		16
How To Play Music
		17
How To Play Movie/Picture
		19
How To Listen To The Radio
		20
How To Make A Phone Call
		21
Installation Procedure
		23
Before Installation_ __________________		23
Installation Procedure_ _______________		24
Removing Procedure	_ ________	28
Connection_________________________		29
About This Unit_____________________		33

2

DNX7380BT/DNX7380BTM/DNX5380BT/DNX5380/DNX5380M

Precautions

2WARNING

To prevent injury or fire, take the following precautions:

•To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

•Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

•If you experience problems during installation, consult your Kenwood dealer.

Precautions on using this unit

•When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.

•You can select language to display menus, audio file tags, etc. See Language setup (P.70) in the Instruction Manual.

•The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station.

Precautions on battery

•Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly. If swallowed contact physician immediately.

•Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.

•Do not set the remote control in hot places such as on the dashboard.

•Danger of explosion if Lithium battery is incorrectly replaced. Replace only with the same or equivalent type.

Lens fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer.

Precautions on handling discs

•Do not touch the recording surface of the disc.

•Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

•Do not use disc type accessories.

•Clean from the center of the disc and move outward.

•When removing discs from this unit, pull them out horizontally.

•If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

•Discs that are not round cannot be used.

•8-cm (3 inch) discs cannot be used.

•Discs with coloring on the recording surface or discs that are dirty cannot be used.

•This unit can only play the CDs with

.

This unit may not correctly play discs which do not have the mark.

•You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual.)

Protecting the monitor

To protect the monitor from damage, do not operate the monitor using a ballpoint pen or similar tool with the sharp tip.

3

Quick Start Guide

Acquiring GPS signals

The first time you turn on this unit, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle

is outdoors in an open area away from tall buildings and trees for fastest acquisition.

After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

About the front panel

When removing the product from the box or installing it, the front panel may be positioned at the angle shown in (Fig. 1). This is due to the characteristics of a mechanism the product is equipped with.

When the product is first powered on works properly, the front panel will automatically move into the position (initial setting angle) shown in (Fig. 2).

How To Reset Your Unit

If the unit or the connected unit fails to operate properly, reset the unit.

1 Press the <Reset> button.

The unit returns to factory settings.

(Fig. 1)

(Fig. 2)

Cleaning The Unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such

as a silicon cloth. If the faceplate is stained badly, wipe the stain off

with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

•Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

NOTE

•Disconnect the USB device before pressing the <Reset> button. Pressing the <Reset> button with the USB device connected can damage the data stored in the USB device. For how to disconnect the USB device, see

How To Play Music (P.17).

•When the unit is turned on after resetting, the Initial SETUP screen appears. See First Step (P.6).

4

DNX7380BT/DNX7380BTM/DNX5380BT/DNX5380/DNX5380M

Safety Precautions and Important Information

Read this information carefully before starting to operate the Kenwood Car Navigation System and follow the instructions in this manual. Neither Kenwood nor Garmin shall be liable for problems or accidents resulting from failure to observe the instructions in this manual.

2WARNINGS

To prevent injury or fire, take the following precautions:

•To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

•Do not watch or fix your eyes on the unit's display when you are driving for any extended period.

•Mounting and wiring this product requires skills and experience. The mounting and wiring should be done by professionals.

Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury.

When navigating, carefully compare information displayed on the navigation system to all available navigation sources, including information from street signs, visual sightings, and maps. For safety, always resolve any discrepancies or questions before continuing navigation.

Always operate the vehicle in a safe manner.

Do not become distracted by the navigation system while driving, and always be fully aware of all driving conditions. Minimize the amount of time spent viewing the screen of the navigation system while driving, and use voice prompts when possible.

Do not enter destinations, change settings, or access any functions requiring prolonged use of the navigation system controls while driving. Stop your vehicle in a safe and legal manner before attempting such operations.

Keep the system volume at a low enough level to be able to hear outside noises while driving. If you can no longer hear outside noises, you may be unable to react adequately to the traffic situation. This may cause accidents.

The navigation system will not display the correct current position of the vehicle the first time it is used after purchase, or if the vehicle battery is disconnected. GPS satellite signals will soon be received, however, and the correct position will be displayed.

Be careful of the ambient temperature. Using the navigation system at extreme temperatures can lead to malfunction or damage. Also note that the unit can be damaged by strong vibration, by metal objects, or by water getting inside the unit.

2CAUTIONS

Failure to avoid the following potentially hazardous situations may result in injury or property damage.

The navigation system is designed to provide you with route suggestions. It does not reflect road closures or road conditions, weather conditions, or other factors that may affect safety or timing while driving.

Use the navigation system only as a navigational aid. Do not attempt to use the navigation system for any purpose requiring precise measurement of direction, distance, location, or topography.

The Global Positioning System (GPS) is operated by the United States government, which is solely responsible for its accuracy and maintenance. The government system is subject to changes that could affect the accuracy and performance of all GPS equipment, including the navigation system. Although the navigation system is a precision navigation device, any navigation device can be misused or misinterpreted and, therefore, become unsafe.

IMPORTANT INFORMATION

Vehicle Battery Preservation

This navigation system can be used when the ignition key is turned to ON or ACC. To preserve the battery, however, it should be used with the engine running whenever possible. Using the navigation system for a long time with the engine switched off can cause the battery to run down.

5

Quick Start Guide

Map Data Information

One of the goals of Garmin is to provide customers with the most complete and accurate cartography that is available to us at a reasonable cost. We use a combination of governmental and private data sources, which we identify in product literature and copyright messages displayed to the consumer. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive.

First Step

Power on the unit and perform some setup steps before using.

Press the <NAV>, <MENU>, or <TEL> button.

The unit is turned on.

●To turn off the unit:

Press the <MENU> button for 1 second.

Press the <MENU> button.

The unit is turned on.

●To turn off the unit:

Press the <MENU> button for 1 second.

The “Initial setup” is only necessary when you use the unit for the first time after purchase, and when you reset the unit.

6

DNX7380BT/DNX7380BTM/DNX5380BT/DNX5380/DNX5380M

1 Touch the corresponding key and set the value.

2 Touch [Finish].

NOTE

•For details on operations of each setting, refer to the Instruction Manual.

•You can adjust the front panel button (ATT

button, etc.) sensitivity of .. For details, refer to Panel Switch Sensitivity (P.70) in the Instruction Manual.

Language

Select the language used for the control screen and setting items. Default is “British English (en)” for models with regional code 2/3/4 and “Chinese“ for model with regional code 6.

After setting, touch [Enter].

Angle

Adjust the position of the monitor. Default is “0”.

After setting, touch [ ] iPod AV Interface Use

Set the terminal which your iPod is connected to. Default is “iPod”.

Color

Set the screen and button illumination color. You can select whether to perform color scan and adjust scanning color.

After setting, touch [ ].

EXT SW

Control the external devices. After setting, touch [ ].

Camera

Set the parameters for the camera. After setting, touch [ ].

7

Quick Start Guide

Basic Operations

Functions Of The Buttons On The Front Panel

DNX7380BT/DNX7380BTM

1

2

3

4

5

6

7

8

9

How To Insert An SD Card

1) Press 8 <0> button for 3 seconds.

The panel fully opens.

Labelled side

2)Hold the SD card as the diagram in the right and insert it into the slot until it clicks.

●To eject the card:

Push the card until it clicks and then remove your finger from the card.

The card pops up so that you can pull it out with your fingers.

10

11

0

8

DNX7380BT/DNX7380BTM/DNX5380BT/DNX5380/DNX5380M

Number			Name	Motion
			fi(Reset)	• If the unit or the connected unit fails to operate properly, the unit returns
	1
				to factory settings when this button is pressed (Instruction Manual
				P.94).
			ATT	• Switches attenuation of the volume on/off.
	2
				• Pressing for 1 second turns the screen off.
			∞, 5(Vol)	Adjusts volume.
	3
				Holding down a key turns up the volume in series up to 25. For more than
				25, pressing the key turns up the volume one by one.
			AUD	• Displays Graphic Equalizer screen (Instruction Manual P.84).*
	4
				• Pressing for 1 second switches camera view display on/off.
			NAV	• Displays the navigation screen.
	5
				• Pressing for 1 second switches AV out sources.
				• When the power off, turns the power on.
			MENU	• Displays the Top Menu screen (Instruction Manual P.16).
	6
				• Pressing for 1 second turns the power off.
				• When the power off, turns the power on.
			TEL	• Displays the Hands Free screen (Instruction Manual P.57).
	7
				• Pressing for 1 second displays the Screen Control screen.
				• When the power off, turns the power on.
			0(Eject)	• Ejects the disc.
	8
				• Pressing for 1 second opens the panel to the location of the disc slot.
				When the panel is opened, pressing for 1 second closes the panel and
				pressing for 3 seconds ejects the disc forcibly.
				• When the panel is closed, pressing for 3 seconds fully opens the panel to
				the location of the SD card slot.
			Remote	• Receives the remote control signal. You can enable or disable this feature
	9
			Sensor	by Remote Sensor (Instruction Manual P.69).
				• If [Remote Sensor] is set to off, the remote control of TV reception is
				rejected.
			Disc insert	A slot to insert a disc media.
	10
			slot
			SD card slot	An SD card slot for upgrading the map. For how to upgrade the map, refer
	11
				to the instruction manual of the navigation system.

* The display may not switch to the Graphic Equalizer screen in some conditions.

9

Quick Start Guide

DNX5380BT/DNX5380/DNX5380M

1

7

8

9

2

3

4

5

	6	13
	10

11

12

How To Insert A MicroSD Card

	1) Open the 13 microSD card slot cover as	Labelled side
	the diagram in the right.

2)Hold the microSD card with the label facing left and the notched section up, and insert it into the slot until it clicks.

●To eject the card:

Push the card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

10

DNX7380BT/DNX7380BTM/DNX5380BT/DNX5380/DNX5380M

Number			Name	Motion
			fi(Reset)	• If the unit or the connected unit fails to operate properly, the unit returns
	1
				to factory settings when this button is pressed (Instruction Manual
				P.94).
			MENU	• Displays the Top Menu screen (Instruction Manual P.16).
	2
				• Pressing for 1 second turns the power off.
				• When the power off, turns the power on.
			NAV	• Displays the navigation screen.
	3
				• Pressing for 1 second switches AV out sources.
			TEL	• Displays the Hands Free screen (Instruction Manual P.57).
	4
				• Pressing for 1 second turns the screen off.
			Volume Knob	• Pressing switches attenuation of the volume on/off.
	5
				• Turning adjusts volume up or down.
				• Pressing for 1 second displays Tone Control screen (Instruction Manual
				P.85).*
			SCRN	• Displays the Screen Control screen.
	6
				• Pressing for 1 second displays rear view camera display.
			Remote	• Receives the remote control signal. You can enable or disable this feature
	7
			Sensor	by Remote Sensor (Instruction Manual P.69).
				• If [Remote Sensor] is set to off, the remote control of TV reception is
				rejected.
			0(Eject)	• Ejects the disc.
	8
				• Pressing for 1 second ejects the disc forcibly.
			Disc insert	A slot to insert a disc media.
	9
			slot
			USB terminal	A USB terminal for USB storage device and iPod.
	10
			Input jack	An input jack for external device.
	11
			Release key	Detaches the front panel.
	12
			SD card slot	An SD card slot for upgrading the map. For how to upgrade the map, refer
	13
				to the instruction manual of the navigation system.

* The display may not switch to the Tone Control screen in some conditions.

11
