HP 23tm Touch Monitor
User Guide
© 2013 Hewlett-Packard Development
Company, L.P.
Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.
Second Edition (September 2013)
Document Part Number: 734166-002
About this guide
This guide provides information on setting up the monitor, operating the touch screen, and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
TIP: Text set off in this manner provides helpful hints.
ENWW |
iii |
iv About this guide |
ENWW |
Table of contents
1 Product features ............................................................................................................................................. |
1 |
HP Touch Monitor ................................................................................................................................ |
1 |
2 Setting up and using the monitor .................................................................................................................. |
3 |
Rear components ................................................................................................................................. |
3 |
Connecting the cables .......................................................................................................................... |
4 |
Adjusting the monitor tilt ....................................................................................................................... |
8 |
Side components .................................................................................................................................. |
9 |

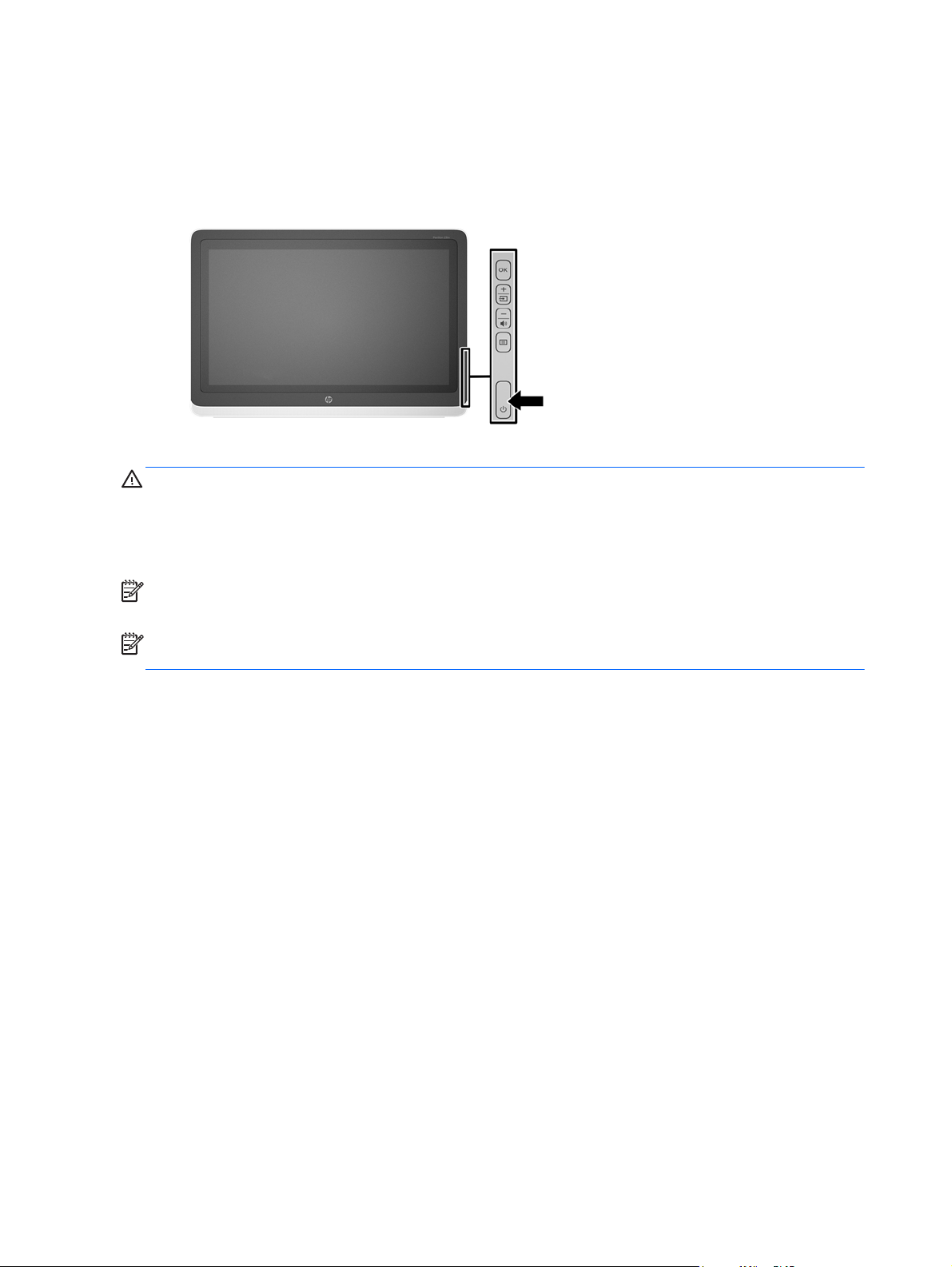

Turning on the monitor ....................................................................................................................... |
10 |
HP watermark and image retention policy .......................................................................................... |
11 |
Using the touchscreen ........................................................................................................................ |
11 |
One-finger slide ................................................................................................................. |
11 |
Tapping .............................................................................................................................. |
11 |
Scrolling ............................................................................................................................. |
12 |
Pinching/stretching ............................................................................................................ |
12 |
Rotating ............................................................................................................................. |
12 |
Edge swipes (Windows 8 only) .......................................................................................... |
12 |
Right-edge swipe ............................................................................................................... |
13 |
Left-edge swipe ................................................................................................................. |
13 |
Top-edge and bottom-edge swipe ..................................................................................... |
13 |
Removing the monitor stand .............................................................................................................. |
14 |
Mounting the monitor ......................................................................................................... |
15 |
Locating the rating label ..................................................................................................................... |
16 |
Installing a cable lock ......................................................................................................................... |
16 |
3 Finding more information ............................................................................................................................ |
17 |
Reference guides ............................................................................................................................... |
17 |
Product support .................................................................................................................................. |
17 |
Appendix A Technical specifications ............................................................................................................ |
18 |
HP 23tm ............................................................................................................................................. |
18 |
ENWW |
v |
Recognizing preset display resolutions .............................................................................................. |
19 |
HP 23tm ............................................................................................................................. |
19 |
Entering user modes .......................................................................................................................... |
20 |
Energy saver feature .......................................................................................................................... |
20 |
vi |
ENWW |
1 Product features
HP Touch Monitor
The LCD (liquid crystal display) monitor has an active matrix, wide viewing angle panel. The monitor features include:
●58.4 cm (23-inch) diagonal viewable area display with 1920 x 1080 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
●LED backlight consumes less energy than traditional CCFL backlights
●Wide viewing angle to allow viewing from a sitting or standing position, or moving from side-to- side
●Optical touch technology, which is Windows 8 multi-touch logo compliant and plug and play

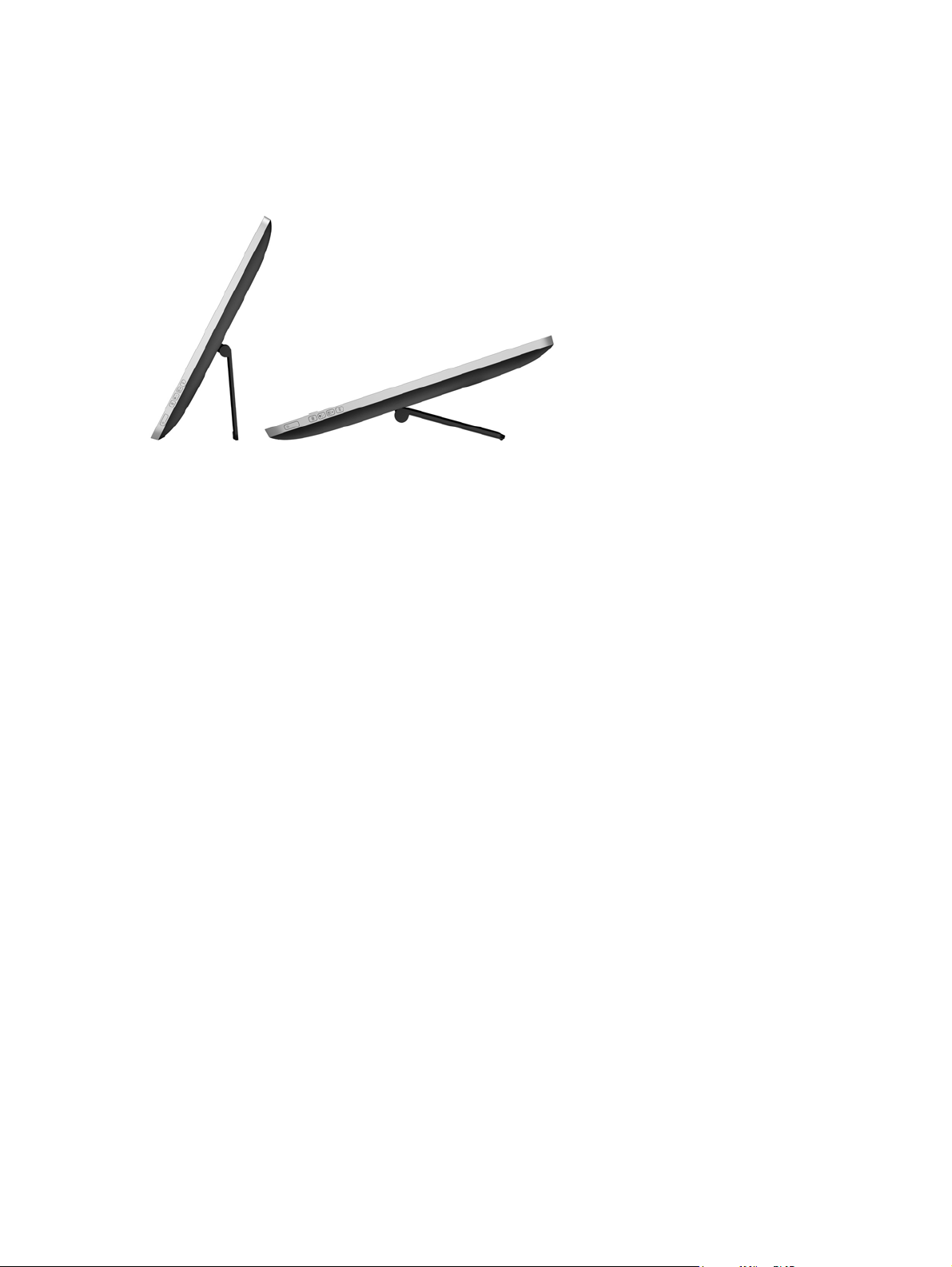

●Tilt capability with up to 70 degree recline
●Removable stand for flexible monitor panel mounting solutions
●Video signal input to support DVI digital (DVI-D signal cable provided in select countries only)
●Video signal input to support HDMI digital with HDMI signal cable provided
●USB cable provided to connect the monitor's touch controller to the computer (required for touch functionality)
●Audio input jack with audio cable included
●Integrated speakers
●Audio output headphone jack
●Supports Windows 7 and Windows 8 operating systems only
●Plug and play capability on Windows 7 and Windows 8
●Security slot provision on rear of monitor for optional cable lock
●On-screen display (OSD) adjustments in several languages for easy setup and screen optimization
●HDCP (High-Bandwidth Digital Content Protection) copy protection on DVI and HDMI inputs
●Software and documentation disc that includes monitor drivers and product documentation
ENWW |
HP Touch Monitor 1 |
●Energy saver feature to meet requirements for reduced power consumption
●Safety guidelines, certifications, and regulatory notices for these products are available in the HP LCD Monitors Reference Guide on the disc included with this monitor.
