G-DEC JR |
Important Safety Instructions
This symbol warns the user of dangerous voltage levels localized within the enclosure of the unit.
This symbol advises the user to read all accompanying literature for safe operation of the unit.
•Read, retain, and follow all instructions. Heed all warnings.
•Only connect the electric line cord to an earth grounded AC receptacle in accordance with the voltage and frequency ratings listed under INPUT POWER on the rear panel of this product.
•WARNING: To prevent damage, fire or shock hazard, do not expose this unit to rain or moisture.
•Unplug the AC power line cord before cleaning the unit exterior (use a damp cloth only). Wait until the unit is completely dry before reconnecting it to power.
•Maintain at least 6 inches of unobstructed air space behind the unit to allow for proper ventilation and cooling of the unit.
•This product should be located away from heat sources such as radiators, heat registers, or other products that produce heat.
•This product may be equipped with a polarized plug (one blade wider than the other). This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace your obsolete outlet. Do not defeat the safety purpose of this plug.
•Protect the power cord from being pinched or abraded.
•This product should be serviced by qualified service personnel when: the power supply cord or the plug has been damaged; or objects have fallen, or liquid has been spilled onto the product; or the product has been exposed to rain; or the product does not appear to operate normally or exhibits a marked change in performance; or the product has been dropped, or the enclosure damaged.
•Only use a cart or stand with this product that is recommended by this product’s manufacturer.
•The power supply cord of this product should be unplugged from the outlet when left unused for a long period of time, or during electrical storms.
•Do not drip nor splash liquids, nor place liquid filled containers on the unit.
•CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only.
•Fender® amplifiers and loudspeaker systems are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.
FCC COMPLIANCE NOTICE
This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide a reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications and there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that of the receiver. Consult the dealer or an experienced radio/TV technician if help is needed.
A PRODUCT OF:
FENDER MUSICAL INSTRUMENTS CORPORATION
CORONA, CALIFORNIA USA
Trademarks:
Fender® and G–DEC® Junior are trademarks of FMIC. Other trademarks are property of their respective owners. Copyright © 2006 FMIC. All rights reserved.
FENDER.COM
G-DEC JR |
|
Introduction
G–DEC® Junior Guitar Digital Entertainment Center is little brother to the award-winning, mega-popular original G–DEC®. Like the original, it includes everybody in the band but you! Inside G–DEC Jr you will find a versatile drummer, skilled bass player and flexible accompanist. And for you, the guitarist: G–DEC Jr is a warehouse of amplifiers and effects ready for you to sound check!
Turn the G–DEC Jr Loop knob to access a diverse collection of 15 rhythm/bass loops. Use the MIDI IN port to play along with an external MIDI sequence supplied by your computer* or big brothers G-DEC® or G-DEC® 30!
G–DEC Jr is a great practice tool whether you are just starting out or playing professionally. To learn a new song you can plug your CD or MP3 player into the G–DEC Jr and play along.
It’s time to jam—with G–DEC Jr—your new band...
*MIDI capable sound card (or MIDI-to-USB device) and MIDI software required.
Features
Your new G-DEC Junior amplifier delivers world-class Fender® tone and world-standard Fender® technology:
•15 watts into 8 ohms
•Digital Signal Processing
•15 Effects “Fx” settings
•16 Amplifier “TYPE” settings
•15 Rhythm/Bass Loops
•External MIDI sequence playback
•Closed-back cabinet for increased bass response
•Auxiliary Input to connect your MP3/CD player
Thank you for choosing Fender ®
—The Worlds Most Popular Amplifiers — since 1946
FENDER.COM
|
G-DEC JR |

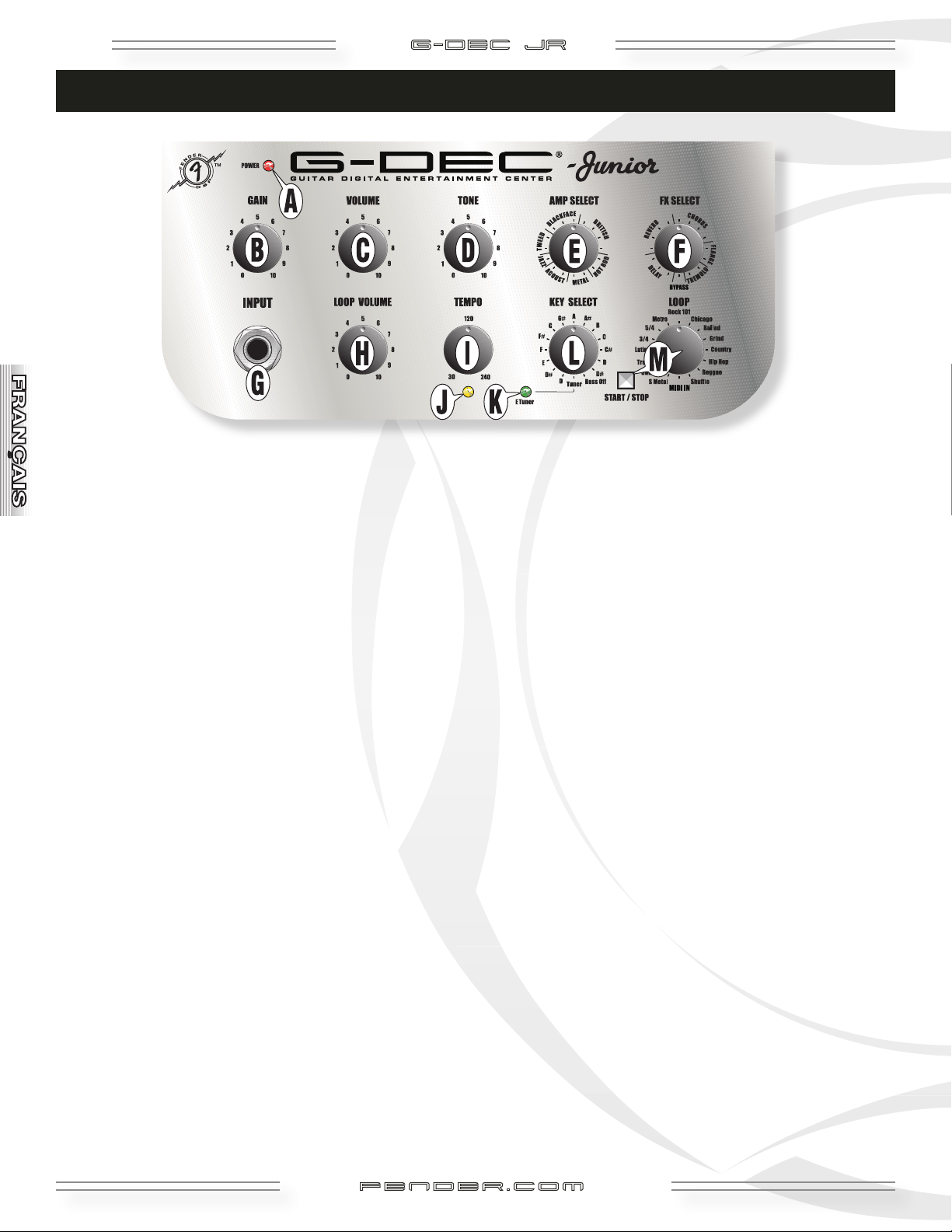

Control Panel Overview
A.Power LED—Indicates Amplifier is on.
B.GAIN—Controls preamp gain.
C.VOLUME—Controls the loudness of the amplifier.
D.TONE—Controls the frequency response characteristics of the amplifier.
E.AMP SELECT—Selects one of 16 core amplifier sound styles.
Note: Use the extreme flexibility of the Amp Select knob wisely! Treble harshness or boomy bass tones can be avoided by using the right guitar settings and playing style for a particular amp type.
F.FX SELECT—Selects one of the 15 effects or effects off (BYPASS).
G.INPUT—Plug your guitar in here.
H.LOOP VOLUME—Controls the loudness of the Loop selected in relation to the guitar input.
I.TEMPO—Controls the tempo of the selected loop from 30 to 240 beats per minute.
J.TEMPO LED—Flashes at the tempo rate dialed in.
K.E TUNER LED—When the Tuner function is selected the LED flashes faster as the guitar note moves away in pitch (+ or -) from E. When in tune with E, the yellow E Tuner LED and the green Tempo LED will both illuminate solid.
L.KEY SELECT—Selects the key of the bass line for the loop being played. Bass Off turns off the bass line of the loop. Tuner position enables the tuner function. The guitar note played is compared against reference E tone and when in tune with E, the yellow E Tuner LED and the green Tempo LED will both illuminate solid. To assist in tuning, an E reference tone is produced when the Start/Stop Loop Select button is pressed. To turn the tone off press the button once again.
M.LOOP SELECT and START/STOP—Selects the Loop sequence pattern to be played. Pressing the momentary Start/Stop button starts the sequence which plays repeatedly until the Start/Stop button is pressed once again. The MIDI IN position turns off the internal loop sequencer and allows external loops to be played via the MIDI input.
FENDER.COM
G-DEC JR |
|

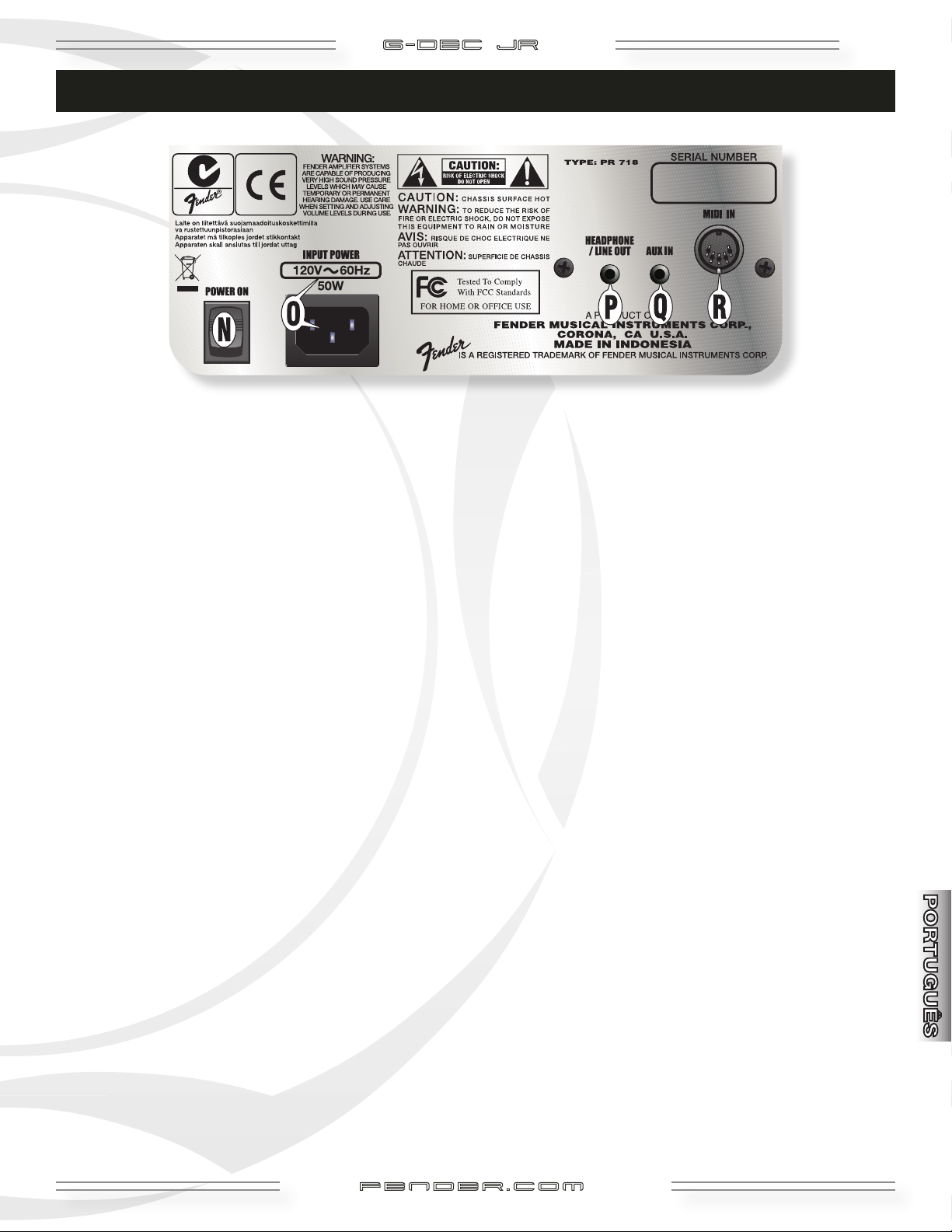

Rear Panel
N.POWER SWITCH—Switches the amplifier ON-OFF.
O.POWER CORD SOCKET—Connect a grounded outlet using the supplied power cord in accordance with the voltage and frequency ratings specified on the rear panel of your amplifier.
P.HEADPHONE/LINE OUT—Connect a stereo headphone set for private listening. The G-DEC Jr internal speaker is disabled when a headphone set is connected. This jack can also be used as an output to auxiliary sound equipment. The jack accepts a stereo or mono 3.5mm jack. The output sound is monaural.
Q.AUX IN—Accepts a 3.5 mm stereo or monaural plug to input external audio from an MP3/CD player or other device. The external audio will mix with guitar and loop audio being played through the amplifier. Use the source volume control to adjust loudness of the external audio.
R.MIDI IN—Accepts MIDI sequences and plays them when the LOOP SELECT is in the MIDI IN position. The LOOP START/STOP button has no effect. The LOOP VOLUME does control the loudness of the MIDI sequence being played. The MIDI sequence audio will mix with the guitar audio. MIDI volume is also controlled via MIDI commands. See Appendix for more details of MIDI functions.
FENDER.COM
|
G-DEC JR |
Amp Types
Amp Type |
Description |
|
|
|
|
||
British 1 |
Bright jangly tone reminiscent of early British combo amplifiers. |
|
|
2Overdriven vintage tone based on high-gain British stack amplifiers.
3A high-gain distorted tone based on modern British stack amplifiers.
4A super high-gain distorted tone based on modern British combo amplifiers.
Hot Rod |
1 |
A high-gain overdriven tone based on the Fender® Hot Rod® series of amplifiers. |
||
|
2 |
A high-gain distorted tone based on specialized boutique amplifiers. |
||
Metal |
1 |
Super high gain scooped metal tone based on modern heavy metal amplifiers. |
||
|
2 |
Darker super high gain scooped metal tone based on modern heavy metal amplifiers. |
||
Acoustic |
1 |
Super clean amplifier with the characteristic |
of an Acoustasonic™ amplifier for acoustic finger picking. |
|
|
2 |
Super clean amplifier with the characteristic |
of an Acoustasonic™ amplifier good for acoustic strumming. |
|
Jazz |
1 |
|
|
|
A clean amplifier tone optimized for jazz styles with the character of the Fender® Jazz King™. |
||||
Tweed |
1 |
Vintage tone based on Fender® Tweed Champ®. |
||
|
2 |
A fat vintage tone based on early Fender® Tweed Bassman®. |
||
Blackface™ |
1 |
A bright vintage tone based on early Fender® Blackface™ amplifiers |
||
|
2 |
A bright, slight overdrive vintage tone based on early Fender Blackface™ amplifiers. |
||
|
3 |
A bright, heavily overdriven vintage |
tone based on early Fender® Blackface™ amplifiers. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Effect Types |
Loop Select |
|
|
Effect Type |
|
Description |
|
|
|
|
|
||
|
|
Chorus |
1 |
Fast Sweep |
|
|
|
|
2 |
Deep Sweep |
|
|
|
|
3 |
Chorus + Delay |
|
|
|
|
4 |
Chorus + Reverb |
|
|
|
Flange |
1 |
Light Sweep |
|
|
|
|
2 |
Deep Sweep |
|
|
|
Tremolo |
1 |
Low Intensity |
|
|
|
|
2 |
High Intensity |
|
|
|
Bypass |
|
No Effect |
|
|
|
Delay |
1 |
130 ms |
|
|
|
|
2 |
300 ms |
|
|
|
|
3 |
500 ms |
|
|
|
Reverb |
1 |
Large Room |
|
|
|
|
2 |
Concert Hal |
|
|
|
|
3 |
Classic Fender Spring |
|
|
|
|
4 |
Reverb + Delay |
|
|
|
|
|
|
|
|
|
|
|
|
|
Loop Select
Rock 101
Chicago Blues
Ballad
Grind
Country
Hip Hop
Reggae (1 Drop )
Shuffle
MIDI IN
Speed Metal
Swing
Train
Latin ¾ (Waltz) 5/4 (5 on 4)
Metronome
FENDER.COM
G-DEC JR
G–DEC Junior MIDI Guide
MIDI Overview
The G–DEC Jr is well equipped to handle a number of useful MIDI functions. MIDI stands for “Musical Instrument Digital Interface” which is a language that lets multiple digital musical items (keyboards, effects, synthesizers, computers, etc.) communicate with each other. This manual can’t possibly cover all the MIDI possibilities you may encounter. If you desire more information, visit http://www.midi.org online or search for “MIDI” using your favorite search engine.
Basic MIDI Setup
The most basic MIDI operations on the G–DEC Jr require use of a MIDI interface device connected to a personal computer. Most MIDI interface devices will use USB or the game port on older PCs and are available at most musical instrument retailers. Refer to the interface manufacturer for proper device setup. To use the G–DEC Jr MIDI capability, connect the MIDI In port on the G–DEC Jr to the MIDI Out port on your MIDI interface with a standard MIDI cable. See figure for connections.
Streaming MIDI Files to the G–DEC Jr
If you wish to play any available General MIDI file from your PC through the G–DEC Jr, you will need a third party PC application that is able to play MIDI files to an external MIDI port. Search for a MIDI player or MIDI sequence utility from your favorite search engine online that works with your specific computer. Consult the documentation for your application on proper configuration. Once properly configured, play any MIDI file (typically a file with the .MID extension) from your MIDI player or sequence application. The MIDI Out port of your MIDI interface device must be connected to the MIDI In port on the G–DEC Jr. Note that if the song is playing but sounds cluttered, make sure any MIDI thru function in your application is disabled, or simply unplug the MIDI cable from the MIDI Out port on the PC. Refer to the Appendix for channels of General MIDI voicings.
For more information, go to:
http://www.fender.com/support/downloads/
MIDI-to-Computer
Interface
Computer—USB or Game Port
FENDER.COM
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G-DEC |
JR |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
APPENDIX: |
MIDI CHANNEL – |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Any except Channel 10) |
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Program |
General |
|
Program |
General |
|
|
Program |
General |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Change |
MIDI |
|
Change |
MIDI |
|
|
Change |
MIDI |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
(Grand) Piano 1 |
|
44 |
Contrabass |
|
87 |
Lead 7 (Fifths) |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
|
2 |
(Bright) Piano 2 |
|
45 |
Tremolo Strings |
|
88 |
Lead 8 (Bass + Lead) |
|||||||||||||||||||||||||||||||||
|
3 |
(Electric Grand) Piano 3 |
|
46 |
Pizzicato Strings |
89 |
Pad 1 (Fantasia) |
||||||||||||||||||||||||||||||||||
|
4 |
Honky-Tonk Piano |
|
47 |
Orchestral Harp |
90 |
Pad 2 (Warm) |
||||||||||||||||||||||||||||||||||
|
5 |
Electric Piano 1 |
|
48 |
Timpani |
91 |
Pad 3 (Polysynth) |
||||||||||||||||||||||||||||||||||
|
6 |
Electric Piano 2 |
|
49 |
String Ensemble 1 |
92 |
Pad 4 (Choir) |
||||||||||||||||||||||||||||||||||
|
7 |
Harpsichord |
|
50 |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
|
String Ensemble 2 |
93 |
Pad 5 (Bowed) |
||||||||||||||||||||||||||||||||||||||
|
8 |
Clavi |
|
51 |
Synth Strings 1 |
94 |
Pad 6 (Metallic) |
||||||||||||||||||||||||||||||||||
|
9 |
Celesta |
|
52 |
Synth Strings 2 |
95 |
Pad 7 (Halo) |
||||||||||||||||||||||||||||||||||
|
10 |
Glockenspiel |
|
53 |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
|
Choir Aahs |
96 |
Pad 8 (Sweep) |
||||||||||||||||||||||||||||||||||||||
|
11 |
Music Box |
|
|
54 |
Voice Oohs |
97 |
FX 1 (Rain) |
|||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||
|
12 |
Vibraphone |
|
|
55 |
Synth Voice |
98 |
FX 2 (Soundtrack) |
|||||||||||||||||||||||||||||||||
|
13 |
Marimba |
|
|
56 |
Orchestra Hit |
99 |
FX 3 (Crystal) |
|||||||||||||||||||||||||||||||||
|
14 |
Xylophone |
|
|
57 |
Trumpet |
100 |
FX 4 (Atmosphere) |
|||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||
|
15 |
Tubular Bells |
|
|
58 |
Trombone |
101 |
FX 5 (Brightness) |
|||||||||||||||||||||||||||||||||
|
16 |
Santur |
|
|
59 |
Tuba |
102 |
FX 6 (Goblins) |
|||||||||||||||||||||||||||||||||
|
17 |
Drawbar Organ |
|
|
60 |
Muted Trumpet |
103 |
FX 7 (Echoes) |
|||||||||||||||||||||||||||||||||
|
18 |
Percussive Organ |
|
|
61 |
French Horn |
104 |
FX 8 (Sci-Fi) |
|||||||||||||||||||||||||||||||||
|
19 |
Rock Organ |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
|
|
62 |
Brass Section |
105 |
Sitar |
||||||||||||||||||||||||||||||||||||
|
20 |
Church Organ |
|
63 |
Synth Brass 1 |
106 |
Banjo |
||||||||||||||||||||||||||||||||||
|
21 |
Reed Organ |
|
64 |
Synth Brass 2 |
107 |
Shamisen |
||||||||||||||||||||||||||||||||||
|
22 |
Accordian (French) |
|
65 |
Soprano Sax |
108 |
Koto |
||||||||||||||||||||||||||||||||||
|
23 |
Harmonica |
|
66 |
Alto Sax |
109 |
Kalimba |
||||||||||||||||||||||||||||||||||
|
24 |
Tango Accordian |
|
67 |
Tenor Sax |
110 |
Bag Pipe |
||||||||||||||||||||||||||||||||||
|
25 |
Acoustic Guitar (Nylon) |
|
68 |
Baritone Sax |
111 |
Fiddle |
||||||||||||||||||||||||||||||||||
|
26 |
Acoustic Guitar (Steel) |
|
69 |
Oboe |
112 |
Shanai |
||||||||||||||||||||||||||||||||||
|
27 |
Electric Guitar (Jazz) |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||
|
70 |
English Horn |
113 |
Tinkle Bell |
|||||||||||||||||||||||||||||||||||||
|
28 |
Electric Guitar (Clean) |
|
71 |
Bassoon |
114 |
Agogo |
||||||||||||||||||||||||||||||||||
|
29 |
Electric Guitar (Muted) |
|
72 |
Clarinet |
115 |
Steel Drums |
||||||||||||||||||||||||||||||||||
|
30 |
Overdriven Guitar |
|
73 |
Piccolo |
116 |
Woodblock |
||||||||||||||||||||||||||||||||||
|
31 |
Distortion Guitar |
|
74 |
Flute |
117 |
Taiko Drum |
||||||||||||||||||||||||||||||||||
|
32 |
Guitar Harmonics |
|
75 |
Recorder |
118 |
Melodic Tom |
||||||||||||||||||||||||||||||||||
|
33 |
Acoustic Bass |
|
76 |
Pan Flute |
119 |
Synth Drum |
||||||||||||||||||||||||||||||||||
|
34 |
Finger Bass |
|
77 |
Blown Bottle |
120 |
Reverse Cymbal |
||||||||||||||||||||||||||||||||||
|
35 |
Picked Bass |
|
78 |
Shakuhachi |
121 |
Guitar Fret Noise |
||||||||||||||||||||||||||||||||||
|
36 |
Fretless Bass |
|
79 |
Whistle |
122 |
Breath Noise |
||||||||||||||||||||||||||||||||||
|
37 |
Slap Bass 1 |
|
80 |
Ocarina |
123 |
Seashore |
||||||||||||||||||||||||||||||||||
|
38 |
Slap Bass 2 |
|
81 |
Lead |
1 (Square) |
124 |
Bird Tweet |
|||||||||||||||||||||||||||||||||
|
39 |
Synth Bass 1 |
|
82 |
Lead |
2 (Sawtooth) |
125 |
Telephone Ring |
|||||||||||||||||||||||||||||||||
|
40 |
Synth Bass 2 |
|
83 |
Lead |
3 (Calliope) |
126 |
Helicopter |
|||||||||||||||||||||||||||||||||
|
41 |
Violin |
|
84 |
Lead |
4 (Chiff) |
127 |
Applause |
|||||||||||||||||||||||||||||||||
|
42 |
Viola |
|
85 |
Lead |
5 (Charang) |
128 |
Gunshot |
|||||||||||||||||||||||||||||||||
|
43 |
Cello |
|
86 |
Lead 6 (Voice) |
|
|
|
|
|
|||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FENDER.COM
G-DEC JR |
|
Specifications
TYPE: |
|
PR 718 |
|
|
|
|
|
|
|
PART NUMBER: |
|
2351000000 |
(120V, |
60Hz) |
|
2351000900 (120V, 60Hz) DS |
|||
|
|
|
|
|
|
|
|||
|
|
2351010900 (110V, 60Hz) TW DS |
|
|
|
2351030900 (240V, 50Hz) AUS DS |
|||
|
|
2351040900 |
(230V, 50Hz) UK DS |
|
|
|
2351050900 (220V, 50Hz) ARG DS |
||
|
|
|
|
|
|
|
|
2351070900 (100V, 50/60Hz) JPN DS |
|
|
|
2351060900 |
(230V, 50Hz) EUR DS |
|
|
|
|||
|
|
2351090900 |
(220V, 60Hz) ROK DS |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
POWER REQUIREMENTS: |
|
50W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
POWER OUTPUT: |
|
15W RMS into 8Ω @ 5%THD |
|
|
|||||
POWER AMP INPUT IMPEDANCE: |
|
>1MΩ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
INPUT SENSITIVITY: |
|
30mV (volume at maximum for full power, tone control |
centered) |
||||||
|
|
|
|
|
|
|
|||
HEADPHONE/LINE OUPUT: |
|
35mV @ 1kHz input produces full ouput of 800mV into |
33Ω (20mW) with tone control centered |
||||||
SPEAKER: |
|
8Ω, 8" |
|
|
|
|
|
|
|
FUSES: |
|
T 600mA, 250V for 100V versions |
|
|
|||||
|
|
T 500mA, 250V for 120V versions |
|
|
|||||
|
|
250mA, 250V for 220–240V versions |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
DIMENSIONS |
HEIGHT: |
12.5 in |
(32 cm) |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
WIDTH: |
13.25 in |
(34 cm) |
|
|
||||
WEIGHT: |
DEPTH: |
7.25 in |
(19 cm) |
|
|
||||
|
15 lb |
(6.8 kg) |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
Product specifications are subject to change without notice.
FENDER.COM
10 |
G-DEC JR |
Instrucciones importantes de seguridad
Este símbolo alerta al usuario de la presencia de niveles de voltaje peligrosos dentro de la carcasa de esta unidad.
Este símbolo advierte de la necesidad de que el usuario lea la documentación adjunta.
•Lea, conserve y cumpla con lo indicado en estas instrucciones. Haga caso a todas las advertencias.
•Conecte el cable de alimentación solo a una salida de corriente alterna con toma de tierra del voltaje y amperaje indicados debajo del conector INPUT POWER del panel trasero.
•PRECAUCION: Para evitar el riesgo de incendios, daños o descargas eléctricas, no permita que este aparato quede expuesto a la lluvia o la humedad.
•Desenchufe este aparato de la corriente antes de limpiar su superficie (use para ello solo un trapo ligeramente humedecido). Espere hasta que la unidad esté completamente seca antes de volver a enchufarla a la corriente.
•Deje un espacio de 15 cm como mínimo detrás de la unidad para permitir su correcta refrigeración.
•Coloque este aparato lejos de fuentes de calor como radiadores, hornos u otros aparatos que generen calor.
•Este aparato es posible que esté equipado con un enchufe polarizado (un borne más ancho que el otro). Esto es una medida de seguridad. Si este enchufe no encaja en su salida de corriente, haga que un electricista sustituya su salida anticuada. Nunca anule el sistema de seguridad que supone este tipo de enchufe.
•Evite que el cable de alimentación quede retorcido o aplastado.
•Este aparato deberá ser reparado en un servicio técnico oficial cuando: el cable de alimentación o el enchufe estén rotos o dañados; se hayan introducido o objetos o se hayan derramado líquidos dentro del aparato; si este aparato ha quedado expuesto a la lluvia; si da muestras de no funcionar correctamente o se observa un cambio claro en su rendimiento; si el aparato ha caído al suelo o si la carcasa está dañada.
•Utilice con este aparato solo un soporte o bastidor recomendado exclusivamente para ello.
•Desenchufe este aparato de la corriente cuando no lo vaya a usar durante un periodo de tiempo largo o durante las tormentas eléctricas.
•No derrame líquidos, ni coloque objetos que los contengan sobre la unidad.
•ATENCION: Dentro de este aparato no hay ninguna pieza susceptible de ser reparada por el usuario. Dirija cualquier reparación solo al servicio técnico oficial.
•Los amplificadores y sistemas de altavoces Fender® son capaces de producir niveles de presión sonora muy elevados que pueden dar lugar a daños temporales o permanentes en la capacidad de audición. Tenga cuidado durante la configuración y el ajuste del volumen de este aparato.
NOTA DE CUMPLIMIENTO DE NORMAS FCC
Se ha verificado que este aparato cumple con los límites impuestos para dispositivos digitales de clase B, de acuerdo a lo indicado en la sección 15 de las normas FCC. Estos límites han sido diseñados para ofrecer una protección razonable contra las interferencias molestas en una instalación no profesional. Este aparato genera, usa y puede irradiar energía de radiofrecuencia y, si no es usado de acuerdo con estas instrucciones, puede dar lugar a interferencias molestas en las comunicaciones de radio, sin que podamos garantizar que estas interferencias no se produzcan en una instalación concreta. Si este aparato produce tal tipo de interferencias en la recepción de la radio o TV, lo que podrá ser determinando encendiendo y apagando la unidad, el usuario será el responsable de tratar de corregir el problema por medio de una o más de las medidas siguientes: reorientar o reubicar la antena receptora, aumentar la separación entre este aparato y el receptor, enchufar este aparato a una regleta o circuito distinto al del receptor. Si necesita más información o ayuda, póngase en contacto con un técnico especialista en radio/TV.
UN PRODUCTO DE:
FENDER MUSICAL INSTRUMENTS CORPORATION
CORONA, CALIFORNIA USA
Marcas:
Fender® y G–DEC® Junior son marcas comerciales de FMIC.
El resto de marcas que aparecen aquí son propiedad de sus respectivos propietarios. Copyright © 2006 FMIC. Reservados todos los derechos.
FENDER.COM
G-DEC JR |
11 |
Introducción
El G–DEC® Junior Guitar Digital Entertainment Center es el hermano menor de nuestro superfamoso G–DEC®. ¡Al igual que el original, incluye todos los músicos excepto usted! Dentro del G–DEC Jr encontrará un versátil batería, un consumado bajista y una flexible sección de acompañamiento prácticamente para cualquier estilo musical. Y para usted, el guitarrista, ¡el G–DEC Jr representa un auténtico almacén de amplificadores y efectos listos directamente para su prueba de sonido!
Gire el mando Loop del G–DEC Jr para acceder a una amplia colección de 15 bucles de ritmo/bajo. Use el puerto MIDI IN para poder tocar junto con una secuencia MIDI exterior procedente de su ordenador* o de sus hermanos mayores el G-DEC® o G-DEC® 30!
El G–DEC Jr es la herramienta definitiva para ensayos, tanto si usted es un principiante o un profesional. Para aprender una nueva canción puede conectar su reproductor de CD o MP3 al G–DEC Jr y ensayar con ellos.
Ha llegado el momento de actuar—con el G–DEC Jr—
con su nuevo grupo...
*Es necesario disponer de una tarjeta de sonido con capacidad MIDI (o dispositivo MIDI-a-USB) y un programa MIDI.
Características
Su nuevo amplificador G-DEC Junior le ofrece el mundialmente conocido sonido y tecnología Fender®:
•15 watios a 8 ohmios
•Procesado digital de señal
•15 configuraciones “Fx” de efectos
•16 configuraciones “TYPE” de amplificadores
•15 bucles de batería/bajo
•Reproducción de secuencias MIDI externas
•Recinto acústico cerrado para una mayor respuesta en graves
•Entrada auxiliar que le permite la conexión de su reproductor MP3/CD
Gracias por escoger un Fender ®
— Sonido, tradición e innovación — desde 1946
FENDER.COM
12 |
G-DEC JR |
Descripción del panel de control
A.Piloto Power—Le indica que el amplificador está encendido.
B.GAIN—Controla la ganancia de preamplificador.
C.VOLUME—Controla el volumen del amplificador.
D.TONE—Controla las características de respuesta de frecuencia del amplificador.
E.AMP SELECT—Le permite elegir uno de los 16 estilos de sonido de amplificador.
Nota: ¡Use con inteligencia la extremada flexibilidad que le ofrece este mando! Puede evitar sonidos agudos ásperos o graves retumbantes usando la configuración de guitarra y estilo musical adecuados para cada tipo de amplificador.
F.FX SELECT—Le permite elegir unos de los 15 efectos o la opción de desactivación de estos (BYPASS).
G.INPUT—Conecte aquí su guitarra.
H.LOOP VOLUME—Controla el volumen del bucle activo en relación a la entrada de guitarra.
I.TEMPO—Controla el tempo del bucle seleccionado entre 30 y 240 beats o tiempos musicales por minuto.
J.Piloto TEMPO—Parpadea rítmicamente a la velocidad ajustada para el tempo.
K.Piloto E TUNER—Cuando haya elegido la función de afinador, este piloto parpadeará más rápido conforme la nota de la guitarra se separe más en cuanto al tono (+ ó -) con respecto al "mi" (E). Cuando esté afinada, el piloto amarillo E Tuner y el piloto verde Tempo se iluminarán a la vez.
L.KEY SELECT—Le permite elegir el tono o clave de la línea de bajo para el bucle que se esté reproduciendo. Bass Off desactiva la línea de bajo del bucle. La posición Tuner activa la función de afinador. La nota de guitarra tocada es comparada con el tono "mi" (E) de referencia y cuando esté afinada a dicho tono, el piloto amarillo E Tuner y el verde de Tempo se iluminarán a la vez. Para ayudarle en la afinación, se produce un tono de referencia "mi" (E) cuando pulse el botón Start/Stop Loop Select. Para desactivar la producción del tono vuelva a pulsar el botón de nuevo.
M.LOOP SELECT y START/STOP—Le permite elegir el patrón de la secuencia de bucle a ser reproducido. El pulsar el botón momentáneo Start/Stop hará que comience la reproducción de la secuencia que seguirá repitiéndose hasta que pulse de nuevo ese botón Start/Stop. La posición MIDI IN desactiva el secuenciador de bucles interno y permite la reproducción de bucles exteriores a través de la entrada MIDI.
FENDER.COM
G-DEC JR |
13 |
Panel trasero
N.INTERRUPTOR POWER—Le permite encender y apagar el amplificador.
O.ENCHUFE DE CORRIENTE—Conecte el cable de alimentación incluido a una salida de corriente con toma de tierra del voltaje y amperaje indicados en el panel trasero.
P.HEADPHONE/LINE OUT—Conecte unos auriculares stereo para ensayar en privado. El altavoz interno del G-DEC Jr es desactivado en cuanto conecte aquí unos auriculares. También puede usar esta toma como una salida para dispositivos audio exteriores. Esta toma acepta una clavija stereo o mono de 3,5 mm. La salida de sonido es monoaural.
Q.AUX IN—Acepta un conector stereo o monoaural de 3,5 mm para dar entrada a una señal audio exterior procedente de un reproductor MP3/CD u otro dispositivo. La señal audio exterior será mezclada con el audio de la guitarra y el bucle que estén siendo reproducidas a través del amplificador. Use el control de volumen de la unidad fuente para ajustar el volumen de la señal audio exterior.
R.MIDI IN—Acepta la entrada de secuencias MIDI y su reproducción cuando el mando LOOP SELECT esté en la posición MIDI IN. El botón LOOP START/STOP no tiene efecto en ese caso. El mando LOOP VOLUME controla el volumen de la secuencia MIDI que esté siendo reproducida. El audio de esta secuencia MIDI será mezclado con la señal audio de su guitarra. El volumen MIDI es controlado también a través de órdenes MIDI. Vea en el Apéndice más detalles acerca de las funciones MIDI.
FENDER.COM
14 |
G-DEC JR |
Tipos de amplificadores
Tipo ampl. |
Descripción |
|
British 1 |
Sonido muy brillante con reminiscencias a los primeros combos fabricados en el Reino Unido ("británicos"). |
2Sonido clásico saturado basado en amplificadores británicos de alta ganancia de tipo torre.
3Un sonido de alta ganancia distorsionado basado en amplificadores británicos de tipo torre modernos.
4Un sonido de máxima ganancia distorsionado basado en modernos combos británicos.
Hot Rod |
1 |
Un sonido de alta ganancia saturado basado en la serie de amplificadores Fender® Hot Rod®. |
|
|
2 |
Un sonido de alta ganancia distorsionado basado en algunos modelos de amplificadores muy específicos. |
|
Metal |
1 |
Sonido de alta ganancia de tipo "metal" basado en modernos amplificadores para música heavy metal. |
|
|
2 |
Sonido de alta ganancia de tipo "metal" pero más oscuro basado en modernos amplificadores para música heavy metal. |
|
Acoustic |
1 |
Amplificador super limpio con las características de un Acoustasonic™ para punteos con los dedos en una guitarra acústica. |
|
|
|
||
|
2 |
Amplificador super limpio con las características de un Acoustasonic™ para rasgueos en una acústica. |
|
Jazz |
1 |
Un sonido de amplificador limpio |
|
optimizado para música jazz con el carácter del Fender® Jazz King™. |
|||
Tweed |
1 |
Sonido tradicional basado en un Fender® Tweed Champ®. |
|
|
2 |
Un grueso sonido tradicional basado en los primeros Fender® Tweed Bassman®. |
|
Blackface™ |
1 |
Un brillante sonido tradicional basado en los primeros amplificadores Fender® Blackface™ |
|
|
2 |
Un brillante y algo saturado sonido tradicional basado en los primeros amplificadores Fender Blackface™. |
|
|
3 |
Un brillante y fuertemente saturado |
sonido tradicional basado en los primeros amplificadores Fender Blackface™. |
|
|
|
|
|
|
|
|
|
|
|
|
Tipos de efectos
|
|
Tipo efecto |
|
Descripción |
|
|
|
|
|
||
|
|
Chorus |
1 |
Barrido rápido |
|
|
|
|
2 |
Barrido profundo |
|
|
|
|
3 |
Chorus + retardo |
|
|
|
|
4 |
Chorus + reverb |
|
|
|
Flange |
1 |
Barrido suave |
|
|
|
|
2 |
Barrido profundo |
|
|
|
Tremolo |
1 |
Baja intensidad |
|
|
|
|
2 |
Alta intensidad |
|
|
|
Bypass |
|
Ningún efecto |
|
|
|
Delay (retardo) |
1 |
130 ms |
|
|
|
|
2 |
300 ms |
|
|
|
|
3 |
500 ms |
|
|
|
Reverb |
1 |
Gran salón |
|
|
|
|
2 |
Sala de conciertos |
|
|
|
|
3 |
R.de muelles Fender |
|
|
|
|
4 |
Reverb + retardo |
|
|
|
|
|
|
|
|
|
|
|
|
|
Selección bucle
Loop Select
Rock 101
Chicago Blues
Ballad
Grind
Country
Hip Hop
Reggae (1 Drop )
Shuffle
MIDI IN
Speed Metal
Swing
Train
Latin ¾ (Waltz) 5/4 (5 on 4)
Metronome
FENDER.COM
G-DEC JR
Guía MIDI del G–DEC Junior
Resumen del MIDI
El G–DEC Jr le permite usar una gran cantidad de funciones MIDI. El término MIDI es el acrónimo de la expresión inglesa de "Interconexión Digital de Instrumentos Musicales" , que es el protocolo que permite a distintos elementos musicales digitales (teclados, unidades de efectos, sintetizadores, ordenadores, etc.) comunicarse entre sí. Es imposible cubrir en este manual todas las posibilidades que le ofrece este sistema. Si quiere saber más sobre esto, visite la página web http://www.midi.org o busque el término “MIDI” en su navegador preferido.
Configuración MIDI básica
Las operaciones MIDI más básicas del G–DEC Jr requieren el uso de un interface MIDI conectado a un ordenador. La mayor parte de estos interfaces MIDI usarán el puerto USB o de juegos de los antiguos PC y puede adquirirlos en cualquier tienda de instrumentos musicales. Consulte las instrucciones del fabricante del interface para saber cómo configurarlo. Para explotar al máximo las posibilidades MIDI del G–DEC Jr, conecte el puerto MIDI In del G–DEC Jr a la salida MIDI de su interface a través de un cable MIDI standard. Conecte también el puerto MIDI Out del G–DEC Jr a la entrada de su interface MIDI. Vea las conexiones en el gráfico.
Envío de datos de ficheros MIDI Files al G–DEC Jr
Si quiere reproducir cualquier fichero General MIDI disponible desde su PC a través del G–DEC Jr, necesitará un programa específico en su ordenador capaz de reproducir ficheros MIDI sobre un puerto MIDI exterior. Busque en su navegador de internet preferido un programa o utilidad de reproducción de datos MIDI o secuenciador MIDI que funcione con su ordenador concreto. Consulte la documentación que venga con el citado programa que configurarlo de forma correcta. Una vez que lo haya configurado de forma adecuada, reproduzca cualquier fichero MIDI (habitualmente un fichero que tenga la extensión .MID) desde su programa secuenciador o reproductor MIDI. El puerto MIDI Out port de su interface MIDI debe estar conectado al puerto MIDI In del G–DEC Jr. Si la canción se reproduce pero el sonido es emitido a golpes, asegúrese de que la función MIDI thru de su programa esté desactivada, o simplemente desconecte el cable MIDI del puerto MIDI Out del PC. Vea en el Apéndice la distribución de canales de sonidos General MIDI.
Para más información, vaya a esta dirección:
http://www.fender.com/support/downloads/
15
Interface
MIDI-a-ordenador
Ordenador—puerto USB o de juegos
FENDER.COM
16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G-DEC |
JR |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
APENDICE: |
CANAL MIDI – (Cualquiera excepto |
|
|
|
|
||||||||||
|
el canal 10) |
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|||||||||
Cambio de |
General |
|
Cambio de |
General |
|
|
Cambio de |
General |
||||||||
Programa |
MIDI |
|
Programa |
MIDI |
|
|
Programa |
MIDI |
||||||||
1 |
Piano 1 (Cola) |
|
44 |
|
Contrabajo |
|
87 |
|
Solista 7 (Quintas) |
|||||||
2 |
Piano 2 (Vertical) |
|
45 |
|
Cuerdas trémolo |
|
88 |
|
Solista 8 (Bajo + solista) |
|||||||
3 |
Piano 3 (Cola eléctrico) |
|
46 |
|
Cuerdas pizzicato |
89 |
|
Amortiguado 1 (Fantasia) |
||||||||
4 |
Piano Honky-Tonk |
|
47 |
|
Arpa |
90 |
|
Amortiguado 2 (Cálido) |
||||||||
5 |
Piano eléctrico 1 |
|
48 |
|
Timbales de orquesta |
91 |
|
Amortiguado 3 (Polysynth) |
||||||||
6 |
Piano eléctrico 2 |
|
49 |
|
Grupo de cuerdas 1 |
92 |
|
Amortiguado 4 (Coro) |
||||||||
7 |
Clavicémbalo |
|
50 |
|
|
|
|
|
|
|
|
|
||||
Grupo de cuerdas 2 |
93 |
|
Amortiguado 5 (Cuerdas c/arco) |
|||||||||||||
8 |
Clavecín |
|
51 |
|
Cuerdas sintetizadas 1 |
94 |
|
Amortiguado 6 (Metálico) |
||||||||
9 |
Celesta |
|
52 |
|
Cuerdas sintetizadas 2 |
95 |
|
Amortiguado 7 (Halo) |
||||||||
10 |
Glockenspiel |
|
53 |
|
|
|
|
|
|
|
|
|
||||
Coro de "Aahs" |
96 |
|
Amortiguado 8 (Barrido) |
|||||||||||||
11 |
Cajita de música |
|
|
54 |
|
Coro de "Oohs" |
97 |
|
Efectos 1 (Lluvia) |
|||||||
12 |
Vibráfono |
|
|
55 |
|
Voz sintetizada |
98 |
|
Efectos 2 (Película) |
|||||||
13 |
Marimba |
|
|
56 |
|
Hit de orquesta |
99 |
|
Efectos 3 (Cristal) |
|||||||
14 |
Xilófono |
|
|
57 |
|
Trompeta |
100 |
|
Efectos 4 (Atmósfera) |
|||||||
15 |
Campanas tubulares |
|
|
58 |
|
Trombón |
101 |
|
Efectos 5 (Brillo) |
|||||||
16 |
Santur |
|
|
59 |
|
Tuba |
102 |
|
Efectos 6 (Goblins) |
|||||||
17 |
Organo de registros |
|
|
60 |
|
Trompeta con sordina |
103 |
|
Efectos 7 (Ecos) |
|||||||
18 |
Organo percusivo |
|
|
61 |
|
Fliscornio |
104 |
|
Efectos 8 (Ciencia ficción) |
|||||||
19 |
Organo de rock |
|
|
62 |
|
Sección de metales |
105 |
|
Sitar |
|||||||
|
|
|
||||||||||||||
20 |
Organo litúrgico |
|
|
63 |
|
Metales sintetizados 1 |
106 |
|
Banjo |
|||||||
21 |
Organo de lengüetas |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
64 |
|
Metales sintetizados 2 |
107 |
|
Shamisen |
||||||||||
22 |
Acordeón |
|
|
65 |
|
Saxo soprano |
108 |
|
Koto |
|||||||
23 |
Armónica |
|
|
66 |
|
Saxo alto |
109 |
|
Kalimba |
|||||||
24 |
Bandoneón |
|
|
67 |
|
Saxo tenor |
110 |
|
Gaita |
|||||||
25 |
Guit. acústica (c. nylon) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
68 |
|
Saxo barítono |
111 |
|
Violín celta |
||||||||||
26 |
Guit. acústica (c. metal) |
|
|
69 |
|
Oboe |
112 |
|
Shanai |
|||||||
27 |
Guitarra eléctrica (Jazz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
70 |
|
Corno Inglés |
113 |
|
Chin-chines |
|||||||||||
28 |
Guitarra eléctrica (limpia) |
|
71 |
|
Fagot |
114 |
|
Agogo |
||||||||
29 |
Guit. eléctrica (sordina) |
|
72 |
|
Clarinete |
115 |
|
Tambores metálicos |
||||||||
30 |
Guitarra saturada |
|
73 |
|
Piccolo |
116 |
|
Woodblock |
||||||||
31 |
Guitarra con distorsión |
|
74 |
|
Flauta travesera |
117 |
|
Tambor Taiko |
||||||||
32 |
Armónicos de guitarra |
|
75 |
|
Pífano |
118 |
|
Timbal melódico |
||||||||
33 |
Bajo acústico |
|
76 |
|
Flauta dulce |
119 |
|
Batería sintetizada |
||||||||
34 |
Bajo tocado con dedos |
|
77 |
|
Soplo en cuello de botella |
120 |
|
Platillo al revés |
||||||||
35 |
Bajo tocado con púa |
|
78 |
|
Shakuhachi |
121 |
|
Ruido de traste de guitarra |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
36 |
Bajo sin trastes |
|
79 |
|
Silbido |
122 |
|
Ruido de respiración |
||||||||
37 |
Bajo slap 1 |
|
80 |
|
Ocarina |
123 |
|
Marea |
||||||||
38 |
Bajo slap 2 |
|
81 |
|
Solista |
1 (cuadrada) |
124 |
|
Pajarito |
|||||||
39 |
Bajo sintetizado 1 |
|
82 |
|
Solista |
2 (diente sierra) |
125 |
|
Teléfono |
|||||||
40 |
Bajo sintetizado 2 |
|
83 |
|
Solista |
|
|
|
|
|
|
|
|
|||
3 (Calliope) |
126 |
|
Helicóptero |
|||||||||||||
41 |
Violín |
|
84 |
|
Solista |
4 (Chiff) |
127 |
|
Ovación |
|||||||
42 |
Viola |
|
85 |
|
Solista |
|
|
|
|
|
|
|
|
|||
5 (Charang) |
128 |
|
Disparo |
|||||||||||||
43 |
Violonchelo |
|
86 |
|
Solista 6 (Voz) |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FENDER.COM
|
|
|
|
|
|
|
|
|
|
17 |
|||||
|
|
|
|
|
|
G- |
DEC JR |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
Especificaciones |
|
técnicas |
|
|
|
||||||||
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MODELO: |
|
PR 718 |
|
|
|
|
|
|
|
|
|
||
|
|
REFERENCIAS: |
|
2351000000 (120V, |
60Hz) |
2351000900 (120V, 60Hz) DS |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
2351010900 (110V, 60Hz) TW DS |
|
|
|
|
2351030900 (240V, 50Hz) AUS DS |
||||||
|
|
|
|
2351040900 (230V, 50Hz) UK DS |
|
|
|
|
2351050900 (220V, 50Hz) ARG DS |
||||||
|
|
|
|
|
|
|
|
|
|
2351070900 (100V, 50/60Hz) JPN DS |
|||||
|
|
|
|
2351060900 (230V, 50Hz) EUR DS |
|
|
|
|
|||||||
|
|
|
|
2351090900 (220V, 60Hz) ROK DS |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CONSUMO: |
|
50 W |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
POTENCIA DE SALIDA: |
|
15 W RMS a 8 Ω @ 5%THD |
|
|
|
|
|||||||
|
|
IMPEDANCIA ENTRADA ETAPA DE POTENCIA: |
>1 MΩ |
|
|
|
|
|
|
|
|
|
|||
|
|
SENSIBILIDAD DE ENTRADA: |
|
30 mV (volumen al máximo para potencia a tope, control de tono en el centro) |
|||||||||||
|
|
SALIDA HEADPHONE/LINE: |
|
Una entrada 35 mV @ 1 kHz produce una salida máxima |
de 800mV a 33Ω (20 mW) con control de tono en el centro |
||||||||||
|
|
ALTAVOZ: |
|
8 Ω, 8" |
|
|
|
|
|
|
|
|
|
||
|
|
FUSIBLES: |
|
T 600 mA, 250 V para versiones de 100 V |
|
|
|
|
|||||||
|
|
|
|
T 500 mA, 250 V para versiones de 120 V |
|
|
|
|
|||||||
|
|
|
|
250 mA, 250 V para versiones de 220–240 V |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DIMENSIONES |
ALTURA: |
(12.5 pulg.) |
32 cm |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ANCHURA: |
(13.25 pulg.) |
34 cm |
|
|
|
|
|
|||||
|
|
PESO: |
PROFUNDIDAD: |
(7.25 pulg.) |
19 cm |
|
|
|
|
|
|||||
|
|
|
(15 libras) |
6.8 kg |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Estas especificaciones están sujetas a cambios sin previo aviso.
FENDER.COM
18 |
G-DEC JR |
Consignes de sécurité importantes
Ce symbole prévient l’utilisateur de tensions dangereuses présentes dans cet appareil.
Ce symbole conseille à l’utilisateur de lire le mode d’emploi fourni pour l’utilisation en toute sécurité de cet appareil.
•Lisez, conservez et suivez toutes les instructions. Respectez toutes les mises en garde.
•Connectez le cordon secteur uniquement à une prise reliée correctement à la terre. Utilisez une prise secteur dont la tension et la fréquence correspondent à la sérigraphie située sous l’embase INPUT POWER du produit.
•IMPORTANT : Pour éviter tout dommage, risque d’incendie ou d’électrocution, n'exposer pas cet appareil à la pluie ou à l’humidité.
•Déconnectez le cordon secteur de l’appareil avant de nettoyer les surfaces extérieures (en utilisant uniquement un chiffon humide). Attendez que l’appareil soit totalement sec avant de l’utiliser à nouveau et de le relier au secteur.
•Laissez un espace d’au moins 15,25 cm à l’arrière de l'appareil pour garantir une ventilation convenable et son refroidissement.
•Ce produit doit être éloigné de toute source de chaleur (radiateurs, poêles, etc.) ou de tout produit générant de la chaleur.
•Il se peut que ce produit soit équipé d’une fiche secteur polarisée (avec une lame plus large que l’autre). Il s'agit d'un élément de sécurité. Si vous n’arrivez pas à enfoncer la fiche dans la prise secteur, contactez un électricien pour faire remplacer la prise secteur. Ne modifiez jamais la sécurité de cette fiche.
•Protégezlecordonsecteurcontretoutdommage(pincement, etc.).
•Ce produit doit uniquement être contrôlé et réparé par un personnel qualifié lorsque : Le cordon secteur est endommagé, un objet est tombé sur le produit, un liquide s’est infiltré dans le boîtier, le produit a été exposé à la pluie, le produit ne semble pas offrir des performances satisfaisantes, le produit est tombé, ou son boîtier est endommagé.
•Utilisez ce produit uniquement avec un chariot ou un pied recommandé par le fabricant.
•Déconnectez le cordon secteur de la prise lors des orages ou des longues périodes d’inutilisation.
•Empêchez toute infiltration liquide dans l’appareil. Ne jamais poser un objet contenant un liquide sur l’appareil.
•MISE EN GARDE : Cet appareil ne contient aucune pièce pouvant être remplacée par l’utilisateur. Confiez les réparations à un service de réparation qualifié.
•Les amplificateurs et enceintes Fender® peuvent produire des niveaux sonores extrêmement élevés risquant de causer des dommages auditifs temporaires ou permanents. Prenez soin d’utiliser des niveaux sonores raisonnables.
RÉGLEMENTATIONS FCC
Suite aux tests effectués, il est établi que ce produit répond aux normes sur les équipements numériques de classe B, conformément à l’alinéa 15 des réglementations fédérales américaines. Ces normes sont élaborées afin de vous protéger contre toute interférence nuisible en installation résidentielle. Ce produit génère, utilise et émet des fréquences radio. Par conséquent, s’il n’est pas installé et utilisé suivant les instructions, il peut causer des interférences nuisibles aux communications radio. Cependant, aucune garantie n’est donnée concernant la possibilité d’interférence avec une installation spécifique. Si une interférence se produisait en réception radio et/ou télévisuelle, à la mise sous tension ou hors tension, nous vous recommandons de suivre ces instructions : Réorientez ou déplacez l’antenne de réception, éloignez le produit du récepteur, connectez le produit sur une ligne secteur différente de celle utilisée par le récepteur. Contactez votre revendeur ou un technicien radio/TV en cas de problème.
UN PRODUIT DE :
FENDER MUSICAL INSTRUMENTS CORPORATION
CORONA, CALIFORNIE USA
Marques déposées :
Fender® et G–DEC® Junior sont des marques déposées de FMIC. Toutes marques déposées.
Copyright © 2006 FMIC. Tous droits réservés.
FENDER.COM
