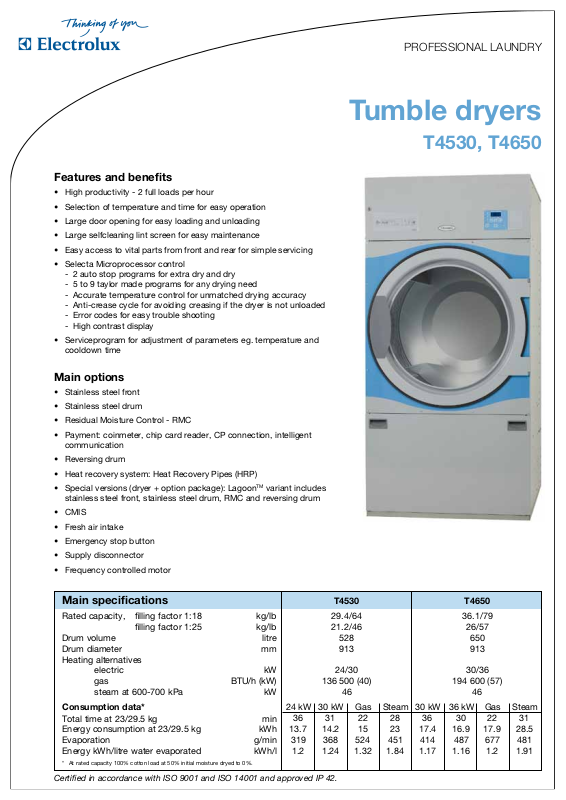

PROFESSIONAL LAUNDRY
Tumble dryers
T4530, T4650
Features and benefits
•High productivity - 2 full loads per hour
•Selection of temperature and time for easy operation
•Large door opening for easy loading and unloading
•Large selfcleaning lint screen for easy maintenance
•Easy access to vital parts from front and rear for simple servicing
•Selecta Microprocessor control
-2 auto stop programs for extra dry and dry
-5 to 9 taylor made programs for any drying need
-Accurate temperature control for unmatched drying accuracy
-Anti-crease cycle for avoiding creasing if the dryer is not unloaded
-Error codes for easy trouble shooting
-High contrast display
•Serviceprogram for adjustment of parameters eg. temperature and cooldown time
Main options
•Stainless steel front
•Stainless steel drum
•Residual Moisture Control - RMC
•Payment: coinmeter, chip card reader, CP connection, intelligent communication
•Reversing drum
•Heat recovery system: Heat Recovery Pipes (HRP)
•Special versions (dryer + option package): LagoonTM variant includes stainless steel front, stainless steel drum, RMC and reversing drum
•CMIS
•Fresh air intake
•Emergency stop button
•Supply disconnector
•Frequency controlled motor
Main specifications |
|
|
T4530 |
|
|
T4650 |
|
||
Rated capacity, filling factor 1:18 |
kg/lb |
|
29.4/64 |
|
|
36.1/79 |
|
||
filling factor 1:25 |
kg/lb |
|
21.2/46 |
|
|
26/57 |
|
||
Drum volume |
litre |
|
528 |
|
|
650 |
|
||
Drum diameter |
mm |
|
913 |
|
|
913 |
|
||
Heating alternatives |
|
|
|
|
|
|
|
|
|
electric |
kW |
|
24/30 |
|
|
30/36 |
|
||
gas |
BTU/h (kW) |
|
136 500 (40) |
|
|
194 600 (57) |
|
||
steam at 600-700 kPa |
kW |
|
46 |
|
|
|
46 |
|
|
Consumption data* |
|
24 kW |
30 kW |
Gas |
Steam |
30 kW |
36 kW |
Gas |
Steam |
Total time at 23/29.5 kg |
min |
36 |
31 |
22 |
28 |
36 |
30 |
22 |
31 |
Energy consumption at 23/29.5 kg |
kWh |
13.7 |
14.2 |
15 |
23 |
17.4 |
16.9 |
17.9 |
28.5 |
Evaporation |
g/min |
319 |
368 |
524 |
451 |
414 |
487 |
677 |
481 |
Energy kWh/litre water evaporated |
kWh/l |
1.2 |
1.24 |
1.32 |
1.84 |
1.17 |
1.16 |
1.2 |
1.91 |
* At rated capacity 100% cotton load at 50% initial moisture dryed to 0%.
Certified in accordance with ISO 9001 and ISO 14001 and approved IP 42.
