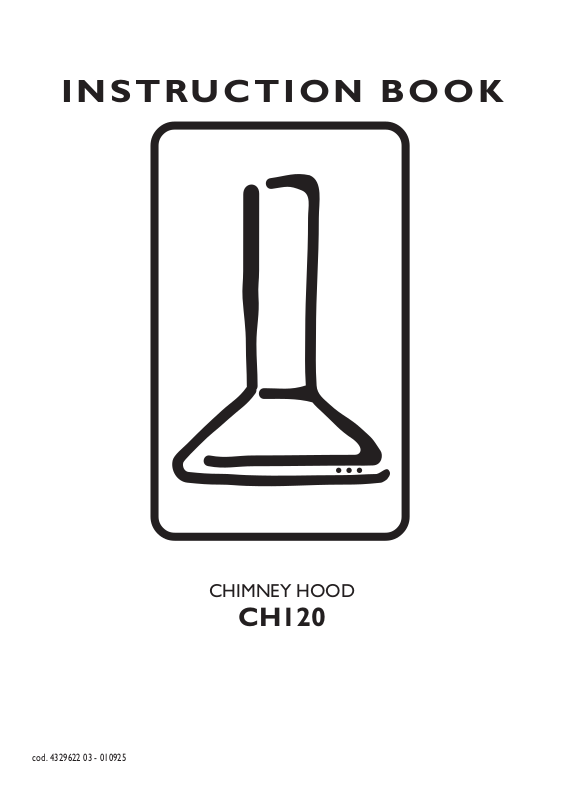

INSTRUCTION BOOK
CHIMNEY HOOD
CH120
cod. 4329622 03 - 010925
Thank you for buying an Electrolux product.
To enable you to use your application effectively and safely, please read this instruction book carefully before using the appliance and retain for future reference. If you require guidance in the use of the appliance or require further information on Electrolux Products, please contact our Customer Care Department.
Customer Care Department |
|
Electrolux |
|
55 - 77 High Street |
|
Slough |
|
Berkshire |
|
SL1 1DZ |
Tel: 08705 950 950 |
To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.
For the User |
For the Installer |
|
Technical Information |
Important Safety Information |
|
|
Electrical Connections |
Your Appliance
Electrical Requirements
Electrical Connection
Operating Instructions
Cooker Hood Controls |
Installing the Cooker Hood |
|
Installation Requirements |
||
To Operate |
||
Unpacking |
||
Recirculation |
||
Fitting the Wall Brackets |
||
Extraction |
||
Fitting the Canopy Hood |
||
|
||
Maintenance and Cleaning |
Venting |
|
Recirculation |
||
External Cleaning |
||
Fitting the Chimney Stack |
||
Metal Grease Filters |
||
|
||
Charcoal Filters |
Service Force Centres |
|
To Remove/Replace Charcoal Filter |
||
|
||
Changing the Light Bulb |
|
|
Something Not Working |
|
|
Service and Spare Parts |
|
|
Guarantee Conditions |
|
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions |
Step by step instructions |
2
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department.
•Installation
•Any installation work must be undertaken
by a qualified electrician or a competent person.
•This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
•If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building Standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
•The fan motor of this cooker hood incorporates a cut-out device which will operate if the cooker hood is installed below the minimum height recommended under the section ‘Clearance Height’, or if the motor becomes overheated. If the cut-out device is activated, switch off the fan motor and allow the cooker hood to cool. The cut-out device will reset itself when the fan motor has cooled significantly.
•It is dangerous to alter the specifications or modify this product in any way.
•When installed between adjoining wall cabinets the wall cabinets must not overhang the hob.
•If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
•If other types of flue or appliances are fitted ensure that there is an adequate supply of air to the room.
•The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose.
•Do not install above a cooker with a highlevel grill.
•Child Safety
•This appliance is designed to be operated by adults. Children should not be allowed to tamper with the appliance.
•During Use
•This product is for domestic use only.
•Never leave frying pans unattended during use as overheated fats and oils might catch fire.
•Never do flambé cooking under this cooker hood.
•Do not leave naked flames under the cooker hood.
•Maintenance and Service
•This appliance can be a hazard if the grease filters and charcoal filters are not cleaned and replaced as recommended.
•Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts.
3
YOUR APPLIANCE
400
360
240 |
40 |
|
|
4 |
9 |
0 |
|
||
|
|
150 |
2 |
|
75 |
1198
OPERATING INSTRUCTIONS
The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. The appliance can be installed to recirculate or extract contaminated air.
Cooker Hood Controls
The cooker hood functions are controlled by three switches located to the right on the underside of the hood immediately in front of the metal grease filters.
Worktop Lighting
The switch (L) marked with the lamp symbol operates the worktop lighting.
L 0 |
- OFF |
0 1 |
0 1 |
1 2 3 |
1 |
- ON |
|
|
|
Fan Control
The switch (M) marked with the fan symbol and the switch (V) marked 1-2-3 operates the fan.
M0 - OFF
1 - ON
V1 - Low
2 - Normal
3 - Boost
L M V
4
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters the cooker hood through the grease filters. The air is cleaned by passing through the charcoal filters before being passed back into the kitchen through the grilles in either side of the chimney stack.
Extraction
In the extraction mode the contaminated air enters the cooker hood passing through the grease filters and is passed out through the ducting into the atmosphere.
To obtain the best performance when cooking it is advisable to switch the cooker hood on for a few minutes before you start cooking and leave it running for about 15 minutes after finishing.
When used in the ducting mode the charcoal filters are not required.
Never do flambé cooking under this cooker hood.
Never leave frying pans unattended during use, as over-heated fat and oil can catch fire.
Do not leave naked flames under the cooker hood.
Ensure heating areas on your hob are covered with pots and pans when using the hob and cooker hood simultaneously.
5
MAINTENANCE AND CLEANING
Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.
The cooker hood must be kept clean, as a build up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm soapy water using a mild detergent.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when cleaning particularly around the control panel.
Metal Grease Filters
The grease filters absorb grease and dust during cooking to help keep the cooker hood clean inside, and should be cleaned approximately once every month or more often if the hood is used for more than 3 hours a day.
Remove the metal grease filters one at a time by:
Releasing the catches on the filters, the filters can be removed.
The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher. Allow to dry completely before replacing.
6
Charcoal Filters
In the recirculation mode the charcoal filters absorb smells and unwanted odours.
The charcoal filters cannot be cleaned, we recommend they should be replaced approximately every three months or more often if the hood is used for more than three hours per day.
To Remove/Replace the
Charcoal Filters
1.First remove the metal grease filters.
2.Rotate the charcoal filter anti-clockwise
(B) and remove.
3.To replace the charcoal filters, remove the metal grease filters.
4.Place the filter over the inlet grille at either end of the fan housing and rotate clockwise (A) into position.
This appliance can be a possible fire hazard if the grease and charcoal filters are not cleaned and replaced as recommended.
Changing the Light Bulb
1.First remove the metal grease filters.
2.The light bulbs can be reached from inside the canopy.
3.Rotate the light bulb anti-clockwise to unscrew.
4.To replace the light bulb insert a replacement into the holder then rotate the bulb clockwise into position. Ensure you take care not to overtighten the bulb.
If the light bulb fails to function check that the bulb is fully screwed into the holder. If bulb failure has occurred then it should be replaced with a 220-240 Volt 40W clear globe shaped bulb with a small E14 screw thread.
Replacement filters and light bulbs can be obtained from your local Service Force Centre.
7
