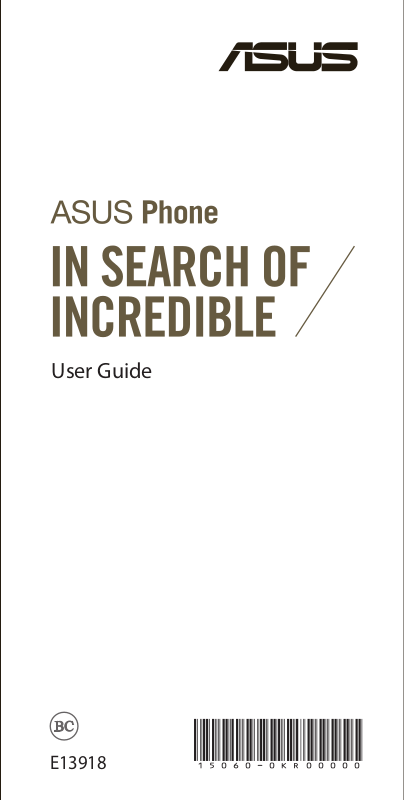

User Guide
E13918 15060-0KR00000
First Edition/ April 2018
ASUS Phone (Mobile Phone)
Model: ASUS_Z01RD (ZS620KL)
Before you start, ensure that you have read all the safety information and operating instructions in this User Guide to prevent injury or damage to your device.
NOTE: For the complete E-Manual and more detailed information, refer to https://www.asus. com/support/.
Front features
LED indicator Receiver Front camera
Proximity sensor and light sensor
Touch screen display
Side features
Microphone
Microphone
Nano SIM/
microSD card Volume key slot
Power key
Microphone
Speaker Audio jack USB Type-C port
NOTE: The USB Type-C port supports USB 2.0 transfer rate.
Rear features
Rear cameras
NFC detection area
Fingerprint sensor
Camera flash
Rear cover
Charging your ASUS Phone
To charge your ASUS Phone:
1.Connect the USB connector into the power adapter’s USB port.
2.Connect the other end of the USB Type-C cable to your ASUS Phone.
3.Plug the power adapter into a wall socket.
3 |
2 |
|
1
IMPORTANT!
•When using your ASUS Phone while it is plugged to a power outlet, the grounded power outlet must be near to the unit and easily accessible.
•When charging your ASUS Phone through your computer, ensure that you plug the USB Type-C cable to your computer’s USB 2.0 / USB 3.0 port.
•Avoid charging your ASUS Phone in an environment with ambient temperature of above 35 °C (95 °F).
NOTES:
•For safety purposes, use ONLY the bundled power adapter and cable to avoid damaging your device and prevent the risk of injury.
•For safety purposes, use ONLY the bundled power adapter and cable to charge your ASUS Phone.
•The input voltage range between the wall outlet and this adapter is AC 100V - 240V. The output voltage of the USB Type-C cable is +9V
2A, 18W.
Installing a Nano SIM /MicroSD card
To install a Nano SIM / MicroSD card:
1.Push a pin into the hole on the Nano SIM / MicroSD card tray to eject it. Insert the Nano SIM or MicroSD card(s) into the card slot(s).
|
Nano- |
Nano- |
Micro |
SIM1 |
SIM1 |
SD |
Nano- |
|
|
|
SIM2 |
2.Push the tray to close it.
IMPORTANT! You can only use the Nano SIM2 card or the MicroSD card at a time.
NOTES:
•Both Nano SIM card slots support GSM/GPRS/ EDGE,WCDMA/HSPA+/DC-HSPA+, FDD-LTE, and TD-LTE DSDV network bands. Both Nano SIM cards can connect to VoLTE 4G calling service. But only one can connect to FDD-LTE, and TD-LTE data service at a time.
•The microSD card slot supports microSD and
microSDXC card formats.
CAUTION!
•Do not use sharp tools or solvent on your device to avoid scratches on it.
•Use only a standard Nano SIM card on your
ASUS Phone.
Using NFC
NOTE: NFC is only available in selected regions/ countries.
You can use NFC in the following three scenarios:
Reader mode: Your phone reads information from a contactless card, NFC tag, or other NFC devices.
Place the NFC area of your phone on the contactless card, NFC tag, or NFC device.
Card Emulation mode: Your phone can be used like a contactless card.
Place the NFC area of your phone on the NFC area of the NFC reader.
Peer-to-Peer mode: Transfers photos, contacts, or other data between your phone and an NFC-enabled smartphone.
Bring the NFC areas of both smartphones together, without any space between them.
