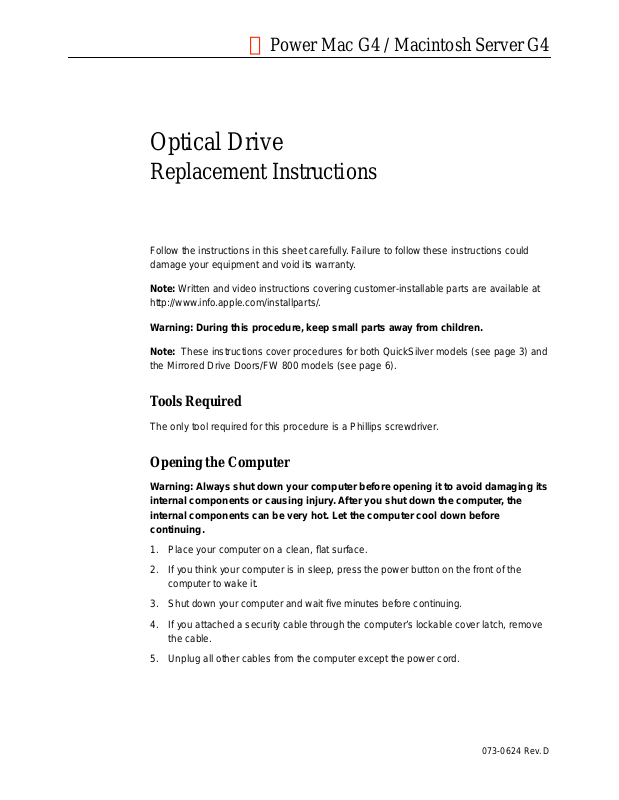

Power Mac G4 / Macintosh Server G4
Optical Drive
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note:
Written and video instructions covering customer-installable parts are available at
http://www.info.apple.com/installparts/.
Warning: During this procedure, keep small parts away from children.
Note:
These instructions cover procedures for both QuickSilver models (see page 3) and
the Mirrored Drive Doors/FW 800 models (see page 6).
Tools Required
The only tool required for this procedure is a Phillips screwdriver.
Opening the Computer
Warning: Always shut down your computer before opening it to avoid damaging its
internal components or causing injury. After you shut down the computer, the
internal components can be very hot. Let the computer cool down before
continuing.
1. Place your computer on a clean, flat surface.
2. If you think your computer is in sleep, press the power button on the front of the
computer to wake it.
3. Shut down your computer and wait five minutes before continuing.
4. If you attached a security cable through the computer’s lockable cover latch, remove
the cable.
5. Unplug all other cables from the computer except the power cord.
073-0624 Rev. D
6. Touch the metal PCI access covers on the back of the computer.
Figure 1
Power Mac G4 (Quic kSilver s) P o wer Mac G4 (Mirr ored Drive Doors/FW 800)
(Figure 1)
Important:
port access covers before you touch any parts or install any components inside the
computer. To avoid static electricity building back up in your body, do not walk
around the room until you have completed the installation and closed the computer.
7. Unplug the power cord.
Warning: The power supply in your computer is a high-voltage component and
should not be opened for any reason, even when the computer is off. If the
power supply needs service, contact your Apple reseller or Apple Authorized
Service Provider.
8. Lift the latch on the right side access panel.
9. Gently lower the access panel until it lies flat. To avoid scratching the case, lower the
panel onto a soft, clean cloth.
Warning: If you see any lights glowing on the main logic board, the computer has
not been shut down. Close the side access panel and shut down the computer
before proceeding.
To avoid electrostatic discharge, always ground yourself by touching the
Power Mac G4 Optical Drive -
2
Removing the Optical Drive in the QuickSilver Models
Warning: Handle the installed optical drive with care. Hold it by both metal sides
and do not apply force to the drive’s center. Never lift or hold the drive by the front
panel.
1. With a Phillips screwdriver, remove the four screws that attach the drive carrier to the
chassis.
Figure 2
(Figure 2)
2. Supporting the bottom of the carrier, slide it back and rotate it so you can reach the
drive cables.
Figure 3
(Figure 3)
Power Mac G4 Optical Drive -
3
3. Carefully detach the ribbon cable tape from the top of the carrier.
4. Disconnect the following cables from the back of the CD/DVD/Zip drives:
• ribbon cable from the CD/DVD and Zip drives
• power cable (P6) from the CD/DVD drive
• power cable (P7) from the Zip drive
Figure 4
5. Remove the carrier and drives from the computer.
(Figure 4)
6. Remove the four CD/DVD drive carrier mounting screws.
7. Slide the drive out of the carrier.
Figure 5
(Figure 5)
Power Mac G4 Optical Drive -
4
Installing the Optical Drive in the QuickSilver Models
Warning: Handle the replacement optical drive with care. Hold it b y both metal sides
and do not apply force to the drive’s center. Never lift or hold the drive by the front
panel.
1. Position the drive in the upper bay of the drive carrier, insert the screws from the old
drive through the holes in the carrier, and tighten to secure the drive to the carrier.
2. Connect the cables to the Zip drive and CD/DVD drive:
• middle connector on the power cord bundle to the Zip drive.
• middle connector on the ribbon cable to the Zip drive.
• end of the power cord bundle to the CD/DVD drive.
• end of the ribbon cable to the CD/DVD drive.
3. Reattach the ribbon cable tape to the top of the carrier.
4. Insert the drive carrier into the computer, making sure the pegs on the bottom of the
carrier fit into the two notches in the drive shelf.
Figure 6
(Figure 6)
5. Reinsert the four carrier mounting screws you removed earlier and tighten them to
secure the drive carrier to the chassis.
Power Mac G4 Optical Drive -
5
Removing the Optical Drive in the Mirrored Drive Doors/FW 800 Models
1. Locate the optical drive carrier.
Figure 7
(Figure 7)
2. Loosen the captive screw near the front panel board.
3. Remove the lower screw that secures the optical drive carrier to the chassis.
Figure 8
(Figure 8)
Power Mac G4 Optical Drive -
6
4. Slide the back panel off the carrier.
Figure 9
(Figure 9)
5. Slide the carrier back and rotate it so that you can reach the drive cables.
6. Disconnect the drive data and power cables (P6 and P7) from the back of the optical
drive(s) and remove the carrier from the computer.
Figure 10
(Figure 10)
Power Mac G4 Optical Drive -
7
7. Remove the four mounting screws from the sides of the drive carrier.
8. Slide the drive forward out the front of the drive carrier.
Figure 11
(Figure 11)
Installing the Optical Drive in the Mirrored Drive Doors/FW 800 Models
1. Install the replacement optical drive in the optical drive carrier.
2. Before sliding the carrier back onto the optical drive shelf, make sure the power cable
bundle at the side panel is routed in the recessed channel.
Figure 12
(Figure 12)
Power Mac G4 Optical Drive -
8
3. Connect the cables to the optical drive(s).
4. Slide the rear panel back onto the carrier, making sure the top lip of the panel engages
with the top edge of the drive carrier.
Warning:
5. When sliding the carrier back onto the optical drive shelf, make sure the latch on the
underside of the carrier engages with the notch in the drive shelf.
Figure 13
Be careful not to pinch the power cable between the panel and the carrier.
(Figure 13)
Closing the Computer
1. Raise the side access panel, lift the latch, and press the panel against the case until it
snaps securely into place.
2. Reconnect all cables and restart your computer.
Warning: Never turn on your computer unless all of its internal and external
parts are in place and it is closed. Operating the computer when it is open or
missing parts can damage your computer or cause injury.
Power Mac G4 Optical Drive -
9
Apple Computer, Inc.
© 2003 Apple Computer, Inc. All rights reserved.
Under the copyright laws, this document ma y not be copied, in whole or in part, without the
written consent of Apple.
The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other
countries. Use of the “keyboard” Apple logo (Option-Shift-K) for commercial purposes
without the prior written consent of Apple may constitute trademark infringement and
unfair competition in violation of federal and state laws.
Every effort has been made to ensure that the information in this document is accurate.
Apple is not responsible for printing or clerical errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
USA
+ 1 408 996 1010
http://www.apple.com
Apple, the Apple logo, Mac, Macintosh, and the Mac logo are trademarks of Apple
Computer, Inc., registered in the U.S. and other countries.
Power Mac is a trademark of Apple Computer, Inc.
