CHAPTER

Installing Your Hardware

In this chapter

m Your modem package m Connecting the GeoPort Telecom Adapter m Connecting internal modems

Your modem package

Your modem package contains hardware and software that bring fax, data, Internet access, and address book capabilities to your computer.

If your modem was not installed either at the factory or by your Apple-authorized service provider, your package contains one of the following modems

m GeoPort Telecom Adapter m PC Card modem

Your package also contains

m a telephone cord m a CD-ROM or set of disks (if your software is not preinstalled

on your computer) containing

M the Apple Telecom software M the following user’s guides in Adobe Acrobat format

Apple Address Book User’s Guide Apple Fax User’s Guide Apple Fax Scripting Guide Apple Telecom AT Command Set

Note: On Performa computers, you can find the Apple

Address Book User’s Guide and Apple Fax User’s Guide in

the Applications Section of the Launcher.

m this guide, Getting Started With Apple Telecom

Chapter 1

Where to begin

To get started using your hardware and software, turn to the appropriate section in this chapter for information about connecting your modem hardware, then proceed to Chapter 2 for instructions on installing the software.

m If you have the GeoPort Telecom Adapter, follow the

instructions for connecting the adapter in the section “Connecting your GeoPort Telecom Adapter.”

m If you have the GeoPort Internal Modem or the Express

Modem, follow the instructions for connecting it to the telephone line in the section “Connecting your internal modem.”

m If you have a PC Card modem, follow the instructions for

connecting it to your computer in the manual that accompanies the modem.

Important If you are using a PC Card modem, you need to

choose the correct port setting from the Apple Serial Modem control panel before you can begin to use it.

See: Chapter 5, “Using Your Modem” for information about choosing settings in the Apple Serial Modem control panel.

Installing Your Hardware

Other items you may need

To use your hardware and software you may also need

m An analog telephone line Your modem is designed for

use with a traditional analog telephone system. Most homes use an analog system. Many offices and hotels, however, use a Private Branch Exchange (PBX) with digital extensions. If your office or hotel room uses a digital extension, contact the office telephone manager or service provider about acquiring the use of an analog line.

m A modular connector on your telephone line If your

telephone cord cannot be removed from the wall or has a nonstandard connector, you may need a modular adapter or a telephone installation that provides a modular connector. Ask your local telephone service provider for assistance in selecting the most appropriate solution for a modular connector.

If you are missing something If you are missing

something in your package, contact your Apple-authorized service provider, or refer to the service and support materials that came with your computer for a number to call.

Chapter 1

Connecting your GeoPort Telecom

Adapter

To connect your Macintosh to your telephone line, plug one end of the GeoPort Telecom Adapter into your Macintosh and the other end into your telephone wall socket and telephone.

Connecting the adapter to your computer

To connect the adapter to your computer

1 Locate the modem port at the back of your computer.

The modem port is marked with the W icon.

2 Plug the adapter’s cable into your computer’s modem port,

as illustrated below.

Modem port located on the back of the computer

Installing Your Hardware

Connecting the adapter to the telephone line

You need a standard telephone wall socket to connect the adapter to your analog telephone line using the supplied cable. If the supplied cable does not reach your telephone outlet, you can buy a longer one from a telephone equipment provider.

1 Locate the telephone cable that comes with your adapter

package.

2 Locate the line port at the end of the adapter.

The line port is marked with this icon.

3 Plug one end of the cable into the line port.

4 Plug the other end of the cable into your telephone

wall socket.

Chapter 1

5 Locate the telephone port at the end of the adapter.

6 Plug your telephone into the telephone port.

Your installation should look similar to the illustration below.

Modem port located on the back of the computer.

Telephone wall jack

Line port

Telephone

Q Telephone port

Once the adapter is connected to your computer and telephone line, you are ready to install the software (if it is not already installed).

See: Chapter 2, “Installing Your Software.”

Installing Your Hardware

Connecting your internal modem

The Express Modem hardware in your PowerBook or PowerBook Duo and, in some configurations, the GeoPort Internal Modem hardware are installed either at the factory or, if purchased separately, by your Apple-authorized service provider.

In order to use your modem, you need to connect it to an analog telephone line using the supplied telephone cord.

To connect the modem to a telephone line

1 Plug one end of the phone cord into the appropriate port on

your computer.

Refer to your Macintosh user’s manual for the location of the correct port.

2 Plug the other end of the phone cord into your telephone

wall socket.

Once the modem is connected to your telephone line, you are ready to install the software (if it is not already installed).

See: Chapter 2, “Installing Your Software.”

Important If you have a GeoPort Internal Modem installed

in your computer, do not connect anything to the external modem port because only the installed modem is active. Any program that reads or writes to the external modem port is redirected to the internal modem.

Chapter 1

CHAPTER

Installing Your Software

In this chapter

m What the Installer does m Installing the software m Accessing the user’s guides

Before you begin

Important If you have a Performa computer, all the

software you need is already installed. Skip most of this chapter, going directly to the last section, “Accessing the User’s Guides.”

Make sure you have connected your modem to your computer and your telephone line according to the installation instructions in Chapter 1 or according to the manual that came with your modem.

Installing the Apple Telecom software

If your Apple Telecom software is not preinstalled on your computer, it comes on a CD-ROM or set of disks. The folder called Apple Telecom Disk 1 contains the Installer program that places the necessary software on your hard disk.

What the Installer does

The Installer creates a folder called Telecom Applications and places it at the top level of your hard disk. It places the following folders inside this folder

m Address Book Folder which contains programs and files

related to Apple Address Book

m Fax Folder which contains programs and files related to

Apple Fax

The Installer places the Apple Telecom Status program in the Apple (K) menu, and places the modem control panel in the Control Panels folder of the System Folder.

The Installer creates a folder called Telecom Documents and places it at the top level of your hard disk. This folder contains a CCL file for use with AppleLink. The CCL files for use with Apple Remote Access are installed directly in the Extensions folder of the System Folder.

The Installer also places all the appropriate program extension files in the Extensions folder of the System Folder.

Chapter 2

If you are upgrading

If you are installing this version of the Apple Telecom software over an older version, use the Easy Install option rather than the Custom Install option. This ensures that all files are updated as necessary.

The Installer does the following with the existing Express Fax files

m Removes all program files except for Fax Cover. m Moves Sent and Received faxes to the new Fax Folder inside

the Telecom Applications folder. You can open and view these faxes within Apple Fax.

m Converts the Fax Terminal log file to a SimpleText document

and places it in the new Fax Folder inside the Telecom Applications folder. You can open and view this document using SimpleText.

m Preserves all Fax Terminal address books in their own

folders. You can convert a Fax Terminal address book to Apple Address Book format using the Address Book Translator included in the Address Book Folder inside the Telecom Applications folder.

m Moves all Express Fax cover pages to the new Fax Folder

inside the Telecom Applications folder. You cannot open these cover pages using Apple Fax, but you can open them using Fax Cover and, for example, copy and paste portions of them to new Apple Fax cover pages.

Installing Your Software

Installing the software

To install the Apple Telecom software

1 Turn on your computer.

2 Insert the CD-ROM in your CD-ROM drive or Disk 1 in your

disk drive, then open the Apple Telecom Disk 1 window.

3 Double-click the Installer icon.

An introductory dialog similar to the following appears.

4 Click Continue.

Chapter 2

An Easy Install dialog box similar to the following appears.

Easy Install automatically detects the Macintosh model you are using and installs the software you need.

5 Make sure the hard disk indicated is where you want to

install the software.

If the wrong disk name appears, click the Switch Disk button until the disk you want appears.

6 Click Install.

A message informs you when the installation is complete. You need to restart your computer in order to use your newly installed software.

7 Click Restart to restart your computer and activate the

software.

Installing Your Software

Accessing the user’s guides

If not preinstalled on your computer, the Adobe Acrobat Reader program and the following user’s guides in Acrobat format are included on your CD-ROM or set of disks in the User’s Guides folder.

m Apple Address Book User’s Guide m Apple Fax User’s Guide m Apple Fax Scripting Guide m Apple Telecom AT Command Set

If you have a Performa: On Performa computers, these guides are already installed. (The Apple Address Book User’s Guide and Apple Fax User’s Guide can be found in the Applications section of the Launcher on Performa computers.)

These guides provide complete information about using Apple Address Book and Apple Fax and about preparing scripts for Apple Fax. Refer to these guides for more complete explanations of the tasks described in this guide and for other detailed information about how to use these programs.

To access a user’s guide, you must first install Adobe Acrobat Reader on your hard disk (if not already installed).

To install Acrobat Reader

1 If necessary, copy the Acrobat Reader folder to your hard

disk.

2 Open the Acrobat Reader folder, then double-click the

Installer to install Acrobat Reader on your hard disk.

3 Click Restart to restart your computer and activate the

software.

Chapter 2

To access a user’s guide

1 If necessary, copy the User’s Guides folder to your hard disk.

2 Double-click a user’s guide icon to open it.

The Acrobat Reader program opens and displays the user’s guide cover page.

3 Use the Toolbar to browse through the document.

m Use the browse buttons to page through the document.

First page of document Last page of document

Backward/forward

one page at a time

Display previous/ redisplay current page view

m Click on a title in the Table of Contents to move to that

section, or a page number in the index to move to that page.

m Use the Bookmarks and Page icon to display the list of

contents in outline form, then click on a title to move to that section.

Installing Your Software

m Use the Thumbnails and Page icon to display a miniature

representation of each page of the document, then click on a page to move to it.

m Use the Find icon to search for a word or phrase in the

document.

m Use the Page Number box at the bottom of the window to go

to a specific page.

m Use the Magnification box at the bottom of the window to

resize the display.

See also: Acrobat Reader Online Guide available from the Guide menu or from the Acrobat Help folder on your hard disk for more information about using Adobe Acrobat Reader.

Chapter 2

CHAPTER

Setting Up the

Apple Telecom Software

In this chapter

m Setting up Apple Address Book m Setting up Apple Fax

Before you begin

Make sure that you have installed the hardware and software according to the steps described in Chapters 1 and 2.

Note: This chapter is derived from information contained in

the Apple Address Book User’s Guide and Apple Fax User’s Guide. Refer to these guides—included on your CD-ROM or

set of disks, or preinstalled on your hard disk in Acrobat format—for complete information about using these programs. (On Performa computers, these guides can be found in the Applications section of the Launcher.)

See also: The “Quick Reference Guide” at the back of this guide for step-by-step instructions for the most important tasks you need to know in order to get started using Apple Address Book and Apple Fax.

Setting up Apple Address Book

The first time you open Apple Address Book the Personal Info dialog appears for you to enter some personal information. This information appears on your fax cover pages.

Starting and configuring for the first time

To start Apple Address Book

1 Open the Telecom Applications folder, then open the

Address Book folder.

If you have a Performa computer, click the Apple Address Book button in the Applications section of the Launcher.

2 Open the Apple Address Book program by double-clicking it.

The Personal Info dialog box appears.

Country pop-up menu provides name and country code.

Chapter 3

3 Enter the information you want in the appropriate fields.

This information is stored in both the Apple Address Book and Apple Fax preferences. You can modify this information in the Personal Info preferences of either program: updating one updates the other. If you have already opened and entered personal information in Apple Fax, this information appears in the Personal Info dialog when you open Apple Address Book.

If your country does not appear in the Country pop-up menu, add it to the Apple Address Book Country preferences, then update the Apple Address Book Personal Info preferences.

See: Apple Address Book User’s Guide for information about using the Apple Address Book preferences.

4 Click OK.

A standard file dialog box appears prompting you to create a new address book.

Setting Up the Apple Telecom Software

5 Enter a name and choose a location for the address book,

then click Save.

A new, empty address book window appears.

You can create as many address books as you want to organize your information. Each address book that you create is an independent file with no relationship to other address books.

To create a new address book from within the program

1 Choose New from the File menu.

The standard file dialog box appears.

2 Enter a name and choose a location for the address book,

then click Save.

Each address book you create is recorded in the Apple Address Book preferences. You can access and use these address books from Apple Fax.

See also: The “Quick Reference Guide” for instructions on adding a new entry to an address book.

Chapter 3

Setting up Apple Fax

The first time you open Apple Fax a setup window appears for you to choose your modem.

If you have a Performa: If you have a Performa computer, Apple Fax is already set up for you. You can skip to the next section, “Faxing a Document.”

Starting and configuring for the first time

To start Apple Fax

1 Choose Apple Telecom Status from the Apple (K) Menu.

Apple Telecom Status appears.

Apple Fax icon

2 Click the Apple Fax icon, or choose Open Apple Fax from

the File menu.

Setting Up the Apple Telecom Software

Apple Fax opens and presents the setup window.

3 Read the introductory text, then click Next or select

Choosing a Modem from the Topic pop-up menu.

The Choosing a Modem panel appears

4 Choose your modem type from the modem pop-up menu,

then click Next.

Chapter 3

The Changing your settings panel appears.

The descriptive text explains how to change these and other settings in Apple Fax preferences.

See: Apple Fax User’s Guide for information about using the Apple Fax preferences.

5 Click Done to confirm your settings and close the setup

window.

Important If you are using a PC Card modem, you need to

choose the correct port setting from the Apple Serial Modem control panel before you can begin sending or receiving faxes.

See: Chapter 5, “Using Your Modem” for information about choosing settings in the Apple Serial Modem control panel.

Setting Up the Apple Telecom Software

After you start and configure Apple Fax the first time, the Apple Fax main window appears in Outgoing view.

Incoming

view

Outgoing view

Access other program features with these buttons.

The Apple Fax main window has two distinct views— Outgoing view and Incoming view. Outgoing view displays all of your sent faxes and Incoming view your received faxes. You choose the view you want by clicking on either the Outgoing or Incoming icon in the upper left of the main window.

Chapter 3

Faxing a document

With Apple Fax you can open a document and send it immediately as a fax, even when the Apple Fax program itself is not open. You can send documents as faxes from any program that prints, such as a word processor, spreadsheet, or graphics program.

To send a fax from an open document

1 Make sure that the document you want to send as a fax is

open and active.

2 Hold down the Control and Shift keys while choosing Print

from the File menu.

The Fax Sender dialog box appears.

Note: This keyboard shortcut does not work if you have

QuickDraw GX installed. To send a fax with QuickDraw GX, you must create a desktop printer icon for Fax Sender GX.

See: “Using Fax Sender GX” in this chapter.

Setting Up the Apple Telecom Software

3 Prepare the Fax Sender dialog, then click Send.

For your convenience, a sample document in SimpleText format called My First Fax is included in the Fax Folder inside the Telecom Applications folder on your hard disk. This document contains step-by-step instructions for preparing Fax Sender and sending your first fax.

See also: The “Quick Reference Guide” at the end of this guide for instructions on sending a fax from an open document, from the Quick Fax window, or from Apple Address Book.

Note: If you did not create an address book and add entries

to it, no address book appears in Fax Sender or the Quick Fax window.

Using Fax Sender Page Setup

You can also use the Fax Sender Page Setup dialog box to format a document according to the requirements of your recipient. For example, if you are faxing to the U.S., use US Letter format; if you are faxing to Europe, use A4 Letter.

1 Hold down the Control and Shift keys while choosing Page

Setup from the File menu.

The Fax Sender Page Setup dialog box appears.

2 Set up the document according to your recipient’s

requirements, then click OK.

Chapter 3

Selecting Fax Sender from the Chooser

If you do not have a printer, or if you plan on sending faxes often, you can make Fax Sender the selected output device for all your documents, just as you normally select a printer. When Fax Sender is the selected output device, each time you print from a program or from the system your document is sent as a fax instead.

To make Fax Sender the selected output device

1 Open the Chooser from the Apple (K) menu.

The Chooser appears.

2 Select the Fax Sender icon from the upper left panel.

3 Close the Chooser.

Fax Sender remains selected until you choose another device in the Chooser.

Setting Up the Apple Telecom Software

Using Fax Sender GX

If you have QuickDraw GX installed as part of your system, use the Chooser to create a desktop printer icon for Fax Sender GX.

To choose Fax Sender GX

1 Open the Chooser from the Apple menu.

The Chooser appears.

2 Select the Fax Sender GX icon from the upper left panel,

then click Create.

A printer icon for Fax Sender GX appears on the desktop. Now you can send documents as faxes just by dragging and dropping them onto this icon.

Chapter 3

3 Close the Chooser.

4 Open the document you want to send as a fax, then choose

Print from the File menu of your program; or drag a document file onto the desktop printer icon.

The Fax Sender GX print dialog box appears.

5 Make sure that Fax Sender GX is selected in the Print to:

pop-up menu, then click Fax.

Fax Sender GX images your fax. When imaging is complete, the Fax Sender print dialog box appears for you to prepare your fax for transmission.

Setting Up the Apple Telecom Software

Preparing to receive faxes

To set Apple Fax to receive faxes automatically

1 Display the Apple Fax main window.

2 Set the Fax Answering button to on.

Apple Fax now manages the reception of incoming faxes automatically. Reception takes place in the background, so that the Apple Fax window does not have to be in front, or even open, in order to receive a fax.

Note: Make sure that the Express Modem control panel or

Apple Serial Modem control panel is set to auto-answer. If it is not, you will not receive incoming faxes, even with Fax Answering on.

See: Chapter 5, “Using Your Modem” for information about setting auto-answer.

Chapter 3

CHAPTER

Using Apple Telecom Status

In this chapter

m Opening Apple Telecom Status m Monitoring fax activity m Canceling a fax m Quitting Apple Telecom Status

Introducing Apple Telecom Status

You use Apple Telecom Status to access Apple Fax and to monitor the current fax activity on your modem. The Telecom Status panel takes up a minimal amount of space on the desktop.

The Installer places the Apple Telecom Status program in the Apple (K) menu for easy access.

Opening Apple Telecom Status

To open Apple Telecom Status

1 Choose Apple Telecom Status from the Apple (K) menu.

You can also access Apple Telecom Status from the button bar of the Apple Fax window.

Telecom Status

Chapter 4

The Apple Telecom Status panel appears.

Graphic display shows modem ready to receive fax calls.

Opens Apple Fax

Zoom box

Text explanation of current modem status.

Cancels current fax transmission.

When the panel first opens, the program displays the default status of “Waiting for a call” (or “Idle” if auto-answer is Off). The graphic display shows the Apple Fax program icon, if it is in auto-answer mode.

To open Apple Fax, click the Apple Fax button, or choose Open Apple Fax from the File menu.

Using Apple Telecom Status

Understanding the display

The status display changes when you send a fax or when you receive an incoming fax.

For example, at the start of an outgoing call, Apple Telecom Status displays information similar to the following

Summary of call information.

Accompanying graphic

The status information changes as Apple Fax passes through the stages of dialing, ringing, making a connection, sending a fax, and disconnecting.

Note: When you send a fax, use Apple Telecom Status to

monitor the progress of the fax transmission. Use Outgoing view in the Apple Fax window to confirm the final status of the fax (Sent, Failed, or Canceled).

When you receive an incoming fax, the status display monitors the progress of the communication. Messages that may appear during fax transmission are appended to the bottom of the panel

Click here to clear the message.

Chapter 4

Canceling a fax

You can cancel fax transmission at any time. The Apple Telecom Status panel is the only place from which you can cancel a fax.

To cancel a fax

1 Confirm the progress of the call in the Telecom Status panel.

2 Click the Cancel button.

The call is canceled. The Apple Fax window displays a status of “Transmission canceled” for any intended recipients.

The Telecom Status display reads

3 Click the cross icon to clear the message.

Using Apple Telecom Status

Quitting Apple Telecom Status

You can quit Apple Telecom Status at any time. Quitting the program does not affect the operation of Apple Fax.

To quit Apple Telecom Status

1 Choose Quit from the File menu.

By default Apple Telecom Status is set in the Apple Fax preferences to open automatically whenever there is fax activity.

See also: Apple Fax User’s Guide for information about setting the Apple Fax preferences.

Chapter 4

CHAPTER

Using Your Modem

In this chapter

m What modems do m Using the modem control panel m Auto-answer and incoming call management

What modems do

Modems allow computers to communicate over telephone lines. While computers manipulate information in digital format, most telephone systems carry information as analog (wave) signals. Therefore, in order for computers to communicate over the PSTN (Public Switched Telephone Network), information must be converted to and from digital and analog formats. A modem (modulator/demodulator) handles these format conversions. The modem of the sending computer converts information from digital format to an analog signal by a process called modulation. The modem of the receiving computer converts the analog signal back to digital format by a process called demodulation.

Modems also dial, establish connections, and control the flow of data across the telephone line so that transmission takes place with optimal speed and accuracy.

Setting up a connection

Before two computers can exchange data over telephone lines, their modems must establish a connection and agree on how data will be transmitted.

Your modem is already set to make the best possible connection automatically. See Appendix A for a complete list of specifications and default settings.

Note: In general, it is best to accept your modem’s

automatic settings. If you want to control the speed, error control, and data compression settings yourself, see the Apple Telecom AT Command Set guide or the user’s guide that came with your data communications software.

Chapter 5

Determining the speed

Initially, your modem tries to connect at its fastest speed, which is either 28800 or 14400 bits per second (bps). If the remote modem cannot connect at this speed, your modem falls back to the next highest speed. Fallback continues until the two modems agree on the highest speed supported by both.

Error control

Error control is used by modems to ensure data accuracy. Your modem and the remote modem must agree on an error control method. Your modem will try to use one of two types of error control, V.42 or MNP class 2–4. If the remote modem does not support either of these types of error control, no error control is used.

Data compression

Data compression increases the speed of your modem by eliminating gaps and redundancies in the data. With data compression enabled, the speed can increase up to 4 times the non-compression speed.

Your modem can use two different types of data compression, V.42 bis or MNP class 5. If the remote modem does not support either of these types of data compression, no data compression is used.

Using Your Modem

Using the modem control panel

The modem control panel serves as a central point for controlling and monitoring modem functions. While most communications programs allow you to set the same functions as the control panel, control panel settings take precedence over program settings. You may want to check the settings in the control panel if a program does not behave as intended.

Although your modem hardware has only one physical connection to the phone line, the modem software can open more than one logical connection—also called association— for voice, fax, and data. The settings in the modem control panel are therefore general and apply to all associations.

The Express Modem software can open associations for voice, fax, and data. The Apple Serial Modem software can open either associations for voice and fax or open an association for data. A data association in Apple Serial Modem software overrides fax and voice associations.

See also: “Incoming call management” in this chapter for more information about how the modem software manages incoming calls to the various communications programs installed on your computer.

Note: Some of the settings described in this section may

not appear on your control panel, depending on your computer model.

Chapter 5

Turning the modem on and off (Express Modem only)

If the Express Modem software is off, it is turned on automatically when a program needs it for an outgoing communication. But while it is on the modem uses about 600K of system memory, so you may want to turn it off when you do not need it. The On/Off buttons in the Express Modem control panel indicate whether the modem software is running.

Important Remember that turning the modem off

overrides the auto-answer setting of any communications program that uses the Express Modem software. You will not be able to receive incoming calls with the modem off.

To turn the modem off

1 Open the Express Modem control panel.

The control panel appears.

2 Click the Off button.

The following alert appears.

3 Click OK to turn the modem off.

Using Your Modem

Choosing the port setting (Apple Serial Modem only)

If you are using a serial modem, such as a PC Card modem, then after you connect it to your computer you need to choose the port setting in the Apple Serial Modem control panel. This tells the Apple Serial Modem software the location of the modem.

To choose the port setting

1 Open the Apple Serial Modem control panel.

The control panel appears. The Modem field displays the name of the modem hardware.

2 Choose the port where the modem is attached to the

computer from the Port pop-up menu.

Using data communications programs

Choose the logical port setting “Data Port” in the connection settings of your data communications programs. This setting allows you to open a data connection while your fax and voice programs are set to auto-answer.

Fax and voice activity is suspended while a data connection is open. After the data connection is closed, control of the modem returns to the fax and voice programs.

If you do not use the “Data Port” setting, then attempting to open a data connection with fax or voice set to auto-answer produces a “Modem in use” error message.

Chapter 5

Using the modem settings

The Express Modem settings are contained in two panels: General Settings and Advanced Options. Use the pop-up menu to display either panel.

Using Your Modem

The Apple Serial Modem settings are contained in the Settings section of the control panel.

Country Telecom Settings (Express Modem only)

The Country Telecom Settings are information fields that display the current country and the allowed range for the number of rings for auto-answer, based on your hardware installation. You cannot edit these fields.

Note: Apple Serial Modem software also manages the

country-specific ring range value, but does not display it.

Auto-answer incoming calls

When “Auto-answer incoming calls” is selected—and at least one program is set to auto-answer—the modem software automatically answers incoming calls after the number of rings specified in the ring number field. Calls are answered according to priorities described in the section “Incoming call management” in this chapter.

Chapter 5

The checkbox and ring number field override the auto-answer setting of any communications program that uses the modem software. If you want to receive calls in any of your communications programs, make sure that this checkbox is selected and the number of rings specified.

If you want to prevent your modem from answering incoming calls, deselect the checkbox. If you do this, the modem will not answer calls even if other communications programs are set to auto-answer.

Note: If your modem shares the same line with your

telephone, and you want to make sure that the modem does not answer your incoming calls before you do, you can either deselect the “Auto-answer incoming calls” checkbox or set the number of rings to a high value.

Call Saver mode

You can use Call Saver mode to save money on connection charges when retrieving voice messages remotely from your voice mail. If there are new messages and Call Saver mode is selected, the modem answers at the number of rings set in the Call Saver ring number field. If the modem does not answer after the Call Saver ring number setting, you still have time to hang up.

In order to use Call Saver mode correctly, the value in the Call Saver ring number field must be at least two rings less than the value in the auto-answer ring number field. For example, you can set auto-answer to 5 rings and Call Saver to 2 rings. If your voice mail does not respond by the third ring, then you know that there are no new messages.

Using Your Modem

Ring Sound

Choose the sound that your Macintosh plays when you receive an incoming call from the Ring Sound pop-up menu. You can also install and use your own sounds.

See the Macintosh Guide in the Guide menu or the documentation that came with your computer for information about installing additional sounds.

Use internal modem (Express Modem only)

The “Use internal modem instead of Modem Port” checkbox is only available on certain Macintosh PowerBook computers. It does not appear, for example, if your computer uses the GeoPort Telecom Adapter, as the setting is done automatically.

This feature redirects all modem activity from the modem port to the internal modem.

For example, if you use a non-CTB compatible program with the Express Modem hardware, you need to select this checkbox. This enables non-CTB programs that use Serial Port A (Modem Port) to communicate with the Express Modem software.

If you plan to use another serial device on your Modem Port, such as a printer, you need to deselect the checkbox.

Note: Either checkbox setting is acceptable for Apple

Remote Access.

Important Applications that use a non-standard means of

accessing a modem (for example, bypassing the serial driver and directly controlling the hardware, or implementing an alternative to the standard serial driver) cannot be used with the Express Modem software.

Chapter 5

Progress sounds (Express Modem only)

MENU SETTING MEANING

Use application settings Allows you to control the speaker

volume from the application setting and Sound control panel.

Turn off Turns the speaker off for applications

that use the modem. Same as setting ATM=0 for all modem applications.

Keep on until carrier Leaves the speaker on until Carrier

is established. Same as setting ATM=1 for all modem applications.

Fax progress sound (Apple Serial Modem only)

You can monitor the progress sounds of a sent fax by selecting the “Fax progress sound” checkbox (the default). Deselect the checkbox to turn off all sounds during fax send or receive.

Using Your Modem

Transfer of unidentified incoming calls (Express Modem only)

Your modem identifies the type of incoming call by detecting the calling tones sent by modems and fax machines. Since not all devices use calling tones, some calls cannot be identified. To enable the modem to answer unidentified calls—when calling tone detection is unsuccessful—use the “Transfer incoming calls” buttons to choose the program to answer unidentified calls.

If you are going to receive voice calls, choose “Voice.” If you are going to receive data calls, choose “Data.” If you expect to receive both voice and data calls, ask your callers to send a data calling tone when calling your machine.

Make sure you set the program designated to handle unidentified calls (voice, fax, or data) to auto-answer.

Note: Transfer of unidentified calls is performed

automatically in the Apple Serial Modem software, but for fax and voice calls only.

Ignore dial tone when dialing

When the “Ignore dial tone when dialing” checkbox (known as blind dialing) is selected, the modem dials even though a dial tone cannot be detected. This is a useful feature for locations with a PBX system, such as hotels, where the modem may have difficulty recognizing the PBX dial tone. Selecting the checkbox has the same effect as setting the AT command ATX3 for all programs.

Leaving “Ignore dial tone when dialing” deselected allows you to control blind dialing at the program level.

See also: The ATX command in the Apple Telecom AT Command Set guide.

Chapter 5

Wake Macintosh on ring (Express Modem only)

The “Wake Macintosh on ring” checkbox is only available on certain Macintosh PowerBook computers. When a ring signal is detected on the telephone line, your PowerBook wakes up and—provided Express Modem and at least one program are set to auto-answer—answers the call.

When the checkbox is selected, the PowerBook wakes up for an incoming call even if Express Modem is turned off, or neither the modem nor any program are set to auto-answer. When the checkbox is deselected, the PowerBook will not wake up, so an incoming call is not answered even if Express Modem and a program are set to auto-answer.

Note: “Wake Macintosh on ring” is also an internal function

of certain Power Macintosh computers, though for these computers the checkbox is not available in the control panel. Your computer will wake up whenever there is an incoming call, provided Express Modem and at least one communications program are set to auto-answer.

Using Your Modem

Using the status display

The status display provides you with ongoing information about the status of the modem, including current state, type of connection, and call progress.

The Express Modem status display is available from the pop-up menu. The display provides additional information for outgoing data calls, including connection speed, error control, and data compression.

Graphical display of call progress and modem status.

Connect protocol and other messages.

Messages concerning type of call and modem status.

Chapter 5

The Apple Serial Modem status display appears in the Status section of the control panel.

Status information.

You can view the connection process by stages: idle, preparing for connection, opening a connection, and progress of connection. The modem software monitors each stage, displaying messages and icons.

The Status display also shows all alert messages. You can use this display for troubleshooting purposes if you have a problem with a connection.

Using Your Modem

Incoming call management

Your modem is designed to answer incoming calls, determine their type, and manage the open associations for the communications programs on your computer. This function is known as incoming call management.

When a call comes in, the modem software tries to identify the type of call by detecting calling tones. It then checks to see which programs are set to auto-answer and connects the incoming call to the appropriate program.

While the modem is on, it answers calls automatically according to the following set of rules and priorities

m The modem only answers if “Auto-answer incoming calls” is

selected in the control panel.

m The modem only answers if at least one program is set to

auto-answer.

m If several different programs are set to auto-answer, the

modem uses calling tone detection to identify the type of call, then sends it to the corresponding program.

m Under certain conditions, if no calling tone is detected, the

call is passed to the program designated in the “Transfer incoming calls” setting (for Express Modem), if there is an association of that type open.

m If no association of the appropriate type is open, the call is

resolved according to an internal hierarchy.

Chapter 5

Setting auto-answer at the program level

You need to set auto-answer in your communications program in order to receive incoming calls automatically.

The following table tells you how to set auto-answer in the various programs that work with modem software.

TYPE OF PROGRAM HOW TO SET AUTO-ANSWER

Terminal emulators Set the program’s S0 register. See the

program’s user’s guide for information on setting the S0 register, or use the AT commands listed in the Apple Telecom AT Command Set guide.

Apple Remote Access Use an ARA CCL file. CCL files are and other servers provided with the modem software.

See Appendix B, “Tips and Troubleshooting.”

Apple Fax Set Fax Answering to On in the

Apple Fax window.

Using Your Modem

Setting manual answer at the program level

Turn auto-answer off in a program if you need to handle incoming calls manually.

The following table tells you how to set manual answer in the various programs that work with modem software.

TYPE OF PROGRAM HOW TO SET MANUAL ANSWER

Terminal emulators Set the program’s S0 register to 0 to

turn off auto-answer. To answer a call manually, issue the ATA command. See the program’s user’s guide for information on setting the S0 register, or use the AT commands listed in the

Apple Telecom AT Command Set

guide.

Apple Remote Access Apple Remote Access must be set to and other servers auto-answer.

Apple Fax Set Fax Answering to Off in the Apple

Fax window. See the Apple Fax User’s Guide for information about answering a fax call manually.

Chapter 5

APPENDIX

Technical Specifications

In this appendix

This appendix contains technical specifications for the following hardware and software

m GeoPort Telecom Adapter m GeoPort Internal Modem m Express Modem m Apple Serial Modem software m Express Modem software

GeoPort Telecom Adapter, GeoPort Internal Modem, and Express Modem hardware

HARDWARE SPECIFICATIONS

Power requirements The GeoPort Telecom Adapter

operates from the computer’s power, via the cable that connects the adapter to the computer. The cable’s connector has an extra pin that powers the adapter. A separate power supply or battery is not needed.

Quadra 660AV and 840AV do not support connections at 28800 bps.

Operating voltage 5V ±5% @  500 mA. and current

Operating and storage environment

Operating temperature 10° C to 40° C (50° F to 104° F)

Operating humidity 20% to 90%, noncondensing at a

temperature range of 25° C to 40° C (77° F to 104° F)

Operating altitude 0 to 2135 m (0 to 7703 ft.)

Storage temperature -40° C to +65° C

(-40° F to +149° F)

Appendix A

Apple Serial Modem software

MODEM

ITU V21 300 bps Full Duplex

ITU V22 1200 bps Full Duplex

ITU V22 Bis 2400 bps Full Duplex

ITU V23 1200/75-75/1200 bps Full Duplex

ITU V32 Bis 14400 bps Full Duplex

ITU V34 28800 bps Full Duplex

U.S. Standards Bell 103 and 212A Full Duplex

FAX

ITU V27 ter 4800 bps Half Duplex

ITU V29 9600 bps Half Duplex

ITU V17 14400 bps Half Duplex

Technical Specifications

GENERAL

Command set Hayes compatible, TR29 class 2 Group 3 fax,

voice macro commands

Error correction MNP4-V42

Data compression MNP5-V42 bis

Serial speed 300 to 115200 bps

Line speed 75, 300, 1200, 2400, 4800, 7200, 9600,

14400, 28800

Data format Serial, binary, asynchronous, 7 or 8 bits,

even or odd parity

Dialing Tone or pulse

Voice functions Automatic detection of fax or voice calls,

answering machine, local record/playback

Parameters Saved in non-volatile memory

Command buffer 64 characters

Appendix A

Express Modem software

COMMAND SET

AT Command Set Extended Hayes AT command set

DATA COMMUNICATIONS STANDARDS

28800, 26400, 24000, 21600, 19200, ITU V.34 (GeoPort only/ 16800, 14400, 12000, 9600, 7200, not available on Quadra AV 2400, 4800 bps computers) 14400, 12000, 9600, 7200, 4800 bps ITU V.32 bis 9600, 4800 bps ITU V.32 2400 bps ITU V.22 bis 1200 bps Bell 212A 1200 bps ITU V.22 1200/75 bps ITU V.23 75/1200 bps ITU V.23 300 bps ITU V.21 300 bps Bell 103

GROUP 3 FAX COMMUNICATION STANDARDS

2400, 4800 bps ITU V.27 ter 7200, 9600 bps ITU V.29 12000, 14400 bps ITU V.17 (not available on

Quadra AV computers)

ERROR CONTROL

ITU V.42 MNP Classes 2–4 Fax Error Correction Mode (ECM) ITU T.30

DATA COMPRESSION

ITU V.42 bis (up to 4:1 compression) MNP Class 5 (up to 2:1 compression)

Technical Specifications

DIALING CAPABILITY

Tone/pulse dialing

Auto or manual dialing and answering

DATA TRANSMISSION AND FORMAT

Full or half duplex operation

Asynchronous or framed modes

Character formats 5, 6, 7, 8 data bits

1 or 2 stop bits Odd, even, or no parity

MEMORY REQUIREMENTS

The Express Modem software uses approximately 600 K of system RAM when the modem application is turned on.

Appendix A

APPENDIX

Tips and Troubleshooting

In this appendix

m Checking the installation m Common problems m Setting up Apple Remote Access

Checking the installation

A good place to begin for resolving problems that arise during setup is to double-check your installation.

1 Unplug and reconnect the telephone cable to ensure a good

connection. Check all other connections.

2 If you are using the Express Modem software, make sure it is

on. Open the Express Modem control panel and check the setting.

If the On button is not selected, click On. If the On button does not stay selected, or if the control panel does not appear, try reinstalling the software.

If you still have trouble, see the resource materials that came with your Macintosh for a service number to call. Your service provider can make sure that the modem software is correctly installed and that your modem is functioning properly.

Checking the telephone line

Make sure your modem is communicating with the telephone line.

1 Depending on your computer, open the Monitors and

Sounds control panel or the Sound control panel, and check that the volume is set above the lowest mark.

By increasing the volume, you can verify both that there is a dial tone when you try to open communications and that the modem can dial telephone numbers.

Appendix B

2 Open your communications program and enter terminal

mode.

Terminal mode sends the characters you type on the keyboard to your modem and displays them on the screen.

3 Try dialing your own telephone number.

If you hear a busy signal, you are properly connected.

4 If you do not hear a dial tone, test your telephone line by

connecting a working telephone and cable to the line.

Plug the telephone into the wall jack to verify the dial tone. If there is none, the telephone line is the source of the problem. The telephone line may be a digital line, in which case the modem will not work.

5 If you hear a dial tone on your telephone but not through

your modem, test your modem’s telephone cable by connecting it to the wall jack and to the telephone.

If there is no dial tone, the telephone cable is the source of the problem. Return it to your service provider for replacement.

6 If your modem still has no dial tone, see the service and

support information that came with your computer for a number to call.

WARNING If your modem needs repair, take it to an

Apple-authorized service provider. Do not attempt to repair or reinstall modem hardware yourself.

Tips and Troubleshooting

Verifying that your software is properly installed

You can check that the Apple Telecom software is properly installed by watching the bottom of your screen when you restart your computer. You will see the Apple Fax and modem icons, as illustrated below. The Apple Fax and Express Modem icons are animated: the paper emerges from the fax machine on the Apple Fax icon and the buttons on the phone are pressed on the Express Modem icon.

Apple Fax Express Modem Apple Serial Modem

For Express Modem, you can also check the control panel directly. If the Express Modem software is installed and a program has opened an association with the modem, the Modem button in the Express Modem control panel is set to On.

Appendix B

Common problems

Q: I have trouble connecting to a remote fax.

1 If telephone line quality is poor, you may need to send the

fax several times.

2 You may have trouble sending or receiving a fax at the same

time you are transferring files across an AppleTalk network using File Sharing. In this case, do not transfer files while sending or receiving your fax.

3 Try sending faxes with both V.17 and ECM turned on (if your

configuration supports this feature). If you encounter difficulties, turn off V.17 first. If the problem persists, turn off ECM. (You turn V.17 and ECM on and off in the Apple Fax Modem preferences.)

4 If fax transmission fails, you can choose to resend only the

pages not already sent by selecting “Resend only pages not already sent” in the Modem preferences of Apple Fax Preferences.

Q: I have trouble receiving incoming calls.

1 Make sure that your communications program is set to

auto-answer.

For Apple Fax, make sure that Fax Answering is set to On. Check the appropriate setting for auto-answer in your communications program or terminal emulator.

2 Open the modem control panel and make sure the

“Auto-answer incoming calls” checkbox is selected.

Tips and Troubleshooting

Q: I archived some fax documents from the “Sent Fax

Documents” and “Received Fax Documents” folders. When I put them back, some of them did not appear in the Apple Fax lists.

Sent and received fax documents are different file types. If you put a received fax into the “Sent Fax Documents” folder, for example, it does not show up in the list. Be sure to archive sent and received faxes separately.

Q: When I try to open Apple Fax or my communications

program, I get a message that says there is not enough memory.

1 Quit any programs that you are not currently using.

2 Close any windows that you don’t need open.

3 If you are using Express Modem software, try turning off the

modem in the Express Modem control panel. It may be loaded into memory in such a way that the largest free block is not big enough, but the total of available blocks is. Turning off the modem frees up approximately 600K of memory. When a program like Apple Fax needs the modem, it will turn it on again automatically. Of course, you should not turn off the modem while using it for a voice, fax, or data connection.

Appendix B

Setting up Apple Remote Access

Your modem installation includes Apple Remote Access (ARA) CCL files for all supported modems. To use a CCL file with Apple Remote Access

1 Make sure Apple Remote Access is properly installed.

2 If the CCL files are not in the Extensions folder, drag or copy

them to the Extensions folder.

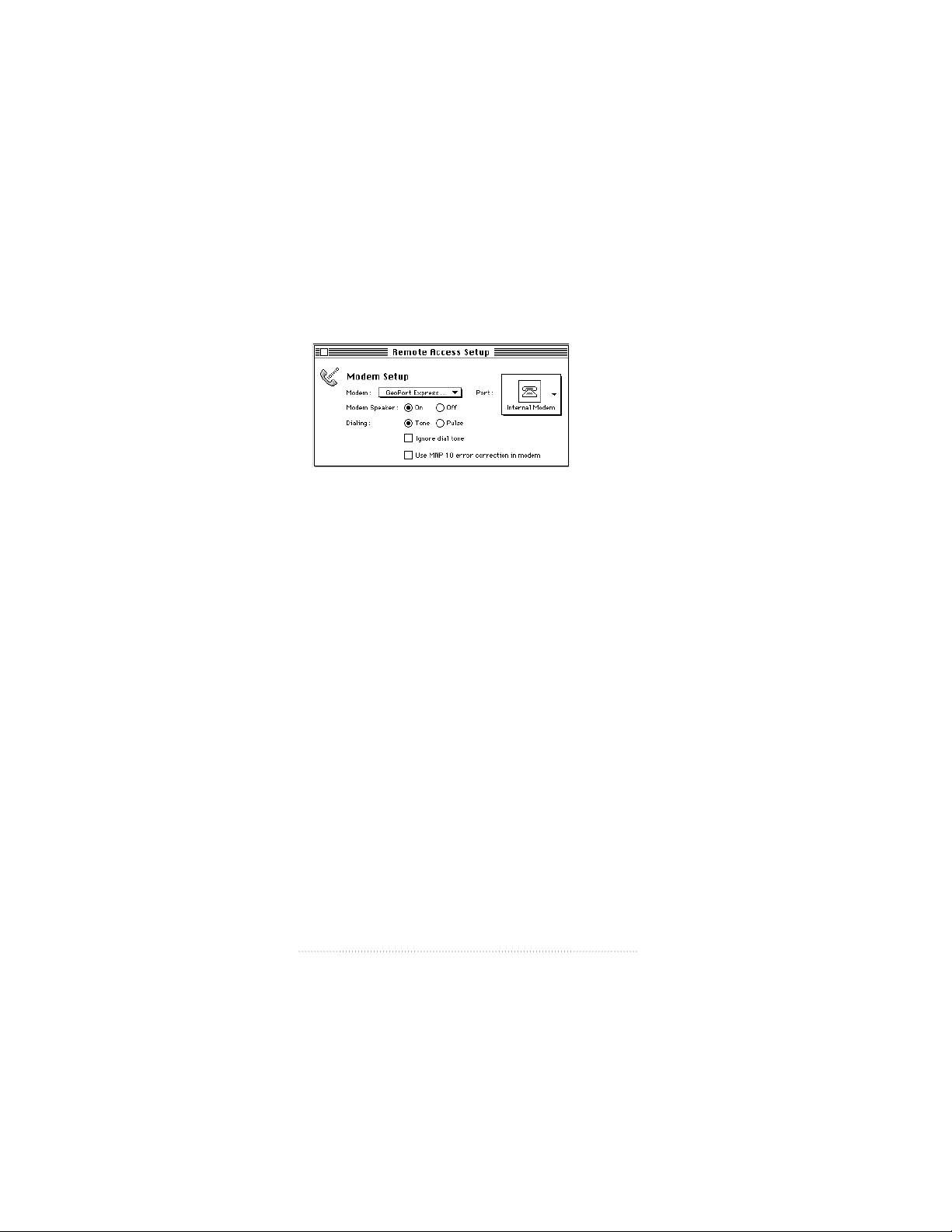

3 Double-click the Remote Access Setup control panel.

4 Select the CCL file for your modem from the Modem pop-up

menu (the GeoPort/Express Modem file or the Apple Serial Modem file).

Tips and Troubleshooting

5 Select the icon from the Port pop-up menu that corresponds

to your hardware installation.

m For GeoPort (including GeoPort Internal Modem), choose

Modem Port.

m For Express Modem hardware, choose Internal Modem. m For Apple Serial Modem hardware, choose Data Port.

6 Close the Remote Access Setup control panel and open the

Apple Remote Access program.

See also: Apple Remote Access User’s Guide for more information about making a connection using Apple Remote Access.

Appendix B

GLOSSARY

analog transmission Transmission of a continuously

variable signal as opposed to a discretely variable signal. Physical quantities such as temperature are continuously variable and so are described as analog. Data characters, on the other hand, are coded in discrete separate pulses or signal levels, and are described as digital. The normal way of transmitting a telephone or voice signal has been analog, but now digital encoding is coming into use over trunk lines. Compare with digital signal.

answer mode The connection mode in which the

modem answers the telephone.

application program A program that puts the resources

and capabilities of the computer to use for some specific purpose or task, such as word processing, database management, graphics, or telecommunications.

asynchronous Not synchronized by or with a

clocking signal.

asynchronous transmission Transmission in which

each information character is individually synchronized, usually by the use of start and stop bits. The gap between each character isn’t necessarily fixed. Compare with synchronous transmission.

auto-answer A modem capability that allows automatic

answer when the phone rings.

auto-dial The ability to initiate a connection with another

modem automatically.

baud Unit of analog signaling speed taken from the name

Baudot. The speed in baud is equal to the number of signal events per second, regardless of the information content of those signals. Compare with bps.

binary The representation of numbers in terms of powers

of 2, using the digits 0 and 1. Commonly used in computers, since the values 0 and 1 can easily be represented in physical form in a variety of ways, such as the presence or absence of current, positive or negative voltage, or a white or black dot on the display screen.

bit A binary digit (0 or 1); the smallest possible information

unit, consisting of a simple two-way choice, such as yes or no, on or off.

blind dialing Blind dialing allows the modem to dial out

even though no dial tone can be detected (may not be available in your country).

bps (bits per second) The basic unit for measurement of

digital data communications transfer rate. Usually refers to the rate at which the information is transmitted. Sometimes inaccurately called the baud rate. Compare with baud.

Glossary

CCL An abbreviation for connection control language. This

language is used to write connect sequence files, sometimes called CCL files or scripts.

character Any symbol that has a widely understood

meaning. Some characters, such as letters, numbers, and punctuation marks, can be displayed on the monitor screen and printed on a printer. Others are used to control various functions of the computer.

code A number or symbol used to represent some piece of

information in a compact or easily processed form.

command A communication from the user to a computer

system (usually typed from the keyboard) directing it to perform some immediate action.

command state The state the modem is in when

keyboard input is recognized by communications software as command codes to be executed. Compare with terminal mode and online state.

communications session The condition of being

connected to and accessible by another computer.

configuration A list of changeable modem characteristics

that must be properly set to allow a computer to communicate with a modem.

connector A physical device such as a plug, socket, or

jack used to connect one hardware component of a system to another.

connect time The amount of time spent online with an

information service, usually billed at an hourly rate.

Glossary

data Any type of information, such as numbers, letters, or

symbols, that can be processed by a computer.

database A collection of information organized in a form

that can be accessed and processed by a computer system.

data communications A broad term covering any

exchange of information between computers or similar systems over telephone lines or computer networks.

data compression The various methods used to save

storage space by reducing or eliminating gaps, redundancies, empty fields, and unnecessary data.

decimal The common form of number representation

used in everyday life, in which numbers are expressed in terms of powers of 10, using the ten digits 0 through 9.

default A value, action, or setting that is automatically

used by a computer system when no other explicit information has been given.

demodulate To recover the information being

transmitted by a modulated signal. For example, a conventional radio receiver demodulates an incoming broadcast signal to convert it into sound emitted by a speaker.

device A piece of equipment connected to a computer. A

modem is a device.

digit (1) One of the characters, 0 through 9, used to

express numbers in decimal form. (2) One of the characters used to express numbers in some other form, such as 0 and 1 in binary or 0 through 9 and A through F in hexadecimal.

Glossary

digital signal A discrete or discontinuous signal; one

whose various states are discrete intervals apart. Compare with analog transmission.

digital to analog converter A device that converts data

from digital to analog form.

duplex transmission Two-way transmission.

echo To send a signal back to the originating device for

display or verification.

error code A number or other symbol representing a type

of error.

error control A process that analyzes data blocks and

calculates information about their content. The resulting error-control information is transmitted with the data so that the remote computer can verify data integrity.

error correction mode (ECM) A software protocol for

error correction used for fax transmission and reception. ECM is helpful when telephone line quality is poor, but it is not supported by most older fax machines.

error message A message displayed or printed to notify

the user of an error or problem in the execution of a program.

even parity Use of an extra bit set to 0 or 1 as necessary

to make an even number of 1 bits in a character. For example, the 7-bit ASCII code for the letter A (1000001) has two 1 bits; for even parity, the transmitting device appends an eighth bit equal to 0 so that the total number of 1 bits remains even (01000001). The receiving device can count the bits as a way of checking for transmission errors.

Glossary

fallback The process modems use to find a common

connection speed, starting at the highest rate supported or set by both modems.

fax machine A machine that can scan a page and then

transmit the image of the page over telephone lines; a receiving machine prints a copy of the original page.

fax server program A program that passively awaits an

incoming call for faxes. Apple Fax is an example of a fax server program.

flow control A method of signaling between computers

so that pauses in data transmission allow time for data to be received.

font In typography, a complete set of characters, letters,

and symbols in one size and style.

format The form in which data is stored, manipulated, or

transferred.

full duplex (1) A setting causing characters that you enter

on your computer to be echoed from a remote system. (2) A four-wire communications circuit or protocol that allows simultaneous two-way transmission.

GeoPort Telecom Adapter A device that connects

between your computer’s modem port and the Public Switched Telephone Network. Selecting the appropriate GeoPort Telecom Adapter depends on the telephone network capabilities and the country where used.

Group 3 fax A digital document facsimile transmission

procedure on the Public Switched Telephone Network.

Glossary

half-duplex (1) A setting causing characters that you

enter on your computer to be echoed not from a remote system but on your screen. (2) A two-wire circuit designed for communications in either direction but not both directions simultaneously.

handshaking A protocol for devices to exchange

information about the communications connection itself, such as when to start and stop transmitting.

host computer The Macintosh in which your modem is

installed.

input (1) Information transferred into a computer from

some external source, such as the keyboard, a disk drive, or a modem. (2) The act or process of transferring such information.

interface The devices, rules, or conventions by which one

component of a system communicates with another.

I/O Input/output; the transfer of information into and out

of a computer.

ITU International Telecommunications Union.

jack A socket used for a telephone line or other electrical

connections.

Glossary

local echo A method of communication in which your

modem or software displays data “locally” on your screen, without relying on the host computer to echo the characters back.

log off To type a command to the host computer that

terminates the communications session.

log on To enter a series of responses to prompts by the

host computer to identify yourself, your password, sometimes your terminal, and so forth, to start a communications session.

mainframe computer A large computer whose speed

and storage capacity allow it to handle huge amounts of data and work with many terminals.

millisecond One thousandth of a second; abbreviated ms.

MNP An abbreviation for Microcom Networking Protocol.

MNP Classes 2–4 are error control protocols. MNP Class 5 is a data compression protocol.

modem A device for converting digital information into

tones that can be transmitted over telephone lines. The tones are modulated (changed in frequency, amplitude, or phase) to represent the information; modem stands for “modulator/demodulator.”

modulate To modify or alter a signal to transmit

information; for example, conventional broadcast radio transmits sound by modulating the amplitude (amplitude modulation, or AM) or the frequency (frequency modulation, or FM) of a carrier signal.

Glossary

odd parity Use of an extra bit set to 0 or 1 as necessary to

make the total number of 1 bits in a character an odd number. For example, the 7-bit ASCII code for the letter A (1000001) has two 1 bits; for odd parity, the transmitting device appends an eighth bit equal to 1 (11000001) so that the total number of 1 bits remains odd. The receiving device can count 1 bits as a way of checking for transmission errors.

off-hook Your equipment takes control of the telephone

line (picks up the receiver).

on-hook Your equipment releases (hangs up) the

telephone line.

online state The state the modem is in when data is

being exchanged with another computer over the telephone line. Compare with terminal mode.

parity A method of detecting errors in data transmission.

Due to higher-quality telephone lines and higher-level error control protocols, many host computers don’t support parity.

parity bit A check bit appended to an array of binary digits

to make the sum of all the binary digits, including the check bit, always odd or always even.

parity error Absence of the correct parity bit in a received

character.

PBX Private Branch Exchange. An automatic switchboard

for handling large concentrations of telephones (usually digital extensions).

Glossary

port The point of connection (usually physical) between a

computer and a peripheral device, another computer, or a network.

protocol An agreement between computers about the

form and content of the information they exchange.

protocol negotiation The process of reaching

agreement between computers about the form and content of the data they exchange.

PSTN Public Switched Telephone Network.

pulse An abrupt and relatively short change in voltage,

either positive or negative, resulting in the conveyance of data in a circuit.

remote computer A computer other than your

Macintosh, but connected to it, either directly or through your modem and telephone lines. A remote computer can be at any distance from your computer, from right beside it to thousands of miles away.

RJ-11 A modular phone jack and receptacle for telephone

equipment.

Glossary

serial communication Data that is transmitted one bit

at a time over one wire, as compared with parallel communication, where data is transmitted several bits at a time over several wires.

serial interface connection A socket (or port) on the

back of your computer designed to connect with a device that receives characters one at a time (serially).

serial modem A modem that uses a serial interface and

serial communications.

synchronous Having a constant time interval between

successive bits, characters, or events. The term implies that all the equipment in the system is in step.

synchronous transmission A transmission process

such that between any two significant instances there is always an integral number of unit (time) intervals.

telecommunications The transmission of information

across long distances, such as over telephone lines.

terminal An input/output device consisting of a

typewriter-like keyboard and a display device, used for communicating with a large computer. Personal computers typically have all or part of a terminal built into them.

terminal emulation Software that transforms your

Macintosh into a remote terminal for any dial-up computer system.

Glossary

terminal mode The communications software mode of

operation in which keyboard input is sent to the modem, which recognizes it as commands or passes it on to the remote modem. Compare with command state.

throughput The effective data transfer rate measured in

bps. This rate is a combination of the connection rate and data compression. A compressed version of a file transfers more quickly than an uncompressed version, even though the connection rate is the same.

tone-dialing A method of dialing by sending dual-tone

multi-frequency (DTMF) signals over the phone line.

V.17 An ITU protocol defining the frequency and

modulation used between two high-speed fax machines (12000, 14400 bps) (not available on Quadra AV machines/may not be available in your country).

V.32 An ITU protocol defining the frequency and

modulation used between two high-speed modems (9600, 4800 bps).

V.32 bis An ITU protocol defining the frequency and

modulation used between two high-speed modems (7200, 12000, 14400 bps).

V.34 An ITU protocol defining the frequency and

modulation used between two high-speed modems (up to 28800 bps).

V.42 An ITU error control protocol.

V.42 bis An ITU data compression protocol.

Glossary

XModem A protocol to send files from one computer to

another, that informs you if an error occurs. Also known as MODEM7.

XON/XOFF A handshake protocol (transmit-On/transmit-

Off) used by computers and intelligent terminals to control the flow of data between the systems.

Glossary

INDEX

Adobe Acrobat Reader 14-16 Apple Address Book

creating a new address

book 19-20

creating a new entry

92-93 described xi installation 10 sending a fax 90 setting up 18-20

Apple Fax

described xii Fax Sender GX 25,28-29 faxing 25-26,88-89 installation 10 receiving faxes 30 setting up 21-30 troubleshooting 65-66

Apple menu 10,21,32 Apple Remote Access

10,46,53,54,67-68

Apple Serial Modem control

panel

choosing the modem

port 23,42

and data communications

42 fax progress sound 47 ring range value 44 specifications 57-58 status display 51 unidentified calls 48

Apple Telecom

installation 10-13

Apple Telecom Status

canceling a fax 35 described x installation 10 quitting 36

status display 34 AppleLink 10 AppleTalk 65 ATX command 48 Auto-answer 30,41,44-45,

49,52-54,65

B, C, D

Blind dialing 48 CCL files 10,67-68 Control panel

using 40-51 Data compression 39,59 Data Port 42,68 Dialing

testing 63

Electronic user’s guides

2,14-16 Error control 39,59 Express Fax files 11 Express Modem

hardware specifications

software specifications

59-60

Express Modem control

panel 43,64

number of associations

40 progress sounds 47 ring range value 44 status display 50 turning on and off

41,62,66

using internal modem 46

External modem port

and internal modem 8

F, G, H

Faxing

from Apple Address

Book 90 from Apple Fax 89 canceling a fax 35 common problems 65-66 a document 25-26,88 monitoring fax

transmission 34,91 page setup 26

GeoPort Telecom Adapter

connecting 5-7

Hardware installation 3-8 Hardware specifications

Incoming call management

40,44,52

Installation

checking 62-64 hardware 3-8 software 10-13

Installer 10-11 Internal modem

and Apple Remote

Access 68 connecting 8 and external modem

port 8

Index

MNP 39 Modem

auto-answer 30,41,44-

45,49,52-54,65 connecting 3 control panel 40-51 defined 38 internal 8,46,68 GeoPort Telecom Adapter

5-7,46 serial 3,67 specifications 56 speed 39 status display 50-51

R, S, T, W

Remote Access Setup control

panel 67-68

Ring sound 46 Serial modem

choosing the modem

port 3,23,42 and data communications

specifications 57-58

Sound

controlling the

volume 62

Status display 34,50-51 Technical specifications

56-60 Telephone line 4,6-8,62-63 Terminal emulator 53-54 Troubleshooting 62-66 Wake Macintosh on

ring 49

Index

Quick Reference Guide

In this chapter

This chapter provides quick start information for performing important tasks with Apple Telecom, including

m Sending a fax m Monitoring and canceling a fax m Creating an address book entry

See also: Apple Address Book User’s Guide and Apple Fax User’s Guide for complete information about using these

programs.

Sending a document as a fax

1 Open the document you wish to fax. 2 Type Control-Shift (ç) and

3 Prepare the Fax Sender dialog

2 Add a note to the cover page.

3 Type a fax number here, or...

...drag and drop recipients from the address book.

Click here to choose another address book.

4 Click

1 Choose a cover page.

Quick Reference Guide

Sending a fax from Apple Fax

1 Open the Quick Fax window

2 Prepare the Quick Fax window

1 Choose a cover page.

3 Click here to

add recipients...

3 Click

2 Fill in the Cover Page Subject field...

...and text.

4 Click here for a

file dialog to enclose files for faxing.

...or type a fax number.

Choose your files and click here to add them to the list, then...

...click here to add the list to the Enclosures field. Make sure the files’ programs are installed on your computer.

Quick Reference Guide

Sending a fax from Apple Address Book

1 Select an entry

2 then click

3 Prepare the Standard Mailer window

1 Click here to

add recipients.

4 Add a note to

the cover page.

Choose an entry...

2 Fax name.

5 Click here to

enclose files for faxing.

...to modify its dial string, if necessary.

3 Choose a

cover page.

Suggest button sets dial string to automatic dial settings.

Quick Reference Guide

Monitoring and canceling a fax

Graphic changes during fax send.

Click here to clear the message.

Description of fax progress.

Click here to cancel fax transmission.

Quick Reference Guide

Creating a new entry in Apple Address Book

1 Choose the type of entry you want to create

2 Type the information for the entry in the available fields

Angle brackets

identify information

to enter in each field.

Use the TAB key or the mouse to move from field to field.

Entry information is saved automatically as you move from field to field, or when you close the window or quit the program.

3 Always use Country pop-up menus for addresses and

numbers.

Quick Reference Guide

4 Select a field that contains information and

Choose here to mark one field only for Entry List display.

Vital info marker appears as an exclamation point next to

Choose here to mark a number

field ( ).

as first choice for dialing.

Preferred info marker appears as a dot next to field ( ).

Change any field label, or...

...enter your own labels.

5 Add notes or associate files with the entry

Enter notes of up to 32,000 characters.

Click here for a file dialog to associate files with the entry.

Quick Reference Guide



Getting Started With

Apple Telecom

Communications kit for your Macintosh computer

K Apple Computer, Inc.

reserved.

Under the copyright laws, this manual may not be copied, in whole or part, without the written consent of Apple. Your rights to the software are governed by the accompanying software license agreement.

The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Use of the “keyboard” Apple logo (Option-Shift-K) for commercial purposes without the prior written consent of Apple may constitute trademark infringement and unfair competition in violation of federal and state laws.

Every effort has been made to ensure that the information in this manual is accurate. Apple is not responsible for printing or clerical errors.

Apple, the Apple logo, AppleScript, GeoPort, Macintosh, the Mac OS logo, Performa, PowerTalk, PlainTalk, and Power Macintosh are trademarks of Apple Computer, Inc., registered in the U.S.A. and other countries.

Finder, the GeoPort logo, Mac, and System 7 are trademarks of Apple Computer, Inc.

Adobe, Acrobat, the Acrobat logo, Adobe Illustrator, Adobe Photoshop, and PostScript are trademarks of Adobe Systems Incorporated or its subsidiaries and may be registered in certain jurisdictions.

EasyReader, the Optical Character Recognition (OCR) software application included with Apple Fax, uses a neural network recognition system developed by Mimetics. Additional language dictionaries can be obtained by contacting Mimetics at the following address:

Mimetics 5, Central Park Avenue Sully Prud’homme 92298 Châtenay-Malabry France

FastPrint is a trademark of Mimetics.

Hayes is a trademark of Hayes Microcomputer Products, Inc.

QuarkXPress is a registered trademark of Quark, Inc.

Touch-Tone is a trademark of Western Electric.

Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Apple assumes no responsibility with regard to the performance or use of these products.

CONTENTS

Communications regulation information vii

Preface How to Use This Book xv

What this guide contains xvi

What you need xvii

Introducing the Apple Telecom software xviii

Apple Telecom Status features xviii

Apple Address Book features xix

Apple Fax features xx

Chapter 1 Installing Your Hardware 1

Your modem package 2

Where to begin 3

Other items you may need 4

Connecting your GeoPort Telecom Adapter 5

Connecting your internal modem 8

Chapter 2 Installing Your Software 9

Installing the Apple Telecom software 10

What the Installer does 10

If you are upgrading 11

Installing the software 12

Accessing the user’s guides 14

iii

Chapter 3 Setting Up the Apple Telecom Software 17

Setting up Apple Address Book 18

Starting and configuring for the first time 18

Setting up Apple Fax 21

Starting and configuring for the first time 21

Faxing a document 25

Using Fax Sender Page Setup 26

Selecting Fax Sender from the Chooser 27

Using Fax Sender GX 28

Preparing to receive faxes 30

Chapter 4 Using Apple Telecom Status 31

Introducing Apple Telecom Status 32

Opening Apple Telecom Status 32

Understanding the display 34

Canceling a fax 35

Quitting Apple Telecom Status 36

iv Contents

Chapter 5 Using Your Modem 37

What modems do 38

Setting up a connection 38

Determining the speed 39

Using the modem control panel 40

Turning the modem on and off (Express Modem only) 41

Choosing the port setting (Apple Serial Modem only) 42

Using the modem settings 43

Using the status display 50

Incoming call management 52

Setting auto-answer at the program level 53

Setting manual answer at the program level 54

Contents

Appendix A Technical Specifications 55

GeoPort Telecom Adapter, GeoPort Internal Modem, and Express Modem hardware 56

Apple Serial Modem software 57

Express Modem software 59

Appendix B Tips and Troubleshooting 61

Checking the installation 62

Checking the telephone line 62

Verifying that your software is properly installed 64

Common problems 65

Setting up Apple Remote Access 67

Glossary 69

Index 83

Quick Reference Guide 87

vi Contents

Communications regulation information

The following information is provided in compliance with US FCC (Federal Communications Commission) and Canadian DOC (Department of Communications) regulations.

FCC statement

This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. See instructions if interference to radio or television reception is suspected.

Radio and television interference

The equipment described in this manual generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly—that is, in strict accordance with Apple’s instructions—it may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

You can determine whether your computer system is causing interference by turning it off. If the interference stops, it was probably caused by the computer or one of the peripheral devices.

vii

Apple GeoPort Telecom Adapter Kit User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
