YAMAHA F9.9FMH’08, F9.9FE’08 PARTS CATALOGUE 08

F9.9FMH’08 (6AU1)

F9.9FE’08 (6AU1)

1G6AU-300F1

( 2G6AU-300F1 )

A1

F9.9FMH/F9.9FE

PARTS CATALOGUE ©2007 by Yamaha Motor Co., Ltd.

1st edition, April 2007 All rights reserved.

Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.

is expressly prohibited. Printed in Japan.

F9.9FMH/F9.9FE

CATALOGUE DE PIECES DETACHEES ©2007 par Yamaha Motor Co., Ltd.

1re édition, avril 2007 Tous droits réservés

Toute réimpression ou utilisation non autorisée sans la permission écrite

de la Yamaha Motor Co., Ltd. est formellement interdite.

Imprimé au Japon

FOREWORD

This Parts Catalogue is related to the parts for the model(s) on the cover page. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

1.Modifications or additions which have been made after the issue of the Parts Catalogue will be announced in the Parts News.

It is advisable that you make the necessary corrections to the Parts Catalogue according to the Parts News.

2.Abbreviations

The following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number. “UN” Use as many as needed. “AP” Alternate Parts

“LM” Locally Made (Parts need to be ordered locally) “F#” Frame No. (Applicable machine No.)

“O/S” Over Size

3.The number of components for assembly

•Parts, which are to be supplied in an assembly, are listed with a dot (.) in front of the part name as shown below.

•The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.

PART NO.	DESCRIPTION	Q’TY REMARKS
2F5–83310–60	FRONT FLASHER LIGHT ASSY	2
115–83311–60	.BULB (6V–18W)	1

4. Applicable colours of graphics are represented in the “REMARKS” as shown below.

PART NO.	DESCRIPTION	Q’TY	REMARKS
2N4–24110–00–X5	FUEL TANK COMP.	2	MXR
3J1–24240–10	.GRAPHIC, FUEL TANK	1	FOR MXR

5.Note that the illustrations for reference in finding parts numbers are not to be used for assembling. When assembling, please use the applicable service manual.

6.The asterisk (*) before a reference number indicates modified items after the first edition.

7.Applicable Serial No.

Engine Serial No.

8.	Applicable Engine Starting Serial No.
	Model			Serial No.			Model			Serial No.
	F9.9F			6AUK-1000001
9.	Applicable Colour Code
	Abbreviation			Colour Name						Colour Code
	DBNM2			DARK BLUISH GRAY METALLIC 2						004D
10.	Quantity Column Information
	Column No.			Name Of Q’ty Column			Applicable Model
	1			MH				F9.9FMH
	2			E				F9.9FE

A2

AVANT–PROPOS

Ce catalogue de pièces détachées concerne les pièces pour le(s) modèle(s) indiqué(s) sur la page de couverture. Lorsque vous commandez des pièces de rechange, veuillez vous référer à ce catalogue de pieces détachées et indiquer clairement les numéros et les noms des pièces détachées.

1.Les modifications ou ajouts ayant été effectués après la parution du catalogue de pièces détachées seront décrits dans les Bulletins d’information concernant les pièces détachées.

ll est recommandé que vous apportiez les corrections nécessaires au catalogue des pièces détachées en vous référant aux Bulletins d’information.

2.Abréviations

Dans ce catalogue, les abréviations suivantes sont utilisées:

“UR” Utiliser le numéro de pièces spécifié. “UN” Utiliser autant que nécessaire.

“AP” Pièces de substitution

“LM” Fabrication locale (les pièces doivent être commandées localement.) “F#” N° de cadre (applicable au N° de série)

“O/S” Surdimensionné

3.Nombre de pièces d’un assemblage

•Les pièces fournies comme composants d’un assemblage sont précédées d’un point

(.) de la manière indiquée ci–dessous.

•Le chiffre apparaissant à la droite de chaque composant indique la quantité de pièces pour chaque unité d'assemblage.

N° PIECES	DESCRIPTION	QTE REMARQUES
2F5–83310–60	ENS. CLIGNOTANT AVANT	2
115–83311–60	.AMPOULE (6V–18W)	1

4.Les couleurs concernant les graphiques sont indiquées dans la colonne “REMARQUES”, comme indiqué ci–dessous.

N° PIECES	DESCRIPTION	QTE	REMARQUES
2N4–24110–00–X5	RESERVOIR A ESSENCE.	2	MXR
3J1–24240–10	.GRAPHIQUE	1	POUR MXR

5.Veuillez noter que les illustrations sont indiquées à titre de référence pour trouver les numéros de pièces, non pour être utilisées lors de I’assemblage. Lors de I’assemblage, veuillez utiliser le manuel d’entretien adéquat.

6.L’astérisque (*) placé devant un numéro de référence indique des éléments qui ont été modifiés après la première édition.

7.N° de série applicable

N° de Série du moteur

8.	N° de série initial du moteur applicable
	Modèle			N° de série		Modèle			N° de série
	F9.9F			6AUK-1000001
9.	Code couleur applicable
	Abréviation			Nom de la couleur					Code couleur
	DBNM2			DARK BLUISH GRAY METALLIC 2					004D
10.	Informations relatives à la colonne Quantité
	N° de la colonne		Nom de la colonne Qté			Modèle applicable
	1			MH			F9.9FMH
	2			E			F9.9FE

SHEET1/2
TOP COWLING .....................................................................	A4
CYLINDER & CRANKCASE 1 ..............................................	A5
CRANKSHAFT & PISTON ....................................................	A6
CYLINDER & CRANKCASE 2 ..............................................	A7
VALVE ...................................................................................	B1
INTAKE .................................................................................	B2
CARBURETOR .....................................................................	B3
OIL PUMP .............................................................................	B4
FUEL .....................................................................................	B5
STARTER ..............................................................................	B7
GENERATOR ........................................................................	C2
ELECTRICAL 1 .....................................................................	C4
ELECTRICAL 2 .....................................................................	C5
ELECTRICAL 3 .....................................................................	C7
STARTING MOTOR ..............................................................	D1

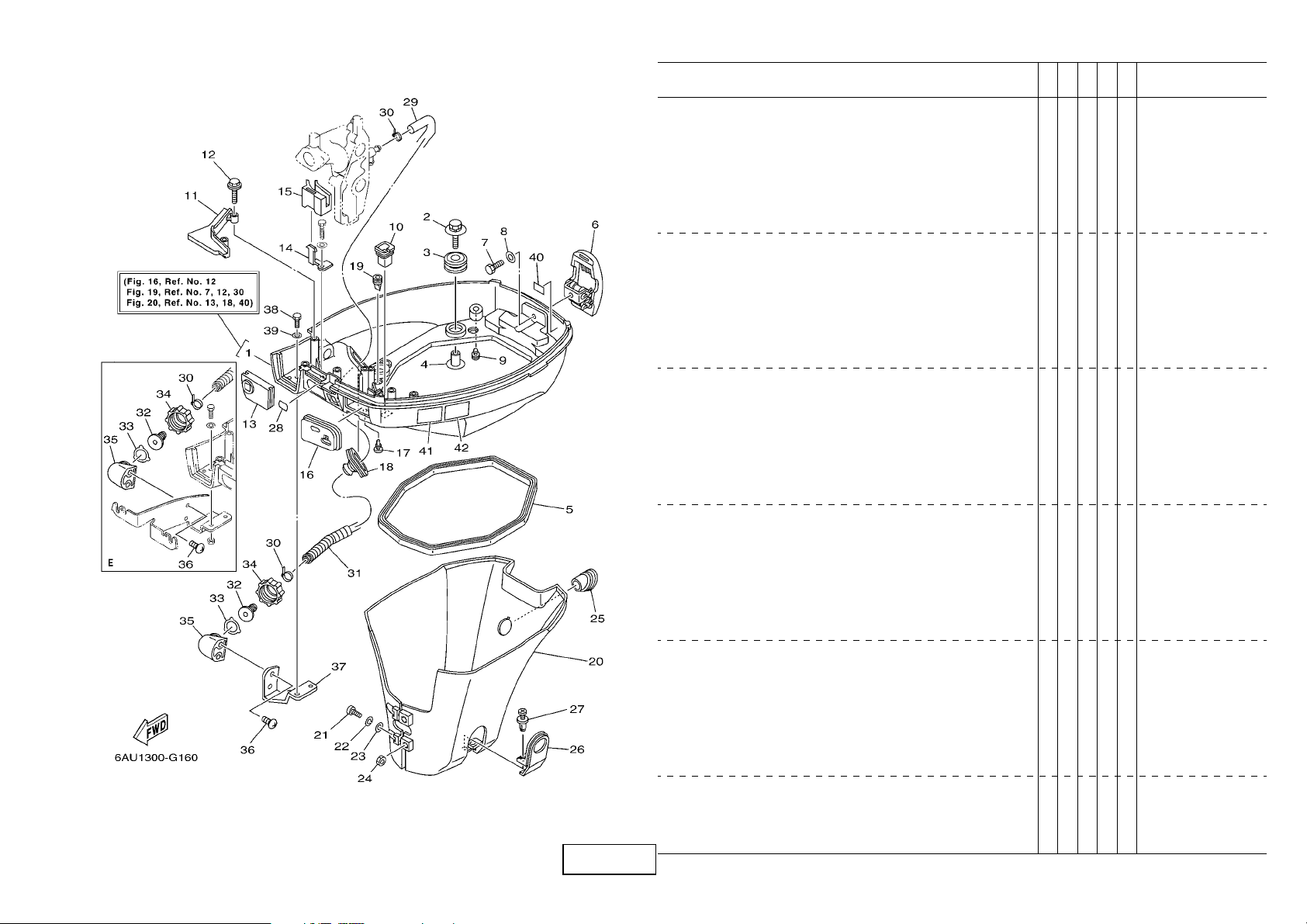

BOTTOM COWLING .............................................................	D2
STEERING ............................................................................	D4
STEERING FRICTION ..........................................................	D6
CONTROL 1 ..........................................................................	D7
CONTROL 2 ..........................................................................	E2
REMO CON ATTACHMENT .................................................	E4
BRACKET 1 ..........................................................................	E5
BRACKET 2 ..........................................................................	E7
UPPER CASING ...................................................................	F1
OIL PAN ................................................................................	F2
LOWER CASING & DRIVE 1 ................................................	F3
LOWER CASING & DRIVE 2 ................................................	F6
FUEL TANK ...........................................................................	F7
	INDEX
NUMERICAL INDEX .............................................................	G1

CONTENTS

SHEET2/2
STEERING GUIDE ...............................................................	A4*
REMOTE CONTROL BOX ...................................................	A5*
REMOTE CONTROL ASSY .................................................	A6*
OPTIONAL PARTS 1 ............................................................	B2*
OPTIONAL PARTS 2 ............................................................	B4*
REPAIR KIT 1 .......................................................................	B5*
REPAIR KIT 2 .......................................................................	B6*
REPAIR KIT 3 .......................................................................	B7*
	INDEX
NUMERICAL INDEX .............................................................	G1*

A3

TABLE DES MATIERES

Feuille1/2
CAPOT SUPERIEUR ............................................................	A4
CYLINDRE & CARTER 1 ......................................................	A5
VILEBREQUIN & PISTON ....................................................	A6
CYLINDRE & CARTER 2 ......................................................	A7
SOUPAPE .............................................................................	B1
ADMISSION ..........................................................................	B2
CARBURATEUR ...................................................................	B3
POMPE A HUILE ..................................................................	B4
CARBURANT ........................................................................	B5
DEMARREUR .......................................................................	B7
GENERATRICE ....................................................................	C2
PARTIE ELECTRIQUE 1 ......................................................	C4
PARTIE ELECTRIQUE 2 ......................................................	C5
PARTIE ELECTRIQUE 3 ......................................................	C7
DEMARREUR ELECTRIQUE ...............................................	D1
CAPOT INFERIEUR ..............................................................	D2
DIRECTION ...........................................................................	D4
CUVETTE POIGNEE DE DIRECTION ..................................	D6
COMMANDE 1 ......................................................................	D7
COMMANDE 2 ......................................................................	E2
COMMANDE A DISTANCE ..................................................	E4
SUPPORT 1 ..........................................................................	E5
SUPPORT 2 ..........................................................................	E7
FOURREAU ..........................................................................	F1
VENTILATEUR D'HUILE .......................................................	F2
BOITIER D'HELICE TRANSMISSION1 ................................	F3
BOITIER D'HELICE TRANSMISSION2 ................................	F6
RESERVOIR A CARBURANT ..............................................	F7
INDEX
INDEX NUMERIQUE ............................................................	G1

Feuille2/2
FIXATION DE DIRECTION ...................................................	A4*
BOITIER DE COMMANDE A DISTANCE .............................	A5*
BOITIER DE COMMANDE A DISTANCE .............................	A6*
PIECES OPTIONNELLES 1 .................................................	B2*
PIECES OPTIONNELLES 2 .................................................	B4*
KITS DE REPARATION 1 .....................................................	B5*
KITS DE REPARATION 2 .....................................................	B6*
KITS DE PEPARATION 3 .....................................................	B7*
INDEX
INDEX NUMERIQUE ............................................................	G1*

FIG.						1 TOP COWLING																																								CAPOT SUPERIEUR
REF.								PART NO.																		DESCRIPTION																																			MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				6AU–42610–00–4D																	TOP COWLING ASSY																						1
																					CAPOT (ENS.)
				6AU–42610–20–4D																	TOP COWLING ASSY																																											1
																					CAPOT (ENS.)
2				6AU–42613–00																	.MOLDING, AIR DUCT																						1																					1
																					.MANCHON A AIR
3				97780–60516																	.SCREW, TAPPING																						4																					4
																					.VIS, TETE BOMBEE
4				6G1–42651–02																	.HOOK																						1																					1
																					.CROCHET
	5			90266–04M04																	.RIVET																						2																					2
																					.RIVET
6				68T–42615–00																	.SEAL																						1																					1
																					.JOINT
7				68T–42652–00																	.HOOK																						1																					1
																					.CROCHET
8				97095–05014																	.BOLT																						2																					2
																					.BOULON
9				92995–05600																	.WASHER																						2																					2
																					.RONDELLE
10				68T–42649–00																	.HOLDER, CLAMP BAND																						1																					1
																					.SUPPORT, SANDOW DE SERRAGE
11				6G9–42678–30																	.GRAPHIC, REAR																						1																					1
																					.ADHESIF, ARRIERE
12				68T–W0070–60																	.GRAPHIC SET																						1																					1
																					.JEU DIEMBLEMES
13				6AU–42677–00																	.GRAPHIC, FRONT																						1
																					.ADHESIF, AVANT
				6AV–42686–00																	.EMBLEM, FRONT																																											1
																					.EMBLEME, AVANT
14				67F–13434–03																	LABEL, CAUTION																						1																					1
																					ETIQUETTE, ATTENTION

A4

FIG.						2 CYLINDER & CRANKCASE 1																																								CYLINDRE & CARTER 1
REF.								PART NO.																		DESCRIPTION																																			MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				6AU–W009B–00–1S																	CYLINDER BLOCK ASSY																																	1										1
																					CYLINDRE GROUPE (ENS.)
2				6AU–15100–00–1S																	CRANKCASE ASSY																																	1										1
																					CARTER DE MOTEUR COMPLET
3				99530–12016																	.PIN, DOWEL																																	4										4
																					.GOUJON, D'ASSEMBLAGE
4				90119–08M29																	BOLT, WITH WASHER																																	6										6
																					BOULON, AVEC RONDELLE
5				68T–11351–00																	GASKET, CYLINDER																																	1										1
																					JOINT, D'EMBASE
	6			66M–12411–01																	THERMOSTAT																																	1										1
																					THERMOSTAT
7				688–12412–00																	.SEAL, THERMOSTAT																																	1										1
																					.JOINT, THERMOSTAT
8				68T–12413–00–1S																	COVER, THERMOSTAT																																	1										1
																					COUVERCLE, THERMOSTAT
9				6G8–12414–A0																	GASKET, COVER																																	1										1
																					JOINT, COUVERCLE
10				90119–06MA2																	BOLT, WITH WASHER																																	2										2
																					BOULON, AVEC RONDELLE
11				68T–12481–00																	PIPE 1																																	1										1
																					DURITE 1
12				90465–11M10																	CLAMP																																	1										1
																					BRIDE
13				6AU–41113–00–1S																	OUTER COVER, EXHAUST																																	1										1
																					COUVERCLE, ECHAPPEMENT
14				6E9–24378–00																	.PIPE, JOINT 3																																	1										1
																					.DURITE RACCORDEMENT 3
15				68T–41114–A0																	GASKET, EXHAUST OUTER COVER																																	1										1
																					JOINT, COUVERCLE D'ECHAPPEMENT
16				90119–06MA3																	BOLT, WITH WASHER																																	5										5
																					BOULON, AVEC RONDELLE
17				68T–12482–00																	PIPE 2																																	1										1
																					DURITE 2

A5

FIG.

3 CRANKSHAFT & PISTON

VILEBREQUIN & PISTON

REF.

PART NO.

DESCRIPTION

MH

REMARKS

NO.

N° PIECES

DESCRIPTION

E

REMARQUES

1

93102–30M22

OIL SEAL

1

1

JOINT SPY

2

93101–25M69

OIL SEAL

1

1

JOINT SPY

3

6AU–11411–00

CRANKSHAFT

1

1

VILEBREQUIN COMPLET

4

68T–11416–00

PLANE BEARING, CRANKSHAFT 1

4

4

UR BROWN

COUSSINET DE VILEBREQUIN 1

UR BROWN

68T–11416–10

PLANE BEARING, CRANKSHAFT 1

4

4

UR BLACK

COUSSINET DE VILEBREQUIN 1

UR BLACK

68T–11416–20

PLANE BEARING, CRANKSHAFT 1

4

4

UR BLUE

COUSSINET DE VILEBREQUIN 1

UR BLUE

5

6AU–11650–00

CONNECTING ROD ASSY

2

2

BIELLE COMPLETTE

6

67D–11654–00

.BOLT, CONNECTING ROD

2

2

.BOULON, BIELLE

7

6AU–11631–00–96

PISTON (STD)

2

2

PISTON (STD)

6AU–11635–00

PISTON (0.25MM O/S)

2

2

AP

PISTON (0.25MM O/S)

AP

6AU–11636–00

PISTON (0.50MM O/S)

2

2

AP

PISTON (0.50MM O/S)

AP

8

68T–11603–01

PISTON RING SET (STD)

2

2

JEU DE SEGMENTS (STD)

68T–11604–01

PISTON RING SET (0.25MM O/S)

2

2

AP

JEU DE SEGMENTS (0.25MM O/S)

AP

68T–11605–01

PISTON RING SET (0.50MM O/S)

2

2

AP

JEU DE SEGMENTS (0.50MM O/S)

AP

9

68T–11633–00

PIN, PISTON

2

2

AXE, PISTON

10

93450–15023

CIRCLIP

4

4

CIRCLIP, TYPE S

A6

FIG.						4 CYLINDER & CRANKCASE 2																																								CYLINDRE & CARTER 2
REF.								PART NO.																		DESCRIPTION																																			MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				6AU–W009A–00–1S																	CYLINDER HEAD ASSY																																	1										1
																					CULASSE (ENS.)
2				6AU–11111–00–1S																	HEAD, CYLINDER 1																																	1										1
																					CULASSE
3				6AU–11133–10																	.GUIDE, VALVE 1																																	4										4
																					.GUIDE, SOUPAPE 1
4				68T–11181–00																	GASKET, CYLINDER HEAD 1																																	1										1
																					JOINT, DE CULASSE 1
5				99510–10114																	PIN, DOWEL																																	2										2
																					GOUJON, D'ASSEMBLAGE
	6			90105–08M36																	BOLT, FLANGE																																	2										2
																					BOULON
7				90105–08M78																	BOLT, FLANGE																																	4										4
																					BOULON
8				90119–06049																	BOLT, WITH WASHER																																	3										3
																					BOULON, AVEC RONDELLE
9				68T–11191–00–1S																	COVER, CYLINDER HEAD 1																																	1										1
																					COUVERCLE, CULASSE 1
10				650–24378–00																	.PIPE, JOINT 4																																	1										1
																					.DURITE RACCORDEMENT 3
11				68T–11356–00																	SEAL, CYLINDER 2																																	1										1
																					JOINT, SPY CYLINDRE
12				97095–06020																	BOLT																																	4										4
																					BOULON
13				92995–06600																	WASHER																																	4										4
																					RONDELLE
14				68T–11168–00																	COVER, BREATHER																																	1										1
																					COUVERCLE, RENIFLARD
15				68T–11169–A0																	GASKET, BREATHER COVER																																	1										1
																					JOINT, COUVERCLE DE RENIFLARD
16				98507–04010																	SCREW, PAN HEAD																																	5										5
																					VIS, TETE TRONCONIQUE
17				92907–04600																	WASHER																																	5										5
																					RONDELLE
18				6G8–11325–00																	ANODE																																	1										1
																					ANODE
19				97880–05025																	SCREW, PAN HEAD																																	1										1
																					VIS, TETE TRONCONIQUE
20				6G8–11197–01																	PLUG, BLIND																																	1										1
																					PLOT, BORGNE
21				93210–13M63																	O-RING																																	1										1
																					JOINT TORIQUE
22				6G8–15363–00																	PLUG, OIL																																	1										1
																					PLOT, HUILE
23				93210–24M79																	O-RING																																	1										1
																					JOINT TORIQUE
24				94702–00274																	PLUG, SPARK (NGK BR6HS-10)																																	2										2
																					BOUGIE D'ALLUMAGE(NGK BR6HS-10

A7

FIG.						5 VALVE																																								SOUPAPE
REF.								PART NO.																		DESCRIPTION																																			MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				67D–12111–00																	VALVE, INTAKE																																					2						2
																					SOUPAPE, ADMISSION
2				67D–12121–00																	VALVE, EXHAUST																																					2						2
																					SOUPAPE, ECHAPPEMENT
3				68T–12116–00																	SEAT, VALVE SPRING																																					4						4
																					SIEGE, RESSORT DE SOUPAPE
4				68T–12113–00																	SPRING, VALVE INNER																																					4						4
																					RESSORT DE SOUPAPE, INTERNE
5				7NJ–12117–00																	RETAINER, VALVE SPRING																																					4						4
																					BUTEE DE RESSORT DE SOUPAPE
	6			7NJ–12118–00																	COTTER, VALVE																																					4						4
																					FRAISE, SOUPAPE
7				51Y–12119–00																	SEAL, VALVE STEM																																					4						4
																					JOINT, QUEUE DE SOUPAPE
8				68T–12146–00																	SHAFT, ROCKER																																					1						1
																					AXE, CULBUTEUR
9				90387–13M56																	COLLAR																																					1						1
																					COLLERETTE
10				90387–14M03																	COLLAR																																					3						3
																					COLLERETTE
11				90501–12M40																	SPRING, COMPRESSION																																					2						2
																					RESSORT, COMPRESSION
12				68T–12151–00																	ARM, VALVE ROCKER																																					4						4
																					CULBUTEUR
13				6G8–12159–00																	SCREW, VALVE ADJUSTING																																					4						4
																					VIS, REGLAGE DE SOUPAPE
14				6G8–12158–00																	NUT, LOCK																																					4						4
																					CONTRE-ECROU

B1

FIG.						6 INTAKE																																								ADMISSION
REF.								PART NO.																		DESCRIPTION																																			MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				68T–13641–20–1S																	MANIFOLD 1																								1																			1														FLUSHING KIT
																					TUBULURE 1																																																									FLUSHING KIT
2				67F–12482–00																	.PIPE 2																								1																			1
																					.DURITE 2
3				68T–13645–00																	GASKET, MANIFOLD 1																								1																			1
																					JOINT, TUBULURE 1
4				90119–06MA5																	BOLT, WITH WASHER																								3																			3
																					BOULON, AVEC RONDELLE
5				90119–06MA3																	BOLT, WITH WASHER																								2																			2
																					BOULON, AVEC RONDELLE
	6			91690–50014																	PIN, SPRING																								2																			2
																					AGRAFFE
7				90445–09M20																	HOSE (L95)																								1																			1														FLUSHING KIT
																					DURITE (L95)																																																									FLUSHING KIT
8				68T–13646–A0																	GASKET, MANIFOLD 2																								2																			2
																					JOINT, TUBULURE 2
9				68T–14271–00																	INSULATOR																								1																			1
																					ISOLATEUR
10				6AU–14440–00																	SILENCER ASSY, INTAKE																								1																			1
																					SIENCIEUX D'ADMISSION
11				93210–31MJ5																	O-RING																								1																			1
																					JOINT TORIQUE
12				90387–06M70																	COLLAR																								2																			2
																					COLLERETTE
13				97595–06585																	BOLT, WITH WASHER																								2																			2
																					VIS HEXAGONAL AVC RONDELLE
14				68T–12483–00																	PIPE 3																								1																			1
																					DURITE 3
15				90465–08M99																	CLAMP																								1																			1
																					BRIDE
16				90465–08M83																	CLAMP																								1																			1														FLUSHING KIT
																					BRIDE																																																									FLUSHING KIT
17				97095–06010																	BOLT																								1																																	FLUSHING KIT
																					BOULON																																																									FLUSHING KIT
18				92995–06600																	WASHER																								1																																	FLUSHING KIT
																					RONDELLE																																																									FLUSHING KIT
19				6H4–41271–01																	KNOB, CHOKE																								1																			1
																					BOUTON DE STARTER
20				689–41273–00																	GROMMET																								1																			1
																					PASSE-FIL
21				68T–41256–00																	ROD, CHOKE 1																								1																			1
																					TRINGLE 1, STARTER
22				6J8–41262–00																	JOINT, CHOKE LEVER																								1																			1
																					RACCORD, LEVIER DE STARTER

B2

FIG.						7 CARBURETOR																																									CARBURATEUR
REF.								PART NO.																		DESCRIPTION																																				MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																								E														REMARQUES
1				6AU–14301–20																	CARBURETOR ASSY 1																										1
																					CARBURATEUR COMPLET 1
				6AU–14301–50																	CARBURETOR ASSY 1																																													1
																					CARBURATEUR COMPLET 1
2				6E5–14321–00																	.SCREW, THROTTLE																										1																			1
																					.VIS, ACCELERATEUR
3				6J8–14334–00																	.SPRING, THROTTLE																										1																			1
																					.RESSORT, ACCELERATEUR
4				97980–04112																	.SCREW, WITH WASHER																										5																			5
																					.VIS, AVEC RONDELLE
	5			6AU–14385–00																	.FLOAT																										1																			1
																					.FLOTTEUR
6				67D–14966–00																	.RUBBER CAP																										1																			1
																					.CAOUTCHOUC CASQUILLO
7				67D–14386–00																	.PIN, FLOAT																										1																			1
																					.AXE, FLOTTEUR
8				68T–14546–00																	.VALVE, NEEDLE																										1																			1
																					.POINTEAU
9				6AU–1492E–43																	.JET, MAIN (#86)																										1																			1
																					.GICLEUR, PRINCIPAL (#86)
10				6AU–1492F–20																	.JET, AIR SLOW (#40)																										1																			1
																					.GICLEUR, AIR (#40)
11				6AU–1492A–00																	.NOZZLE, MAIN																										1																			1
																					.PUITS D'AIGUILLE
12				6AU–14984–00																	.GASKET, FLOAT CHAMBER																										1																			1
																					.JOINT, CUVE DE FLOTTEUR
13				6AU–14982–00																	.HOLDER																										1																			1
																					.SUPPORT
14				6AU–1431B–00																	.BALL																										1																			1
																					.BILLE
15				6AU–14335–00																	.SPRING, PLUNGER																										1																			1
																					.RESSORT, PLONGEUR
16				6AU–14371–00																	.PLUNGER, STARTER																										1																			1
																					.PLONGEUR, STARTER
17				6AU–1431A–00																	.GUIDE																										1																			1
																					.GUIDE
18				6AU–14918–00																	.RING																										1																			1
																					.BAGUE
19				6J8–14959–00																	.GASKET																										1																			1
																					.JOINT
20				66T–14991–00																	.PLUG, DRAIN																										1																			1
																					.BOUCHON DE VIDANGE
21				68T–14323–20																	.SCREW, AIR ADJUSTING																										1																			1
																					.VIS DE DOSEUR D'AIR
22				67D–14536–00																	.GASKET																										1																			1
																					.JOINT
23				67D–14527–00																	.PLATE																										1																			1
																					.PLAQUE
24				68T–14126–00																	.PLUG																										1																			1
																					.PLOT
25				6AU–14379–00																	.ROD, STARTER																										1																			1
																					.TRINGLE, STARTER
26				6AU–14373–00																	.COVER, PLUNGER CAP																										1																			1
																					.COUVERCLE DE PLONGEUR

B3

FIG.						8 OIL PUMP																																								POMPE A HUILE
REF.								PART NO.																		DESCRIPTION																																			MH																		REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				93102–18M21																	OIL SEAL																									1																			1
																					JOINT SPY
2				68T–12171–00																	CAMSHAFT 1																									1																			1
																					ARBRE A CAMES 1
3				66M–11537–00–94																	GEAR, DRIVEN																									1																			1
																					PIGNON SECONDAIRE
4				90105–06M14																	BOLT FLANGE																									1																			1
																					BOULON
5				90201–13201																	WASHER, PLATE																									1																			1
																					RONDELLE, PLATE
	6			90201–06M94																	WASHER, PLATE																									1																			1
																					RONDELLE, PLATE
7				68T–46241–00																	V-BELT																									1																			1
																					COURROIE TRAPEZOIDALE
8				68T–11536–00																	GEAR, DRIVE																									1																			1
																					ENGRENAGE, MENANT
9				68T–11557–00																	WASHER 1																									1																			1
																					RONDELLE 1
10				6G8–11587–01																	WASHER, LOCK																									1																			1
																					RONDELLE, FREIN
11				90170–24M09																	NUT																									1																			1
																					ECROU
12				90280–03M01																	KEY, WOODRUFF																									2																			2
																					CLAVETTE, DEMI-LUNE
13				6AU–46297–00																	COVER, DUST																									1																			1
																					COUVERCLE, POUSSIERE
14				90480–10627																	GROMMET																									3																			3
																					PASSE-FIL
15				68T–13300–00																	OIL PUMP ASSY																									1																			1
																					POMPE A HUILE COMPLETE
16				68T–13329–00																	GASKET, PUMP COVER																									1																			1
																					JOINT, COUVERCLE DE POMPE
17				97095–06030																	BOLT																									3																			3
																					BOULON
18				92995–06600																	WASHER																									3																			3
																					RONDELLE
19				6G9–12138–60																	MARK, CAUTION																									1																			1
																					MAKER

B4

FIG.						9 FUEL																																								CARBURANT
REF.								PART NO.																		DESCRIPTION																																				MH																	REMARKS
NO.								N° PIECES																		DESCRIPTION																																							E														REMARQUES
1				6G1–24304–02																	FUEL PIPE JOINT COMP. 1																																									1		1
																					DURITE RACCORDEMT. A ESSENCE
2				61N–24329–00																	SEAL																																									1		1
																					JOINT
3				97095–06025																	BOLT																																									1		1
																					BOULON
4				92995–06600																	WASHER																																									1		1
																					RONDELLE
5				90445–10M18																	HOSE (L295)																																									1		1
																					DURITE (L295)
	6			90467–09M09																	CLIP																																									2		2
																					JONC
7				68T–24251–00																	STRAINER 1																																									1		1
																					FILTRE 1
8				90445–10M50																	HOSE (L170)																																									1		1
																					DURITE (L170)
9				90467–09M09																	CLIP																																									2		2
																					JONC
10				90445–16010																	HOSE (L140)																																									1		1
																					DURITE (L140)
11				68T–24410–01																	FUEL PUMP ASSY																																									1		1
																					POMPE A ESSENCE
12				66M–24413–01																	.BODY 2																																									1		1
																					.CORPS 2
13				6A0–24421–01																	.VALVE, CHECK																																									2		2
																					.SOUPAPE, RETENUE
14				6E7–14325–00																	.SCREW, PAN HEAD																																									2		2
																					.VIS TETE CONIQUE
15				66M–24411–01																	.DIAPHRAGM																																									1		1
																					.DIAPHRAGME
16				66M–24423–00																	.SPRING, DIAPHRAGM																																									1		1
																					.RESSORT, DIAPHRAGME
17				66M–13131–00																	.PLUNGER																																									1		1
																					.PLONGEUR
18				66M–24374–00																	.PIN																																									1		1
																					.GOUPILLE
19				66M–24454–00																	.SPRING																																									1		1
																					.RESSORT
20				66M–24471–01																	.DIAPHRAGM																																									1		1
																					.DIAPHRAGME
21				66M–24444–00																	.SCREW																																									4		4
																					.VIS
22				95380–04600																	.NUT																																									4		4
																					.ECROU
23				97095–06030																	BOLT																																									2		2
																					BOULON
24				92995–06100																	WASHER, SPRING																																									2		2
																					RONDELLE, GROWER
25				92995–06600																	WASHER																																									2		2
																					RONDELLE
26				93210–20M65																	O-RING																																									1		1
																					JOINT TORIQUE
27				6AU–24311–00																	PIPE, FUEL 1																																									1		1
																					DURITE A ESSENCE

B5

FIG.

9 FUEL

CARBURANT

REF.

PART NO.

DESCRIPTION

MH

REMARKS

NO.

N° PIECES

DESCRIPTION

E

REMARQUES

28

90467–09M09

CLIP

2

2

JONC

29

90446–14M66

HOSE (L40)

1

1

DURITE (L40)

30

90465–11M10

CLAMP

1

1

BRIDE

31

90464–10M53

CLAMP

1

1

BRIDE

32

68T–28100–00

TOOL KIT

1

1

TROUSSE A OUTILS

33

6AU–28199–70–E0

MANUAL,OWNER'S

1

1

UR (E)

MANUEL D'UTILISATION

UR (E)

6AU–28199–70–F0

MANUAL,OWNER'S

1

1

UR (F)

MANUEL D'UTILISATION

UR (F)

6AU–28199–70–S0

MANUAL,OWNER'S

1

1

UR (ES)

MANUEL D'UTILISATION

UR (ES)

6AU–28199–70–G0

MANUAL,OWNER'S

1

1

UR (D)

MANUEL D'UTILISATION

UR (D)

6AU–28199–70–D0

MANUAL,OWNER'S

1

1

UR (NL)

MANUEL D'UTILISATION

UR (NL)

6AU–28199–70–H0

MANUAL,OWNER'S

1

1

UR (I)

MANUEL D'UTILISATION

UR (I)

34

6AU–28199–80–K0

MANUAL,OWNER'S

1

1

UR (DK)

MANUEL D'UTILISATION

UR (DK)

6AU–28199–80–R0

MANUAL,OWNER'S

1

1

UR (GR)

MANUEL D'UTILISATION

UR (GR)

6AU–28199–80–P0

MANUAL,OWNER'S

1

1

UR (P)

MANUEL D'UTILISATION

UR (P)

6AU–28199–80–N0

MANUAL,OWNER'S

1

1

UR (N)

MANUEL D'UTILISATION

UR (N)

6AU–28199–80–M0

MANUAL,OWNER'S

1

1

UR (S)

MANUEL D'UTILISATION

UR (S)

6AU–28199–80–L0

MANUAL,OWNER'S

1

1

UR (SF)

MANUEL D'UTILISATION

UR (SF)

B6

FIG.

10 STARTER

DEMARREUR

REF.

PART NO.

DESCRIPTION

MH

REMARKS

NO.

N° PIECES

DESCRIPTION

E

REMARQUES

1

68T–15710–13

STARTER ASSY

1

DEMARREUR COMPLET

2

68T–15711–03

.CASE, STARTER

1

.CARTER DE DEMARREUR

3

68T–15795–00

.GUIDE, ROPE

1

.GUIDE DE CABLE

4

63V–15714–00

.DRUM, SHEAVE

1

.TAMBOUR, POULIE

5

63V–15741–00

.PAWL, DRIVE

1

.CLIQUET, ENTRAINEMENT

6

63V–15713–00

.SPRING, STARTER

1

.RESSORT DE DEMARREUR

7

68T–15716–00

.PLATE, DRIVE

1

.PLAQUE, ENTRAINEMENT

8

63V–15705–01

.SPRING, DRIVE PAWL

1

.RESSORT DE CLIQUET

9

63V–15767–01

.SPRING

1

.RESSORT

10

68T–15784–00

.SPRING, RETURN

1

.RESSORT, RAPPEL

11

63V–15744–00

.CIRCLIP

1

.CIRCLIP

12

68T–15793–00

.SCREW

1

.VIS

13

68T–15764–00

.COLLAR 1

1

.COLLERETTE 1

14

6G1–15755–00

.HANDLE, STARTER

1

.POIGNEE, DE DEMARREUR

15

*

.WIRE, STARTER (L:1800MM)

1

*1

.CABLE DE DEMARREUR (L:1800MM)

*1

16

6G1–15779–00

.COVER

1

.COUVERCLE

17

6A0–15789–00

.DAMPER

1

.AMORTISSEUR

18

68T–15794–00

.STOPPER

1

.BUTEE

19

66T–15734–00

.SPRING, RETURN

1

.RESSORT, RAPPEL

20

68T–15770–00

.CABLE COMP., STARTER STOP

1

.CABLE, BUTEE DE DEMAR

21

66T–15731–00

.SPRING, RETURN

1

.RESSORT, RAPPEL

22

97095–06020

BOLT

3

BOULON

23

92995–06600

WASHER

3

RONDELLE

24

68T–15762–00

SEAL, RUBBER 2

1

JOINT CAOUTCHOUC 2

25

6AH–81995–40

LABEL, WARNING

1

ETIQUETTE, AVERTISSEMENT

26

6AH–81995–50

LABEL, WARNING

1

ETIQUETTE, AVERTISSEMENT

27

6AU–13437–60

MARK, CAUTION

1

MAKER

B7

FIG.

10 STARTER

DEMARREUR

REF.

PART NO.

DESCRIPTION

MH

REMARKS

NO.

N° PIECES

DESCRIPTION

E

REMARQUES

28

68T–85711–60

MARK, CAUTION

1

MAKER

29

6AH–81994–40

LABEL, SAFETY

1

ETIQUETTE, SECURITE

30

6AH–81994–50

LABEL, SAFETY

1

ETIQUETTE, SECURITE

C1
