Wagner ProCoat User Manual

Owner’s Manual

Read this manual for complete instructions

Français (page 25) / Español (página 49)

Contents

2	Important Safety Information	14	Clean the Inlet Filter
4	What’s in the Box?	15	Short Term Storage
5	Assembly	16	Cleanup - latex materials
6	Proper Use and Functions	18	Cleanup - oil-based materials
7	Pressure Relief Procedure	19	Cleaning the Spray Gun Components
8	Load Material	20	Long-Term Storage
9	Getting Material to Flow	21	Replacing the Outlet/Inlet Valves
10	Practice Spraying	22	Troubleshooting
12	Clear the Spray Tip	72	Parts List

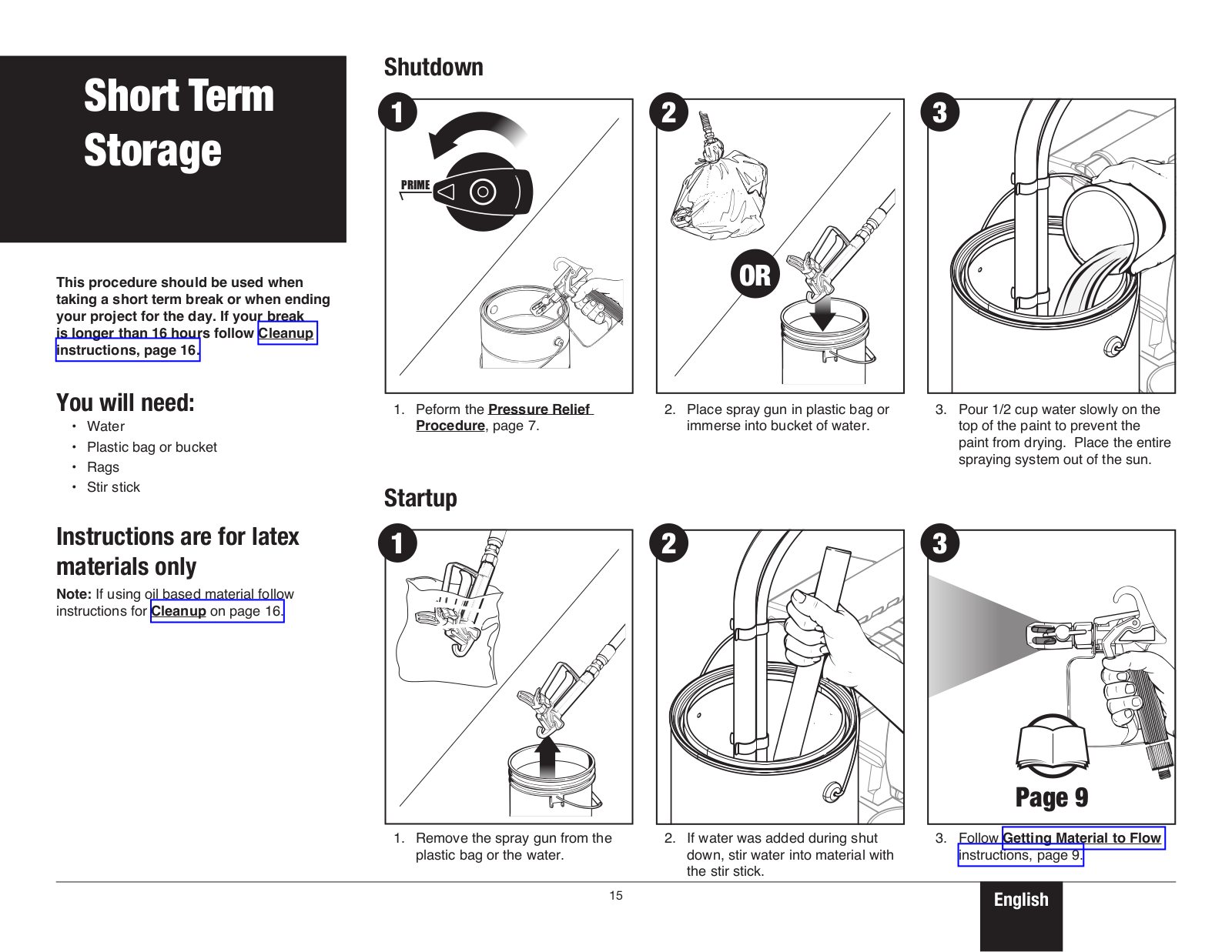

13	Clean the Spray Gun Filter	76	Warranty

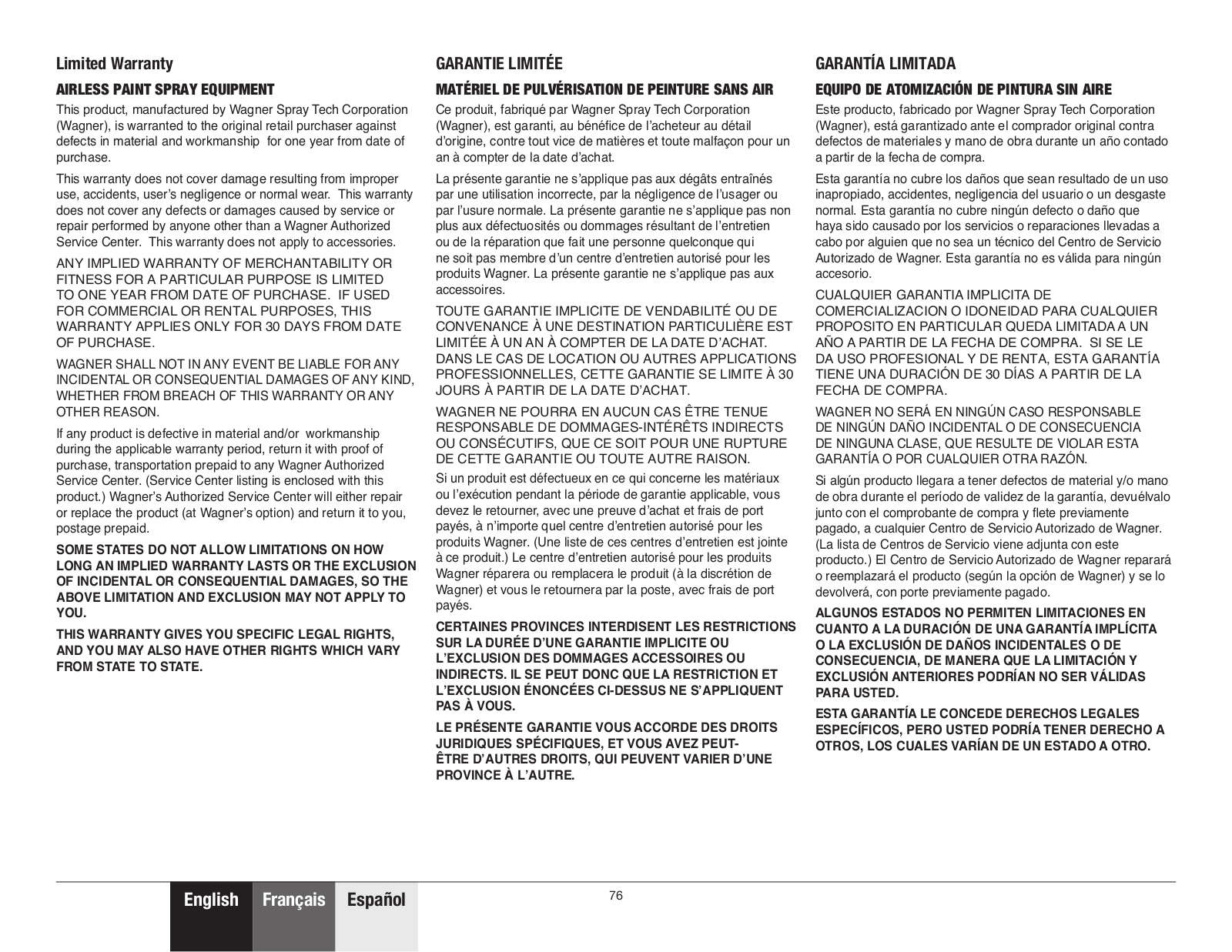

1009 • Form No. 0504949C

Patent pending

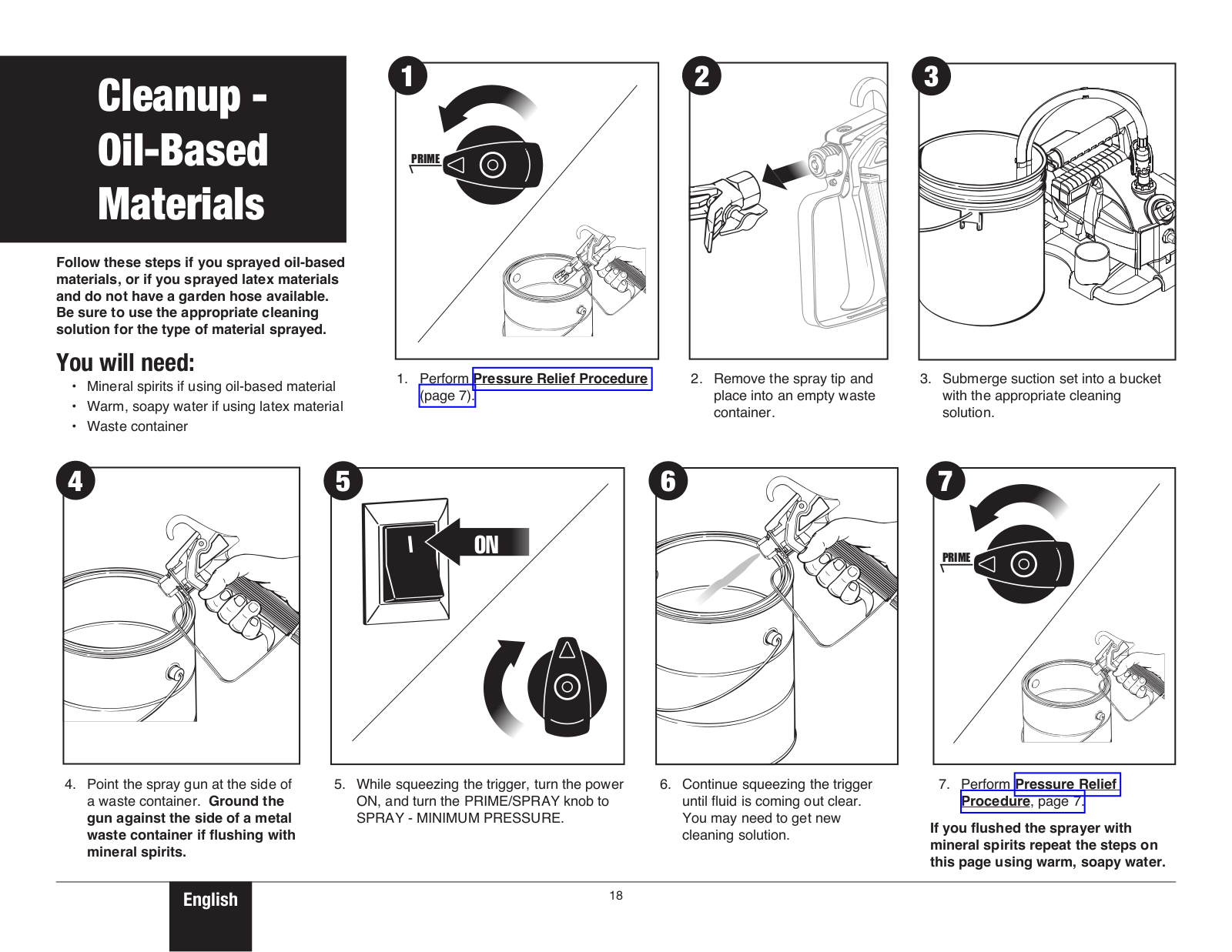

Español Français English

Important Safety

Information

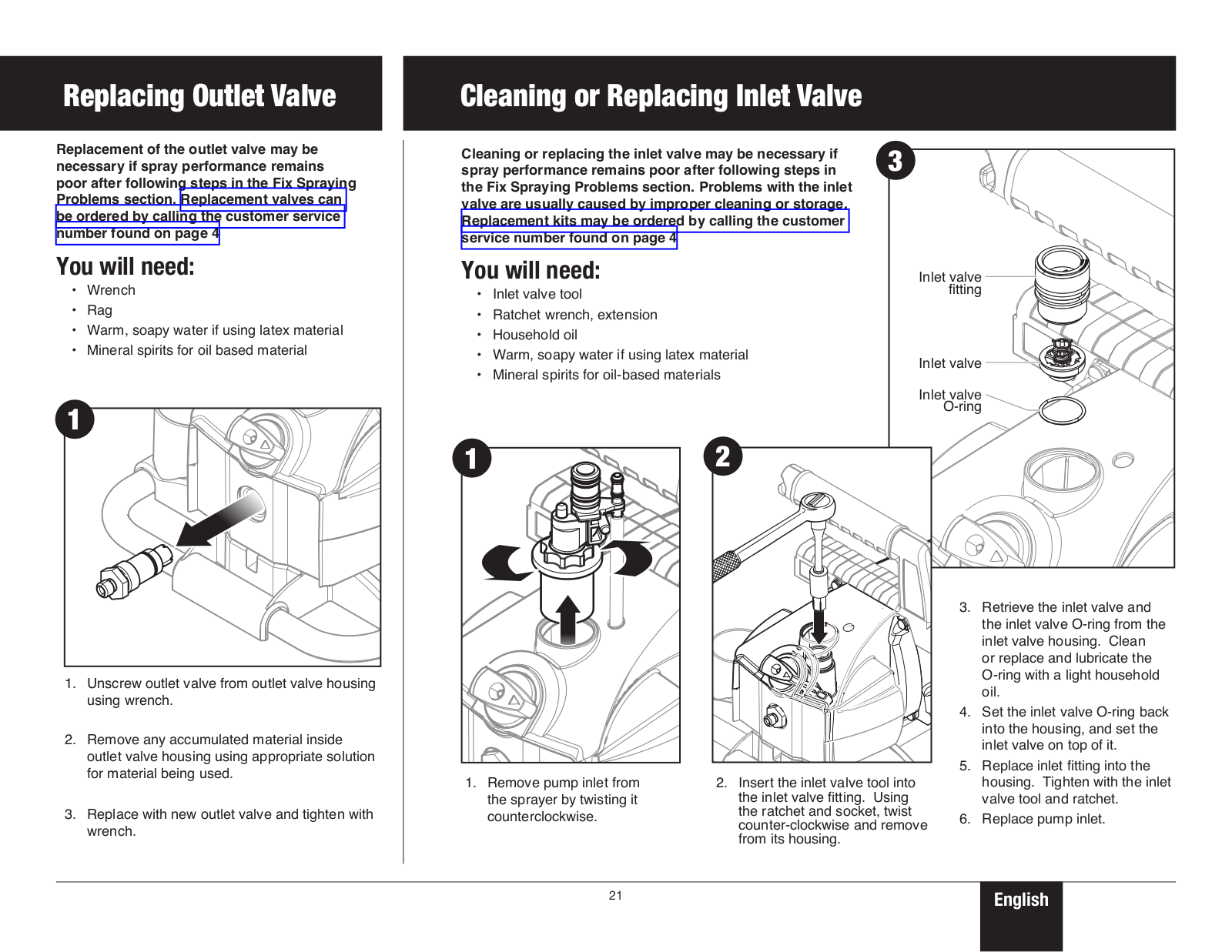

Read all safety information before operating

the equipment. Save these instructions

To reduce the risks of fire or explosion, electrical shock and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and proper usage of the equipment.

Indicates a hazardous situation which, if not avoided, could result in death or serious

injury.

HAZARD: Injection injury

A high pressure paint stream produced by this equipment can pierce the skin and underlying tissues, leading to serious injury and possible amputation. See a physician immediately.

DO NOT TREAT AN INJECTION INJURY AS A SIMPLE CUT! Injection can lead to amputation. See a physician immediately.

The maximum operating range of the gun is 2800

PSI/193 BAR fluid pressure.

PREVENTION:

•NEVER aim the gun at any part of the body.

•Do not aim the gun at, or spray any person or animal.

•NEVER allow any part of the body to touch the fluid stream. DO NOT allow body to touch a leak in the fluid hose.

•NEVER put your hand in front of the gun. Gloves will not provide protection against an injection injury.

•ALWAYS lock the gun trigger, shut the pump off, and release all pressure before servicing, cleaning the tip or guard, changing tip, or leaving unattended. Pressure will not be released by turning off the motor. The PRIME/SPRAY knob must be turned to PRIME to relieve the pressure.

Refer to the Pressure Relief Procedure (page 7) described in the pump manual.

•ALWAYS keep the tip guard in place while spraying. The tip guard provides some protection but is mainly a warning device.

•ALWAYS remove the spray tip before flushing or cleaning the system.

•Paint hose can develop leaks from wear, kinking and abuse. A leak can inject material into the skin.

Inspect the hose before each use. Do not use hose to lift or pull equipment.

•NEVER use a spray gun without a working trigger lock and trigger guard in place.

•All accessories must be rated at or above 2800

PSI/193 BAR. This includes spray tips, guns, extensions, and hose.

NOTE TO PHYSICIAN:

Injection into the skin is a traumatic injury. It is important to treat the injury as soon as possible.

DO NOT delay treatment to research toxicity. Toxicity is a concern with some coatings injected directly into the blood stream. Consultation with a plastic surgeon or reconstructive hand surgeon may be advisable.

HAZARD: HAZARDOUS VAPORS

Paints, solvents, insecticides, and other materials can be harmful if inhaled or come

in contact with the body. Vapors can cause severe nausea, fainting, or poisoning.

PREVENTION:

• Use a respirator or mask if vapors can be inhaled. Read all instructions supplied with

the mask to be sure it will provide the necessary protection.

•Wear protective eye wear.

•Wear protective clothing as required by coating manufacturer.

HAZARD: EXPLOSION OR FIRE

Solvent and paint fumes can explode or ignite. Property damage and/or severe injury can occur.

PREVENTION:

• Provide extensive exhaust and fresh air introduction to keep the air within the spray

area free from accumulation of flammable vapors.

Solvent and paint fumes can explode or ignite.

•Do not spray in a confined area.

•Avoid all ignition sources such as static electric sparks, open flames, pilot lights, electrical appliances, and hot objects. Connecting or disconnecting power cords or working light switches can make sparks. Paint or solvent flowing through the equipment is able to result in static electricity.

•Do not smoke in spray area.

•Fire extinguisher must be present and in good working order.

•Place paint pump in a well-ventilated area away from the spray object. Flammable vapors are often heavier than air. Floor area must be extremely well ventilated.

•The equipment and objects in and around the spray area must be properly grounded to prevent static sparks.

•Keep area clean and free of paint or solvent containers, rags and other flammable materials.

•Use only conductive or grounded high pressure fluid hose. Gun must be grounded through hose connections.

•Power cord must be connected to a grounded circuit.

•Always flush unit into a separate metal container, at low pump pressure, with spray tip removed.

Hold gun firmly against side of container to ground container and prevent static sparks.

•Follow the material and solvent manufacturer’s warnings and instructions. Know the contents of the paints and solvents being sprayed. Read all

Material Safety Data Sheets (MSDS) and container labels provided with the paints and solvents. Follow the paint and solvent manufacturer’s safety instructions.

•This product may be used only with water-based materials or materials with a minimum flash point of 70ºF (21ºC) for spraying or cleaning. Do not spray or clean with materials having a flash point less than 70ºF (21ºC), such as solvent based lacquers, enamels, and/or stain blockers. Flash point is the temperature at which a fluid can produce enough vapors to ignite.

•Plastic can cause static sparks. Never hang plastic to enclose a spray area. Do not use plastic drop cloths when spraying flammable materials.

•Use lowest possible pressure to flush equipment.

•Do not spray onto pump assembly.

HAZARD: EXPLOSION HAZARD DUE TO INCOMPATIBLE MATERIALS

Will cause property damage or severe injury.

PREVENTION:

•Do not use materials containing bleach or chlorine.

•Do not use halogenated hydrocarbon solvents such as bleach, mildewcide, methylene chloride and 1,1,1 - trichloroethane. They are not compatible with aluminum.

•Contact your coating supplier about the compatibility of material with aluminum.

English	2

HAZARD: GENERAL

Can cause severe injury or property damage.

PREVENTION:

•Read all instructions and safety precautions before operating equipment.

•Follow all appropriate local, state, and national codes governing ventilation, fire prevention, and operation.

•The United States Government Safety Standards have been adopted under the Occupational Safety and Health Act (OSHA). These standards,

particularly part 1910 of the General Standards and part 1926 of the Construction Standards should be consulted.

•Use only manufacturer authorized parts. User assumes all risks and liabilities when using parts that do not meet the minimum specifications and safety requirements of the pump manufacturer.

•Before each use, check all hoses for cuts, leaks, abrasion or bulging of cover. Check for damage or movement of couplings. Immediately replace the hose if any of these conditions exist. Never repair a paint hose. Replace it with another grounded highpressure hose.

•All hoses and fittings must be secured before operating spray pump. Unsecured parts can eject at great force or leak a high pressure fluid stream causing severe injury.

•All hoses, swivels, guns, and accessories must be pressure rated at or above 2800 PSI/193 BAR.

•Do not spray outdoors on windy days.

•Wear clothing to keep paint off skin and hair.

•Do not operate or spray near children. Keep children away from the equipment at all times.

•Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.

•Stay alert and watch what you are doing.

•Do not operate the unit when fatigued or under the influence of drugs or alcohol.

Important Electrical Information

important: Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. A 14

or 12 gauge cord is recommended (see chart). If an extension cord is to be used outdoors, it must be marked with the suffix W-A after the cord type designation. For example, a designation of SJTW-A would indicate that the cord would be appropriate for outdoor use.

Wagner Spray Tech accessory extension cords recommended:

P/N 0090241 - 20 foot extension cord. P/N 0090242 - 35 foot extension cord.

Cord gauge	Maximum cord length
12	150 feet
14	100 feet

Do not use more than 50 feet of spray hose. If you need to spray further than 50 feet from your power source, use more extension cord, not more spray hose.

Grounding Instructions

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

warning - Improper installation of the grounding plug can result in a risk of electric shock.

If repair or replacement of the cord or plug is necessary, do not connect the green grounding wire to either

flat blade terminal. The wire with insulation having a green outer surface with or without yellow stripes is the grounding wire and must be connected to the grounding pin.

Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician.

This product is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated below. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.

Grounded Outlet

Grounding Pin

Cover for grounded outlet box

If you experience problems with your sprayer at any time during assembly, operation, or cleanup, please refer to the Troubleshooting section of this manual (page 22), or call customer service at:

1-800-328-8251

3	English

What’s in the box?

Suction Set Assembly

Suction tube

Clip

Material return tube

Inlet filter	Connector

Questions?

Call Wagner Technical Service at:

1-800-328-8251

Register your product online at:

www.wagnerspraytech.com

Material container holder			Sprayer
(round, one gallon containers only)
			handle
Pump inlet
Inlet release button
Drip cup
PRIME/SPRAY /
Pressure control knob
Spray hose
outlet
			ON / OFF
			switch
Spray hose (comes			Spray tip
			storage area
assembled to the
spray gun)
		Inlet valve	*Not needed for
			setup. For use
	Pump cleaning	removal tool*	during cleaning
			and maintenance.
	adapter*
Spray Gun / Spray Tip Assembly		Spray gun
	Washer**
	Saddle	Spray tip
Spray	seat**	assembly
guard	** Saddle seat and washer
Spray tip	come pre-assembled inside
	spray guard

	English	4

	1. Assembly	1
		(a)
		(b)
You will need:
•	Adjustable wrench
		1. Attach the suction set to the pump
		as shown. Make sure the conector
		notches (a) snap over the pins (b)
		on the pump inlet.

(c)

(d)

NOTE: If suction set is difficult to press onto the pump, lubricate the

O-rings (c) and (d) as shown with petroleum jelly.

2

2.Remove the plug from inside the hose fitting and remove the cap on the outlet valve. Discard both.

important: Do not plug in the power cord until assembly is complete.

important: Do not carry the sprayer by the suction set. Use the sprayer handle when moving the sprayer.

important: If you plan to use spray material contained in anything except a round, one gallon container, you will not be able to hook it to the container holder.

3

3. Thread one end of the spray hose to the outlet valve on the sprayer.

4

4.Tighten the hose with an adjustable wrench.

5

5.Hook material container onto the end of the sprayer handle as shown (round, one gallon containers only)

5	English

Proper use and functions

Specifications

Weight 20.5 lbs

Flow rate 0.24 gal/minute

Power source 1/2 Hp universal motor

Power requirement 15 amp minimum circuit on 120

VAC, 60 Hz current

Generator requirement 8000 Watt Max. spraying pressure 2800 PSI

Capability

Sprays a variety of paints (oil-based and latex), primers, stains, preservatives and other nonabrasive materials. Do not use materials with flash points below 70° F (21° C)

Do not use!

This pump should not be used with textured materials, block filler, lacquers, industrial enamels, or asphalt sealer or materials containing HHC. See coating supplier if flash point is not listed on the container

Safety features

Spray gun trigger lock and pressure diffuser; built-in tip safety guard; PRIME/SPRAY knob for safe pressure release. Conforms to ULSTD 1450. Certified to CAN/CSAC 22.2 NO 68-92

Controls and Functions

ON/OFF switch:

The ON/OFF switch turns power to sprayer on and off.

(O=OFF, |=ON)

PRIME/SPRAY knob:

The PRIME/SPRAY knob directs material to the material return tube when set to PRIME or to spray hose when set to SPRAY.

Pressure control:

The pressure control function is also controlled by the PRIME/ SPRAY knob. The pressure control regulates the amount of force the pump uses to push

the fluid and can be adjusted for desired spray pattern.

spray - minimum

pressure

Ideal for thinner spray materials. Also to be used during cleanup, when unclogging the tip, or when using the optional roller attachment.

spray - maximum

pressure

Ideal when spraying thicker materials. To be used during spraying.

Spray hose:

The spray hose connects the spray gun to the pump.

Spray gun:

The spray gun controls the delivery of the material being pumped.

Material return tube:

Fluid is sent out through the return tube and back into the original container when the

PRIME/SPRAY knob is in the PRIME position.

Suction tube:

The suction tube draws the fluid from the original container into the pump.

	English	6

Pressure Relief Procedure*

*Perform when instructed

Be sure to follow the Pressure Relief Procedure when shutting the unit off for any purpose. This procedure is used to relieve pressure from the spray hose. Failure to do so could result in serious injury.

You will need:

• A waste bucket

Important Safety Warning

Be careful when handling the spray gun so you don’t accidently spray yourself. The high pressure paint stream could pierce your skin causing serious injury. If an accident happens see detail procedures in the Safety Information section on pages 2-3. See physician immediately and bring this instruction manual.

1

2

OFF

O

1. Lock the spray gun trigger. 2. Turn the power OFF.

3

4

PRIME

3. Turn the PRIME/SPRAY knob to PRIME.

4.Unlock the spray gun. Briefly pull the trigger to fully relieve pressure from the system. Lock the spray gun.

7	English

2. Load	1
Material
You will need:
• The material you plan to spray
• Extension cord
• Waste bucket
	1. Push the red inlet release
	button to ensure proper inlet
	valve operation.

2

(b)

(a)

2.Unclip the suction hose and return tube. Place suction hose into material container (a). Place return tube into a waste bucket (b).

3
PRIME
ON	l

3.Plug in the sprayer. Turn the

PRIME/SPRAY knob to PRIME.

Turn the power ON.

4	5	6
		O
		OFF

4. Hold return tube over waste	5. Turn power OFF.	6. Place return tube into material container
bucket until material is flowing		and clip tube and suction hose together.
(approximately five seconds).

	English	8

3. Getting	1
Material to
Flow		(a)	(b)
You will need:
• Scrap material / cardboard
• Drop cloths to protect floors and
furnishings from overspray	1.	Rotate spray tip forward to SPRAY position (a). Unlock
		the spray gun trigger by turning the trigger lock down (b).

2

SQUEEZE

2.Point the spray gun at a piece of scrap material/ cardboard. Squeeze and hold trigger for steps 3-5.

3 ON

l

3. Turn the power ON.

4

MAX

4.Turn the PRIME/SPRAY knob to SPRAY - maximum pressure.

5

SPRAY

5.Continue to squeeze trigger until the material is flowing freely through the spray gun.

NOTE: Motor will cycle ON and OFF while spraying to regulate pressure. This is normal.

6

6. Release the trigger and lock the spray gun.

9	English
