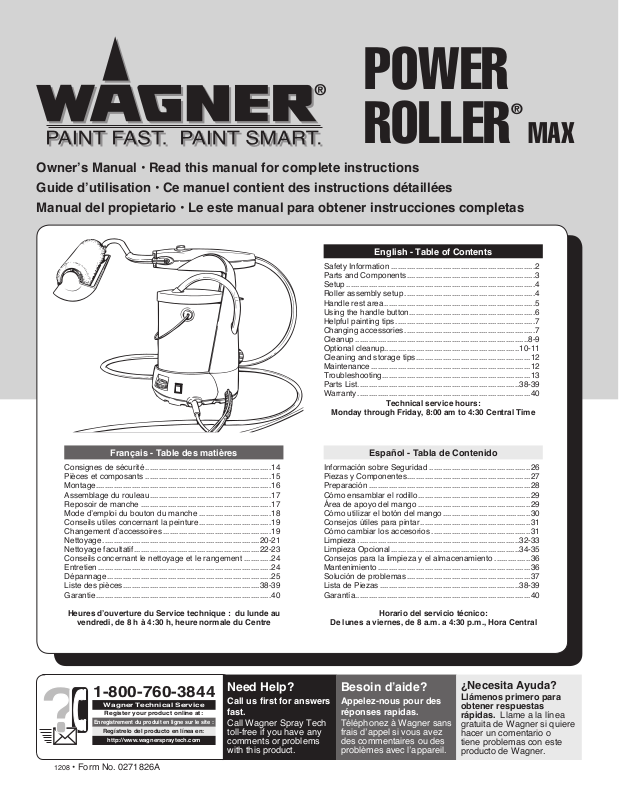

Wagner Power Roller Max User Manual [en, es, fr]

POWER

ROLLER® MAX

Owner’s Manual • Read this manual for complete instructions Guide d’utilisation • Ce manuel contient des instructions détaillées

Manual del propietario • Le este manual para obtener instrucciones completas

	English - Table of Contents
	Safety Information.................................................................	2
	Parts and Components.........................................................	3
	Setup.....................................................................................	4
	Roller assembly setup...........................................................	4
	Handle rest area....................................................................	5
	Using the handle button........................................................	6
	Helpful painting tips...............................................................	7
	Changing accessories...........................................................	7
	Cleanup..............................................................................	8-9
	Optional cleanup............................................................	10-11
	Cleaning and storage tips...................................................	12
	Maintenance........................................................................	12
	Troubleshooting..................................................................	13
	Parts List........................................................................	38-39
	Warranty..............................................................................	40
	Technical service hours:
	Monday through Friday, 8:00 am to 4:30 Central Time
Français - Table des matières	Español - Tabla de Contenido

Consignes de sécurité.........................................................	14
Pièces et composants.........................................................	15
Montage..............................................................................	16
Assemblage du rouleau......................................................	17
Reposoir de manche...........................................................	17
Mode d’emploi du bouton du manche.................................	18
Conseils utiles concernant la peinture................................	19
Changement d’accessoires.................................................	19
Nettoyage.......................................................................	20-21
Nettoyage facultatif........................................................	22-23
Conseils concernant le nettoyage et le rangement.............	24
Entretien..............................................................................	24
Dépannage..........................................................................	25
Liste des pièces.............................................................	38-39
Garantie..............................................................................	40

Heures d’ouverture du Service technique : du lunde au vendredi, de 8 h à 4:30 h, heure normale du Centre

Información sobre Seguridad..............................................	26
Piezas y Componentes.......................................................	27
Preparación.........................................................................	28
Cómo ensamblar el rodillo..................................................	29
Área de apoyo del mango...................................................	29
Cómo utilizar el botón del mango........................................	30
Consejos útiles para pintar..................................................	31
Cómo cambiar los accesorios.............................................	31
Limpieza.........................................................................	32-33
Limpieza Opcional..........................................................	34-35
Consejos para la limpieza y el almacenamiento.................	36
Mantenimiento.....................................................................	36
Solución de problemas........................................................	37
Lista de Piezas...............................................................	38-39
Garantía..............................................................................	40

Horario del servicio técnico:

De lunes a viernes, de 8 a.m. a 4:30 p.m., Hora Central

1-800-760-3844

Wagner Technical Service

Register your product online at: Enregistrement du produit en ligne sur le site :

Regístrelo del producto en línea en: http://www.wagnerspraytech.com

1208 • Form No. 0271826A

	Need Help?	Besoin d’aide?	¿Necesita Ayuda?
	Call us first for answers	Appelez-nous pour des	Llámenos primero para
			obtener respuestas
	fast.	réponses rapidas.
			rápidas. Llame a la línea
	Call Wagner Spray Tech	Téléphonez à Wagner sans	gratuita de Wagner si quiere
	toll-free if you have any	frais d’appel si vous avez	hacer un comentario o
	comments or problems	des commentaires ou des	tiene problemas con este
	with this product.	problèmes avec l’appareil.	producto de Wagner.

Important Safety Information · Read all safety information before operating the equipment. Save these instructions.

To reduce the risks of fire or explosion, electrical shock and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and proper usage of the equipment.

This symbol indicates a hazardous situation, which, if not not avoided could result in death or serious injury.

HAZARD: EXPLOSION OR FIRE

Solvent and paint fumes can explode or ignite, causing property damage and/or severe injury.

PREVENTION:

•Exhaust and fresh air introduction must be provided to keep the air within the work area free from accumulation of flammable vapors.

•Avoid all ignition sources such as static electricity sparks, open flames, pilot lights, hot objects, cigarettes, and

sparks from connecting and disconnecting power cords or working light switches.

•Fire extinguishing equipment must be present and in working order.

•Do not use materials with a flashpoint below 100° F (38° C). A fluid’s flashpoint is the temperature at which vapors from the fluid could ignite if exposed to a flame or spark. Consult your paint supplier for information about a fluid’s flashpoint.

•Keep the unit in a well ventilated location away from the work area.

The pump contains arcing parts which emit sparks.

HAZARD: HAZARDOUS VAPORS

Paints, solvents, insecticides, and other materials may be harmful if inhaled, causing severe nausea, fainting, or poisoning.

PREVENTION:

•Use a respirator or mask whenever there is a chance that vapors may be inhaled. Read all instructions with the mask to insure that it will provide the necessary protection against the inhalation of harmful vapors.

HAZARD: GENERAL

May cause property damage or severe injury.

PREVENTION:

•Read all instructions and safety precautions before operating any equipment. Never leave the unit running while unattended. Unplug whenever not in use.

•Never immerse the unit into any liquid.

•Comply with all appropriate local, state and national codes governing ventilation, fire prevention, and operation.

•This paint roller system is designed to be used with authorized parts only. When using this system with parts that do not comply with the minimum specifications and safety devices of the system manufacturer, the user assumes all risks and liabilities.

•Before each use, check all hoses for cuts, leaks, abrasion or bulging of cover or damage or movement of couplings. If any of these conditions exist, call Customer Service. Never repair a paint hose, replace it with a new one.

Additional warnings are contained on the tag molded to the electrical cord of the unit. Be sure to read this tag before operating the unit.

Specifications

Flow rate 8 - 20 oz. per minute Power source 120 VAC

Power requirement 60 Hz current.

Capability Most oil and water based paints and stains. Do not use with lacquers, lacquer thinners or any other solvent with a flash point below 100° F (38°C).

General Description

This high performance power roller is a precision power tool used for both interior and exterior painting and may be used with both water (latex) and oil based paints.

important: Use of oil-based paints must be limited to only those paints which can be cleaned with mineral spirits. Latex paints can be cleaned with soapy, lukewarm water. DO NOT use hot water when cleaning or flushing the unit.

Grounding Instructions

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING - Improper installation of the grounding plug can result in a risk of electric shock.

If repair or replacement of the cord or plug is necessary, do not connect the green grounding wire to either flat blade terminal.

The wire with insulation having a green outer surface with or without yellow stripes is the grounding wire and must be connected to the grounding pin.

Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided. If the

plug will not fit the outlet, have the proper outlet installed by a qualified electrician.

This product is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug illustrated below. A temporary adapter which looks like the adapter illustrated in the figure below may be used to connect this plug to a 2 pole receptacle as shown if a properly grounded outlet is not available.

The temporary adapter should be used only until a properly grounded outlet as shown below can be installed by a qualified electrician. The green colored rigid ear lug or the grounding wire extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

Grounded Outlet

Grounding Pin

Cover for grounded outlet box

Metal ScrewAdapter

Tab for

Grounding Screw

Extension Cord Selection

If an extension cord is used, make sure that it is of the 3-conductor type with NEMA connectors so a continuous grounding circuit is provided from the tool to the power circuit receptacle. Make sure your extension cord is in good condition. Also, be sure that the conductor size is large enough to prevent excessive voltage drop which will cause loss of power and possible motor damage to the unit. A 14 or 12 gauge cord is recommended.

If an extension cord is to be used outdoors, it must be marked with the suffix W-A following the cord type designation. For example, SJTW-A to indicate that it is acceptable for outdoor use.

Cord gauge	Maximum cord length
12	150 feet
14	100 feet

English	2

Parts and Components

a		i	j
b
c	d		k
e			l
f			m
		h	n
g			o

p

q s

t

r
Variable Speed
0	9
	o
m1

Item	Description
a)................................................................................	Hose
b)...................................................................	Roller handle
c)..................................................................	Handle button
d)...........................................................	Quick-release tabs
e)........................................................................	Roller arm
f)................................................................	Roller assembly
f1).........................................................	3/8” nap roller cover
f2)........................................................................	Roller cap
f3).......................................................................	Roller core
g)...................................................................	Spatter shield
h)......................................................................	Locking tab
i)..............................................................................	Can lid

Item	Description
j).................................................................	Roller rest area
k).....................................................................	Suction tube
l)................................................................................	Tower
m).....................................................	Quick-clean™ adapter
m1)..................................................	Quick-clean™ inlet plug
n).................................................	Paint flow reverse switch
o)..........................................................	Variable speed dial
p)......................................................................	Power cord
q).......................................................................	Corner pad
r)...........................................................................	Trim pad
s).........................................................	3/4” nap roller cover
t)..........................................................................	Extension

3	English

Setup

Setup:

1.Before using the unit, make sure the inlet plug is screwed tightly into the Quick-clean™ adapter, or material will leak from the adapter opening.

2.Tightly place the lid on the paint can. Align arrow (a) and paint can handle (b) as shown.

(a)

(b)

3.Place paint can on the base and insert the lid tab onto the opening on the tower. Press the tab over the tower post (c).

4.Insert the suction tube until it reaches the bottom of the can.

(c)

Roller assembly setup:

1.Assemble core (g), roller cover (h), and cap (i).

(g)

(h)

(i)

2.Attach assembly to arm, making sure the roller assembly snaps into the locking tab (j) as shown.

(j)

3. Attach spatter shield.	4. Press the quick-release tabs (k) on the handle and
	attach the arm to handle. When using the extension,
	attach the arm to the extension, then attach the
	extension to the handle.

(k)

	English	4

Setup (continued)

Variable speed dial:

The settings on the variable speed dial determine the flow rate of paint (1-9). The higher the setting, the higher the flow rate. A setting of zero (0) means the unit is switched off.

1. Plug in the power cord. Turn the variable speed dial to			2. Make sure the paint flow direction switch is set to
desired setting. No paint will flow until the motor has			“paint” position.
been activated by the handle button (see Using the
handle button on page 6).

PAINT

REVERSE

19

Roller handle rest area:

Use the carrying handle as a rest area for the roller handle and arm when they are not in use.

NOTE - The roller handle should not be placed into the handle rest area when it is attached to the extension! The spatter shield can be used as a rest for the roller arm when the extension is being used.

NOTE - During break periods, make sure that the roller is not saturated with paint, or it will drip and accumulate in the spatter shield.

5	English

				Using the Handle Button
	Use the chart below as a guide when following the painting and priming instructions below.
	When you are. . .		Do this. . .		and the unit will. . .
	•	Starting up	1)	Set speed dial on higher speed (3-9).	Unit will stay running when the button is
	•	Using 9” roller arm	2)	Fully press and release handle button to start motor.	fully pressed and released. Unit will stop
	•	Cleaning up	3)	Press handle button again stop.	when the button is again pressed and
					released.
	•	Using 3” x 3” trim pad	1)	Set speed dial to slower speed (1-2).	Unit will run when the button is partially
	•	Using 2” x 4” corner pad	2)	Partially depress and release button. Release the	depressed, and stop when the button is
			button when you have the desired amount of paint.		released.

Priming:

1a. If using the roller, set the variable speed dial to 9.

9

1b. If using one of the pads, set the variable speed dial to a lower setting (1-2).

1 - 2

2.To start the motor, fully press and release the handle button.

3a) If using the roller:	3b) If using one of the
	pads:
When paint appears through	PRESS and RELEASE the
the roller, PRESS and	handle button when the
RELEASE handle button to	material reaches the bottom
shut off the motor and stop	of the handle.
the flow of paint.

Painting (2 methods):

1) Stop and Start

The Stop and Start method is recommended when you are using the trim pad, or the corner pad, or swivel stain pad.

Select desired speed. Partially depress the handle button until material appears through the roller or pad. Material will continue to flow while button is held in this position.

Release button to stop flow of material.

2) Continuous Flow

The continuous flow method is recommended when you are painting a large area with the roller.

Select desired speed. Fully press and release handle button.

To stop flow of paint, fully press and release handle button once again.

	English	6

Helpful Painting Tips

Prepping the Room

Remove all pictures, mirrors, and decorations from the walls and draperies from the windows. Remove all nails, hardware and switch and receptacle covers. Cover furniture and floor with drop cloths.

Surface Preparation

•Always remove wallpaper before painting. Wash off old adhesive and rinse with water. Allow the walls to dry before painting.

•Wash and rinse dirt, grease and oil build-up off the walls with soap and water.

•Fill all nail holes, joints and cracks with patching paste. Let dry and sand the surface until smooth. Clean sanded area with a damp cloth.

•Spot prime all patched areas and any marker and/or pen marks before applying first coat.

*TIP: Write the important information from your paint can -- color, formula, brand and paint type -- on the back of a switch plate for future reference.

Painting the Room

*TIP: If you need more than one gallon of paint to do the room’s walls, mix them together to ensure color uniformity.

•Always make sure to open a window or door to ensure proper ventilation. If you are painting both the ceiling and walls in your room, start with the ceiling first and then move to the walls.

Ceilings:

•To minimize spills and spatters, use the spatter guard and paint across the short width of the ceiling.

Walls:

•Tape off around base and window and door trim.

•Paint one wall at a time.

•Pick an area to start where you can saturate the roller cover and evenly distribute the paint. Working in three-foot sections, begin by cutting-in around windows, doors, cabinets, base and other breaks in the wall surface with a pad or brush.

•Press the handle button until paint appears through the roller cover.

•Start painting at one end of a wall and roll out the letter “W”. Fill it in with crosswise strokes, working your way across the wall in 3’ x 3’ sections. Finish the sections by painting one solid swipe from ceiling to floor. This will give you a nice even paint finish.

•Press the handle button as needed for more paint. Be careful not to over-saturate the roller cover as it may drip, slide on the wall or spatter.

•Make sure to run the roller cover over the areas you cut-in around the trim and baseboards to even out the texture.

•If you need to stop and take a break; finish painting the entire wall, or stop at a break in the wall such as a doorway or corner to prevent lap marks.

Changing accessories:

•When removing or changing any accessories from the roller handle, it is likely that some material will drip from the handle and the accessory.

•Turn the variable speed dial to 0 (OFF) prior to removing any accessories or components, and make sure your floors and furnishings are protected from dripping paint.

•To minimize dripping material from the handle and accessories, follow the steps below.

1.Press the quick-release tabs on the handle (or the extension).

2.Pull the handle and the accessory apart, making sure to keep the connecting ends pointed up.

7	English

Cleanup

Purging the paint hose:

When you are finished with your project, follow these steps to return any remaining material left in the hose back into its container. These steps should be followed no matter what type of material you used.

1.Switch paint flow directional switch to “reverse”.

2.Place roller arm into rest area. Turn the variable speed dial to 9.

PAINT

REVERSE

9

3.Fully press and release the handle button to switch the motor on. Let the motor run for 2-3 minutes to pull paint from the hoses back into the paint container. When finished, fully press and release the handle button to switch the motor off. Flip switch back to “paint”.

4.Remove spatter shield. Press locking tab (a) and drop roller cover assembly into a bucket of the appropriate cleaning solution.

5.Insert thumb to first knuckle, pry and pull the cap from the roller cover. Once the cap is removed, push the core out the other end.

important: Make sure your floors and furnishings are protected from dripping paint when removing or disassembling the roller assembly. Drop the parts into a bucket of the appropriate cleaning solution while you clean the unit.

	English	8

Cleanup (continued)

Using the Quick-clean™ Feature:

•Follow these steps ONLY if you used latex-based material AND you have an available garden hose. Otherwise, follow the Optional Cleanup - latex-materials or Optional Cleanup - oil-based materials instructions.

•Make sure you have completed steps 1-5 in Purging the Paint Hose before using the Quick-clean™ feature.

1.Unplug the power cord. Remove the paint container from the unit, and place the unit on its side with the

Quick-clean™ adapter facing up.

The unit should be placed on its side so material will not leak from the Quick-clean™ adapter when the plug is removed.

2.Remove the Quick-clean™ inlet plug from the Quickclean™ adapter. Insert a garden hose into the Quickclean™ adapter. Turn the Quick-clean™ adapter fitting counterclockwise to secure the hose. Make sure the washer stays inside the fitting (a). Place the unit upright.

(a)

3.Hang the roller arm from an empty five-gallon bucket. While holding the suction tube over the five-gallon bucket, slowly turn the garden hose ON. Let the water run through the suction tube and out the roller arm holes until the hose runs clear. Empty bucket as necessary.

4.Turn the garden hose off. Remove suction tube from five-gallon bucket and replace the Quick-clean™ inlet plug. Leave the arm hanging from the bucket.

5.Plug in the power cord. Make sure the paint flow direction switch is set to “paint” position. Turn the variable speed dial to 9. Fully press and

release the handle button, and let unit run until all fluids have been purged from the paint hose. Turn the unit OFF, and unplug the power cord. Properly dispose of the cleaning solution.

6.Thoroughly clean the roller cover, core and cap. Press the quick-release tabs and remove the roller arm

from the handle. Wipe any remaining paint with the appropriate cleaning solution and a damp cloth (do not submerge roller handle!).

9

9	English

Optional Cleanup

Latex materials:

Follow these steps ONLY if you used latex materials and do not have a garden hose available.

1.Elevate roller arm and hang from an empty bucket. The unit must be lower than the arm in order for air to be completely purged from the paint hose (do not submerge roller handle).

* The empty bucket should be larger than the cleaning bucket.

2.Turn variable speed dial to 9. FULLY press and release the handle button, and run a minimum of one gallon of soapy, lukewarm water through the unit (cleaning time may vary depending upon type of paint used).

9

3.While unit is self-cleaning, thoroughly clean the roller cover, core and cap.

4.Remove suction tube from solution, raise unit above handle, and run motor until all cleaning solution is purged from the unit. Turn variable speed dial to 0

(OFF). Unplug power cord.

A light paint film residue may remain in the paint hose after cleaning. This is normal and will not affect the future performance of your unit.

5.Press quick-release tabs and remove the roller arm from the roller handle. Remove any remaining paint with the appropriate cleaning solution and a damp cloth (do not submerge handle!).

Switch the unit OFF (O) prior to removing any accessories or components, and make sure your floors and furnishings are protected from dripping paint.

	English	10

Optional Cleanup

Oil-based materials:

These steps should be followed for use with ONLY oil-based materials.

1.Place roller arm and suction tube in a bucket of mineral spirits.

2.Turn variable speed dial to 9. FULLY press and release the handle button and recirculate one quart of mineral spirits through the unit for approximately 10 minutes (cleaning time may vary depending on type of paint used. Never leave unit running while unattended).

9

3.While unit is self-cleaning, thoroughly clean the roller cover, core and cap with mineral spirits.

4.Repeat steps 1-5 in Optional Cleanup - Latex materials using a half gallon of warm, soapy water to complete the cleaning process.

Steps 1-5 in Optional Cleanup - Latex Materials must be repeated using warm, soapy water in order to purge any remaining mineral spirits from the paint hose. Unpurged mineral spirits can damage the paint hose over time.

11	English

Storage

Cleaning and storage tips:

•Thoroughly cleaning your unit and its components is the best way to ensure the prolonged life of your unit.

•Keep water, paint, and other residues away from the handle button. A clogged handle button will affect the performance of your unit.

•Be sure that your unit is free from all fluids before storage. After storing your unit in extreme cold temperatures, allow unit to reach room temperature before using.

•When storing your unit, be sure the paint hose is stored in a large loop without any kinks. If it is bent, it could be damaged.

Maintenance:

The areas on the roller handle and the extension indicated below must be cleaned thoroughly and lubricated after each use. all paint should be removed from the areas highlighted in gray below, especially the quick-release tabs and all other areas that connect with other parts. This can be done by using

the appropriate cleaning solution and an old toothbrush (do not submerge roller handle!).

(Extension)

(Handle)

Connecting	Quick-	Connecting	Quick-
area	release	area	release
	tabs		tabs

In addition to thoroughly cleaning your unit after every use, you must clean and lubricate the areas on the arm (a, b, c), extension (d), and the Quick-clean™ inlet plug O-rings (e) indicated below. Use a thin layer of petroleum jelly to lubricate the indicated areas.

important: do not attempt to remove the Quickclean™ inlet plug O-rings, and make sure not to lose the Quick-clean™ inlet washer.

(c)

(a)

(b)

(d)

(e)

English	12
