User’s Guide
207/215
Type B
This houshold sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the following:
Read all instructions before using this household sewing machine.
DANGER - To reduce the risk of electric shock:
•A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet immediately after using and before cleaning.
•Always unplug before relamping. Replace bulb with same type rated 15 Watt.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:
•This sewing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the sewing machine by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the sewing machine.
•Use this sewing machine only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual.
•Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
•Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
•Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
•Always use the proper needle plate. The wrong plate can cause the needle to break.
•Do not use bent needles.
•Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
•Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc.
•Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.
•Never drop or insert any object into any opening.
•Do not use outdoors.
•Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
•To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
SAVE THESE INSTRUCTIONS
For the USA and Canada
This sewing machine has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.
TABLE OF CONTENTS
SECTION 1
ESSENTIAL PARTS
Names of Parts |
2 |
SECTION 2
GETTING READY TO SEW
Extension Table |
3 |
Standard Accessories and |
|
Storage Place |
4 |
Connecting the Machine to the |
|
Power Supply |
5 |
Foot Control |
5 |
Sewing Light |
6 |
To Attach and Remove the |
|
Presser Foot |
6 |
Changing Needles |
7 |
Thread and Needle Chart |
7 |
Setting Spool Pins |
8 |
Removing or Inserting the |
|
Bobbin Case |
8 |
Winding the Bobbin |
9 |
Threading Bobbin Case |
10 |

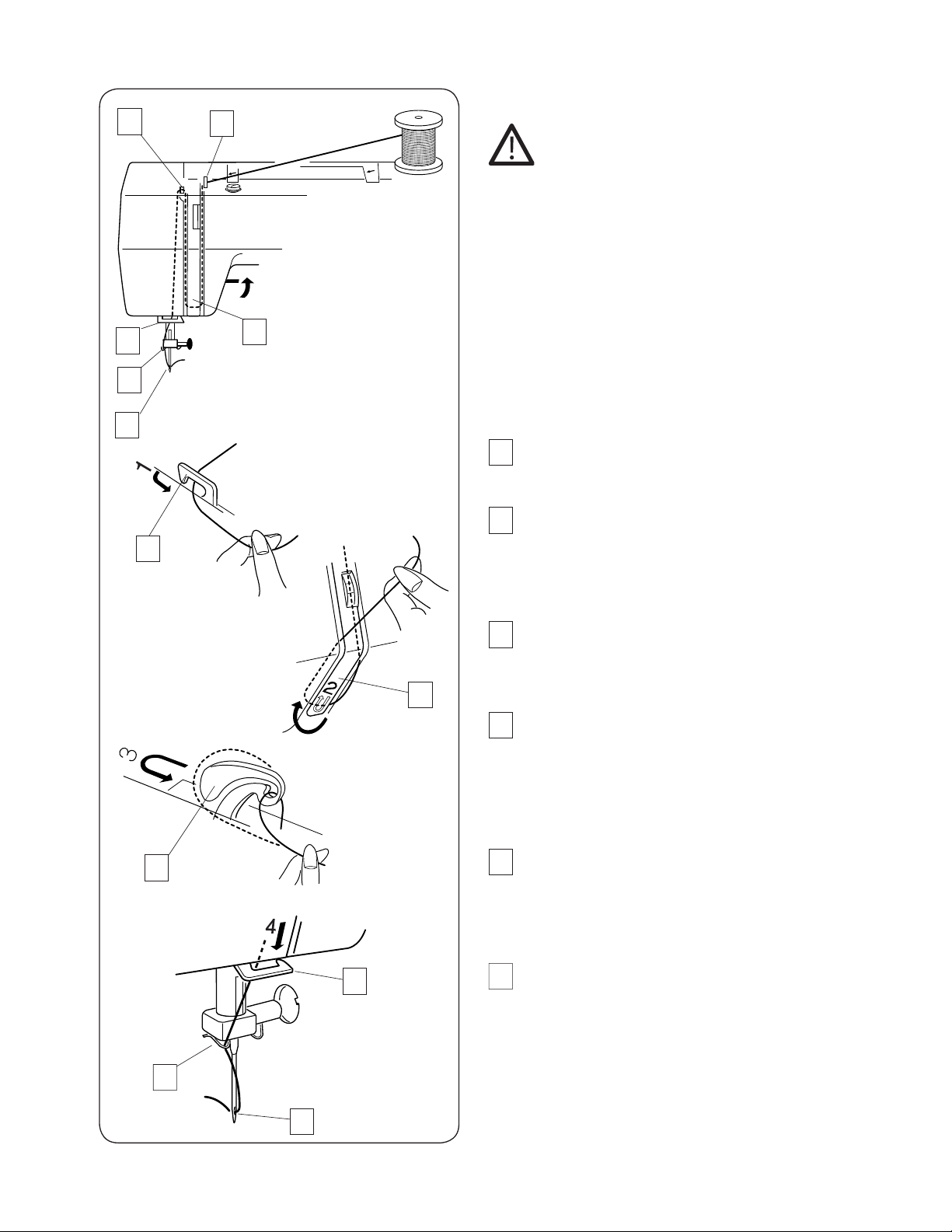

Threading the Machine |
11 |
Bringing Up Bobbin Thread |
12 |
Balancing Needle Thread |
|
Tension |
13 |
Pattern Selector Dial |
14 |
Stitch Length Dial |
15 |
Stitch Width Dial |
15 |
Reverse Stitch Button |
16 |
Dropping the Feed Teeth |
16 |
Presser Foot Pressure Dial |
16 |
SECTION 3
BASIC SEWING
Straight Stitch Sewing |
17 |
To Change Sewing Direction |
18 |
Using the Seam Guides on |
|
the Needle Plate |
19 |
Turning Square Corners |
19 |
Zigzag Stitching |
20 |
SECTION 4
UTILITY STITCHING

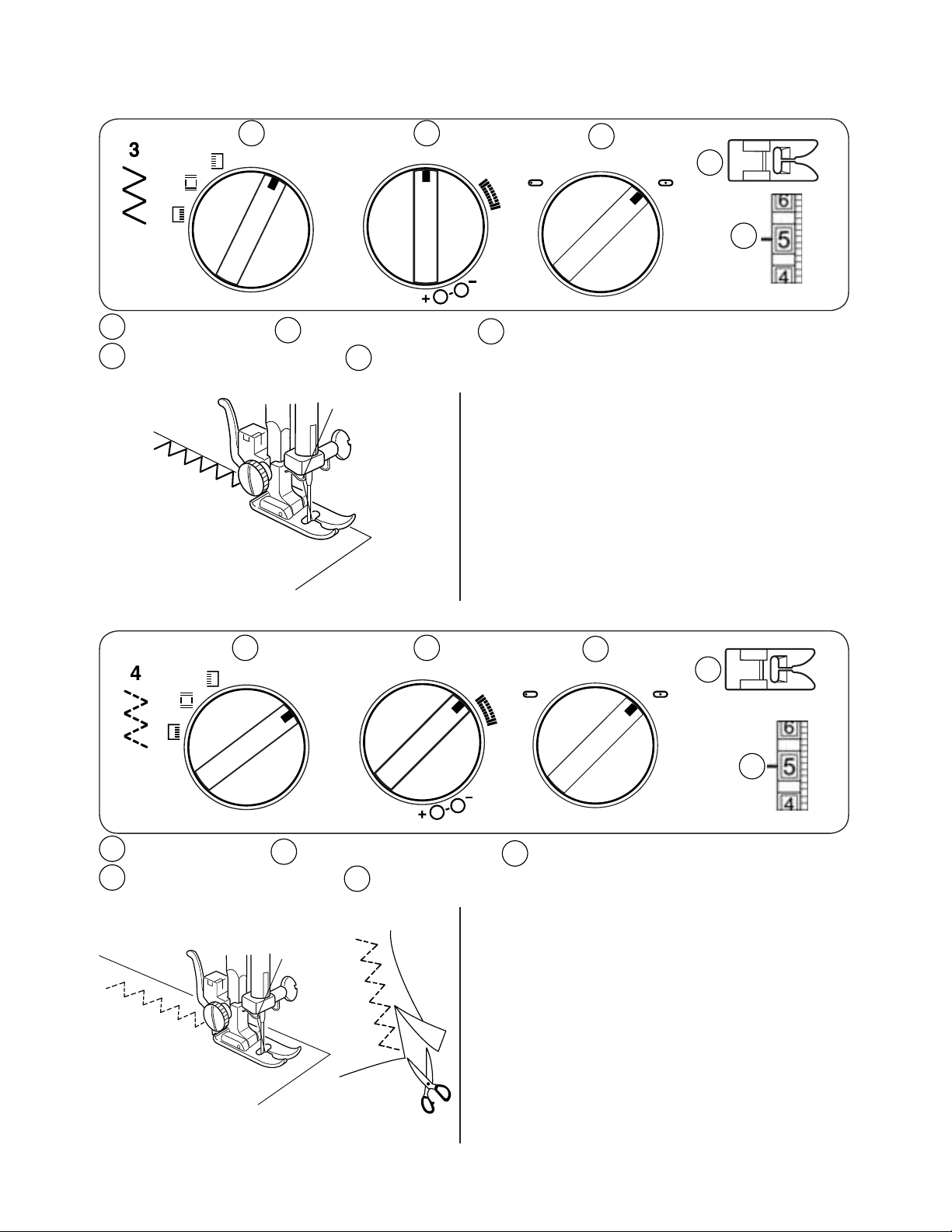

Overcasting |
21 |
Multiple Zigzag |
21 |
Overcast Stitch (Model 215) |
22 |
Reinforced Straight Stitch ( Model 215) |
22 |

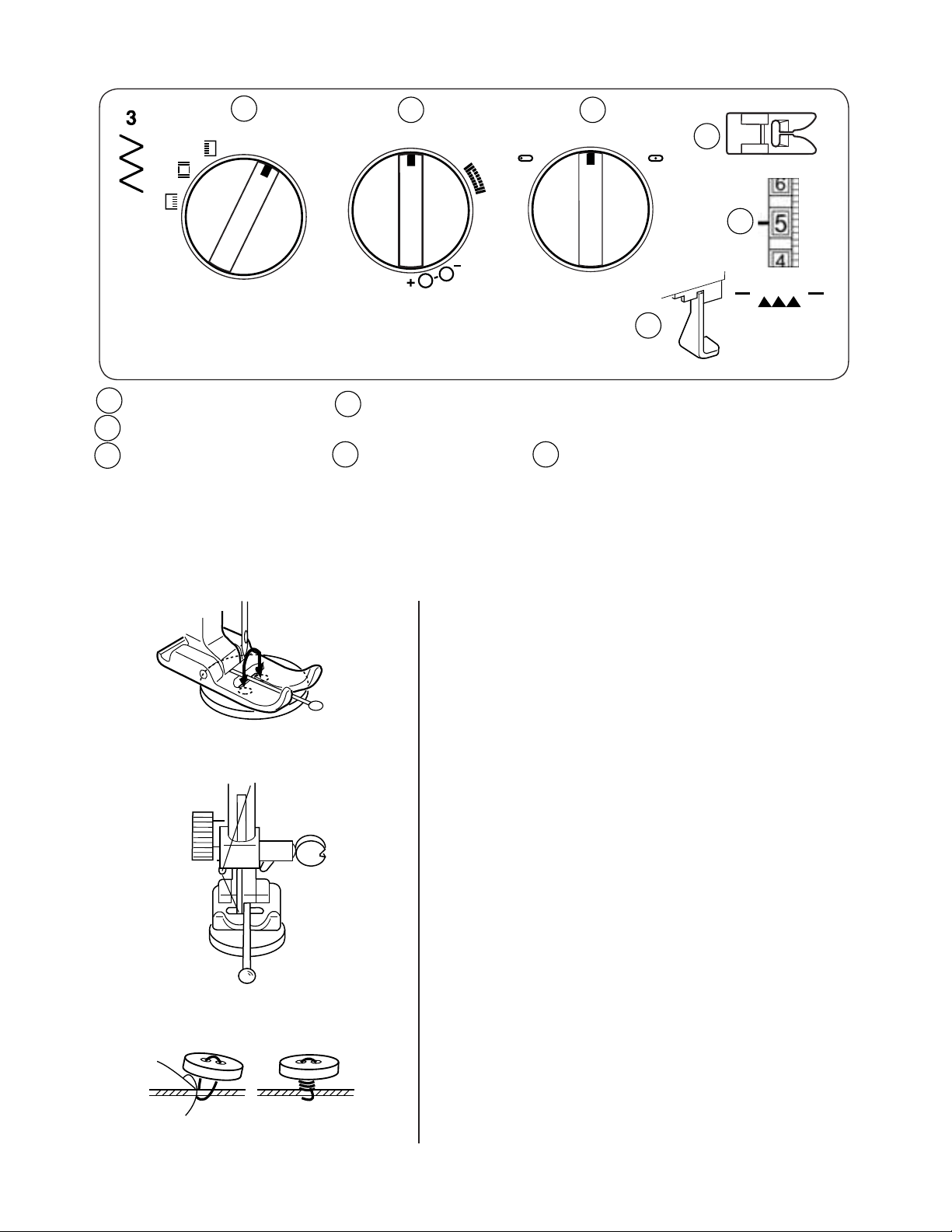

Sewing Buttons |
23 |
Buttonhole |
24-25 |
Corded Buttonhole |
26 |
Zipper Sewing |
27 |
Blind Stitch Hemming |
28 |
SECTION 5
DECORATIVE STITCHING
Shell Tuck |
29 |
Stretch Stitch Patterns (Model 215) |
29 |
Smocking (Model 215) |
30 |
Elastic Casing Stitching (Model 215) |
30 |
Applique |
31 |
Fagoting (Model 215) |
31 |
SECTION 6
CARE OF YOUR MACHINE
Dismantling and Assembling the |
|
Hook Assembly Area |
32 |
Cleaning the Feed Teeth |
33 |
Oiling the Machine |
34 |
Troubleshooting |
35-36 |
1
10
11
12
13
14
15
16
10
11
12
13
14
15
16
19
20
21
SECTION 1 ESSENTIAL PARTS
9 |
8 |
7 |
6 |
5
4
3
2
1
|
|
|
(Model 215) |
|
17 |
7 |
6 |
|
|
||
9 |
8 |
|
|
|
5 |
||
|
|
|
3
2
1
(Model 207)
17 18
24
23
22
2
Name of Parts
1 Reverse stitch button
2 Pattern selector dial
3 Stitch length dial
4 Stitch width dial (for Model 215)
5 Bobbin winder stopper
6 Bobbin winder spindle
7 Spool pins
8 Bobbin winder thread guide
9 Thread guide
10Thread take-up lever
11Thread tension dial
12Face plate
13Presser Foot Pressure dial
14Thread cutter
15Presser foot holder
16Needle plate
17Extension table
18Carrying handle
19Handwheel
20Power switch
21Machine socket
22Needle clamp screw
23Free arm
24Presser foot lifter
SECTION 2 GETTING READY TO SEW
Extension Table
The extension table provides added sewing surface and can be easily removed for free arm sewing.
Detaching the table:
Pull the table away from the machine, as illustrated.
Attaching the table:
Push the extension table until it snaps into the machine.
Advantages and
uses of free arm sewing:
-To avoid fabric bunching around the needle when bartacking to reinforce pockets, plackets and waistbands.
-For stitching sleeves, waistbands, pant legs or any circular garment.
-For darning socks or mending knees, elbows or areas of wear in children's clothes.
Note: Some fabrics have a lot of excess dye which can cause discoloration on other fabric but also on your
sewing machine. This discoloring may be very difÀcult or impossible to remove.
Fleece and denim fabric in especially red and blue often contain a lot of excess dye.
If you suspect that your fabric/ready-to-wear garment contains a lot of excess dye, always pre-wash it before sewing/embroidering to avoid the discoloring.
3
1 |
2 |
3 |
Standard Accessories |
||
and Storage Place |
|||||
|
|
|
|||
|
|
|
1 |
Zipper foot |
|
|
|
|
2 |
Sliding buttonhole foot |
|
4 |
|
5 |
3 |
Hem guide |
|
|
|
|
|||
|
|
|
4 |
Seam ripper |
|
|
|
|
5 |
Large screwdriver |
|
6 |
|
7 |
6 |
Bobbins |
|
|
7 |
Set of needles |
|||
|
|
|
|||
|
|
|
8 |
Oil |
|
|
|
|
9 |
Overcast foot (for Model 215) |
|
|
|
|
10 |
Extension table |
|
8 |
|
9 |
|
|
10
4
|
|
|
Connecting the Machine |
||||
|
|
|
to the Power Supply |
|
|||
|
|
3 |
Before connecting the power cord, |
||||
|
|
make sure the voltage and fre- |
|
||||
|
|
|
|
||||
2 |
|
|
quency shown on the machine |
||||
|
|
conform to your electrical power. |
|||||
|
|
|
|||||
|
|
|
1. Turn off the power switch |
2 . |
|||
|
|
|
2. |
Insert the machine plug 5 |
into |
||
|
1 |
|
|
the machine socket |
4 . |
|
|
|
|
3. Insert the power supply plug 1 |
|||||
|
|
|
|||||
|
|
|
|
into the outlet 3 . |
|
2 |
|
|
|
|
4. Turn on the power switch |
||||
|
|
|
|
to turn on the power and sewing |
|||
|
|
|
|
light. |
|
|
|
|
5 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|
1 |
Power supply plug |
2 |
Power switch |
|
6 |
|
|
3 |
Outlet |
4 |
Machine socket |
|
|
|
|
5 |
Machine plug |
6 |
Foot control |
Foot Control
Sewing speed can be varied by the foot control.
The harder you press on the control, the faster the machine runs.
Foot controller type YC-482J or TJC-150 for use with sewing machine Model 207 and 215 (for USA/Canada only).
5
Sewing Light
The sewing light is located behind the face plate.

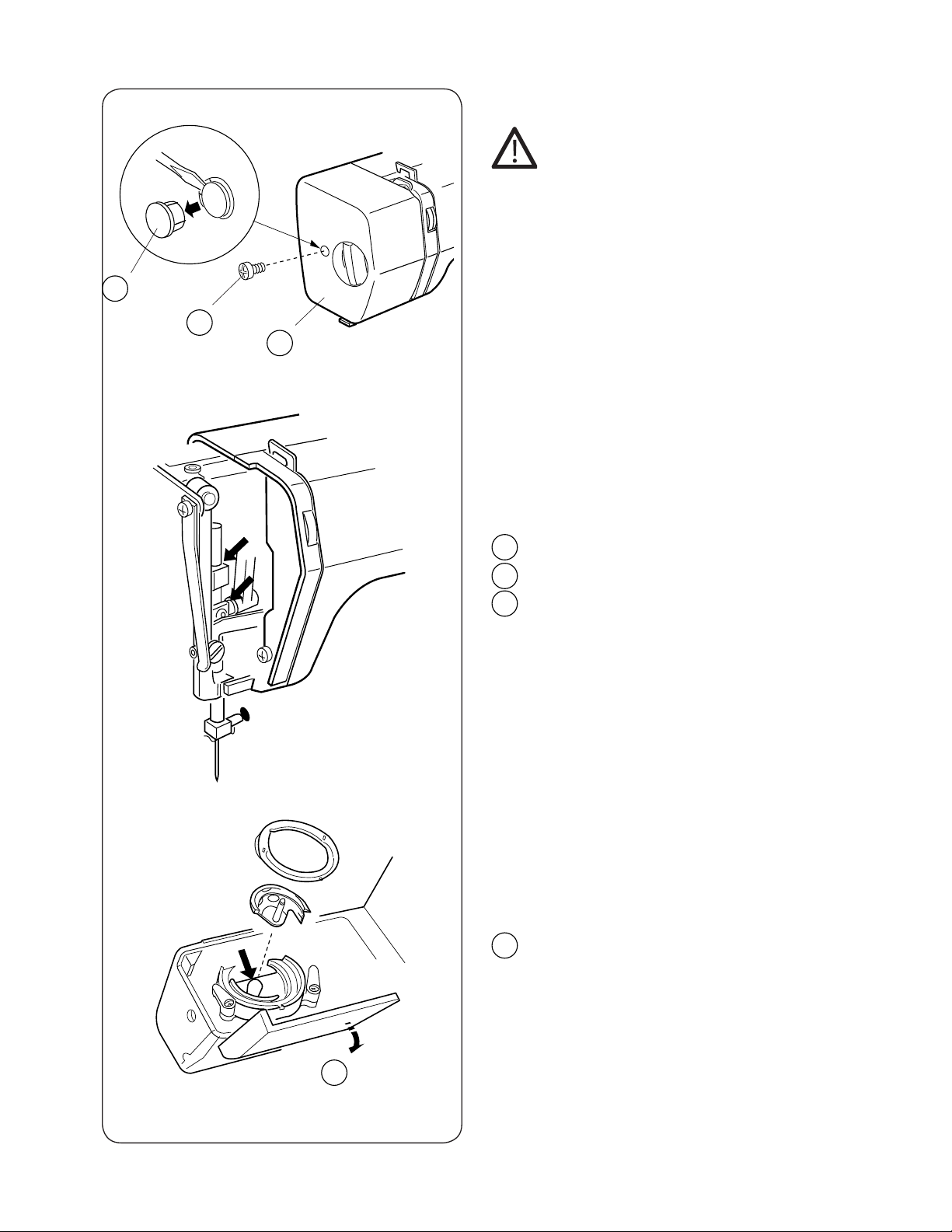

To change the bulb, take the face plate off the sewing machine by removing the set screw.
Unplug the power supply before changing the bulb.
To remove the bulb:
- Push and twist to the left.
To replace the bulb:
- Push and twist to the right.
The maximum power of the light bulb
is 15W.
To Attach and
Remove the Presser Foot
Unplug the power supply before changing the presser foot.
To remove:
Turn the handwheel toward you to raise the needle to its highest position.
Raise the presser foot.
Press the lever on the back of the ankle. The presser foot will drop off.
To attach:
Place the presser foot so the pin on the foot lies just under the groove of the ankle. Lower the ankle to lock the foot in place.
6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Changing Needles |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Switch off the main switch. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Raise the needle by turning the handwheel |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
toward you and lower the presser foot. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Loosen the needle clamp screw by |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
turning it counterclockwise. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Remove the needle from the clamp. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Insert the new needle into the clamp with |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the flat side away from you. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When inserting the needle into the clamp, |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
push it up as far as it will go and tighten the |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
clamp screw firmly with the screwdriver. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: |
Check your needles frequently for barbed or |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
blunted points. Snags and runs in knits, Àne |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
silks and silk-like fabrics are permanent and |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
are almost always caused by a damaged needle. |
||||
Thread and Needle Chart |
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Fabric |
|
Cotton |
|
|
Silk |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
Needle Size |
|
Thread Size |
|
|
Thread Size |
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
No. 60 (#7) |
Fine Silk |
|
|
|
|
|
|
|
|||||||||||||||||||
No. 70 (#10) |
Crepe de chine |
|
70 - 80 |
|
|
100 - 140 |
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
No. 80 (#12) |
Poplin |
|
50 - 60 |
|
|
80 - 100 |
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Pure Silk |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
No. 80-90 (#12-14) |
Broadcloth |
|
40 - 50 |
|
|
60 - 70 |
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Cotton |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
No. 90-100 (#14-16) |
Wool |
|
30 - 40 |
|
|
50 - 60 |
|
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
No. 90-110 (#14-18) |
Denim |
|
30 |
|
|
45 - 50 |
|
|
|||||||||||||||||||
Stretch Needle |
Tricot |
|
70 - 80 |
|
|
100 - 140 |
|
|
|||||||||||||||||||
No. 70 (#10) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
|
|
|
|
Setting Spool Pins |
|
The spool pins are used for holding the |
|
spool of thread to feed thread to the |
|
machine. To use, pull up the spool pin. |
|
Push down for storage. |
2 |
1 Upper thread 2 H o l e 3 Tangle |
1 |
|
1 |
|
3 |
NOTE: When using thread which has a tendency to |
tangle around the spool pin,thread through the |
|
|
hole of spool pin as shown.The hole should face |
|
the thread spool. |
|
Removing or |
|
Inserting the Bobbin Case |
|
Switch off the main switch. |
|
Open the hook cover. |
1 |
Hook cover |
|
|
|
1 |
|
Raise the needle by turning the handwheel |
|
toward you. |
|
Take out the bobbin case by holding the |
|
latch. |
|
Latch |
|
2 |
2 |
|
3 |
When inserting the bobbin case, place the |
|
finger into the recess of the hook race area. |
|
Finger |
|
3 |
8
Winding the Bobbin
1
1 Pull the handwheel out to disengage.
2 Draw the thread from the spool. Guide the thread around the bobbin winder thread guide.
3 |
3 Insert the thread through the hole in the |
|
|
bobbin from the inside to the outside. |
|
2 |
Put the bobbin on the bobbin winder |
|
spindle. |
||
|
5
|
|
|
|
|
|
|
|
|
|
4 |
Push it to the right. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
|
5 |
With the free end of the thread held in |
|
|
|
|
|
||
|
|
|
|||
|
|
|
|
|
your hand, depress the foot control. Stop |
6 |
|
|
|
|
the machine when it has made a few |
|
|
|
|
turns, and cut the thread close to the |
hole in the bobbin.
6 Depress the foot control again. When the bobbin is fully wound, stop the machine. Return the bobbin winder spindle to its original position by moving the spindle to the left, and cut the thread.
7 Push the handwheel to the left to re-en- gage. (original position).
7
NOTE: Return the bobbin winder spindle to the left when the machine stops.
9
1
2
3
Threading Bobbin Case
1Place the bobbin into the bobbin case. Make sure the thread unwinds in the direction of arrow (clockwise).
2 Pull the thread into the bobbin case slot.
3Draw the thread under the tension spring and into the delivery eye.
NOTE: Leave about 10 cm (4") of free thread.
10
