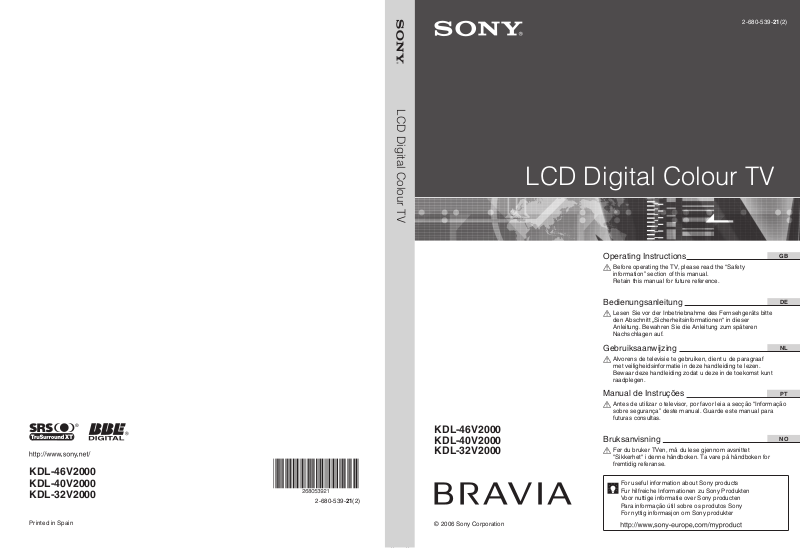

Sony KDL-40V2000, KDL-32V2000, KDL-46V2000 User Manual

0 (0)

2-680-539-21(2)

TV Colour Digital LCD

LCD Digital Colour TV

KDL-46V2000

KDL-40V2000

KDL-32V2000

KDL-46V2000

KDL-40V2000

KDL-32V2000

2-680-539-21(2)

Printed in Spain


Operating Instructions			GB
Before operating the TV, please read the “Safety
information” section of this manual.
Retain this manual for future reference.
Bedienungsanleitung
			DE

Lesen Sie vor der Inbetriebnahme des Fernsehgeräts bitte den Abschnitt „Sicherheitsinformationen“ in dieser Anleitung. Bewahren Sie die Anleitung zum späteren Nachschlagen auf.

Gebruiksaanwijzing

Alvorens de televisie te gebruiken, dient u de paragraaf met veiligheidsinformatie in deze handleiding te lezen. Bewaar deze handleiding zodat u deze in de toekomst kunt raadplegen.

Manual de Instruções

Antes de utilizar o televisor, por favor leia a secção “Informação sobre segurança” deste manual. Guarde este manual para futuras consultas.

Bruksanvisning

Før du bruker TVen, må du lese gjennom avsnittet "Sikkerhet" i denne håndboken. Ta vare på håndboken for fremtidig referanse.

For useful information about Sony products

Fur hilfreiche Informationen zu Sony Produkten

Voor nuttige informatie over Sony producten

Para informação útil sobre os produtos Sony

For nyttig informasjon om Sony produkter

WARNING

•To prevent the risk of electric shock, if the mains lead or plug is damaged, do not insert the plug into the mains socket outlet. This plug cannot be used and should be destroyed.

•To prevent the risk of fire or electric shock, do not expose the TV set to rain or moisture.

•Dangerously high voltages are present inside the TV set. Do not open the cabinet. Refer servicing to qualified personnel only.

Notice for Digital TV function

•Any functions related to Digital TV () will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive a DVB-T signal where you live.

•Although this TV set follows DVB-T specifications, compatibility with future DVB-T digital terrestrial broadcasts cannot be guaranteed.

•Some Digital TV functions may not be available in some countries.

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

• is a registered trademark of the DVB Project

•Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

•TruSurround XT, SRS and (z) symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

•	HDMI, the HDMI logo and
	High-Definition Multimedia
	Interface are trademarks or registered trademarks of
	HDMI Licensing, LLC.

•The illustrations used in this manual are of the KDL32V2000 unless otherwise state.

2 GB

Table of Contents

Start-up Guide	4

Safety information .....................................................................................................................	7
Precautions .............................................................................................................................	10
Overview of the remote ........................................................................................................	11
Overview of the TV buttons and indicators ........................................................................	12

Watching TV
Watching TV............................................................................................................................	13
Checking the Digital Electronic Programme Guide (EPG) .............................................	15
Using the Favourite list ..................................................................................................	17
Viewing pictures from connected equipment ..........................................................................	18

Using MENU Functions
Navigating through menus ......................................................................................................	19
Picture menu ...........................................................................................................................	20	GB
	20
Sound menu............................................................................................................................	22
Screen menu...........................................................................................................................	24
Set-up menu............................................................................................................................	25
PC Settings menu ...................................................................................................................	27
Analogue Set-up menu (Analogue mode only) .......................................................................	28
Digital Set-up menu .......................................................................................................	31

Using Optional Equipment
Connecting optional equipment...............................................................................................	33

Additional Information
Specifications ..........................................................................................................................	36
Troubleshooting ......................................................................................................................	38
Index .......................................................................................................................................	40

: for digital channels only

3 GB

Start-up Guide


1: Checking the		2: Connecting an aerial/
accessories		VCR

Remote RM-ED005 (1)

Size AA batteries (R6 type) (2) Mains lead (Type C-6) (1)

Connecting an aerial only

Coaxial cable (supplied)

Coaxial cable (1)

Cable holder (1)

Support belt (1) and screws (2)

To insert batteries into the remote

Notes

•Observe the correct polarity when inserting batteries.

•Dispose of batteries in an environmentally friendly way. Certain regions may regulate disposal of the battery. Please consult your local authority.

•Do not use different types of batteries together or mix old and new batteries.

•Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.

•Do not place the remote in a location near a heat source, or in a place subject to direct sunlight, or in a damp room.

Mains lead (supplied)

Connecting an aerial and VCR

Mains lead

(supplied)

RF lead (not supplied)

Scart lead (not supplied)

VCR

4 GB

Sony KDL-40V2000, KDL-32V2000, KDL-46V2000 User Manual

3: Bundling the cables	5: Selecting the
	language and country/
	region
	2	1
		1

	2
4: Preventing the TV
from toppling over	3,4
	3,4
	1 Connect the TV to your mains socket (220-
	240V AC, 50Hz).
	2 Press 1 on the TV (top side).
	When you switch on the TV for the first time, the
	Language menu appears on the screen.
	When the TV is in standby mode (the 1 (standby)
	indicator on the TV (front) is red), press "/1 on
	the remote to switch on the TV.

Guide up-Start

Continued

5 GB

3 Press F/f to select the language displayed on the menu screens, then press .

Before you start auto-tuning the TV, insert a pre-recorded tape into the VCR connected to the TV (page 4) and start play back.

The video channel will be located and stored on the TV during auto-tuning.

If no VCR is connected to the TV, this procedure is not required. Go to step 2.

Select “OK”, then press .

4 Press F/f to select the country/region in which you will operate the TV, then press .

If the country/region in which you want to use the TV does not appear in the list, select “-” instead of a country/region.

The message confirming the TV start auto-tuning appears on the screen, then go to “6: Auto-tuning the TV”.

6: Auto-tuning the TV

The TV will now search for and store all available TV channels.

The TV starts searching for all available digital channels, followed by all available analogue channels. This may take some time, please be patient and do not press any buttons on the TV or remote.

If a message appears for you to confirm the aerial connections

No digital or analogue channels were found. Check all the aerial connections and press to start auto-tuning again.

When the Programme Sorting menu appears on the screen, follow the steps of “Programme Sorting” (page 28).

If you do not wish to change the order in which the analogue channels are stored on the TV, go to step 4.

Press MENU to exit.

The TV has now tuned in all the available channels.

6 GB

Safety information

Mains lead

• Unplug the mains lead when moving the TV

set. Do not move the TV set with the mains

lead plugged in. It may damage the mains lead

and result in fire or electric shock.

• If you damage the mains lead, it may result in fire or electric shock.

– Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken, causing a short-circuit, which may cause fire or electric shock.

– Do not modify or damage the mains lead.

– Do not put anything heavy on the mains lead. Do not pull the mains lead.

–Keep the mains lead away from heat sources.

–Be sure to grasp the plug when disconnecting the mains lead.

•If the mains lead is damaged, stop using it and ask your dealer or Sony service centre to exchange it.

•Do not use the supplied mains lead on any other equipment.

•Use only an original Sony mains lead, not other brands.

Mains lead/cable protection

Pull out the mains lead/cable by the plug. Do not pull on the mains lead/cable itself.

Mains

Do not use a poor fitting mains socket. Insert the plug fully into the mains socket. A poor fit may cause arcing and result in fire.

Contact your electrician to have the mains socket changed.

For the TV set with a three-wire grounding type AC mains plug

This TV set must be connected to an AC mains socket with a protective earthing connection.

Optional accessories

Observe the following when installing the TV set using a wall-mount bracket. If you do not do so, the TV set may fall and cause serious injury.

•It is strongly recommended that you use Sony accessories for safety reasons:

–KDL-46V2000/KDL-40V2000:

Wall-mount bracket SU-WL51

–KDL-32V2000:

Wall-mount bracket SU-WL31

•It is strongly recommended that you use the official Sony wall-mount bracket to allow adequate air circulation and to avoid dust build up around the TV, wall and ceiling.

•Secure the TV set properly, following the instructions supplied with your wall-mount bracket when installing the TV set.

Installation

• If the TV set is to be installed on a wall, have the installation carried out by qualified service men. Improper installation may render the TV set unsafe.

•The TV should be installed near an easily accessible mains socket.

Medical institutions

Do not place this TV set in a place where medical equipment is in use. It may cause malfunction of medical instruments.

Carrying

• Before carrying the TV set, disconnect all the cables from the TV set.

•When you carry the TV set by hand, hold the TV set as illustrated on the

right. If you do not do so, the TV set may fall and be damaged or cause serious injury. If the TV set has been dropped or damaged, have it checked immediately by qualified service personnel.

•When transporting it, do not subject the

TV set to jolts or excessive vibration. The TV set may fall and be damaged or cause serious injury.

•When you carry the TV set in for repair or when you move it, pack it using the original carton and packing material.

•Carrying the TV set requires two or more people.

Ventilation

• Never cover the ventilation holes in the cabinet. It may cause overheating and result in fire.

•Unless proper ventilation is provided, the TV set may gather dust and get dirty. For proper ventilation, observe the following:

–Do not install the TV set turned backwards or sideways.

–Do not install the TV set turned over or upside down.

–Do not install the TV set on a shelf or in a closet.

–Do not place the TV set on a rug or bed.

–Do not cover the TV set with cloth, such as curtains, or items such as newspapers, etc.

Continued

7 GB

•Leave some space around the TV set. Otherwise, aircirculation may be inadequate and cause overheating, which may cause fire or damage to the TV set.

30 cm

10 cm

15 cm

Leave at least this much space.

•When installing the TV set on the wall, leave at least

10 cm space from the bottom, and at least 5.5 cm between the back of the TV set and the wall.

•Never install the TV set as follows:

Air circulation	Air circulation
is blocked.	is blocked.

Wall

Ventilation holes

Do not insert anything in the ventilation holes. If metal or liquid is inserted in these holes, it may result in fire or electric shock.

Placement

• Never place the TV set in hot, humid or excessively dusty places.

• Do not install the TV set where insects may enter.

•Do not install the TV set where it

may be exposed to mechanical vibration.

•Place the TV set on a stable, level surface.

Otherwise, the TV set may fall and cause injury.

• Do not install the TV set in a location where it may protrude, such as on or behind a pillar, or where you might bump your head on it. Otherwise, it may result in injury.

Water and moisture

• Do not use this TV set near water

– for example, near a bathtub or shower room. Also do not expose to rain, moisture or smoke. This

may result in fire or electric shock.

• Do not touch the mains lead and the TV set with wet hands. Doing so may cause electric shock or damage to the TV set.

Moisture and flammable objects

• Do not let this TV set get wet. Never spill liquid of any kind on the TV set.

If any liquid or solid object does fall through openings in the cabinet, do

not operate the TV set. It may result in electric shock or damage to the TV set. Have it checked immediately by qualified service personnel.

•To prevent fire, keep flammable objects (candles, etc.) and electric bulbs away from the TV set.

Oils

Do not install this TV set in restaurants that use oil. Dust absorbing oil may enter and damage the TV set.

Fall

Place the TV set on a secure, stable stand. Do not hang anything on the TV set. If you do, the TV set may fall from the stand or wallmount bracket, causing damage or serious injury.

Do not allow children to climb on the TV set.

Vehicle or ceiling

Do not install this TV set in a vehicle. The motion of the vehicle may cause the TV set to fall down and cause injury. Do not hang this TV set from the ceiling.

Ships and other vessels

Do not install this TV set on a ship or other vessel. If the TV set is exposed to seawater, it may cause fire or damage the TV set.

Outdoor use

• Do not expose the TV set to direct sunlight. The TV set may heat up and this may result in damage to the TV set.

•Do not install this TV set outdoors.

Wiring

•Unplug the mains lead when wiring cables. When hooking up, be sure to unplug the mains lead for your safety.

•Take care not to catch your feet on the cables. It may damage the TV set.

Cleaning

• Unplug the mains lead when cleaning the mains plug and this TV set. If you do not, it may result in electric shock.

• Clean the mains plug regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in fire.

8 GB

Lightning storms

For your own safety, do not touch any part of the TV set, mains lead, or aerial lead during lightning storms.

Damage requiring service

If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

Servicing

Do not open the cabinet. Entrust the TV set to qualified service personnel only.

Small accessories removal and fittable

Keep accessories out of children’s reach. If they are swallowed, choking or suffocation may occur. Call a doctor immediately.

Broken pieces

Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

When not in use

For environmental and safety

reasons, it is recommended that

the TV set is not left in standby when unused. Disconnect from

the mains. However, some TV

sets may have features which need the TV set to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

Viewing the TV

•To view the TV comfortably, the recommended viewing position is from four to seven times the screen’s vertical length away from the TV set.

•View the TV in moderate light, as viewing the TV in poor light strains your eyes. Watching the screen continuously for long periods of time can also strain your eyes.

•If the angle of the TV set is to be adjusted, steady the base of the stand with your hand to prevent the TV set from becoming separated from the stand. Be careful not to get your fingers caught between the TV set and the stand.

Volume adjustment

•Adjust the volume so as not to trouble your neighbours. Sound carries very easily at night time. Therefore, closing the windows or using headphones is suggested.

•When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Overloading

This TV set is designed to operate on a 220–240 V AC supply only. Take care not to connect too many appliances to the same mains socket as this could result in fire or electric shock.

Heat

Do not touch the surface of the TV set. It remains hot, even after the TV set has been turned off for some time.

Corrosion

If you use this TV set near the seashore, salt may corrode metal parts of the TV set and cause internal damage or fire. It may also shorten the life of the TV set. Steps should be taken to reduce the humidity and moderate the temperature of the area where the TV set is located.

Handling

•When lifting the TV set or moving the panel of the TV set, hold it firmly from the bottom.

•For the KDL-46V2000 when lifting

or moving the TV, be sure to hold the panel firmly as illustrated. Place your palm directly under the panel, from the rear of the TV.

9 GB

Precautions

LCD Screen

•Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.

•Do not expose the LCD screen surface to the sun. Doing so may damage the screen surface.

•Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD panel may be damaged.

•If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark.

This does not indicate a failure. These phenomena disappear as the temperature rises.

•Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

•The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

•The LCD contains a small amount of liquid crystal and mercury. The fluorescent tube used in this TV set also contains mercury. Follow your local ordinances and regulations for disposal.

Fluorescent lamp

This TV set uses a special fluorescent lamp as its light source. If the screen image becomes dark, flickers, or does not appear, the fluorescent lamp has worn out and the LCD screen should be replaced. For replacement, consult qualified service personnel.

Installing the TV set

•Do not install the TV set in places subject to extreme temperature, for example in direct sunlight, or near a radiator, or heating vent. If the TV set is exposed to extreme temperature, the TV set may overheat and cause deformation of the casing or cause the TV set to malfunction.

•The TV set is not disconnected from the mains when the TV set is switched off. To disconnect the TV set completely, pull the plug from the mains.

•To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed down from the ceiling.

•Do not install optional components too close to the TV set. Keep optional components at least 30 cm away from the TV set. If a VCR is installed in front of the TV set or beside the TV set, the picture may become distorted.

•Picture distortion and/or noisy sound may occur if the TV set is positioned in close proximity to any equipment emitting electromagnetic radiation.

Handling and cleaning the screen surface/cabinet of the TV set

To avoid material degradation or screen coating degradation, observe the following precautions.

•Do not push on the screen, scratch it with a hard object, or throw anything at it. The screen may be damaged.

•Do not touch the display panel after operating the TV set continuously for a long period as the display panel becomes hot.

•We recommend that the screen surface be touched as little as possible.

•To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

•Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

•The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

10 GB

Overview of the remote

1 "/1 – TV standby

Switches off the TV temporarily and on from standby mode.

2 A/B – Dual Sound (page 23)

3 Coloured buttons

Selects the options at the bottom of the Favourite and EPG digital menus.

4 / – Info / Text reveal

• In digital mode: Displays brief details of the programme currently being watched.

• In analogue mode: Displays information such as current channel number and screen mode.

• In Text mode (page 14): Reveals hidden information (e.g., answers to a quiz).

5 F/f/G/g/ (page 13, 19) 6 TOOLS (page 14, 18, 35)

Enables you to access various viewing options and change/make adjustments according to the source and screen mode.

7 MENU (page 19)

8 DIGITAL – Digital mode (page 13)

9 Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter the second digit within two seconds.

• In Text mode: Enters the three digit page number to select the page.

0 – Previous channel

Returns to the previous channel watched (for more than five seconds).

qa PROG +/- (page 13)

• In TV mode: Selects the next (+) or previous (-) channel.

• In Text mode: Selects the next (+) or previous (-) page. qs 2 +/- – Volume

qd % – Mute (page 13) qf /– Text (page 14)

qg ANALOG – Analogue mode (page 13)

qh		/ RETURN
	Returns to the previous screen of any displayed menu.
qj		– EPG (Digital Electronic Programme Guide) (page 15)
qk		– Picture freeze (page 14)


	Freezes the TV picture.
ql		– Screen mode (page 14)
w;		/ – Input select / Text hold
	• In TV mode (page 18): Selects the input source from equipment connected
		to the TV sockets.
	• In Text mode (page 14): Holds the current page.

Tip

The A/B, PROG + and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV.

11 GB

Overview of the TV buttons and indicators

1	(page 19)
2	/ – Input select/OK

• In TV mode (page 18): Selects the input source from equipment connected to the TV sockets.

• In TV menu: Selects the menu or option, and confirm the setting.

3 2 +/-/ /

•	Increases (+) or decreases (-) the volume.
•	In TV menu: Moves through the options left
	( ) or right ( ).

4 PROG +/-/ /

• In TV mode: Selects the next (+) or previous

(-) channel.

• In TV menu: Moves through the options up

( ) or down ( ).

5 1 – Power

Switches the TV on or off.

– Picture Off/Timer indicator

• Lights up in green when the picture is

switched off (page 26).

• Lights up in orange when the timer is set

(page 25).

7 1 – Standby indicator

Lights up in red when the TV is in standby mode.

8 " – Power indicator

Lights up in green when the TV is switched on.

9 Remote control sensor

Note

Make sure that the TV is completely switched off before unplugging the mains lead. Unplugging the mains lead while the TV is turned on may cause the indicator to remain lit or may cause the TV to malfunction.

12 GB

Watching TV

2 2

1 Press 1 on the TV (top side) to switch on the TV.

When the TV is in standby mode (the 1 (standby) indicator on the TV (front) is red), press "/1 on the remote to switch on the TV.

2 Press DIGITAL to switch to digital mode or ANALOG to switch to analogue mode.

The channels available vary depending on the mode.

3 Press the number buttons or PROG +/- to select a TV channel.

	To select channel numbers 10 and above using the
	number buttons, enter the second and third digits
	within two seconds.
	within two seconds.
	To select a digital channel using the Digital					Watching
	following icons may be indicated on the banner.					Watching
	Electronic Programme Guide (EPG), see page 15.
	In digital mode
	An information banner appears briefly. The
:				Radio service		TV
:				Radio service
			:	Scrambled/Subscription service
			:	Scrambled/Subscription service
		:		Multiple audio languages available


			:	Subtitles available
			:	Subtitles available
			: Subtitles available for the hearing impaired
			: Recommended minimum age for current
			: Recommended minimum age for current
				programme (from 4 to 18 years)
:				Parental Lock
				: Current programme is being recorded
				: Current programme is being recorded
Additional operations

To					Do this

Turn off the TV					Press "/1.
temporarily
(Standby mode)

Turn on the TV					Press %. Press 2 +/- to set the
from Standby mode					volume level.
without sound

Turn off the TV					Press 1 on the TV (top side).
completely

Adjust the volume					Press 2 + (increase)/
					- (decrease).

Mute the sound					Press %. Press again to restore.

Access the					Press . To select an analogue
Programme index					channel, press F/f, then press
table (in analogue					.
mode only)					To access the Input signal index
					table, see page 18.

Continued

13 GB

To access Text

Press /. Each time you press /, the display changes cyclically as follows:

Text t Text over the TV picture (mix mode) t No Text (exit the Text service)

To select a page, press the number buttons or PROG +/-.

To hold a page, press /.

To reveal hidden information, press / .

Tips

•Ensure that the TV is receiving a good signal, or some text errors may occur.

•Most TV channels broadcast a Text service. For information on the use of the service, select the index page.

•When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

Picture Freeze

Freezes the TV picture (e.g. to make a note of a telephone number or recipe).

1	Press	on the remote control.


2	Press F/f/G/g to adjust the position of the
	window.
3	Press	to remove the window.


4	Press	again to return to normal TV


	mode.

To change the screen mode manually to suit the broadcast

Press		to display current screen mode.
Press		repeatedly to select Smart, 4:3, Wide,
Press		repeatedly to select Smart, 4:3, Wide,

Zoom, or 14:9.

Smart*

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Displays conventional 4:3 broadcasts (e.g., non-wide screen TV) in the correct proportions.

Wide

Displays wide screen (16:9) broadcasts in the correct proportions.

Zoom*

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

14:9*

Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

* Parts of the top and bottom of the picture may be cut off.

Tips

•Alternatively, you can set “Auto Format” to “On”. The TV will automatically select the best mode to suit the broadcast (page 24).

•You can adjust the position of the picture when selecting 14:9 or Zoom. Press F/f to move up or down (e.g., to read subtitles).

•Some characters and/or letters at the top and the bottom of the picture may not be visible in Smart mode. In such a case, you can select “Vertical Size” using the “Screen” menu and adjust vertical size to make it visible.

Using the Tools menu

Press TOOLS to display the following options when viewing the TV programme.

Options	Description

Power Saving	See page 26.

Subtitle Setting (in	See page 32.
digital mode only)

Digital Favourites (in	See page 17.
digital mode only)

Picture Mode	See page 20.

Sound Mode	See page 22.

Auto Clock Set (in	Allows you to switch to digital
analogue mode only)	mode and obtain the time.

Sleep Timer	See page 25.

i Volume	See page 23.

14 GB

Checking the Digital Electronic Programme Guide (EPG) *

1 In digital mode, press to display the Digital Electronic Programme Guide (EPG).

2 Perform the desired operation, as shown in the following table.

								Note
								Note
								Programme information will only be displayed if the TV
								Programme information will only be displayed if the TV
Digital Electronic Programme Guide (EPG)								station is transmitting it.

* Please note that this function may not be available in some countries.

To	Do this
Turn off the EPG	Press .

Move through the EPG	Press F/f/G/g.

Watch a current programme	Press		while the current programme is selected.

Sort the programme information by	1	Press the blue button.
category – Category list	2	Press F/f/G/g to select a category. The category name is
		displayed on the side.
		The categories available include:
		“Favourite”: Contains all the channels that have been stored in the
		Favourite list (page 17).
		“All Categories”: Contains all available channels.
		“News”: Contains all news channels.
	3	Press .
		The Digital Electronic Programme Guide (EPG) now only displays the
		current programmes from the category selected.

Set a programme to be recorded – Timer	1	Press		/ /	/ to select the future programme you want to
Set a programme to be recorded – Timer				F f	G g
REC		record.
	2	Press .
	3	Press F/f to select “Timer REC”.
	4	Press		to set the TV and your VCR timers.
		A		symbol appears by that programme’s information. The
		A		symbol appears by that programme’s information. The
		indicator on the TV (front) lights up.

Notes

•You can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.

•Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.

•If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to “Parental Lock” on page 32.

TV Watching

Continued

15 GB

To	Do this
Set a programme to be displayed	1	Press	/	/	/ to select the future programme you want to
Set a programme to be displayed			F f		G g
automatically on the screen when it starts		display.
– Reminder	2	Press .
	3	Press F/f to select “Reminder”.
	4	Press		to automatically display the selected programme
		when the programme starts.
		A c symbol appears by that programme’s information.

Note

If you switch the TV to standby mode, it will automatically turn itself on when the programme is about to start.


Set the time and date of a programme you	1	Press .
want to record – Manual timer REC	2	Press F/f to select “Manual timer REC”, then press .
	3	Press F/f to select the date, then press g.
	4	Set the start and stop time in the same way as in step 3.
	5	Press F/f to select the programme, then press		to set the
		TV and your VCR timers.
		A	symbol appears by that programme’s information. The
		A	symbol appears by that programme’s information. The
		indicator on the TV (front) lights up.

Notes

•You can set VCR timer recording on the TV only for Smartlink compatible VCRs. If your VCR is not Smartlink compatible, a message will be displayed to remind you to set your VCR timer.

•Once a recording has begun, you can switch the TV to standby mode, but do not switch off the TV completely or the recording may be cancelled.

•If an age restriction for programmes has been selected, a message asking for pin code will appear on the screen. For more details refer to “Parental Lock” on page 32.

Cancel a recording/reminder – Timer list

1 Press .

2Press F/f to select “Timer list”.

3Press F/f to select the programme you want to cancel, then press .

A display appears to confirm that you want to cancel the programme.

4Press g to select “Yes”, then press to confirm.

Tip

You can also display the Digital Electronic Programme Guide (EPG) by selecting “Digital EPG” in the “MENU” (page 19).

16 GB

Using the Favourite list *

The Favourite feature allows you to select programs from a list of up to 8 channels you specify. To display the Favourite list, see “Navigating through menus” (page 19).

Favourite list

* Please note that this function may not be available in some countries.

To	Do this
Create your Favourite list for the first time	A message appears asking if you want to add channels to the Favourite list
	when you select “Digital Favourites” in the “MENU” for the first time.
	1	Press	to select “Yes”.
	2	Press F/f to select the channel you want to add.
		If you know the channel number, you can use the number buttons to
		directly select a channel.
	3	Press .
		Channels that are stored in the Favourite list are indicated by a
		symbol.


Turn off the Favourite list	Press RETURN.

See brief details on current programmes	Press		while selecting a channel. Press again to cancel.

Watch a channel	Press		while selecting a channel.

Add or remove channels in the Favourite	1	Press the blue button.
list		Channels that are stored in the Favourite list are indicated by a
		symbol.
	2	Press F/f to select the channel you want to add or remove.
		If you know the channel number, you can use the number buttons to
		directly select a channel.
	3	Press .
	4	Press the blue button to return to the Favourite list.

Remove all channels from the Favourite list 1 Press the blue button.

2Press the yellow button.

A display appears to confirm that you want to delete all channels from the Favourite list.

3Press G to select “Yes”, then press to confirm.

TV Watching

17 GB

Viewing pictures from connected equipment

Switch on the connected equipment, then perform one of the following operation.

For equipment connected to the scart sockets using a fully-wired 21-pin scart lead

Start playback on the connected equipment.

The picture from the connected equipment appears on the screen.

For an auto-tuned VCR (page 6)

In analogue mode, press PROG +/-, or the number buttons, to select the video channel.

For other connected equipment

Press / repeatedly until the correct input symbol (see below) appears on the screen.

AV1/ AV1, AV2/ AV2: Audio/video or RGB input signal through the scart socket / 1 or 2. appears only if an RGB source has been connected.

AV3:

Component input signal through the Y, PB/CB, PR/CR sockets /3, and audio input signal through the L, R sockets /3.

AV4:

Digital audio/video signal is input through the HDMI IN 4 socket. Audio input signal is analogue only if the equipment has been connected using the DVI and audio out socket.

AV5/AV5:

Video input signal through the video socket 5, and audio input signal through the L (MONO), R audio sockets 5. appears only if the equipment is connected to the S video socket 5 instead of the video socket 5, and S video input signal is input through the S video socket 5.

Additional operations

Do this

Return to the normal Press DIGITAL or ANALOG. TV operation

Access the Input	Press	to access the Input signal
signal index table	index table. (Then, only in
	analogue mode, press g.) To
	select an input source, press F/f,
	then press		.

Using the Tools menu

Press TOOLS to display the following options when viewing pictures from connected equipment other than PC.

Options	Description

Power Saving	See page 26.

Picture Mode	See page 20.

Sound Mode	See page 22.

Auto Clock Set (in	Allows you to switch to digital
analogue mode only)	mode and obtain the time.

Sleep Timer	See page 25.

i Volume	See page 23.

18 GB

Using MENU Functions

Navigating through menus

“MENU” allows you to enjoy various convenient features of this TV. You can easily select channels or external inputs with the remote. Also, settings for your TV can be changed easily using “MENU”.

1 Press MENU to display the menu.

2,3

		2 Press F/f to select an option.
		3 Press	to confirm a selected option.
		To exit the menu, press MENU.
Menu	Description
Digital Favourites	Launches the Favourite list. For details about settings, see page 17.
(only in areas with
digital broadcasting)
Programme List	Allows you to select TV programs from a list of channel labels.
(only in areas with	•	To watch the desired channel, select the channel, then press .
analogue broadcasting)	•	To assign a label to a program, see page 28.
Analogue	Returns to the last viewed analogue channel.
(only in areas with
digital broadcasting)
Digital	Returns to the last viewed digital channel.
(only in areas with
digital broadcasting)
Digital EPG	Launches the Digital Electronic Programme Guide (EPG).
(only in areas with	For details about settings, see page 15.
digital broadcasting)
External Inputs	Selects equipment connected to your TV.
	•	To watch the desired external input, select the input source, then
		press .
	•	To assign a label to an external input, see page 25.
Settings	Opens the Settings menu screen where most of advanced settings and
	adjustments are performed. Select a menu icon, select an option and make the
	desired change or adjustment using F/f/G/g.

For details about settings, see page 20 to 32.

Functions MENU Using

19 GB

Picture menu

You can select the options listed below on the Picture menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Target Inputs

Selects whether to apply settings made in the Picture menu to all inputs, or only to the input currently being watched.

“All”: Applies settings to all inputs.

“Viewing Only”: Applies settings only to the current input.

Picture Mode

Selects the picture mode.

“Vivid”: For enhanced picture contrast and sharpness.

“Standard”: For standard picture. Recommended for home entertainment. “Custom”: Allows you to store your preferred settings.

Reset

Resets all picture settings except "Picture Mode" and "Target Inputs" to the factory settings.

Backlight	Adjusts the brightness of the backlight.

Contrast	Increases or decreases picture contrast.

Brightness	Brightens or darkens the picture.

Colour	Increases or decreases colour intensity.

Hue	Increases or decreases the green tones.
	Tip
	“Hue” can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).

Colour Temperature	Adjusts the whiteness of the picture.
	“Cool”: Gives the white colours a blue tint.
	“Neutral”: Gives the white colours a neutral tint.
	“Warm1”/“Warm2”: Gives the white colours a red tint. “Warm2” gives a redder tint
	than “Warm1”.
	Tip
	“Warm1” and “Warm2” can only be selected when you set “Picture Mode” to “Custom”.

20 GB

Sharpness	Sharpens or softens the picture.

Noise Reduction	Reduces the picture noise (snowy picture) in a weak broadcast signal.
	“Auto”: Automatically reduces the picture noise (Analogue mode only).
	“High”/“Medium”/“Low”: Modifies the effect of the noise reduction.
	“Off”: Turns off the Noise Reduction feature.

Advanced Settings	Customizes the Picture function in more detail. When you set “Picture Mode” to
	“Custom”, you can set/change these settings.
	“Reset”: Resets all the advanced video settings to the factory settings.
	“Black Corrector”: Enhances black areas of the picture for stronger contrast.
	“Contrast Enhancer”: Automatically adjusts “Contrast” to the most suitable settings
	judging from the brightness of the screen. This setting is especially effective for dark
	images, increasing vibrancy in the picture.
	“Gamma”: Adjusts the balance between bright and dark areas of the picture.
	“Clear White”: Emphasizes white colours.
	“Live Colour”: Makes colours more vivid and reproduces clear skin tones.
	Tip
	This function is only available when "Colour Space" is set to "Wide".
	“Colour Space”: Changes colour range.
	“MPEG Noise Reduction”: Reduces the picture noise in MPEG-compressed video
	(in digital mode only).

Functions MENU Using

21 GB

Sound menu

You can select the options listed below on the Sound menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Target Inputs

Selects whether to apply settings made in the Sound menu to all inputs, or only to the input currently being watched.

“All”: Applies settings to all inputs.

“Viewing Only”: Applies settings only to the current input.

Sound Mode

Selects the sound mode.

“Dynamic”: Enhances treble and bass.

“Standard”: For standard sound. Recommended for home entertainment. “Custom”: Flat response. Also allows you to store your preferred settings.

Reset

Resets the sound settings except “Sound Mode”, “Dual Sound”, “i Speaker Link” and “i Volume” to the factory settings.

Treble	Adjusts higher-pitched sounds.

Bass	Adjusts lower-pitched sounds.

Balance	Emphasizes left or right speaker balance.

Auto Volume	Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend
	to be louder than programmes).

Surround

Selects the surround mode.

“TruSurround XT”: For surround sound (for stereo programmes only). “Simulated Stereo”: Adds a surround-like effect to mono programs. “Off”: For normal stereo or mono reception.

BBE

Gives sound more impact by compensating for phase effects in speakers using the “BBE High Definition Sound System”.

22 GB

Dual Sound	Selects the sound from the speaker for a stereo or bilingual broadcast.
	“Stereo”, “Mono”: For a stereo broadcast.
	“A”/“B”/“Mono”: For a bilingual broadcast, select “A” for sound channel 1, “B” for
	sound channel 2, or “Mono” for a mono channel, if available.
	Tip
	If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.

i Speaker Link	Switches on/off the TV’s internal speakers when headphones are connected.
(headphone speaker
link)

i Volume	Adjusts the volume of the headphones.
(headphone volume)

Tip

“Treble”, “Bass”, “Balance”, “Auto Volume”, “Surround” and “BBE” cannot be used for headphones and audio output sockets.

Functions MENU Using

23 GB

Screen menu

You can select the options listed below on the Screen menu. To select options in “Settings”, see “Navigating through menus” (page 19).

Target Inputs

Selects whether to apply settings made in the Screen menu to all inputs, or only to the input currently being watched.

“All”: Applies settings to all inputs.

“Viewing Only”: Applies settings only to the current input.

Screen Format

For details about the screen format, see “To change the screen mode manually to suit the broadcast” (page 14).

Auto Format

Automatically changes the screen format according to the broadcast signal. To keep your setting, select “Off”.

Tips

•Even if you have selected “On” or “Off” in “Auto Format”, you can always modify the format of the screen by pressing repeatedly.

•“Auto Format” is available for PAL and SECAM signals only.

4:3 Default

Selects the default screen mode for use with 4:3 broadcasts.

“Smart”: Displays conventional 4:3 broadcasts with an imitation wide screen effect. “4:3”: Displays conventional 4:3 broadcasts in the correct proportions.

“Off”: Keeps the current “Screen Format” setting when the channel or input is changed.

Tip

This option is available only if “Auto Format” is set to “On”.

Display Area

Adjusts the screen area displaying the picture. “Normal”: Displays the picture in the original size.

“–1”/“–2”: Enlarges the picture to hide the edge of the picture.

Horizontal Shift	Adjusts the horizontal position of the picture for each screen format.

Vertical Shift	Adjusts the vertical position of the picture when the screen format is set to Zoom or
	14:9.

Vertical Size

Adjusts the vertical size of the picture when the screen format is set to Smart, Zoom or 14:9.

24 GB

Set-up menu

You can select the options listed below on the Set-up menu. To select options in “Settings”, see “Navigating through menus” (page 19).



Auto Start-up	Starts the “first time operation menu” to select the language and country/region, and
	tune in all available digital and analogue channels. Usually, you do not need to do
	this operation because the language and country/region will have been selected and
	channels already tuned when the TV was first installed (page 5, 6). However, this
	option allows you to repeat the process (e.g., to retune the TV after moving house,
	or to search for new channels that have been launched by broadcasters).

Language	Selects the language in which the menus are displayed.

AV Preset	Assigns a name to any equipment connected to the side and rear sockets. The name
	will be displayed briefly on the screen when the equipment is selected. You can skip
	an input source that is not connected to any equipment.
	1	Press F/f to select the desired input source, then press .
	2	Press F/f to select the desired option below, then press .
		Equipment labels: Uses one of the preset labels to assign a name to connected
		equipment.
		“Edit”: Creates your own label. Follow steps 2 to 4 of “Programme Labels”
		(page 28).
		“Skip”: Skips an input source that is not connected to any equipment when you press

to select the input source.

Auto S Video	Selects the input signal from S video sockets	5 when	/ 5 sockets are both
	connected.

Timer Settings	Sets the timer to turn on/off the TV.
	Sleep Timer

Sets a period of time after which the TV automatically switches itself into standby

mode.
When the Sleep Timer is activated, the	(Timer) indicator on the TV (front) lights
up in orange.

Tips

•If you switch off the TV and switch it on again, “Sleep Timer” is reset to “Off”.

•“TV will soon turn off by sleep timer.” appears on the screen one minute before the TV switches to standby mode.

Continued

Functions MENU Using

25 GB

On Timer

Sets the timer to turn on the TV.

“Day”: Selects the day on which you want to activate the On Timer. “Time”: Sets the time to turn on the TV.

“Duration”: Selects the time period after which the TV automatically switches to standby mode again.

“Volume Set-up”: Sets the volume for when the timer turns on the TV.

Clock Set

Allows you to adjust the clock manually. When the TV is receiving digital channels, the clock cannot be adjusted manually since it is set to the time code of the broadcasted signal.

Power Saving

Selects the power saving mode to reduce the power consumption of the TV. When “Picture Off” is selected, the picture is switched off and the (Picture Off) indicator on the TV (front) lights up in green. The sound remains unchanged.

Light Sensor

Automatically optimizes the picture settings according to the ambient light in the room.

AV2 Output

Sets a signal to be output through the socket labelled / 2 on the rear of the TV. If you connect a VCR or other recording equipment to the / 2 socket, you can then record from the equipment connected to other sockets of the TV.

“TV”: Outputs a broadcast.

“AV1”: Outputs signals from equipment connected to the / 1 socket. “AV5”: Outputs signals from equipment connected to the /5 socket. “Auto”: Outputs whatever is being viewed on the screen (except signals from the

/3 and HDMI IN 4 sockets).

Quiet Power On

Sets the volume control at a low level when the TV is first turned on, gradually increasing the sound to a preset level.

Speaker

Switches on/off the TV’s internal speakers.

“On”: The TV speakers are turned on in order to listen to the TV’s sound through TV’s speakers.

“Off”: The TV speakers are turned off in order to listen to the TV’s sound only through your external audio equipment connected to the audio output sockets.

Colour System

Selects the colour system (“Auto”, “PAL”, “SECAM”, “NTSC3.58”, “NTSC4.43”, or “PAL60”) according to the input signal from the input source.

Information	Displays your TV’s system information.

All Reset	Resets all the Set-up settings to the factory settings and then launches the Auto Start-
	up screen.

26 GB

PC Settings menu

You can select the options listed below on the PC Settings menu. To select options in “Settings”, see “Navigating through menus” (page 19).



Screen Format	Selects a screen mode for displaying input from your PC.
	“Normal”: Displays the picture in its original size.
	“Full1”: Enlarges the picture to fill the display area, keeping its original horizontal-
	to-vertical aspect ratio.
	“Full2”: Enlarges the picture to fill the display area.

Reset	Resets the PC settings except “Screen Format” and “Power Management” to the
	factory settings.

Auto Adjustment	Automatically adjusts the display position and phase of the picture when the TV
	receives an input signal from the connected PC.
	Tip
	Auto Adjustment may not work well with certain input signals. In such cases, manually adjust
	“Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift”.

Phase	Adjusts the phase when the screen flickers.

Pitch	Adjusts the pitch when the picture has unwanted vertical stripes.

Horizontal Shift	Adjusts the horizontal position of the picture for each screen format.

Vertical Shift	Adjusts the vertical position of the picture for each screen format.

Power Management	Switches the TV to standby mode if no signal is received for 30 seconds.

Functions MENU Using

27 GB

Analogue Set-up menu (Analogue mode only)

You can change/set the analogue settings using the Analogue Set-up menu. To select options in “Settings”, see “Navigating through menus” (page 19).

1 Digit Direct

When “1 Digit Direct” is set to “On”, you can select an analogue channel using one preset number button (0 - 9) on the remote.

Note

When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above entering two digits using the remote.

Auto Tuning

Tunes in all the available analogue channels.

Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 5, 6). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

Programme Sorting	Changes the order in which the analogue channels are stored on the TV.
	1	Press F/f to select the channel you want to move to a new position,
		then press .
	2	Press F/f to select the new position for your channel, then press .

Programme Labels	Assigns a channel name of your choice up to five letters or numbers. The name will
	be displayed briefly on the screen when the channel is selected. (Names for channels
	are usually taken automatically from Text (if available).)
	1	Press F/f to select the channel you want to name, then press .
	2	Press F/f to select the desired letter or number (“_” for a blank space),
		then press g.
		If you input a wrong character
		Press G/g to select the wrong character. Then, press F/f to select the correct
		character.
		To delete all the characters
		Select “Reset”, then press .
	3	Repeat the procedure in step 2 until the name is complete.
	4	Select “OK”, then press .

28 GB

Manual Programme

Preset

Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Decoder”, press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to skip (page 30).

Programme/System/Channel

Presets programme channels manually.

1Press F/f to select “Programme”, then press .

2Press F/f to select the programme number you want to manually tune (if tuning a VCR, select channel 00), then press RETURN.

3Press F/f to select “System”, then press .

4Press F/f to select one of the following TV broadcast systems, then press G.

B/G: For western European countries/regions

D/K: For eastern European countries/regions

L: For France

I: For the United Kingdom

5Press F/f to select “Channel”, then press .

6Press F/f to select “S” (for cable channels) or “C” (for terrestrial channels), then press g.

7Tune the channels as follows:

If you do not know the channel number (frequency)

Press F/f to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press F/f.

If you know the channel number (frequency)

Press the number buttons to enter the channel number of the broadcast you want or your VCR channel number.

8Press to jump to “Confirm”, then press .

9Press f to select “OK”, then press .

Repeat the procedure above to preset other channels manually.

Label

Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected. To input characters, follow steps 2 to 4 of “Programme Labels” (page 28).

AFT

Allows you to fine-tune the selected programme number manually if you feel that a slight tuning adjustment will improve the picture quality.

You can adjust the fine tuning over a range of -15 to +15. When “On” is selected, the fine tuning is performed automatically.

Audio Filter

Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes.

If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.

Notes

•You cannot receive stereo or dual sound when “Low” or “High” is selected.

•“Audio Filter” is not available when “System” is set to “L”.

Functions MENU Using

Continued

29 GB
