New as of:
This product is covered by one or more of the following US patents:
• US6454629
• US6394880
• US7178731
• US6702649
• US7522764
• US7163443
10.2017
inLab MC XL
Operating Instructions
(not valid for USA)
Operator Manual
English
=
Table of contents Dentsply Sirona
Operating Instructions inLab MC XL
Table of contents
1
2
3
4
5
Dear Customer,........................................................................................................ 5
General data............................................................................................................. 6
2.1 Identification of the danger levels.................................................................. 6
2.2 Formats and symbols used ........................................................................... 7
General description .................................................................................................. 8
3.1 Certification ................................................................................................... 8
3.2 Intended use ................................................................................................. 9
Safety ....................................................................................................................... 10
4.1 Basic safety information ................................................................................ 10
4.1.1 Prerequisites .................................................................................... 10
4.1.2 Maintenance and repair ................................................................... 10
4.1.3 Modifications to the product ............................................................. 10
4.1.4 Accessories...................................................................................... 11
4.2 Opening the processing chamber door during the machining process......... 11
4.3 Wireless phone interference with equipment ................................................ 11
Installation and startup ............................................................................................. 12
5.1 Transport and unpacking .............................................................................. 12
5.2 Disposal of packaging materials ................................................................... 12
5.3 Installation site .............................................................................................. 13
5.3.1 Installation site without strong incidence of light .............................. 13
5.4 Commissioning.............................................................................................. 13
5.4.1 Functional elements ......................................................................... 14
5.4.2 Standard accessories....................................................................... 15
5.4.2.1 Instruments........................................................................ 15
5.4.2.2 Calibration pins.................................................................. 15
5.4.2.3 Torque wrench .................................................................. 16
5.4.3 Display description ........................................................................... 17
5.4.4 Illumination of the processing chamber............................................ 17
5.4.5 Inserting the grinding chamber sieve ............................................... 18
5.4.6 Connecting the bar code reader....................................................... 18
5.4.7 Installation ........................................................................................ 19
5.4.7.1 Connecting to the PC via LAN........................................... 19
5.4.7.2 Connecting the unit to the power supply ........................... 19
5.4.7.3 Installing the unit ............................................................... 19
5.4.8 Filling the water tank ........................................................................ 20
61 39 237 D 3439
2 D 3439.201.01.24.02 10.2017
Dentsply Sirona Table of contents
Operating Instructions inLab MC XL
5.4.9 Switching the unit ON and OFF....................................................... 21
5.5 Repacking .................................................................................................... 23
5.6 Scope of supply............................................................................................ 23
5.7 Storage......................................................................................................... 23
6
7
Operation................................................................................................................. 24
6.1 Configuration (inLab MC XL)........................................................................ 24
6.2 Calibrating the unit ....................................................................................... 25
6.3 Production process....................................................................................... 27
6.3.1 Process types.................................................................................. 27
6.3.1.1 Grinding............................................................................ 28
6.3.1.2 Milling ............................................................................... 28
6.3.1.3 Milling models................................................................... 30
6.3.1.4 Permitted instrument combinations .................................. 30
6.3.2 Preparations.................................................................................... 31
6.3.3 Starting the machining processes ................................................... 31
6.3.4 Ending the machining processes .................................................... 32
6.3.5 Information on the seal of approval................................................. 33
6.4 Entering the bar code................................................................................... 33
6.5 Manual block clamp...................................................................................... 34
Service..................................................................................................................... 36
7.1 Changing the water ...................................................................................... 37
7.1.1 General information......................................................................... 37
7.1.2 Changing the water ......................................................................... 38
7.1.2.1 Procedure for all materials except for base metals .......... 38
7.1.2.2 Procedure for processing base metal materials ............... 39
bеЦдблЬ
7.2 Instruments................................................................................................... 42
7.2.1 Overview of materials/instruments .................................................. 42
7.2.2 Changing instruments ..................................................................... 42
7.3 Care, cleaning agents, and disinfectants ..................................................... 44
7.4 Cleaning surfaces......................................................................................... 44
7.4.1 Disinfecting...................................................................................... 44
7.4.2 Protection against medicaments ..................................................... 44
7.4.3 Cleaning .......................................................................................... 44
7.5 Replacing the main fuses............................................................................. 45
7.6 Changing the filter ........................................................................................ 46
7.6.1 Procedure for all materials except for base metals ......................... 46
7.6.2 Base metal operation or mixed operation with base metal and other
7.6.3 Changing filters on the external tank............................................... 47
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
47
materials
3
Table of contents Dentsply Sirona
Operating Instructions inLab MC XL
7.7 Removing water from the unit ....................................................................... 51
7.7.1 Procedure for all materials except for base metals .......................... 51
7.7.2 Base metal operation or mixed operation with base metal and other
51
materials
7.8 Using the tank cap opener ............................................................................ 52
8
Technical description................................................................................................ 54
8.1 System requirements .................................................................................... 54
8.2 Grinding and milling unit................................................................................ 54
8.2.1 General technical description........................................................... 54
8.2.2 Technical data.................................................................................. 55
8.2.3 Controller board ............................................................................... 55
9
Disposal.................................................................................................................... 56
Index......................................................................................................................... 57
61 39 237 D 3439
4 D 3439.201.01.24.02 10.2017
Dentsply Sirona 1Dear Customer,
Operating Instructions inLab MC XL
Dear Customer,
1
Thank you for your purchase of this inLab MC XL® unit from Dentsply
Sirona.
This device enables you to produce dental restorations, e.g. from ceramic
material with a natural appearance (CEramic REConstruction).
Improper use and handling can create hazards and cause damage.
Please therefore read and follow these operating instructions carefully.
Always keep them within easy reach.
Also pay attention to the safety instructions to prevent personal injury and
material damage.
Your
inLab MC XL team
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
5
2General data Dentsply Sirona
2.1Identification of the danger levels Operating Instructions inLab MC XL
General data
2
Please read this document completely and follow the instructions exactly.
You should always keep it within reach.
Original language of the present document: German.
2.1
Identification of the danger levels
To prevent personal injury and material damage, please observe the
warning and safety information provided in these operating instructions.
Such information is highlighted as follows:
DANGER
An imminent danger that could result in serious bodily injury or death.
WARNING
A possibly dangerous situation that could result in serious bodily injury
or death.
CAUTION
A possibly dangerous situation that could result in slight bodily injury.
NOTICE
A possibly harmful situation which could lead to damage of the product
or an object in its environment.
IMPORTANT
Application instructions and other important information.
Tip: Information for simplifying work.
61 39 237 D 3439
6 D 3439.201.01.24.02 10.2017
Dentsply Sirona 2General data
Operating Instructions inLab MC XL 2.2Formats and symbols used
2.2
Formats and symbols used
The formats and symbols used in this document have the following
meaning:
Prerequisite
1. First action step
2. Second action step
or
➢ Alternative action
Result
➢ Individual action step
See “Formats and symbols
used [ → 7]”
● List Designates a list.
“Command / menu item” Indicates commands, menu items or
Prompts you to do something.
Identifies a reference to another text
passage and specifies its page
number.
quotations.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
7
3General description Dentsply Sirona
3.1Certification Operating Instructions inLab MC XL
General description
3
3.1
Certification
CE mark
This product bears the CE mark in accordance with the provisions of
Council Directive 2006/42/EC (machinery directive). As such, the
following standards apply: DIN EN ISO 12100:2011-03, DIN EN 610101:2011-07 and DIN EN 61326-1:2013-07.
CAUTION
CE mark for connected products
Further products which are connected to this unit must also bear the CE
mark. These products must be tested according to the applicable
standards.
Examples of CE mark for connected products:
● EN 60601-1:2006 based on IEC 60601-1:2005
● EN 60950-1:2006 based on IEC 60950-1:2005
● UL 60950 second edition 2010
EAC certification
Mark of conformity of the Eurasian Economic Community
GOST certification
RoHS compliance
This symbol indicates that this product does not contain any toxic or
hazardous substances or components above the maximum
concentration value set out in the Chinese standard SJ / T 11364-2014,
and can be recycled following disposal and should not be carelessly
discarded.
61 39 237 D 3439
8 D 3439.201.01.24.02 10.2017
Dentsply Sirona 3General description
Operating Instructions inLab MC XL 3.2Intended use
3.2
Intended use
This unit produces computer-aided dental restorations, e.g. from naturalappearing ceramic material.
This unit must not be used for any other purpose. If the unit is used for
any purpose other than the one mentioned above, it may be damaged.
Intended use also includes compliance with these Operating Instructions
and the relevant maintenance instructions.
CAUTION
Follow the instructions
If the instructions for operating the unit described in this document are
not observed, the intended protection of the user may be impaired.
For the USA only
CAUTION: Federal law (USA) restricts sale of this device to or on the
order of a physician, dentist, or licensed practitioner.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
9
4Safety Dentsply Sirona
4.1Basic safety information Operating Instructions inLab MC XL
Safety
4
4.1
Basic safety information
4.1.1 Prerequisites
NOTICE
Important information on building installation
The building installation must be performed by a qualified expert in
compliance with the national regulations. DIN VDE 0100-710 applies in
Germany.
NOTICE
Restrictions regarding installation site
The system is not intended for operation in areas subject to explosion
hazards.
NOTICE
Do not damage the unit!
The unit can be damaged if opened improperly.
It is expressly prohibited to open the unit with tools!
4.1.2 Maintenance and repair
As manufacturers of dental instruments and laboratory equipment, we
can assume responsibility for the safety properties of the unit only if the
following points are observed:
● The maintenance and repair of this unit may be performed only by
Dentsply Sirona or by agencies authorized by Dentsply Sirona.
● Components which have failed and influence the safety of the unit
must be replaced with original (OEM) spare parts.
Please request a certificate whenever you have such work performed. It
should include:
● The type and scope of work.
● Any changes made in the rated parameters or working range.
● Date, name of company and signature.
4.1.3 Modifications to the product
Modifications to this product which may affect the safety of the operator,
patients or third parties are prohibited by law!
61 39 237 D 3439
10 D 3439.201.01.24.02 10.2017
Dentsply Sirona 4Safety
Operating Instructions inLab MC XL 4.2Opening the processing chamber door during the machining process
4.1.4 Accessories
In order to ensure product safety, this device may be operated only with
original Dentsply Sirona accessories or third-party accessories expressly
approved by Dentsply Sirona. In particular, only the power cable also
supplied or the corresponding original spare part may be used with the
unit. The user is responsible for any damage resulting from the use of
non-approved accessories.
4.2
4.3
Opening the processing chamber door during the machining process
CAUTION
Instruments that continue to run
When the processing chamber door is opened during the machining
process, the instruments could continue to run for a short time.
➢ Be careful not to touch the instruments with your hand or any other
object during this time.
➢ Avoid opening the processing chamber door while the milling and
grinding unit is in operation.
➢ Before you open the processing chamber door, end any actions that
are running by pressing the
grinding unit or in the application software.
"Stop"
button on the milling and
Wireless phone interference with equipment
The use of mobile wireless phones in practice or hospital environments
must be prohibited to ensure safe operation of the unit.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
11
5Installation and startup Dentsply Sirona
5.1Transport and unpacking Operating Instructions inLab MC XL
Installation and startup
5
5.1
Transport and unpacking
All products from Dentsply Sirona are carefully checked prior to shipment.
Please perform an incoming inspection immediately after delivery.
1. Check the delivery note to ensure that the consignment is complete.
2. Check whether the product shows any visible signs of damage.
NOTICE
Damage during transport
If the product was damaged during transport, please contact your
carrying agent.
If return shipment is required, please use the original packaging for
shipment.

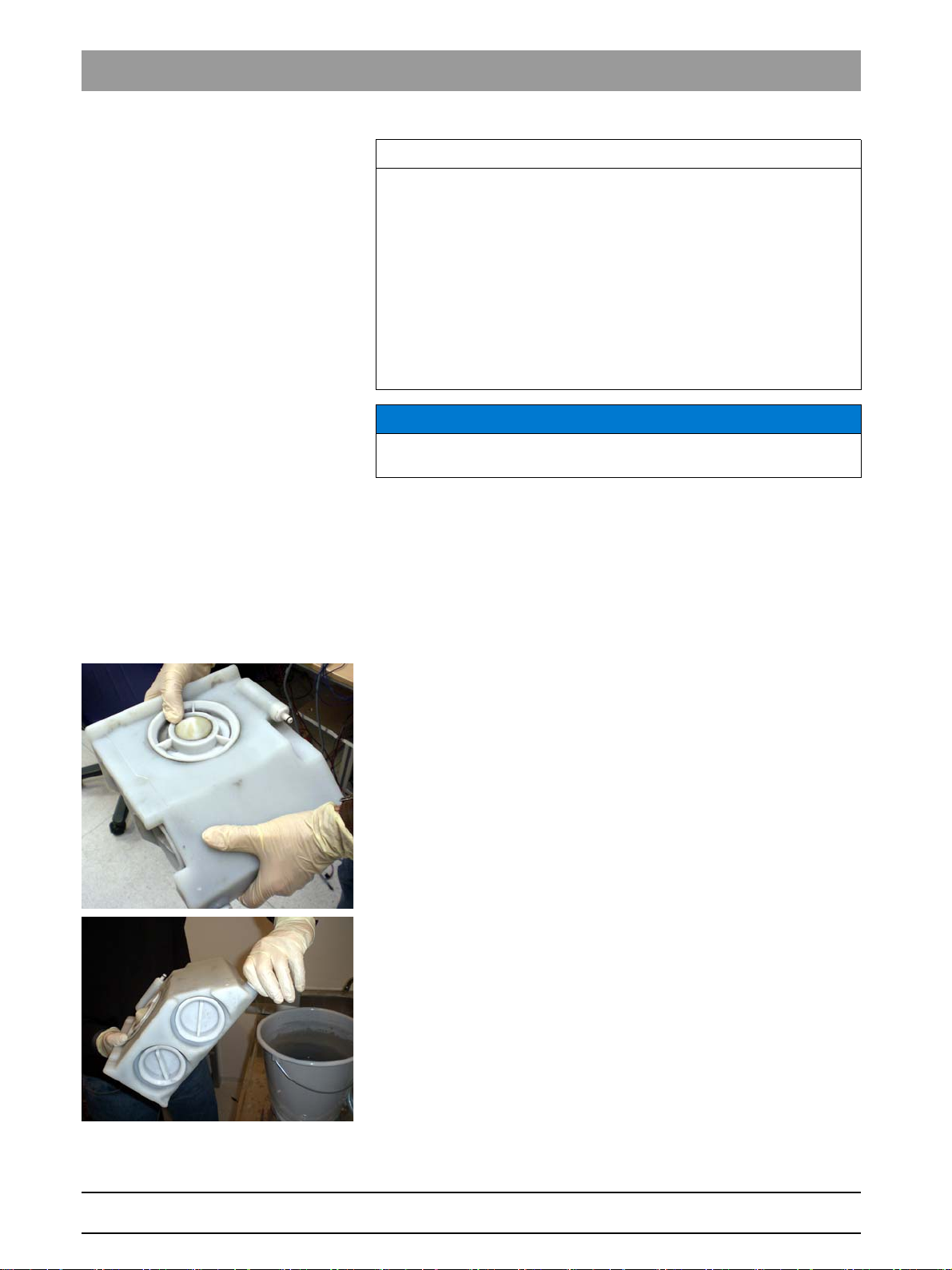

The unit must be drained prior to shipment (if it has been operated).
Removing water from the unit [ → 51]
Transport without packaging
CAUTION
Damage to the unit or risk of injury during transport without packaging
There is a danger of the unit falling down if it is grasped by its plastic
housing.
5.2
➢ The unit should always be carried by two persons.
➢ Do not grasp the unit by its plastic housing.
➢ Always grasp the unit by its chassis next to its feet.
Disposal of packaging materials
The packaging must be disposed of in compliance with the relevant
national regulations. Please observe the regulations applicable in your
country.
61 39 237 D 3439
12 D 3439.201.01.24.02 10.2017
Dentsply Sirona 5Installation and startup
Operating Instructions inLab MC XL 5.3Installation site
5.3
Installation site
CAUTION
Install out of the reach of patients!
Do not install or operate the milling and grinding unit in the vicinity of the
patient (place it at least 1.5 m away from the patient).
The milling and grinding unit requires a level Approx. footprint: 700 x 420
mm (W x D). The height of the milling and grinding unit is:
● with the processing chamber door closed: 425mm
● with the processing chamber door, open: 570mm
Install the milling and grinding unit in such a way that it is not difficult to
operate the main switch.
Make sure that the ventilation slots underneath and at the back of the unit
remain unobstructed. The distance between the back of the unit and the
wall must at least be 10 cm.
Note that the unit weighs 43 kg!
The unit must not be installed at sites with a high level of humidity or dust!
NOTICE
Installation in a cabinet
bеЦдблЬ
If the unit is installed in a cabinet, you must provide for adequate heat
exchange.
The ambient temperature surrounding the unit must be between 5°C
and 40°C.
5.3.1 Installation site without strong incidence of light
NOTICE
Impairment of the scanned result due to sudden incidence of light.
A sudden, strong incidence of light may falsify the scanned result.
Set the unit up so that the grinding chamber is not located directly in the
beam path of an extreme light source and is not exposed to direct
sunlight.
5.4
Commissioning
NOTICE
Important information on initial startup
Observe the software installation instructions!
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
13
5Installation and startup Dentsply Sirona
ABC
D
E
E
F
5.4Commissioning Operating Instructions inLab MC XL
5.4.1 Functional elements
Unit overview
Overview of the grinding unit
A Grinding chamber D ON/OFF switch
B Grinding chamber
door catch
C Display F Water tank
Ports on the back side
EDrawer
Connections
A Main switch
I = ON, 0 = OFF
B Fuse cover E This connection is not used
C Power connection F Bar code reader connection
D LAN port
Ethernet
61 39 237 D 3439
14 D 3439.201.01.24.02 10.2017
Dentsply Sirona 5Installation and startup
C
A
C
A
B
D E
Operating Instructions inLab MC XL 5.4Commissioning
Grinding chamber
bеЦдблЬ
Grinding chamber
A Instrument set 1 D Ceramic block
B Instrument set 2 E Workpiece spindle
C Motor mount
5.4.2 Standard accessories
5.4.2.1
5.4.2.2
Instruments
The following instruments are available for milling and grinding purposes.
When replacing instruments, ensure the permitted instrument
combinations are used (see "Permitted instrument combinations [ → 30]").
Calibration pins
The calibration pins are used when calibrating the instrument sets (see
"Calibrating the unit [ → 25]“).
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
15
5Installation and startup Dentsply Sirona
5.4Commissioning Operating Instructions inLab MC XL
5.4.2.3
Torque wrench

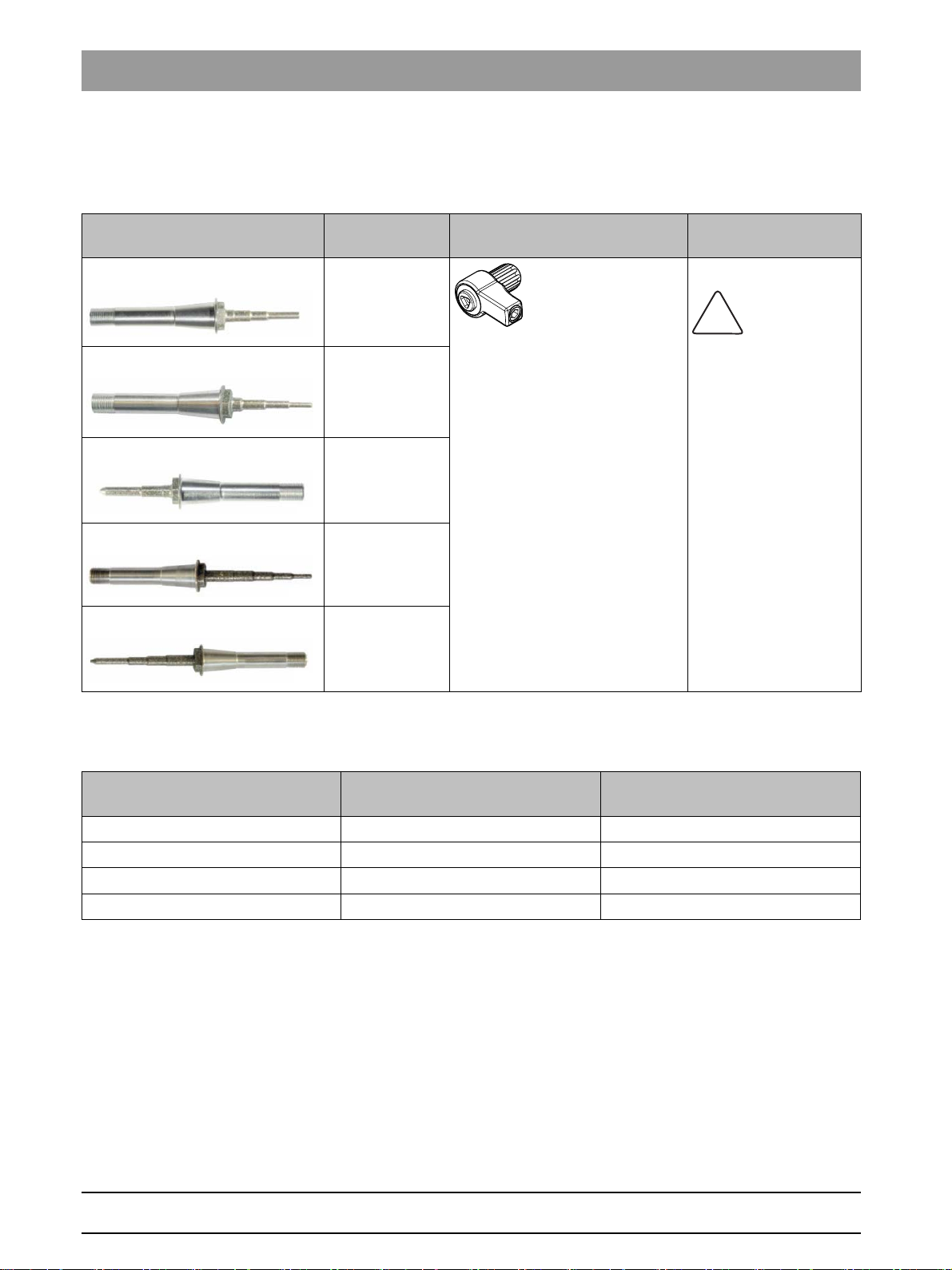

To insert or replace the instruments or calibration pins, use the following
torque wrench.
Instrument REF Usage Torque wrench Clamping format of
the force
transmission
Step Bur 12 S 62 40 167 Grinding Triangular
Step Bur 12 62 60 025 Grinding
Cyl. Pointed Bur 12 S 62 40 159 Grinding
Step Bur 20 62 59 597 Grinding
Cyl. Pointed Bur 20 62 59 589 Grinding
Cylinder Bur 12 EF 65 35 186 Extra-fine grinding
Cylinder Pointed Bur 12 EF 65 35 178 Extra-fine grinding
Shaper 25 62 99 395 Milling
(dry)
Finisher 10 62 99 387 Milling
(wet and dry)
Calibration pin (AiO*) 62 41 132 Calibration
Shaper 25 RZ 64 33 440 Milling
(wet)
Square
* All-in-One
61 39 237 D 3439
16 D 3439.201.01.24.02 10.2017
Dentsply Sirona 5Installation and startup
Operating Instructions inLab MC XL 5.4Commissioning
5.4.3 Display description
These operating instructions describe how to operate the unit by
executing and confirming commands via your PC.
You can also confirm commands such as
"OK"
directly on the display of your milling and grinding unit.
Possible commands are then shown above the corresponding button on
the display. In the example shown, button 1, (A) would confirm the
command
Display
A Button 1 E Command
B Button 2 F Display
C Button 3 G ON/OFF switch
D Button 4
"Start"
and button 4, (D) would confirm the command
"Start" , "Stop" , "Cancel"
or
"Stop"
.
bеЦдблЬ
5.4.4 Illumination of the processing chamber
The lighting of the processing chamber depends on the machining
operation involved:
Machining operation Lighting color
Milling and grinding White
Operation completed Green
Error or
"Stop"
button pressed Red
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
17
5Installation and startup Dentsply Sirona
5.4Commissioning Operating Instructions inLab MC XL
5.4.5 Inserting the grinding chamber sieve
CAUTION
Risk of injury on instruments
Be careful not to brush against the instruments with your hand.
NOTICE
Risk of blockage in the cooling circuit
If chips enter into the cooling circuit of the machine, there is a risk that
the cooling circuit will become blocked.
➢ The sieve is suitable for all restoration and material types. It is
absolutely essential that no chips enter into the cooling circuit when
milling models.
1. Remove the screen from the packaging.
2. Wet the underside of the sieve with water before insertion and press
it firmly against the floor of the processing chamber.
NOTICE
Make sure the milling cutters are used correctly
If the milling cutters are not used as described below, this may cause
damage to the grinding unit.
➢ Use the Shaper 25 and Finisher 10 milling cutters only in inLab MC
XL grinding units, as of serial number 120 000 or in inLab XL
grinding units that have been upgraded using the motor upgrade kit
for inLab (REF 6338631).
➢ Use the Shaper 25 and Finisher 10 milling cutters only for
manufacturing models from the inCoris S model (REF 6299361) and
inCoris L model blocks (REF 6299379).
5.4.6 Connecting the bar code reader
Tool holder
➢ Insert the block clamp tool on the left and the bar code reader on the
right.
NOTICE
Using the block clamp tool
When milling models, the block clamp tool with 1.6 Nm is required. This
block clamp tool is also part of the milling model starter kit (REF 63 20
993).
Connecting the bar code reader
➢ Plug the bar code reader into the serial interface to the rear of the
milling and grinding unit and secure with screws.
61 39 237 D 3439
18 D 3439.201.01.24.02 10.2017
Dentsply Sirona 5Installation and startup
Operating Instructions inLab MC XL 5.4Commissioning
5.4.7 Installation
5.4.7.1
5.4.7.2
Connecting to the PC via LAN
An Ethernet connection is located to the rear of the unit, which can be
used to connect the PC to the milling and grinding unit. Use a network
cable to do this (LAN connection).
Using a network cable
Connect the PC to the LAN connection of the unit.
If problems arise when connecting via a network cable, please read the
separate instructions "Operating the MC XL via LAN".
Connecting the unit to the power supply
bеЦдблЬ
5.4.7.3
NOTICE
Grounded power outlet
The unit must be connected to a grounded power outlet.
➢ Connect the unit to the power supply using the supplied power cable.
Installing the unit
You must connect the unit to the PC before putting it into operation. This
is described in the chapter "Connecting to the PC via LAN [ → 19]".
Searching for unit automatically
The unit is connected to the PC via a LAN cable.
Search for unit manually
The unit is connected to the PC via a LAN cable.
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
19
5Installation and startup Dentsply Sirona
A
A
D
C
B
5.4Commissioning Operating Instructions inLab MC XL
Unit removal
✔ If you no longer require a unit (e.g. a unit is replaced), you can remove
it.
✔ The unit is operation.
1. Click the
2. Click on the
3. Click on the unit that you wish to uninstall.
4. Click on the
ª You will be asked if you would like to remove the unit.
"Configuration"
"Devices"
"Delete Device"
button in the system menu.
button.
button.
5. Click on the
ª The device is removed.
"YES"
button.
5.4.8 Filling the water tank
NOTICE

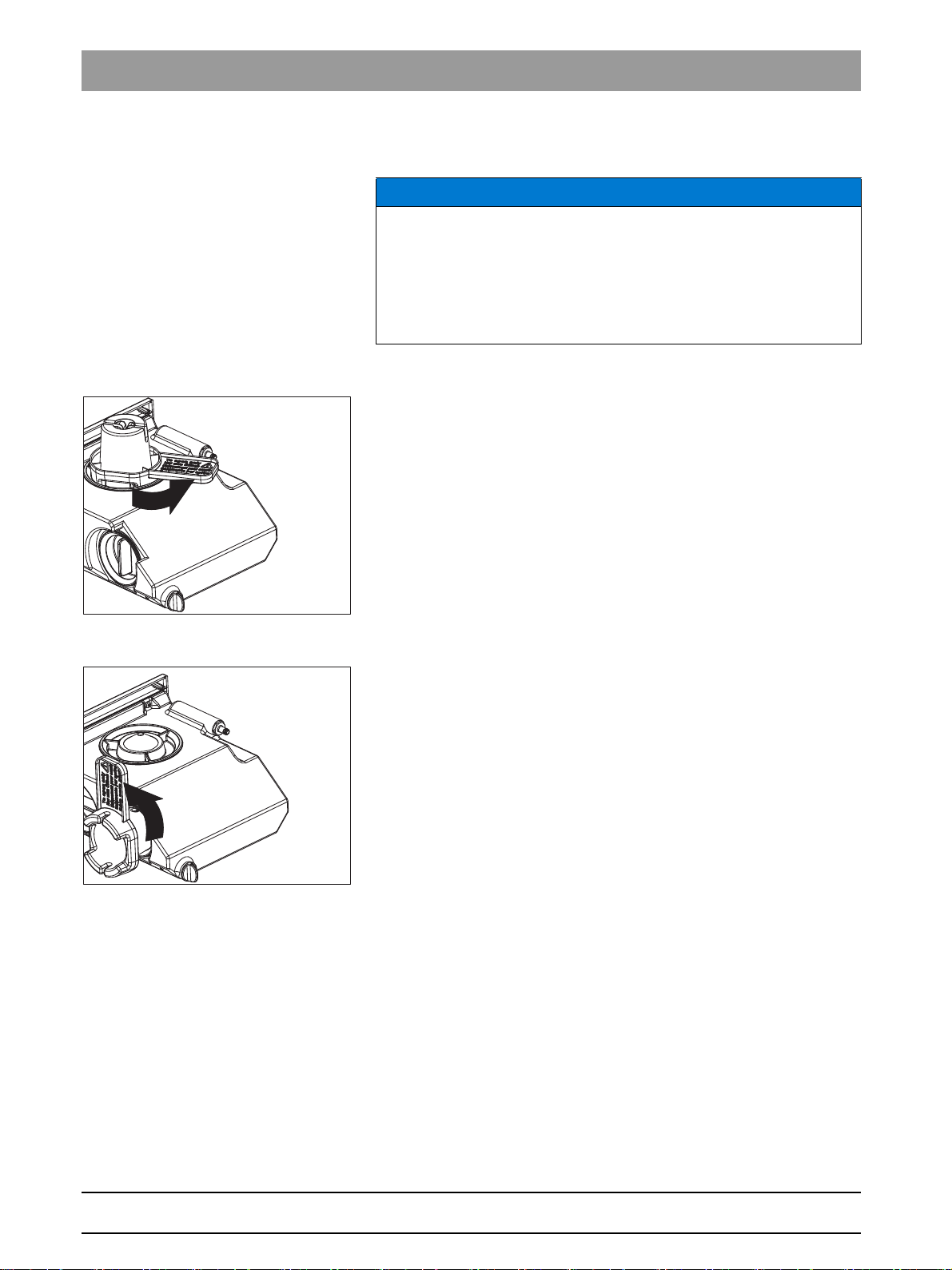

Using the tank cap opener
If you find the tank cap, tank drain or filter insert hard to open by hand,
use the tank cap opener (see "Using the tank cap opener" [ → 52]).

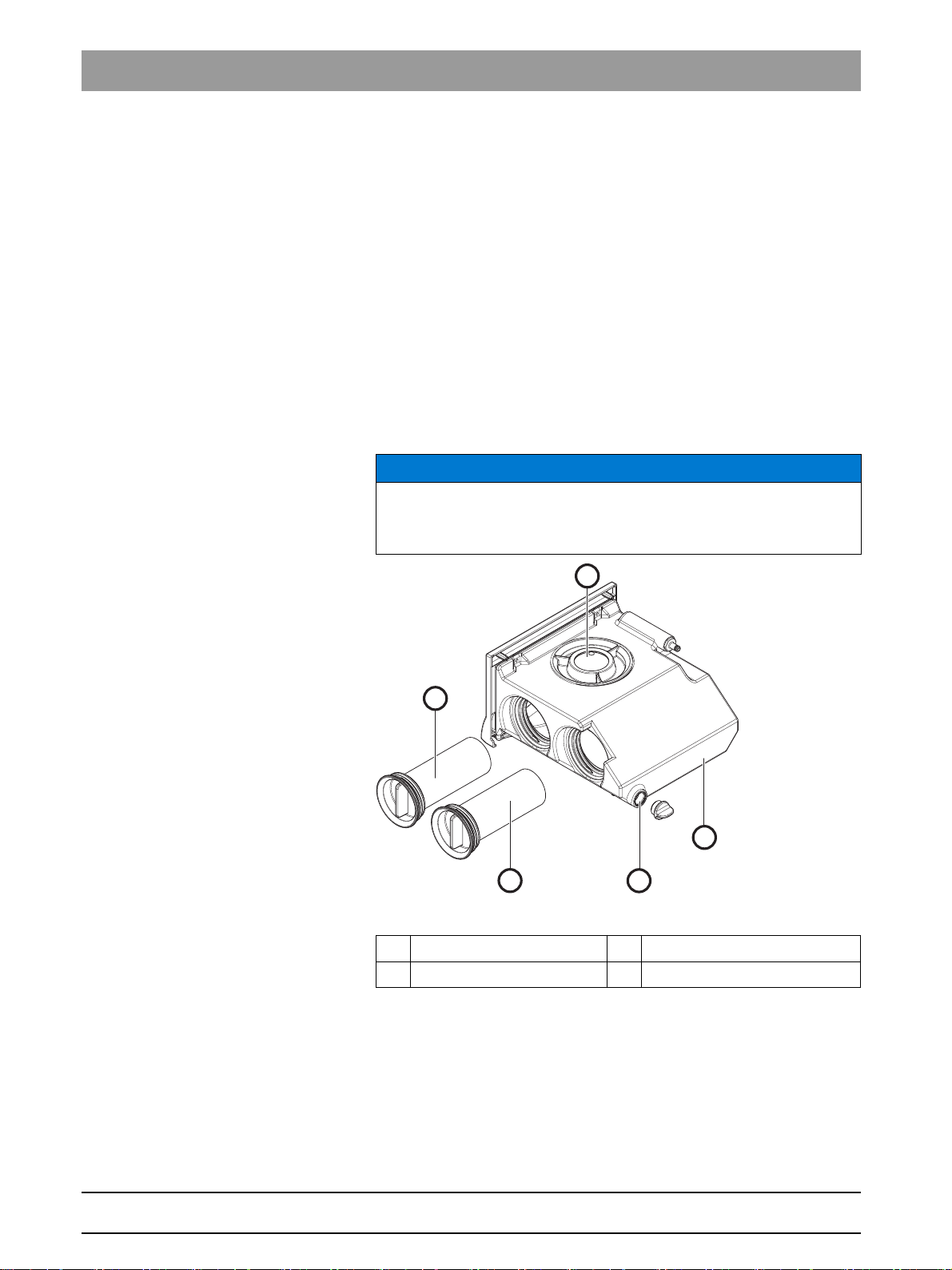

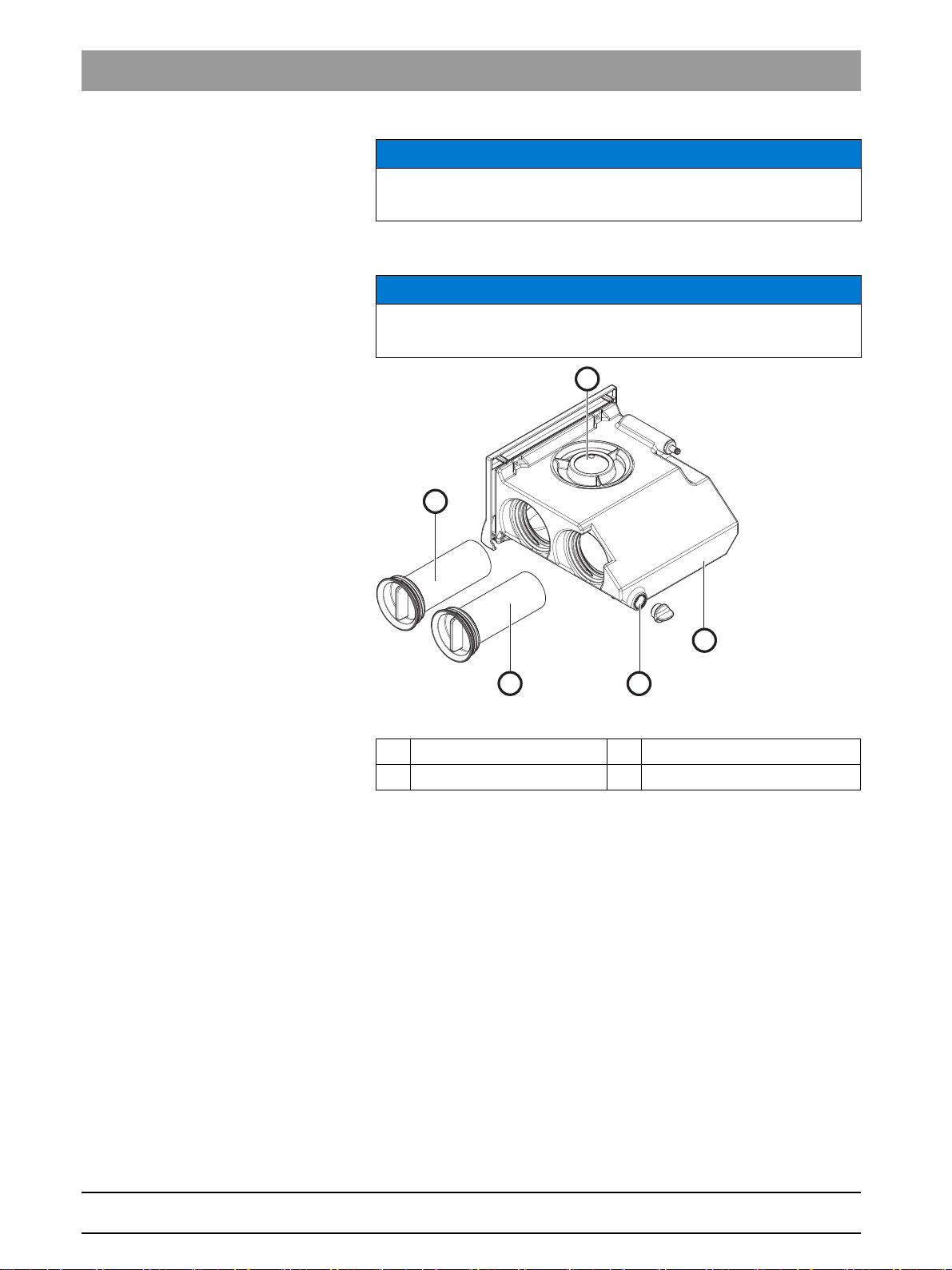

Water tank
A Filter inserts C Tank
B Tank cap D Tank drain
✔ The water tank has been drained, see "Removing water from the
unit".
20 D 3439.201.01.24.02 10.2017
1. Pull out the water tank at the front of the unit.
2. Turn the tank cap counter-clockwise and take it off.
61 39 237 D 3439
Dentsply Sirona 5Installation and startup
Operating Instructions inLab MC XL 5.4Commissioning
NOTICE
Damage to surfaces!
When undiluted, DENTATEC grinding additive etches plastic surfaces
and can cause discoloration.
➢ Do not place DENTATEC on the unit.
➢ Do not spill DENTATEC.
3. Add approx. 75 ml of DENTATEC to the tank.
4. Fill the tank with water until the filter inserts are completely immersed
(up to the bottom edge of the cover thread, approx. 3 liters).
5. Wait briefly until the filter inserts are soaked full and add a
corresponding amount of water.
6. Close the water tank by tightening the tank cap clockwise by hand.
Do not use the tank cap opener for this.
7. Push the water tank back into the housing.
8. Switch the unit on (see Switching the unit ON and OFF [ → 21]).
9. Switch the pump on (press the
10. Fill the water tank up again until the filter inserts are completely
immersed (up to the bottom edge of the cover thread).
"Pump"
button) to fill the water circuit.
bеЦдблЬ
5.4.9 Switching the unit ON and OFF
NOTICE
Do not put the unit into operation at low temperatures!
If you move the unit to the operating site from a cold environment,
condensation may form and result in a short circuit.
Within the machine, grease depots are included for lubricating
components that can cause error messages at low temperatures.
✔ Install the unit at room temperature.
➢ Wait until the unit has reached room temperature and is absolutely
dry (for at least one hour)
ª The unit is dry and can be put into operation.
NOTICE
Do not adjust the line voltage
The unit automatically adjusts to the line voltage.
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
21
5Installation and startup Dentsply Sirona
CD
192. 168. 230. 120
Pump
Config
?
5.4Commissioning Operating Instructions inLab MC XL
Switch on the unit
✔ The milling and grinding unit is connected to the power supply.
1. The main switch on the rear side of the unit is set to position I (ON).
2. Press the ON/OFF button on the front panel.
ª The unit switches on and the display lights up.
Power-up display
When the milling and grinding unit is switched on, the display shows a
picture of the milling and grinding unit trying to contact the PC.
You can start or stop the water pump by pressing the
This enables you to drain the water circuit without connecting to the PC
(e.g. prior to transport) or fill the water circuit during startup.
You can call up the IP address by pressing the
can configure the milling and grinding unit in the network with this
address.
"Pump"
"Config"
button (C).
button (D). You
Switching the unit off
✔ The unit has finished the machining operation.
➢ Briefly press the ON/OFF button on the front panel.
ª When you let go of the button, the unit switches off.
22 D 3439.201.01.24.02 10.2017
61 39 237 D 3439
Dentsply Sirona 5Installation and startup
Operating Instructions inLab MC XL 5.5Repacking
5.5
5.6
5.7
Repacking
NOTICE
Repack only drained units!
Drain the unit! See "Removing water from the unit [ → 51]“.
✔ The water tank is empty.
✔ The main switch on the back side of the unit is set to the 0 (OFF)
position.
1. Disconnect the power cable and the connecting cable from the back
side of the unit and stow them away.
2. Stow away the calibration tools in the drawer.
3. Check the unit for completeness according to the scope of supply!
4. Pack the unit securely.
Scope of supply
The detailed scope of supply is specified in the document "Checklist
inLab MC XL".
bеЦдблЬ
Storage
NOTICE
Repack only drained units!
Drain the unit! See "Removing water from the unit [ → 51]“.
Store the unit in a closed and dry room at a temperature of -10°C to 50°C
for a maximum period of 12 months.
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
23
6Operation Dentsply Sirona
6.1Configuration (inLab MC XL) Operating Instructions inLab MC XL
Operation
6
CAUTION
Risk of injury on calibration pins/instruments
If you reach into the processing chamber (e.g.: when inserting/removing
a ceramic block, changing instruments, or inserting/removing a
calibration phantom), you may injure your hand on the calibration pins/
instruments.
Be careful not to brush against the calibration pins/instruments with your
hand.
Always insert your hand in the processing chamber underneath the
calibration pins/instruments.
6.1
Configuration (inLab MC XL)
In the
"Devices"
be subsequently modified.
1. Click the
2. Click on the
3. Click on the unit that you wish to configure.
Deactivating an instrument set
You may need to deactivate an instrument set, e.g. unless it is possible
to replace a defective instrument or in case a grinding motor is defective
or cannot be calibrated.
In all of these cases, you can deactivate sets 1 and 2 separately. A
deactivated set will simply be ignored during production, calibration etc.
NOTICE
Milling tools may only be used in set 1.
NOTICE
Risk of collision
The restoration may become damaged if longer instruments are present
in the deactivated instrument set than in the active set.
area of the
"Configuration"
"Devices"
button.
"inLab SW"
button in the system menu.
software, various settings can
➢ Ensure that the instruments installed in the deactivated instrument
set are not longer than those in the active set.
➢ To deactivate an instrument set, you can remove the check mark in
front of the respective instrument set in the software.
61 39 237 D 3439
24 D 3439.201.01.24.02 10.2017
Dentsply Sirona 6Operation
Operating Instructions inLab MC XL 6.2Calibrating the unit
6.2
Calibrating the unit
NOTICE
Use only the supplied calibration tools
Use only the supplied calibration pins and the corresponding calibration
phantom when calibrating the unit.
Unit calibrated ex works
The unit is calibrated at the factory. No additional calibration is required
during initial startup. Proceed as described below when performing a
subsequent calibration.
NOTICE
Faulty production result
If the unit is not calibrated, the production result may be faulty.
Preparing a calibration
1. Take the calibration pins and calibration phantom out of the drawer of
the unit.
2. In the software, navigate to the system menu, and click on the
"Configuration"
3. Click on the
4. Click on the unit that you wish to calibrate.
5. Click on the
ª If two instrument sets are set:
A dialog box then opens where you can select the instrument set
to be calibrated or the two instrument sets to be calibrated
consecutively. The date of the last calibration is also displayed.
button.
"Devices"
"Calibrate"
button.
step.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
6. If necessary, select the desired instrument set.
You can also select the desired instrument set on the grinding unit
(up/down arrow).
7. Click on the
ª The grinding unit then moves into position to insert the calibration
tools.
A dialog box prompts you to insert the calibration pins and the
calibration phantom and to close the grinding chamber door
again.
"Start"
button.
25
6Operation Dentsply Sirona
A
B
B
6.2Calibrating the unit Operating Instructions inLab MC XL
Inserting the calibration pins and phantom
1. Press the catch of the grinding chamber door and open the door.
2. Loosen the instruments with the torque wrench and remove them.

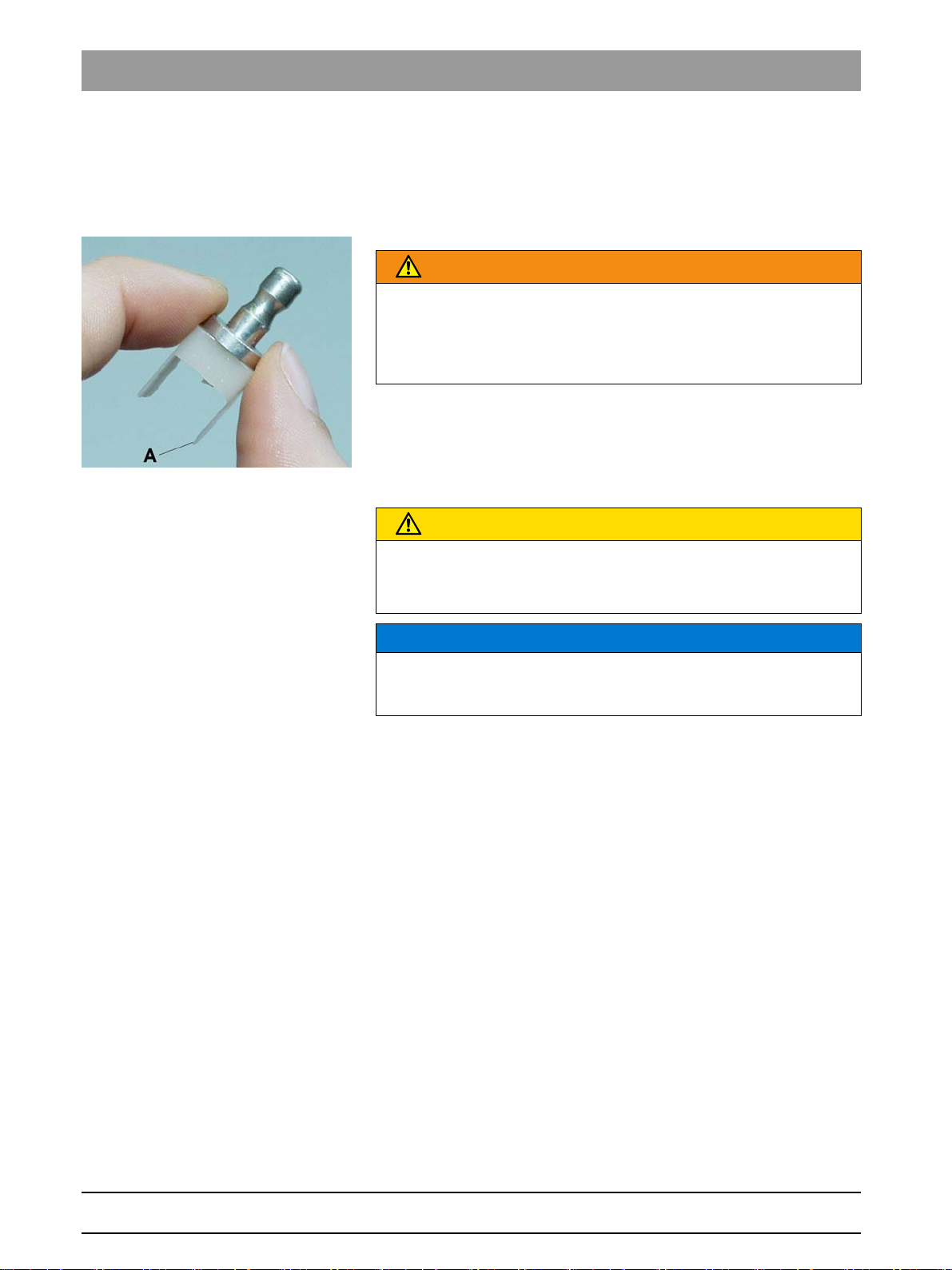

Calibration phantom
NOTICE
Grasp the calibration phantom correctly
Grasping the calibration phantom by its wide surfaces may cause
calibration errors.
➢ Always grasp the calibration phantom by its clamping shank (A)
when removing it from the storage box.
➢ Always grasp the calibration phantom by its narrow surfaces B when
inserting it into the block fixing.
3. Remove the adapter sleeve (see "Manual block clamp [ → 34]“).
4. To insert the calibration phantom into the block fixing, grasp it by its
narrow surfaces B.
5. Clamp the calibration phantom with the ball pressure screw. Use the
block clamp tool for this purpose.
6. Insert the calibration pins in the motor mount by hand. Tighten the
corresponding chuck with the torque wrench until a clicking sound
can be heard.
7. Close the grinding chamber door.
Performing a calibration
➢ Confirm your selection in the
"Start"
button.
ª The automatic calibration begins and takes approx. 12 minutes.
Wait until the calibration has been completed.
"Calibrate milling unit"
window with the
61 39 237 D 3439
26 D 3439.201.01.24.02 10.2017
Dentsply Sirona 6Operation
Operating Instructions inLab MC XL 6.3Production process
Inserting instruments
1. Open the grinding chamber door following calibration.
2. Loosen the calibration pins with the torque wrench and remove them.
3. Loosen the ball pressure screw.
4. Remove the calibration phantom by grasping it by its narrow surfaces
(B).
NOTICE
Store the calibration tools in a safe place
Store the calibration pins and the calibration body in a safe place (e.g.
in a storage box in the unit drawer).
5. Insert the instruments in the motor mount by hand. Tighten the
corresponding chuck with the torque wrench until a clicking sound
can be heard.
6. Close the grinding chamber door.
ª The dialog box for selecting the instruments then appears.
7. Select the inserted instruments and confirm by clicking the
button in the window.
ª The motor mounts move to their starting positions.
The
"Calibration succeeded"
Exiting the calibration
1. Click on the
2. Click on the step
6.3
Production process
6.3.1 Process types
Various process types are available for milling and grinding purposes.
These vary in terms of the type of materials to be processed and the
instruments to be used.
"OK"
button.
"Exit Configuration"
dialog box appears.
.
"Start"
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
27
6Operation Dentsply Sirona
6.3Production process Operating Instructions inLab MC XL
6.3.1.1
Instrument REF Torque wrench Clamping format of the
Step Bur 12 S 6240167 Triangular
Step Bur 12 6260025
Cyl. Pointed Bur 12 S 6240159
Step Bur 20 6259597
Grinding
For grinding purposes, use the following instruments as well as the
appropriate torque wrench:
force transmission
Cyl. Pointed Bur 20 6259589
6.3.1.2
Machine type Serial number (wet milling) Serial number (dry milling also with
CEREC MC XL 129001 Not possible
CEREC MC XL Premium Package 302001 304801
CEREC MC X 231001 236001
CEREC MC 202001 202501
Milling
The milling option is available from the following serial numbers onwards:
retrofit)
Other machines must be equipped with the milling starter kit, Design 2011
(REF: 64 48 893) or with the milling starter kit for connected motors (REF:
64 51 079) (only for wet milling).
Activating the milling option
1. Select
2. Check
"Configuration" /"Settings" /"Milling"
"Activate"
.
.
61 39 237 D 3439
28 D 3439.201.01.24.02 10.2017
Dentsply Sirona 6Operation
Operating Instructions inLab MC XL 6.3Production process
Instruments and torque wrenches
For milling purposes, use the following instruments as well as the
appropriate torque wrenches:
Instrument REF Torque wrench Clamping format of the
force transmission
Finisher 10 (dry and wet) 6299387 Triangular
Shaper 25: Milling (dry) 6299395 Triangular
Shaper 25 RZ: Milling (wet) 6433440 Square
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
29
6Operation Dentsply Sirona
6.3Production process Operating Instructions inLab MC XL
6.3.1.3
Milling models
NOTICE
The "Milling models" option can only be used if you have one of the
following machines:
- inLab MC XL from serial number 120 000
- CEREC MC XL Premium Package
For milling purposes, use the following instruments as well as the
appropriate torque wrench:
Instrument REF Torque wrench Clamping format of the
force transmission
Shaper 25 6299395 Triangular
Finisher 10 6299387
6.3.1.4
NOTICE
Chips gathered in the grinding chamber
When milling models, a large number of chips collect in the grinding
chamber.
➢ Each time a model block is milled, remove the chips from the
grinding chamber by hand.
➢ Before removing them, squeeze the chips so that any stored water
is released into the cooling circuit.
Permitted instrument combinations
Depending on the materials to be processed and the process type used,
various instrument combinations are permitted.
For an updated table of approved instrument combinations, please visit
http://www.dentsplysirona.com/manuals.
Select your product there and then open the
"Bur table"
document.
61 39 237 D 3439
30 D 3439.201.01.24.02 10.2017
Dentsply Sirona 6Operation
Operating Instructions inLab MC XL 6.3Production process
6.3.2 Preparations
✔ Download or design a restoration (see operator's manual).
✔ When the milling option is activated, you can choose between the
grinding and milling manufacturing processes for plastic and
zirconium oxide materials in the material selection step.
✔ You are in the
milling and grinding unit, checked the settings and positioned the
restoration in the block.
➢ Click the
ª The milling and grinding unit moves into position to insert the set
screw.
"MANUFACTURE"
"Start Milling"
phase and have selected the
step.
6.3.3 Starting the machining processes
✔ The instrument sets are equipped with the required instrument
combinations for the machining process.
1. Depending on the configuration, you will be prompted to enter the
barcode (see also “Entering the bar code [ → 33]”).
2. Press the catch of the processing chamber door and open the door.
NOTICE
Error message during touch process!
bеЦдблЬ
Always be sure to insert the block that you selected for the restoration.
Otherwise an error message will be displayed during the touch process.
3. Place the selected block in the block fixing.
4. Clamp the block with the ball pressure screw. Use the block clamp
tool for this purpose (see also “Manual block clamp [ → 34]”).
5. Close the processing chamber door and confirm the procedure by
"Start"
clicking
ª In a PC notification window, the expected duration of the
machining process is displayed. The restoration is also
represented from the occlusal point of view and machining mode.
.
NOTICE
Ending the machining processes
You can abort the machining process at any time by pressing the
button.
"Stop"
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
31
6Operation Dentsply Sirona
6.3Production process Operating Instructions inLab MC XL
6.3.4 Ending the machining processes
1. When the machining process has been completed, open the
processing chamber door.
2. Remove the restoration.
WARNING
Risk of injury on the remainder of the ceramic block
The remaining portion of the ceramic block may have sharp edges
(e.g. A) that could injure you if it is not removed carefully.
Always grasp the remainder of the ceramic block by its metal holder.
3. Loosen the ball pressure screw.
4. Remove the remainder of the ceramic block. When removing the
remaining block from blocks with 6 mm diameter block holders, make
sure that the adapter sleeve remains in the machine.
5. Close the processing chamber door.
CAUTION
Do not use defective milling and grinding results!
Machining results must be judged by the user (dentist or dental
technician) and must not be used if defects are detected!
NOTICE
If you have not used the milling and grinding unit for a rather long time,
we recommend you should switch it off and then open the processing
chamber door so that the processing chamber can dry out.
61 39 237 D 3439
32 D 3439.201.01.24.02 10.2017
Dentsply Sirona 6Operation
Operating Instructions inLab MC XL 6.4Entering the bar code
6.3.5 Information on the seal of approval
Proper selection and processing of the material are decisive for the longterm clinical success of the restoration, especially in the case of zirconia.
However, different types of zirconia require individually matched machine
parameters. This is the reason why you can and must select different
types of zirconia in the software. These machine parameters are
coordinated between material partners in complex development
processes. In addition to the desired fit and surface quality, they also
guarantee a maximum degree of material and equipment safety.
Consistently high quality of the grinding or milling result and the fit can be
guaranteed and damage to the processing machines can be excluded
only if certified materials are used.
Fragment: Everything excluding FONA
NOTICE
Block without seal of approval
If a block is found without a seal of approval during the machining
process (milling or grinding), the following message appears:
"No quality label was recognized on the block. The grinding and milling
processes as well as the instruments are specially verified for certified
materials. Certified materials can be identified by the engraved "inLab"
lettering on the block. The use of zirconium oxide materials without
quality label can lead to inferior results as well as increased wear on the
device and instruments.
Do you still wish to start the manufacturing process?"
bеЦдблЬ
6.4
Entering the bar code
Scanner active, Barcode Reader not active
If you have activated the option
dialog and the option
automatically be read by the scanner. You will be able to enter the
substitute code (8-digit character string, e.g. *1234XYZ) manually on the
PC only if this process fails.
"Barcode Reader"
Barcode Reader active
If you have activated the option
configuration dialog (e.g. for CEREC Zirconia), you must read-in both bar
codes with the bar code reader. To do this, hold the bar code reader tilted
to a slight angle and move it over both of the bar codes on the block
continuously and evenly.
If the reading process fails, you can read-in the bar code once again by
pressing
enter the substitute code (8-digit character string, e.g. *1234XYZ) on the
PC manually.
"Retry"
(button 1 on the unit display). Alternatively, you also can
Scanner not active, Barcode Reader not active
If neither the option
activated in the system configuration dialog, you always will be prompted
to enter the substitute code (8-digit character string, e.g. *1234XYZ) on
the PC manually.
"Barcode Reader"
"Scanner"
in the system configuration
is not active, the bar code will
"Barcode Reader"
nor the scanner has been
in the system
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
33
6Operation Dentsply Sirona
6.5Manual block clamp Operating Instructions inLab MC XL
6.5
Manual block clamp
Store the block clamp tool in the corresponding holder.
You can attach the holder to a suitable location with the adhesive pad.
Clean and degrease the contact surface beforehand.
NOTICE
Wear of the ball pressure screw
The high clamping forces cause wear of the ball pressure screw.
➢ Replace the ball pressure screw every 500 clamping operations.
Blocks with 10 mm diameter block holders
NOTICE
Fasten the block tightly
If the block is not sufficiently tightened, it can lead to unsuitable results
and ceramic breakages.
➢ Securely tighten the block with the block clamping tool with the
torque wrench, until you can hear a clicking sound.
➢ Check to make sure that the block is seated very firmly.
1. Place the block (A) directly into the block fixing.
2. Clamp the ceramic block securely with the ball pressure screw (B).
Use the block clamp tool with torque wrench for this purpose.
ª The block is pressed laterally against the contact surface of the
block fixing and simultaneously pulled in axially. The plate of the
block holder thus rests on the block fixing.
61 39 237 D 3439
34 D 3439.201.01.24.02 10.2017
Dentsply Sirona 6Operation
Operating Instructions inLab MC XL 6.5Manual block clamp
Blocks with 6 mm diameter block holders
NOTICE
Fasten the block tightly
If the block is not sufficiently tightened, it can lead to unsuitable results
and ceramic breakages.
➢ Securely tighten the block with the block clamping tool with the
torque wrench, until you can hear a clicking sound.
➢ Check to make sure that the block is seated very firmly.

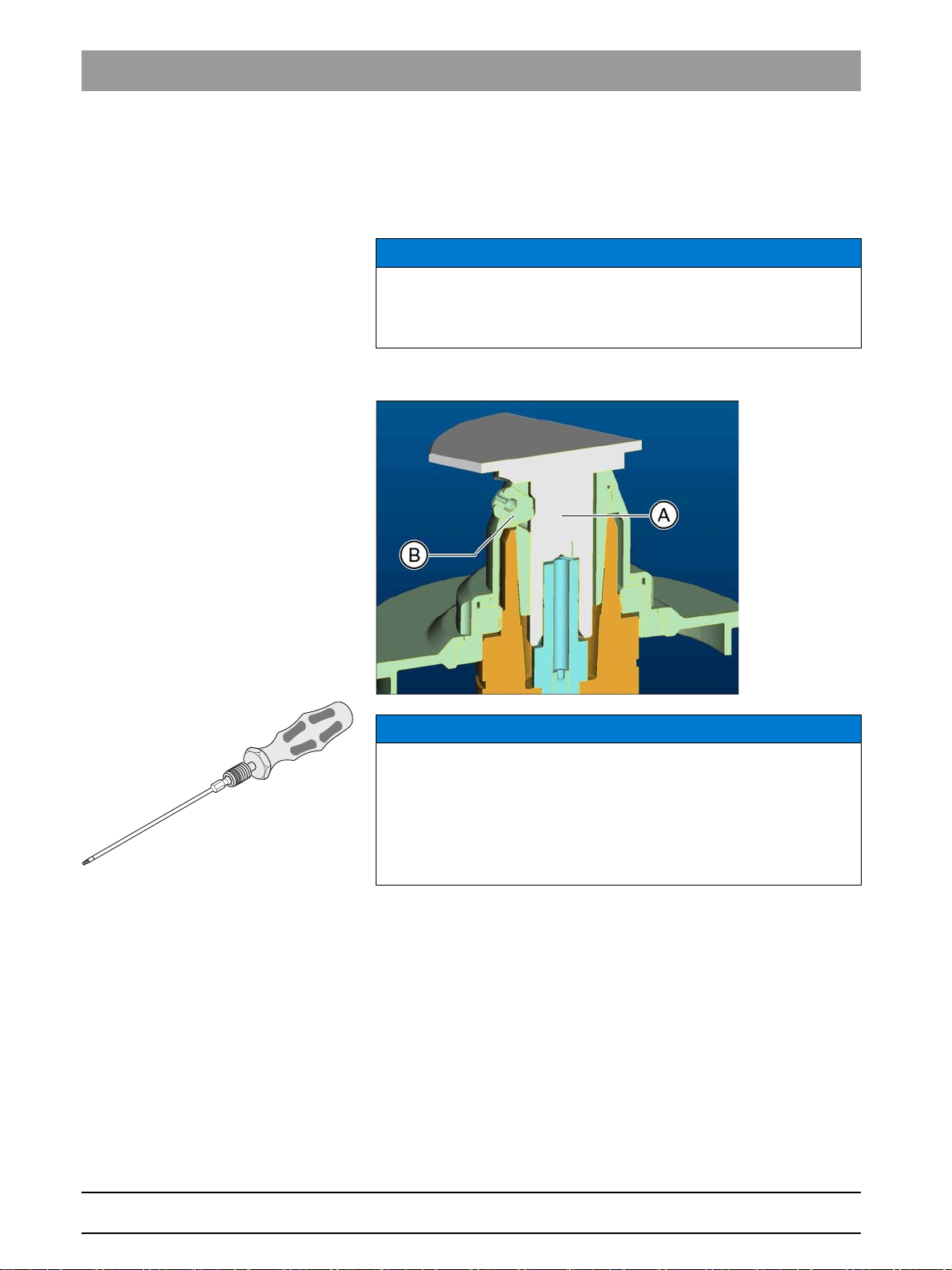

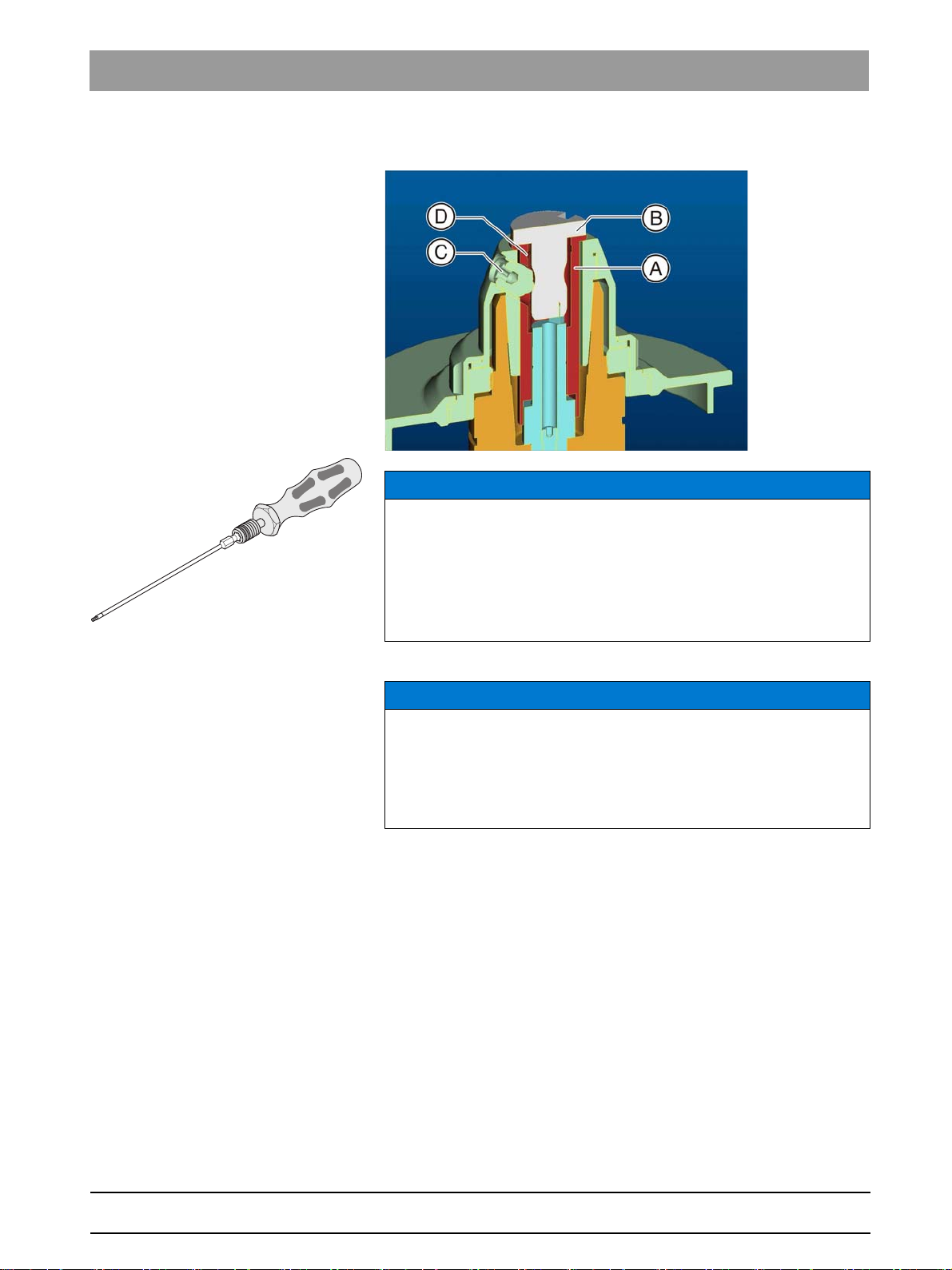

1. Insert the adapter sleeve (A) into the block fixing.
NOTICE
Insert the adapter sleeve
The slot at the bottom end of the adapter sleeve must lie above the
radial pin of the block fastener in order to be inserted fully.
The hole for the ball pressure screw is then automatically in the correct
position, i.e. coincides with the threaded hole in the block fixing.
2. Insert the block (B) into the adapter sleeve.
3. Clamp the ceramic block securely with the ball pressure screw (C).
Use the block clamp tool with torque wrench for this purpose.
ª The block is pressed laterally against the contact surface of the
block fixing and simultaneously pulled in axially. The plate of the
block holder thus rests on the block fixing.
Removing the adapter sleeve
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
1. Loosen the ball pressure screw.
2. Place the block clamp tool in the inner groove (D) and pull out the
adapter sleeve.
35
7Service Dentsply Sirona
Operating Instructions inLab MC XL
Service
7
NOTICE
Observe country-specific Regulations!
Some countries have legal regulations which require regular safety
inspections of electrical devices or systems by the operator.
NOTICE
Perform maintenance regularly!
Have maintenance performed on your unit annually by trained technical
personnel / a service engineer.
NOTICE
Observe error messages
You must observe error messages shown on the display on in the
software. If the error message does not disappear even after you have
performed the prompted action, contact your service engineer.
NOTICE
Machine care
Interval: Once a week or after every 4th water change
➢ Change the filters (see Changing filters [ → 46])
➢ Clean the manual block chuck according to the cleaning set
instructions (REF 61 77 161).
➢ Clean the clamping cones and chucks of the instruments according
to the cleaning set instructions (REF 61 77 161).
➢ If the jets of water do not strike the instruments, carefully remove
any foreign particles from the water nozzles with a probe.
NOTICE
Chips gathered in the grinding chamber
When milling plastic, a large number of chips collect in the grinding
chamber.
➢ After each milling process, remove the chips from the grinding
chamber by hand.
➢ Before removing them, squeeze the chips so that any stored water
is released into the cooling circuit.
NOTICE
Do not confuse the block screw with the ball pressure screw
When operating an inLab grinding unit and an inLab MC XL grinding unit
in the same room, be careful not to confuse the block screw of the inLab
with the ball pressure screw of the inLab MC XL.
61 39 237 D 3439
36 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.1Changing the water
NOTICE
Using the tank cap opener
If you find the tank cap, tank drain or filter insert hard to open by hand,
use the tank cap opener (see "Using the tank cap opener" [ → 52]).
NOTICE
Wear of the ball pressure screw
The high clamping forces cause wear of the ball pressure screw.
➢ Replace the ball pressure screw every 500 clamping operations.
7.1
Changing the water
7.1.1 General information
NOTICE
Damage to the pump and drives!
If too much ceramic and/or base metals are in the cooling water, this
damages the pump and drives.
Change the water regularly!
When the water is due to be changed, a message window appears on
your monitor to remind you that it is time to change the water.
Preventing odors
All coolant additives contain a biodegradable preservative. Despite this,
however, odors may still develop under unfavorable conditions.
Observe the following:
● Change the water at least once a week.
● With ambient temperatures above 25°C, change the water every 2 to
3 days to prevent foul odors.
● Drain the tank if you do not intend to operate the unit for more than
one week.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
● Clean the tank if the odors recur.
● Add the coolant additive DENTATEC and fill the tank up to the brim
with water. Let it stand for at least 24 hours and then rinse it out
thoroughly with water once again.
NOTICE
Damage to surfaces!
In the undiluted state, the coolant additive DENTATEC disintegrates
plastic surfaces and can cause discoloration.
➢ Do not place DENTATEC on the unit.
➢ Do not spill DENTATEC.
37
7Service Dentsply Sirona
A
A
D
C
B
7.1Changing the water Operating Instructions inLab MC XL
NOTICE
Approved coolant additive
Use only DENTATEC as a coolant additive.
7.1.2 Changing the water
NOTICE
Change the filter inserts regularly!
Replace both filter inserts after every fourth water change.
Water tank
A Filter inserts C Tank
B Tank cap D Tank drain
7.1.2.1
Procedure for all materials except for base metals
To change the water, proceed as follows:
✔ The unit is switched on.
✔ No machining / scan process is running.
1. Pull out the water tank at the front of the unit.
2. Open the drain opening (D).
3. Empty two thirds of the water from the tank.
4. Close the drain opening (D).
5. Shake the tank vigorously.
6. Open the drain opening (D).
7. Drain the rest of the grinding water.
8. Close the drain opening (D).
9. Turn the tank cap (B) counter-clockwise and take it off.
38 D 3439.201.01.24.02 10.2017
61 39 237 D 3439
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.1Changing the water
NOTICE
Foaming not permissible!
If any cleaning agents are used, this will create foam, which is not
permitted.
Do not use any cleaning agents.
10. Add approx. 75 ml of DENTATEC to the tank.
11. Fill the tank with water until the filter inserts (A) are completely
immersed (up to the bottom edge of the cover thread, approx. 3
liters).
12. Wait briefly until the filter inserts (A) are soaked full and add a
corresponding amount of water.
13. Close the water tank by tightening the tank cap (B) clockwise by
hand. Do not use the tank cap opener for this.
14. Push the water tank back into the housing.
7.1.2.2
Procedure for processing base metal materials
7.1.2.2.1 Important information
NOTICE
Observe the safety information from the material manufacturer
Observe the safety instructions regarding occupational safety and
disposal referred to in the material manufacturer's operating
instructions.
IMPORTANT
Use a waterproof receptacle with a nominal volume of 10l as a collecting
vessel for changing the water (e.g. a commercially available 10l plastic
bucket). When selecting the collecting vessel, bear in mind that it will
also serve as a transporting container for disposal and is not reusable.
IMPORTANT
Wearing protective waterproof gloves is recommended.
IMPORTANT
In mixed operation, the tank can be used with base metals and other
materials. It is, however, recommended that you use an additional
standard tank which is only used for processing base metal materials.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
inLab double filter tank, complete, order no.: 62 00 898
IMPORTANT
Ask your disposal company whether the filter waste needs to be
correctly sorted for disposal.
39
7Service Dentsply Sirona
7.1Changing the water Operating Instructions inLab MC XL
IMPORTANT
Once the water has been changed, the collecting vessel will contain a
mixture of base-metal slurry (in mixed operation, there will also be other
materials) and water. The machining particles dispersed in the water will
settle to the bottom of the collecting vessel within 24h, resulting in a
clear separation between the water and the settled solid matter.
The clear water can then be removed or siphoned off from the collecting
vessel. The collecting vessel can be used until it is max. half-full of
grinding slurry (solid matter) or until the permitted weight for the
collecting vessel used has been reached. 5l of correctly sorted basemetal machining waste corresponds to 40kg in weight depending on the
base-metal alloy.
NOTICE
The external tank (REF 6377662) must not be used for processing base
metal materials.
7.1.2.2.2 Emptying the water tank
Emptying the grinding water and grinding slurry
✔ The unit is switched on.
✔ No machining process is running.
✔ A collecting vessel of approx. 10l is available.
1. Pull out the water tank at the front of the unit.
2. Pan the tank vigorously 5x in circular movements.
3. Open the drain opening (D). Tilt the tank so that no liquid escapes
through the drain opening.
61 39 237 D 3439
40 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.1Changing the water
4. Close the drain opening (D) using your thumbs and pan the tank
vigorously 5x in circular movements again.
5. Empty approx. 1/3 of the contents of the tank into the collecting
vessel provided. Operating the spring-loaded inlet opening of the
tank cap (B) allows the contents to flow out more easily.
6. Close the drain opening (D) using your thumbs and pan the tank
vigorously 5x in circular movements again.
7. Empty approx. 1/2 of the remaining contents of the tank into the
collecting vessel provided. Operating the spring-loaded inlet opening
of the tank cap (B) allows the contents to flow out more easily.
8. Close the drain opening (D) using your thumbs and pan the tank
vigorously 5x in circular movements again.
9. Empty the residual contents into the collecting vessel provided.
10. Close the drain opening (D) with the screw cap.
bеЦдблЬ
Rinsing and emptying the water tank
1. Turn the tank cap (B) counter-clockwise and take it off.
2. Fill the tank approx. 1/3 full with water.
3. Close the tank cap (B).
4. Open the drain opening (D). Tilt the tank so that no liquid escapes
through the drain opening.
5. Close the drain opening (D) using your thumbs and pan the tank
vigorously 5x in circular movements again.
6. Empty the residual contents into the collecting vessel provided.
7. Close the drain opening (D) with the screw cap.
7.1.2.2.3 Filling the water tank
1. Turn the tank cap (B) counter-clockwise and take it off.
2. Add approx. 75 ml of DENTATEC to the tank.
3. Fill the tank with water until the filter inserts are completely immersed
(up to the bottom edge of the cover thread, approx. 3 liters).
4. Wait briefly until the filter inserts are soaked full and add a
corresponding amount of water. This applies in particular after the
filter has been changed.
5. Close the water tank by tightening the tank cap clockwise by hand.
Do not use the tank cap opener for closing the tank cap.
6. Push the water tank back into the housing.
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
41
7Service Dentsply Sirona
7.2Instruments Operating Instructions inLab MC XL
7.2
Instruments
7.2.1 Overview of materials/instruments
For an updated table of approved instrument combinations, please visit
http://www.dentsplysirona.com/manuals.
Select your product there and then open the
7.2.2 Changing instruments
NOTICE
Instruments without chuck
In order to ensure that no grease residue from previously used chucks
remains in the clamping cone when using instruments without a chuck,
we strongly recommend degreasing the clamping cone.
NOTICE
Regular replacement of the instruments
Change the instruments as soon as the system prompts you to do so.
- Milling instruments (wet grinding): Typically after no more than around
25 restorations. The type of material, block size and processing options
may affect the service life.
- Shaper 25 (dry milling): After 50 restorations.
- Shaper 25 RZ (wet milling): After 30 restorations.
- Finisher 10 (dry and wet milling): After 50 restorations.
"Bur table"
document.
1. In the software, navigate to the system menu and click on the
"Configuration"
2. Click on the
3. Click on the unit whose instruments you wish to replace.
4. Click on the
ª If two sets are activated:
A dialog box then opens where you can select the set, whose
instruments should be replaced.
5. If necessary, select the desired set.
6. Click on the
ª The motors travel to the change position for the instruments.
The dialog box for changing the instruments opens.
7. Press the catch of the processing chamber door and open the door.
button.
"Devices"
button.
"Change Instruments"
"Start"
button.
button.
CAUTION
Risk of injury on instruments
If you put your hand in the processing chamber, you could injure it on
the instruments.
Be careful not to brush against the instruments with your hand.
Apply the torque wrench as shown.
61 39 237 D 3439
42 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.2Instruments
8. Loosen the worn-out or defective instrument with the torque wrench
and pull it out manually.
9. NOTICE! Do not grease instruments without chuck! Insert the new
instrument into the motor mount by hand. Tighten the corresponding
chuck with the torque wrench until a clicking sound can be heard.
NOTICE
Incorrect milling or grinding results
Interchanging instruments leads to faulty milling or grinding results.
10. Close the processing chamber door.
11. In the software, select the instrument(s) you have used and click
"Start"
.
NOTICE
Cleaning cooling water nozzles
The cooling water nozzles in the processing chamber must be free from
limescale, grinding dust/milling dust deposits. The corresponding
cooling water jet must always strike the instrument accurately!
✔ The cooling water nozzles are dirty.
➢ Clean the nozzles with a cleaning wire and a syringe.
NOTICE
Use only suitable instruments!
Do not use any instruments from CEREC 2 or CEREC 3 units.
Changing a defective instrument
If an instrument breaks during the machining phase, the corresponding
motor travels to the change position. A dialog box which marks the side
with the broken instrument with a red cross then opens.
✔ The instrument is broken.
1. Change the defective instrument as described above.
2. Select the instrument which you have inserted.
3. Press the
"Start"
button.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
43
7Service Dentsply Sirona
7.3Care, cleaning agents, and disinfectants Operating Instructions inLab MC XL
7.3
Care, cleaning agents, and disinfectants
NOTICE
Approved care, cleaning, and disinfecting agents
Use only care, cleaning, and disinfecting agents approved by Dentsply
Sirona!
A continuously updated list of approved media can be downloaded from
the internet via the online portal for technical documents. You can reach
this portal at the address:
www.dentsplysirona.com/manuals
. Click on the menu item
cleaning and disinfection agents"
If you do not have internet access, please contact your dental depot to
order the list (REF 59 70 905).
7.4
Cleaning surfaces
NOTICE
Do not allow liquids to run into the ventilation slots!
7.4.1 Disinfecting
"General documents"
document
and then open the
"Care,
Wipe surfaces down with a surface disinfectant (wiping disinfectant).
Observe the manufacturer’s instructions regarding restrictions for use.
7.4.2 Protection against medicaments
Due to their high concentrations and the substances they contain, many
medicaments can dissolve, etch, bleach or discolor surfaces.
NOTICE
Damage to the surface
Clean the surface immediately with a moist cloth and a cleaning agent.
7.4.3 Cleaning
Remove dirt, grime and disinfectant residue regularly using mild,
commercially available cleaning agents.
61 39 237 D 3439
44 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.5Replacing the main fuses
7.5
Replacing the main fuses
WARNING
Electric shock
Disconnect the power plug at the unit end before replacing the fuses.
NOTICE
Fuse type
Use only fuses of the same type in the fuse holder!
bеЦдблЬ

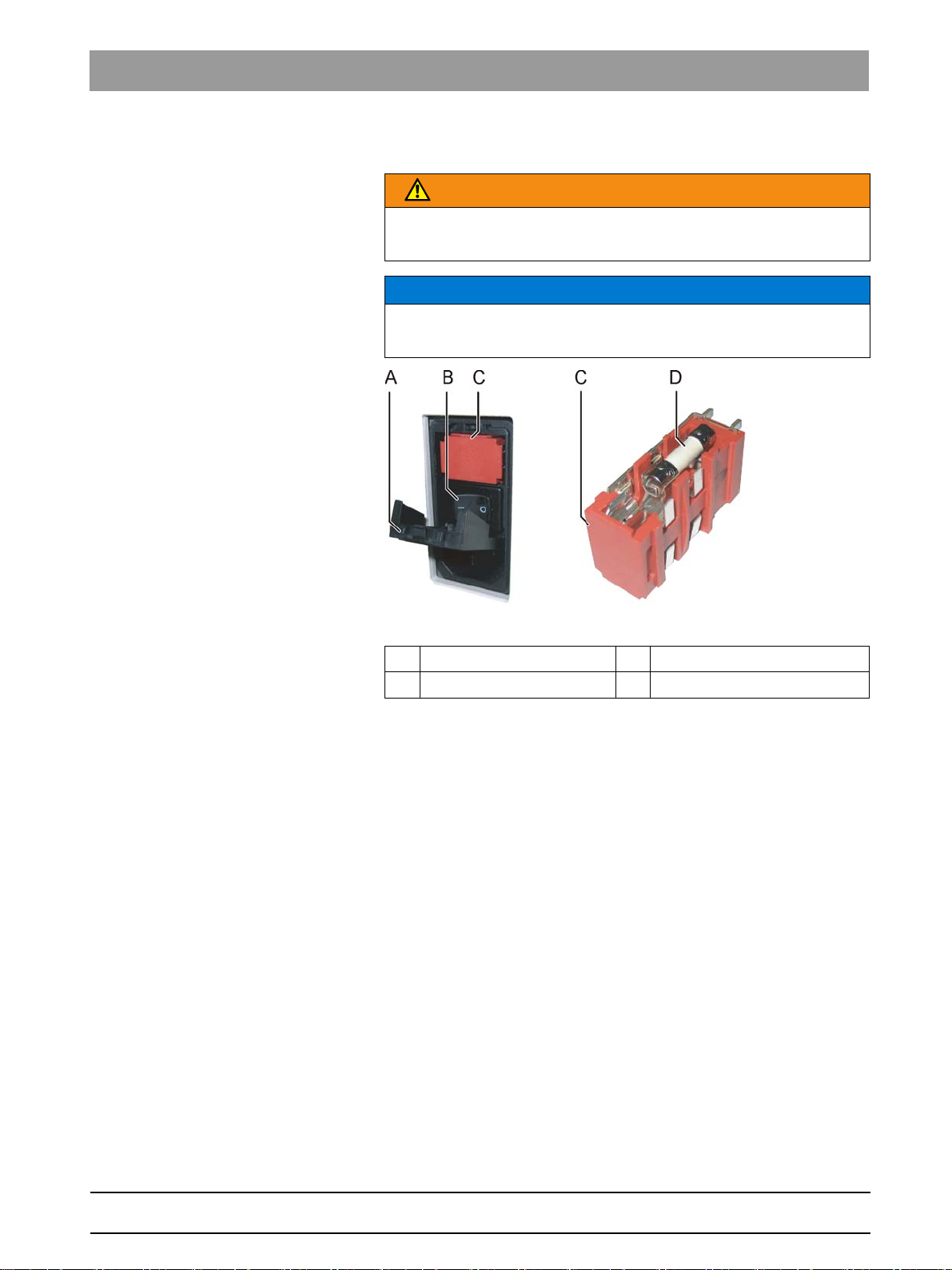

Fuse holder
A Cover C Fuse holder
BCC DFuse
Fuses: T5H250V Order No. 20 33,111
✔ The power plug must be disconnected.
1. Use a screwdriver to carefully pry off the cover of the fuses on the
back side of the unit.
2. Pull out the fuse holder.
3. Replace the defective fuses.
4. Reinsert the fuse holder.
5. Close the cover.
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
45
7Service Dentsply Sirona
A
A
D
C
B
7.6Changing the filter Operating Instructions inLab MC XL
7.6
Changing the filter
NOTICE
Change the filter inserts regularly!
Replace both filter inserts once a week or after every fourth water
change.
If a message stating that the water pressure is too low appears, you
must change the filter inserts.
NOTICE
Filter
Only use filter inserts approved by Dentsply Sirona!
Water tank
A Filter inserts C Tank
B Tank cap D Tank drain
7.6.1 Procedure for all materials except for base metals
✔ The tank is empty, see "Removing water from the unit [ → 51]“.
46 D 3439.201.01.24.02 10.2017
1. Pull out the water tank at the front of the unit.
2. Unscrew the covers on the side and take them out of the tank along
with the filter inserts.
3. Rinse the water tank.
4. Insert the new filters with cover into the tank and screw them tight.
5. Fill the tank, see "Changing the water“ [ → 37].
Filter insert: Order No. 61 29 519
61 39 237 D 3439
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.6Changing the filter
7.6.2 Base metal operation or mixed operation with base metal
and other materials
NOTICE
Observe the safety information from the material manufacturer
Observe the safety instructions regarding occupational safety and
disposal referred to in the material manufacturer's operating
instructions. Dirty filters must be disposed of appropriately in
accordance with these specifications.
1. Empty the water tank (see "Emptying the water tank [ → 40]“).
2. Unscrew the covers on the side and take them out of the tank along
with the filter inserts.
3. Rinse the water tank.
4. Insert the new filters with cover into the tank and screw them tight.
5. Fill the tank (see Filling the water tank [ → 41]).

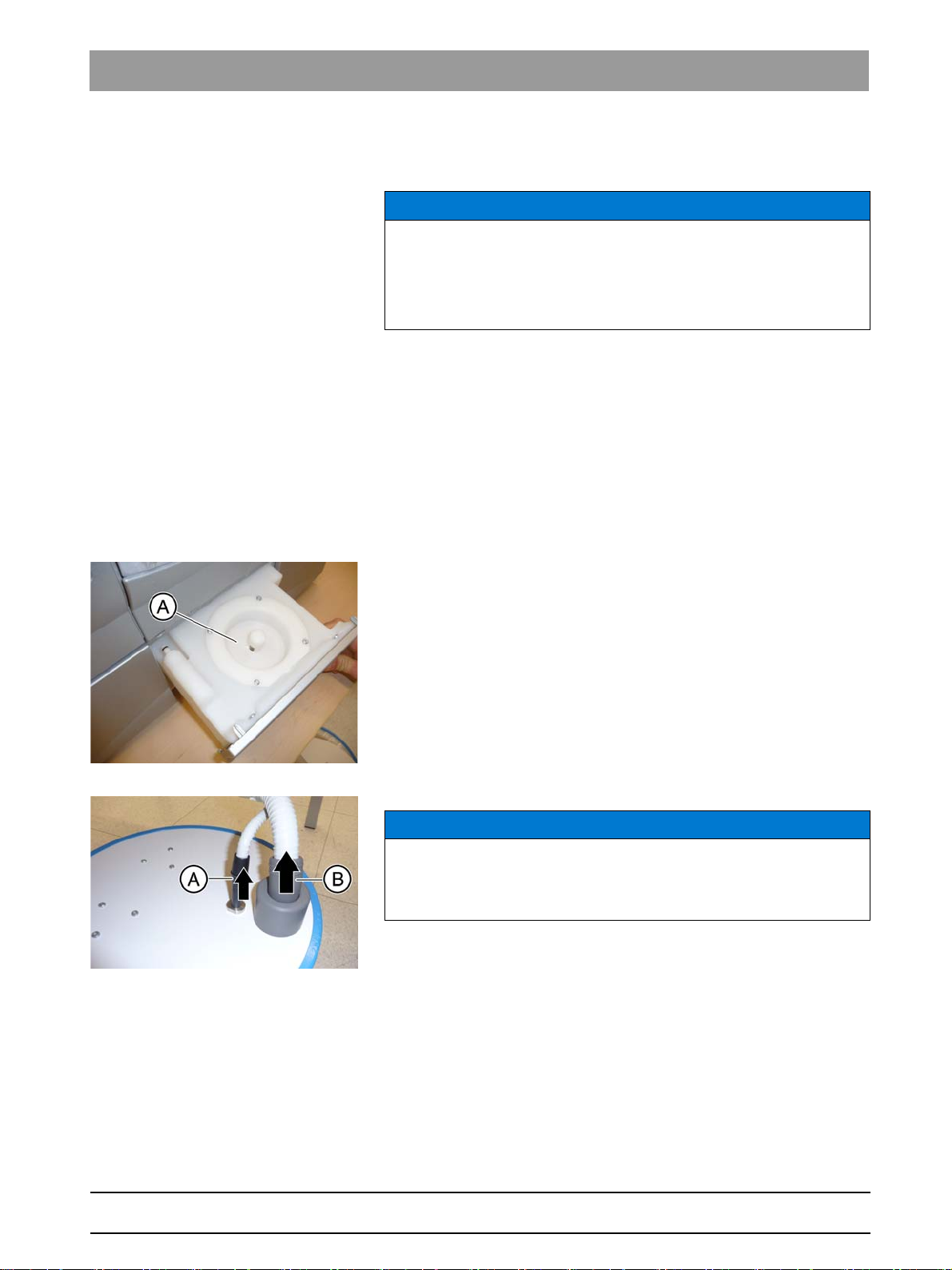

7.6.3 Changing filters on the external tank
Cleaning the plug-in tank
1. Pull out the plug-in tank.
2. Clean the outlet (A) and then rinse it with water.
3. Reinsert the plug-in tank.
Opening the external water tank
NOTICE
Risk of damage to the hoses
If you pull on the hose, you may damage it.
➢ Always pull it from the pipe section (A or B).
1. Pull off the suction connection (A).
2. Pull off the drain hose (B).
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
47
7Service Dentsply Sirona
7.6Changing the filter Operating Instructions inLab MC XL

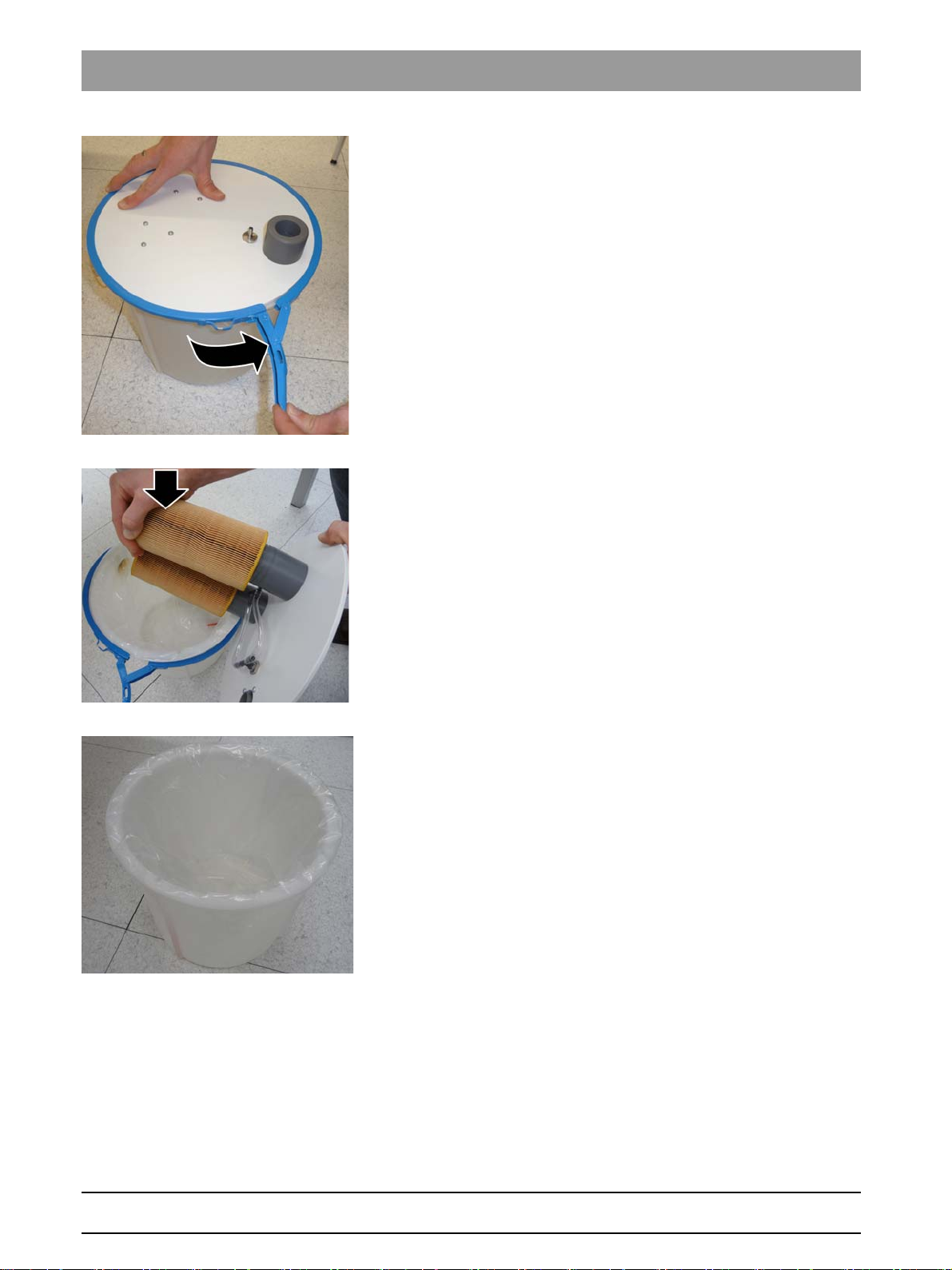

3. Open the clamping ring and lay it down.
Disposing of filter cartridges and ceramic sludge
1. Release the filter cartridges by tilting them slightly. The springs
remain attached.
Tip: If a spring accidentally comes loose, you can reattach it by
screwing it in counter-clockwise.
2. Dispose of the filter cartridges with domestic waste.
3. Slowly pour the water out of the container into the outlet so that the
ceramic sludge remains in the container.
4. Take the plastic bag out of the container and dispose of it with
domestic waste.
Preparing the external water tank
1. Insert the plastic bag into the external water tank in such a way that
it protrudes by around 3-4 cm.
2. Ensure that it protrudes evenly around the edge of the container.
61 39 237 D 3439
48 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.6Changing the filter
3. Place the clamping ring onto the external water tank with the labeling
(A) facing up.
4. Add approx. 400 ml of DENTATEC to the tank.
5. Fill the tank up to the filling level with water (approx. 16 liters).
Installing the filters
1. Press down the 2 filters until they click into place on the lid.
2. Insert the lid with the filters into the container.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
49
7Service Dentsply Sirona
7.6Changing the filter Operating Instructions inLab MC XL

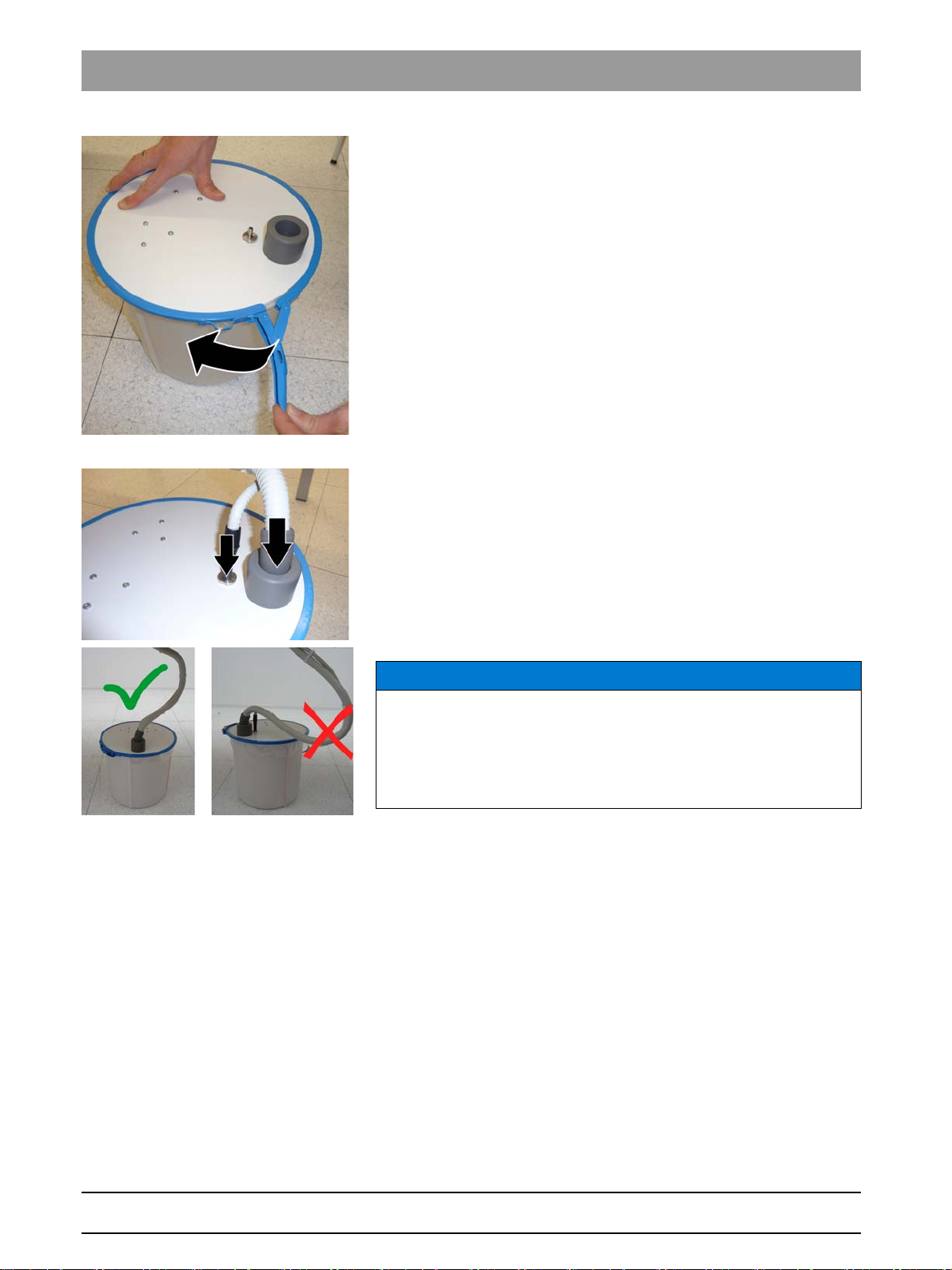

3. Close the clamping ring.
Connecting the External Water Tank
1. Insert the suction connection up to the stop.
2. Insert the drain hose up to the stop.
NOTICE
Risk of overflowing
Sagging of the drain hose may result in overflowing.
➢ Arrange the external water tank in such a way that there is a
continuous incline in the drain hose (you may need to rotate or move
the external water tank).
61 39 237 D 3439
50 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.7Removing water from the unit
7.7
Removing water from the unit
You must remove water from the unit if you will not be using it for a long
period of time or wish to transport it.
7.7.1 Procedure for all materials except for base metals
✔ No machining process is running.
1. Turn the device off.
2. Pull out the water tank at the front of the unit.
3. Drain the water out of the water tank through the drain opening and
reinsert the water tank in the unit.
4. Switch the unit on.
5. Press the
ª The water pump then starts pumping the water out of the unit.
6. Press the
7. Pull out the water tank and empty it.
8. Push it back into the housing.
"Pump"
Let the pump run until no more water escapes from the nozzles.
"Pump"
button to switch the pump on.
button to switch the pump off.
7.7.2 Base metal operation or mixed operation with base metal
and other materials
bеЦдблЬ
NOTICE
Observe the safety information from the material manufacturer
Observe the safety instructions regarding occupational safety and
disposal referred to in the material manufacturer's operating
instructions. Dirty filters must be disposed of appropriately in
accordance with these specifications.
1. Empty the water tank (see Emptying the water tank [ → 40]) and insert
it back into the unit.
2. Switch the unit on.
3. Press the
ª The water pump then starts pumping the water out of the unit.
4. Press the
5. Pull out the water tank and empty it.
6. Push it back into the housing.
"Pump"
Let the pump run until no more water escapes from the nozzles.
"Pump"
button to switch the pump on.
button to switch the pump off.
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
51
7Service Dentsply Sirona
7.8Using the tank cap opener Operating Instructions inLab MC XL
7.8
Using the tank cap opener
NOTICE
Risk of damage to the tank
Use the tank cap opener only for opening the tank cap, tank drain and
filter insert.
Do not use the tank cap opener for closing the tank cap. To close the
tank cap, tank drain and filter insert it is sufficient to tighten them
clockwise by hand.
Opening the tank cap
✔ The water tank has been pulled out and drained.
➢ Place the tank cap opener on the tank cap as shown, and take off the
tank cap by unscrewing it counter-clockwise.
Opening the filter cap
✔ The water tank has been pulled out and drained.
➢ Place the tank cap opener on the filter cap as shown, and take off the
filter cap by unscrewing it counter-clockwise.
61 39 237 D 3439
52 D 3439.201.01.24.02 10.2017
Dentsply Sirona 7Service
Operating Instructions inLab MC XL 7.8Using the tank cap opener
Opening the tank drain
✔ The water tank has been pulled out.
➢ Place the tank cap opener on the filter drain as shown, and take off
the filter drain by unscrewing it counter-clockwise.
Tip: If a black rubber plug is available on the tank, this can be removed
by hand.
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
53
8Technical description Dentsply Sirona
8.1System requirements Operating Instructions inLab MC XL
Technical description
8
8.1
8.2
System requirements
The inLab SW software may be installed only on the 64-bit inLab PC.
The hardware version of the inLab PC must be HQ PC Hardware with
Windows 7 (64-bit) or higher.
Grinding and milling unit
8.2.1 General technical description
● Digital feed control with force monitoring for extremely sensitive
processing of ceramic materials
● Process-controlled grinding motors
● Production repeatability: +/- 25 μm
● Milling speed: 1.0 - 1.5 mm/min.
Milling instruments (performance-monitored, backlash-free bearing)
● Grain size: 64 μm
● Speed:
● Step Bur 12 S
● Step Bur 20
● Cyl. Pointed Bur 12 S
● Cyl. Pointed Bur 20
42,000
rpm
Milling instruments
● Shaper 25 RZ (wet milling)
● Shaper 25 (dry milling)
● Finisher 10 (wet and dry milling)
61 39 237 D 3439
54 D 3439.201.01.24.02 10.2017
Dentsply Sirona 8Technical description
Operating Instructions inLab MC XL 8.2Grinding and milling unit
8.2.2 Technical data
Type designation Milling and grinding unit inLab
MC XL
Rated line voltage 100 V - 230 V AC
Rated power frequency 50/60 Hz
Nominal current 1.5 - 3.5 A
Nominal power output 320VA
Permissible line voltage fluctuations ±10% of nominal voltage
Type of protection against electric
shock
Degree of protection against ingress
of water
Overvoltage category II
Ambient conditions For indoor use
Temperature range 5°C to 40°C
Humidity range 80% rel. up to 31 °C
Operating mode Continuous operation
Dimensions (WxHxD) in mm 700 x 425 x 420
Approx. weight 43 kg
Class 1 equipment
Ordinary device (without
protection against ingress of
water)
Pollution degree 2
Air pressure: 700 hPa – 1060
hPa
decreasing to
50% rel. up to 40 °C
bеЦдблЬ
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
8.2.3 Controller board
● 3x 2-axis stepping motor controller with microstepping
● 4 DC motor controllers with integrated speed and current control and
force monitoring
● Ethernet, RJ45 interface 10 Mbit/sec
55
9Disposal Dentsply Sirona
Operating Instructions inLab MC XL
Disposal
9
In accordance with Directive 2012/19/EU and national disposal
regulations regarding old electrical and electronic devices, please be
advised that such items must be disposed of in a special way within the
European Union (EU). These regulations require the environmentally
friendly recycling/disposal of old electrical and electronic devices. Such
items must not be disposed of as domestic refuse. This has been
expressed using the icon of the “crossed out trash can”.
Disposal procedure
We feel responsible for our products from the first idea to their disposal.
For this reason, we give you an option to return our old electronic and
electrical devices.
If you wish to dispose of your devices, please proceed as follows:
In Germany
To initiate return of the electrical device, please send a disposal request
to enretec GmbH. You have the following options here:
● Use the “Returning an electrical device” button under the “eom” menu
item on the enretec GmbH homepage (www.enretec.de).
● Alternatively, you can also contact enretec GmbH directly.
enretec GmbH
Kanalstraße 17
16727 Velten
Tel.: +49 3304 3919-500
E-mail: eom@enretec.de
In accordance with the national disposal regulations regarding old
electrical and electronic devices (ElektroG), as the manufacturer, we
assume the costs for disposing of the electrical and electronic devices in
question. Disassembly, transport and packaging costs shall be borne by
the owner/operator.
Prior to disassembly/disposal of the product, it must be fully prepared
(cleaned/disinfected/sterilized).
If your unit is not permanently installed, it will be collected from the
practice. If it is permanently installed, it will be picked up curbside at your
address by appointment.
Other countries
For country-specific information on disposal, contact your local dental
dealers.
61 39 237 D 3439
56 D 3439.201.01.24.02 10.2017
Dentsply Sirona Index
Operating Instructions inLab MC XL
Index
A
Application, 9
B
Bar code reader, 14
Building installation, 10
C
Calibration tools
Calibration phantom, 25
Calibration pins, 25
Storage, 27
Care, cleaning, and disinfecting agents, 44
CE mark, 8
Connection
Ethernet, 19
LAN, 19
Connections, 14
Cooling water nozzles, 43
D
F
Filter
change, 46
Order No., 46
footprint, 13
Fuse, 14
Fuse type, 45
Order No., 45
replacement, 45
G
Grinding unit
Grinding chamber, 15
Overview, 14
H
Humidity range, 55
I
Installation site, 13
installing unit
Dimensions, 55
Disinfectant, 44
Disposal of old electrical and electronic devices, 56
E
enretec GmbH, 56
Ethernet
LAN port, 14
61 39 237 D 3439
D 3439.201.01.24.02 10.2017
manually, 19
Instruments, 43, 54
Changing, 42
Changing a defective instrument, 43
Intended use, 9
M
Main switch, 14
Maintenance, 10
Regulations, 36
Milling and grinding unit
Display, 17
Milling speed, 54
N
Nominal current, 55
57
Index Dentsply Sirona
Operating Instructions inLab MC XL
O
Operating mode, 55
P
Packaging, 12
Packing, 23
Power connection, 14
Product safety, 11
Protection class, 55
R
Rated line voltage, 55
Repair, 10
S
Safety instructions, 6
Scope of supply, 23
T
Temperature range, 55
Transport, 12
Type designation, 55
U
Unit installation
automatically, 19
Unit removal
removal, 20
Unpacking, 12
W
Water, 55
Water tank
Changing the water, 38
Filling the, 20
Odors, 37
Overview, 20, 38, 46
Removing water from the unit, 51
water change, 37
Weight, 55
61 39 237 D 3439
