SIDE BY SIDE

REFRIGERATOR

OWNER’S MANUAL AND INSTALLATION

CONTENTS
SAFETY WARNING....................................................................................	2
OPERATING INSTRUCTIONS
SETTING UP THE REFRIGERATOR ........................................................	4
MAJOR FEATURES.....................................................................................	4
CONTROL PANEL .......................................................................................	5
DIGITAL PANEL ..........................................................................................	7
TEMPERATURE CONTROL ......................................................................	8
ICE AND COLD WATER DISPENSER .......................................................	8
USING THE WATER DISPENSER(optional).......................................................	9
SHELVES AND BINS ...................................................................................	11
FOOD STORAGE GUIDE ........................................................................	12
CoolSelect ZoneTMDrawer GUIDE.............................................................	14
REMOVING FREEZER ACCESSORIES..................................................	16
REMOVING REFRIGERATOR ACCESSORIES.....................................	16
BEVERAGE STATIONTM(optional) ............................................................	16
CLEANING ACCESSORIES......................................................................	17
CHANGING THE INTERIOR LIGHT.........................................................	18
WATER FILTER..........................................................................................	19
DOORS.......................................................................................................	19
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE REFRIGERATOR ............................................	20
REMOVING THE FRONT LEG COVER .........................................	21
REMOVING THE REFRIGERATOR DOORS .........................................	22

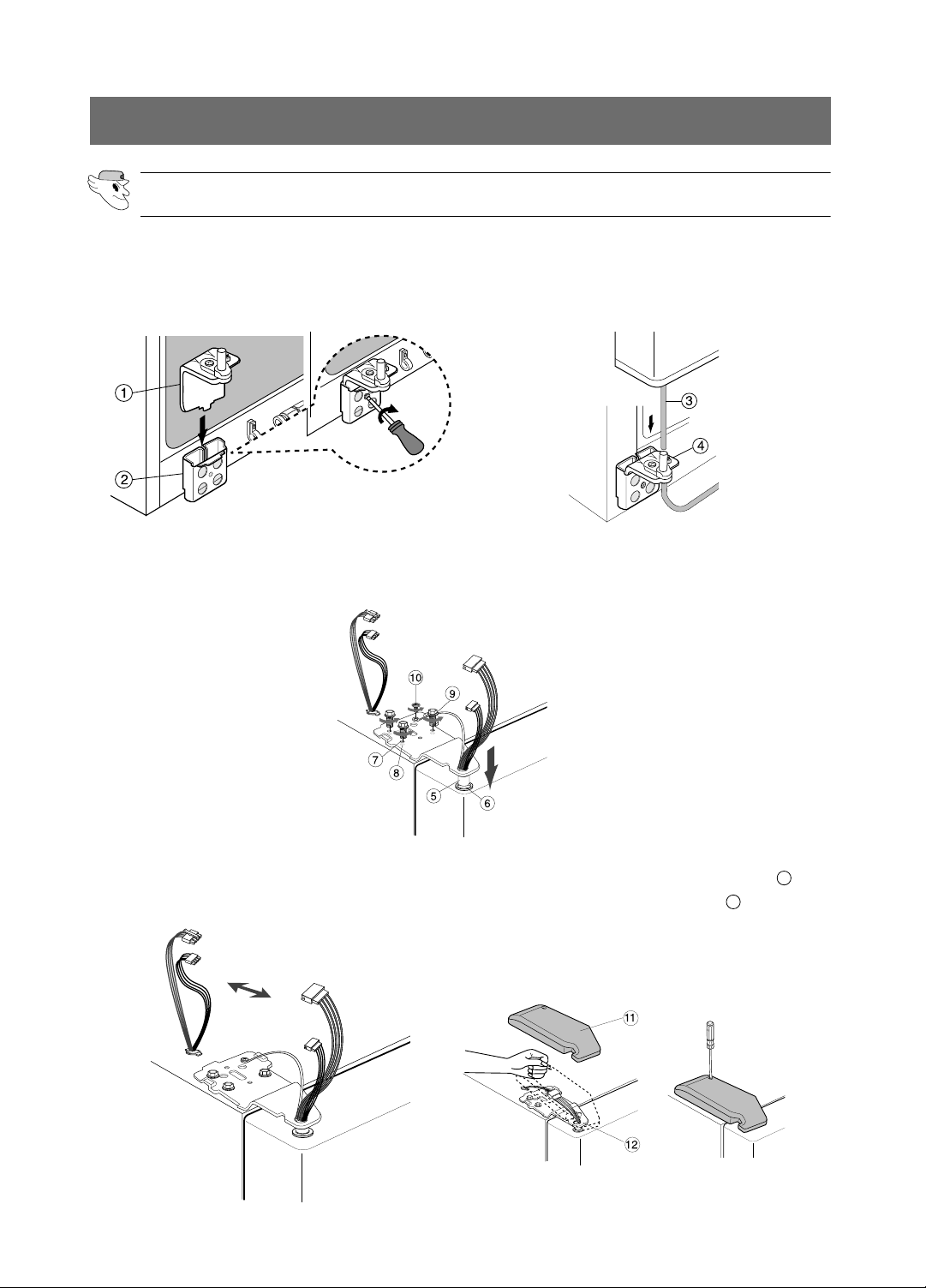

REATTACHING THE REFRIGERATOR DOORS....................................	24
ADJUSTING THE CLEARANCE BETWEEN THE DOORS....................	27
CHECKING THE WATER DISPENSER LINE ..........................................	29
INSTALLAING THE WATER DISPENSER LINE......................................	30
TROUBLESHOOTING...............................................................................	35

ENGLISH

DA99-00494P REV(0.2)

SAFETY WARNINGS

	• Before operating the appliance, please read this manual thoroughly and retain it for
	your reference.
	• Because these following operating instructions cover various models, the characteris
WARNING	tics of your refrigerator may differ slightly from those described in this manual
	• The appliance is not intended for use by children or infirm persons without adult supervision.

•Children should be supervised to ensure that they do not play with the appliance.

•R600a or R134a is used as a refrigerant. Check the compressor label on the rear of the appli ance and the rating label inside the fridge to see which refrigerant is used for your refrigerator.

•The refrigerator only use ice makers which made by samsung Electronics for the refrigerator.

•The incorporated ice-makers are to be installed only by the manufacture or its service agent.

CAUTION/WARNING SYMBOLS USED

OTHER SYMBOLS USED

Represents something you must NOT

Indicates that a danger of death

Represents something you must NOT

or serious injury exists.

disassemble.

WARNING

Represents something you must NOT touch.

Represents something you must follow.

Indicates that a risk of

personal injury or material

Indicates that you must disconnect the

CAUTION

damage exists.

power plug from the socket.

Represents a ground is needed to prevent

electric shock.

WARNINGS

It is recommended that this symbol be

handled by service man.

Do not plug several appliances into the same multi-

Do not disassemble or repair the refrigerator by your-

ple power board.

self.

• This could cause overheating and the risk of fire.

• You run the risk of causing a fire, malfunctions and/or

Make sure that the power plug is not squashed or

personal injury.

Pull the power plug out of the socket before changing

dam-aged by the back of the refrigerator .

• A damaged power plug may overheat and cause fire.

the interior light of the refrigerator.

Do not bend the power cord excessively or place-

• Otherwise, there is a risk of electric shock.

If you wish to dispose of the refrigerator / freezer

heavey articles on it .

• This constitutes a fire hazard. If the power cord is

throw it away after first removing the doors and seals.

damaged, have it replaced immediately by the

• Do so in a way, that is not possible for a child to remain

manufacturer or its service agent.

trapped inside.

Do not directly spray water inside or outside the

The refrigerator must be grounded.

refrigerator.

• You must ground the refrigerator to prevent any power

• There is a risk of fire or electric shock.

leak ages or electric shocks caused by current leakage

Do not spray inflamable gas near the refrigerator.

from the refrigerator.

Never use gas pipes, telephone lines or other poten-

• There is a risk of explosion or fire.

Do not insert the power plug with wet hands.

tial lightening rods as ground.

• Improper use of the ground plug can result in electric

• You may receive an electric shock.

shock.

Do not put a container filled with water on the

WARNING

refrigerator.

• If spilled, there is a risk of fire or electric shock.

• Keep ventilation openings in the appliance enclosure

Do not install the refrigerator in a damp place or a

or mounting structure clear of obstruction.

place where it may come in contact with water.

• Do not use mechanical devices or any other means to

• Deteriorated insulation of electrical parts may cause an

accelerate the defrosting process, other than those

electric shock or fire.

recommended by the manufacturer.

Do not store volatile or flammable substances in the

• Do not damage the refrigerant circuit.

	refrigerator.	• Do not use electrical appliances inside the refrigera-
		tor/freezer, unless they are of a type recommended
	• The storage of benzene, thinner, alcohol, ether, LP gas
		by the manufacturer.
	and other such products may cause explosions.

2

CAUTIONS

Do not overfill the refrigerator with food.

•When you open the door, an item may fall out and cause personal injury or material damage.

Do not put bottles or glass containers in the freezer.

•When the contents freeze, the glass may break and cause personal injury.

If the wall socket is loose, do not insert the power plug.

• There is a risk of electric shock or fire.

Do not disconnect the power cord by pulling on it.

•Damage to the cord may cause a short-circuit, fire and/or electric shock.

•If the power cord is damaged, it must be replaced by the manufacturer, a certified service agent or qualified service personnel.

Do not store articles on the top of the appliance .

•When you open or close the door, the articles may fall and cause personal injury and/or material damage.

Do not store pharmaceuticals products, scientific materials or temperature-sensitive products in the refrigerator.

•Products that require strict temperature controls must not be stored in the refrigerator.

Do not let children hang on the door. If not, a serious injury may occur.

If you smell pharmaceutical or smoke, pull out the power plug immediately and contact your SAMSUNG Electronics service center.

Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

• This may cause frostbite.

Do not insert your hands into the bottom area under the appliance.

• Any sharp edges may cause personal injury.

Never put fingers or other objects into the dispenser hole and ice chute. It may cause personal injury or material damage

Either R600a or R134a are the refrigerants used. Check the compressor label on the rear of the appliance and the rating label inside the fridge to

see which refrigerant is used for your refrigerator.

CAUTIONS

The refrigerant used in the refrigerator/freezer and the gases in the insulation material require special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.

Do not	cleaning
the plug	or dust
from the
• Otherwise
• If the	the power
supply,	five minutes
before

If the refrigerator is not to be used for a long period of time, pull out the power plug.

• Deterioration in the insulation may cause fire.

The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure

that they do not play with the appliance.

Do not place the equipment directly under the sunlight.

The appliance must be positioned so that the plug is accessible after installation

If the power cord is damaged it must be replaced

by manufacturer, a certified service agent or qualified service personnel.

This appliance contains a small amount of isobutane refrigerant (R600a), a natural gas

with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken

to ensure that no parts of the refrigerating circuit are damaged.

Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

•In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

The room must be 1m3 in size for every 8 g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

•Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

SAFETY WARNING

3

SETTING UP THE REFRIGERATOR

Once you have performed the following steps, your refrigerator should be fully operational. If not, check the power supply and electricity source. If you have any questions, contact your SAMSUNG service center.

Place the refigerator in an appropriate location with reasonable clearance between the wall and the refigerator.

(refer to installation instructions in this mannal)

When the refrigerator is plugged in, the interior light should come on when you open the doors.

Set the temperature control to the coldest temperature and wait for an hour. The freezer should get slightly chilled and the motor should run smoothly.

Once the refrigerator temperature is sufficiently low, you can store food in the

refrigerator. After starting the refrigerator, it takes a few hours to reach the appropriate temperature.

MAJOR FEATURES

Twin Cooling System

•The refrigerator and the freezer have two evapora tors. Given this independent system, the freezer and the refrigerator are cooled individually as required and are, therefore, more efficient. Food odor from the refrigerator does not affect food in the freezer due to separate of air flow circulation.

Multi-Flow System

•Cool air circulates through multiple vents on every shelf level. This provides even distribution of cooling inside cabinets to keep your food fresh longer.

Door Alarm

• A beeper reminds you if the door is left open.

High humidity for fresher food

•You can keep food, fruit and vegetables fresh for longer because your refrigerator supplies highly humidified cold air. This can be up to four or five times more effective than a normal refrigerator.

Energy-saving fridge/freezer

•Power consumption is kept to a minimum by distributing cool air separately to the refrigerator and freezer.

Beverage Station (optional)

•You do not have to open the main door to access frequently used food in the extra

refrigerating compartment. This saves time and money.

Deodorizer (optional)

•Reusable deodorizer keeps the refrigerator air fresh and odor free.

CoolSelect ZoneTMDrawer (optional)

• User can select Quick Cool, Thaw and Select buttons for quickly chill, thaw and cools items. Select Soft Freeze, Cool or Chill to control the tempera ture of drawer.

	Faster cooling times
	• The power freeze function allow you to freeze food
	more quickly.
	Abundant supply of ice and cold water	This operation instruction covers various
	• The ice and water dispenser provides ice and cold
		models.

water at any time.	NOTE	The characteristics of your appliance may
		differ slightly from those described in this
		manual.

4

CONTROL PANEL

Basic Model

Dispenser Model

FREEZER TEMP. BUTTON

To set the freezer temperature, press the button repeatedly to change the set temperature in sequence between -14°C and -25°C

POWER FREEZE BUTTON		ICE TYPE BUTTON
Speeds up the freezing		Use this button to choose
process inthe freeze.		Cubed or Crushed Ice or
		Ice off.

FRIDGE TEMP. BUTTON

To set the fridge temperature, press the button repeatedly to change the set temperature in sequence between 7°C and 1°C.

POWER COOL BUTTON

Speeds up the cooling process in the refrigerator

CHILD LOCK BUTTON

When the child lock button is pressed for 3 seconds, the child lock indicator is on with an audible tone. when it is locked, all keys can not be modified except the Ice type button. This function will prevent accidental setting that may be caused by children or pets. To unlock the setting functions, press this button for 3 seconds again.

Also, this button has another function. When this button is pressed for 3 seconds (lock indication lamp turn on), the heater for sweat control is off at a same time. If sweat is appeared around the cover dispenser or beverage station with this function, press this button for 3 seconds again. then, the light will turn off and the sweat control function will be performed. and all keys will be unlocked at a same time.

OPERATING INSTRUCTIONS

5

CONTROL PANEL

Basic Model (With CoolSelect Zone)

Cool Select zone

Dispenser Model (With CoolSelect Zone)

Cool Select zone

6

DIGITAL PANEL

Freezer Temp. indicates the current freezer temperature. Fridge Temp. indicates the current refrigerator temperature.

Quick Cool, Thaw, and Select show the status of the CoolSelect ZoneTMDrawer

Power Freeze

Power Cool

Deodorizer

•This light is on when you press the Power Freeze button.

Press this button to quickly return the freezer to the set temperature.

•If you need much ice, you can get ice faster.

•Press the button again to cancel the Power Freezer mode.

•This light is on when you press the Power Cool button.

Press the button to quickly return the refrigerator to the set temperature.

•Press the button again to cancel the Power Cool mode.

•This light indicates the recyclable deodorizer is in operation.

•Recycle the honeycomb cartridge once or twice a year (see “Cleaning the Accessories” section)

Cubed Ice, Crushed Ice and Ice Off

• Press the Ice Type button in seqence to choose Cubed Ice, Crushed Ice or Ice Off to stop making ice.

• Bright icon indicates the ice state currently operated.

Filter Indicator • When the green light changes to orange, it is time to replace the water filter. If indicator is red, quick replacement is strongly recommended.

• When the water filer is replaced, reset the indicator by pressing the Ice Type button and the Child Lock buttons simultaneously for 3 seconds.

•To turn this indicator off, press the Ice Type and Child Lock buttons simulta neously for 5 seconds.

OPERATING INSTRUCTIONS

7

TEMPERATURE CONTROL

Freezer

•The freezer temperature can be set between -14°C and -25°C.

•Press the Freezer Temp. button repeatedly until the desired set temperature is shown in the temperature display.

•The temperature display changes in sequence between -14°C and -25°C. When the display reaches 14°C, it returns to -25°C.

Refrigerator

•The refrigerator temperature can be set between 7°C and 1°C.

•Press the Fridge Temp. button repeatedly until the desired temperature is shown in the temperature display.

•The temperature display changes in sequence and reverts in the same way as the freezer.

•After five seconds, the display reverts to the actual freezer temperature. The unit will then work to adjust to the new desired temperature.

•When ice cream is stored above -15°C in freezer, it may melt.

•The temperature of the freezer or the refrigerator rises from frequent openings, when sweeping

and from warm food. This may cause the digital display to blink . The digital display will stop

WARNING blinking when the freezer and refrigerator return to the normal temperature.

ICE and COLD WATER DISPENSER

Ice Maker (Basic Model)

• Pull out the ice tray.

• Add water until it reaches the water level indicator.

• Put the ice tray back in place.

Ice Dispenser		Water
The ice maker produces 10 cubes at once and about 120		The capacity
cubes a day automatically. This quantity may be influenced by
factors such as the freezer temperature, the Power Freeze		Cold
function and the number of door openings. When your refriger-		• Push the
ator is plugged in, the Cubed Ice mode is automatically select-		• If you have
ed .		first six
Press the Ice Type button to select the type of ice:		water
• Cubed Ice
• Crushed Ice
• No Ice	No Ice
If
NOTE
Push the		CAUTION

•Place a cup to prevent

Push

WARNING

If you have a long vacation or business trip and won’ t use the water or ice dispensers, close the water valve.

Otherwise, water may occur leakage.

Never put fingers or any other objects in the dispenser opening.

It may cause injury.

8

USING THE WATER DISPENSER (OPTION)

With the water dispenser, you can obtain chilled water easily without opening the refrigerator door. In addition, you can save electricity by reducing the number of times the door is opened by more than 30%.

Overview

Push lever

Locking device

Water tank cap

Water tank

Water supply device

WHEN THE WATER DISPENSER IS NOT USED. THE FOLLOWING WAYS RECOMMDED

Fix the water supply device tightly into the fixing hole.

• The door will not be closed automatically when the water supply device is pulled out for a long time because of cold leaking.

Set the locking device to the “LOCK”.

•When pressing the “PUSH” button with the water supply device only fixed at the fixing hole, and the locking device is set on “OPEN”, the water supply device can be removed from the fixing hole and cold leaks.

When exposing to child, set the locking device to the “LOCK”.

NOTE

FILLING THE WATER TANK

Open the water tank by removing the round cap and fill it up with drinking water.

• Fill the tank up to the full level (just over 4.2 litres).

Replace the round cap by pushing down on it until it clicks into place.

OPERATING INSTRUCTIONS

9

INSTALLING A REGULAR BOTTLE

Press the fixing lever, lift the exclusive water tank upwards, then remove it.

Remove the water supply device from the exclusive water tank, then set the inner groove of the water supply device in a regular spring water bottle and fix it in position by turning it.

Turn the water supply device over, then fix it in position in the fixing hole.

• Gurgling sounds may be heard when air enters the water tank from regular mineral water or beverage bottles.

NOTE • Some regular mineral water or beverage bottles may not fit the water supply device, depending on their size.

•If water does not come out satisfactorily when you press the “push” button, press it again.

•Do not use carbonated drinks, such as cola, cider or sodas. When you press the button, the beverage may spurt out due to the pressure of carbonic gas accumulated in the upper part of beverage bottle.

•Use bottled mineral water or boiled tap water that does not contain any particles.

Water Tank / Supply Device

Pull upward and disassemble the hooks on both sides of the large-sized cap.

Loosen the water supply device by turning it in the direction of the arrow and removing it.

Wipe the large-sized cap and the exclusive water tank with warm water and detergent.

• Hold the cap and pull it upwards to remove it. Clean the cap and waste filtering bottle attached to the cap with a soft brush.

After cleaning the water supply device with a soft brush, press the water supply device operation lever, then wash it in running water.

	• Clean the water tank frequently if it used to dispense tea or other such beverages. Only use fil-
	tered tea. For better hygiene, beverages with a high sugar content (juice, soft drinks) are not
WARNING	recommended.
	• Deposits can be cleaned by wiping the tank with a cloth dampened in vinegar or salt water.

•Check that the rubber seal on the water supply device has not slipped off or is not damaged by a sharp-edged object. Otherwise, it may leak.

10

SHELVES AND BINS

FREEZER

Door Bin

Ice maker

Light

Ice chute

Shelf

Twist ice maker

Ice tray

Drawer

Front leg cover

Basic model

Model with ice and water dispenser

REFRIGERATOR

Dairy compartment

Lights

Wine Self(Optional)

Water tank

Door Bin

Beverage Station

Foldable Shelf(optional)

Deodorizer (optional)

Egg Container

CoolSelect ZoneTMDrawer

(optional)

Vegetable & Fruit Drawer

Door Bins

11

OPERATING INSTRUCTIONS
