Pioneer AVIC-X850BT, AVIC-X8510BT, AVIC-X950BH, AVIC-Z150BH Operating Manual

Page 1

Operation Manual

MULTIMEDIA NAVIGATION RECEIVER

AVIC-Z150BH AVIC-X950BH AVIC-X850BT AVIC-X8510BT

Notice to all users:

This software requires that the navigation system is properly connected to your vehicle’s parking brake and depending on your vehicle, additional installation may be required. For more information, please contact your Authorized Pioneer Electronics retailer or call us at (800) 421-1404.

Be sure to read Important Information for the User first! Important Information for the User includes the important information that you must understand before using this navigation system.

English

Page 2

Contents

Thank you for buying this Pioneer product.

Please read through these instructions so you will know how to operate your model properly. After you have finished reading the instructio ns, keep this document in a

safe place for future reference.

– Ejecting an SD memory card (for AVIC-

Important

The screens shown in the examples may differ from actual screens, which may be changed without notice for performance and function improvements.

Introduction Manual overview 9

– How to use this manual 9 – Conventions used in this manual 9 – Terms used in this manual 9

Notice regarding video viewing 10 Notice regarding DVD-Video viewing 10 Notice regarding MP3 file usage 10 iPod compatibility 10 Map coverage 11 Protecting the LCD panel and screen 11 Notes on internal memory 11

– Before removing the vehicle

battery 11

– Data subject to erasure 11

Basic operation

Checking part names and functions 12 Protecting your product against theft 14

– Removing the detachable

faceplate 14

– Attaching the detachable faceplate 15 Adjusting the LCD panel angle 15 Inserting and ejecting a disc 15

– Inserting a disc (for AVIC-Z150BH) 15

– Ejecting a disc (for AVIC-Z150BH) 16

– Inserting a disc (for AVIC-X950BH,

AVIC-X850BT and AVIC-X8510BT) 16

– Ejecting a disc (for AVIC-X950BH, AVIC-

X850BT and AVIC-X8510BT) 16

Inserting and ejecting an SD memory

card 16

– Inserting an SD memory card (for AVIC-

Z150BH) 16

Z150BH) 17

– Inserting an SD memory card (for AVIC-

X950BH, AVIC-X850BT and AVICX8510BT) 17

– Ejecting an SD memory card (for AVIC-

X950BH, AVIC-X850BT and AVICX8510BT) 18

Connecting and disconnecting an iPod 18

– Connecting your iPod 18 – Disconnecting your iPod 20

Plugging and unplugging a USB storage

device 20

– Plugging in a USB storage device 20 – Unplugging a USB storage device 21

Startup and termination 21 On first-time startup 21 Regular startup 22

– A message about the map

database 22 Demonstration images 22 Temporarily clearing the screen (navigation

system in standby mode) 22

How to use the navigation menu

screens 24

Shortcut Menu 25

– Selecting the shortcut 25 – Removing a shortcut 25

Using the touch panel 26

– Using the common touch panel

keys 26

– Operating list screens (e.g. POI

list) 26

– Operating the on-screen keyboard 26

Swipe action 27

– Swipe action list 27

How to use the map How to read the map screen 31

– Enlarged map of the intersection 32 – The display while driving on the

freeway 33 Types of the road stored in the map

database 33

Page 3

Contents

Operating the map screen 33

– Scrolling the map to the position you

want to see 33

– Viewing information about a specified

location 34 Switching the view mode 35 Switching the map orientation 35 Displaying one-way street marks 36 Displaying POI on the map 36

– Displaying preinstalled POIs on the

map 36 Registering a scale 37

Searching for and selecting a location

The basic flow of creating your route 38 Searching for a location by address 39

– Searching for a city name first 39 – Finding the location by specifying the

house number 40

– Searching by selected city history 41 Setting up a route to your home 41 Searching for Points of Interest (POI) 41

– Searching for a POI directly from the

name of the facilities 42

– Searching for a nearby POI 42

– Searching for POIs around the

destination 42

– Searching for POIs around the city 43

– Deleting the icons displayed after

searching for a nearby POI 44

Selecting destination from stored

locations 44

Selecting a location you searched for

recently 44

Searching for a location by coordinates 45

After the location is decided Setting a route to your destination 46

– Displaying multiple routes 46

Checking and modifying the current route

Displaying the route overview 47 Checking the current itinerary 47

Modifying the route calculation

conditions 48

– Items that users can operate 48

Editing waypoints 49

– Adding a waypoint 49 – Deleting a waypoint 49 – Sorting waypoints 50

Skipping a waypoint 50 Using the demonstration guidance 50

– Finishing the demonstration

guidance 51

Canceling the route guidance 51

Editing the data on the use of navigation function Registering and editing locations 52

– Storing favorite locations 52 – Editing registered locations 52 – Deleting a favorite location from the

list 52

– Deleting the destination history from

the list 53 Deleting learned routes 54 Deleting track logs 54

Using traffic information

Checking all traffic information 55 Checking traffic information on the

route 56

How to read traffic information on the

map 56

Setting an alternative route to avoid traffic

congestion 56

– Checking for traffic congestion

automatically 57 Selecting the preferred RDS-TMC service

provider manually 57

Registering and connecting a Bluetooth device

Preparing communication devices 58 Registering your Bluetooth devices 58

– Searching for nearby Bluetooth

devices 58

Page 4

Contents

– Pairing from your Bluetooth

devices 62

– Deleting a registered device 65

Connecting a registered Bluetooth device

manually 65

– Setting for priority connecting 66

Using hands-free phoning

Displaying the phone menu 67 Making a phone call 67

– Direct dialing 67 – Calling a number in the phone

book 68

– Dialing from the history 69 – Redialing a call 69 – Dialing a favorite location 69 – Dialing a facility’s phone number 70

Receiving a phone call 70

– Answering an incoming call 70

Transferring the phone book 71

– Deleting registered contacts 72 – Deleting the history information 72

Changing the phone settings 73

– Editing the device name 73 – Editing the password 73 – Stopping Bluetooth wave

transmission 74

– Answering a call automatically 74 – Setting the automatic rejection

function 74

Notes for hands-free phoning 75

Basic operations of the AV source Displaying the AV operation screen 76

– Selecting a source 76 Turning off the AV source 76 AV source plate display 77

Using the radio

Starting procedure 78 Reading the screen 78 Using the touch panel keys 78

– Storing and recalling broadcast

frequencies 79

– Storing the strongest broadcast

frequencies 79

Using advanced functions 80

– Tuning in strong frequencies 80

Operating by hardware buttons 80

HD Radio™ reception

HD Radio stations 81 Starting procedure 81 Reading the screen 81 Using the touch panel keys 82

– Storing and recalling broadcast

frequencies 84

– Storing the strongest broadcast

frequencies 84

Storing song information to an iPod (iTunes

Tagging) 84

Using advanced functions 85

– Tuning in strong frequencies 85 – Switching the seek mode 85 – Switching the reception mode 85

Operating by hardware buttons 85

Playing audio CDs

Starting procedure 86 Reading the screen 86 Using the touch panel keys 87 Operating by hardware buttons 87

Playing music files on ROM

Starting procedure 88 Reading the screen 88 Using the touch panel keys 89 Operating by hardware buttons 89

Playing a DVD-Video

Starting procedure 90 Reading the screen 90 Using the touch panel keys 91

– Resuming playback (Bookmark) 92 – Searching for a specific scene and

starting playback from a specified time 92

– Direct number search 93 – Operating the DVD menu 93

Page 5

Contents

– Using the DVD menu by touch panel

keys 93

– Frame-by-frame playback 93 – Slow motion playback 94 – Changing the wide screen mode 94

Operating by hardware buttons 94

Playing a DivX video

Starting procedure 95 Reading the screen 95 Using the touch panel keys 95

– Frame-by-frame playback 96 – Slow motion playback 97 – Starting playback from a specified

time 97

– Changing the wide screen mode 97

Playing DivX

VOD content 98

Operating by hardware buttons 98

DVD-Video or DivX setup

Displaying DVD/DivX

Setup menu 99 Setting the top-priority languages 99 Setting the angle icon display 99 Setting the aspect ratio 100 Setting the parental lock 100

– Setting the code number and

level 100 Setting the auto play 101 Setting the subtitle file for DivX 101 Language code chart for DVDs 102

Playing music files (from USB or SD)

Starting procedure 103 Reading the screen 103 Using the touch panel keys (Music) 104 Operating by hardware buttons 104

Playing video files (from USB or SD)

Starting procedure 105 Reading the screen 105 Using the touch panel keys (Video) 106

– Searching for a specific scene and

starting playback from a specified

time 107 Operating by hardware buttons 107

Using an iPod (iPod)

Starting procedure 108 Reading the screen 109 Using the touch panel keys 110 Changing the wide screen mode 111 Operating by hardware buttons 112

Streaming Pandora®and using Aha Radio

Information for compatibility of connected

devices 113

– For AVIC-Z150BH and AVIC-

X950BH 113

– For AVIC-X850BT and AVIC-

X8510BT 113

Starting procedure 114

– For iPhone with 30-pin connector

users 114

– For iPhone with Lightning connector

users 114

– For smartphone users 115

Streaming Pandora

116

– Reading the screen 116 – Using the touch panel keys 117 – Operating by hardware buttons 117

Using Aha Radio 118

– Reading the screen 118 – Using the touch panel keys 119 – Functions coupled with Aha Radio and

the navigation system 120

Using the Bluetooth audio player

Starting procedure 121 Reading the screen 121 Using the touch panel keys 122 Operating by hardware buttons 123

Using the SiriusXM tuner Introducing SiriusXM tuner operations 124

– To subscribe to the SiriusXM Satellite

Radio service 124 Starting procedure 124 Reading the screen 124 Using the touch panel keys 125

Page 6

Contents

– Storing broadcast channels 127 – Selecting a SiriusXM channel

directly 127

– Selecting a channel from the list 127 – Using the “Replay™” function 127 – Using the Tune Scan™ 128

Using advanced functions 128

– Setting the Tune Start™ 128 – Setting the parental lock 128 – Using the Content Alerts function

(such as Song Alerts, Artist Alerts and Game Alerts) 129

Storing song information to an iPod (iTunes

Tagging) 130

Operating by hardware buttons 130

Using AV input

Reading the screen 131 Using AV1 131 Using AV2 131 Using the touch panel keys 131 Changing the wide screen mode 132

Using AppRadio Mode

Information for compatibility of connected

devices 133

– For AVIC-Z150BH and AVIC-

X950BH 133

– For AVIC-X850BT and AVIC-

X8510BT 134

Starting procedure 134

– For iPhone with 30-pin connector

users 134

– For iPhone with Lightning connector

users 135

– For smartphone users 135 Using the keyboard 137 Using the sound mix function 137 Other functions 138

– Displaying the image of your

application (iPhone with 30-pin connector) 138

– Displaying the image of your

application (iPhone with Lightning connector) 138

– Displaying the image of your

application (smartphone) 139

Customizing preferences

Displaying the information screen 140 Checking the connections of leads 140 Checking sensor learning status and driving

status 141

– Clearing status 142 Checking the device number 142 Checking the version information 142 Registering your home 142 Displaying the adjustment and correction

screen 143

Switching the muting/attenuation

timing 143 Switching the muting/attenuation level 144 Setting the Volume for Guidance and

Phone 144 Correcting the current location 144 Switching the road on which you are

driving 145 Displaying the screen for navigation function

settings 145

– Changing the road color 145 – Setting the scroll-Locked 2D (Normal)

– Displaying the 3D landmarks 146 – Setting the detailed city map 146 – Setting the barrier graphic for the city

map 146

– Setting the map color change between

day and night 147

– Displaying the track log 147 – Deleting the track log

automatically 147

– Setting the current street name

display 148

– Setting the criteria of route

calculation 148

– Setting the use of toll roads 148

Page 7

Contents

– Setting the use of ferries 148 – Setting the route calculation by

learning route 149

– Setting the route calculation allowing

for traffic congestion 149

– Setting the route calculation allowing

for time restrictions 149

– Setting the use of freeways 149 – Setting to select your route

automatically using the auto reroute function 150

– Displaying the distance and estimated

time 150

– Setting the auto reroute function to

avoid traffic congestion 150

– Setting the auto-zoom display 151 – Changing the setting of the navigation

interruption screen 151

– Setting the App operation screen

interruption 151

– Changing the virtual speed of the

vehicle 151

– Changing the unit between km and

miles 152

– Displaying the traffic notification

icon 152 Changing the view mode 152 Displaying the screen for system

settings 152

– Selecting the language 153 – Setting the time difference 153 – Changing the preinstalled splash

screen 153

– Changing to the splash screen stored

on the SD memory card 154

– Adjusting the response positions of the

touch panel (touch panel

calibration) 155

– Setting the illumination color 155 – Displaying the icon for setting the rear

display output 156 Displaying the screen for AV system

settings 156

– Setting video input 1 (AV1) 157 – Setting video input 2 (AV2) 157 – Changing the screen size of SD/USB

video 157

– Displaying your DivX VOD registration

code 157

– Displaying your DivX VOD

deregistration code 158

– Setting the iPod connection 158

Displaying the screen for AV sound

settings 158

– Using balance adjustment 159 – Adjusting loudness 159 – Using the equalizer 159 – Adjusting source levels 161 – Using the high pass filter 162 – Using the subwoofer output 162 – Enhancing bass (Bass Booster) 162 – Using sonic center control 163

Adjusting the equalizer curve automatically

(Auto EQ) 163

– Before operating the Auto EQ

function 163

– Performing Auto EQ 164

Displaying the screen for app settings 165

– Selecting the device connection

method 165

– Setting the keyboard language with

application for iPhone 166 Setting the rear output 167 Adjusting the picture 167 Selecting the video for rear display 168 Replicating the settings 169 Using the rear view camera functions 169

– Setting for rear view camera 170 – Setting guidelines on the rear view

image 170

Other functions Setting the anti-theft function 172

– Setting the password 172 – Entering the password 172 – Deleting the password 172 – Forgotten password 172

Page 8

Contents

Restoring the navigation system to the

default or factory settings 173

– Restoring the default setting 173 – Restoring the navigation system to the

initial state 173

– Setting items to be deleted 174

Appendix

Troubleshooting 176 Messages for navigation functions 181 Messages for AV functions 182 Messages for Bluetooth functions 184 Positioning technology 185

– Positioning by GPS 185 – Positioning by dead reckoning 185 – How do GPS and dead reckoning work

together? 185

Handling large errors 186

– When positioning by GPS is

impossible 186

– Conditions likely to cause noticeable

positioning errors 187

Route setting information 189

– Route search specifications 189

Handling and care of discs 189

– Built-in drive and care 190 – Ambient conditions for playing a

disc 190

Playable discs 190

– DVD-Video and CD 190 – AVCHD recorded discs 191 – Playing DualDisc 191 – Dolby Digital 191

Detailed information for playable media 191

– Compatibility 191 – Media compatibility chart 194

Bluetooth 198 SiriusXM Radio READY Logo 198 HD Radio™ Technology 198 SD and SDHC logo 198 WMA/WMV 199 DivX 199 AAC 199 Android™ 199

Detailed information regarding connected

iPod devices 199

– iPod and iPhone 199 – Lightning 200 – App Store 200 – iOS 200 – iTunes 200

Using app-based connected content 200

– Pandora – Aha Radio 201

HDMI 201 MHL 201 Using the LCD screen correctly 201

– Handling the LCD screen 201 – Liquid crystal display (LCD)

– Maintaining the LCD screen 201 – LED (light-emitting diode)

Display information 203

– Destination menu 203 – Phone menu 203 – Information menu 203 – Edit/Settings menu 204 – Data Edit menu 204 – Navi Settings menu 204 – AV Settings menu 205 – Setting according to source

– App Settings menu 206 – System Settings menu 206 – Bluetooth Settings menu 207

Glossary 208 Specifications 211

200

screen 201

backlight 202

menu 206

Page 9

Introduction

Chapter

Manual overview

Before using this product, be sure to read Important Information for the User (a separate

manual) which contains warnings, cautions, and other important information that you should note.

The screen examples shown in this manual are those for AVIC-Z150BH. The screens may vary according to the models.

How to use this manual

Finding the operation procedure for what you want to do

When you have decided what you want to do, you can find the page you need from the Con- tents.

Finding the operation procedure from a menu name

If you want to check the meaning of an item displayed on screen, you will find the necessary page from the Display information at the end of the manual.

Glossary

Use the glossary to find the meanings of terms.

Conventions used in this manual

Before moving on, take a few minutes to read the following information about the conventions used in this manual. Familiarity with these conventions will help you greatly as you learn how to use your new equipment. ! Buttons on your navigation system are de-

scribed in ALL CAPITALS, BOLD lettering: e.g.) HOME button, MODE button.

! Menu items, screen titles, and functional

components are described in bold with double quotation marks “”:

e.g.) “Destination” screen or “Phone” screen

! Touch panel keys that are available on the

screen are described in bold in brackets [ ]: e.g.) [Destination], [AV Source].

! Extra information, alternatives and other

notes are presented in the following format: e.g.) p If the home location has not been stored

yet, set the location first.

! Functions of other keys on the same screen

are indicated with # at the beginning of the description: e.g.)

# If you touch [OK], the entry is deleted.

! References are indicated like this:

e.g.) = For details of the operations, refer to

How to use the navigation menu screens

on page 24.

Terms used in this manual

“Front display” and “Rear display”

In this manual, the screen that is attached to the body of this navigation unit will be referred to as the “Front display”. Any additional screen that is commercially available and can be connected to this navigation unit will be referred to as the “Rear display”.

“Video image”

“Video image” in this manual indicates moving images of DVD-Video, DivX equipment that is connected to this system with an RCA cable, such as general-purpose AV equipment.

, iPod, and any

Introduction

Page 10

Chapter

Introduction

“External storage device (USB, SD)”

The SD memory card, SDHC memory card, microSD card, microSDHC card and USB memory device are collectively referred to as the “external storage device (USB, SD)”. If it indicates the USB memory only, it is referred to as the “USB storage device”.

“SD memory card”

The SD memory card, SDHC memory card, microSD card and microSDHC card are collectively referred to as the “SD memory card”.

“iPod”

In this manual, iPod and iPhone will be referred to as “iPod”.

Notice regarding video viewing

Remember that use of this system for commercial or public viewing purposes may constitute an infringement on the author’s rights as protected by the Copyright Law.

Notice regarding DVDVideo viewing

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Notice regarding MP3 file usage

Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegenerating) real time broadcasting (terrestrial,

satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/ or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

iPod compatibility

This product supports only the following iPod models and iPod software versions. Others may not work correctly. Made for

! iPod touch (5th generation): iOS 6.0.1 ! iPod touch (4th generation): iOS 6.0.1 ! iPod touch (3rd generation): iOS 5.1.1 ! iPod touch (2nd generation): iOS 4.2.1 ! iPod touch (1st generation): iOS 3.1.3 ! iPod classic 160GB (2009): Ver. 2.0.4 ! iPod classic 160GB (2008): Ver. 2.0.1 ! iPod classic 80GB: Ver. 1.1.2 ! iPod nano (6th generation): Ver. 1.2 ! iPod nano (5th generation): Ver. 1.0.2 ! iPod nano (4th generation): Ver. 1.0.4 ! iPod nano (3rd generation): Ver. 1.1.3 ! iPhone 5: iOS 6.0.1 ! iPhone 4S: iOS 6.0.1 ! iPhone 4: iOS 6.0.1 ! iPhone 3GS: iOS 6.0.1 ! iPhone 3G: iOS 4.2.1 ! iPhone: iOS 3.1.3

p You can connect and control an iPod com-

patible with this navigation system by using separately sold connector cables.

p Operation methods may vary depending on

the iPod models and the software version of iPod.

p Depending on the software version of the

iPod, it may not be compatible with this equipment. For details about iPod compatibility with this navigation system, refer to the information on our website.

Page 11

Introduction

Chapter

This manual applies to the following iPod models.

iPod with 30-pin connector

! iPod touch 4th generation ! iPod touch 3rd generation ! iPod touch 2nd generation ! iPod touch 1st generation ! iPod classic 160GB ! iPod classic 80GB ! iPod nano 6th generation ! iPod nano 5th generation ! iPod nano 4th generation ! iPod nano 3rd generation ! iPhone 4S ! iPhone 4 ! iPhone 3GS ! iPhone 3G ! iPhone

iPod with Lightning connector

! iPod touch 5th generation ! iPhone 5

Map coverage

For details about the map coverage of this navigation system, refer to the information on our website.

Notes on internal memory

Before removing the vehicle battery

If the battery is disconnected or discharged, the memory will be erased and must be reprogrammed.

p Some data remains. Be sure to read Setting

items to be deleted first. = For details, refer to Setting items to be

deleted on page 174.

Data subject to erasure

The information is erased by disconnecting the yellow lead from the battery (or removing the battery itself).

p Some data remains. Be sure to read Setting

items to be deleted first. = For details, refer to Setting items to be

deleted on page 174.

Introduction

Protecting the LCD panel and screen

p Do not expose the LCD screen to direct

sunlight when this product is not used. This may result in LCD screen malfunction due to the resulting high temperatures.

p When using a cellular phone, keep the an-

tenna of the cellular phone away from the LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.

p To protect the LCD screen from damage, be

sure to touch the touch panel keys only with your finger and do so gently.

Page 12

Chapter

Basic operation

Checking part names and functions

This chapter gives information about the names of the parts and the main features using the buttons.

AVIC-Z150BH (with the LCD panel closed)

1 2 3 4 5 6 7

AVIC-Z150BH (with the LCD panel open)

Page 13

Basic operation

AVIC-X950BH, AVIC-X850BT, and AVIC-X8510BT

7 8

3 4

Chapter

Basic operation

1 LCD screen

2 VOL (+/–) button

Press to adjust the AV (Audio and Video) source volume.

3 MODE button

! Press to switch the screen to the AV op-

eration screen or the AppRadio Mode screen. = For details of the operations, refer to

How to use the navigation menu screens on page 24.

! Press to switch between the AppRadio

Mode screen and the AV operation

screen. = For details of the operations, refer to

How to use the navigation menu screens on page 24.

! Press and hold to display the “Picture

Adjustment” screen.

= For details, refer to Adjusting the pic-

ture on page 167.

! Press and hold to display the touch

panel calibration screen while the “Pic- ture Adjustment” screen is displayed.

= For details, refer to Adjusting the re-

sponse positions of the touch panel (touch panel calibration) on page 155.

4 HOME button

! Press the HOME button to display the

“Top Menu” screen while the map screen, the AV operation screen, or the application menu screen is displayed.

! Press to switch the application operation

screen to the application menu screen.

= For details of the operations, refer to

How to use the navigation menu screens

on page 24.

5 MAP button

! Press to display the current location

when the navigation screen (showing other than the current location) is displayed. When the current location is displayed, the screen changes to the registered map scale. When the AV source screen is displayed, it switches to the current location screen. = For details, refer to Registering a scale

on page 37.

Page 14

Chapter

Basic operation

! Press and hold to temporarily clear the

screen regardless of whether it is the AV source, the current location screen or the AppRadio Mode screen.

= For details, refer to Temporarily clear-

ing the screen (navigation system in standby mode) on page 22.

6 TRK button

! Press to perform manual seek tuning,

fast forward, reverse and track search controls.

! Press to perform the back and menu

function of the Android device when you use the AppRadio Mode with an Android device.

7 h button

8 Disc-loading slot

Insert a disc to play.

= For details, refer to Inserting and ejecting

a disc on page 15.

9 SD card slot

= For details, refer to Inserting and ejecting

an SD memory card on page 16.

a Detachable faceplate

CAUTION

! Do not expose the detachable faceplate to ex-

cessive shock or disassemble it.

! Never grip the buttons tightly or use force

when removing or attaching.

! Keep the detachable faceplate out of reach of

small children to prevent them from placing it in their mouths.

! After removing the detachable faceplate, keep

it in a safe place so it is not scratched or damaged.

! Do not expose the detachable faceplate to di-

rect sunlight and high temperatures.

! When removing or attaching the detachable

faceplate, do so after turning off the ignition switch (ACC OFF).

Removing the detachable faceplate

p The navigation system cannot be operated

while the detachable faceplate is removed from the navigation system.

1 Press the

button.

button

Press to remove the detachable faceplate from the navigation system.

= For details, refer to Removing the detach-

able faceplate on page 14.

Protecting your product against theft

p This function is available on AVIC-X950BH,

AVIC-X850BT, and AVIC-X8510BT. The detachable faceplate can be detached from the navigation system to discourage theft, as described below.

When you release your finger, the bottom of the detachable faceplate separates slightly from the navigation system.

Page 15

Basic operation

Chapter

2 Gently grip the bottom of the detachable faceplate and slowly pull it outward.

Detachable faceplate

Attaching the detachable faceplate

1 Slide the detachable faceplate all the way into the navigation system.

Make sure the detachable faceplate is securely connected to the mounting hooks of the navigation system.

2 Push the lower part of the detachable faceplate until you hear a click.

If you fail to successfully attach the detachable faceplate to the navigation system, try again but be careful not to force it as the panel could be damaged.

Adjusting the LCD panel angle

p This function is only available on AVIC-

Z150BH.

WARNING

Keep hands and fingers clear of the unit when opening, closing, or adjusting the LCD panel. Be especially cautious of children’s hands and fingers.

CAUTION

Do not open or close the LCD panel by force. This may cause a malfunction.

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch angle.

3 Touch .

p The adjusted angle of the LCD panel will be

memorized and the LCD panel will automatically return to that angle the next time the LCD panel is opened or closed.

or to adjust the

Inserting and ejecting a disc

Inserting a disc (for AVIC-Z150BH)

WARNING

! Keep hands and fingers clear of the unit when

opening, closing, or adjusting the LCD panel. Be especially cautious of children’s hands and fingers.

! Do not use with the LCD panel left open. If the

LCD panel is left open, it may result in injury in the event of an accident.

CAUTION

! Do not open or close the LCD panel by force.

This may cause a malfunction.

! Do not operate this navigation system until

the LCD panel has completely opened or closed. If this navigation system is operated while the LCD panel is opening or closing, the LCD panel may stop at that angle for safety.

! Do not place a glass or can on the open LCD

panel. Doing so may break this navigation system.

! Do not insert anything other than a disc into

the disc-loading slot.

Basic operation

Page 16

Chapter

Basic operation

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch [Open].

The LCD panel opens, and the disc-loading slot appears.

3 Insert a disc into the disc-loading slot.

The disc is loaded, and the LCD panel closes.

Ejecting a disc (for AVIC-Z150BH)

1 Press the h button. The “Monitor Setup” screen appears.

2 Touch [Disc Eject].

Ejecting a disc (for AVIC-X950BH, AVIC-X850BT and AVIC-X8510BT)

% Press the h button.

The disc is ejected.

Inserting and ejecting an SD memory card

CAUTION

! Ejecting an SD memory card during data

transfer can damage the SD memory card. Be sure to eject the SD memory card by the procedure described in this manual.

! If data loss or corruption occurs on the sto-

rage device for any reason, it is usually not possible to recover the data. Pioneer accepts no liability for damages, costs or expenses arising from data loss or corruption.

! Do not insert anything other than SD memory

cards.

p This system is not compatible with the

Multi Media Card (MMC).

p Compatibility with all SD memory cards is

not guaranteed.

p This unit may not achieve optimum perfor-

mance with some SD memory cards.

The LCD panel opens, and the disc is ejected.

3 Remove the disc, and press the h button.

The LCD panel closes.

Inserting a disc (for AVIC-X950BH, AVIC-X850BTand AVIC-X8510BT)

CAUTION

Do not insert anything other than a disc into the disc-loading slot.

% Insert a disc into the disc-loading slot.

Inserting an SD memory card (for AVIC-Z150BH)

CAUTION

! Do not press the h button when an SD mem-

ory card is not fully inserted. Doing so may damage the card.

! Do not press the h button before an SD mem-

ory card has been completely removed. Doing so may damage the card.

1 Press and hold the h button.

The LCD panel opens fully.

Page 17

Basic operation

Chapter

2 Insert an SD memory card into the SD card slot.

Insert it with the label surface face-up and press the card until it clicks and completely locks.

3 Press the h button.

The LCD panel closes.

Ejecting an SD memory card (for AVIC-Z150BH)

1 Press and hold the h button.

The LCD panel opens fully.

2 Press the middle of the SD memory card gently until it clicks.

3 Pull the SD memory card out straight.

Basic operation

4 Press the h button.

The LCD panel closes.

Inserting an SD memory card (for AVIC-X950BH, AVIC-X850BT and AVIC-X8510BT)

% Insert an SD memory card into the SD card slot.

Insert the SD memory card with the terminal contacts face-down, and press the card until it clicks and locks completely.

Page 18

Chapter

Basic operation

Connecting your iPod

For iPod with 30-pin connector users

Using a USB interface cable for iPod / iPhone (CD-IU201N) (sold separately), you can connect your iPod to the navigation system. p For details about iPod compatibility with

this navigation system, refer to the information on our website.

p Connection via a USB hub is not possible.

Ejecting an SD memory card (for AVIC-X950BH, AVIC-X850BT and AVIC-X8510BT)

1 Press the middle of the SD memory card gently until it clicks.

2 Pull the SD memory card out straight.

Connecting and disconnecting an iPod

CAUTION

! To prevent data loss and damage to the sto-

rage device, never remove it from this naviga-

tion system while data is being transferred. ! Pioneer cannot guarantee compatibility with

all USB mass storage devices and assumes

no responsibility for any loss of data on media

players, iPhone, smartphone, or other devices

while using this product.

For iPod with Lightning connector users who use a USB interface cable for iPod / iPhone

You can connect your iPod with this navigation system by using a USB interface cable for iPod / iPhone (CD-IU201N) (sold separately) and a Lightning to 30-pin Adapter (Apple Inc. products) (sold separately). However, functions related to iPod video files are not available.

For iPod with Lightning connector users who use an HDMI/USB interface cable for iPod / iPhone (for AVICZ150BH and AVIC-X950BH)

To play music and/or video files on your iPod with this navigation system, connect the following cables, and launch CarMediaPlayer while in AppRadio Mode. ! HDMI/USB interface cable for iPod /

iPhone (CD-IH202) (sold separately)

! Lightning Digital AV Adapter (Apple Inc.

products) (sold separately)

! Lightning to USB cable (supplied with

iPhone with Lightning connector)

= For details of AppRadio Mode, refer to

Chapter 26.

= Refer to the CarMediaPlayer manual for

more information.

Page 19

Basic operation

Chapter

For iPod with Lightning connector users who use a VGA/USB interface cable for iPod / iPhone (for AVICX850BT and AVIC-X8510BT)

To play music and/or video files on your iPod with this navigation system, connect the following cables, and launch CarMediaPlayer while in AppRadio Mode. ! VGA/USB interface cable for iPod / iPhone

(CD-IV202NAVI) (sold separately)

! Lightning to VGA Adapter (Apple Inc. pro-

ducts) (sold separately)

! Lightning to USB cable (supplied with

iPhone with Lightning connector)

= For details of AppRadio Mode, refer to

Chapter 26.

= Refer to the CarMediaPlayer manual for

more information.

1 Check that no USB storage device is connected.

2 Connect your iPod.

= For details of the operations, refer to the In-

stallation Manual.

! For iPod with 30-pin connector users

Basic operation

USB interface cable for iPod / iPhone

! For iPod with Lightning connector

users who use a USB interface cable for iPod / iPhone

Lightning to 30-pin Adapter

USB interface cable for iPod / iPhone

Page 20

Chapter

Basic operation

For iPod with Lightning connector users who use an HDMI/USB interface cable for iPod / iPhone (for AVIC-Z150BH and AVIC-X950BH)

Lightning Digital AV Adapter

HDMI/USB interface cable for iPod / iPhone

For iPod with Lightning connector users who use a VGA/USB interface cable for iPod / iPhone (for AVIC-X850BTand AVIC-X8510BT)

Lightning to VGA Adapter

Lightning to USB

cable

Disconnecting your iPod

% Pull out the cables after confirming that no data is being accessed.

Plugging and unplugging a USB storage device

CAUTION

! To prevent data loss and damage to the sto-

rage device, never remove it from this navigation system while data is being transferred.

! Pioneer cannot guarantee compatibility with

all USB mass storage devices and assumes no responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using this product.

p This navigation system may not achieve op-

timum performance with some USB storage devices.

p Connection via a USB hub is not possible. p A USB interface cable for iPod / iPhone

(sold separately) is required for connection. iPod with Lightning connector users can also connect a USB storage device to this navigation system by plugging it into the USB port of the other separately sold cable.

VGA/USB interface cable for iPod / iPhone

Plugging in a USB storage device

1 Pull out the plug from the USB port of the USB interface cable for iPod / iPhone.

Lightning to USB

cable

Page 21

Basic operation

Chapter

2 Plug a USB storage device into the USB interface cable for iPod / iPhone.

USB interface cable for iPod / iPhone

USB storage device

Unplugging a USB storage device

% Pull out the USB storage device after checking that no data is being accessed.

Startup and termination

1 Start the engine to boot up the system.

After a short pause, the splash screen comes on for a few seconds.

p To protect the LCD screen from damage, be

sure to touch the touch panel keys only with your finger and do so gently.

2 Turn off the vehicle engine to terminate the system.

The navigation system is also turned off.

On first-time startup

When you use the navigation system for the first time, select the language that you want to use.

1 Start the engine to boot up the system.

After a short pause, the splash screen comes on for a few seconds.

2 Touch the language that you want to use on screen.

Basic operation

3 Touch the language that you want to use for the voice guidance.

The navigation system will now restart.

Page 22

Chapter

Basic operation

4 Read the terms carefully, checking the details, and then touch [OK] if you agree to the conditions.

The map screen appears.

Regular startup

% Start the engine to boot up the system.

After a short pause, the splash screen comes on for a few seconds.

p The screen shown will differ depending on

the previous conditions.

p If the anti-theft function is activated, you

must enter your password.

p The terms appear if the previous condition

was the navigation screen. Read the terms carefully, checking the details, and then touch [OK] if you agree to the conditions. After you touch [OK], the screen that was displayed just before turning off the ignition switch (ACC OFF) is displayed.

A message about the map database

After you start using this navigation system, a message related to map data may be displayed. p This message is displayed the first time you

turn on the navigation system each month.

p Touch the message to close it or it will dis-

appear automatically after eight seconds.

Demonstration images

If you do not operate this navigation system for five minutes, demonstration images are displayed. p The demonstration images will not be dis-

played if you drive after mounting this navigation system.

Temporarily clearing the screen (navigation system in standby mode)

You can temporarily clear the screen at night or when the screen is too bright.

% Press and hold the MAP button.

The screen is cleared temporarily.

p If you touch the screen when the navigation

system is in standby mode, it reverts to the original screen. Also, if you press the MAP button, the standby mode is canceled and the current location screen is displayed. If you press the MODE button, the standby mode is canceled and the AV source screen is displayed.

p When the navigation system is in standby

mode, the navigation guidance does not output the voice guidance. The audio sound is output.

p The standby mode is not canceled by turn-

ing ignition switch on or off.

Page 23

Basic operation

Chapter

Basic operation

Page 24

Chapter

Basic operation

How to use the navigation menu screens

1 Top Menu

This is the starting menu to access the desired

screens and operate various functions. You

can also check or cancel your set route from

this menu.

p If you press the HOME button, the

screen of either “Top Menu” or Shortcut Menu which was being displayed last time is displayed.

p [Apps] is only available when an iPhone

or a smartphone is connected to this navigation system.

2 Shortcut Menu

p If you press the HOME button, the

screen of either “Top Menu” or Shortcut

Menu which was being displayed last time is displayed.

3 AV operation screen

This is the screen that normally appears when you play the AV source.

4 Map screen

You can use this screen to check the current vehicle position information and route to the destination.

5 Edit/Settings screen

You can access the screen to customize settings.

6 AppRadio Mode screen

Page 25

Basic operation

Chapter

In this manual, the application menu screen and the application operation screen are collectively referred to as the “AppRadio Mode screen”.

7 Application menu screen

This navigation system can switch to the application menu, which you can display and operate the application for the iPhone or smartphone on the screen.

8 Application operation screen

You can control the iPhone or smartphone applications directly on the navigation screen.

9 Information screen

You can access the screen for handling various information such as the system information of the device.

a Editing route screen

You can edit the conditions for calculating the current route.

b Destination screen

You can search for your destination on this menu.

c Phone screen

You can access the screen that is related to hands-free phoning.

Shortcut Menu

Registering your favorite menu items in shortcuts allows you to quickly jump to the registered menu screen by a simple touch on the Shortcut Menu screen.

2 Touch .

The Shortcut selection screen appears.

3 Touch the tab or touch

or to display the icon that you want to set to shortcut.

Tabs

4 Touch and hold the icon that you want to add to shortcut.

5 Move the icon to the upper side of the screen, and then release it.

The selected item is added to shortcut.

Basic operation

Selecting the shortcut

p Up to 10 menu items can be registered in

shortcuts.

1 Display the Shortcut Menu screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

Removing a shortcut

1 Touch and hold the icon of the shortcut you want to remove.

2 Move the icon to the lower side of the screen, and then release it.

Page 26

Chapter

Basic operation

Using the touch panel

You can operate the product by touching the marks and items (touch panel keys) displayed on the screen directly with your fingers.

Using the common touch panel keys

1 2

The previous screen returns.

The screen is closed.

Operating list screens (e.g. POI list)

23 4

Touching or on the scroll bar scrolls through the list and allows you to view the remaining items.

2 Screen title 3 Listed items

Touching an item on the list allows you to narrow down the options and proceed to the next operation.

If not all the characters can be displayed within the displayed area, touching the key to the

right of the item allows you to see the remaining characters.

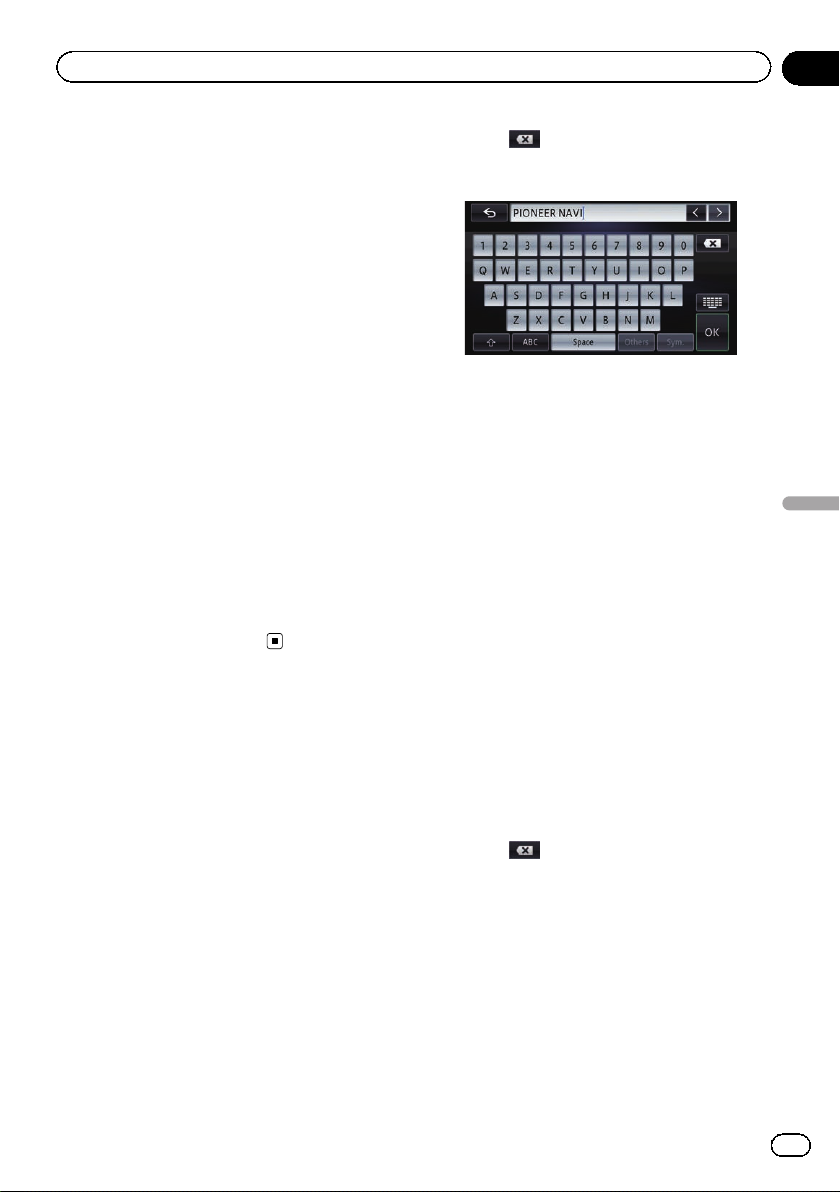

Operating the on-screen keyboard

4327

1 Keyboard

Touching the keys enters the characters in the text box.

You can switch between capital and lower case letters.

3 ABC

You can enter letters and numbers.

4 Space

You can leave spaces. A space equivalent to the number of touches is inserted.

5 Others

You can enter other characters of alphabet.

p Even if you use any of “ A”, “Ä”, “Å”, “Æ”,

the displayed result is the same.

6 Sym.

You can enter text with marks such as “&”, “+”, or numbers.

7 OK

Confirms the entry and allows you to proceed to the next step.

Switches the on-screen keyboard layout.

Deletes the input text one letter at a time, beginning at the end of the text. Continuing to touch the key deletes all of the text.

Page 27

Basic operation

Chapter

Allows you to move the cursor to the right or left for a number of characters equivalent to the number of touches.

b Text box

Displays the characters that are entered. If there is no text in the box, an informative guide with text appears.

Swipe action

You can operate some navigation and audio functions by sliding your fingers vertically and horizontally while touching the screen.

1 Touch and hold the swipe response area.

p The swipe response area varies depending

on the displayed screen.

Example: CD

Swipe response area

Operation guide

The operation guide appears.

2 While touching the screen, slide your finger toward the function you want to execute and release.

The selected function is zoomed in and the function operates.

Swipe action list

Navigation

Operation screen

Guidance display

The auto reroute function taking into account traffic congestion (*1)

Action

Displays the turning direction at the next guide point and the distance, and gives a voice announcement.

Cancels the display of the intersection guide map.

Hides the street list.

Displays the next guidance point.

Selects an alternative route.

Selects the current route.

Basic operation

Page 28

Chapter

Basic operation

Operation screen

The auto reroute function taking into account closed/ blocked roads (*1)

App View

map

(*1) This function is available on AVIC-Z150BH and AVIC-X950BH. (*2) Displays this screen after releasing your finger from the circle.

Action

Restarts the route guidance of an alternative route.

Displays the turning direction at the next guide point and the distance, and gives a voice announcement.

The sound mix function is disabled.

The sound mix function is enabled.

Displays the “AppRadio

(*2)

Mode” screen.

! The intersection guidance display and the

interchange guidance display

! The auto reroute function taking into ac-

count traffic congestion (for AVIC-Z150BH and AVIC-X950BH)

Swipe response area

The other guidance displays

Swipe response area

Page 29

Basic operation

Chapter

! The auto reroute function taking into ac-

count closed/blocked roads (for AVICZ150BH and AVIC-X950BH)

Swipe response area

Audio

Operation screen

Radio (FM, AM) (*1)

HD Radio (HD Radio tuner) (*2)

Action

Skips to the previous preset channel.

Skips to the next preset channel.

Unmutes the sound.

Mutes the sound.

Skips to the previous preset channel.

™

Skips to the next preset channel.

Unmutes the sound.

Mutes the sound.

Operation screen

Disc (CD, CDR, CD-RW)/ Bluetooth Audio

Disc (DVDVideo)

Disc (DivX video files)/ SD/USB

iPod

Pandora

Aha Radio

SiriusXM tuner

(*1) A source available on AVIC-X850BT and AVICX8510BT. (*2) A source available on AVIC-Z150BH and AVICX950BH.

Action

Skips to the previous track.

Skips to the next track.

Unmutes the sound.

Mutes the sound.

Skips to the previous chapter.

Skips to the next chapter.

Unmutes the sound.

Mutes the sound.

Skips to the previous file.

Skips to the next file.

Unmutes the sound.

Mutes the sound.

Skips to the previous chapter or song.

Skips to the next chapter or song.

Unmutes the sound.

Mutes the sound.

Skips to the next track.

™

Unmutes the sound.

Mutes the sound.

Skips to the previous content.

Skips to the next content.

Unmutes the sound.

Mutes the sound.

Skips to the previous channel.

Skips to the next channel.

Unmutes the sound.

Mutes the sound.

Basic operation

Page 30

Chapter

Basic operation

Hands-free phoning

Operation screen

Receiving a phone call

! Receiving a phone call

Action

Allows you to talk on the phone.

Ends the call.

Swipe response area

Page 31

How to use the map

Most of the information provided by your navigation system can be seen on the map. You need to become familiar with how information appears on the map.

Chapter

How to read the map screen

This example shows an example of a 2D map screen.

p Information with an asterisk (*) appears

only when the route is set.

p Depending on the conditions and settings,

some items may not be displayed.

1 Current time 2 Scale display touch panel key

Touching [+] or [–] changes the map scale. You can change the map scale between 10 yards and 1 000 miles (10 meters and 2 000 kilometers).

p The “_” mark shown below indicates the

scale distance (2D display only).

3 Map control

The “View” screen that can set the view mode and the map orientation appears.

= For details of the operation, refer to

Switching the view mode on page 35.

= For details, refer to Switching the map or-

ientation on page 35.

4 Current position

How to use the map

b a

Indicates the current location of your vehicle. The apex of the triangular mark indicates your orientation and the display moves automatically as you drive.

p The apex of the triangular mark is the

actual current position of the vehicle.

5 Information bar

Each touch of this key changes the display information as follows.

! The information of where your vehicle is

traveling along

p When “Street Name” is selected on

“Current Location Info.” of “Navi

Settings”, the street name or city name is displayed. Also, “Coordi- nates” is selected, latitude and longi- tude are displayed.

= For details, refer to Setting the cur-

rent street name display on page

148.

Page 32

Chapter

How to use the map

p When there is no data of current po -

sition, no information is displayed.

! The AV source currently selected

p Depending on the source currently

chosen, an image is displayed.

6 Phone key

Displays the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

7 Direction line*

The direction towards your destination (next waypoint, or the position of a cursor) is indicated with a straight line.

8 Current route*

The route currently set is highlighted in color on the map. If a waypoint is set on the route, the route after the next waypoint is highlighted in another color.

9 Next direction of travel*

As you get closer to the guidance point, the color of the item changes to green.

a Distance to the guidance point*

Shows the distance to the next guidance point.

b Second maneuver arrow*

Shows the turning direction after the next guidance point and the distance to it.

c Number and name of the street to be used

(or next guidance point)*

Displays the number and name of the upcoming street. If you touch scrolled and hidden letters appear.

d Estimated time of arrival at your destina-

tion or waypoint*

The estimated time of arrival is an ideal value calculated based on the value set for Minor

Ordinary Road, Major Ordinary Road or Freeway, and the actual driving speed. The

estimated time of arrival is only a reference value, and does not guarantee arrival at that time.

, the street name is

= For details, refer to Changing the virtual

speed of the vehicle on page 151.

e Distance to the destination (or distance to

waypoint)*

Meaning of guidance flags

Icon Meaning

Destination

The checkered flag indicates your destination.

Waypoint

The red flags indicate your waypoints.

Guidance point

The next guidance point (next turning point, etc.) is shown by an orange flag.

Enlarged map of the intersection

When “Close Up View” in the “ Guide” screen is “On”, an enlarged map of the intersection appears.

= For details, refer to Setting the auto-zoom

display on page 151.

p When the enlarged map of traffic circle ap-

pears, the exit numbers are displayed on each exit. The voice guidance is announced from the entrance to the exit.

Page 33

How to use the map

Chapter

The display while driving on the freeway

In certain locations of the freeway, lane information is available. The map indicates the recommended lane to be in to easily maneuver the next guidance.

While driving on the freeway, freeway exit numbers and freeway signs may be displayed in the vicinity of interchanges and exits.

1 Lane information

! Green lane:

Guided lane Green lane with a white arrow: Recommended lane

! Gray lane:

Non guided lane

p On the toll roads, the lanes are in blue

instead of green.

2 Freeway exit information

Displays the freeway exit.

3 Freeway signs

These show the road number and give directional information.

4 Distance to the next guidance point

These show the distance to the next guidance point.

p If the data for these items is not contained

in the built-in memory, the information is

not available even if there are signs on the actual road.

Types of the road stored in the map database

Roads included in the route guidance

Turn-by-turn routable roads contain full attribute data and can be used for full route gui-

dance. Pioneer navigation will display full route guidance, including turn-by-turn voice directions and arrow icons.

Roads without turn-by-turn instructions

Routable roads (the route displayed and highlighted in pink) have only basic data and can only be used to plot a navigable route. Pioneer navigation will display full route guidance, including turn-by-turn voice directions and arrow icons. Please review and obey all local traffic rules along the highlighted route for your safety.

No turn-by-turn directions will be displayed on these roads.

Non-routable roads (light gray-color roads)

Map display is possible, but cannot be used for route calculation. Please review and obey all local traffic rules along this route. (For your safety.)

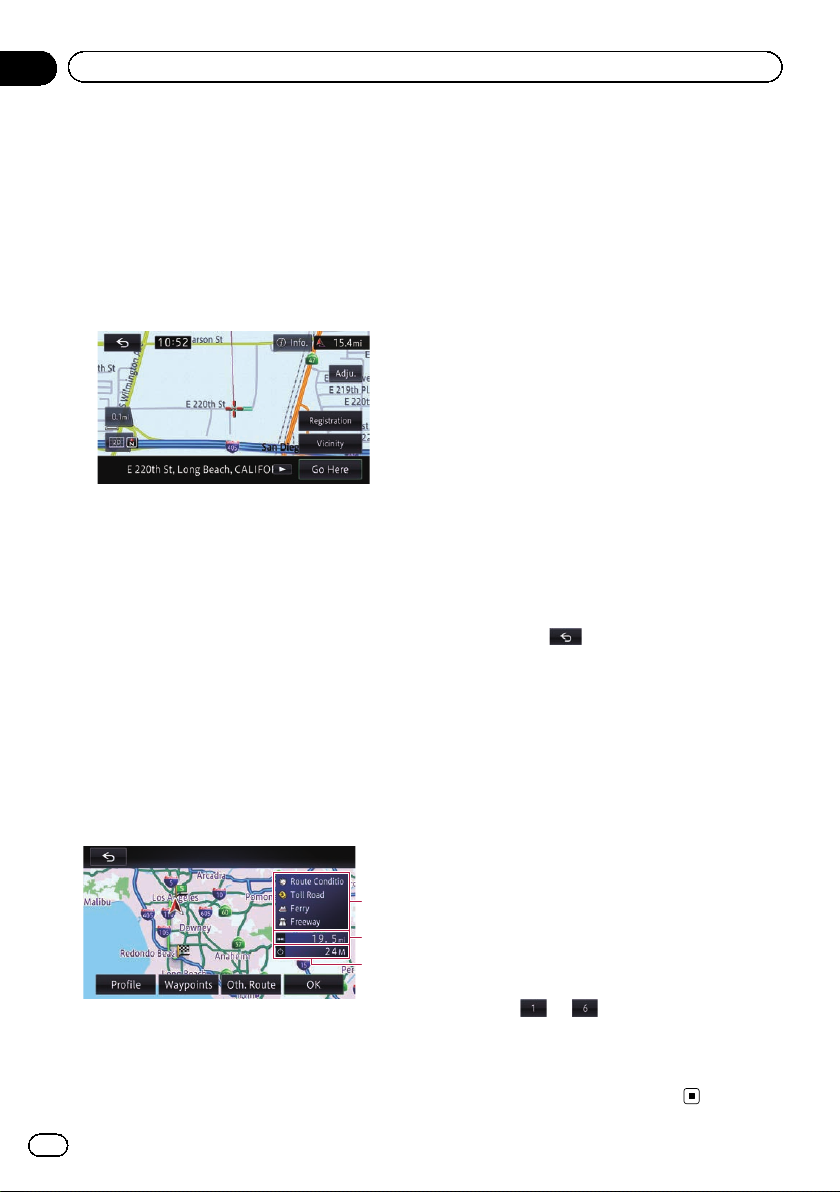

Operating the map screen

Scrolling the map to the position you want to see

1 Display the map screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch and hold the map in the desired direction to see.

The map moves centered around the position you have touched.

How to use the map

Page 34

Chapter

How to use the map

1 Cursor 2 Distance from the current position 3 Registration

You can register the location indicated by the current cursor position as “Favorites”.

= For details, refer to Registering and edit-

ing locations on page 52.

4 Vicinity

You can search for the POIs near the cursor position by selecting a category.

= For details, refer to Searching for a nearby

POI on page 42.

5 Go Here

You can search for a route to a destination indicated by the cursor position.

= For details, refer to Setting a route to

your destination on page 46.

3 To slightly adjust the position, touch [Adju.] first, then the direction arrow (eight directions) in which you want to make slight adjustments.

Viewing information about a

specified location

For the locations you have searched using the destination menu, you can display the detailed

information as long as the information related

to the location is stored in the system.

1 Search for a location using the “Destination” screen.

= For details, refer to Chapter 4.

2 Touch .

The “Details” screen appears. 3 Touch the item that you want to check

the detailed information.

The information for the specified location appears.

Each touch of the direction arrow moves the map little by little. The direction arrows disappear by touching [Adju.] again.

p Pressing the MAP button returns the map

to the current position.

234

The information shown varies according to the location. (There may be no information for that location.)

Displays the map screen.

2 Go Here

Searches for the route to the displayed location. p If the route is already set, the displayed

location can be modified to the destination or a waypoint.

Page 35

How to use the map

Chapter

Enables you to call the position if a telephone number is available. (Pairing with cellular phone featuring Bluetooth wireless technology is required.)

The previous facility or the next facility appears when searching for a POI.

Switching the view mode

Various types of screen displays can be selected for navigation guidance.

1 Display the map screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch on the map screen. The “View” screen appears.

3 Touch the type that you want to set.

You can select the following types:

! 2D View (default):

Displays a normal map (2D map).

of the screen and the map on the left side of the screen. If you touch the map, the map is scrolled on the whole screen. And if you touch the screen of an application for the iPhone or smartphone, the AppRadio Mode screen appears.

= For details, refer to Scrolling the map to

the position you want to see on page 33.

= For details, refer to Swipe action on page

27.

! Rear View:

Displays the rear view image on the right side of the screen and the map on the left side of the screen.

How to use the map

! 3D View:

Displays a map with an antenna view (3D map).

! App View:

Displays the screen of an application for the iPhone or smartphone on the right side

p This mode is available when the rear

view camera setting is set to “On”.

= For details, refer to Setting for rear view

camera on page 170.

Switching the map orientation

You can switch how the map shows your vehicle’s direction between “Heading Up” and “North Up”. ! Heading Up:

The map display always shows the vehicle ’s direction as proceeding toward the top of the screen.

Page 36

Chapter

How to use the map

When “Heading Up” is selected, is displayed.

! North Up:

The map display always has north at the top of the screen. When “North Up” is selected, played.

p The red arrow indicates north. p The map orientation is fixed at “North Up”

when the map scale is 25 miles (50 kilometers) or more.

p The map orientation is fixed at “Heading

Up” when the 3D map screen is displayed.

p The map orientation is fixed at “North Up”,

when the current position is displayed regardless of whether the 2D map screen is displayed or the 3D map is displayed.

1 Display the “View” screen.

= For details of the operation, refer to Switch-

ing the view mode on page 35.

2 Touch [Map Orientation] to switch the vehicle’s direction.

Each time you touch the key the setting changes.

is dis-

Displaying one-way street marks

You can display one-way street marks. p You can turn on or off the one-way street

display on the 0.1 mile (100 meters) scale.

1 Display the “View” screen.

= For details of the operation, refer to Switch-

ing the view mode on page 35.

2 Touch [1-wy;100m Scale].

Each touch of the key turns on or off the oneway street display on the 0.1 mile (100 meters) scale.

Displaying POI on the map

Displays icons for the surrounding facilities (POI) on the map. p POI icons are not displayed when the map

scale is 0.75 mile (1 kilometer) or more.

p Up to 200 items or 100 preinstalled POIs

are displayed on the map.

Displaying preinstalled POIs on the map

p You can select up to 200 items from the

subcategories or detailed categories.

1 Display the “View” screen.

= For details of the operation, refer to Switch-

ing the view mode on page 35.

2 Touch [Overlay POI]. 3 Touch [Hide], and then touch [View].

p If you do not want to display the POI icon

on the map, touch [Hide]. (Even if “Hide” is selected, the POI selection setting is retained.)

# If you touch peared.

4 Touch the main category you want.

A list of subcategories under the selected main category appears.

p If you touch the item, the indicator on the

right of the list turns on and show that the item is selected. If you touch the same item, the indicator turns off and the selection is canceled.

, the pop-up menu is disap-

Page 37

How to use the map

5 Touch the subcategory to display.

The indicator of the selected POI lights up and you can continue to select the POI.

p The indicator also lights up when several

POI are selected. Touching the facility again turns off the indicator and deselects the POI.

p To select another POI, touch

to the Step 2 screen and repeat Step 2 and

6 Touch .

The screen returns to the map screen and the logo of the selected POI appears.

to return

Chapter

How to use the map

Registering a scale

You can register a scale for each map according to the display method. You can see the map in the registered scale by pressing the

MAP button even if you switch the view mode. 1 Adjust the map scale to the scale you

want to register. 2 Display the “View” screen.

= For details of the operation, refer to Switch-

ing the view mode on page 35.

3 Touch [Save Scale].

A confirmation message appears.

4 Touch [Yes].

The registration is complete.

Page 38

Chapter

Searching for and selecting a location

CAUTION

For safety reasons, these route-setting functions are not available while your vehicle is in motion. To enable these functions, you must stop in a safe place and put on the parking brake before setting your route.

p Some information regarding traffic regula-

tions depends on the time when the route calculation is performed. Thus, the information may not correspond with a certain traffic regulation when your vehicle actually passes through the location in question. Also, the information on the traffic regulations provided applies for a passenger vehicle, and not for a truck or other delivery vehicles. Always follow the actual traffic regulations when driving.

The basic flow of creating your route

1 Park your vehicle in a safe place and apply

the parking brake.

2 Display the “Destination” screen.

= For details of the operations, refer to

How to use the navigation menu screens

on page 24.

3 Select the method of searching for your

destination.

4 Enter the information about your destina-

tion to calculate the route.

5 Confirm the location on the map.

= For details, refer to Setting a route to

your destination on page 46.

6 The navigation system calculates the route

to your destination, and then shows the route on the map.

7 Check and decide the route.

= For details, refer to Setting a route to

your destination on page 46.

8 Your navigation system sets the route to

your destination, and a map of your surroundings appears.

9 Release the parking brake, and drive in ac-

cordance with the navigation guidance.

Page 39

Searching for and selecting a location

Chapter

Searching for a location by address

The most frequently used function is “Ad- dress”, in which the address is specified and

the destination is searched. You can select the method of searching for a location by address.

! Searching for a city name first ! Finding the location by specifying the

house number

Searching for a city name first

p Depending on the search results, some

steps may be skipped.

p When you enter characters, the system will

automatically search the database for all possible options. Only the characters you enter are active.

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Address].

4 Touch the key next to “State” and touch the desired state, province, or territory on the list.

If the location that you want to search for is in another state, province, or territory, this changes the area setting.

p Once the state, province, or territory has

been selected, you only have to change states, provinces, or territories when your destination is outside of the state, province, or territory you selected.

5 Touch [City].

# If you touch [History], the “City History List” screen appears, enabling you to search by previously selected city history.

= For details, refer to Searching by selected

city history on page 41.

6 Enter the city name and then touch [OK].

Searching for and selecting a location

3 Touch the key next to “Country” to select the country.

If the destination is in another country, change the country setting.

p Once the country has been selected, you

only have to change countries when your destination is outside the country you selected.

The “Select City” screen appears.

7 Touch the desired city name.

# If you touch , the geographic center of the city appears on the map screen.

Page 40

Chapter

Searching for and selecting a location

8 Enter the street name and then touch [OK].

The “Select a Street” screen appears.

9 Touch the street you want.

10 Enter the house number and then touch [OK].

The “House Number Selection” screen appears.

# If you touch [OK] without entering the house number, a representative location on the street in the selected city appears.

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Address Search” screen.

2 Touch [House#]. The “Enter House Number” screen appears.

3 Enter the house number and then touch [OK].

The “Enter Street Name” screen appears.

4 Enter the street name and then touch [OK].

11 Touch the desired house number range.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Finding the location by specifying the house number

p Depending on the search results, some

steps may be skipped.

p When you enter characters, the system will

automatically search the database for all possible options. Only the characters you enter are active.

The “Select a Street” screen appears.

5 Touch the street you want. The “Enter City Name” screen appears.

6 Enter the city name and then touch [OK].

The “Select City” screen appears.

Page 41

Searching for and selecting a location

Chapter

7 Touch the desired city name.

The “House Number Selection” screen appears. If the house number you have entered is not found, a message appears. In that case, all house number ranges are listed after touching [Yes].

# If you touch , the geographic center of the city appears on the map screen.

8 Touch the desired house number range.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Searching by selected city history

You can search cities from the history that you have searched by entering the name with the keyboard and selected by “Address”.

p The history can store up to 100 cities. p The cities are listed in order of the most re-

cent search.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Address]. The “Address Search” screen appears.

3 Touch [History]. The “City History List” screen appears.

7 Enter the house number and then touch [OK].

The “House Number Selection” screen appears.

# If you touch [OK] without entering the house number, a representative location on the street in the selected city appears.

8 Touch the desired house number range.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Setting up a route to your home

If your home location is stored, the route to your home can be calculated by touching a single key.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Home].

p If you have not registered your home loca-

tion, a message appears. Touch [Ye s ]to start registration.

= For details, refer to Registering your

home on page 142.

Searching for and selecting a location

4 Touch the desired city name.

# If you touch , the geographic center of the city appears on the map screen.

5 Enter the street name and then touch [OK]. The “Select a Street” screen appears.

6 Touch the street you want. The “Enter House Number” screen appears.

p If the selected street has only one matching

location, the searched location appears on the map screen.

Searching for Points of Interest (POI)

Information about various facilities (Points Of Interest – POI), such as gas stations, parking lots or restaurants, is available. You can search for a POI by selecting the category (or entering the POI Name).

Page 42

Chapter

Searching for and selecting a location

Searching for a POI directly from the name of the facilities

p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Spell Name]. The “Spell Name” screen appears.

3 Touch [Name].

# If you change the region to search, touch [State] and display the “State List” screen to change the setting. # If you change the country to search, touch [Country] and display the “Country List” screen to configure.

p Once the country has been selected, you

only have to change countries when your destination is outside the country you selected.

4 Enter the POI name and then touch [OK]. The “POI List” screen appears.

5 Touch the POI you want.

The searched location appears on the map screen.

# If you touch [Sort], the order of POI can be sorted.

p The current order is indicated on the upper

right of the screen.

! By Distance:

Sorts the items in the list in order by distance from the vehicle position.

! By Coincidence:

Sorts the items in the list in order by degree of consistency with the entered text.

! By Name:

Sorts the items in the list alphabetically, and the list display can be switched by switching the alphabet tabs.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Searching for a nearby POI

You can search for POIs in your surroundings. p Up to 50 POIs within a 100 miles (160 kilo-

meters) radius of the vehicle position are listed in order by distance.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Near Me].

POIs are divided into several categories.

p The “Category History” screen appears if

you have searched for POIs before.

p The history can be stored up to 10 genres.

You can delete the stored histories collectively.

p If you want to delete the histories, touch

[Delete All].

p If you want to search for a genre other than

displayed, touch [Other]. The POI list is displayed.

3 Touch the category you want. The “POI List” screen appears.

p If there are more detailed categories within

the selected category, repeat this step as frequently as necessary.

4 Touch the POI you want.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Searching for POIs around the destination

p This function is available when the route is

set.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Near Dest.].

POIs are divided into several categories.

Page 43

Searching for and selecting a location

Chapter

p The “Category History” screen appears if

you have searched for POIs before.

p The history can be stored up to 10 genres.

You can delete the stored histories collectively.

p If you want to delete the histories, touch

[Delete All].

p If you want to search for a genre other than

displayed, touch [Other]. The POI list is displayed.

3 Touch the category you want. The “POI List” screen appears.

p If there are more detailed categories within

the selected category, repeat this step as frequently as necessary.

4 Touch the POI you want.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Searching for POIs around the city

You can search for POIs around a specified city. p If the search candidates number reaches

20 or less, the screen automatically changes to the search result screen.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Around City]. The “Around City” screen appears.

3 Touch [Country]. The “Country List” screen appears.

# If you change the region to search, touch [State] and display the “State List” screen to change the setting.

4 Touch one of the items on the list to set the country as a search area.

The screen returns to the previous screen.

5 Touch [City].

# If you touch [History], the “City History List” screen appears, enabling you to search by previously selected city history.

= For details, refer to Searching by selected

city history on page 41.

6 Enter the city name and then touch [OK]. The “Select City” screen appears.

7 Touch the desired city name.

POIs are divided into several categories.

p The “Category History” screen appears if

you have searched for POIs before.

p The history can be stored up to 10 genres.

You can delete the stored histories collectively.

p If you want to delete the histories, touch

[Delete All].

p If you want to search for a genre other than

displayed, touch [Other]. The POI list is displayed.

# If you touch city appears on the map screen.

, the geographic center of the

8 Touch the category you want. The “POI List” screen appears.

p If there are more detailed categories within

the selected category, repeat this step as frequently as necessary.

9 Touch the POI you want.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Searching for and selecting a location

Page 44

Chapter

Searching for and selecting a location

How to read the “POI List” screen

The following information is displayed on the “POI List” screen.

123

1 Facility name 2 Facility address 3 Distance from the position that the search

starts

p If you touch , detailed information of the

facility appears.

Deleting the icons displayed after searching for a nearby POI

After searching for a nearby POI, the icons of nearby facilities appear on the map. The following operation shows how to delete the icons.

1 Display the “View” screen.

= For details of the operation, refer to Switch-

ing the view mode on page 35.

2 Touch [Del. Search Results].

All displayed icons are deleted.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [My POIs].

A list of registered locations appears.

3 Touch the entry you want.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

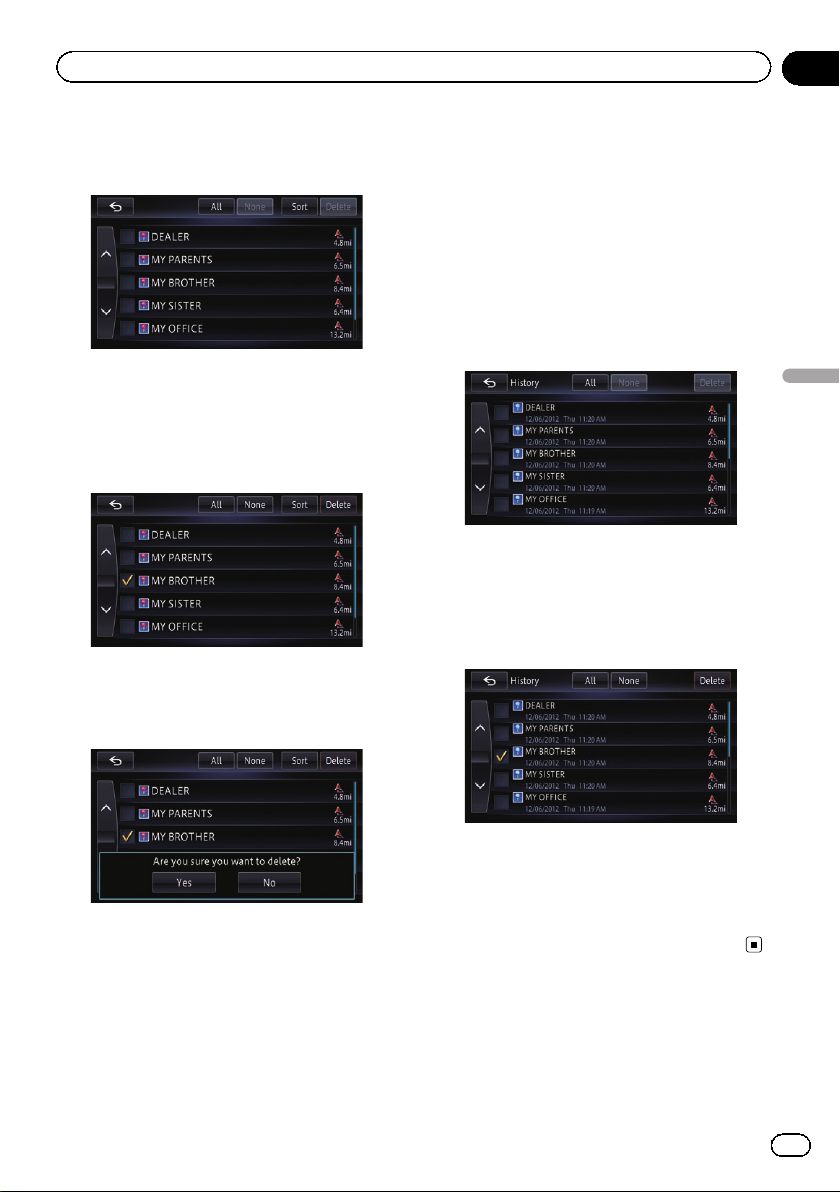

You can switch the list display between “Fa- vorites” and “History” by touching the tabs.

# If you touch [Sort], you can sort the entry by following order.

! By Date (default):

Sorts the list in chronological order of registration or call up.

! By Distance:

Sorts the list in order by distance from the vehicle position.

! By Name:

Sorts the list alphabetically.

Selecting destination from stored locations

Storing locations you visit frequently saves time and effort. Selecting an item from the list provides an easy way to specify the position. p This function is not available if no locations

have been registered in “My POIs”.

= For details, refer to Storing favorite locations

on page 52.

Selecting a location you searched for recently

The places that you set as destinations or waypoints previously are automatically stored in “History”. p If no location is stored in Destination His-

tory, you cannot select [History]. (If you perform a route calculation, you can select [History].)

Page 45

Searching for and selecting a location

Chapter

p “History” can store up to 100 locations. If

the entries reach the maximum, any further entry will overwrite the oldest one.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [My POIs].

3 Touch [History].

A list of locations where you have selected appears.

4 Touch the entry you want.

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

3 Touch [East] or [West], and then enter the longitude.

Searching for and selecting a location

To enter W 50°1’2.5” for example, touch [West], [0], [5], [0], [0], [1], [0], [2], and [5].

4 Touch [North] or [South], and then enter the latitude.

To enter N 5°1’2.5” for example, touch [North], [0], [5], [0], [1], [0], [2], and [5].

5 Touch [OK].

The searched location appears on the map screen.

= For subsequent operations, refer to Setting

a route to your destination on page 46.

Searching for a location by coordinates

Entering a latitude and longitude pinpoints the location.

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Coordinates].

Page 46

Chapter

After the location is decided

Setting a route to your destination

1 Search for a location.

= For details, refer to Chapter 4.

After searching for the destination, the Location confirmation screen appears.

2 Touch [Go Here].

Location confirmation screen

The destination is set, and then the route calculation starts. When the route calculation is completed, the Route confirmation screen appears.

p If you press the MAP button during route

calculation, the calculation is canceled and the map screen appears.

p If the route is already set, the screen for ask-

ing whether the searched location becomes the destination or a waypoint appears. If you touch [Destination], the current destination is deleted and the route to a new destination is searched. If you touch [Waypoint], the route for stopping by the searched location on the way to the same destination is searched.

Route confirmation screen

2 3

1 Route calculation condition 2 Distance to the destination 3 Travel time to your destination

# If you touch [Profile], the “Route Profile” screen appears.

= For details, refer to Checking the current itin-

erary on page 47.

# If you touch [Waypoints], the “Waypoints List” screen appears.

= For details, refer to Editing waypoints on

page 49.

# When there are multiple routes following a search, [Oth. Route] appears. If you touch [Oth. Route], you can select a route with conditions that may differ from those of the currently selected route.

= For details, refer to Displaying multiple

routes on page 46.

When there is only one route, [Route Map] appears. If you touch [Route Map], the entire route is displayed on one screen.

p On the route map screen, you can scroll the

map or change its scale.

= For details, refer to Scrolling the map to

the position you want to see on page 33.

= For details, refer to How to read the map

# If you touch

screen on page 31.

whether to cancel the calculated route appears. If you touch [Yes], the calculated route is canceled and the map screen appears.

, a message confirming

3 Touch [OK].

The displayed route is set as your selected route, and route guidance starts.

Displaying multiple routes

You can select a desired route from multiple route options. p If you set waypoints, you cannot display

multiple routes.

1 Touch [Oth. Route] on the Route confirmation screen.

Multiple route options appear.

2 Touch

Another route is displayed.

3 Touch [OK].

The displayed route is set as your selected route, and route guidance starts.

to .

Page 47

Checking and modifying the current route

Chapter

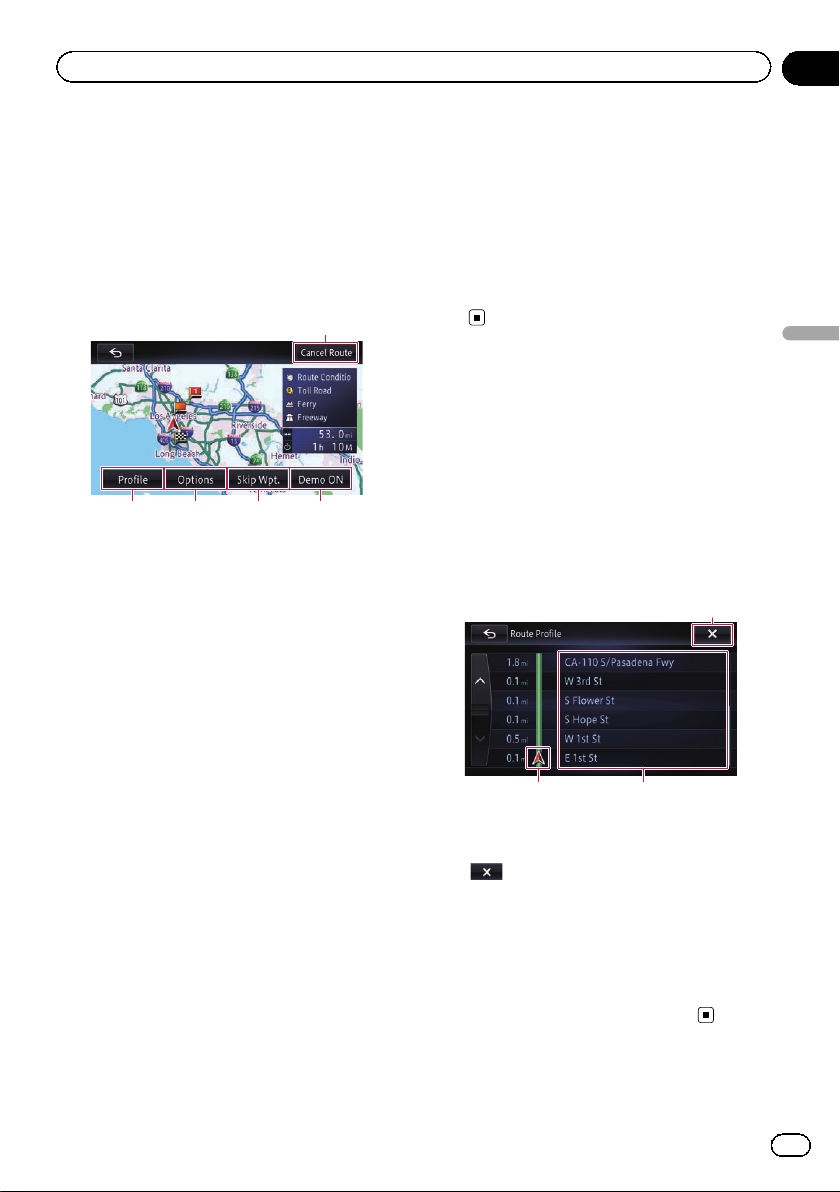

Displaying the route overview

p The route overview is only active when the

route is set.

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

1234

1 Profile

You can confirm the set route.

= For details, refer to Checking the current

itinerary on page 47.

2 Options

You can add a waypoint along the route and set the route which passes through it. You can also change search criteria.

= For details, refer to Modifying the route

calculation conditions on page 48.

= For details, refer to Editing waypoints on

page 49.

3 Skip Wpt.

If you no longer need to stop by the registered waypoint, you can search a route again by supposing that you have already passed the waypoint. = For details, refer to Skipping a waypoint

on page 50.

4 Demo ON

You can confirm the route from the demonstration of the driving of the route from the starting point and final destination.

= For details, refer to Using the demonstra-

tion guidance on page 50.

Demo OFF

While the demonstration guidance is running, [Demo OFF] appears. Touching the key finishes the demonstration guidance.

5 Cancel Route

You can delete the current route.

= For details, refer to Canceling the route

guidance on page 51.

2 Touch the item that you want to refine.

Checking and modifying the current route

Checking the current itinerary

You can check the route details.

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Profile]. The “Route Profile” screen appears.

1 Current position 2 Guidance point 3

The screen is closed. p When you display the “Route Profile”

screen by touching [Profile] on the Route confirmation screen, [OK] appears. Touching this key starts the route guidance on the displayed route.

Page 48

Chapter

Checking and modifying the current route

Modifying the route calculation conditions

You can modify the conditions for route calculation and recalculate the current route.

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Options], and then touch [Route Options].

The “Route Options” screen appears.

# If you touch , the pop-up menu is disap- peared.

3 Touch the desired items to change the route calculation conditions and then touch [OK].

Route Condition

This setting controls how the route should be calculated by taking into account the time, distance or main road. Determines which condition takes priority for route calculation.

Fast*:

Calculates a route with the shortest travel time to your destination as a priority.

Short:

Calculates a route with the shortest distance to your destination as a priority.

Main Road:

Calculates a route that passes major arterial roads as a priority.

Toll Road

This setting controls whether toll roads (including toll areas) should be taken into account.

Use*:

Calculates a route that may include toll roads (including toll areas).

Avoid:

Calculates a route that avoids toll roads (including toll areas). p The system may calculate a route that in-

cludes toll roads even if “Avoid” is selected.

The route is recalculated, and the Route confirmation screen appears.

Items that users can operate

Settings marked with an asterisk (*) are default or factory settings.

Ferry

This setting controls whether ferry crossings should be taken into account.

Use*:

Calculates a route that may include ferries.

Avoid:

Calculates a route that avoids ferries. p The system may calculate a route that in-

cludes ferries even if “Avoid” is selected.

Freeway

This setting controls whether freeways may be included in the route calculation.

Use*:

Calculates a route that may include freeways.

Avoid:

Calculates a route that avoids freeways.

Page 49

Checking and modifying the current route

Chapter

p The system may calculate a route that in-

cludes freeways even if “Avoid” is selected.

Editing waypoints

You can edit waypoints (locations you want to visit on the way to your destination) and recalculate the route so that it passes through these locations.

Adding a waypoint

p Up to five waypoints can be set.

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Options], and then touch [Waypoints].

4 Search for a location.

= For details, refer to Chapter 4.

5 Touch [OK] on the “Waypoints List” screen.

The route is recalculated, and the Route confirmation screen appears.

6 Touch [OK].

Checking and modifying the current route

The “Waypoints List” screen appears.

# If you touch , the pop-up menu is disap- peared.

3 Touch [Add].

The “Add” screen appears.

A map of the current position appears.

p If you set waypoints, you cannot display

multiple routes.

Deleting a waypoint

You can delete waypoints from the route and then recalculate the route. (You can delete successive waypoints.)

Page 50

Chapter

Checking and modifying the current route

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Options], and then touch [Waypoints]. The “Waypoints List” screen appears.

3 Touch [Delete]. The “Delete” screen appears.

4 Select the waypoint that you want to delete.

A check mark appears next to the selected waypoint.

5 Touch [Delete].

A message confirming whether to delete the waypoint appears.

6 Touch [Yes].

The selected waypoint will be deleted from the list.

7 Touch [OK] on the “Waypoints List” screen.

The route is recalculated, and the Route confirmation screen appears.

3 Touch [Sort], and then touch [Manual].

You can specify the order of waypoints to sort.

# If you touch [Automatic], the waypoints are sorted in the order of the nearest one from the current location.

4 Touch the waypoint or destination.

Put them in the desired order.

5 Touch [OK]. The “Waypoints List” screen appears.

6 Touch [OK] on the “Waypoints List” screen.

The route is recalculated, and the Route confirmation screen appears.

7 Touch [OK].

A map of the current position appears.

8 Touch [OK].

A map of the current position appears.

Sorting waypoints

You can sort waypoints and recalculate the route. p You cannot sort waypoints that you have al-

ready passed.

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Options], and then touch [Waypoints]. The “Waypoints List” screen appears.

Skipping a waypoint

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Skip Wpt.].

The next waypoint is considered to have already been passed through, and a route is searched.

Using the demonstration guidance

You can confirm the route by making the navigation system run to the destination from the point of departure on screen.

Page 51

Checking and modifying the current route

Chapter

p The demonstration is repeated, but finishes

in the following cases:

! When starting actual driving ! When searching a route ! When deleting route ! When is touched [Demo OFF].

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Demo ON].

3 Display the map screen.

The demonstration guidance will begin.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

Finishing the demonstration guidance

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Demo OFF].

The demonstration guidance is finished.

p You can also finish the demonstration gui-

dance by touching ing [Yes] while the demonstration guidance is running.

and then touch-

2 Touch [Cancel Route].

A message confirming the cancellation of the current route appears.

3 Touch [Yes].

The current route is deleted, and a map of your surroundings reappears.

p You can also cancel the route by touching

on the “Top Menu” screen.

Checking and modifying the current route

Canceling the route guidance

If you no longer need to travel to your destination, follow the steps below to cancel the route guidance.

1 Display the editing route screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

Page 52

Chapter

Editing the data on the use of navigation function

Registering and editing locations

Storing favorite locations

Storing your favorite locations as “Favorites” lets you save the time and effort of re-entering this information. Stored items can be made available on “Favorites” later. “Favorites” can store up to 400 locations. Home location is counted as one of the items in “Favorites”.

1 Search for a location.

= For details about the search methods, refer

to Chapter 4.

2 When the map of the location you want to register is displayed, touch [Registration].

The location is registered, the location name input screen appears.

= For details, refer to Editing registered loca-

tions on page 52.

3 Touch [OK].

The registration is complete.

Editing registered locations

1 Display the “Edit/Settings” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Data Edit]. The “Data Edit” screen appears.

3 Touch [Edit Favorite]. The “Edit Favorite” screen appears.

4 Touch [Edit]. The “Edit Favorite” screen appears.

p Home location is displayed on the top of

the list.

5 Touch the location that you want to edit.

6 Touch the item you want to configure.

1 2 3 4 5

1 Name

You can enter the desired name. p Up to 40 characters can be input for the

name.

2 Phone#

You can edit the registered phone number. The maximum digits you can enter for the phone number is 24.

3 Icon

You can change the symbol displayed on the map and the “Edit Favorite” screen.

4 Sound Effects

You can edit the sound effects of registered locations.

5 Change Position

You can change the registered location by scrolling the map.

7 Touch .

The registration is complete.

Deleting a favorite location from the list

1 Display the “Edit/Settings” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Data Edit]. The “Data Edit” screen appears.

3 Touch [Edit Favorite]. The “Edit Favorite” screen appears.

Page 53

Editing the data on the use of navigation function

Chapter

4 Touch [Delete].

5 Select the location you want to delete.

A check mark appears next to the selected location.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

6 Touch [Delete].

A message will appear asking you to confirm the deletion.

1 Display the “Edit/Settings” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Data Edit]. The “Data Edit” screen appears.

3 Touch [Delete Search History]. The “History” screen appears.

4 Select the location you want to delete.

Editing the data on the use of navigation function

A check mark appears next to the selected location.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

5 Touch [Delete].

7 Touch [Yes].

The data you selected is deleted.

# If you touch [No], the deletion is canceled.

Deleting the destination history from the list

Items in “History” can be deleted. All entries in “History” can be deleted collectively.

A message will appear asking you to confirm the deletion.

6 Touch [Yes].

The data you selected is deleted.

# If you touch [No], the deletion is canceled.

Page 54

Chapter

Editing the data on the use of navigation function

Deleting learned routes

The device learns the streets you often use, and the learned streets are preferentially used during a route search. To change a frequently used street, delete the learned route and let the device learn it again. p Please note that all the learned routes will

be deleted.

1 Display the “Edit/Settings” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Data Edit]. The “Data Edit” screen appears.

3 Touch [Delete Learned Routes].

A confirmation message appears.

4 Touch [Yes].

Deletes the learned routes.

Deleting track logs

You can delete track logs displayed on the map screen. p You can also automatically delete track

logs.

1 Display the “Edit/Settings” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Data Edit]. The “Data Edit” screen appears.

3 Touch [Delete Travel Log].

A confirmation message appears.

4 Touch [Yes].

Deletes the track log.

Page 55

Using traffic information

Chapter

p This function is available on AVIC-Z150BH

and AVIC-X950BH. You can check real-time traffic information transmitted by the Traffic Message Channel (TMC) of the FM Radio Data System (RDS) on screen. The traffic information is updated periodically. When the navigation system receives updated traffic information, the navigation system will show it on map and display detailed text information when available. When you receive information concerning traffic incidents on your route, the system will suggest another route to avoid traffic congestion. p When used in North America, this product

receives traffic information provided by

Clear Channel Broadcasting, Inc.

up to 100 miles in radius from the vehicle

position. (If there is a lot of traffic informa-

tion around your vehicle, the radius will be

shorter than 100 miles.) p The navigation system provides the follow-

ing functions by using the information

from RDS-TMC service:

! Displaying a list of traffic information

! Displaying traffic information on a map

! Suggesting a route to avoid traffic con-

gestion by using traffic information

p The term “traffic congestion” in this section

refers to the following types of traffic infor-

mation: stop and go traffic, stopped traffic

and closed/blocked roads. This information

is always taken into consideration when

checking your route, and the information

related to these events cannot be turned

off.

Checking all traffic information

Traffic information except traffic flow information is listed on screen. This allows you to check how many traffic incidents have occurred, their location and their distance from your current position.

1 Display the “Information” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Traffic Information].

The “Traffic Information Menu” screen appears.

3 Touch [Nearby Incidents].

The “Nearby” screen appears. A list with received traffic information is shown.

4 Select an incident you want to view in detail.

1 Listed items

The details of the selected incident are displayed.

2 Update

If you touch [Update] while new traffic information is received, the current information is updated and old information is removed. The traffic information list is updated to reflect the new situation.

3 Sort

Touching the key displays the following pop-up menu to sort the traffic information. ! By Distance:

You can sort traffic information by distance from your current position. When you touch [Nearby Incidents], the list displayed will be sorted according to the linear distance from the vehicle position to the traffic information.

Using traffic information

Page 56

Chapter

Using traffic information

When you touch [Traffic on Route], the list displayed will be sorted according to the distance from the vehicle position to the traffic information.

! By Name:

You can sort the traffic information in alphabetical order.

! By Event:

You can sort the traffic information according to the incident. The list will be sorted in the order of closed/blocked roads, traffic congestion, accidents, road works and others.

The details of the selected incident are displayed.

5 Touch .

The previous screen returns.

Checking traffic information on the route

All traffic information on the current route is displayed on screen in a list.

1 Display the “Information” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

How to read traffic information on the map

The traffic event information displayed on the map is as follows. p A line is displayed only when the map scale

is 2.5 miles (5 km) or lower.

p Icons appear only when the scale on the

map is 10 miles (20 km) or lower. If the scale is changed, the icons are resized according to the selected scale.

Traffic event icon

! with yellow line:

Stop-and-go traffic

with red line:

Stopped traffic

with black line:

Closed/blocked roads

etc.:

Accidents, constructions, etc.

2 Touch [Traffic Information].

The “Traffic Information Menu” screen appears.

3 Touch [Traffic on Route].

The “On Route” screen appears. The method for checking the content displayed on the screen is the same as “Nearby” screen.

= For details, refer to Checking all traffic infor-

mation on page 55.

Setting an alternative route to avoid traffic congestion

The navigation system regularly whether or not there is traffic information on your route. If the navigation system detects any traffic congestion on your current route, the system tries to find a better route in the background. p The following types of traffic incidents on

the route will be checked for: slow, queuing and stopped traffic, and closed/blocked roads except for closed freeway exits/entrances.

Page 57

Using traffic information

Chapter

p If the navigation system detects any closed/

blocked roads on your current route, “Re-

routing due to road closure.” is an-

nounced and displayed on the screen. Only

recommended route is available. Touch

[OK] to start the route guidance.

Checking for traffic congestion automatically

If there is information about traffic congestion on your current route and if an alternative route can be found, the navigation system will recommend a new alternative route automatically. In such a case, the following screen will appear.

1 2 3

1 Distance from the current position of your ve-

hicle to the point of entry into the new route. 2 Difference in distance between the existing

route and new route. 3 Difference in travel time between the existing

route and new route.

p No action is taken if the system cannot find

any traffic congestion information on your

route or cannot find an alternative.

% Touch [Alt. Route].

The recommended route is set as your route, and the route guidance starts.

p When no selection is made, the recom-

mended route or the current route will be automatically selected according to the settings. And the route guidance starts.

= For details, refer to Setting to select your

route automatically using the auto reroute function on page 150.

# If you touch [Current Route] while the recom- mended route is displayed, the screen switches

to the current route displayed, and route guidance starts. # If you touch [Scroll Map], you can switch the map scale or the map orientation and confirm the route.

Selecting the preferred RDSTMC service provider manually

A default preferred TMC service provider for each country has been set. The navigation system tunes to the radio station with good reception among the preferred RDS-TMC service providers. If you want to set another preferred RDS-TMC service provider, you can manually select one from the available RDS-TMC service providers.

1 Display the “Information” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Traffic Information].

The “Traffic Information Menu” screen appears.

3 Touch [TMC Provider Selection].

4 Touch the desired service provider on the list.

After touching a service provider, the system starts tuning to the selected RDS-TMC service provider. When the tuning is successful, the system returns to the map display.

Using traffic information

Page 58

Chapter

Registering and connecting a Bluetooth device

If your devices feature Bluetooth®technology, this navigation system can be connected to your devices wirelessly. This section describes how to set up a Bluetooth connection.

For details about the connectivity with the devices featuring Bluetooth wireless technology, refer to the information on our website.

Preparing communication devices

This navigation system has a built-in function to use devices featuring Bluetooth wireless technology.

= For details, refer to Notes for hands-free

phoning on page 75.

You can register and use devices that feature the following profiles with this navigation system.

! HFP (Hands-Free Profile) ! A2DP (Advanced Audio Distribution Pro-

file)

! SPP (Serial Port Profile) p When the navigation system is turned off,

the Bluetooth connection is also disconnected. When the system restarts, the system automatically attempts to reconnect the previously-connected device. Even when the connection is severed for some reason, the system automatically reconnects the specified device (except when the connection is severed due to device operation).

Registering your Bluetooth devices

You need to register your devices featuring Bluetooth wireless technology when you connect it for the first time. A total of 5 devices can be registered. Two registration methods are available:

! Searching for nearby Bluetooth devices

! Pairing from your Bluetooth devices

p If you try to register more than 5 devices,

the system will ask you to select one of the registered devices to delete.

= For details, refer to Deleting a registered

device on page 65.

Searching for nearby Bluetooth devices

The system searches for available Bluetooth devices near the navigation system, displays them in a list, and registers them for connection.

For iPod with 30-pin connector users

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration].

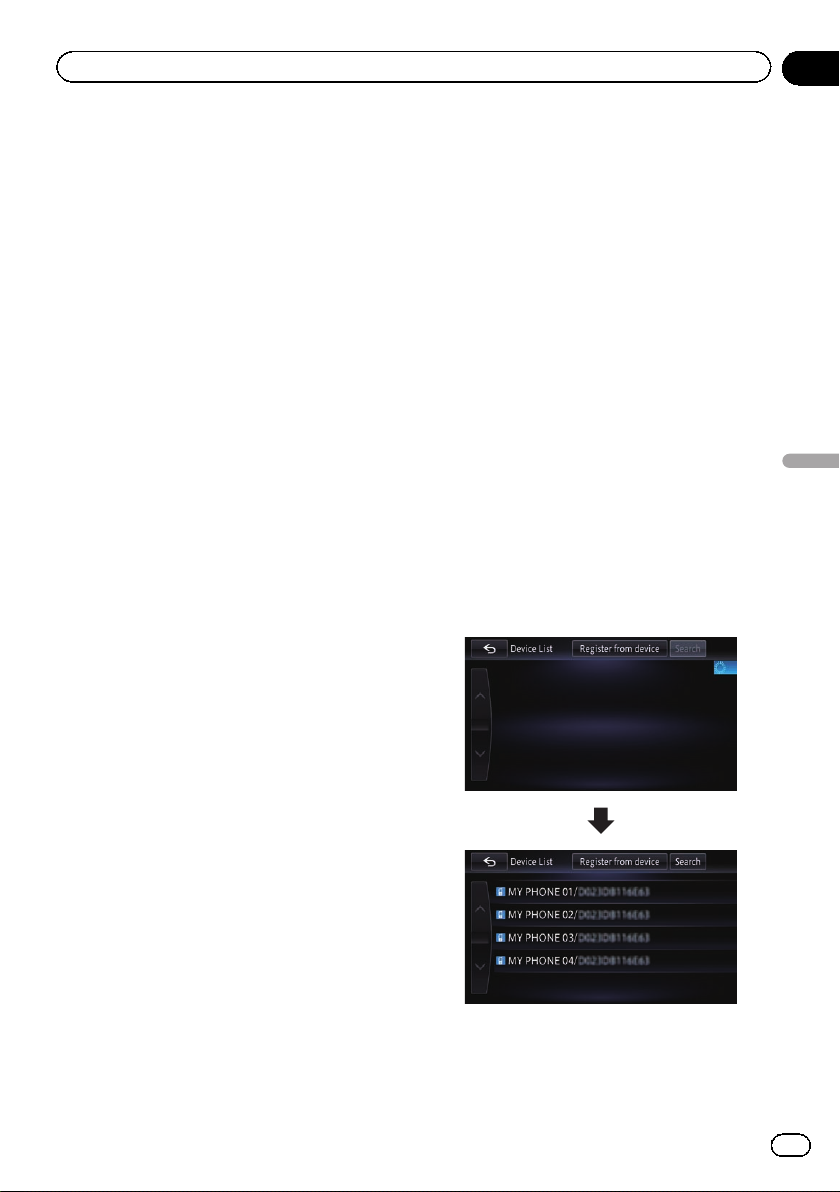

The “Device List” screen appears. The system searches for Bluetooth devices waiting for the connection and displays them in the list if a device is found.

p Up to 10 devices will be listed in the order

that the devices are found.

Page 59

Registering and connecting a Bluetooth device

Chapter

5 Wait until your Bluetooth device appears in the list.

p If you cannot find the Bluetooth device that

you want to connect, check that the device is waiting for the Bluetooth wireless technology connection.

6 Touch the Bluetooth device name you want to register.

ing on the Bluetooth device. Perform pairing according to the screen instructions for this product or Bluetooth device. Refer to the instruction manual of your devices to register (registration and authentication of device). After registering, a confirmation message appears.

8 Touch [OK].

The registration is complete, and the device is connected as a hands-free phone. You can perform the following setting depending on the Bluetooth device registered.

! Transferring the phone book

You can transfer the phone book to the navigation system if the registered Bluetooth device features PBAP (Phone Book Access Profile). If you touch [Yes], you can transfer the whole phone book to the navigation system, and then the message that transfer is finished appears.

! Selecting whether to use the Bluetooth

audio

You can select whether to use the Bluetooth audio function if the registered Bluetooth device features Bluetooth audio.

The message “Is this Android?” appears.

Registering and connecting a Bluetooth device

# If you touch [Search], the system starts searching for Bluetooth devices waiting for connection, and displays them in the list format when any devices are detected.

7 Pair this navigation system with your Bluetooth device.

When the Bluetooth device connects to this product for the first time, a pairing operation is needed to specify the device to connect. How the pairing is performed varies depend-

9 Touch [No]. The message “Is this device equipped with a Digital AV/VGA Connector?” appears.

10 Touch [No].

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

Page 60

Chapter

Registering and connecting a Bluetooth device

For iPod with Lightning connector users

p Only the iPod with Lightning connector can

perform the iPhone cooperation function (AppRadio Mode, aha and Pandora) via Bluetooth wireless technology.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration].

The “Device List” screen appears. The system searches for Bluetooth devices waiting for the connection and displays them in the list if a device is found.

p Up to 10 devices will be listed in the order

that the devices are found.

5 Wait until your Bluetooth device appears in the list.

p If you cannot find the Bluetooth device that

you want to connect, check that the device is waiting for the Bluetooth wireless technology connection.

6 Touch the Bluetooth device name you want to register.

# If you touch [Search], the system starts searching for Bluetooth devices waiting for connection, and displays them in the list format when any devices are detected.

7 Pair this navigation system with your Bluetooth device.

When the Bluetooth device connects to this product for the first time, a pairing operation is needed to specify the device to connect. How the pairing is performed varies depending on the Bluetooth device. Perform pairing according to the screen instructions for this product or Bluetooth device. Refer to the instruction manual of your devices to register (registration and authentication of device). After registering, a confirmation message appears.

8 Touch [OK].

The registration is complete, and the device is connected as a hands-free phone. You can perform the following setting depending on the Bluetooth device registered.

Page 61

Registering and connecting a Bluetooth device

Chapter

! Transferring the phone book

! Selecting whether to use the Bluetooth

audio

You can select whether to use the Bluetooth audio function if the registered Bluetooth device features Bluetooth audio.

The message “Is this Android?” appears.

9 Touch [No]. The message “Is this device equipped with a Digital AV/VGA Connector?” appears.

10 Touch [Yes]. The message “Do you want to set this de- vice for the AppRadio Mode?” appears.

11 Touch [Yes] if you use the AppRadio Mode with a device you registered.

! Yes:

Allows you to proceed to the next step.

! No:

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration].

The “Device List” screen appears. The system searches for Bluetooth devices waiting for the connection and displays them in the list if a device is found.

p Up to 10 devices will be listed in the order

that the devices are found.

5 Wait until your Bluetooth device appears in the list.

Registering and connecting a Bluetooth device

12 Touch [OK].

For Bluetooth device (other than iPod) users

p Only the Android device (for AVIC-Z150BH

and AVIC-X950BH) can be performed the

smartphone cooperation function

(AppRadio Mode, aha and Pandora) with

via Bluetooth wireless technology.

p If you cannot find the Bluetooth device that

you want to connect, check that the device is waiting for the Bluetooth wireless technology connection.

Page 62

Chapter

Registering and connecting a Bluetooth device

6 Touch the Bluetooth device name you want to register.

# If you touch [Search], the system starts searching for Bluetooth devices waiting for connection, and displays them in the list format when any devices are detected.

7 Pair this navigation system with your Bluetooth device.

8 Touch [OK].

The registration is complete, and the device is connected as a hands-free phone. You can perform the following setting depending on the Bluetooth device registered.

! Transferring the phone book

! Selecting whether to use the Bluetooth

audio

You can select whether to use the Bluetooth audio function if the registered Bluetooth device features Bluetooth audio.

The message “Is this Android?” appears.

9 Touch [Yes] if the Bluetooth device you connected is an Android device.

! Yes:

Allows you to proceed to the next step.

! No:

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

p Only the Android device can perform the

smartphone cooperation function (AppRadio Mode, aha and Pandora) via Bluetooth wireless technology.

The message “Do you want to set this de-

vice for the AppRadio Mode?” appears.

10 Touch [Yes] if you use the AppRadio Mode with a device you registered.

! Yes:

Allows you to proceed to the next step.

! No:

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

11 Touch [OK].

Pairing from your Bluetooth devices

You can register the Bluetooth device by setting the navigation system to standby mode and requesting connection from the Bluetooth device.

Page 63

Registering and connecting a Bluetooth device

Chapter

For iPod with 30-pin connector users

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration]. The “Device List” screen appears.

5 Touch [Register from device].

The navigation system waits for a Bluetooth wireless technology connection.

6 Register the navigation system on your Bluetooth device.

If your device asks you to enter a password, enter the password of the navigation system. When the device is successfully registered, the connection settings are made from the device.

p If registration fails, repeat the procedure

from the beginning.

7 Touch [OK].

The registration is complete, and the device is connected as a hands-free phone. You can perform the following setting depending on the Bluetooth device registered.

! Transferring the phone book

! Selecting whether to use the Bluetooth

audio

You can select whether to use the Bluetooth audio function if the registered Bluetooth device features Bluetooth audio.

The message “Is this Android?” appears.

8 Touch [No]. The message “Is this device equipped with a Digital AV/VGA Connector?” appears.

9 Touch [No].

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

For iPod with Lightning connector users

p Only the iPod with Lightning connector can

perform the iPhone cooperation function (AppRadio Mode, aha and Pandora) via Bluetooth wireless technology.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration]. The “Device List” screen appears.

5 Touch [Register from device].

The navigation system waits for a Bluetooth wireless technology connection.

6 Register the navigation system on your Bluetooth device.

If your device asks you to enter a password, enter the password of the navigation system. When the device is successfully registered, the connection settings are made from the device.

p If registration fails, repeat the procedure

from the beginning.

7 Touch [OK].

The registration is complete, and the device is connected as a hands-free phone.

Registering and connecting a Bluetooth device

Page 64

Chapter

Registering and connecting a Bluetooth device

You can perform the following setting depending on the Bluetooth device registered.

! Transferring the phone book

! Selecting whether to use the Bluetooth

audio

You can select whether to use the Bluetooth audio function if the registered Bluetooth device features Bluetooth audio.

The message “Is this Android?” appears.

8 Touch [No]. The message “Is this device equipped with a Digital AV/VGA Connector?” appears.

9 Touch [Yes]. The message “Do you want to set this de- vice for the AppRadio Mode?” appears.

10 Touch [Yes] if you use the AppRadio Mode with a device you registered.

! Yes:

Allows you to proceed to the next step.

! No:

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

11 Touch [OK].

For Bluetooth device (other than iPod) users

p Only the Android device (for AVIC-Z150BH

and AVIC-X950BH) can be performed the smartphone cooperation function (AppRadio Mode, aha and Pandora) with via Bluetooth wireless technology.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless

technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Registration]. The “Device List” screen appears.

5 Touch [Register from device].

The navigation system waits for a Bluetooth wireless technology connection.

6 Register the navigation system on your Bluetooth device.

If your device asks you to enter a password, enter the password of the navigation system. When the device is successfully registered, the connection settings are made from the device.

p If registration fails, repeat the procedure

from the beginning.

7 Touch [OK].

The registration is complete, and the device is connected as a hands-free phone. You can perform the following setting depending on the Bluetooth device registered.

! Transferring the phone book

! Selecting whether to use the Bluetooth

audio

You can select whether to use the Bluetooth audio function if the registered Bluetooth device features Bluetooth audio.

The message “Is this Android?” appears.

8 Touch [Yes] if the Bluetooth device you connected is an Android device.

! Yes:

Allows you to proceed to the next step.

Page 65

Registering and connecting a Bluetooth device

Chapter

! No:

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

The message “Do you want to set this de-

vice for the AppRadio Mode?” appears. 9 Touch [Yes] if you use the AppRadio

Mode with a device you registered.

! Yes:

Allows you to proceed to the next step.

! No:

The device is registered in the navigation system. After the device is successfully registered, the Bluetooth connection is established from the navigation system.

10 Touch [OK].

Deleting a registered device

When you have already registered 5 Bluetooth devices and you want to add another, you must first delete one of the registered devices. p If a registered phone is deleted, all the

phone book entries and call history lists

that correspond to the phone will be also

cleared.

1 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Delete Device].

The “Delete Registered Device” screen appears.

4 Touch the Bluetooth device name that you want to delete.

A message prompting you to delete a registered device appears.

5 Touch [Yes].

The device is deleted.

p If the device you deleted was set for the

priority connecting as a hands-free phone, Bluetooth audio player or smartphone, this navigation system needs to set another device for priority connecting.

Connecting a registered Bluetooth device manually

The navigation system automatically connects the Bluetooth device selected as the target of connection. However, connect the Bluetooth device manually in the following cases: ! Two or more Bluetooth devices are regis-

tered, and you want to manually select the device to be used.

! You want to reconnect a disconnected

Bluetooth device.

! Connection cannot be established automa-

tically for some reason. If you start connection manually, carry out the following procedure. You can also connect the Bluetooth device by having the navigation system detect it automatically.

1 Activate the Bluetooth wireless technology on your devices.

For some Bluetooth devices, no specific-action is necessary to activate Bluetooth wireless technology. For details, refer to the instruction manual of your devices.

2 Display the “Phone” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

3 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

4 Touch [Change Device].

The “Change Bluetooth Device” screen appears.

Registering and connecting a Bluetooth device

Page 66

Chapter

Registering and connecting a Bluetooth device

5 Touch the name of the device that you want to connect.

6 Touch the profile that you want to connect.

You can select the following profiles:

! Handsfree:

Connects the device as a hands-free phone.

! Bluetooth Audio:

Connects the device as a Bluetooth audio player.

! AppRadio Mode (Android):

Connects the device as a smartphone (Android device) in AppRadio Mode.

! AppRadio Mode (iPhone):

Connects the device as an iPod with Lightning connector in AppRadio Mode.

7 Touch [OK].

Connection starts.

p If you select “AppRadio Mode (Android)”

or “AppRadio Mode (iPhone)”, the “De-

vice Selection for AppRadio Mode”

screen will appear. Please note that depending on “App Connection Settings”, the displayed message will vary.

= For details, refer to Selecting the device

connection method on page 165.

= For details, refer to Setting the iPod con-

nection on page 158.

When a connection is successfully established, a connection complete message ap-

pears and the map screen returns by touching [OK].

p To cancel the connection to your device,

touch [Cancel].

p If connection fails, check whether your de-

vice is waiting for a connection and then retry.

8 Touch [OK].

Setting for priority connecting

The selected device is set for priority connecting. And one of the following icons is indicated next to the device name.

Appears when the device is registered so that it will be preferentially paired with the smartphone in AppRadio Mode.

Appears when the device is registered so that it will be preferentially paired with the Bluetooth audio connection.

Appears when the device is registered so that it can be preferentially paired with the hands-free connection.

Page 67

Using hands-free phoning

Chapter

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

If your cellular phone features Bluetooth technology, this navigation system can be connected to your cellular phone wirelessly. Using this hands-free function, you can operate the navigation system to make or receive phone calls. You can also transfer the phone book data stored in your cellular phone to the navigation system. This section describes how to set up a Bluetooth connection and how to operate a cellular phone featuring Bluetooth technology on the navigation system.

For details about the connectivity with the devices featuring Bluetooth wireless technology, refer to the information on our website.

Displaying the phone menu

Use the “Phone” if you connect the cellular phone to the navigation system for utilization. = For details, refer to Chapter 9.

1 Press the HOME button to display the “Top Menu” screen.

2 Touch [Phone]. The “Phone” screen appears.

21 345

Making a phone call

You can make a phone call in many different ways.

123 4

The call ends.

, The hands-free function is turned on or off. If you want to talk on the cellular phone, turn off the hands-free function.

The dial pad appears.

You can adjust the volume when talking.

The operation menu during call is minimized.

Direct dialing

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Dial Pad]. 3 Touch the number keys to enter the

phone number.

Using hands-free phoning

1 Reception status of the cellular phone 2 Network name of the cellular phone com-

pany

3 Battery status of the cellular phone 4 Strength of the Bluetooth connection be-

tween the navigation system and the device

5 Name of the connected cellular phone

When the input is complete, [OK] becomes active.

Page 68

Chapter

Using hands-free phoning

# If you touch , the entered number is de- leted one digit at a time from the end of the number. Press and hold to delete all digits.

4 Touch [OK] to make a call.

p To cancel the call after the system starts

dialing, touch [Cancel]or

5 Touch to end the call.

The call ends.

p You may hear a noise when you hang up

the phone.

# If you touch mized during the call. To display the menu again, touch

, the operation menu is mini-

Calling a number in the phone book

You can select and call a contact from the phone book entries transferred to the navigation system. p Before using this function, you need to

transfer the phone book entries stored in your cellular phone to the navigation system.

= For details, refer to Transferring the phone

book on page 71.

Searching for a contact to call on the alphabet tabs

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Contacts List]. The “Contacts List” screen appears.

3 Touch alphabet tabs.

The screen jumps to the top of the page displaying the entries that start with the selected letter or number.

p Touching the alphabet tabs displays all en-

tries that start with symbols.

p Touching [Num] displays all entries that

start with numbers.

p Touching [Oth.] displays the page including

entries that are not assigned to any of the other tabs.

# If you touch [Sort], the names can be sorted. Each touch of [Sort] changes the settings as follows:

! First (default):

Switches the contact entries to first/last name display and sorts the entries by order of first name.

! Last:

Switches the contact entries to last/first name display and sorts the entries by order of last name.

p Depending on the type of cellular phone,

the settings may not be available.

4 Touch the desired name on the list. 5 Touch the desired entry on the list to

make a call.

A call confirmation message appears.

6 Touch [Yes].

Dialing starts.

Page 69

Using hands-free phoning

Chapter

p To cancel the call after the system starts

dialing, touch [Cancel]or

7 Touch to end the call.

Calling a number by searching by name

You can search by the names registered in the

“Contacts List” screen. 1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Contacts List]. The “Contacts List” screen appears.

3 Touch [Search]. 4 Enter the desired name and then touch

[OK].

The “Contacts Name Search Results” screen appears.

5 Touch the desired name on the list. 6 Touch the desired entry on the list to

make a call.

A call confirmation message appears.

7 Touch [Yes].

Dialing starts.

p To cancel the call after the system starts

dialing, touch [Cancel]or

8 Touch to end the call.

Dialing from the history

The most recent calls made (dialed), received and missed are stored in the call history list. You can browse the call history list and call numbers from it.

p Each call history saves 30 calls per regis-

tered cellular phone. If the number of calls exceeds 30, the oldest entry will be deleted.

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Call History]. 3 Touch [Received], [Dialed] or [Missed].

The selected call history list appears.

4 Touch an entry on the list.

A call confirmation message appears.

5 Touch [Yes].

Dialing starts.

p To cancel the call after the system starts

dialing, touch [Cancel]or

6 Touch to end the call.

Redialing a call

You can call again to the number that was sent last.

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Redial].

A call confirmation message is displayed.

3 Touch [Yes].

Dialing starts.

Dialing a favorite location

You can make a call to an entry stored in the “My POIs” list.

Using hands-free phoning

Page 70

Chapter

Using hands-free phoning

1 Display the “Destination” screen.

= For details of the operations, refer to How to

use the navigation menu screens on page

24.

2 Touch [My POIs]. 3 Touch

want to make a call. The “Details” screen appears.

4 Touch

Dialing starts.

p To cancel the call after the system starts

5 Touch to end the call.

next to the location that you

to make a call.

dialing, touch [Cancel]or

Dialing a facility’s phone number

You can make a call to facilities with phone number data. p You cannot make a call to locations or POIs

that have no phone number data.

1 Search for the POI. The “POI List” screen appears.

= For details of the operations, refer to Search-

ing for Points of Interest (POI) on page 41.

2 Touch next to the POI that you want to call. The “Details” screen appears.

3 Touch

Dialing starts.

p To cancel the call after the system starts

dialing, touch [Cancel]or

4 Touch to end the call.

to make a call.

Receiving a phone call

You can perform hands-free answering by using the navigation system.

Answering an incoming call

The system informs you that it is receiving a call by displaying a message and producing a ring sound.

p You can set the system to automatically an-

swer incoming calls. If not set to automatically answer incoming calls, you will have to answer the calls manually.

= For details, refer to Answering a call

automatically on page 74.

p If the voice on the other end of the call is

too quiet to hear, you can adjust the volume of the received voice.

= For details, refer to Setting the Volume

for Guidance and Phone on page 144.

p The registered name appears if the phone

number of the received call is already registered in “Contacts List”.

p Depending on the caller ID service, the

phone number of the received call may not be displayed. “Call from an unknown call- er.” appears instead.

To answer an incoming call, touch .

The operation menu during a call appears.

# If you touch , the incoming call is re- jected. The rejected call is recorded in the missed call history list.

= For details, refer to Dialing from the history

on page 69.

Page 71

Using hands-free phoning

Chapter

2 Touch to end the call.

The call ends.

p You may hear a noise when you hang up

the phone.

# If you touch the hands-free function. Turn this off if you want to talk on the cellular phone.

# If you touch # If you touch [–]or[+], you can adjust the vo-

lume when talking. # If you touch mized during the call. To display the menu again, touch

or , you can turn on or off

, you can dial during a call.

, the operation menu is mini-

p If you connect a cellular phone featuring

an auto-synchronization function, the phone book transfer or synchronization will be automatically performed.

p A maximum of 1 000 entries can be trans-

ferred per cellular phone. If the entries exceed 1 000, the extra entries will not be transferred.

p Each entry can hold up to 5 phone num-

bers. If more than one number is registered for one person, such as work place and home, each number may be counted separately.

p Depending on the cellular phone that is

connected to this navigation system via Bluetooth technology, this navigation system may not be able to display the phone book correctly. (Some characters may be garbled.)

p If the phone book in the cellular phone con-

tains image data, the phone book may not be correctly transferred.

p The transferred data cannot be edited on

the navigation system.

p Depending on the cellular phone, phone

book transfer may not be available.

1 Connect the cellular phone that has the phone book to transfer.

= For details, refer to Connecting a registered

Bluetooth device manually on page 65.

Using hands-free phoning

Transferring the phone book

You can transfer the phone book entries from your cellular phone to the phone book of the navigation system. p Depending on the cellular phone, the

phone book may be called Contacts, Business Card or something else.

p With some cellular phones, it may not be

possible to transfer the entire phone book collectively. In this case, transfer addresses one at a time from your phone book using your cellular phone.

2 Touch [Edit/Delete] on the “Phone” screen. The “Edit/Delete” screen appears.

= For details, refer to Displaying the phone

menu on page 67.

3 Touch [Contacts]. The “Contacts List” screen appears.

4 Touch [Import].

p Depending on the cellular phone that is

connected to this navigation system via Bluetooth technology, operation needs to be conducted from the cellular phone.

p If some data has been already retrieved, se-

lect either [Overwrite]or[Additional].

Page 72

Chapter

Using hands-free phoning

Depending on the cellular phone, the phone book registered in the navigation system may be automatically overwritten and this step may be skipped. ! Overwrite:

The existing data is overwritten, and if the telephone number is added to the cellular phone, it will be transferred anew.

! Additional:

If the telephone number is added to the cellular phone, it will be transferred anew.

When data transfer is finished, a message asking whether you want to transfer more data appears.

5 Touch [No].

The transferred data is imported to the navigation system. When the data has been successfully imported, an import complete message is displayed and the “Contacts List” screen appears.

p It may take time depending on how many

entries are transferred.

# Touch [Yes] to continue the transfer.

3 Touch [Delete]. The “Delete” screen appears.

4 Touch the entry you want to delete.

A check mark appears next to the entry.

# If you touch [All], you can select all entries. If you want to deselect all entries, touch [None].

5 Touch [Delete].

A message confirming whether to delete the entry appears.

6 Touch [Yes].

The entry is deleted.

# If you touch [No], the deletion is canceled.

Deleting the history information

You can clear the memory of each item that corresponds to the connected cellular phone: the outgoing call history, incoming call history or missed call history information.

1 Touch [Edit/Delete] on the “Phone” screen. The “Edit/Delete” screen appears.

= For details, refer to Displaying the phone

menu on page 67.

Deleting registered contacts

1 Touch [Edit/Delete] on the “Phone” screen. The “Edit/Delete” screen appears.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Contacts]. The “Contacts List” screen appears.

2 Touch the history item you want to delete.

Page 73

Using hands-free phoning

Chapter

On this screen, you can select the following items:

! Delete Dialed Calls:

Clears the dialed call history list.

! Delete Received Calls:

Clears the received call history list.

! Delete Missed Calls:

Clears the missed call history list.

3 Touch the history information you want to delete.

The selected history information is check marked and you can continue to select the history information.

# Touching [All] selects all history information. Touching [None] deselects all selected history information.

4 Touch [Delete].

A confirmation message appears.

5 Touch [Yes].

Data on the selected item is cleared from this navigation system’s memory.

# If you do not want to clear the memory that you have selected, touch [No].

Changing the phone settings

Editing the device name

You can change the device name to be displayed on your cellular phone. (Default is

“PIONEER NAVI”.)

4 Touch and enter the new name using the keyboard.

p Up to 20 characters can be entered for a de-

vice name.

5 Touch [OK].

The name is changed.

to delete the current name,

Editing the password

You can change the password to be used for authentication on your cellular phone. (Default is “1111”.) p Four to eight characters can be entered for

a password.

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Passkey].

The password setting screen appears.

Using hands-free phoning

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Device Name].

The keyboard to enter the name appears.

4 Touch word, and enter the new password using the keyboard.

5 Touch [OK].

The password is changed.

to delete the current pass-

Page 74

Chapter

Using hands-free phoning

Stopping Bluetooth wave transmission

You can stop transmission of electric waves by turning off the Bluetooth function. If you do not use the Bluetooth wireless technology, we recommend selecting “Off”.

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Bluetooth Settings]. The “Bluetooth Settings” screen appears.

3 Touch [Bluetooth On/Off].

Each touch of [Bluetooth On/Off] changes the settings as follows:

! On (default):

Turns on the Bluetooth function.

! Off:

Turns off the Bluetooth function.

Answering a call automatically

The navigation system automatically answers incoming calls to the cellular phone, so you can answer calls while driving without taking your hands off the steering wheel.

4 Touch the desired option.

On this screen, you can select the following items:

! Off (default):

No automatic response. Respond manually.

! Immediately:

Answers immediately.

! After 3 seconds:

Answers after three seconds.

! After 6 seconds:

Answers after six seconds.

! After 10 seconds:

Answers after ten seconds.

Setting the automatic rejection function

If this function is on, the navigation system automatically rejects all incoming calls.

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Incoming Call Settings].

The “Incoming Call Settings.” screen appears.

3 Touch [Auto Answer Preference].

The “Auto Answer Preference” screen appears.

1 Display the “Phone” screen.

= For details, refer to Displaying the phone

menu on page 67.

2 Touch [Incoming Call Settings].

The “Incoming Call Settings.” screen appears.

3 Touch [Refuse All Calls].

Each touch of [Refuse All Calls] changes the settings as follows:

! Off (default):

Accepts all incoming calls.

! On:

Rejects all incoming calls.

p If both “Refuse All Calls” and “Auto An-

swer Preference” are activated, “Refuse All Calls” takes priority and all incoming

calls are automatically rejected.

Page 75

Using hands-free phoning

Chapter

p If “Refuse All Calls” is set to “On”, rejected

incoming calls will not be stored in the missed call list.

Notes for hands-free phoning

General notes

! Connection to all cellular phones featuring

Bluetooth wireless technology is not guaranteed.

! The line-of-sight distance between this na-

vigation system and your cellular phone must be 10 meters or less when sending and receiving voice and data via Bluetooth technology. However, the actual transmission distance may be shorter than the estimated distance, depending on the usage environment.

! With some cellular phones, the ring sound

may not be output from the speakers.

! If private mode is selected on the cellular

phone, hands-free phoning may be disabled.

Registration and connection

! Cellular phone operations vary depending

on the type of cellular phone. Refer to the instruction manual that came with your cellular phone for detailed instructions.

! With cellular phones, phone book transfer

may not work even though your phone is paired with the navigation system. In that case, disconnect your phone, perform pairing again from your phone to the navigation system, and then perform the phone book transfer.

Making and receiving calls

! You may hear a noise in the following situa-

tions: — When you answer the phone using the

button on the phone.

— When the person on the other end of

line hangs up the phone.

! If the person on the other end of the phone

call cannot hear the conversation due to an

echo, decrease the volume level for handsfree phoning. This may reduce the echo.

! With some cellular phones, even if you

press the accept button on the cellular phone when a call comes in, hands-free phoning may not be performed.

! The registered name appears if the phone

number of the received call is already registered in the phone book. When one phone number is registered under different names, only the phone number is displayed.

! If the phone number of the received call is

not registered in the phone book, the phone number of the received call appears.

The received call and the dialed number histories

! You cannot make a call to the entry of an

unknown user (no phone number) in the received call history.

! If calls are made by operating your cellular

phone, no history data will be recorded in the navigation system.

Phone book transfers

! If there are more than 1 000 phone book en-

tries on your cellular phone, not all entries may download completely.

! With some cellular phones, it may not be

possible to transfer all items in the phone book at one time. In this case, transfer items one by one from your cellular phone.

! Depending on the cellular phone, this navi-

gation system may not display the phone book correctly. (Some characters may be garbled, or first and last names may be reversed.)

! If the phone book in the cellular phone con-

tains image data, the phone book may not be transferred correctly. (Image data cannot be transferred from the cellular phone.)

! Depending on the cellular phone, phone

book transfer may not be available.

Using hands-free phoning

Page 76

Chapter

Basic operations of the AV source

This chapter describes the basic operations of the AV source.

You can play or use the following sources with your Pioneer navigation system.

! Radio (FM, AM) (*1) ! HD Radio (HD Radio

™

tuner) (*2)

! CD ! ROM (in MP3, AAC, WMA) ! DVD-Video ! DivX ! SD

The following sources can be played back or used by connecting an auxiliary device.

! USB ! iPod ! Pandora

! Aha Radio ! Bluetooth audio ! SiriusXM

™

tuner

! AV input 1 (AV1) ! AV input 2 (AV2)

p (*1) A source available on AVIC-X850BT

and AVIC-X8510BT.

p (*2) A source available on AVIC-Z150BH

and AVIC-X950BH.

Displaying the AV operation screen

% Press the MODE button when the map screen is displayed.

p The AV operation screen can also be dis-

played by touching [AV Source] on the “Top Menu”.

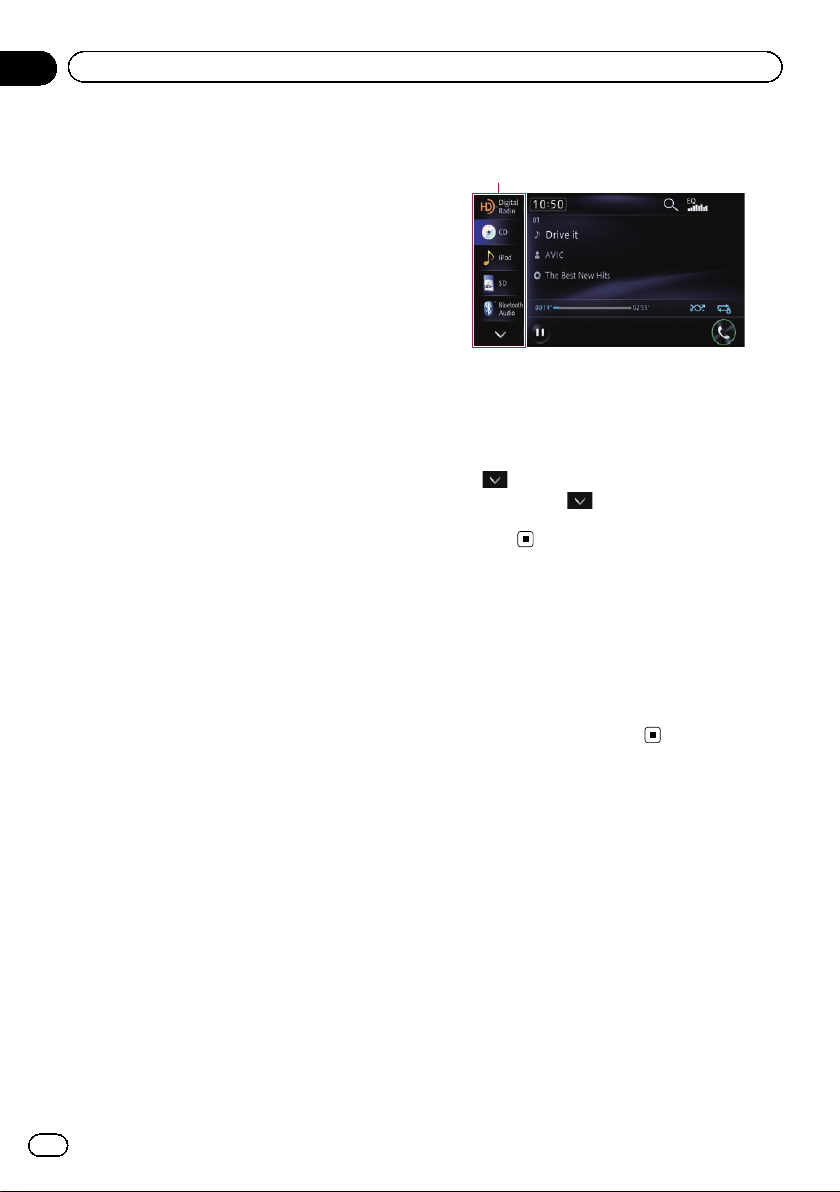

Selecting a source

Source icons

% Touch the source icon you want to select on the left edge of the screen.

The operation screen of the selected source appears.

p If seven or more sources can be selected,

appears.

p If you touch

be switched and hidden icons will appear.

, the AV source icons will

Turning off the AV source

Turn off the AV source to stop playing or receiving the AV source.

% Touch [Off] on the left edge of the screen.

The AV source is turned off.

Page 77

Basic operations of the AV source

AV source plate display

If you select a station or song with the track up/down button while the map screen is still displayed, the AV source plate appears on the top of the map screen. The AV source plate displays the status of the currently played AV source. The AV source plate disappears if it is not operated for about four seconds after it appears.

AV source plate

Chapter

Basic operations of the AV source

Page 78

Chapter

Using the radio

p This function is available on AVIC-X850BT

and AVIC-X8510BT. You can listen to the radio using the navigation system. This section describes operations for radio.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 76.

2 Touch [Radio] on the left edge of the screen to display the “Radio” screen.

3 Touch the band indicator to switch a band.

= For details, refer to Using the touch panel

keys on page 78.

4 Use the touch panel keys on the screen to control the radio.

= For details, refer to Using the touch panel

keys on page 78.

Reading the screen

423

78 6

1 Source icon

Shows which source has been selected.

2 Program service name indicator

Shows the program service name (station

name) of the current station.

p When “AM” is selected, this indicator is

not shown.

3 Current time

4 Band indicator

Shows which band the radio is tuned to: FM1, FM2, FM3 or AM.

5 Preset number indicator

Shows the selected preset item

6 Frequency indicator 7 Signal level indicator 8 STEREO indicator

Shows that the frequency selected is being broadcast in stereo.

p When “AM” is selected, this indicator is

not shown.

Using the touch panel keys

1 Selects a band

Touch the left part to select a FM band (FM1, FM2 or FM3). Touch the right part to switch to the AM band.

p When “AM” is selected, you cannot

switch to another AM band by touching the band key.

2 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 159.

3 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on page 80.

4 Operates some functions by swipe action

= For details, refer to Swipe action on page

27.

5 Displays the “Phone” screen

= For details, refer to Displaying the phone

menu on page 67.

67 5

Page 79

Using the radio

Chapter

6 Stores the strongest broadcast frequen-

cies

= For details, refer to Storing the strongest

broadcast frequencies on page 79.

7 Performs manual tuning

To tune manually, touch frequencies move up or down one step at a time.

Performs seek tuning

To perform seek tuning, touch and hold

for about one second and then release. The tuner will scan frequencies until it finds a broadcast strong enough for good reception.

or briefly. The

p You can cancel seek tuning by touching

either p If you keep holding

or briefly.

or , you can skip broadcasting frequencies. Seek tuning will start when you release the keys.

8 Displays preset channels

Touching this key displays the preset channel list. Touch the item of the list (“1” to “6”) to switch to a channel registered as a preset channel.

p If you touch the preset channel list dis-

play key while the preset channel list is displayed, the list disappears and preset tuning keys are displayed.

Preset channel list display key

Preset tuning keys

! Once you have stored broadcast chan-

nels, you can easily recall preset channels from memory with a single touch of a key.

= For details, refer to Storing and recal-

ling broadcast frequencies on page

79.

Storing and recalling broadcast frequencies

With a touch of any of the preset tuning keys (“1” to “6”), you can easily store up to six broadcast frequencies for later recall (also with the touch of a key).

1 Select a frequency that you want to store in memory.

2 Display the preset channel list.

= For details, refer to Displays preset chan-

nels on page 79.

3 Keep touching a preset tuning key [1] to [6].

The selected radio station has been stored in memory. The next time you touch the same preset tuning key “1” to “6”, the radio station frequencies are recalled from memory.

p Up to 18 FM stations, six for each of the

three FM bands, as well as six AM stations, can be stored in memory.

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies under the preset tuning keys “1” to “6” and, once stored there, you can tune into them with the touch of a key. p Storing broadcast frequencies with BSM

may replace broadcast frequencies you have already saved.

p Previously stored broadcast frequencies

may remain stored if the number of strong broadcast frequencies stored has not reached the limit.

Using the radio

Page 80

Chapter

Using the radio

% Touch [BSM] to begin a search.

A message appears. While the message is displaying, the six strongest broadcast frequencies will be stored under the preset tuning keys “1” to “6” in order of their signal strength. When this is complete, the message disappears.

# If you touch [Cancel], the storage process is canceled.

Using advanced functions

Tuning in strong frequencies

Local seek tuning allows you to only tune into those radio stations with sufficiently strong signals for good reception.

1 Touch The “Function” menu appears.

2 Touch [Local].

3 Touch [On] to turn local seek tuning on.

# If you touch [Off], local seek tuning is turned off.

4 Touch or to set the sensitivity.

There are four levels of sensitivity for FM and two levels for AM: FM: 1 — 2 — 3 — 4 AM: 1 — 2

p The FM “4” (AM “2”) setting allows recep-

tion of only the strongest stations, while lower settings let you receive weaker stations.

on the “Radio” screen.

Operating by hardware buttons

Pressing the TRK button

You can move the preset channels up or down.

Pressing and holding the TRK button

You can perform seek tuning.

Page 81

HD Radio™reception

Chapter

p This function is available on AVIC-Z150BH

and AVIC-X950BH. You can listen to the radio by using the navigation system. This section describes operations for HD Radio reception.

HD Radio stations

HD Radio stations offer high quality audio and data services. HD Radio stations are brought to you by your local FM or AM stations. HD Radio stations feature the following:

! High quality audio ! FM multicasting ! Data service

AM band

Analog AM

Analog AM Digital AM

FM band

Analog FM

Analog FM Digital FM

Analog FM Digital FM-1ch

Digital FM-2ch

: Main channel : Sub channel

Digital FM-3ch

Adjacent to traditional main stations are extra local FM channels. These HD2/HD3 Channels provide new, original music as well as deep cuts into traditional genre.

iTunes®Tagging provides you the opportunity to discover a wide range of content and the means to “tag” that content for later review and purchase from the iTunes Store.

Visual information related to content being played on your HD Radio receiver, such as Album Art, historical photographs, still art from live broadcasts, among other related content.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 76.

2 Touch [Digital Radio] on the left edge of the screen to display the “Digital Radio” screen.

3 Use the touch panel keys on the screen to control the radio.

= For details, refer to Using the touch panel

keys on page 82.

Reading the screen

HD Radio

™

reception

Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

Program Service Data: Contributes to the superior user experience of HD Radio Technology. Presents song name, artist, station IDs, HD2/HD3 Ch annel Guide, and other relevant data streams.

45623

b 89

cde

1 Source icon

Shows which source has been selected.

Page 82

Chapter

HD Radio™reception

2 Multicasting indicator

Shows the number of multicast channels in the current frequency.

3 Current time 4 Band indicator

Shows which band the radio is tuned to: FM1, FM2, FM3 or AM.

5 Song info reception indicator

Shows the reception status of the song information.

Indicator Meaning

Appears when the navigation system receives song information and can store it. The icon is displayed on the operation screen of the HD Radio receiver.

Appears when the navigation system is storing song information. The icon is displayed on all operation screens of AV sources.

6 Song info status indicator

Shows the status of the song information stored in the navigation system.

Indicator Meaning

Displays the number of song information items stored in the navigation system. The icon is displayed on all operation screens of AV sources.

Appears when the song information is transferred to an iPod. The icon is displayed on all operation screens of AV sources.

9 Blending mode indicator

= For details, refer to Switching the recep-

tion mode on page 85.

a Preset number indicator

Shows the selected preset item

b Frequency indicator c Signal level indicator d Seek type indicator

= For details, refer to Switching the seek

mode on page 85.

e Detailed information

! : Call sign, program service or fre-

quency

Shows the call sign, the program service or the frequency of the broadcast station currently being received.

: Song title (program name) Shows the title of the current song (program).

: Artist (performer) name Shows the artist (performer) name currently playing (when available).

: Album title Shows the title of the album of the current track (when available).

Using the touch panel keys

7 Album artwork

Shows the album artwork of the current song if it is available.

p If the album artwork cannot be ac-

quired, the station logo is displayed. If the station logo cannot be acquired either, the preinstalled image is displayed.

8 Signal type indicator

Shows the type of signal currently being received. If a digital broadcasting is received, “Digital” appears. Otherwise, “Analog” appears.

789 6

1 Selects a band

Touch the left part to select a FM band (FM1, FM2 or FM3). Touch the right part to switch to the AM band.

p When “AM” is selected, you cannot

switch to another AM band by touching the band key.

Page 83

HD Radio™reception

Chapter

2 Scrolls the text

If not all the characters can be displayed within the displayed area, touching the key to the right of the item allows you to see the remaining characters.

3 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 159.

4 Displays the “Function” menu

= For details, refer to Using advanced func-

tions on page 85.

5 Operates some functions by swipe action

= For details, refer to Swipe action on page

27.

6 Displays the “Phone” screen

= For details, refer to Displaying the phone

menu on page 67.

7 Stores song information to an iPod

Touch this key when receiving the song information of the song on air, and you can store the song information on your iPod.

= For details, refer to Storing song informa-

tion to an iPod (iTunes Tagging) on page

84.

8 Stores the strongest broadcast frequen-

cies

= For details, refer to Storing the strongest

broadcast frequencies on page 84.

9 Performs manual tuning

To tune manually, touch frequencies move up or down one step at a time.

Performs seek tuning

To perform seek tuning, touch and hold

for about one second and then release. The tuner will scan frequencies until it finds a broadcast strong enough for good reception.

or briefly. The

p You can cancel seek tuning by touching

either

or briefly.

p When an analog station is received, only

analog broadcasts can be tuned up or

down.

If a digital broadcast is not yet received, tuning up or down seeks the next or previous analog station.

a Displays preset channels

Touching this key displays the preset channel list. Touch the item of the list (“1” to “6”) to switch to a channel registered as a preset channel.

p If you touch the preset channel list dis-

play key while the preset channel list is displayed, the list disappears and preset tuning keys are displayed.

Preset tuning keys

! Once you have stored broadcast chan-

nels, you can easily recall preset channels from memory with a single touch of a key.

= For details, refer to Storing and recal-

ling broadcast frequencies on page

84.

Analog FM

Analog FM Digital FM-1ch

Digital FM-2ch

Digital FM-3ch

Analog FM

Preset channel list display key

HD Radio

™

reception

Page 84

Chapter

HD Radio™reception

Storing and recalling broadcast frequencies

With a touch of any of the preset tuning keys (“1” to “6”), you can easily store up to six broadcast frequencies for later recall (also with the touch of a key).

1 Select a frequency that you want to store in memory.

2 Display the preset channel list.

= For details, refer to Displays preset chan-

nels on page 83.

3 Touch and hold a preset tuning keys ([1] to [6]).

The selected radio station has been stored in memory. The next time you touch the same preset tuning key “1” to “6”, the radio station frequencies are recalled from memory.

p Up to 18 FM stations, six for each of the

three FM bands, as well as six AM stations, can be stored in memory.

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies and assign them to the preset tuning keys “1” to “6”. Once stored, you can tune in to these frequencies with the touch of a key. p Storing broadcast frequencies with BSM

may replace broadcast frequencies you have already saved.

p Previously stored broadcast frequencies

may remain stored if the number of strong broadcast frequencies stored has not reached the limit.

% Touch [BSM] to begin a search.

Six strongest broadcast frequencies will be stored under the preset tuning keys “ 1” to “6” in order of their signal strength.

# If you touch [Cancel], the storage process is canceled.

Storing song information to an iPod (iTunes Tagging)

You can store the song information to the iPod, when the navigation system has received the song information. The songs will show up in a playlist called “Tagged playlist” in iTunes next time you synchronize your iPod. You can directly buy the songs via the navigation system. Depending on when the song information is stored, information for the previous song or the song after the current song may also be stored. Be sure to confirm the song before you purchase it. p The iTunes Tagging function is available

while digital broadcasts are being received.

p This function is provided on the following

iPod models:

! iPod touch 5th generation ! iPod touch 4th generation ! iPod touch 3rd generation ! iPod touch 2nd generation ! iPod touch 1st generation ! iPod classic ! iPod nano 6th generation ! iPod nano 5th generation ! iPod nano 4th generation ! iPod nano 3rd generation ! iPhone 5 ! iPhone 4S ! iPhone 4 ! iPhone 3GS ! iPhone 3G ! iPhone

p The version of iTunes must be 7.4 or higher.

1 Tune into the digital broadcast station.

When song information is received, played while the desired song is being broadcast, and

= For details, refer to Song info reception in-

2 Touch .

Information on the song on air is stored in the navigation system. While the information is being acquired, is displayed.

becomes active.

dicator on page 82.

is dis-

Page 85

HD Radio™reception

Chapter

When it is complete, turns off and is displayed.

p The song information for up to 50 songs

can be stored on this navigation system. Depending on when the song information is stored, information for the previous song or the song after the current song may also be stored.

3 Connect your iPod.

The song information is transferred to your iPod.

p If the iPod is already connected, every time

you touch transferred to your iPod. When the song information is stored on your iPod,

p When transfer of song information is com-

pleted, the information stored in the navigation system will be automatically deleted.

p If you turn off the navigation system or dis-

connect the iPod while transferring song information, the transfer may not successfully complete. While the navigation system is storing song in-

formation, transfer to iPod is not possible.

, the song information will be

disappears.

Using advanced functions

Tuning in strong frequencies

Local seek tuning allows you to only tune into those radio stations with sufficiently strong signals for good reception.

1 Touch 2 Touch [Local]. 3 Touch [On] to turn local seek tuning on.

# If you touch [Off], local seek tuning is turned off.

4 Touch or to set the sensitivity.

There are four levels of sensitivity for FM and two levels for AM: FM: 1 — 2 — 3 — 4 AM: 1 — 2

The FM “4” (AM “2”) setting allows reception of only the strongest stations, while lower settings let you receive weaker stations.

on the “Digital Radio” screen.

Switching the seek mode

You can select the method of seek tuning.

1 Touch

on the “Digital Radio” screen. 2 Touch [Seek]. 3 Touch [All] or [HD].

! All (default):

Seeks stations from both analog and digital broadcasting.

! HD:

Seeks only from digital broadcasting.

p If you select “HD” while [Blending] is set to

“Analog”, the setting on [Blending] turns to “D/A Auto” automatically.

Switching the reception mode

If reception of a digital broadcast becomes poor, the tuner automatically switches to the analog broadcast of the same frequency level by default. If you want to avoid frequent automatic switching, change this setting to [Ana-

log]. 1 Touch

on the “Digital Radio” screen. 2 Touch [Blending]. 3 Touch [Analog] or [D/A Auto].

! D/A Auto (default):

Automatically switches to the analog broadcast of the same frequency level as the digital broadcast.

! Analog:

Receives analog broadcasting only.

p If you select “Analog” on this setting while

[Seek] is set to “HD”, the setting on [Seek] turns to “All” automatically.

Operating by hardware buttons

Pressing the TRK button

You can move the preset channels up or down.

Pressing and holding the TRK button

You can perform seek tuning.

HD Radio

™

reception

Page 86

Chapter

Playing audio CDs

You can play a normal music CD using the built-in drive of the navigation system. This section describes how.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 76.

2 Insert the disc you want to play into the disc-loading slot.

Playback starts from the first track of the CD.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, touch [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 76.

3 Use the touch panel keys on the screen to control the disc.

= For details, refer to Using the touch panel

keys on page 87.

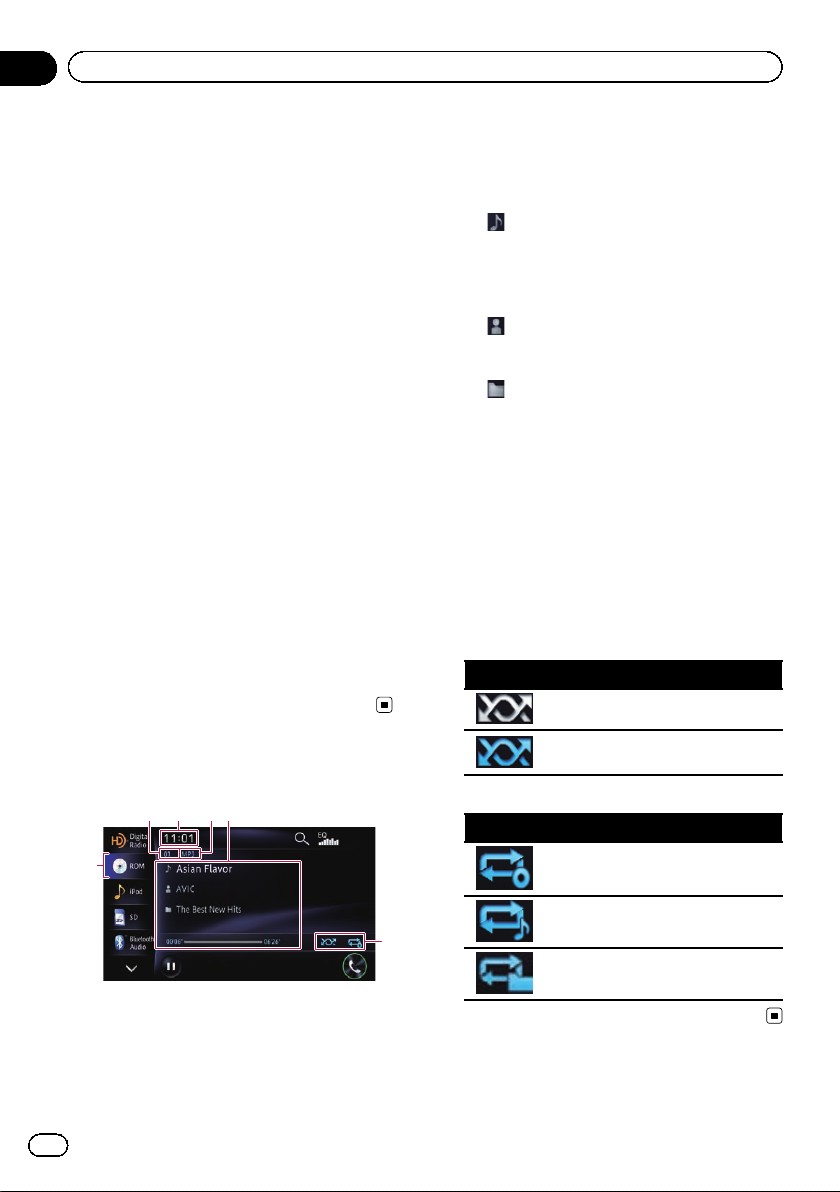

Reading the screen

Shows the title of the track currently playing (when available).

: Artist name

Shows the artist name of the track currently playing (when available).

: Album title

Shows the title of the album of the current track (when available).

! Play time

Shows the elapsed playing time within the current track.

p “-------” is displayed if there is no corre-

sponding information.

5 Playback condition indicator

Indicates the current playback condition.

Playing tracks in random order

Indicator Meaning

Does not play tracks in random order.

Plays all tracks in the current disc in random order.

Setting a repeat play range

Indicator Meaning

Repeats the current disc.

1 Source icon

Shows which source has been selected.

2 Track number indicator

Shows the number of the track currently playing.

3 Current time 4 Current track information

! : Track title

Repeats just the current track.

Page 87

Playing audio CDs

Chapter

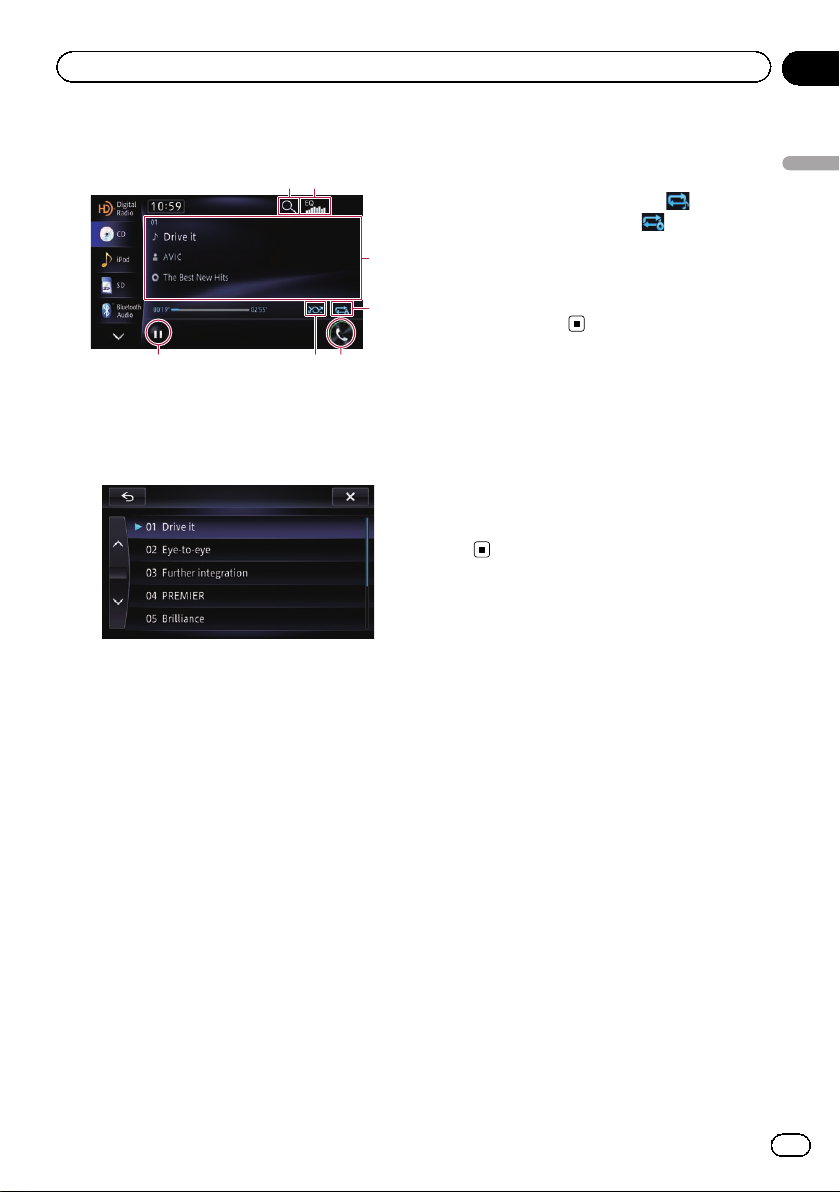

Using the touch panel keys

67 5

1 Selects a track from the list

Touching the key displays a list which lets you see the track titles on a disc. You can play a track on the list by touching it.

p “-------” is displayed if there is no corre-

sponding information.

2 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 159.

3 Operates some functions by swipe action

= For details, refer to Swipe action on page

27.

4 Sets a repeat play range

The repeat play range can be changed by only touching a single key.

p If you perform track search or fast for-

ward or reverse, track repeat playback is automatically canceled.

= For details, refer to Playback condition

indicator on page 86.

5 Displays the “Phone” screen

= For details, refer to Displaying the phone

menu on page 67.

6 Plays tracks in random order

All tracks in the disc can be played at random by only touching a single key.

p If you turn the random play on when the

repeat play range is set to play range changes to

= For details, refer to Playback condition

indicator on page 86.

7 Playback and Pause

Touching [d]or[e] switches between play- back and pause.

Operating by hardware buttons

Pressing the TRK button

You can skip tracks forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

Playing audio CDs

, the repeat

automatically.

Page 88

Chapter

Playing music files on ROM

You can play a disc that contains compressed audio files using the built-in drive of the navigation system. This section describes these operations. p In the following description, the MP3,

WMA, AAC files are collectively referred to as “Compressed audio files”.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 76.

2 Insert the disc you want to play into the disc-loading slot.

Playback starts from the first file of the ROM.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, touch [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 76.

3 Use the touch panel keys on the screen to control the disc.

= For details concerning operations, refer to

Using the touch panel keys on page 89.

3 Current time 4 File type indicator

Shows the type of audio files.

5 Current file information

! : Track title

Shows the title of the track currently playing (when available). p If the title of a track is not available,

the file name appears.

: Artist name

Shows the artist name currently playing (when available).

: Folder name/Album title

Shows the title of the album of the current file when MP3 or AAC data have information. Otherwise, shows the folder name currently paying.

! Play time

Shows the elapsed playing time within the current file.

p “-------” is displayed if there is no corre-

sponding information.

6 Playback condition indicator

Indicates the current playback condition.

Playing files in random order

Indicator Meaning

Does not play files in random order.

Reading the screen

342

1 Source icon

Shows which source has been selected.

2 Track number indicator

Shows the number of the track currently playing.

Plays all audio files in the current repeat play range in random order.

Setting a repeat play range

Indicator Meaning

Repeats all compressed audio files.

Repeats just the current file.

Repeats the current folder.

Page 89

Playing music files on ROM

Chapter

Using the touch panel keys

67 5

1 Selects a file from the list

Touching the key displays a list which lets you see the track titles or folder names on a disc.

p If the title of a track is not available, the

file name appears.

Touching a folder on the list shows its content. You can play a file on the list by touching it.

2 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 159.

3 Operates some functions by swipe action

= For details, refer to Swipe action on page

27.

4 Sets a repeat play range

The repeat play range can be changed by only touching a single key.

p If you select another folder during re-

peat play, the repeat play range changes

p If you perform fast reverse or fast for-

ward during changes to

p When

to playback a subfolder of that folder.

, the repeat play range

is selected, it is not possible

= For details, refer to Playback condition

indicator on page 88.

5 Displays the “Phone” screen

= For details, refer to Displaying the phone

menu on page 67.

6 Plays files in random order

The files in the current repeat play range can be played at random by only touching a single key.

p If you turn the random play on when the

repeat play range is set to play range changes to cally.

= For details, refer to Playback condition

indicator on page 88.

7 Playback and Pause

Touching [d]or[e] switches between play- back and pause.

, the repeat

automati-

Operating by hardware buttons

Pressing the TRK button

You can skip files forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

Playing music files on ROM

Page 90

Chapter

Playing a DVD-Video

You can play a DVD-Video using the built-in drive of the navigation system. This section describes operations for playing a DVD-Video.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 76.

2 Insert the disc you want to play into the disc-loading slot.

The source changes and then playback will start.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, touch [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 76.

3 Use the touch panel keys on the screen to control the disc.

= For details, refer to Using the touch panel

keys on page 91.

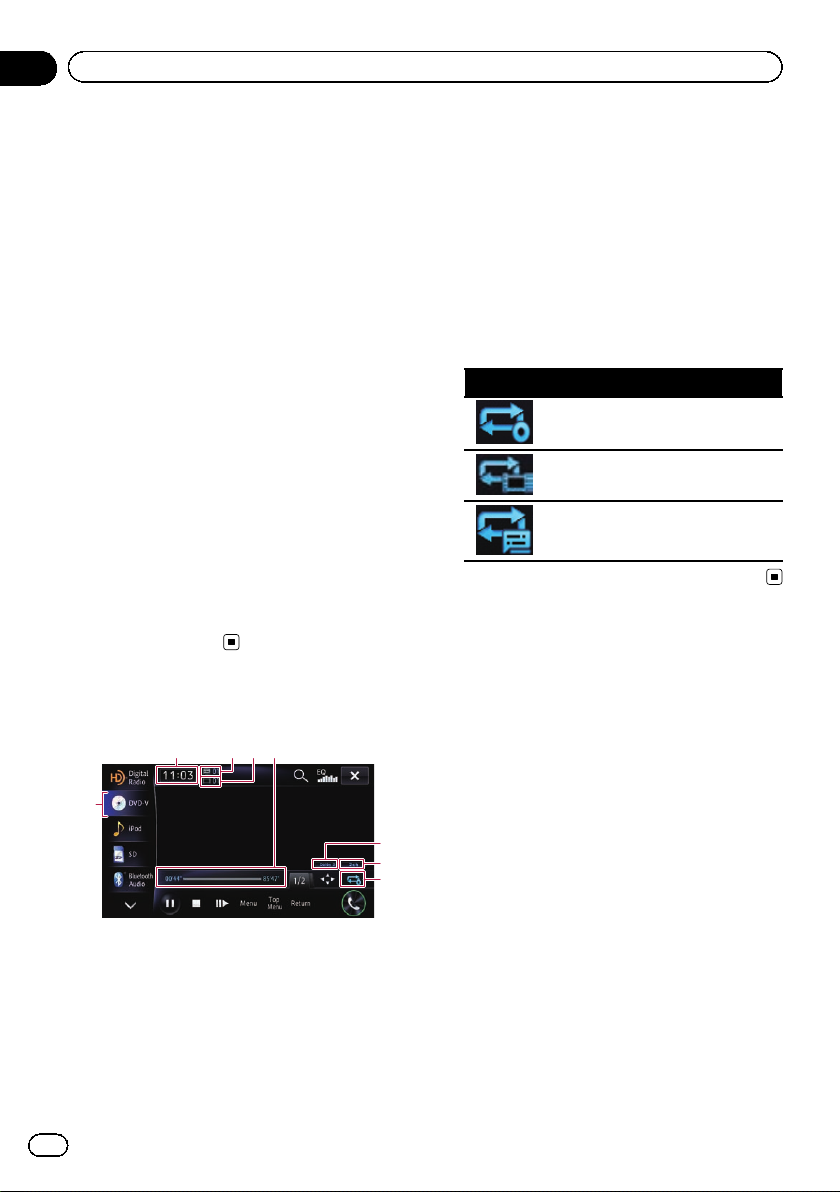

Reading the screen

Shows the elapsed playing time within the current title.

6 Digital sound format indicator

Shows which digital sound format (surround sound format) has been selected.

7 Audio channel indicator

Shows the current audio channel type, such as “Mch” (Multi-channel).

8 Repeat range indicator

Shows which repeat range has been selected.

Setting a repeat play range

Indicator Meaning

Plays the whole of the current disc.

Repeats just the current chapter.

Repeats just the current title.

342

1 Source icon

Shows which source has been selected.

2 Current time 3 Title number indicator

Shows the title number currently playing.

4 Chapter number indicator

Shows the chapter number currently playing.

5 Play time indicator

6 7 8

Page 91

Playing a DVD-Video

Chapter

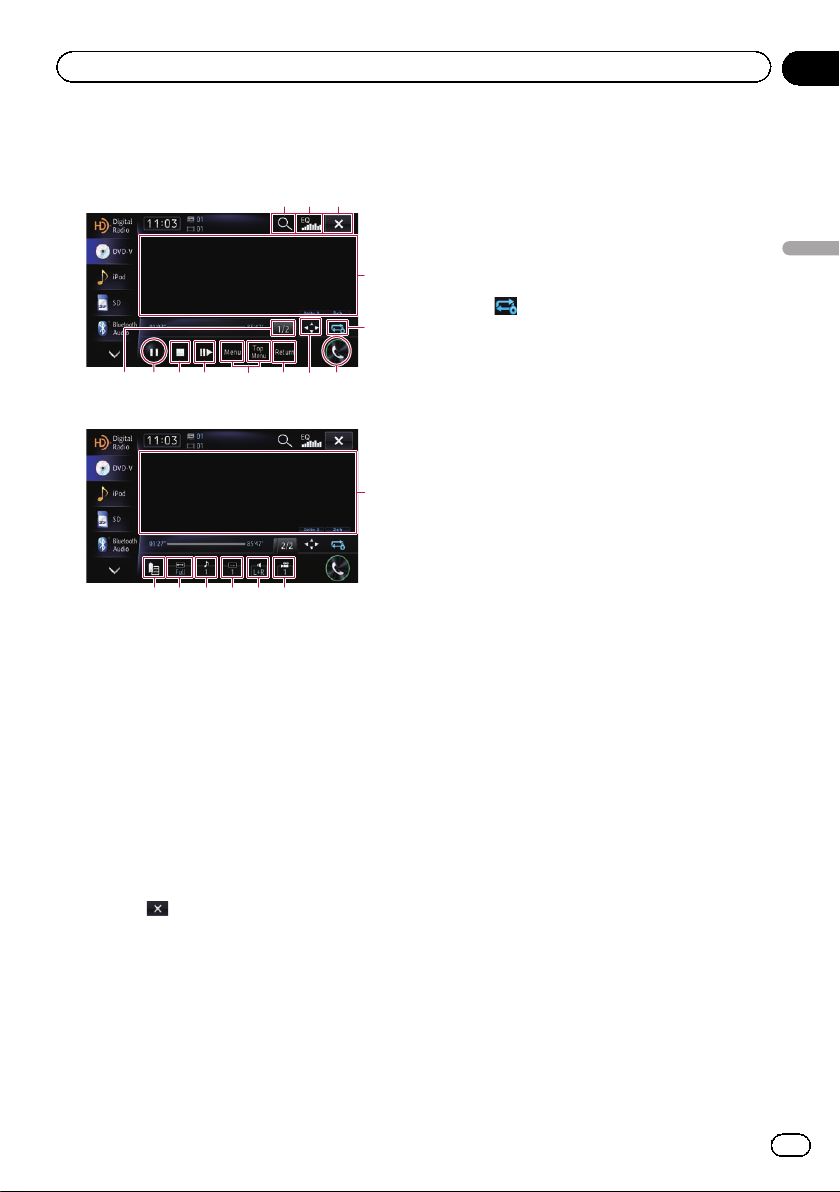

Using the touch panel keys

Playback screen (page 1)

12 3

79cdba 8 6

Playback screen (page 2)

feghij

p With some discs, the icon 9 may be dis-

played, meaning that the operation is invalid.

1 Searches for a desired scene and starts

playback from a specified time

= For details, refer to Searching for a speci-

fic scene and starting playback from a specified time on page 92.

2 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 159.

3 Hides the touch panel keys and informa-

tion of the current video

Touching

p If you want to display the touch panel

keys and information of the current video again, touch anywhere on the LCD screen.

4 Operates some functions by swipe action

p When the video is displayed in full

screen mode, the whole screen becomes a swipe response area.

shows only the current video.

= For details, refer to Swipe action on page

27.

5 Sets a repeat play range

The repeat play range can be changed by only touching a single key.

p If you perform chapter (title) search, fast

forward, fast reverse or slow motion playback, the repeat play range changes to

p This function is not available when disc

playback has been stopped.

= For details, refer to Repeat range indi-

cator on page 90.

6 Displays the “Phone” screen

= For details, refer to Displaying the phone

menu on page 67.

7 Displays the DVD menu keypad

= For details, refer to Using the DVD menu

by touch panel keys on page 93.

8 Performs an operation (such as resuming)

that is stored on the disc

When using a DVD that has a point recorded that indicates where to return to, the DVD returns to the specified point and begins playback from there.

9 Displays the DVD menu

You can display the menu by touching [Menu] or [Top Menu] while a disc is playing. Touch- ing either of these keys again lets you start playback from the location selected from the menu. For details, refer to the instructions provided with the disc.

a Frame-by-frame playback (or slow-motion

playback)

= For details, refer to Frame-by-frame play-

back on page 93.

= For details, refer to Slow motion playback

on page 94.

b Stops playback c Playback and Pause

Touching [d]or[e] switches between play- back and pause.

d Switches to the next page of touch panel

keys

e Resumes playback (Bookmark)

= For details, refer to Resuming playback

(Bookmark) on page 92.

Playing a DVD-Video

Page 92

Chapter

Playing a DVD-Video

f Changing the wide screen mode

= For details, refer to Changing the wide

screen mode on page 94.

g Switches the audio language

You can switch the audio language while the disc is playing when a disc has multilingual data (multi-audio).

p Each time you touch this key changes

the audio language.

= For details, refer to Setting the top-prior-

ity languages on page 99.

h Switches the subtitle language

You can switch the subtitle language while the disc is playing when a disc has multilingual data (multi-subtitle).

p Each time you touch this key changes

the subtitle language.

= For details, refer to Setting the top-prior-

ity languages on page 99.

i Selects audio output

When playing DVDs recorded with LPCM audio, you can switch the audio output. Touch

repeatedly until the desired audio output appears on the display. Each touch of lows:

changes the settings as fol-

! L+R: Left and right ! L: Left ! R: Right ! Mix: Mixing left and right

p This function is not available when disc

playback has been stopped.

p The appearance of this key changes ac-

cording to the current setting.

j Changes the viewing angle (Multi-angle)

Each touch of angles.

switches between viewing

p During playback of a scene shot from

multiple angles, the angle icon

displayed. Turn the angle icon display on or off using the “DVD/DivX® Setup” menu.

p The appearance of this key changes ac-

cording to the current setting.

= For details, refer to Setting the angle icon

display on page 99.

Resuming playback (Bookmark)

The Bookmark function lets you resume playback from a selected scene the next time the disc is loaded.

% Touch

on the “DVD-V” screen.

You can bookmark one point for each of up to five discs. If you try to memorize another point for the same disc, the older bookmark will be overwritten by the newer one.

p To clear the bookmark on a disc, touch and

hold

Searching for a specific scene and starting playback from a specified time

You can search for the scene you want by specifying a title or chapter, and the time. p Chapter search and time search are not

available when disc playback has been stopped.

1 Touch [Chapter] (chapter), [Time] (time).

2 Touch the keys to input the target number or time and then touch [Enter].

For titles, chapters

! To select 3, touch [3] and [Enter] in order. ! To select 10, touch [1] and [0] and [Enter]in

order.

For time (time search)

! To select 5 minutes 3 seconds, touch [5],

[min], [3], [sec] and [Enter] in order.

! To select 71 minutes 00 seconds, touch [7],

[1], [min] and [Enter] in order.

and then touch [Title] (title),

Page 93

Playing a DVD-Video

Chapter

! To select 100 minutes 05 seconds, touch

[1], [0], [0], [5], [sec] and [Enter] in order.

p To cancel an input number, touch

To cancel the input numbers, touch and hold

Direct number search

You can use this function when you need to enter a numerical command during DVD playback.

1 Touch

2 Touch [10Key].

3 Touch [0] to [9] to input the desired number.

4 While the input number is displayed, touch [Enter].

Operating the DVD menu

You can operate the DVD menu by touching the menu item on the screen directly. p This function can be used when the

key is displayed on the upper left corner of the LCD screen.

p This function may not work properly with

some DVD disc content. In that case, use touch panel keys to operate the DVD menu.

p If you touch the screen while

played, the touch panel keys will not be displayed.

1 Touch the screen to display the touch panel keys.

2 Touch [Top Menu] or [Menu] to display the touch panel keys to operate the DVD menu.

3 Touch the desired menu item.

# If you touch , the touch panel keys for se- lecting the menu item are displayed.

is dis-

Using the DVD menu by touch panel keys

If items on the DVD menu appear, the touch panel keys may overlay them. If so, select an item using those touch panel keys.

1 Touch sired menu item.

p If the touch panel keys for DVD menu selec-

2 Touch [OK].

Playback starts from the selected menu item. The way to display the menu differs depending on the disc.

# If you touch or , the display position of touch panel keys is changed each time you touch it. # If you touch [Hide], the touch panel keys dis- appear and the lect a menu item by touching it.

, , or to select the de-

tion disappear, touch anywhere on the screen, and then touch panel keys are displayed again.

icon is displayed. You can se-

. The touch

Frame-by-frame playback

This lets you move ahead one frame at a time during pause.

% Touch [r] during pause.

Each time you touch [r], you move ahead one frame.

p To return to normal playback, touch [d]or

[e].

p With some discs, images may be unclear

during frame-by-frame playback.

Playing a DVD-Video

Page 94

Chapter

Playing a DVD-Video

Slow motion playback

This lets you slow down playback speed.

1 Touch and hold [r] until

is dis-

played during playback.

The icon

is displayed, and forward slow

motion playback begins.

p To return to normal playback, touch [d]or

[e].

2 Touch [r] to adjust playback speed during slow motion playback.

Each time you touch [r] it changes the speed in four steps in the following order:

1/16 d 1/8 d 1/4 d 1/2

p There is no sound during slow motion play-

back.

p With some discs, images may be unclear

during slow motion playback.

p Reversed slow motion playback is not possi-

ble.

Changing the wide screen mode

You can set the screen size of video.

p The default setting is “Full”.

1 Touch

p The appearance of this key changes accord-

ing to the current setting.

2 Touch the desired mode.

on the “DVD-V” screen.

horizontally toward the ends of the picture, enabling you to enjoy a 4:3 picture without sensing any disparity, even on a wide screen.

! Cinema

A picture is enlarged by the same proportion as “Full” or “Zoom” in the horizontal direction and by an intermediate proportion between “Full” and “Zoom” in the vertical direction; ideal for a cinema-sized (wide screen) picture where captions lie outside the frame.

! Zoom

A 4:3 picture is enlarged in the same proportion both vertically and horizontally; ideal for a cinema-sized (wide screen) picture.

! Normal

A 4:3 picture is displayed normally, giving you no sense of disparity since its proportions are the same as those of the normal picture.

p Images may be unclear when “Cinema” or

“Zoom” is selected.

p Remember that use of this system for com-

mercial or public viewing purposes may constitute an infringement on the author’s rights protected by the Copyright Law.

Operating by hardware buttons

Pressing the TRK button

You can skip chapters forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

! Full

A 4:3 picture is enlarged in the horizontal direction only, enabling you to enjoy a 4:3 TV picture (normal picture) without any omissions.

! Just

The picture is enlarged slightly at the center and the amount of enlargement increases

Page 95

Playing a DivX video

Chapter

You can play a DivX disc using the built-in drive of the navigation system. This section describes those operations.

Starting procedure

1 Display the AV operation screen.

= For details of the operations, refer to Dis-

playing the AV operation screen on page 76.

2 Insert the disc you want to play into the disc-loading slot.

The source changes and then playback will start.

= For details, refer to Inserting and ejecting a

disc on page 15.

p If the disc is already set, touch [Disc] on the

left edge of the screen.

= For details, refer to Selecting a source on

page 76.

3 Use the touch panel keys on the screen to control the disc.

= For details, refer to Using the touch panel

keys on page 95.

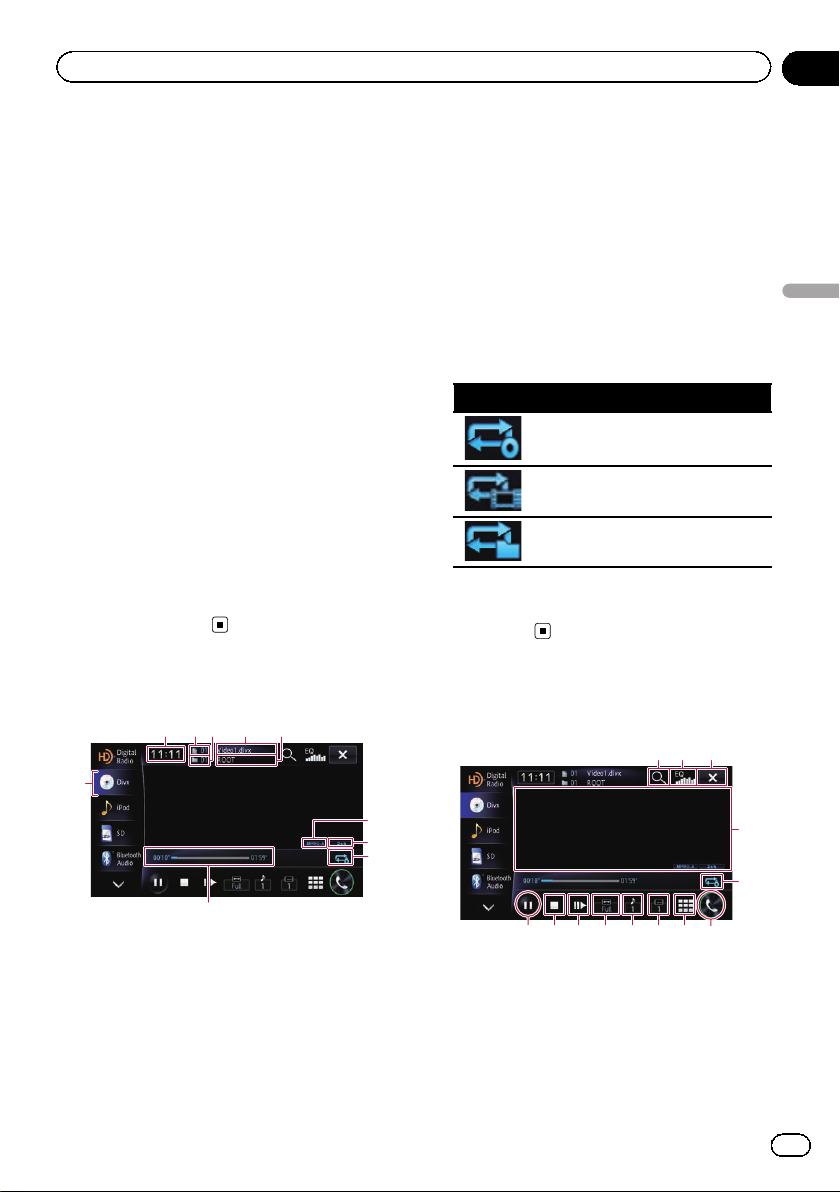

Reading the screen

342

Shows the file name currently playing.

6 Current folder name indicator

Shows the folder name currently playing.

7 Digital sound format indicator

Shows the digital sound format (surround sound format) currently selected.

8 Audio channel indicator

Shows the current audio channel type, such as “Mch” (Multi-channel).

9 Repeat range indicator

Shows which repeat range has been selected.

Setting a repeat play range

Indicator Meaning

Plays the whole of the current disc.

Repeats just the current file.

Repeats just the current folder.

a Play time indicator

Shows the elapsed playing time within the current file.

Using the touch panel keys

Playback screen

12 3

Playing a DivX video

1 Source icon

Shows which source has been selected.

2 Current time 3 File number indicator

Shows the file number currently playing.

4 Folder number indicator

Shows the folder number currently playing.

5 Current file name indicator

7 8

p With some discs, the icon 9 may be dis-

played, meaning that the operation is invalid.

1 Selects a file from the list

Touching the key displays the list which lets you find file names or folder names on a disc.

7adcb 89

Page 96

Chapter

Playing a DivX video

p A dash (–) is displayed if there is no cor-

responding information.

Touching a folder on the list shows its content. You can play a file on the list by touching it.

The contents of the folder in which the currently playing file is located are displayed.

2 Recalls equalizer curves

= For details, refer to Using the equalizer

on page 159.

3 Hides the touch panel keys and informa-

tion of the current video

Touching

shows only the current video.

p If you want to display the touch panel

keys and information of the current video again, touch anyw here on the LCD screen.

4 Operates some functions by swipe action

p When the video is displayed in full

screen mode, the whole screen becomes a swipe response area.

= For details, refer to Swipe action on page

27.

5 Sets a repeat play range

The repeat play range can be changed by only touching a single key.

p If you select another folder during re-

peat play, the repeat play range changes to

p If you perform fast reverse or fast for-

ward during changes to

p When

, the repeat play range

is selected, it is not possible

to playback a subfolder of that folder.

= For details, refer to Repeat range indi-

cator on page 95.

6 Displays the “Phone” screen

= For details, refer to Displaying the phone

menu on page 67.

7 Searches for a desired scene and starts

playback from a specified time

= For details, refer to Starting playback

from a specified time on page 97.

8 Switches the subtitle language

You can switch the subtitle language while the disc is playing when a disc has multilingual data (multi-subtitle).

p Each time you touch this key changes

the subtitle language.

= For details, refer to Setting the top-prior-

ity languages on page 99.

9 Switches the audio language

You can switch the audio language while the disc is playing when a disc has multilingual data (multi-audio).

p Each time you touch this key changes

the audio language.

= For details, refer to Setting the top-prior-

ity languages on page 99.

a Changing the wide screen mode

= For details, refer to Changing the wide

screen mode on page 97.

b Frame-by-frame playback (or slow-motion

playback)

= For details, refer to Frame-by-frame play-

back on page 96.

= For details, refer to Slow motion playback

on page 97.

c Stops playback d Playback and Pause

Touching [d]or[e] switches between play- back and pause.

Frame-by-frame playback

This lets you move ahead one frame at a time during pause.

% Touch [r] during pause.

Each time you touch [r], you move ahead one frame.

p To return to normal playback, touch [d]or

[e].

p With some discs, images may be unclear

during frame-by-frame playback.

Page 97

Playing a DivX video

Chapter

Slow motion playback

This lets you slow down playback speed.

% Touch and hold [r] until

is dis-

played during playback.

The icon

is displayed, and forward slow

motion playback begins.

p To return to normal playback, touch [d]. p There is no sound during slow motion play-

back.

p With some discs, images may be unclear

during slow motion playback.

p Reversed slow motion playback is not possi-

ble.

Starting playback from a specified time

You can search for a desired scene by specifying the time. p Time search is impossible when disc play-

back has been stopped.

1 Touch

2 Touch the keys to input the target number or time and then touch [Enter].

! To select 5 minutes 3 seconds, touch [5],

! To select 71 minutes 00 seconds, touch [7],

! To select 100 minutes 05 seconds, touch

p To cancel an input number, touch

[min], [3], [sec] and [Enter] in order.

[1], [min] and [Enter] in order.

[1], [0], [0], [5], [sec] and [Enter] in order.

. To cancel the input numbers, touch and hold

Changing the wide screen mode

You can set the screen size of video.

p The default setting is “Full”.

1 Touch

p The appearance of this key changes accord-

ing to the current setting.

2 Touch the desired mode.

! Full

A 4:3 picture is enlarged in the horizontal direction only, enabling you to enjoy a 4:3 TV picture (normal picture) without any omissions.

! Just

The picture is enlarged slightly at the center and the amount of enlargement increases horizontally toward the ends of the picture, enabling you to enjoy a 4:3 picture without sensing any disparity, even on a wide screen.

! Cinema

! Zoom

A 4:3 picture is enlarged in the same proportion both vertically and horizontally; ideal for a cinema-sized (wide screen) picture.

! Normal

A 4:3 picture is displayed normally, giving you no sense of disparity since its proportions are the same as those of the normal picture.

on the “DivX” screen.

Playing a DivX video

Page 98

Chapter

Playing a DivX video

p Images may be unclear when “Cinema” or

“Zoom” is selected.

p Remember that use of this system for com-

mercial or public viewing purposes may constitute an infringement on the author’s rights protected by the Copyright Law.

Playing DivX® VOD content

Some DivX VOD (video on demand) content may only be playable a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays), or stopping. If you load a disc that contains expired DivX VOD content (for example, content that has zero remaining plays), “This DivX rental has expired.” is displayed. p If your DivX VOD content allows an unlim-

ited number of plays, then you may load the disc into your player and play the content as often as you like, and no message will be displayed.

p In order to play DivX VOD content on this

unit, you first need to register the unit with your DivX VOD content provider. For information about your registration code, refer to Displaying your DivX VOD registration code on page 157.

p DivX VOD content is protected by a DRM

(Digital Rights Management) system. This restricts playback of content to specific, registered devices.

% If the message is displayed after loading a disc containing DivX VOD content, touch [d].

Playback of the DivX VOD content will start.

p Touch [o]or[p] to switch between

files.

p If you do not want to play the DivX VOD con-

tent, touch [g].

Operating by hardware buttons

Pressing the TRK button

You can skip files forward or backward.

Pressing and holding the TRK button

You can perform fast reverse or fast forward.

Page 99

DVD-Video or DivX setup

Chapter

This chapter describes how to configure the DVD-Video/DivX playback.

Displaying DVD/DivX® Setup menu

1 Press the HOME button to display the “Top Menu” screen.

2 Touch

The “Edit/Settings” screen appears.

3 Touch [Source Settings].

The “Setting according to source” screen appears.

4 Touch [DVD/DivX® Setup]. The “DVD/DivX® Setup” screen appears.

5 Touch the item you want to configure.

Setting the top-priority languages

You can assign the top-priority language to the top-priority subtitle, audio and menu in initial playback. If the selected language is recorded on the disc, subtitles, audio and menu are displayed or output in that language.

1 Display the “DVD/DivX® Setup” screen.

= For details, refer to Displaying DVD/DivX®

Setup menu on page 99.

2 Touch [Subtitle Language], [Audio Language] or [Menu Language].

Each language menu is displayed and the currently set language is selected.

3 Touch the desired language.

When you select “Others”, a language code input display is shown. Input the four-digit code of the desired language then touch [OK].

= For details, refer to Language code chart for

DVDs on page 102.

p If the selected language is not recorded on

the disc, the default language specified on the disc is output and displayed.

p You can also switch the subtitle and audio

language by touching playback. Even if you touch subtitle or audio language, this setting will not change.

or during

or to switch the

Setting the angle icon display

You can set the angle icon to display in scenes where the angle can be switched.

1 Display the “DVD/DivX® Setup” screen.

= For details, refer to Displaying DVD/DivX®

Setup menu on page 99.

2 Touch [Multi Angle].

3 Touch [On] or [Off].

! On (default):

Displays the angle icon in scenes where the angle can be switched.

! Off:

Hides the angle icon.

DVD-Video or DivX setup

Page 100

Chapter

DVD-Video or DivX setup

Setting the aspect ratio

There are two kinds of displays. A wide screen display has a width-to-height ratio (TV aspect) of 16:9, while a regular display has a TV aspect of 4:3. If you use a regular rear display with a TV aspect of 4:3, you can set the aspect ratio suitable for your rear display. (We recommend use of this function only when you want to fit it to the rear display.) p When using a regular display, select either

“Letter Box” or “Panscan”. Selecting “16:9” may result in an unnatural image.

1 Display the “DVD/DivX® Setup” screen.

= For details, refer to Displaying DVD/DivX®

Setup menu on page 99.

2 Touch [TV Aspect].

3 Touch [16:9], [Letter Box] or [Panscan].

! 16:9: Wide screen image (16:9) is displayed

as it is (initial setting).

! Letter Box: The image is in the shape of a

letter box with black bands at the top and bottom of the screen.

! Panscan: The image is cut short at the right

and left of the screen.

p When playing discs that do not have a pan-

scan system, the disc is played back with “Letter Box” even if you select “Panscan” setting. Confirm whether the disc package bears the

p Some discs do not enable changing of the

TV aspect. For details, refer to the disc’s instructions.

mark.

Setting the parental lock

Some DVD-Video discs let you use parental lock to set restrictions so that children cannot watch violent or adult-oriented scenes. You can set the parental lock level in steps as desired. p When you set a parental lock level and then

play a disc featuring a parental lock, code number input indications may be displayed. In this case, playback will begin when the correct code number is input.

Setting the code number and level

When you first use this function, register your code number. If you do not register a code number, the parental lock will not operate.

1 Display the “DVD/DivX® Setup” screen.

= For details, refer to Displaying DVD/DivX®

Setup menu on page 99.

2 Touch [Parental Level].

3 Touch [0] to [9] to input a four-digit code number.

4 While the input number is displayed, touch [OK].

The code number is registered, and you can now set the level.

5 Touch any of [1] to [8] to select the desired level.

The parental lock level is set.

! Parental Level 8: Playback of the entire

disc is possible (initial setting).

! Parental Level 7 to Parental Level 2: Play-

back of discs for children and non-adult oriented discs is possible.

! Parental Level 1: Only playback of discs for

children is possible.

p If you want to change the parental level al-

ready set, enter the registered code number and then select the parental level.

p We recommend that you keep a record of

your code number in case you forget it.

p The parental lock level is recorded on the

disc. You can confirm it by looking at the disc package, the included literature or the disc itself. You cannot use the parental lock with discs that do not feature a recorded parental lock level.

p With some discs, parental lock operates to

skip certain scenes only, after which normal playback resumes. For details, refer to the disc’s instructions.

p If you forget the registered code number,

touch screen. The registered code number is canceled, letting you register a new one.

10 times on the number input

100
