6In brief
In brief
Initial drive information
Vehicle unlocking

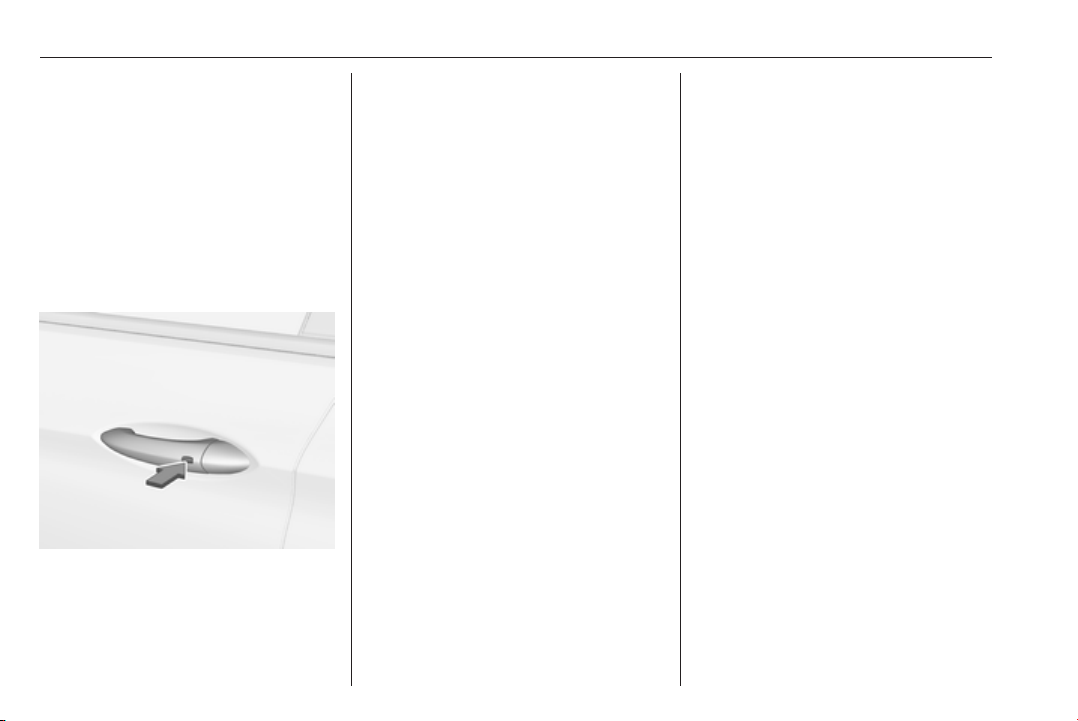

Press cto unlock the doors and load compartment. Open the doors by pulling the handles. To open the tailgate, push the brand emblem and open the tailgate.
Electronic key system 3 22. Central locking system 3 25. Load compartment 3 29.

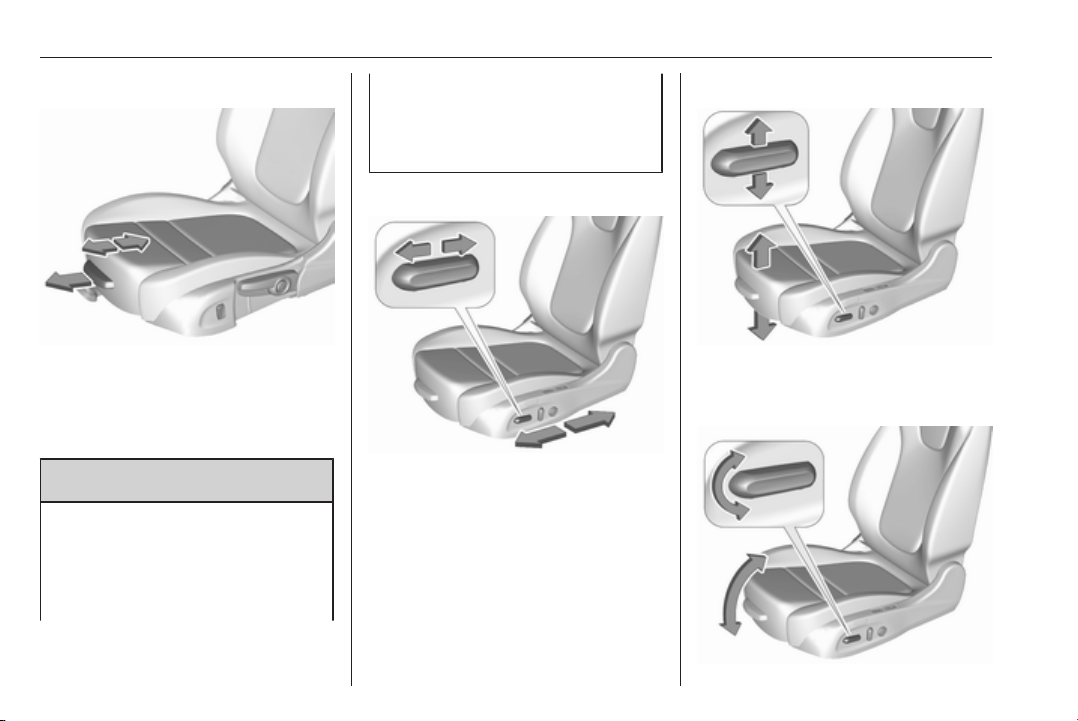

Seat adjustment

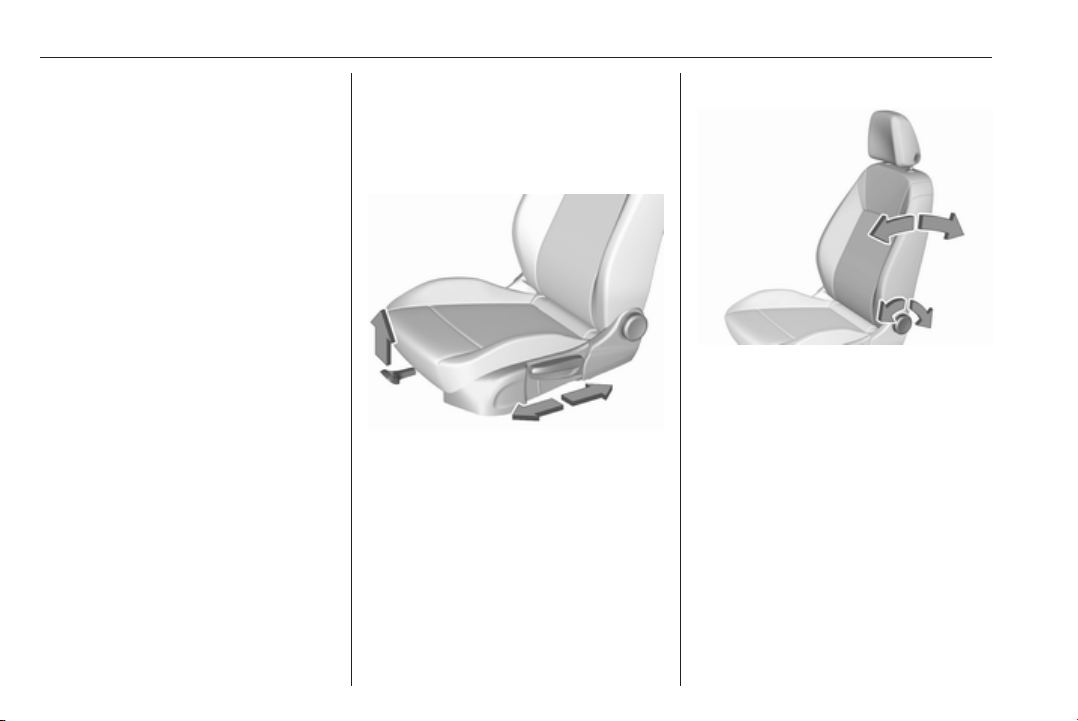

Longitudinal adjustment
Pull handle, slide seat, release handle.Trytomovetheseatbackand forth to ensure that the seat is locked in place.
Seat position 3 47.
Manual seat adjustment 3 48. Power seat adjustment 3 50.
In brief |
7 |

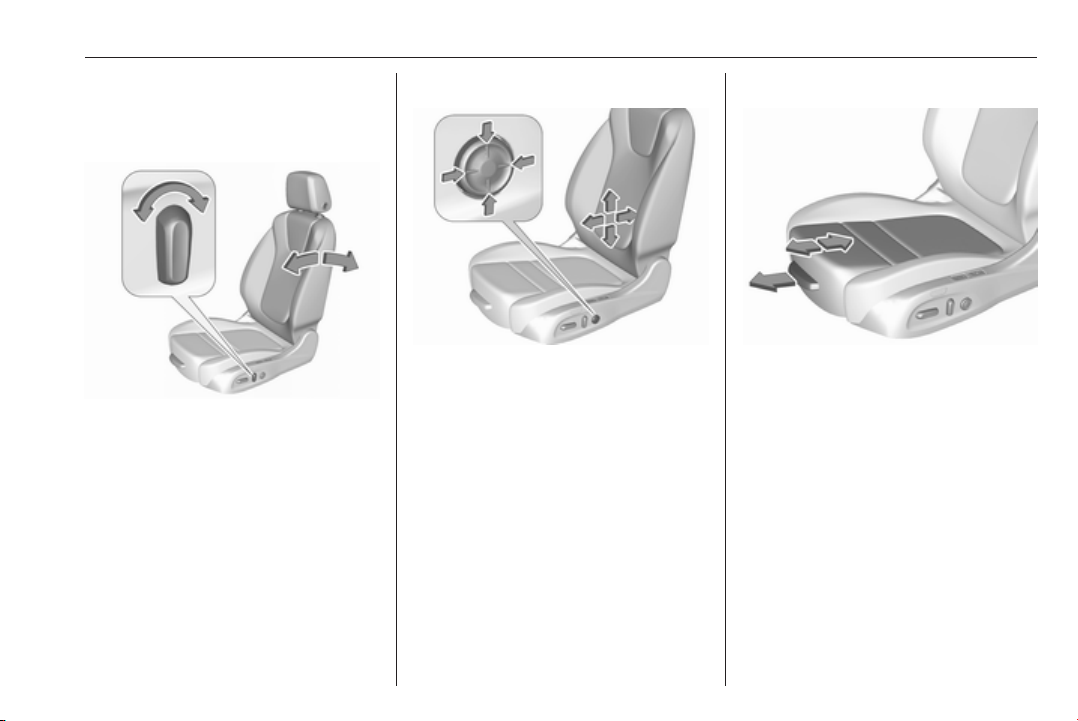

Backrest inclination
Turn handwheel. Do not lean on backrest when adjusting.
Seat position 3 47.
Manual seat adjustment 3 48. Power seat adjustment 3 50.

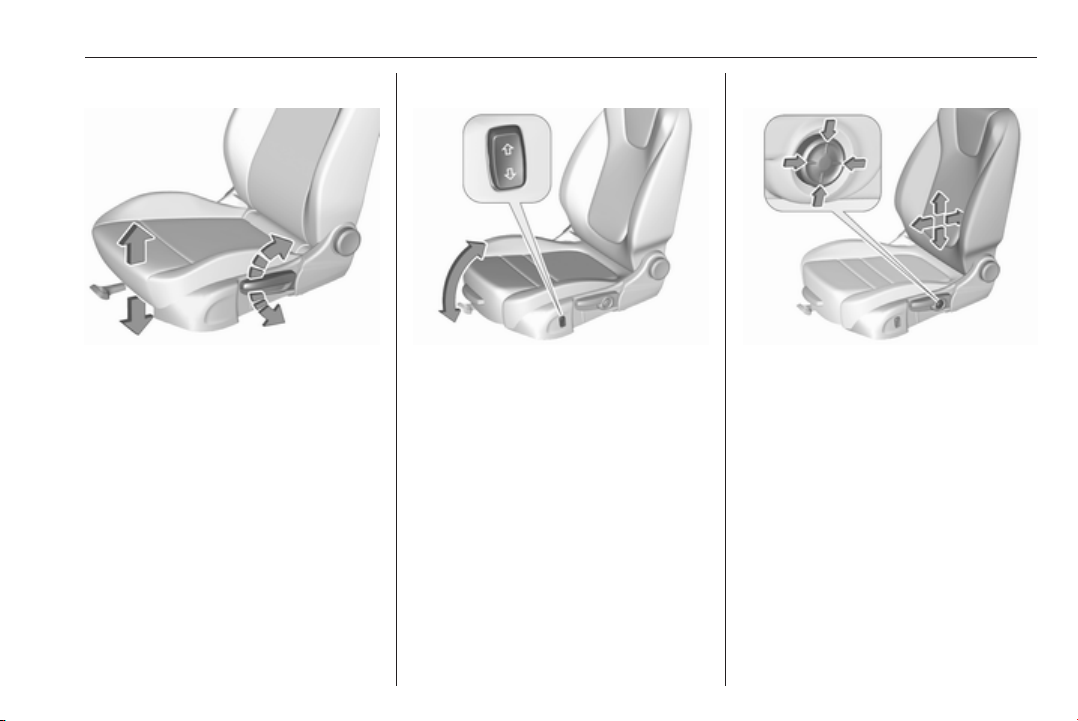

Seat height
Lever pumping motion
up |
: |
seat higher |
down |
: |
seat lower |
Seat position 3 47.
Manual seat adjustment 3 48. Power seat adjustment 3 50.
Seat inclination
Press switch
top |
: |
front end higher |
bottom |
: |
front end lower |
Seat position 3 47.
Manual seat adjustment 3 48. Power seat adjustment 3 50.
8In brief

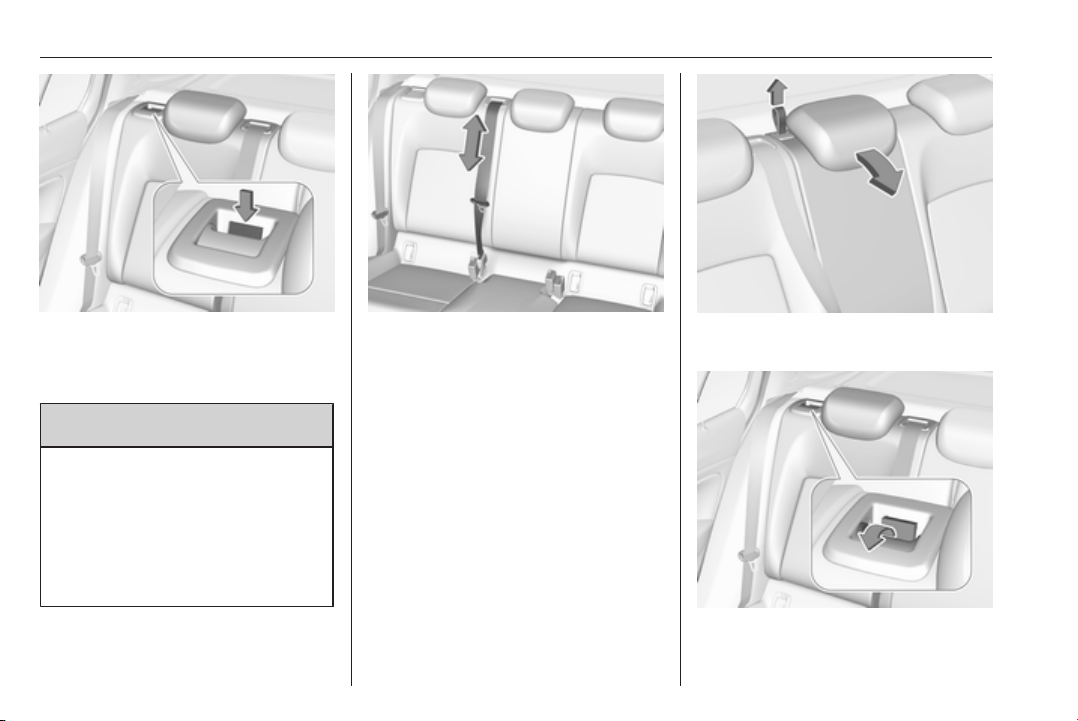

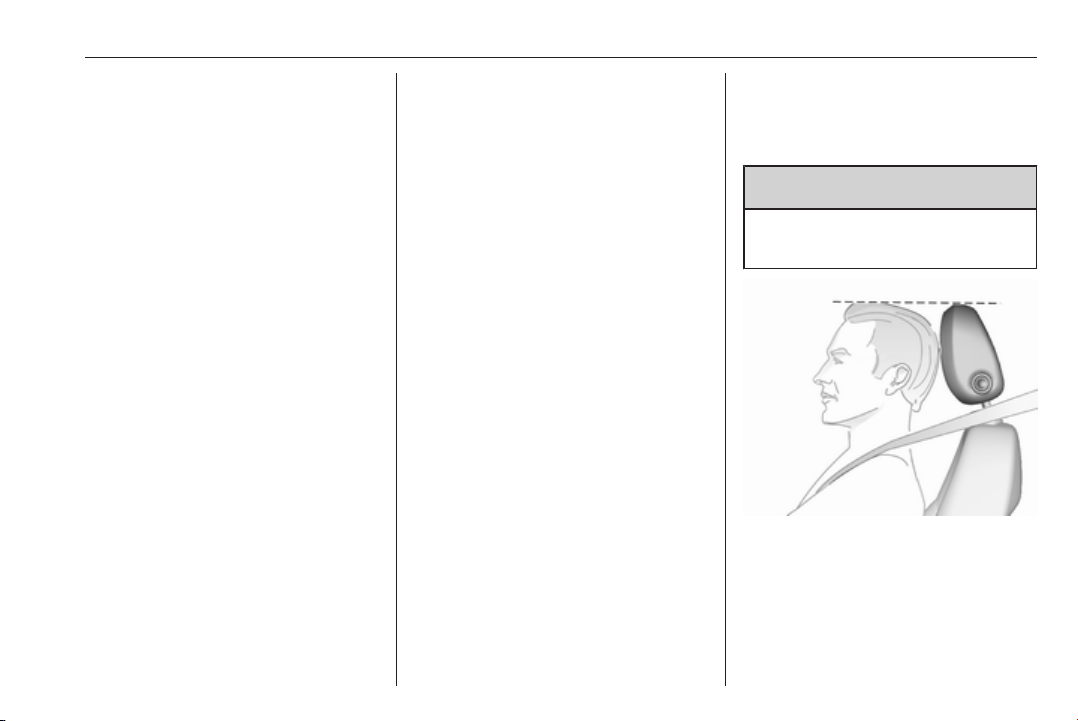

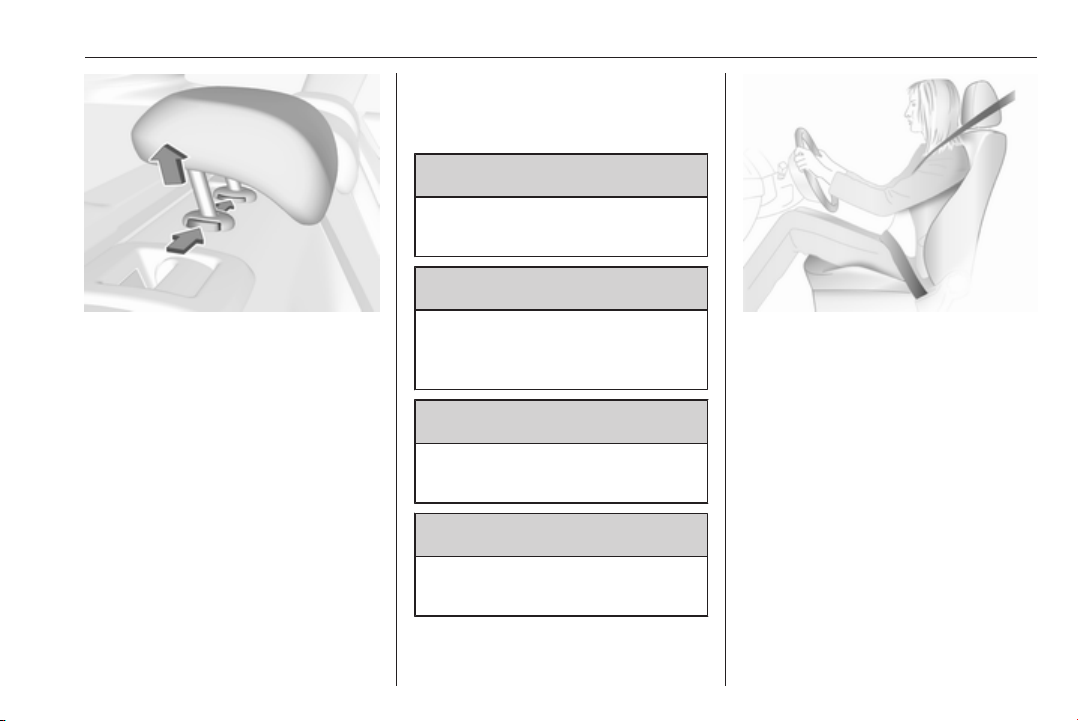

Head restraint adjustment |

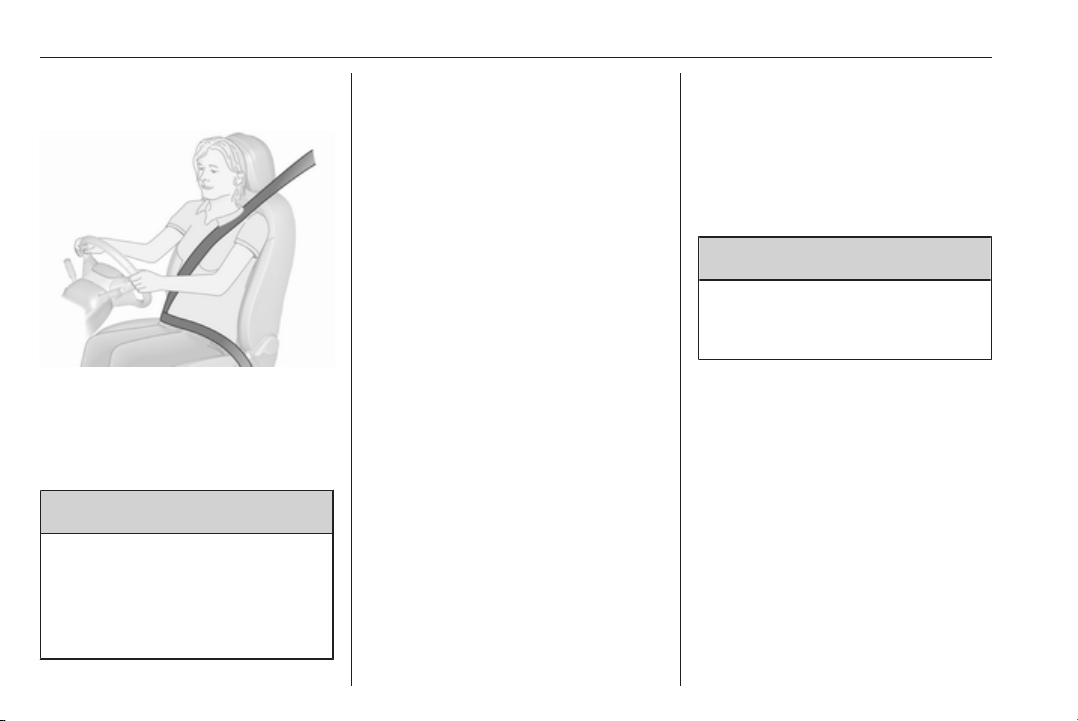

Seat belt |
Press release button, adjust height, |
Pullouttheseatbeltandfasteninbelt |
engage. |
buckle. The seat belt must not be |
Head restraints 3 45. |
twisted and must fit close against the |
|
body. The backrest must not be tilted |
|
back too far (maximum approx. 25°). |
|
To unfasten belt, press red button on |
|
belt buckle. |
|
Seat position 3 47. |
|
Seat belts 3 56. |
|
Airbag system 3 58. |
Mirror adjustment
Interior mirror

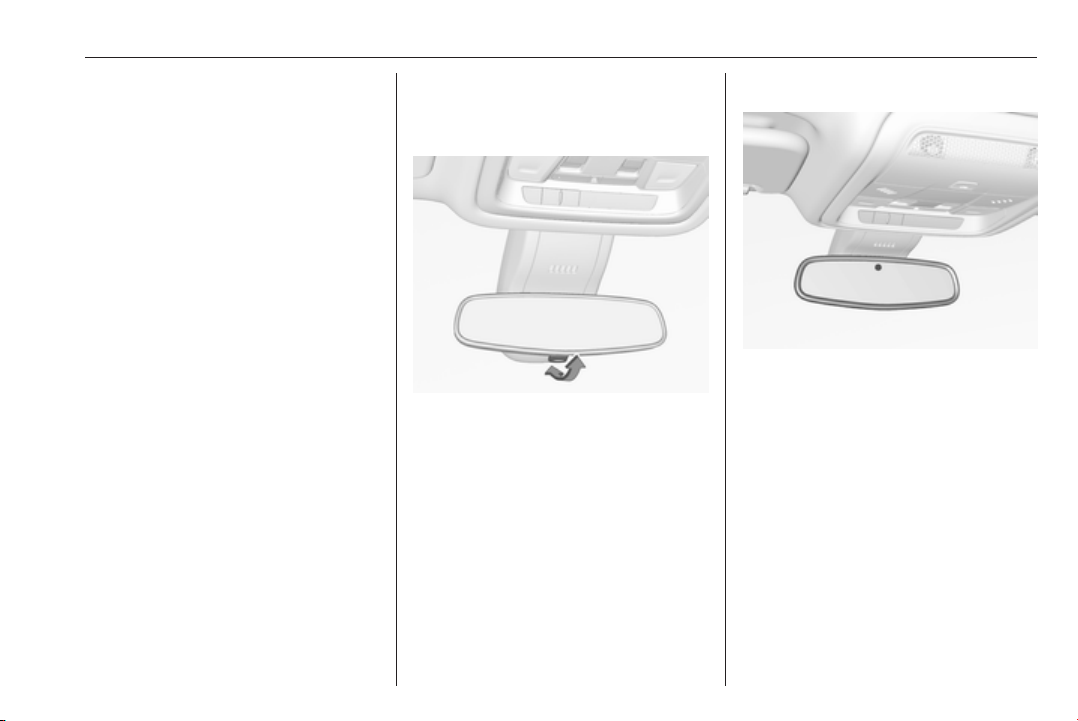

To adjust the mirror, move the mirror housing in the desired direction.
Manual anti-dazzle interior mirror 3 39.
Automatic anti-dazzle interior mirror 3 39.
In brief |
9 |

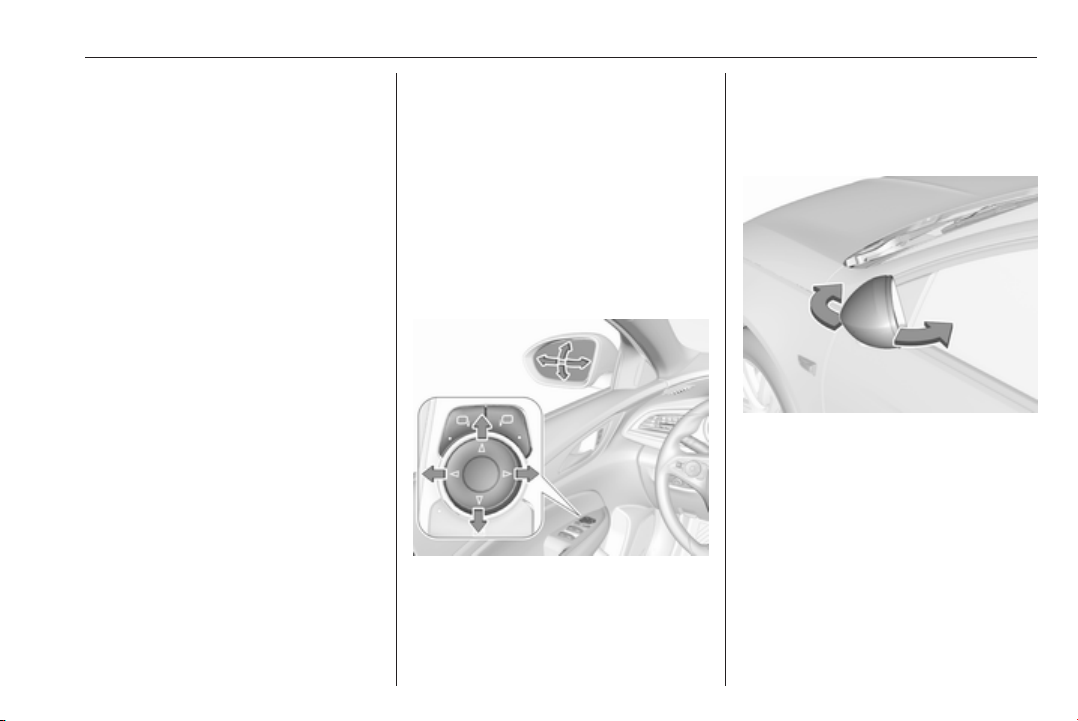

Exterior mirrors
Select the relevant exterior mirror by pushing left or right mirror button. LED in button indicates the selection.
Then swivel the control to adjust the mirror.
Convex exterior mirrors 3 37. Electric adjustment 3 37. Folding exterior mirrors 3 37. Heated exterior mirrors 3 38.

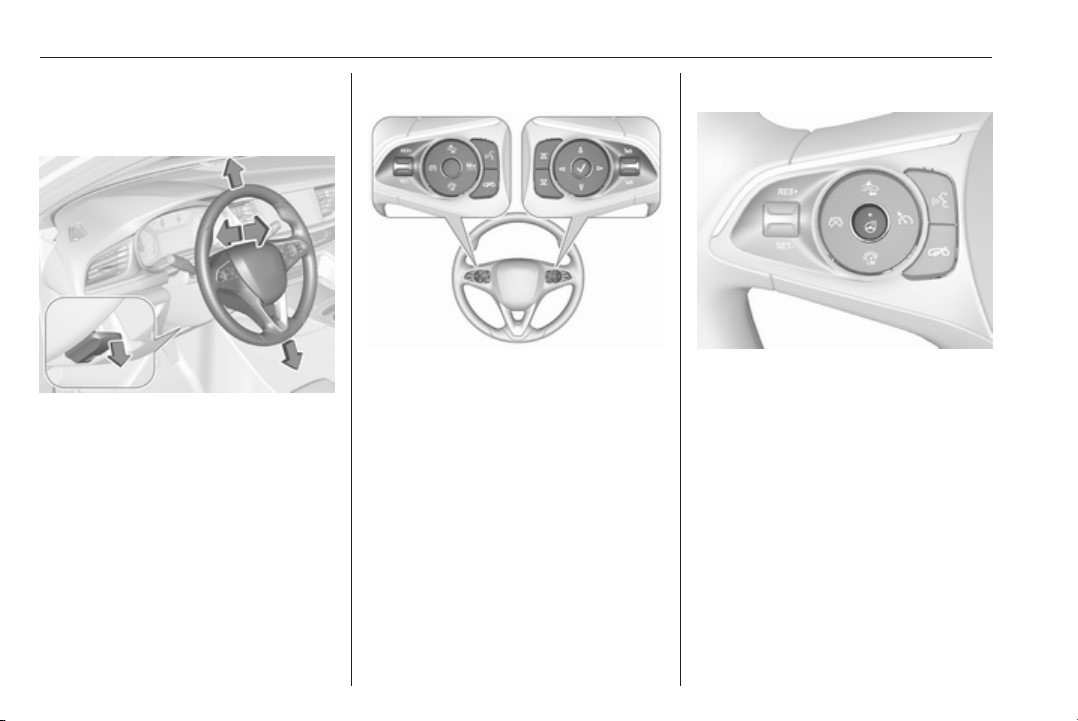

Steering wheel adjustment
Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked. Do not adjust steering wheelunlessvehicleisstationaryand steering wheel lock has been released.
Airbag system 3 58.
10 |
In brief |

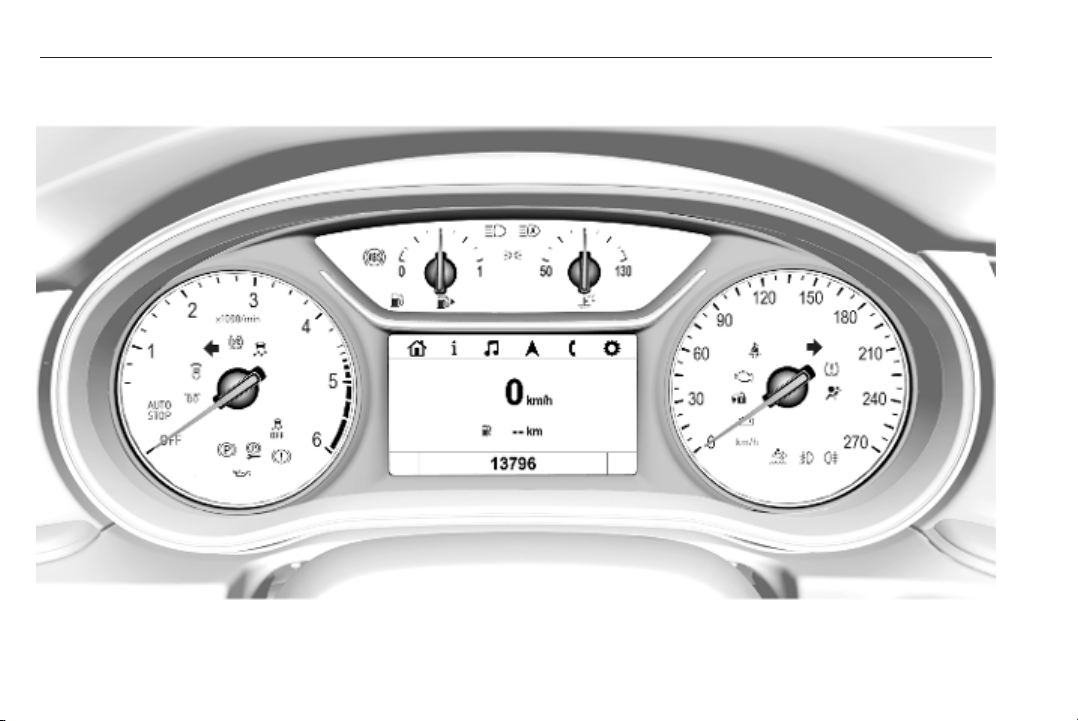

Instrument panel overview
|
|
|
|
|
|
|
|
In brief |
11 |
1 |

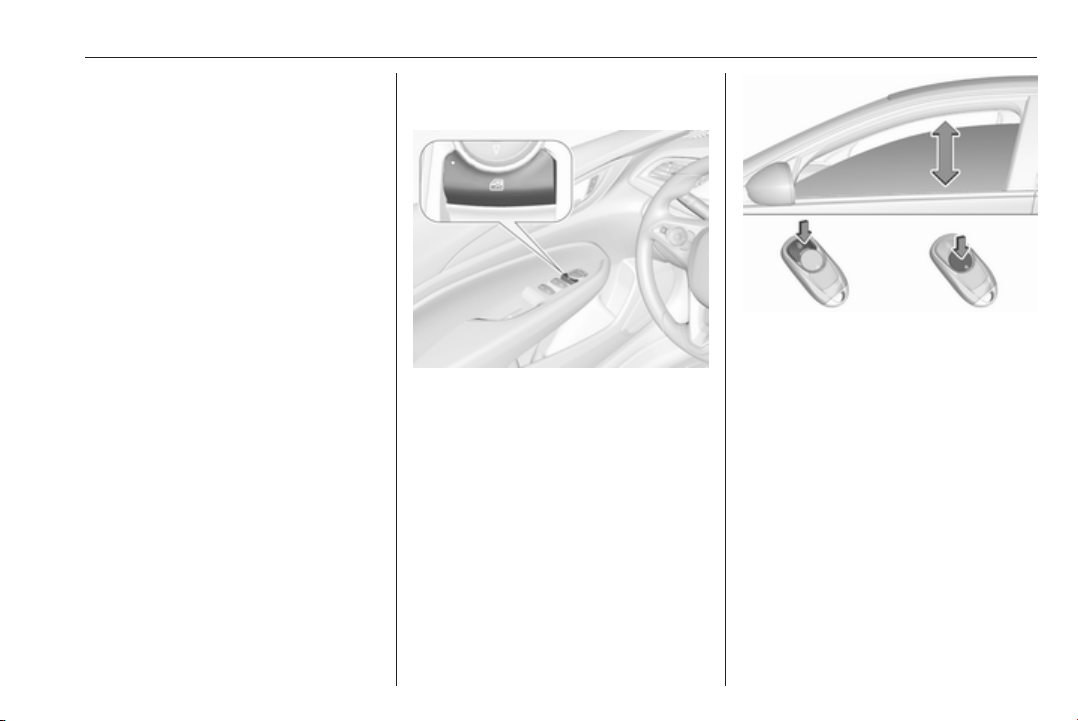

Power windows |
40 |
|
10 |
Windscreen wiper and |
|
22 |
Electric parking brake |
176 |
|
|
||||||||
2 |
Exterior mirrors ..................... |
37 |
|
|
washer, headlight washer, |
|
23 |
Power switch ....................... |
159 |
3 |
Central locking system .......... |
25 |
|
|
rear wiper and washer ......... |
89 |
24 |
Steering wheel adjustment . |
. 88 |
4 |
Side air vents ...................... |
154 |
|
11 |
Centre air vents .................. |
154 |
25 |
Horn ..................................... |
89 |
5 |
Cruise control ..................... |
182 |
|
12 |
Hazard warning flashers .... |
139 |
26 |
Bonnet release lever .......... |
237 |
|
Speed limiter ....................... |
184 |
|
13 |
Info Display ......................... |
118 |
27 |
Fuse box ............................ |
258 |
|
|
|
|
14 |
Anti-theft alarm system |
|
28 |
Light switch |
134 |
|
Adaptive cruise control ....... |
185 |
|
|
status LED ........................... |
34 |
|||
|
Forward collision alert ......... |
196 |
|
15 |
Electronic Stability Control |
. 179 |
|
Headlight range |
137 |
6 |
Turn and lane-change |
|
|
|
Traction Control system |
178 |
|
adjustment ......................... |
|
|
|
|
|
Front / rear fog lights |
140 |
||||
|
signals, headlight flash, |
|
|
16 |
Glovebox .............................. |
73 |
|
||
|
low/high beam, high beam |
140 |
|
17 |
Controls for Info Display |
|
|
Instrument illumination ....... |
141 |
|
assist ................................... |
|
118 |
29 |
Head-up display controls |
120 |
|||
|
Exit lighting |
143 |
|
|
operation ............................. |
||||
|
|
18 |
Climate control system ........ |
145 |
|
|
|
||
|
Parking lights ...................... |
141 |
|
19 |
Power outlet .......................... |
93 |
|
|
|
|
Buttons for Driver |
|
|
20 |
Flexride controls .................. |
180 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Information Centre .............. |
112 |
|
|
Parking assist / advanced |
|
|
|
|
7 |
Instruments ........................ |
101 |
|
|
parking assist ..................... |
205 |
|
|
|
|
Driver Information Centre .... |
112 |
|
|
Lane keep assist ................ |
224 |
|
|
|
8 |
Buttons for Driver |
|
|
|
Eco button for stop-start |
|
|
|
|
|
Information Centre .............. |
112 |
|
|
system ................................. |
162 |
|
|
|
9 |
Head-up display .................. |
120 |
|
21 |
Manual transmission .......... |
174 |
|
|
|
|
|
|
|
|
Automatic transmission ...... |
169 |
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
In brief |
In brief |
13 |
Exterior lighting
Automatic light control
AUTO : automatic light control switches automatically between daytime running light and headlight
8 : sidelights
9: headlights
Automatic light control 3 135. Front fog lights 3 140.
Rear fog light 3 140.

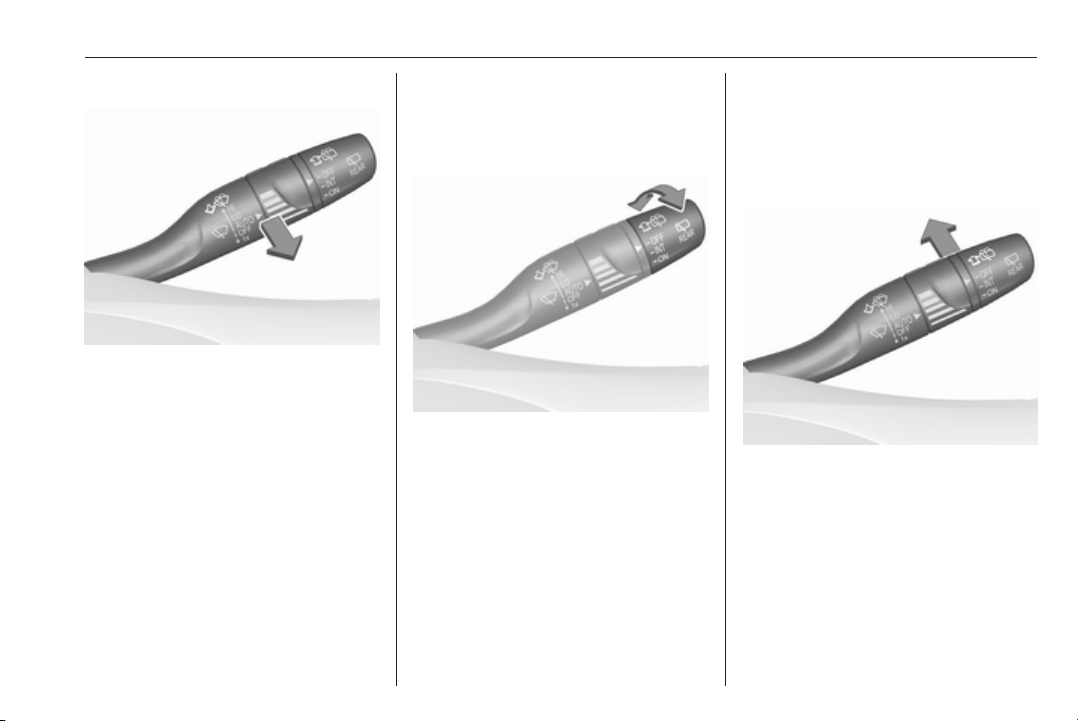

Headlight flash, high beam and |
Turn lights |
low beam |
|
|
|
lever up |
: right turn lights |
|
headlight flash |
: pull lever |
lever down |
: left turn lights |
|
high beam |
: push lever |
Turn lights 3 140. |
||
low beam |
: push or pull lever |
|||
Parking lights 3 141. |
||||
High beam 3 135. |
||||
|
|
|||
Headlight flash 3 137.
LED headlights 3 138.
High beam assist 3 138.
14 In brief

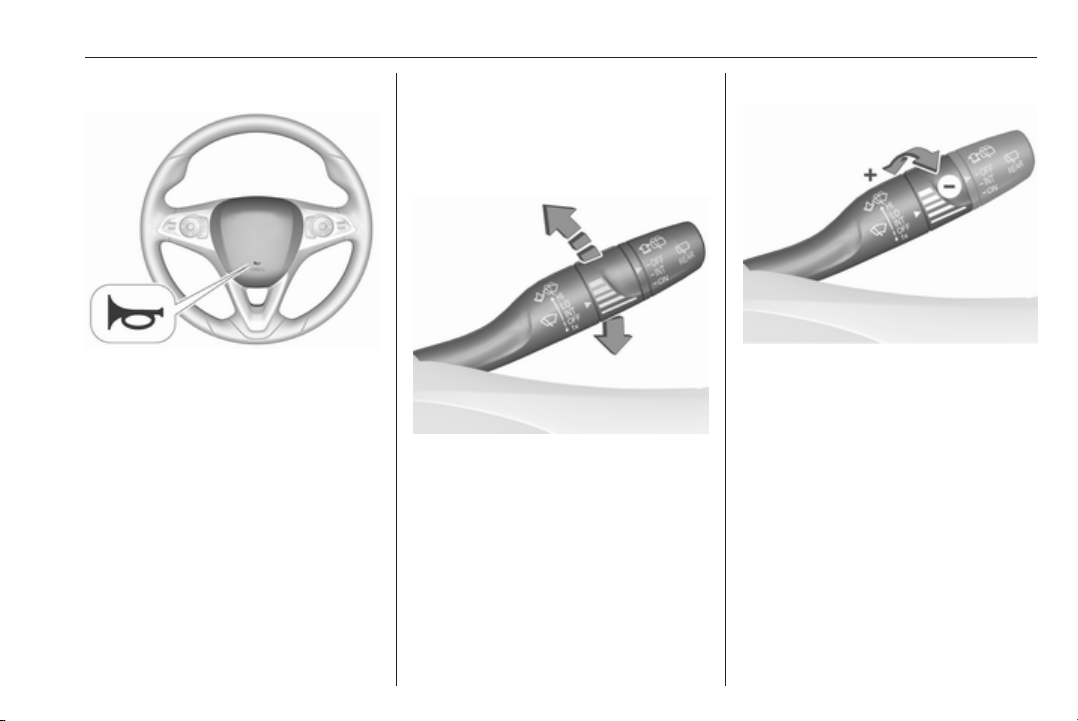

Hazard warning flashers |
Horn |

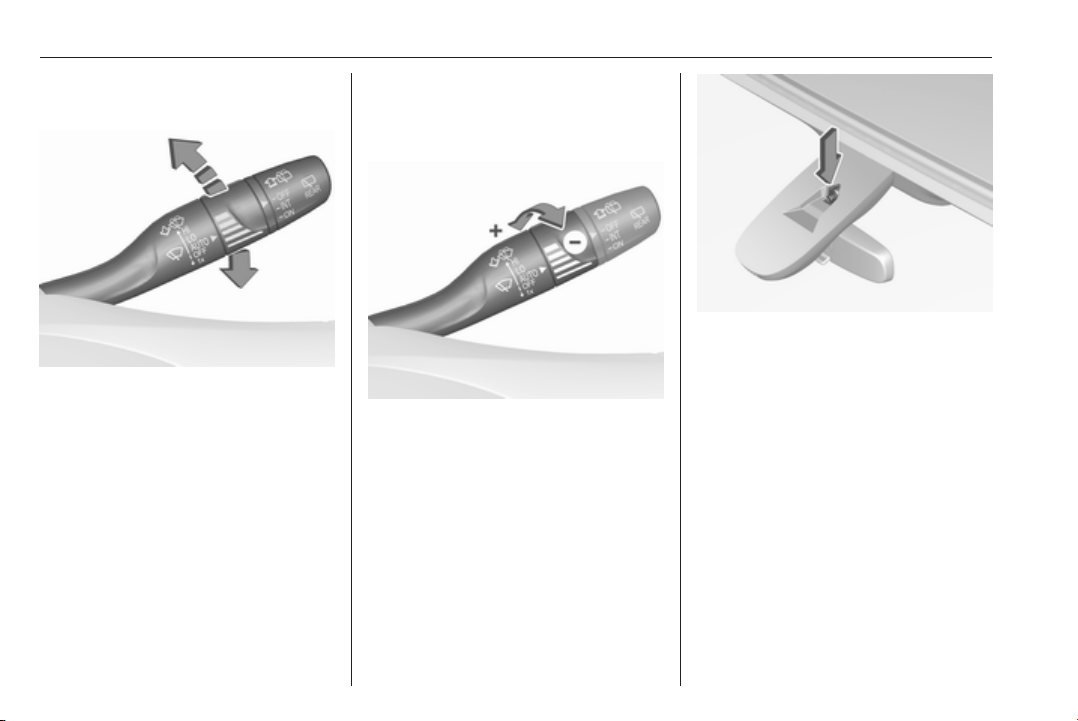

Washer and wiper systems |
|
|
Windscreen wiper |
Operated by pressing ¨. |
Press j. |
|
Hazard warning flashers 3 139. |
HI |
: fast |
|
||
|
LO |
: slow |
|
INT |
: interval wiping or automatic |
|
|
wiping with rain sensor |
|
OFF : off |
|
|
For a single wipe when the |
|
|
windscreen wiper is off, press the |
|
|
lever down to position 1x. |
|
|
Windscreen wiper 3 89. |
|
|
Wiper blade replacement 3 243. |
|
In brief |
15 |
Windscreen washer |
Rear window wiper |
Pull lever. |
OFF |
: off |
Windscreen and headlight washer |
INT |
: intermittent operation |
system 3 89. |
ON |
: continuous operation |
Washer fluid 3 240. |
|
|
Rear window washer
Push lever.
Washer fluid is sprayed on the rear window and the wiper wipes a few times.
Rear window wiper and washer 3 91.
16 |
In brief |
Climate control
Heated rear window
Operated by pressing b. Heated rear window 3 42.
Heated windscreen
Operated by pressing ,. Heated windscreen 3 42.
Heated exterior mirrors
Pressing b also operates the heated exterior mirrors.
Heated exterior mirrors 3 38.
Demisting and defrosting the windows, air conditioning system
●Press á: fan automatically
switches to higher speed, the air distribution is directed towards the windscreen.
●Set temperature control to warmest level.
●Switch on air conditioning A/C if required.
●Switchonheatedrearwindow b.
●Open side air vents as required and direct them towards the door windows.
Air conditioning system 3 145.
In brief |
17 |

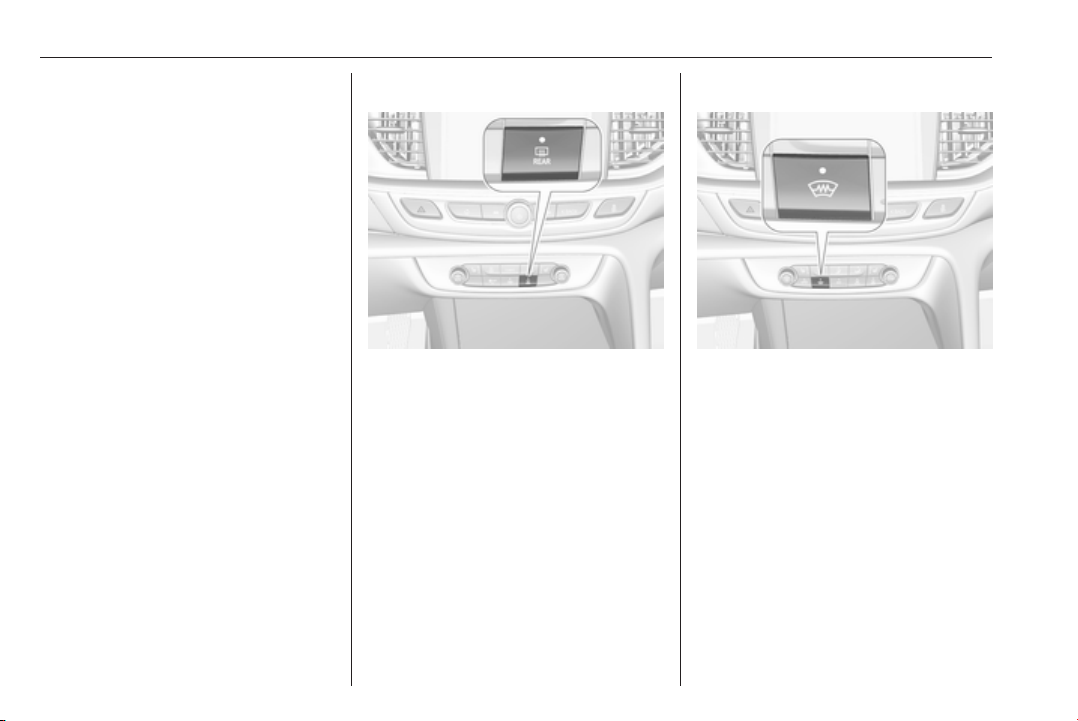

Demisting and defrosting the windows, electronic climate control
●Press à. Temperature and air
distribution are set automatically and the fan runs at high speed.
●Activate air condition: Press CLIMATEtoshowclimatecontrol menu in the Info Display, then select A/C.
●Switchonheatedrearwindow b.
Electronic climate control system 3 148.
Transmission
Manual transmission
Reverse: with the vehicle stationary, depress clutch pedal, press the release button on the selector lever and engage the gear.
Manual transmission 3 174.
Automatic transmission
P : park position R : reverse
N : neutral mode D : automatic mode M : manual mode < : upshift
] : downshift
The selector lever can only be moved out of P when the ignition is on and thebrakepedalisapplied.Toengage P or R, press the release button.
Automatic transmission 3 169.
18 |
In brief |
Starting off
Check before starting off
●Tyre pressure 3 261 and condition 3 298.
●Engine oil level and fluid levels 3 238.
●All windows, mirrors, exterior lighting and number plates are free from dirt, snow and ice and are operational.
●Proper position of mirrors 3 37, seats 3 47 and seat belts
3 57.
●Brake function at low speed, particularly if the brakes are wet.
Starting the engine
●Manual transmission: operate clutch and brake pedal.
●Automatic transmission: operate brake pedal and move selector lever to P or N.
●Donotoperateacceleratorpedal.
●Press Engine Start/Stop button.
●Release button after starting procedure begins.
Starting the engine 3 160.
Stop-start system
If the vehicle is at a low speed or at a standstill and certain conditions are fulfilled, an Autostop is activated.
An Autostop is indicated by the needle at the AUTOSTOP position in the tachometer.
Stop-start system 3 162.
In brief |
19 |
Parking
9Warning
●Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaustsystemcouldignitethe surface.
●Always apply the parking brake. Pull switch m for
approx. one second and check if the control indicator m illuminates.
The electric parking brake is applied when control indicator m illuminates 3 107.
●Switch off the engine.
●If the vehicle is on a level surface or uphill slope, engage first gear or set the selector lever to position P before switching off ignition. On an uphill slope, turn the front wheels away from the kerb.
If the vehicle is on a downhill slope, engage reverse gear or
settheselectorlevertoposition P before switching off ignition. Turn the front wheels towards the kerb.
●Close the windows and the sunroof.
●Switch off ignition with power button. Turn the steering wheel until the steering wheel lock is felt to engage.
●Lock the vehicle by pressing the button on the door handle or button eon the remote control.
Activate the anti-theft alarm system.
●The engine cooling fans may run after the engine has been switched off 3 237.
Caution
After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before switching off, in order to protect the turbocharger.
Electronic key system 3 22.
Layingthevehicleupforalongperiod of time 3 236.
20 Keys, doors and windows
Keys, doors and |
|
windows |
|
Keys, locks ................................... |
20 |
Keys .......................................... |
20 |
Radio remote control ................. |
21 |
Electronic key system ................ |
22 |
Memorised settings ................... |
25 |
Central locking system .............. |
25 |
Automatic locking ...................... |
27 |
Child locks ................................. |
28 |
Doors ........................................... |
29 |
Load compartment .................... |
29 |
Vehicle security ............................ |
34 |
Anti-theft locking system ........... |
34 |
Anti-theft alarm system .............. |
34 |
Immobiliser ................................ |
36 |
Exterior mirrors ............................ |
37 |
Convex shape ........................... |
37 |
Electric adjustment .................... |
37 |
Folding mirrors .......................... |
37 |
Heated mirrors ........................... |
38 |
Automatic dimming .................... |
38 |
Parking assist ............................ |
39 |
Interior mirrors ............................. |
39 |
Manual anti-dazzle .................... |
39 |
Automatic anti-dazzle ................ |
39 |
Windows ...................................... |
40 |
Windscreen ............................... |
40 |
Power windows ......................... |
40 |
Heated rear window .................. |
42 |
Heated windscreen .................... |
42 |
Sun visors .................................. |
42 |
Roof ............................................. |
43 |
Sunroof ...................................... |
43 |
Keys, locks
Keys
Replacement keys
The key number is specified on a detachable tag.
The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.
Locks 3 279. Central locking 3 25.
Starting the engine 3 160. Radio remote control 3 21. Electronic key 3 22.
The code number of the adapter for the locking wheel nuts is specified on a card. It must be quoted when ordering a replacement adapter.
Wheel changing 3 271.
Replacing battery
Replace the battery as soon as the system no longer operates properly or the range is reduced. The need for
Keys, doors and windows |
21 |
battery replacement is indicated by a message in the Driver Information Centre 3 123.
Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.
To replace:
1.Press button at the back of the electronic key unit and extract the key blade from the housing.
2.Insert the key blade again for approx. 6 mm and turn the key to open the housing. Further insertion of the key blade can damage the housing.
3.Remove and replace battery. Use CR 2032 or equivalent battery. Pay attention to the installation position.
4.Close the housing and insert key blade.
Radio remote control
Enables operation of the following functions via the use of the remote control buttons:
●central locking system 3 25
●anti-theft locking system 3 34
●anti-theft alarm system 3 34
●power windows 3 40
●sunroof 3 43
The remote control has a range of up to 100 m, but may also be much less due to external influences. The hazard warning flashers confirm operation.
22 Keys, doors and windows
Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.
Fault
If the central locking system cannot be operated with the radio remote control, the cause may be one of the following:
●Fault in radio remote control.
●The range is exceeded.
●The battery voltage is too low.
●Frequent, repeated operation of theradioremotecontrolwhilenot in range, which will require resynchronisation.
●Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time.
●Interference from higher-power radio waves from other sources.
Manual unlocking 3 25.
Electronic key system
Enables a keyless operation of the following functions:
●central locking system 3 25
●switching on ignition and starting the engine 3 160
Theelectronickeysimplyneedstobe on the driver's person.
Additionally, the electronic key includes the functionality of the radio remote control:
●central locking system
●anti-theft alarm system
●power windows
The hazard warning flashers confirm operation.
Handle the device with care, protect from moisture and high temperatures and avoid unnecessary operation.
Note
Do not put the electronic key in the load compartment.
Electronic key system operation
The electronic key must be outside the vehicle, within a range of approx. 1 m of the relevant door side.
Keys, doors and windows |
23 |
Unlocking
Press the button on the respective exterior door handle and pull the handle.
Unlocking mode can be set in the vehicle personalisation menu in the Info Display. Two settings are selectable:
●All doors, load compartment and fuel filler flap will be unlocked by pressing the button on any exterior handle once.
●Only the driver's door and fuel filler flap will be unlocked by pressing the button on the driver's door exterior handle
once. To unlock all doors and load compartment, press button twice.
The setting can be changed in the menu Settings in the Info Display.
Vehicle personalisation 3 124. Locking
Press the button on any exterior door handle.
All doors, load compartment and fuel filler flap will be locked.
The system locks if any of the following occurs:
●It has been more than
5 seconds since unlocking.
●The button on an exterior handle has been pressed twice within 5 seconds to unlock the vehicle.
●Any door has been opened and all doors are now closed.
If the driver's door is not closed properly,theelectronickeyremainsin the vehicle or the ignition is not off, locking will not be permitted.
If there have been two or more electronic keys in the vehicle and the ignitionwasononce,thedoorswillbe locked even if just one electronic key is taken out of the vehicle.

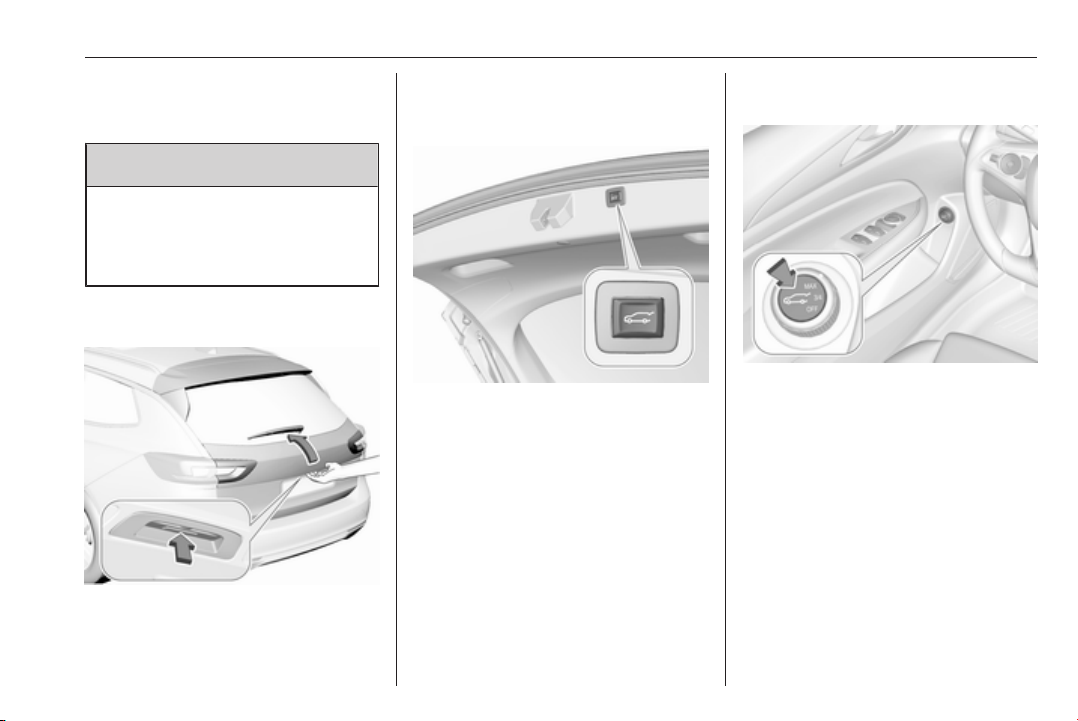

Unlocking the tailgate

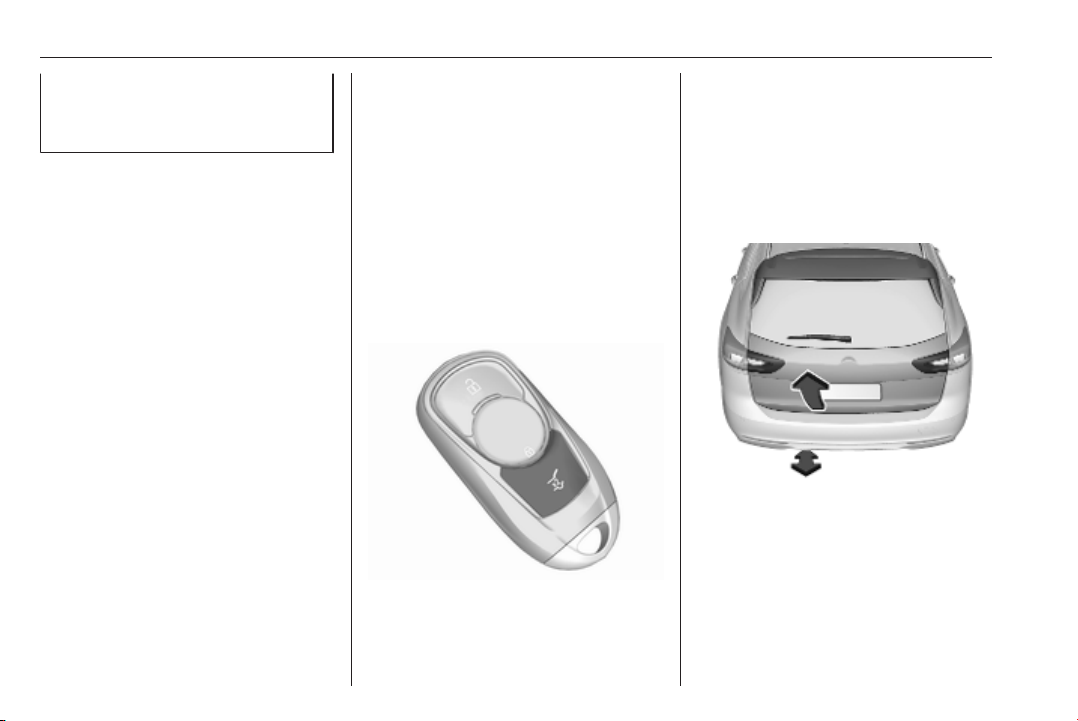

The tailgate can be unlocked by pushing the button under the brand emblem when the electronic key is in range. The doors remain locked.
Load compartment 3 29.
24 Keys, doors and windows

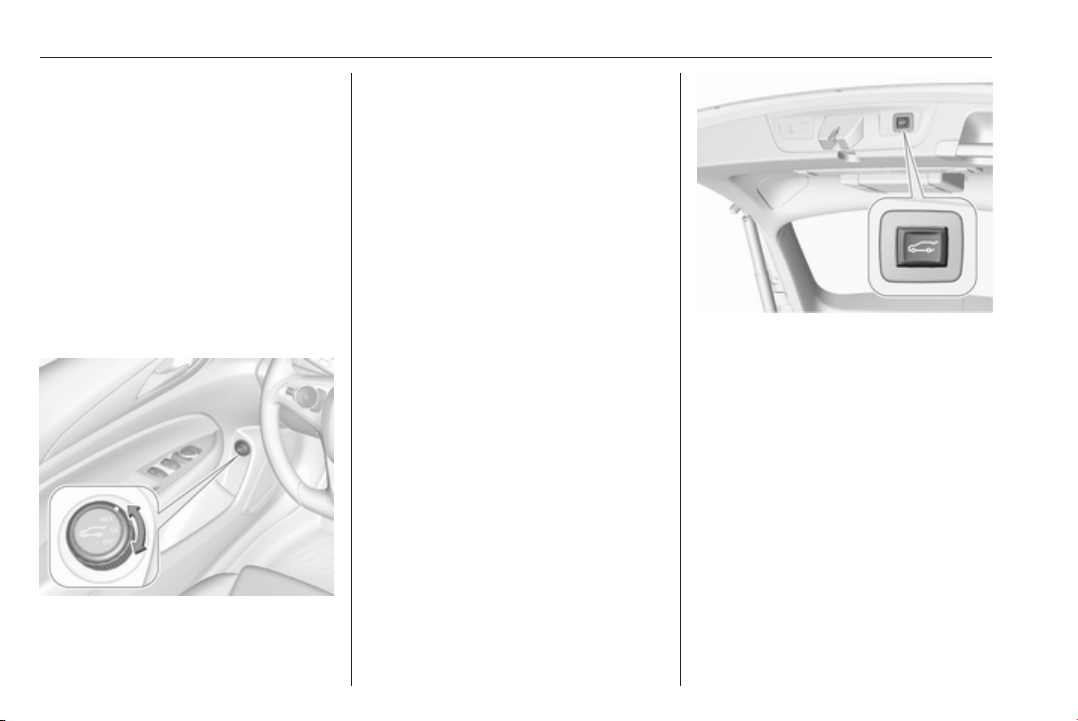

Unlocking and opening the power tailgate
The power tailgate can be unlocked and opened hands-free by moving the foot below the rear bumper.
Alternatively, press the button switch under the brand emblem. The electronic key has to be in range. The doors remain locked.
Load compartment 3 29.

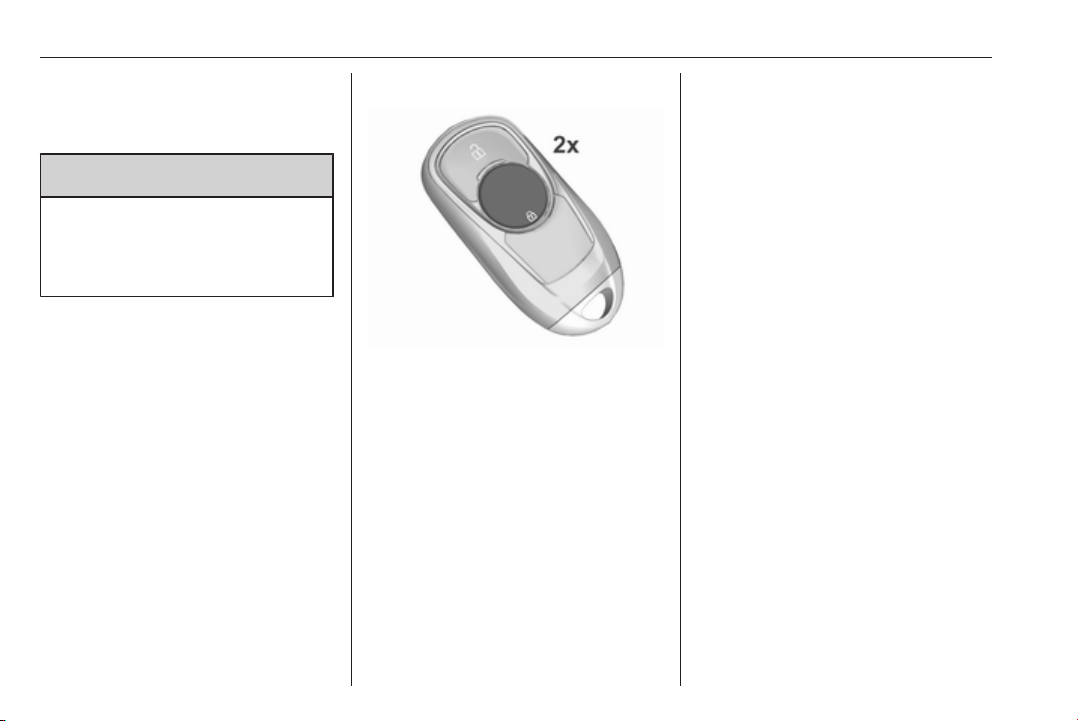

Operation with buttons on the electronic key
The central locking system can also be operated with the buttons on the electronic key.
Unlocking
Press c.
Unlocking mode can be set in the vehicle personalisation menu in the Info Display. Two settings are selectable:
●All doors, load compartment and fuel filler flap will be unlocked by pressing conce.
●Only the driver's door and fuel filler flap will be unlocked by pressing conce. To unlock all doors and load compartment, press ctwice.
Select the relevant setting in Settings I Vehicle in the Info Display.
Info Display 3 118.
Vehicle personalisation 3 124.
The setting can be saved for the key being used.
Memorised settings 3 25.
Locking
Close doors, load compartment and fuel filler flap.
Press e.
If the driver's door is not closed properly, the central locking system will not work.
Passive locking Automatic locking 3 27.
Confirmation
Operation of central locking system is confirmed by the hazard warning flashers. A precondition is that the setting is activated in the vehicle personalisation 3 124.
Fault
If the central locking cannot be operated or the engine cannot be started, the cause may be one of the following:
●Fault in electronic key.
●Electronic key is out of reception range.
●The battery voltage is too low.
Keys, doors and windows |
25 |
●Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time.
●Interference from higher-power radio waves from other sources.
To rectify the cause of the fault, change the position of the electronic key.
Manual unlocking 3 25.
Memorised settings
Whenever the ignition is switched off, some of the following settings are automatically memorised by the currently used remote control unit or the electronic key:
●automatic climate control
●lighting
●Infotainment system
●central locking system
●FlexRide interactive driving system
●comfort settings
The saved settings are automatically used the next time the ignition is switched on with the memorised electronic key 3 22.
A precondition is that Personalisation by Driver is activated in the personal settings of the Info Display. This must besetforeachelectronickeywhichis used. The status change is available only after locking and unlocking the vehicle.
The assigned memory position of the power seat is automatically recalled when switching on ignition and Auto Memory Recall is activated in the Info Display for the memorised electronic key.
Power seat 3 50.
Vehicle personalisation 3 124.
Central locking system
Unlocks and locks doors, load compartment and fuel filler flap.
A pull on an interior door handle unlocks the respective door. Pulling thehandleoncemoreopensthedoor.
Note
In the event of an accident in which airbags or belt pretensioners are deployed, the vehicle is automatically unlocked.
Note
A short time after unlocking with the remote control or electronic key, the doorsarebeinglockedautomatically if no door has been opened. A precondition is that the setting is activated in the vehicle personalisation 3 124.
Central locking buttons
Locks or unlocks all doors, the load compartment and fuel filler flap from the passenger compartment via a switch in the driver's door panel.
26 Keys, doors and windows
Press eto lock. Press cto unlock.
Operation with the key in case of a central locking system fault
In case of a fault, e.g. vehicle battery or electronic key battery is discharged, the driver's door can be lockedorunlockedwiththekeyblade.
Push the button on the electronic key and pull out the key blade.
The lock cylinder in the driver's door is covered by a cap.
Insert the key blade into the recess at the bottom of the cap and swivel the key upward.
Manual unlocking
Manually unlock the driver's door by inserting and turning the key blade in the lock cylinder.
The other doors can be opened by pulling the interior handle twice or by pressing cin the driver's door panel. The load compartment and fuel filler flap will possibly not be unlocked.
By switching on the ignition, the antitheft locking system is deactivated.
Keys, doors and windows |
27 |
Manual locking
Push inside locking knob of all doors except driver's door or press ein the driver's door panel. Then close the driver's door and lock it from the outside by turning the key in the lock cylinder. The fuel filler flap and tailgate are possibly not locked.
After locking, cover the lock cylinder with the cap: insert the cap with the lower side in the recess and push the cap until it engages at the upper side.
Automatic locking
Automatic locking after driving off
This security feature can be configured to automatically lock all doors, load compartment and fuel filler flap after driving off and exceeding a certain speed.
When at a standstill after driving, the vehicle will be unlocked automatically assoonastheignitionisswitchedoff.
Activation or deactivation of automatic locking can be set in the menu Settings I Vehicle in the Info
Display.
Info Display 3 118.
Vehicle personalisation 3 124.
The setting can be saved for the remotecontrolorelectronickeybeing used 3 25.
Automatic relock after unlocking
This feature can be configured to automatically lock all doors, load compartment and fuel filler flap a short time after unlocking with the remote control or electronic key, provided no door has been opened.
Activation or deactivation of automatic relock can be set in the menu Settings I Vehicle in the Info
Display.
Info Display 3 118.
Vehicle personalisation 3 124.
The setting can be saved for the remotecontrolorelectronickeybeing used 3 25.
28 Keys, doors and windows
Passive locking
This feature locks the vehicle automatically after several seconds if an electronic key has been recognised previously inside the vehicle, all doors have then been closed and the electronic key does not remain within the vehicle.
If the electronic key remains in the vehicle or the ignition is not off, passive locking will not be permitted.
If there have been two or more electronic keys in the vehicle and the ignition was on once, the feature locks the vehicle if just one electronic key is taken out of the vehicle.
To prevent passive locking of the vehicle e.g. when refuelling or if passengers remain in the vehicle, the system must be disabled.
To disable the system, press the central locking button cfor a few seconds while one door is open. An acoustic signal sounds three times to confirm deactivation. The function remains disabled until the central locking button eis pressed or the ignition is switched on.
Activation or deactivation of passive locking can be set in the menu Settings I Vehicle in the Info Display.
Info Display 3 118.
Vehicle personalisation 3 124.
The setting can be saved for each electronic key being used 3 25.
Child locks
9 Warning
Use the child locks whenever children are occupying the rear seats.
Move the pin in the rear door to the front position. The door cannot be opened from the inside.
To deactivate, move the pin to the rear position.
Loading...
