NordicTrack T7.5 S, NETL10819.0 User Manual

Model No. NETL10819.0 Serial No.
Write the serial number in the space above for reference.
Serial
Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: iconsupport.eu E-mail: csuk@iconeurope.com Write:
ICON Health & Fitness, Ltd. Unit 4, Westgate Court Silkwood Park OSSETT WF5 9TT UNITED KINGDOM
USER'S MANUAL
AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iconfitness.com Write:
ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
iconeurope.com
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................17
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING .....................................................30
EXERCISE GUIDELINES ....................................................................33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

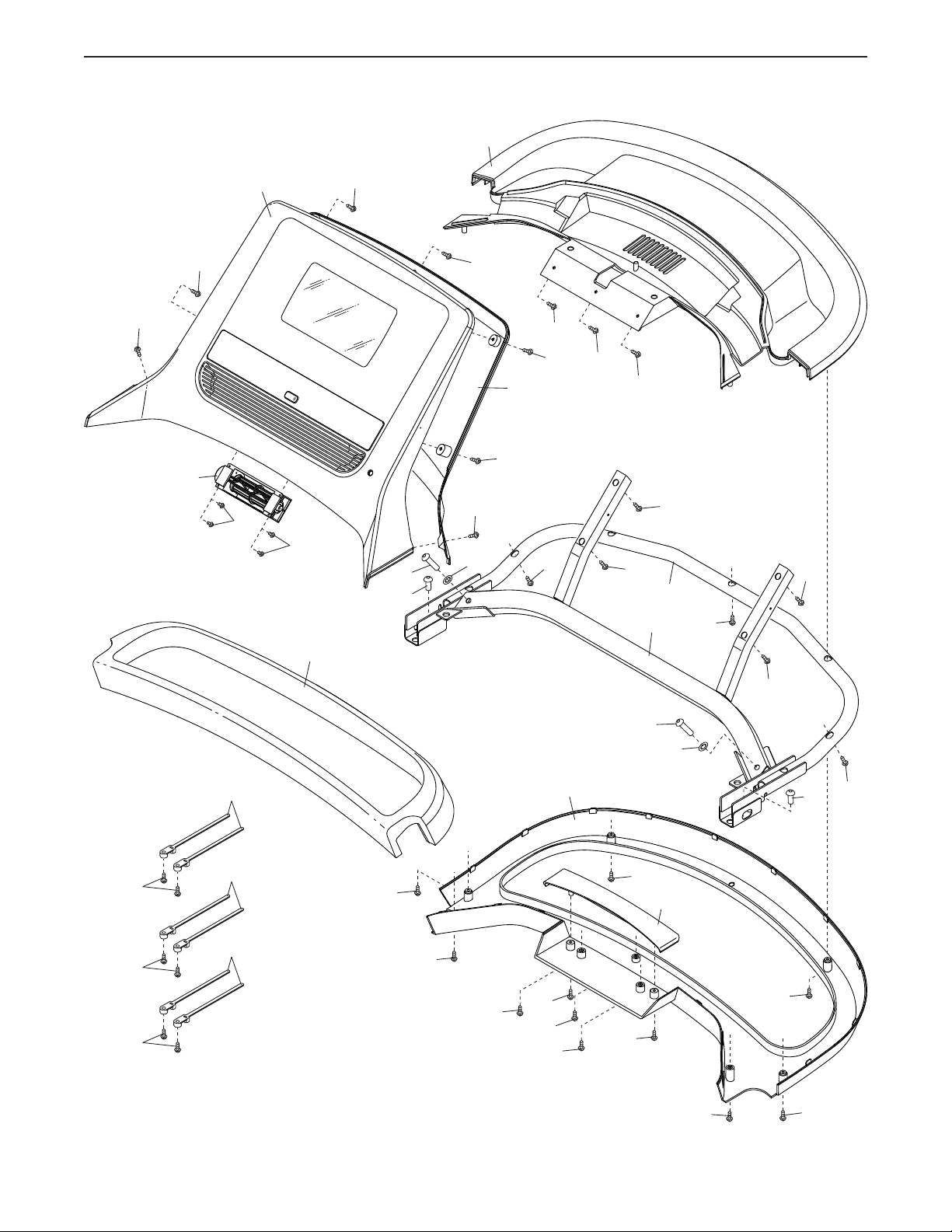

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals. If a decal is missing or illegible, call the
telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The
decals may not be shown at actual size.
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. Google Maps is a trademark of Google LLC. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus­tained by or through the use of this product.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.
3. The treadmill is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the treadmill by someone responsible for their safety.
4. Use the treadmill only as described in this manual.
5. The treadmill is intended for home use only. Do not use the treadmill in any commercial, rental, or institutional setting.
6. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
7. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
9. Keep children under age 13 and pets away from the treadmill at all times.
10. The treadmill should be used only by per­sons weighing 275 lbs. (125 kg) or less.
11. Never allow more than one person on the treadmill at a time.
12. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recom­mended for both men and women. Always
wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
13. When connecting the power cord (see page
17), plug the power cord into an earthed circuit. No other appliance should be on the same circuit. When replacing the fuse in the power cord adapter, insert an ASTA-approved BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a 3-conductor, 14-gauge (2 mm2) cord that is no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated surfaces.
16. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 30 if the treadmill is not working properly.)
17. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 19). Always wear the clip while using the treadmill.
18. Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.
19. When a person is walking on the treadmill, the noise level of the treadmill will increase.
20. Keep fingers, hair, and clothing away from the moving walking belt.
3
21. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determin­ing heart rate trends in general.
23. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 5 for the location of the power switch), and unplug the power cord when the treadmill is not in use.
24. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 7 and HOW TO FOLD AND MOVE THE TREADMILL on page 29.) You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.
25. When folding or moving the treadmill, make sure that the storage latch is holding the
frame securely in the storage position. Do not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by placing objects under the treadmill.
27. Never insert any object into any opening on the treadmill.
28. Inspect and properly tighten all parts each time the treadmill is used.
29. DANGER: Always unplug the power
cord immediately after use, before clean­ing the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized ser­vice representative only.
30. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the new NORDICTRACK® T7.5 S treadmill. The T7.5 S treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
Heart Rate Monitor
Handrail
manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Console
Accessory Tray
Key/Clip
Walking Belt
Foot Rail
Idler Roller Screws
Motor Hood
Power Switch
Wheel
Platform Cushions
Length: 6 ft. 8 in. (203 cm) Width: 3 ft. (91 cm)
Weight: 209 lbs. (95 kg)
5
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw­ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
#8 x 1/2"
Screw (1)–8
3/8" x 1 1/4"
Screw (63)–2
#10 Star
Washer (5)–4
#8 x 3/4"
Screw (2)–6
5/16" x 2 1/2" Screw (28)–4
5/16" Star
Washer (11)–12
3/8" x 1 3/4" Screw (62)–2
#10 x 3/4"
Screw (9)–4
3/8" Star
Washer (13)–8
5/16" x 3/4"
Screw (8)–2
3/8" x 2 1/4" Screw (7)–4
#8 x 1/2"
Ground Screw
(10)–1
#8 x 1"
Screw (14)–2
5/16" x 1 3/4" Screw (12)–2
6
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.
• To identify small parts, see page 6.
1. To register your product and activate your warranty in the UK, go to iconsupport.eu. If you do not have internet access, call Customer Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the following information to the email address or postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name of
your product (see the front cover of this manual)
• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
1
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
Next, identify the Right Upright (90). Have a
second person hold the Right Upright near the Base (94).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end of the Upright Wire (81). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the Right Upright.
2
81
A
90
94
81
A
90
7
3. Lay the Right Upright (90) near the Base (94). Press the Grommet (77) into the square hole (B) in the Right Upright. Make sure not to pinch
the ground wire (C).
If there is a screw (D) preattached to the Right
Upright (90), remove and discard it.
Then, attach the ground wire (C) to the Right
Upright (90) with a #8 x 1/2" Ground Screw (10).
3
94
10
4. Hold the Right Upright (90) against the Base (94). Make sure not to pinch the Upright
Wire (81).
Attach the Right Upright (90) and a Wheel (101)
with two 3/8" x 2 1/4" Screws (7), a 3/8" x 1 1/4" Screw (63), a 3/8" x 1 3/4" Screw (62), and four 3/8" Star Washers (13) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) and the
other Wheel (not shown) in the same way.
Note: There are no wires on the left side.
D
4
7
13
77
C
B
90
81
62
13
101
63
94
13
90
8
5. Remove and save the four 5/16" x 3/4" Patch Screws (4).
5
Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright (89), and slide the Right Base Cover onto the Right Upright (90). Do not press the Base
Covers into place yet.
6. See the left drawing. Insert the tab (E) on one of the Cover Brackets (18) into the slot (F) in the Left Upright (89), and attach the Cover Bracket with two #8 x 1/2" Screws (1).
4
89
82
6
81
4
90
83
See the right drawing. Attach the other Cover
Bracket (18) to the Right Upright (90) as described above. Note: On the Right Upright,
the slot (F) is below the two small holes. The Cover Bracket will need to be rotated 180º compared to the Cover Bracket on the left side.
Position the Upright Wire (81) to the left side of
the Right Upright (90) as shown.
89
F
E
18
1
18
E
1
90
F
9
7. With the help of a second person, set the console base assembly (G) on the Right Upright (90) and the Left Upright (not shown). See the inset drawing. Position the Upright Wire (81) so that it is on the inside of the Upright as shown.
Do not pinch the Upright Wire.
Partially tighten a 5/16" x 3/4" Screw (8) into the
center hole (H) on each side of the console base assembly (G) and the top of the Right Upright (90) and the Left Upright (not shown);
do not fully tighten the Screws. Note: The Screws are used only to hold the console base assembly in place during assembly.
7
81
G
8
81
H
90
H
90
8. Identify the right handrail assembly (I). Remove
and discard the two indicated screws (J).
Next, carefully raise the Pulse Crossbar (93)
enough to allow you to slide the Handrail (86) onto the console base assembly (G). See the
inset drawing. The Cover Bracket (18) should slide into the indicated space (K) in the hand­rail assembly.
Attach the right handrail assembly (I) with two
5/16" x 2 1/2" Screws (28) and two 5/16" Star Washers (11); do not fully tighten the Screws
yet. Tip: You may need to adjust the position of the right handrail assembly to align the Screws properly.
Attach the left handrail assembly (not shown)
to the left side as described above.
8
28
11
J
I
86
G
93
K
18
K
10
9. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do not overtighten the #10 x 3/4" Screws (9).
Attach the Pulse Crossbar (93) to the right hand-
rail assembly (I) and the left handrail assembly (not shown) with four #10 x 3/4" Screws (9) and four #10 Star Washers (5) (only one side is shown); start all of the Screws, and then
tighten them.
9
9
5
93
I
10. With the help of a second person, hold the
console assembly (L) near the console base assembly (G).
Connect the wires (M) from the console base
assembly (G) to the wires (N) from the console assembly (L). The connectors should slide together easily and snap into place. If they do not, turn one connector and try again.
Next, locate the console wire (O) in the con-
sole assembly (L). Connect the Upright Wire (81) to the console wire. Then, insert the wires
(M, N) into the hole in the Console Base (64). Insert the wires (O, 81) into the console assem­bly (L), and position the wires on the decal.
10
M
64
L
N
O
81
G
11
11. Set the console assembly (L) on the brackets on
the console base assembly (G). Do not pinch any wires. Make sure that the wires (O, 81) are inserted into the console assembly.
Attach the console assembly (L) with two
5/16" x 1 3/4" Screws (12) and two 5/16" Star Washers (11); start both Screws, and then
tighten them. Note: Only one side is shown.
11
12
11
L
G
O, 81
12. Attach the Small Console Cover (27) with two
#8 x 3/4" Screws (2); do not overtighten the
Screws. Note: Use the outer two holes in the underside of the console base assembly (G).
12
27
G
2
12
13. Tighten the two 5/16" x 3/4" Screws (8).
Then, tighten four #8 x 3/4" Screws (2) into
the right and left handrail assemblies (I, P) in the locations shown; do not overtighten the
Screws.
13
8
2
14. Firmly tighten the two 5/16" x 2 1/2" Screws (28)
on each side of the handrail assembly.
Next, identify the Right Handrail Cover (26).
Insert the tab (Q) on the Right Handrail Cover into the right handrail assembly (I) in the loca­tion shown. Then, press the Right Handrail Cover onto the console assembly (L). The Right Handrail Cover should snap into the indicated hole (R).
Then, attach the Right Handrail Cover (26) with
a #8 x 1" Screw (14); do not overtighten the
Screw.
14
2
P
Q
I
26
R
28
8
2
I
Attach the Left Handrail Cover (not shown)
as described above.
L
14
13

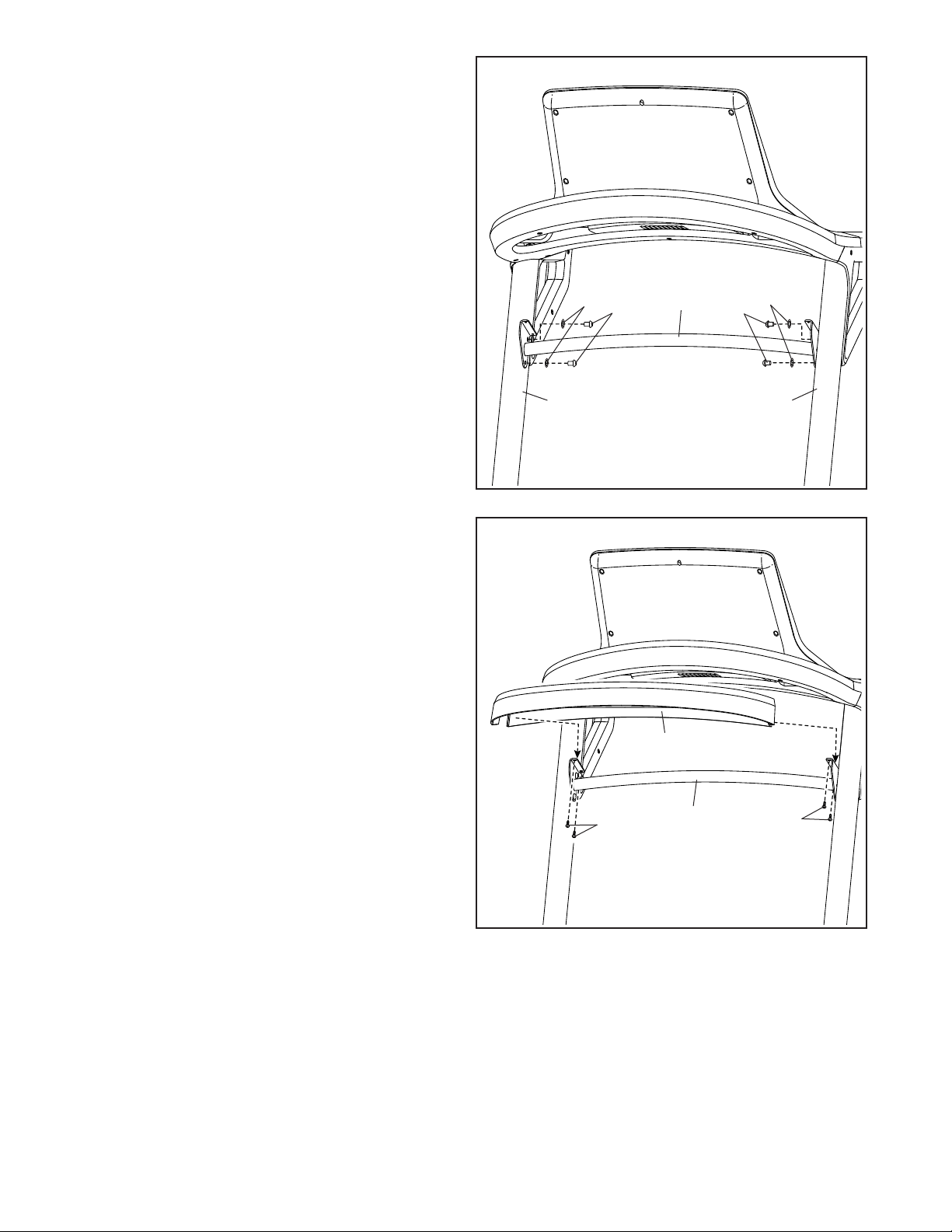

15. Orient the Upright Crossbar (105) as shown.
Carefully slide the Upright Crossbar (105)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar (105) with the four
5/16" x 3/4" Patch Screws (4) that you removed in step 5 and four 5/16" Star Washers (11); start
all four Patch Screws, and then tighten them.
15
16. Insert the Tray (31) from the front of the treadmill
and set it on the Upright Crossbar (105) as shown.
Attach the Tray (31) to the Upright Crossbar
(105) with four #8 x 1/2" Screws (1); start all
four Screws, and then tighten them.
16
90
11
4
105
31
11
4
89
14
1
105
1
17. Note: If the treadmill is assembled on a
smooth surface, it may roll forward in this step.
17
Remove the two 5/16" x 3/4" Patch Screws (4)
from the Latch Crossbar (41).
Raise the Frame (56) to the upright position.
Have a second person hold the Frame until step 19 is completed.
Orient the Latch Crossbar (41) as shown.
Make sure that the “This side toward belt” sticker (S) is facing the treadmill. Attach
the Latch Crossbar to the brackets (T) on the Frame (56) with the two 5/16" x 3/4" Patch Screws (4) that you just removed and two 5/16" Star Washers (11).
18. Remove the 5/16" Nut (34) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (94).
18
4
11
56
T
U
41
S
T
11
4
Next, orient the Storage Latch (53) as shown.
Attach the lower end of the Storage Latch (53)
to the bracket on the Base (94) with the 5/16" x 1 3/4" Bolt (6) and the 5/16" Nut (34) as shown.
Then, raise the Storage Latch (53) to a vertical
position, and remove the tie (U).
34
94
53
6
15
19. Remove the 5/16" Nut (34) and the 5/16" x
2 1/4" Bolt (3) from the bracket on the Latch Crossbar (41).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (41), and insert the 5/16" x 2 1/4" Bolt (3) through the bracket and the Storage Latch. This will push a
spacer (V) out of the Storage Latch; discard the spacer.
Next, tighten the 5/16" Nut (34) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on page 29).
19
56
34
41
V
3
53
20. Firmly tighten the four 3/8" x 2 1/4" Screws
(7) and the two 3/8" x 1 1/4" Screws (63).
Next, tighten the two 3/8" x 1 3/4" Screws
(62); the Wheels (101) must turn freely.
Next, set the Left Inner Base Cover (99) onto the
lower end of the Left Upright (89). Slide the Left Base Cover (82) downward and press it onto the Left Inner Base Cover.
Then, set the Right Inner Base Cover (100) onto
the lower end of the Right Upright (90). Slide the Right Base Cover (83) downward and press it onto the Right Inner Base Cover.
21. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure place; the hex key is used to adjust the walking belt (see page 32). Note: Extra hardware may be included.
20
63
90
7
83
101
62
100
63
89
82
99
7
62
101
16
FR/SP
UK
UK
AUS
HOW TO USE THE TREADMILL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must be replaced with a manufacturer-recommended power cord.
DANGER: Improper connection of
the equipment-earthing conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the socket on the treadmill.
Socket on Treadmill
Power Cord
2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances.
UK
Outlet
Australia
Outlet
17

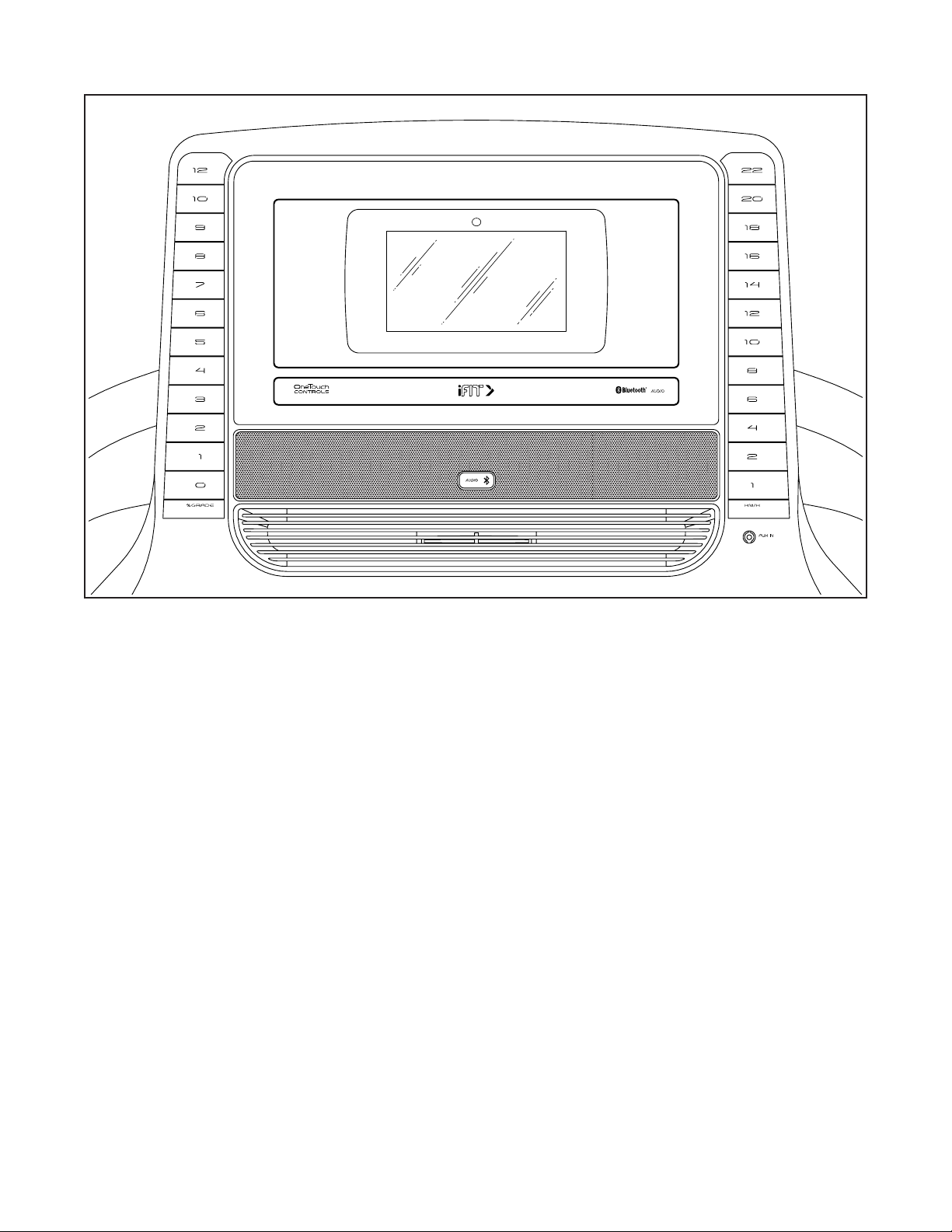

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced treadmill console offers a selection of features designed to make your workouts more effec­tive and enjoyable.
The console features wireless technology that enables the console to connect to iFit. With iFit, you can access a large and varied workout library, create your own workouts, track your workout results, and access many other features.
When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor.
See page 28 for information about purchasing an optional chest heart rate monitor.
In addition, the console features a selection of work­outs. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 19. To learn how to use the touch screen, see page 19. To set up the console, see page 20.
18
HOW TO TURN ON THE POWER
HOW TO USE THE TOUCH SCREEN
IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room tem­perature before you turn on the power. If you do not do this, you may damage the console displays or other electrical components.
Plug in the power cord (see page 17). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.
Next, stand on the foot rails of the treadmill. Locate the clip (A) attached to the key (B), and slide the clip securely onto the waistband of your clothes. Then, insert the key into the console. Note: It
may take some time for the console to be ready for use. IMPORTANT: In an emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.
Reset
B
A
The console features a tablet with a full-color touch screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets. You can slide or flick your finger against the screen to move certain images on the screen, such as the displays in a workout (see step 5 on page 21).
• The screen is not pressure sensitive. You do not need to press hard on the screen.
• To type information into a text box, touch the text box to view the keyboard. To use numbers or other characters on the keyboard, touch the ?123 but­ton. To view more characters, touch the ~[< button. Touch the ?123 button again to return to the number keyboard. To return to the letter keyboard, touch the ABC button. To use a capital character, touch the button with an upward-facing arrow. To use multiple capital characters, touch and hold the arrow button. To return to the lowercase keyboard, touch the arrow button again. To clear the last character, touch the button with a backward-facing arrow and an X.
Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, see HOW TO USE THE EQUIPMENT SETTINGS SECTION on pages 25. For simplicity, all instructions in this section refer to kilometers.
19
HOW TO SET UP THE CONSOLE
6. Calibrate the incline system.
Before using the treadmill for the first time, set up the console.
1. Connect to your wireless network.
To access the internet, download iFit workouts,
and use several other features of the console, the console must be connected to a wireless network.
Follow the prompts on the screen to connect the
console to your wireless network.
2. Customize settings.
Fill in the form on the screen to set the console to
display the desired unit of measurement and your time zone. Note: If you need to change these set­tings later, see HOW TO USE THE EQUIPMENT SETTINGS SECTION on pages 25.
3. Log into or create an iFit account.
Provide your email address, and follow the prompts
on the screen to sign up for or log into your iFit account.
4. Tour the console.
The first time you turn on the treadmill, dialogue
boxes on the screen will guide you through the features of the console.
5. Check for firmware updates.
First, touch your name in the upper-left corner.
Next, select the settings main menu. Then, select the maintenance section, touch the Calibrate Incline button, and then touch the Begin button to calibrate the incline system. See step 4 on page 26 for more information.
The console is now ready for you to begin working out. The following pages explain the various workouts and other features that the console offers.
To use the manual mode, see page 21. To use a map workout, see page 23. To use a draw your own map workout, see page 23. To use a distance or time workout, see page 24.
To use the workout settings section, see page 25. To use the equipment settings section, see page 25. To use the maintenance section, see page 26. To use the wireless network mode, see page 26. To use the sound system with a Bluetooth® device, see page 27. To use the sound system with an audio cable, see page 27. To adjust the cushions, see
page 28.
IMPORTANT: If there are sheets of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time you use the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 32).
First, touch your name in the upper-left corner and
touch the Settings button. Next, select the main­tenance section. Then, touch the Update button to check for firmware updates using your wireless network. See HOW TO USE THE MAINTENANCE SECTION on page 26 for more information.
20
HOW TO USE THE MANUAL MODE
4. Change the incline of the treadmill as desired.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 19. Note: It may take some time for the console to be ready for use.
2. Select the main menu.
When you turn on the power, the main menu will
appear after the console boots up. If you are in a workout or the settings menu, touch the back arrow or the x on the screen to return to the main menu.
Note: If you plan to use a chest heart rate moni-
tor with the console while you exercise, you must put on the chest heart rate monitor before you start the walking belt. The console will automati­cally search for the chest heart rate monitor for 30 seconds when you start the walking belt at the beginning of each workout.
3. Start the walking belt and adjust the speed.
Touch the Manual Start button in the upper-right
corner of the screen or press the Start button on the console to start the walking belt. The walk­ing belt will begin to move at a low speed. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press one of the buttons, the speed setting will change in small increments; if you hold down the button, the speed setting will change more quickly.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of the numbered incline buttons. Each time you press one of the buttons, the incline will gradually change until it reaches the selected incline setting.
IMPORTANT: The first time you use the tread-
mill, you must calibrate the incline system (see step 4 on page 26).
5. Monitor your progress with the display modes.
The console offers several display modes. The
display mode that you select will determine which workout information is shown. To select the desired display mode or to view statistics and charts, drag down on the screen. You can also touch the + but­ton in the lower-right corner of the screen to view stats or charts.
As you walk or run on the treadmill, the screen can
show the following workout information:
• The incline level of the treadmill
• Your vertical gain
• Your vertical loss
• The elapsed time
• The approximate number of calories you have burned
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it reaches the selected speed setting.
To stop the walking belt, press the Stop button or
tap the middle of the screen. To restart the walking belt, press the Start button.
• The approximate number of calories you are burning per hour
• Your heart rate (see step 6)
• Your average heart rate
• The distance that you have walked or run
21
• Your pace
• The speed of the walking belt
• The average speed of the walking belt
• A track representing 400 m (1/4 mile)
To measure your heart rate, stand on the foot
rails and hold the contacts with your palms for approximately ten seconds; avoid moving your hands. When your pulse is detected, your heart rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for about 15 seconds.
If desired, adjust the volume by pressing the
volume buttons on the console.
To pause the workout, tap the screen or press the
Stop button on the console. To continue the work­out, touch the Resume button or the Start button. To end the workout, touch the Finish button.
6. Measure your heart rate if desired.
If you use a chest heart rate monitor, you must put
it on before you start the walking belt. The con­sole will automatically search for the chest heart rate monitor for 30 seconds when you start the walking belt at the beginning of each workout.
Note: If you use the handgrip heart rate monitor
and a chest heart rate monitor at the same time, the chest heart rate monitor will have priority.
For information about purchasing an optional
chest heart rate monitor, see page 28. Note: The
console is compatible with Bluetooth® Smart heart rate monitors.
Before using
the handgrip heart rate monitor, remove the sheets of plastic from the metal contacts (C). In addition, make sure that your hands are clean.
C
7. Turn on the fan if desired.
The fan features several speed
settings. Press the fan buttons repeatedly to select a fan speed or to turn on or turn off the fan.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and press the Stop
button on the console or tap on the screen. Next, touch the End button. A workout summary will appear on the screen. If you wish to save your workout for future use, you can add it as a favor­ite by touching the heart button in the upper-right corner of the screen. You may also be able to either save or publish your results using one of the options on the screen. Then, remove the key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
22
HOW TO USE A MAP WORKOUT
5. Monitor your progress with the display modes.
Note: To use a map workout, the console must be con­nected to a wireless network (see HOW TO USE THE WIRELESS NETWORK MODE on page 26).
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 19.
2. Select the main menu or the workout library.
Touch the Home or Browse buttons on the screen
to select either the main menu or the workout library.
3. Select a workout.
To select a workout, touch the desired button on
the screen. Note: The featured map workouts on your console will change periodically. If you wish to save your workout for future use, you can add it as a favorite by touching the heart button in the upper­right corner of the screen. You may also be able to either save or publish your results using one of the options on the screen. To draw your own map workout, see this page.
The screen will show the duration and distance of
the workout and the approximate number of calo­ries you will burn during the workout.
See step 5 on page 21.
6. Measure your heart rate if desired.
See step 6 on page 22.
7. Turn on the fan if desired.
See step 7 on page 22.
8. When you are finished exercising, remove the
key from the console.
See step 8 on page 22.
HOW TO USE A DRAW YOUR OWN MAP WORKOUT
Note: To use a draw your own map workout, the console must be connected to a wireless network (see HOW TO USE THE WIRELESS NETWORK MODE on page 26).
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 19.
2. Select a draw your own map workout.
4. Start the workout.
Touch the Start button to start the workout. A
moment after you touch the button, the walking belt will begin to move. Hold the handrails and begin walking.
During the workout, a map on the screen will show
your progress.
The workout will function in the same way as the
manual mode (see pages 21 to 22).
When you reach the end of the workout, the
walking belt will slow to a stop, and a workout summary will appear on the screen. After you view the workout summary, touch the Finish button to return to the main menu. You may also be able to either save or publish your results using one of the options on the screen.
To select a draw your own map workout, touch the
Create button on the screen.
3. Draw your map.
Navigate to the area on the map where you want
to draw your workout by sliding your fingers on the screen. Tap the screen to add the start point for your workout. Then, tap the screen to add the end point for your workout. Note: If you want to start and end the workout at the same point, use the Loop or Out & Back buttons on the left side of the screen. You can also select whether you want your workout to snap to the road.
23
If you make a mistake, you can use the Undo but-
ton on the left side of the screen.
The screen will display the elevation and distance
statistics for your workout. If desired, you can change the default speed.
HOW TO USE A DISTANCE OR TIME WORKOUT
Note: To use a distance or time workout, the console must be connected to a wireless network (see HOW TO USE THE WIRELESS NETWORK MODE on page 26). An iFit account is also required.
4. Save your workout.
Touch the Save New Workout button in the lower-
left corner of the screen. If desired, change the title of the workout or add a description, and then press the > symbol on the screen.
5. Start the workout.
Touch the Start button on the screen to start the
workout. A moment after you touch the button, the walking belt will begin to move. Hold the handrails and begin walking. See step 4 on page 23 for more information.
6. Monitor your progress with the display modes.
See step 5 on page 21.
7. Measure your heart rate if desired.
See step 6 on page 22.
8. Turn on the fan if desired.
See step 7 on page 22.
9. When you are finished exercising, remove the key from the console.
See step 8 on page 22.
1. Add workouts to your schedule on iFit.com.
On your computer, smartphone, tablet, or other
device, open an internet browser, go to iFit.com, and sign in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined will appear on your schedule; you can arrange or delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
2. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 19.
3. Select the main menu.
See step 2 on page 21.
4. Log in to your iFit account.
If you have not already done so, touch the Login
button to log in to your iFit account. The screen will ask for your iFit.com username and password. Enter them and touch the Submit button. Touch the Cancel button to exit the login screen.
24
5. Select a distance or time workout that you have previously added to your schedule on iFit.com.
Touch the calendar icon to download a distance or
time workout from your schedule.
Note: Before workouts will download, you must
add them to your schedule on iFit.com.
When you select a distance or time workout, the
screen will show the name, the estimated duration, and the distance of the workout.
HOW TO USE THE WORKOUT SETTINGS SECTION
1. Select the settings main menu.
Insert the key into the console (see HOW TO
TURN ON THE POWER on page 19). Next, select the main menu (see step 2 on page 21). Then, touch your name in the upper-left corner of the screen, and touch the gears button to select the settings main menu.
2. Select the workout section.
6. Start the workout.
Touch the Start button to start the workout. A
moment after you touch the button, the walking belt will begin to move. Hold the handrails and begin walking.
When you reach the end of the workout, the
walking belt will slow to a stop, and a workout summary will appear on the screen. After you view the workout summary, touch the Finish button to return to the main menu. You may also be able to either save or publish your results using one of the options on the screen.
7. Monitor your progress with the display modes.
See step 5 on page 21. The screen will show the
elapsed distance or time and the remaining dis­tance or time.
8. Measure your heart rate if desired.
See step 6 on page 22.
9. Turn on the fan if desired.
See step 7 on page 22.
10. When you are finished exercising, remove the key from the console.
See step 8 on page 22.
For more information about iFit, go to iFit.com.
In the settings main menu, scroll to the Workout
section.
3. Customize settings.
To customize settings, touch the desired category,
and then touch the toggle button at the side of the category name.
4. Exit the workout section.
To exit the workout section, touch the back button
on the screen.
HOW TO USE THE EQUIPMENT SETTINGS SECTION
1. Select the settings main menu.
See step 1 above.
2. Select the equipment settings section.
In the settings main menu, scroll to the Equipment
Settings section. Note: Slide or flick the screen to scroll up or down through the options if necessary.
3. Customize the unit of measurement and other settings.
To customize the unit of measurement, timezone,
or other settings, touch the desired category, and then touch the toggle button at the side of the cat­egory name.
25
4. View machine information.
4. Calibrate the incline system of the treadmill.
Touch the Machine Info button to view information
about your treadmill. After you view the information, touch the back button on the screen.
5. Exit the equipment settings section.
To exit the equipment settings section, touch the
back button on the screen.
HOW TO USE THE MAINTENANCE SECTION
1. Select the settings main menu.
See step 1 on page 25.
2. Select the maintenance section.
In the settings main menu, scroll to the
Maintenance section.
3. Update the console firmware.
For the best results, regularly check for
firmware updates.
Touch the Calibrate Incline button. Then, touch the
Begin button to calibrate the incline system. The treadmill will automatically rise to the maximum incline level, lower to the minimum incline level, and then return to the starting position. This will calibrate the incline system. Touch the Cancel button to return to the Maintenance section. When the incline system is calibrated, touch the Finish button.
IMPORTANT: Keep pets, feet, and other objects
away from the treadmill while the incline sys­tem is calibrating. In an emergency, pull the key from the console to stop the incline calibration.
5. Exit the maintenance section.
To exit the maintenance section, touch the back
button on the screen.
HOW TO USE THE WIRELESS NETWORK MODE
The console features a wireless network mode that allows you to set up a wireless network connection.
Touch the Update button to check for firmware
updates using your wireless network. The update will begin automatically.
IMPORTANT: To avoid damaging the treadmill,
do not turn off the power or remove the key while the firmware is being updated.
The screen will show the progress of the update.
When the update is complete, the treadmill will turn off and then turn back on. If it does not, press the power switch into the off position, wait for several seconds, and then press the power switch into the reset position. Note: It may take a few minutes for the console to be ready for use.
Note: Occasionally, a firmware update may cause
the console to function slightly differently. These updates are always designed to improve your exer­cise experience.
1. Select the main menu.
See step 2 on page 23.
2. Select the wireless network mode.
Touch your name in the upper-left corner of the
screen, then touch the Wi-Fi® symbol to enter the wireless network mode.
3. Enable Wi-Fi.
Make sure that Wi-Fi is enabled. If it is not, touch
the Wi-Fi toggle to enable a wireless connection.
4. Set up and manage a wireless network connection.
When Wi-Fi is enabled, the screen will show a list
of available networks. Note: It may take several seconds for the list of wireless networks to appear.
26
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast enabled (hidden networks are not supported).
When a list of networks appears, touch the desired
network. Note: You will need to know your network name (SSID). If your network has a password, you will also need to know the password.
An information box will ask if you want to connect
to the wireless network. Touch the Connect button to connect to the network or touch the Cancel but­ton to return to the list of networks. If the network has a password, touch the password entry box. A keyboard will appear on the screen. To view the password as you type it, touch the Show Password checkbox.
To use the keyboard, see HOW TO USE THE
TOUCH SCREEN on page 19.
When the console is connected to your wireless
network, a checkmark will appear next to the wire­less network name. Then, touch the back button on the screen to return to the wireless network mode.
To disconnect from a wireless network, touch and
hold the name of the wireless network, and then touch the Forget Network button.
HOW TO USE THE SOUND SYSTEM WITH A BLUETOOTH DEVICE
1. Place or hold your Bluetooth-enabled device near the console.
2. Turn on your device’s Bluetooth setting.
3. Pair your device to the console.
Press and hold the Bluetooth button on the con-
sole’s speaker grill for 3 seconds. The Bluetooth
speakers will enter pairing mode. When your device and the console pair successfully, the audio
from your device will play through the console’s
speakers.
Note: The console can save eight devices in its
memory. If you have previously paired your device to the console, you can simply press the Bluetooth button to connect your device to the console.
4. Erase the console’s device memory if
necessary.
If you need to erase all the Bluetooth-enabled
devices saved in the console’s memory, press and
hold the Bluetooth button for 10 seconds.
If you are having problems connecting to an
encrypted network, make sure that your password is correct. Note: Passwords are case-sensitive.
Note: The console supports unsecured and
secured (WEP, WPA™, and WPA2™) encryption. A broadband connection is recommended; perfor­mance depends on connection speed.
Note: If you have questions after following
these instructions, go to support.iFit.com for assistance.
5. Exit the wireless network mode.
To exit the wireless network mode, touch the back
button on the screen.
HOW TO USE THE SOUND SYSTEM WITH AN AUDIO CABLE
To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your personal audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see your local electronics store.
Next, press the play button on your personal audio player. Adjust the vol­ume level using the volume increase and decrease buttons on the console or the volume control on your per­sonal audio player.
27
THE OPTIONAL CHEST HEART RATE MONITOR
HOW TO ADJUST THE CUSHIONS
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all Bluetooth Smart heart rate monitors.
The treadmill features a cushioning system that reduces the impact as you walk or run on the treadmill.
To adjust the cushions, rst remove the key from the console and unplug the power cord. You may also need to place the treadmill in the storage position (see HOW TO FOLD THE TREADMILL on page 29).
For a more rm walking platform, turn a cushion to the position shown in drawing 1; for a less rm walking
platform, turn the cushion to the position shown in drawing 2. Adjust the other cushions in the same way.
IMPORTANT: Make sure that the cushions on the left and right sides of the treadmill are set to the same firmness level. The faster you run on the treadmill, or the more you weigh, the firmer the walking platform should be.
1 2
More firm
Less firm
28
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline to zero before you fold the treadmill. Then, remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame (A) rmly in the location
shown by the arrow below. CAUTION: Do not hold
the frame by the plastic foot rails. Bend your legs and keep your back straight.
1
A
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the storage latch is
in the locked position. Moving the treadmill may require two people.
Hold the handrails (C) with both hands and carefully push the treadmill to the desired location. CAUTION:
Do not pull on the frame, and do not move the treadmill over an uneven surface.
C
2. Raise the frame (A) until the storage latch (B) locks
in the storage position. CAUTION: Make sure that
the storage latch locks.
2
A
B
To protect the oor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in tem­peratures above 85°F (30°C).
HOW TO LOWER THE TREADMILL FOR USE
1. Push the upper end of the frame forward, and gently press the upper part of the storage latch with your foot at the same time.
2. While pressing the storage latch with your foot, pull the upper end of the frame toward yourself.
3. Step back and let the frame lower to the floor.
1
2
29
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal per­formance and to reduce wear. Inspect and properly tighten all parts each time the treadmill is used. Replace any worn parts immediately.
Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into the off position and unplug the power cord. Wipe exte­rior parts of the treadmill with a damp cloth and a small amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Most treadmill problems can be solved by follow­ing the simple steps below. Find the symptom that applies, and follow the steps listed. If further assis­tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
properly earthed outlet (see page 17). If an exten­sion cord is needed, use only a 3-conductor, 14-gauge (2 mm2) cord that is no longer than 5 ft. (1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The incline of the treadmill does not change correctly
a. Calibrate the incline system of the treadmill (see
step 4 on page 26). When the incline system is calibrated, remove the key from the console.
SYMPTOM: The treadmill will not connect to the wireless network
a. Make sure that the wireless settings on the console
are correct (see page 26).
b. Make sure that the settings for your wireless net-
work are correct.
c. If you still have questions, go to support.iFit.com.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.
c
Tripped
Reset
30
SYMPTOM: The displays of the console do not function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Next, remove the ve #8 x
3/4" Screws (2), and carefully pivot off the Motor Hood (65).
a
65
2
Next, locate the Reed Switch (116) and the Magnet
(114) on the left side of the Pulley (49). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8 in. (3 mm). If necessary, loosen the #8 x 3/4" Pan
Head Screw (111), move the Reed Switch slightly, and then retighten the Pan Head Screw. Reattach the Motor Hood (see above), and walk on the treadmill for a few minutes to check for a correct speed reading.
2
2
2
b. If the console does not boot up properly, or
if the console freezes and does not respond, reset the console to the factory default settings.
IMPORTANT: Doing this will erase all the custom settings you have made to the console.
Resetting the console requires two people. First, press the power switch into the off position. Next, locate the small reset opening (A) on the right side of the console. Using a bent paper clip (B), press and hold the reset button inside the opening, and have a second person press the power switch into the on position. Continue holding the reset button until the console turns on. When the reset operation is complete, the console will turn off and then turn back on. If it does not, use the power switch to turn the treadmill off and then on again. Once the console turns on, check for firmware updates (see HOW TO USE THE MAINTENANCE SECTION on page 26). Note: It may take a few minutes for the console to be ready for use.
b
Top
View
116
111
1/8 in.
A
B
49
114
31
SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-conduc-
tor, 14-gauge (2 mm2) cord that is no longer than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws (C) counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
b
2–3 in.
SYMPTOM: The walking belt is not centered between the foot rails
a. IMPORTANT: If the walking belt rubs against
the foot rails (D), the walking belt may become damaged. First, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the
left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and walk on the treadmill for a few minutes. Repeat until the walking belt is centered.
a
D
D
C
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deterio­rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walk­ing belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and walk on the treadmill for a few minutes. Repeat until the walking belt is prop­erly tightened.
a
32
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for persons over age 35 or persons with pre-existing health problems.
The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determin­ing heart rate trends in general.
These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper inten­sity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exer­cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 min­utes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.
To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the near­est ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretch­ing. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.
33
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. NETL10819.0 R0519A
1 14 #8 x 1/2" Screw 2 75 #8 x 3/4" Screw 3 1 5/16" x 2 1/4" Bolt 4 6 5/16" x 3/4" Patch Screw 5 4 #10 Star Washer 6 5 5/16" x 1 3/4" Bolt 7 4 3/8" x 2 1/4" Screw 8 2 5/16" x 3/4" Screw 9 4 #10 x 3/4" Screw 10 2 #8 x 1/2" Ground Screw 11 12 5/16" Star Washer 12 2 5/16" x 1 3/4" Screw 13 8 3/8" Star Washer 14 2 #8 x 1" Screw 15 3 1/4" x 2 1/2" Screw 16 1 3/8" x 1 1/2" Bolt 17 2 3/8" x 1 1/2" Wheel Bolt 18 2 Cover Bracket 19 4 #8 x 7/16" Screw 20 2 5/16" Motor Screw 21 2 3/8" Pin 22 2 3/8" x 1 1/8" Bolt 23 2 3/8" Washer 24 2 #8 Star Washer 25 1 Left Handrail Cover 26 1 Right Handrail Cover 27 1 Small Console Cover 28 4 5/16" x 2 1/2" Screw 29 1 3/8" x 1 3/4" Hex Head Bolt 30 4 5/16" Flat Washer 31 1 Tray 32 1 Console Frame 33 6 3/8" Jam Nut 34 6 5/16" Nut 35 13 1/4" Nut 36 1 Console Base Cover 37 8 #8 x 5/8" Screw 38 1 Console Cover 39 6 Isolator 40 2 Rear Foot 41 1 Latch Crossbar 42 1 Left Foot Rail 43 1 Caution Decal 44 1 Walking Platform 45 1 Walking Belt 46 2 Belt Guide 47 1 Right Rear Foot 48 4 Cable Tie 49 1 Drive Roller/Pulley 50 2 1/4" x 1 1/4" Screw
51 2 9/32" Plastic Bushing 52 4 3/8" Plastic Bushing 53 1 Storage Latch 54 1 Drive Motor 55 1 Motor Belt 56 1 Frame 57 1 Left Rear Foot 58 3 Console Ground Wire 59 4 Rubber Cushion 60 1 Right Foot Rail 61 1 Idler Roller 62 2 3/8" x 1 3/4" Screw 63 2 3/8" x 1 1/4" Screw 64 1 Console Base 65 1 Motor Hood 66 1 Hood Accent 67 2 Incline Frame Spacer 68 5 Clip 69 1 Incline Motor 70 1 Incline Frame 71 2 Frame Spacer 72 1 Controller 73 1 Controller Plate 74 1 Receptacle 75 1 Power Switch 76 1 Power Cord 77 1 Grommet 78 1 Belly Pan 79 1 Left Rear Handrail Cover 80 1 Console 81 1 Upright Wire 82 1 Left Base Cover 83 1 Right Base Cover 84 1 Controller Clamp 85 1 Right Rear Handrail Cover 86 2 Handrail 87 1 Left Outside Handrail Cover 88 1 Left Inside Handrail Cover 89 1 Left Upright 90 1 Right Upright 91 2 Warning Decal 92 1 Fan 93 1 Pulse Crossbar 94 1 Base 95 1 Right Inside Handrail Cover 96 1 Right Outside Handrail Cover 97 2 Base Pad 98 4 #3 x 1/2" Screw 99 1 Left Inner Base Cover 100 1 Right Inner Base Cover
34
Key No. Qty. Description Key No. Qty. Description
101 4 Wheel 102 1 Key/Clip 103 1 Console Base Frame 104 6 Cable Tie 105 1 Upright Crossbar 106 2 Incline Motor Spacer 107 1 Pulse Cover 108 5 #8 x 1/2" Washer Head Screw 109 2 Plastic Snap 110 2 #8 x 5/8" Pan Head Screw 111 1 #8 x 3/4" Pan Head Screw
Note: Specications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.
112 3 #8 x 1/2" Machine Screw 113 3 #8 Nut 114 1 Magnet 115 1 Clip 116 1 Reed Switch 117 2 Motor Bushing 118 1 Filter 119 1 Motor Isolator 120 1 Ferrite Clamp
* User’s Manual
35
2
EXPLODED DRAWING A
Model No. NETL10819.0 R0519A
108
111
24
49
19
37
112
50
35
51
35
21
37
59
30
35
34
48
53
119
54
55
3
34
6
46
19
35
34
1
39
37
35
11
37
41
4
39
35
1
39
35
1
37
108
15
6
60
112
73
84
118
108
114
21
51
59
112
34
30
113
20
117
116
50
115
6
42
35
46
37
39
1
35
39
1
35
11
45
35
6
4
35
44
37
43
61
39
1
35
37
6
15
59
30
34
40
56
59
30
15
34
40
57
47
2
2
2
2
36
EXPLODED DRAWING B
Model No. NETL10819.0 R0519A
2
71
68
66
67
52
23
70
33
16
106
29
68
69
2
68
2
68
65
68
33
33
23
52
33
67
2
72
2
2
75
74
2
2
2
2
71
76
78
37
EXPLODED DRAWING C
2
Model No. NETL10819.0 R0519A
86
79
25
28
2
2 18
1
1
11
109
110 11
1
4
87
88
109
2
2
107
58
9
5
89
93
2
105
10
2
2
2
2
2
2
4
11
85
2
9
5
110
2
2
28
11
102
81
26
95
96
2
2
101
82
17
33
99
63
22
91
13
52
13
13
101
62
86
81
100
1
120
83
18
97
91
52
62
22
2
13
77
13
10
90
101
7
13
7
13
63
1
7
4
11
1
97 2
94
33
101
17
38
EXPLODED DRAWING D
Model No. NETL10819.0 R0519A
64
80
2
2
92
98
98
2
2
2
12
2
38
2
2
11
8
2
2
2
2
2
103
32
2
2
31
2
12
11
104
2
2
2
104
104
14
2
2
36
2
27
2
2
2
2
2
2
8
39
2
14
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.
Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.
Part No. 412005 R0519A Printed in China © 2019 ICON Health & Fitness, Inc.
Loading...
