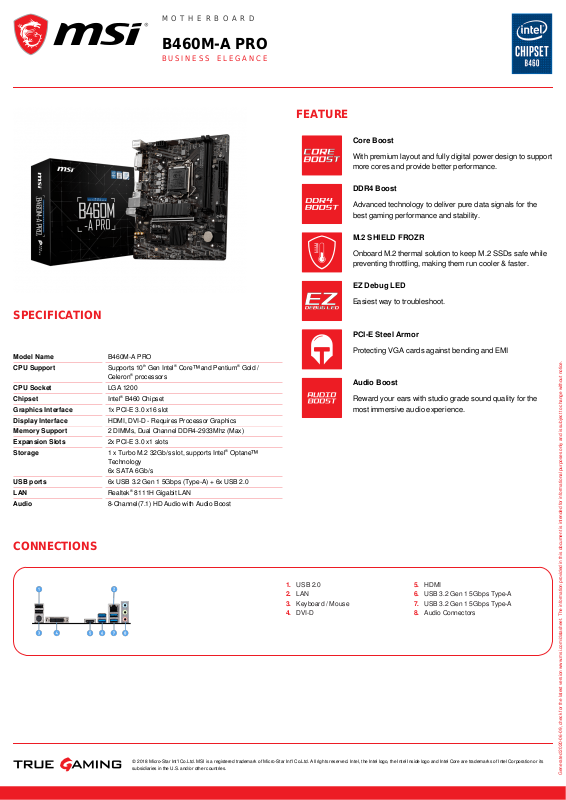

MOTHERBOARD

B460M-A PRO

BUSINESS ELEGANCE

FEATURE

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost

Advanced technology to deliver pure data signals for the best gaming performance and stability.

M.2 SHIELD FROZR

Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.

EZ Debug LED

SPECIFICATION

Model Name B460M-A PRO

CPU Support

CPU Socket LGA 1200

Chipset

Graphics Interface 1x PCI-E 3.0 x16 slot

Display Interface HDMI, DVI-D - Requires Processor Graphics

Memory Support 2 DIMMs, Dual Channel DDR4-2933Mhz (Max)

Expansion Slots 2x PCI-E 3.0 x1 slots

Storage

USB ports 6x USB 3.2 Gen 1 5Gbps (Type-A) + 6x USB 2.0

LAN

Audio 8-Channel(7.1) HD Audio with Audio Boost

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors

Intel® B460 Chipset

1 x Turbo M.2 32Gb/s slot, supports Intel® Optane™ Technology 6x SATA 6Gb/s

Realtek® 8111H Gigabit LAN

CONNECTIONS

Easiest way to troubleshoot.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.

USB 2.01. LAN2. Keyboard / Mouse3. DVI-D4.

© 2018 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved. Intel, the Intel logo, the Intel Inside logo and Intel Core are trademarks of Intel Corporation or its

subsidiaries in the U.S. and/or other countries.

HDMI5. USB 3.2 Gen 1 5Gbps Type-A6. USB 3.2 Gen 1 5Gbps Type-A7. Audio Connectors8.

Generated 2020-06-09, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
