MSI B75MA-P33 User Manual [en, ru, de, fr]

0 (0)

MS-7808

B75MA-P33 series

MS-7808 (v2.x) Mainboard

G52-78081X4

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks in this manual are properties of their respective owners.

MSI® is registered trademark of Micro-Star Int’l Co.,Ltd.

NVIDIA® is registered trademark of NVIDIA Corporation.

ATI® is registered trademark of ATI Technologies, Inc.

AMD® is registered trademarks of AMD Corporation.

Intel® is registered trademarks of Intel Corporation.

Windows® is registered trademarks of Microsoft Corporation.

AMI® is registered trademark of American Megatrends, Inc.

Award® is a registered trademark of Phoenix Technologies Ltd.

Sound Blaster® is registered trademark of Creative Technology Ltd.

Realtek® is registered trademark of Realtek Semiconductor Corporation.

JMicron® is registered trademark of JMicron Technology Corporation.

Netware® is a registered trademark of Novell, Inc.

Lucid® is trademarks of LucidLogix Technologies, Ltd.

VIA® is registered trademark of VIA Technologies, Inc.

ASMedia® is registered trademark of ASMedia Technology Inc.

iPad, iPhone, and iPod are trademarks of Apple Inc.

Revision History

Revision



Revision History



Date

V2.0



First release for PCB 2.x



2013/ 01

























MS-7808

Safety Instructions

Always read the safety instructions carefully.

Keep this User Manual for future reference.

Keep this equipment away from humidity.

Lay this equipment on a reliable flat surface before setting it up.

The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings.

Make sure the voltage of the power source is at 110/220V before connecting.

Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

Always Unplug the Power Cord before inserting any add-on card or module.

All cautions and warnings on the equipment should be noted.

Never pour any liquid into the opening that can cause damage or cause electrical shock.

If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.

Liquid has penetrated into the equipment.

The equipment has been exposed to moisture.

The equipment does not work well or you can not get it work according to User Manual.

The equipment has been dropped and damaged.

The equipment has obvious sign of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60°C (140°F), IT MAY DAMAGE THE EQUIPMENT.

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/service/download/

Contact our technical staff at:

http://support.msi.com

FCC -B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/ television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D’NSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7808

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)this device may not cause harmful interference, and

(2)this device must accept any interference received, including interference that may cause undesired operation.

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

MS-7808

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment and its antenna should be installed and operated with minimum distance 20 cm between the radiator and your body. This equipment and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

European Community Compliance Statement

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0–300GHz). This wireless device complies with the R&TTE Directive.

Taiwan Wireless Statements

變更頻率、加大功率或變更原設計之特性及功能。

規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用 電波輻射性電機設備之干擾。

:

Japan VCCI Class B Statement

B

VCCIB

Korea Warning Statements

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

MSI B75MA-P33 User Manual
(Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE)

MS-7808

< >

(Battery)

/

(Cable/ Connector)

/ (Chassis/ Other)

( CD, DVD )

(Optical Disk Driver)

(Hard Disk Driver)

(PCAs)*

(I/O Device) ( Mouse, Keyboard )

(LCD Panel)

(Memory)

(Processor and Heatsink)

( CD DVD )

(Power Supply)

(Remote Control)

(Speakers)

(TV Tunner)

(Web Camera)

(Wireless Cards)

. * (PCB) IC

3.: SJ/T11363-2006

4.: SJ/T11363-2006EU RoHS

5.< >EPUP (Environmental Protection Use Period)

6.EPUP - (SJ/Z 11388-2009) EPUP ,

WEEE Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment”

cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these

products to local collection points.

DEUTSCH

Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt

Gemäß der Richtlinie 2002/96/EG über Elektround Elektronik-Altgeräte dürfen Elektround Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammelund Recyclingunternehmen beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS

En tant qu’écologiste et afin de protéger l’environnement, MSI tient à rappeler ceci...

Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits électriques et électroniques ne peuvent être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en fin de vie. MSI prendra en compte cette exigence relative au retour des produits en fin de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner localement ces matériels dans les points de collecte.

РУССКИЙ

Компания MSI предпринимает активные действия по защите окружающей среды, поэтому напоминаем вам, что....

В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы. MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.

MS-7808

ESPAÑOL

MSI como empresa comprometida con la protección del medio ambiente, recomienda:

Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/ o equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido con los términos de recogida de sus productos vendidos en la Unión Europea al final de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.

NEDERLANDS

Om het milieu te beschermen, wil MSI u eraan herinneren dat….

De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.

SRPSKI

Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini, MSI mora da vas podesti da…

Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.

POLSKI

Aby chronić nasze środowisko naturalne oraz jako firma dbająca o ekologię, MSI przypomina, że...

ZgodniezDyrektywąUniiEuropejskiej(“UE”)dotyczącąodpadówproduktówelektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.

TÜRKÇE

Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır:

Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/ EC Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.

ČESKY

Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje...

Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků 2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.

MAGYAR

Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az MSI emlékezteti Önt, hogy ...

Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket a legközelebbi gyűjtőhelyre viheti.

ITALIANO

Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che…. In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta.

10



MS-7808

Table of Content



English............................................................................

13

Getting start.............................................................................................

13

SPECIFICATIONS............................................................................................

14

REAR PANEL...................................................................................................

16

HARDWARE SETUP........................................................................................

16

BIOS Setup....................................................................................................

26

Install Windows XP Notes.....................................................................

35

.................................................................................

37

...........................................................................................................

37

..................................................................................................................

38

.........................................................................................................

40

...................................................................................................

40

BIOS .........................................................................................................

50

Windows XP .................................................................................

59

FrançaiS..........................................................................

61

Pour coMMencer......................................................................................

61

SPéCIFICATIONS............................................................................................

62

Panneau arrière.......................................................................................

64

inSTaLLaTion Du MaTérieL.......................................................................

64

Réglage bios...............................................................................................

74

Remarques d’Installion Windows XP................................................

83

Deutsch...........................................................................

85

eINLEITUNG....................................................................................................

85

SPEZIFIKATIONEN..........................................................................................

86

Hinteres Anschlusspanel.....................................................................

88

HARDWARE SETUP........................................................................................

88

BIOS Setup....................................................................................................

98

Hinweise zur Windows XP-Installation..........................................

107

Русский.........................................................................

109

Подготовка к работе............................................................................

109

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ..........................................................

110

ЗАДНЯЯ ПАНЕЛЬ.........................................................................................

112

НАСТРОЙКА АППАРАТНОГО ОБЕСПЕЧЕНИЯ........................................

112

Настройка BIOS........................................................................................

122

Замечания по установке Windows XP...........................................

131

11

............................................................................

133

................................................................................................................

133

................................................................................................................

134

.........................................................................................................

136

.........................................................................................................

136

BIOS .......................................................................................................

146

Windows XP ...............................................................................

155

............................................................................

157

................................................................................................................

157

................................................................................................................

158

................................................................................................................

160

.........................................................................................................

160

BIOS .......................................................................................................

170

Windows XP ...............................................................................

179

...............................................................................

181

.........................................................................................................

181

.......................................................................................

182

I/O ........................................................................................................

184

............................................................................

184

BIOS ....................................................................................................

194

Windows XP ....................................................

203

12

MS-7808

English

Getting start

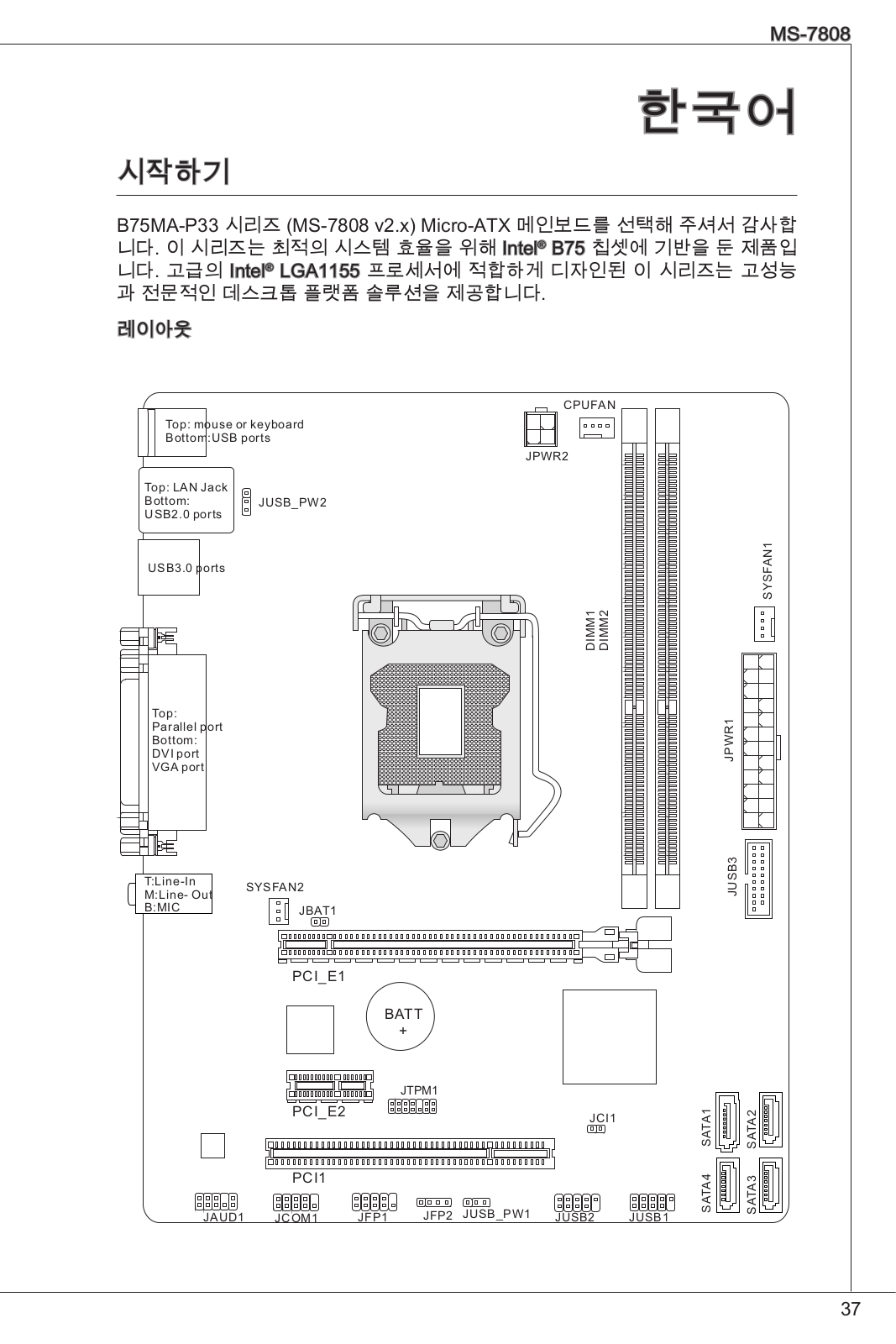

Thank you for choosing the B75MA-P33 series (MS-7808 v2.x) Micro-ATX mainboard. These series are designed based on Intel® B75 chipset for optimal system efficiency. Designed to fit the advanced Intel® LGA1155 processor, these series deliver a high performance and professional desktop platform solution.

Layout

CPUFAN

Top: mouse or keyboard

Bottom:USB ports

JPWR2

Top: LAN Jack Bottom: USB2.0 ports

USB3.0 ports

Top:

Parallel port

Bottom:

DVI port

VGA port

JUSB_PW2

DIMM2

DIMM1

T:Line-In

SYSFAN2

M:LineOut



B:MIC

JBAT1

PCI_E1

BATT

+

JUSB3 JPWR1

SYSFAN1

JTPM1



PCI_E2



JCI1













PCI1







JAUD1

JCOM1

JFP1

JFP2 JUSB_PW1 JUSB2

JUSB1

SATA1

SATA2

SATA4

SATA3

13

SPECIFICATIONS

Processor Support

Support 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket

Chipset

■ Intel® B75 chipset Memory Support

2x DIMMs support for DDR3-1066/1333/1600/1800*/2000*/2200*/2400* MHz(OC, 22nm CPU required) up to 16GB

Supports Dual-Channel mode

LAN

■ Supports LAN 10/ 100/ 1000 by Realtek® 8111E Audio

Chip integrated by Realtek® ALC887

Supports 8-channels audio out

Compliant with Azalia 1.0 Spec

SATA

1x SATA 6Gb/s port (SATA1) by Intel® B75

3x SATA 3Gb/s ports (SATA2~4) by Intel® B75

Connectors

Back panel

1x PS/2 mouse/ keyboard port

4x USB 2.0 ports

2x USB 3.0 ports

1x LAN jack

1x Parallel port

1x DVI-D port*, supporting a maximum resolution of 1920x1200

1x VGA port*, supporting a maximum resolution of 2048x1536

3x flexible audio jacks**

*(The DVI-D & VGA ports only work with Integrated Graphics Processor.) **(To reach the 8-channel sound effect, the 7th and 8th channels must be outputted from front panel.)

14

MS-7808

On-Board Connectors

2x USB 2.0 connectors

1x USB 3.0 connector

1x Front Panel Audio connector

1x Serial Port connector

1x TPM connector

1x Chassis Intrusion connector

2x USB Power jumpers

Slots

1x PCIe 3.0 x16 slot

1x PCIe 2.0 x1 slot

1x PCI slot

Form Factor

■ Micro-ATX (24.4 cm X 19.0 cm)

Mounting Screw Hole ■ 6 mounting holes

For the latest information about CPU, please visit

http://www.msi.com/service/cpu-support/

For more information on compatible components, please visit

http://www.msi.com/service/test-report/

If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address below http://www.msi.com/index.php

15

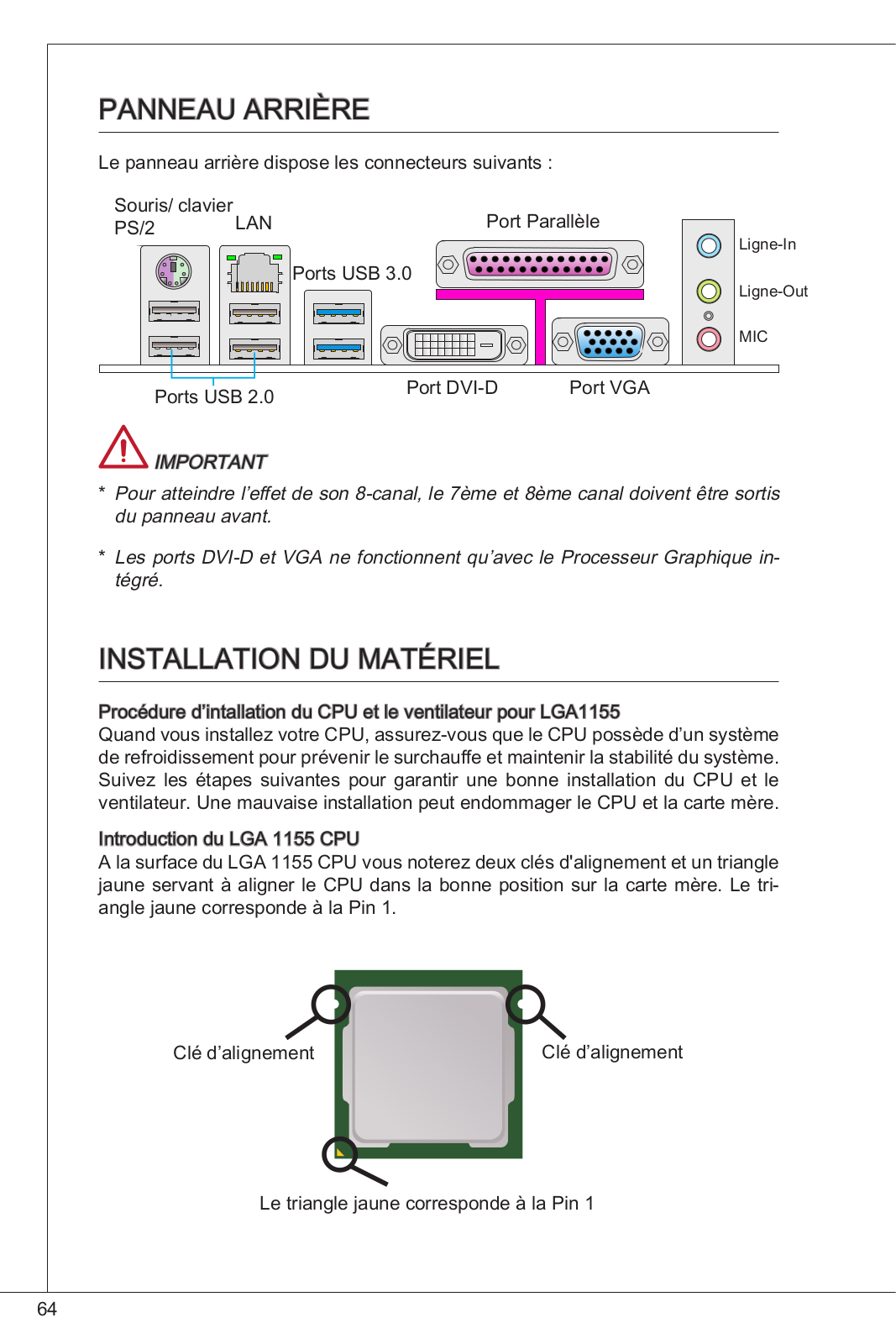

REAR PANEL

The rear panel provides the following connectors:



PS/2 mouse/

LAN

Parallel Port

keyboard







Line-In





USB 3.0 ports

Line-Out













MIC

USB 2.0 ports

DVI-D port

VGA port





Important

*To reach the 8-channel sound effect, the 7th and 8th channels must be output from front panel.

*The DVI-D & VGA ports only work with Integrated Graphics Processor.

HARDWARE SETUP

CPU & Cooler Installation for LGA1155

When installing a CPU, always remember to install a CPU cooler. A CPU cooler is necessary to prevent overheating and maintain system stability. Follow the steps below to ensure correct CPU and CPU cooler installation. Wrong installation can damage both the CPU and the mainboard.

Introduction to the LGA 1155 CPU

The surface of the LGA 1155 CPU has two alignment keys and a yellow triangle to assist in correctly lining up the CPU for mainboard placement. The yellow triangle is the Pin 1 indicator.

Alignment Key

Alignment Key

Yellow triangle is the Pin 1 indicator

16

MS-7808

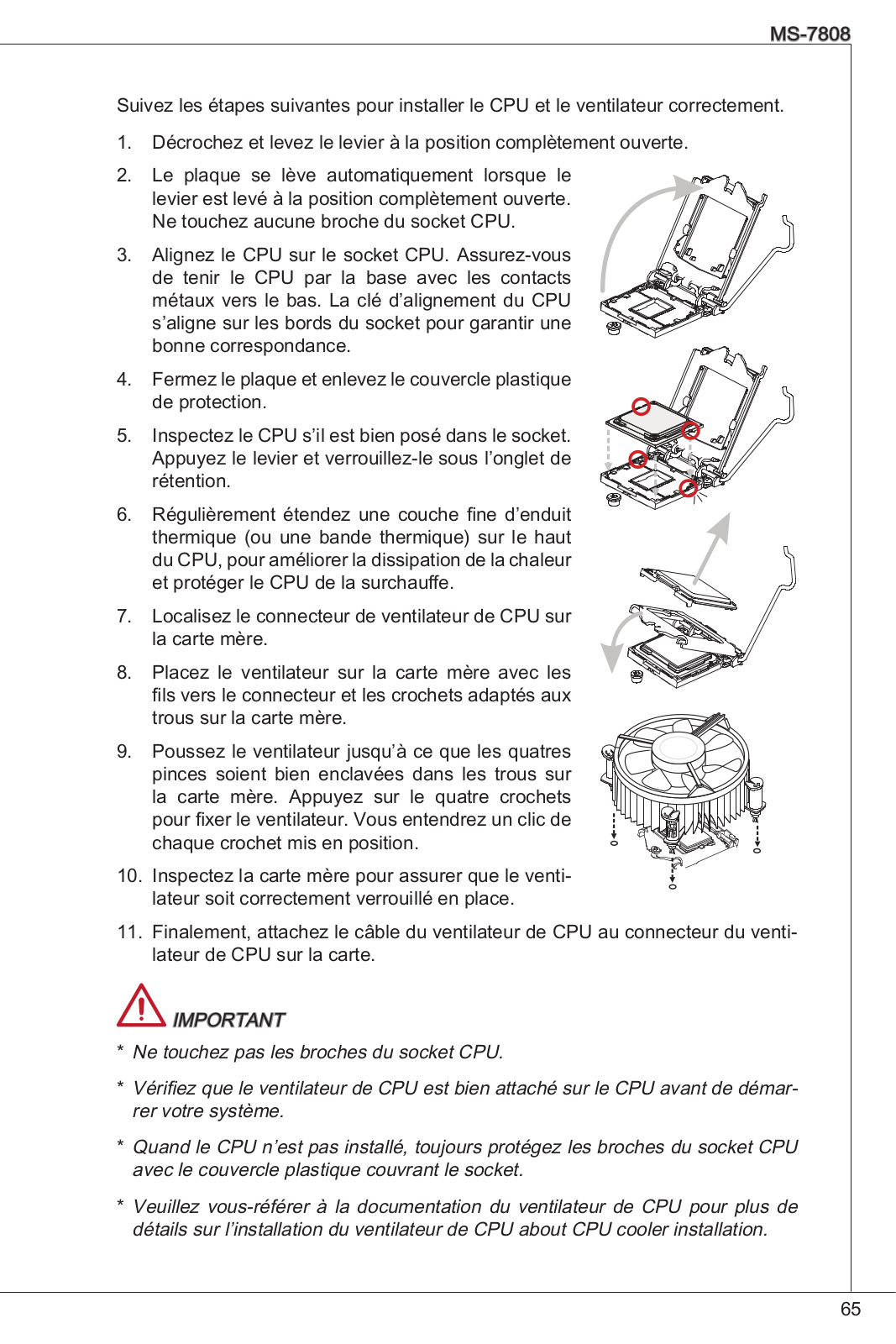

Follow the steps below to install the CPU & cooler correctly.. Unhook and lift the loading lever to the fully open position.

2. Theloadingplateshouldautomaticallyliftupasthe loading lever is pushed to the fully open position. Do not touch any of the CPU socket pins.

3. Line up the CPU to fit the CPU socket. Be sure to hold the CPU by the base with the metal contacts facing downward. The alignment keys on the CPU

will line up with the edges of the CPU socket to ensure a correct fit.

4. Close the loading plate and remove the plastic protective cap.

5. Inspect the CPU to check if it is properly seated in the socket. Press the loading lever down and lock it under the retention tab.

6.Evenly spread a thin layer of thermal paste (or

thermal tape) on the top of the CPU. This will help in heat dissipation and prevent CPU overheating.

7. Locate the CPU fan connector on the mainboard.

8. Place the heatsink on the mainboard with the fan’s wires facing towards the fan connector and the hooks matching the holes on the mainboard.

9. Push down on the heatsink until the four clips get wedged into the holes on the mainboard. Press the four hooks down to fasten the cooler. As each hook locks into position a click should be heard.

0. Inspect the mainboard to ensure that the clip-ends have been properly locked in place.

. Finally, attach the CPU fan cable to the CPU fan connector on the mainboard.

Important

*Do not touch the CPU socket pins.

*Confirm that the CPU cooler has formed a tight seal with the CPU before booting your system.

*Whenever the CPU is not installed, always protect the CPU socket pins by covering the socket with the plastic cap.

*Please refer to the documentation in the CPU cooler package for more details about CPU cooler installation.

17

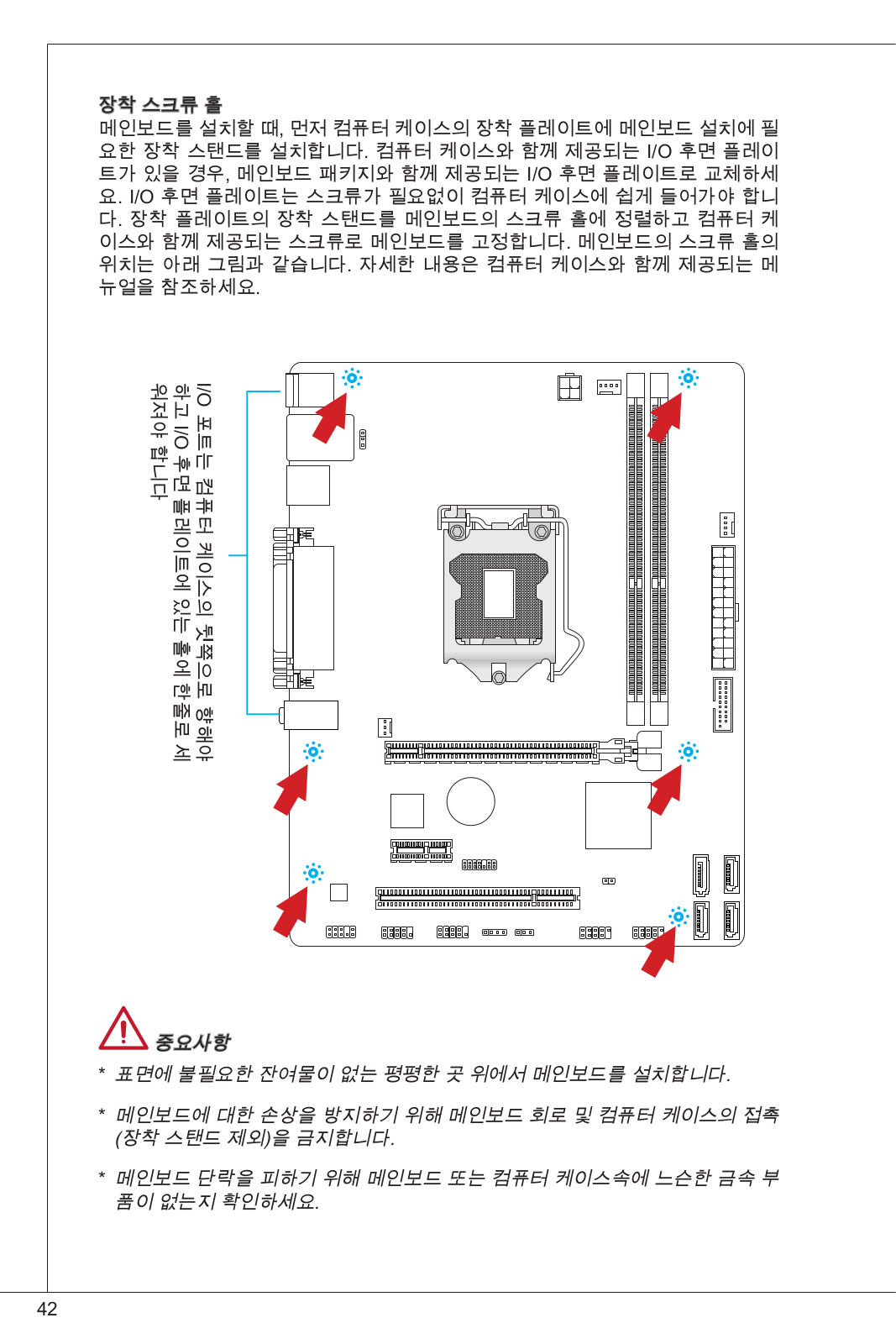

Mounting Screw Holes

When installing the mainboard, first install the necessary mounting stands re-

quired for a mainboard on the mounting plate in your computer case. If there is an I/ObackplateO/back plate that came with the computer case, please replace it with the I/O I backplate that came with the mainboard package. The I/O backplate should snap

easily into the computer case without the need for any screws. Align the mounting plate’s.mounting stands with the screw holes on the mainboard and secure the mainboard with the screws provided with your computer case. The locations of the screw holes on the mainboard are shown below. For more information, please refer to the manual that came with the computer case.

the toward facing be should portsIO/ The line should heyT .case computer the of rear the on holes the with up

Important

*Install the mainboard on a flat surface free from unnecessary debris.

*To prevent damage to the mainboard, any contact between the mainboard circuitry and the computer case, except for the mounting stands, is prohibited.

*Please make sure there are no loose metal components on the mainboard or within the computer case that may cause a short circuit of the mainboard.

18

MS-7808

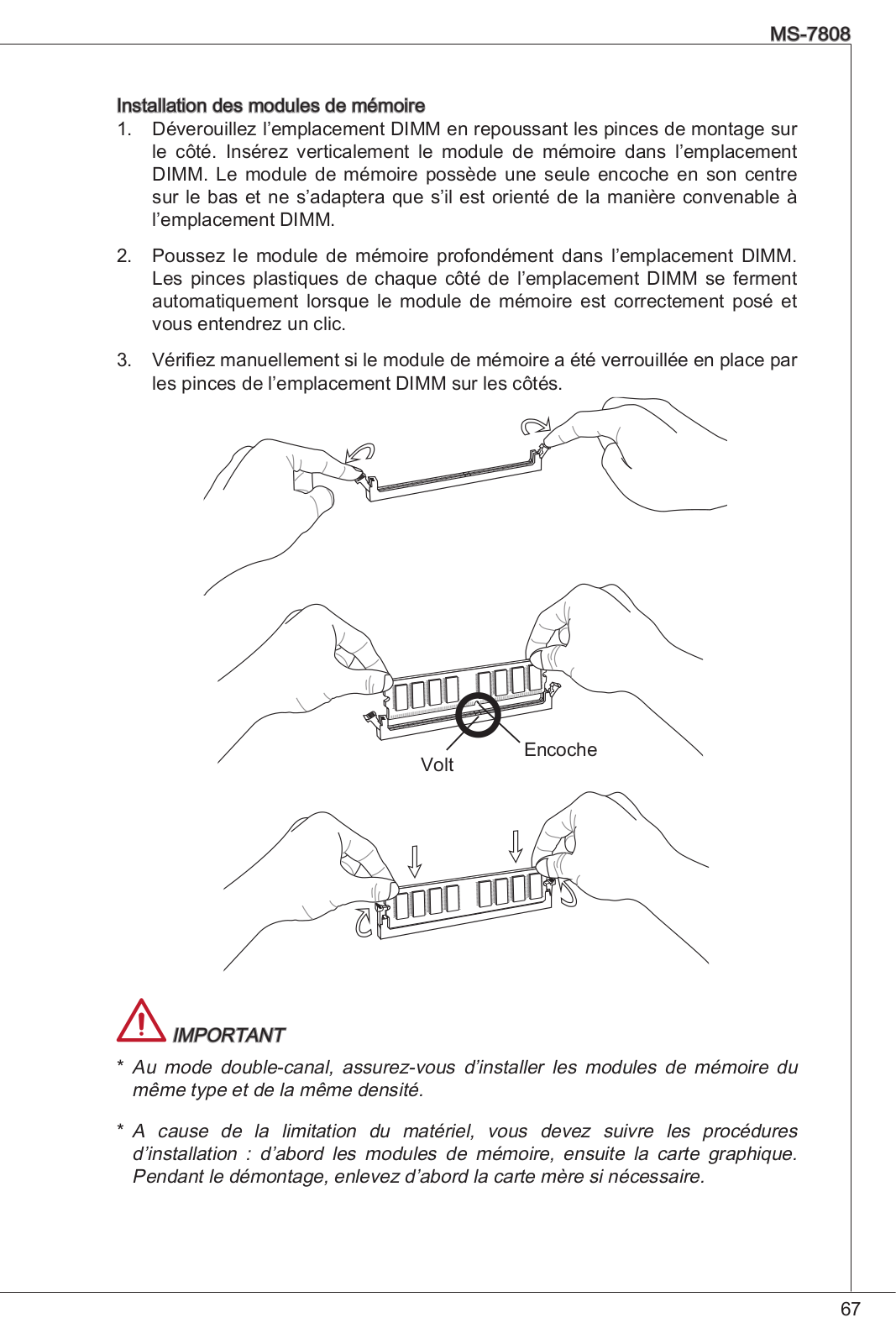

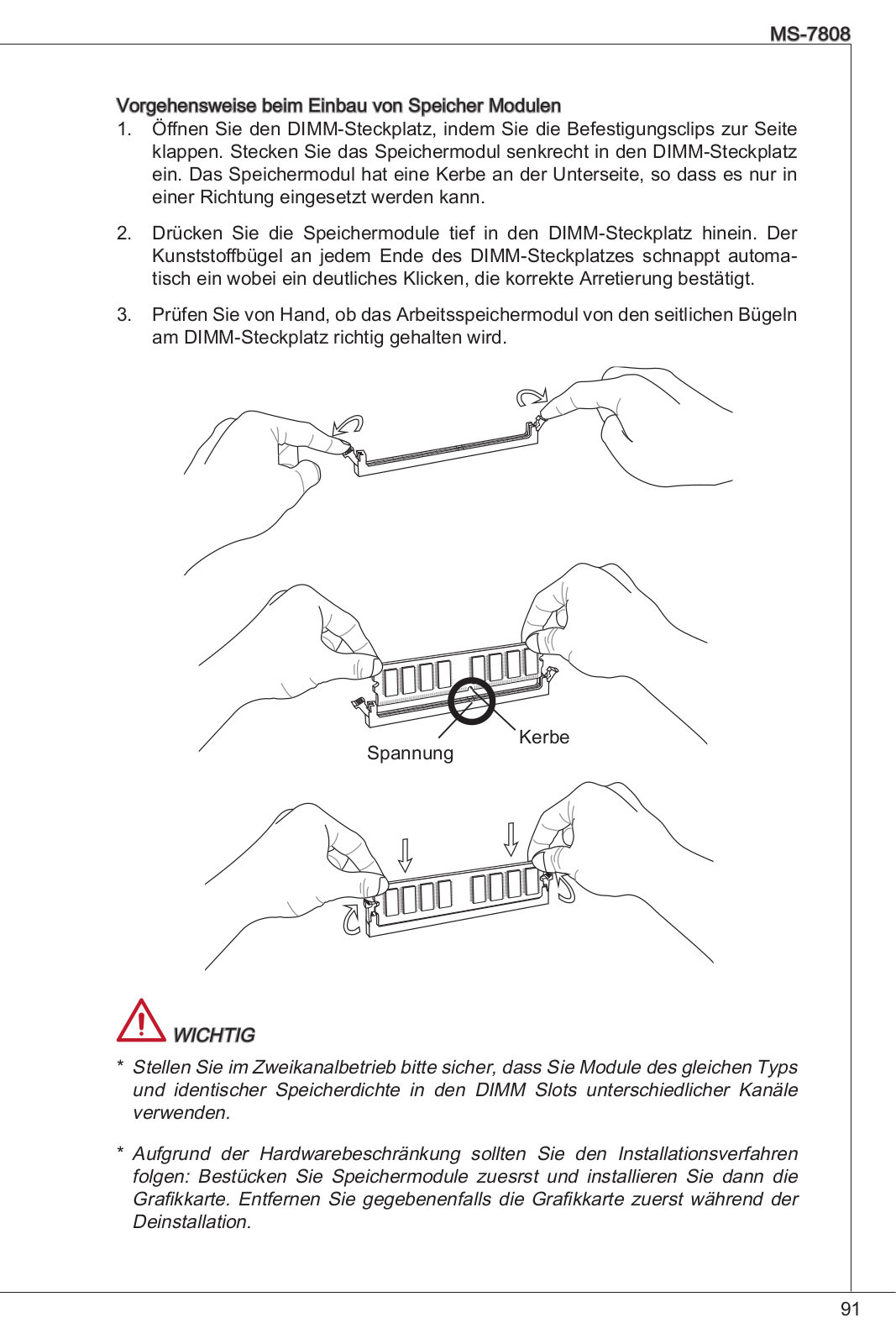

Installing Memory Modules

. Unlock the DIMM slot by pushing the mounting clips to the side. Vertically insert the memory module into the DIMM slot. The memory module has an off-center notch on the bottom that will only allow it to fit one way into the DIMM slot.

2.Push the memory module deep into the DIMM slot. The plastic clips at each side of the DIMM slot will automatically close when the memory module is properly seat and an audible click should be heard.

3.Manually check if the memory module has been locked in place by the DIMM slot’s side clips.

Notch

Volt

Important

*To ensure system stability, memory modules must be of the same type and density in Dual-Channel mode.

*Due to the hardware limitation, you should follow the installing procedures: first memory modules, then graphics card. While uninstalling, remove graphics card first if necessary.

19

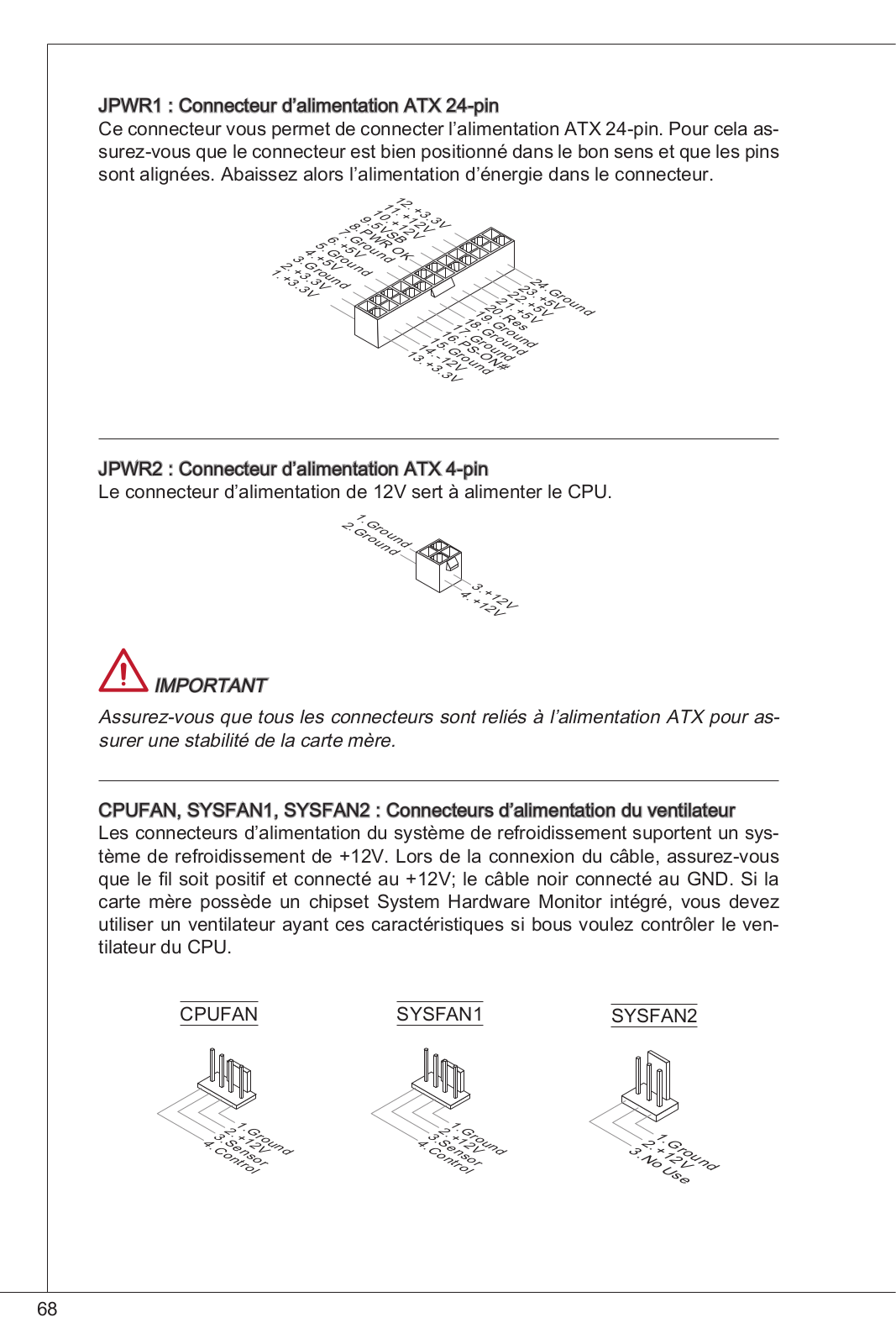

JPWR1: ATX 24-Pin Power Connector

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, align the power supply cable with the connector and firmly press the cable into the connector. If done correctly, the clip on the power cable should be hooked on the mainboard’s power connector.













12.





























11

. +3

.























910.























8

.

+12V

3V























7

























6 .

























5 .

























4

. +5





















2

3 .

























. +5

V





















1

.































Ground





















. +3.

















24









3





















+3.Ground













.





3

V























V















23.



























. +5

V























+5





























Ground























+5

V

V

















































.

-

























13. -

ON

#



























12V

























+3.Ground





























3































V













JPWR2: ATX 4-Pin Power Connector

This connector provides 12V power to the CPU.



1





.



2

Ground



.



Ground







3





.



4

+12V



.



+12V

Important

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the mainboard.

CPUFAN, SYSFAN1, SYSFAN2: Fan Power Connectors

The fan power connectors support system cooling fans with +12V. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with a speed sensor to take advantage of the CPU fan control. Remember to connect all system fans. Some system fans may not connect to the mainboard and will instead connect to the power supply directly. A system fan can be plugged into any available system fan connector.

CPUFAN SYSFAN1 SYSFAN2









1













2 .









3

. G









4

.

+

o







S 1



u



.



e 2



n

C



n V



d





o

s















n

















t o















r r













ol















1













2 .









3

. G









4

.

+

o







S 1



u



.



e 2



n

C



n V



d





o

s















n

















t o















r r













ol













1







2 .







3

. G







+ r



.



1



o



N

2

n





o

V

d







U













s











e



20

MS-7808

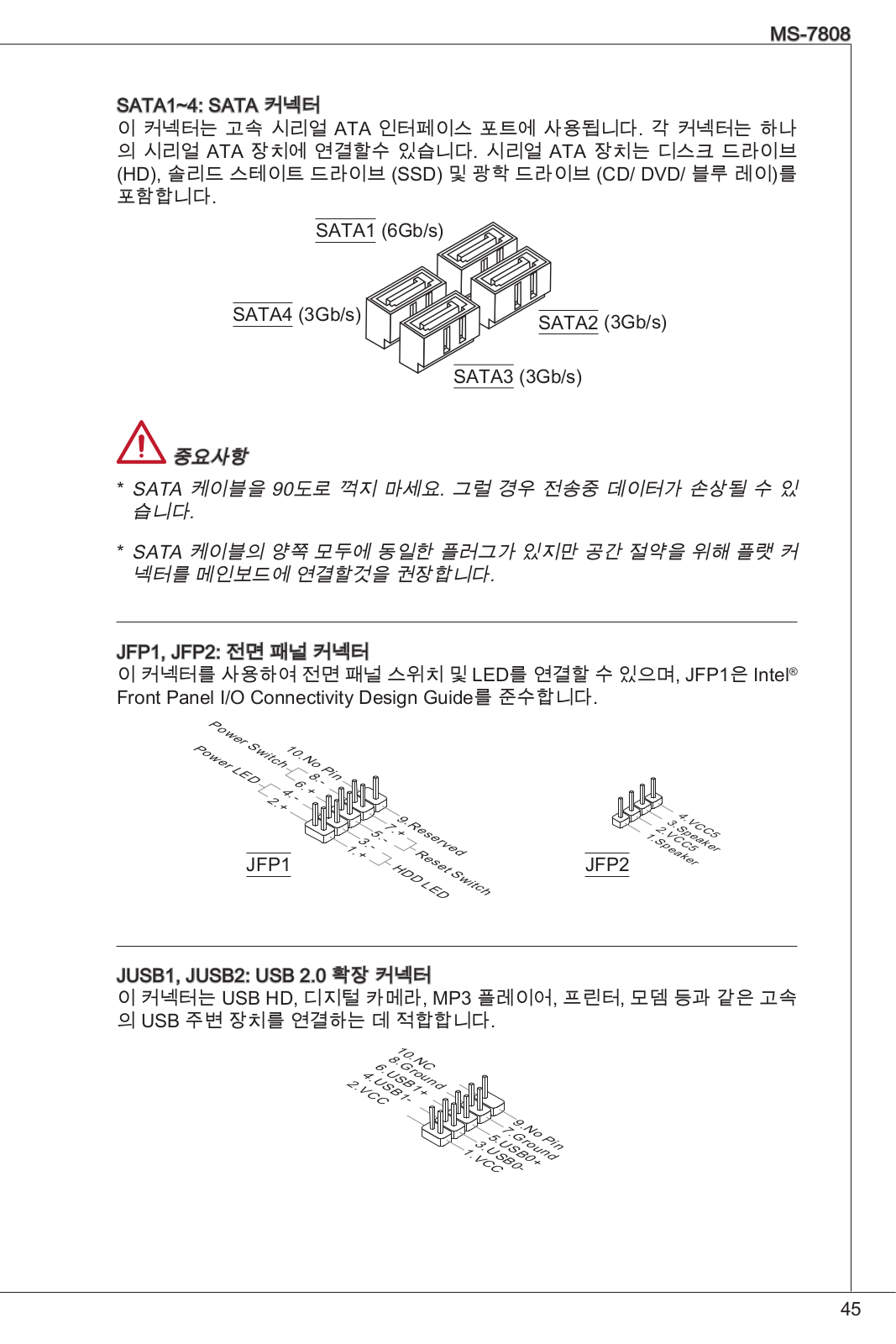

SATA1~4: SATA Connector

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. Serial ATA devices include hard disk drives (HDD), solid state drives (SSD), and optical drives (CD/ DVD/ Blu-Ray).



SATA1 (6Gb/s)





SATA4

(3Gb/s)

SATA2

(3Gb/s)









SATA3 (3Gb/s)



Important

*Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.

*SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the mainboard for space saving purposes.

JFP1, JFP2: Front Panel Connectors

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.



P















P

ower

S

10.













ower

LE

witch





No













8Pi







D





6

. n













-







4

.











+









2

.













-











.















+









JFP1











9









1 -







.









7





Reserve





5



.



















+











3



.



















-















.



















d

+





















.













Reset



















S









HDD

LE



















D



witch

JFP2









4

1









.



3



VCC5







.





VCC5Speaker



2











.







.









Speaker

JUSB1, JUSB2: USB 2.0 Expansion Connectors

This connector is designed for connecting high-speed USB peripherals such as USB HD s, digital cameras, MP3 players, printers, modems, and many others.













1

























0













6

8 .















G NC











.

.

r







4



















U





o





2



.





S



u





U







B



n

.





S







1



d

V





B





+







C







1















C







-















9













7

.













N









5 .



o





3



. Gr

P





U



o



i

1

.



S



u n

U





n

.



S

B





d

V





B

0







C



0



+







C



-







21

JUSB3: USB 3.0 Expansion Connector

The USB 3.0 port is backwards compatible with USB 2.0 devices. It supports data transfer rates up to 5Gbits/s (SuperSpeed).

11













19

20.























No

















18..

















16.







Power













17

.

USB3_

Pi

n







15.







14





USB3



RX



_



13.

.

USB3Ground





12.



USB3

_



















Ground





_ C









USB2.

_ TX











U

TX



C







.

SB2.

-









_













0

0











_



























DP













+

































1



























.























. Power















USB3

_













USB3





_







SB3Ground



RX





U

USB3









_



RX









_









_ DN

.

.

Ground







C







TX







DP





SB2.

_

TX_















_





_





SB2. 0







C

DP





Ground

+





















0 -







_



DN



Important

*Note that the VCC and GND pins must be connected correctly to avoid possible damage.

*To use a USB 3.0 device, you must connect the device to a USB 3.0 port through an optional USB 3.0 compliant cable.

JAUD1 : Front Panel Audio Connector

This connector allows you to connect the front audio panel located on your computer case. This connector is compliant with the Intel® Front Panel I/O Connectivity Design Guide.











1





































0































8 .

























6

.

H



























N



e





















4

.





o



a





















M











d















2

.





I

Pi

P















P





C





n



h











.



R







D









o









G





E





e









n









r







S





t









e











o









e









D











u





E





c







t













n





N





i



















d





C





o





e

























E





n



c

























#









ti







































o







































n













9





























7

.





























H























5

.



e























S



a















3



.



E



















H





d











1



.



e



N



P













M



a



S



h







.





I



d



E



o





M





C





P



_



n







I





R





S



e







C





h







L











L









o



E























n



N



























e



D



























R





JCI1: Chassis Intrusion Connector

This connector connects to the chassis intrusion switch cable. If the computer case is opened, the chassis intrusion mechanism will be activated. The system will record this intrusion and a warning message will flash on screen. To clear the warning, you must enter the BIOS utility and clear the record.



2









1



.











G







.



r





CI



u







N

o

n







T



d









R











U

22

MS-7808

JTPM1:TPM Module Connector

This connector connects to a optional TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

















1

































4

























1 .

















1



2





























. Gr



















. G





o











8

0







r













N



u





6



.





o





n







5



o





u





d

4



.

V



P



n







S





P





i



d

.





e







n









3





r



o















2 .



i



















.



3



al we









3





V





I





r







V



t

P



R























o



Q













S







w























a





























n





e

























d





r























b

































y

































p































o































w

































e

































r





















1

























































3















































1 .









































9



1



L











































.





P



































7



.





L





C





































L







P







F



























5

.





P





C

































L





C







a



r























3

.



P











a





















L





C







a





d



m

















1

.

P











d





d





e













L











a





d



r





















.

P C









d





r

e



















L



C





a







d





e



s



















P







d





r



s





s



















C



R





d





e





s





&















C



e







r





s





&







d

















s





e





s







d





a











l





e

s





&











t











o







t



s









a



a













c















&



d





t















k

















a





a





pi

































d





t





p



n



































a



a





i





































t





pi

n

3





































a





2











































pi n

















































n

1



















































0









JCOM1: Serial Port Connector This connector is a 16550A high 16 bytes FIFOs. You can attach a

speed communication port that sends/receives serial device.











1





















0















8 .









6



. N











C



o



4

.





T



P





D





S

i

2



.





S







n



D





R







.



T













S



R















I

















N





























9













7

.









5



R











.





I



3

. R















T



1



. Gr



S





S





o





.



O

u



D





U



n





C





T d







D











JBAT1: Clear CMOS Jumper

There is CMOS RAM onboard that is external powered from a battery located on the mainboard to save system configuration data. With the CMOS RAM, the system can automatically boot into the operating system (OS) every time it is turned on. If you want to clear the system configuration, set the jumper to clear the CMOS RAM.

Keep Data

Clear Data

Important

You can clear the CMOS RAM by shorting this jumper while the system is off. Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on because it will damage the mainboard.

23

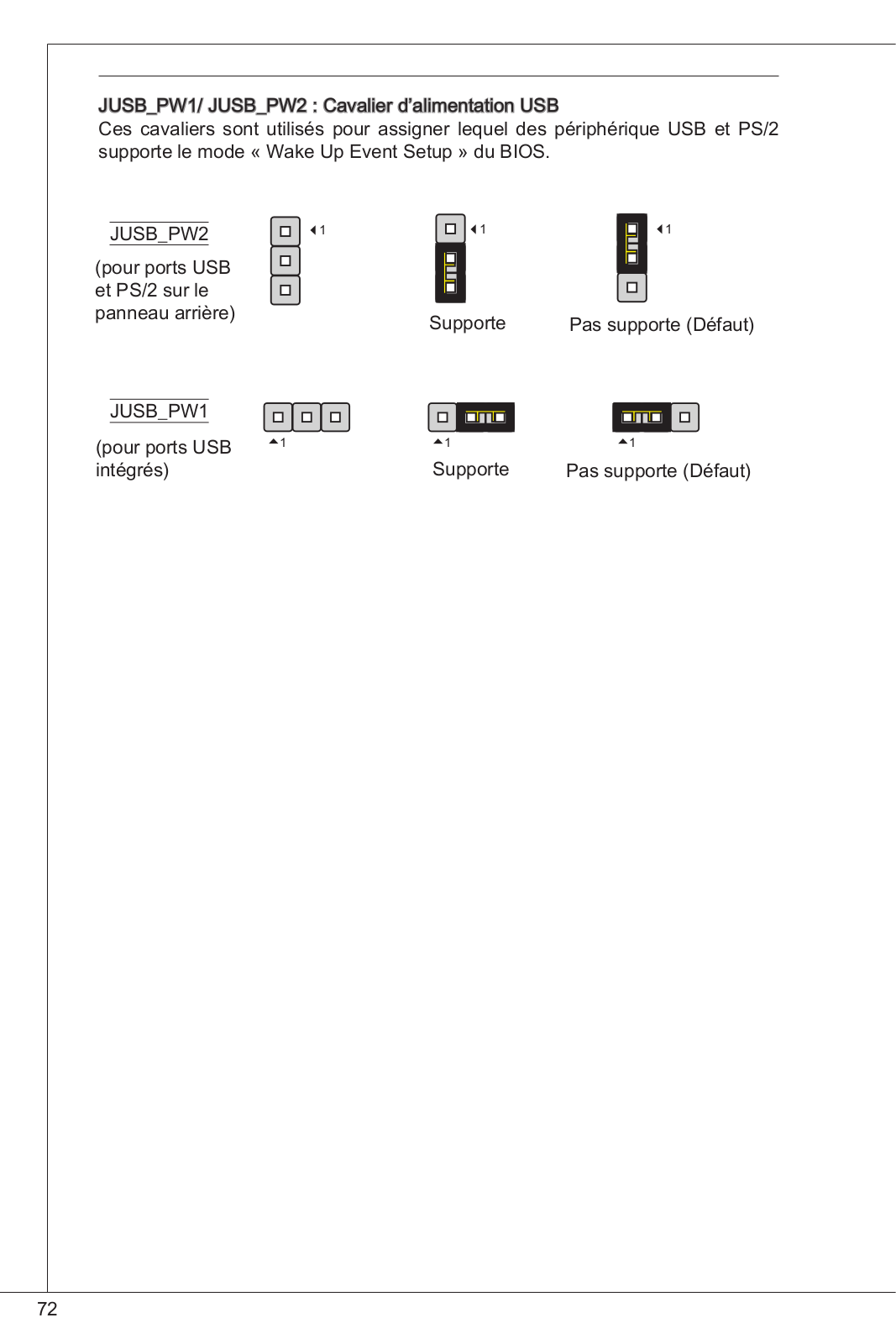

JUSB_PW1/ JUSB_PW2: USB power Jumpers

These jumpers are used to assign which USB and PS/2 ports could support “Wake Up Event Setup” field of BIOS.

JUSB_PW2

1

1

1

(for back







panel USB







ports & PS/2



Support

No Support

ports)





(Default)

JUSB_PW1







(for onboard

1

1

1

USB connec-



Support

No Support

tors)





(Default)

24

MS-7808

PCIe Slot

The PCIs slot supports the PCIe interface expansion card.

PCIe 3.0 x16 Slot

PCIe 2.0 x1 Slot

PCI Slot

The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.

32-bit PCI Slot

PCI Interrupt Request Routing

IRQ, or interrupt request lines, are hardware lines over which devices can send interrupt requests to the processor. The PCI IRQ pins are typically connected to the PCI bus pins as followed:

Order

1

2

3

4

Slot

















PCI 1



INT E#



INT F#



INT G#



INT H#



























Important

When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’s documentation to check for any necessary additional hardware or software changes.

25

BIOS Setup

Entering

Power on the computer and the system will start the Power On Self Test (POST) process. When the message below appears on the screen, please <DEL> key to enter CLICK BIOS II:

Press DEL key to enter Setup Menu, F11 to enter Boot Menu

If the message disappears before you respond and you still need to enter CLICK BIOS II, restart the system by turning the computer OFF then back ON or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Important

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

Overview

After entering Click BIOS II, the following screen is displayed.

















Language





System



























Temperature















information

monitor



















































Boot menu

































Mode























































selection



















































Boot device

































































BIOS menu

priority bar







selection

















































































































BIOS menu

































selection

Menu display

Important

The pictures in this guide are for reference only and may vary from the product you purchased. Please refer to the actual screens of your system for detailed information.

Temperature monitor

This block shows the temperature of the processor and the mainboard.

26

MS-7808

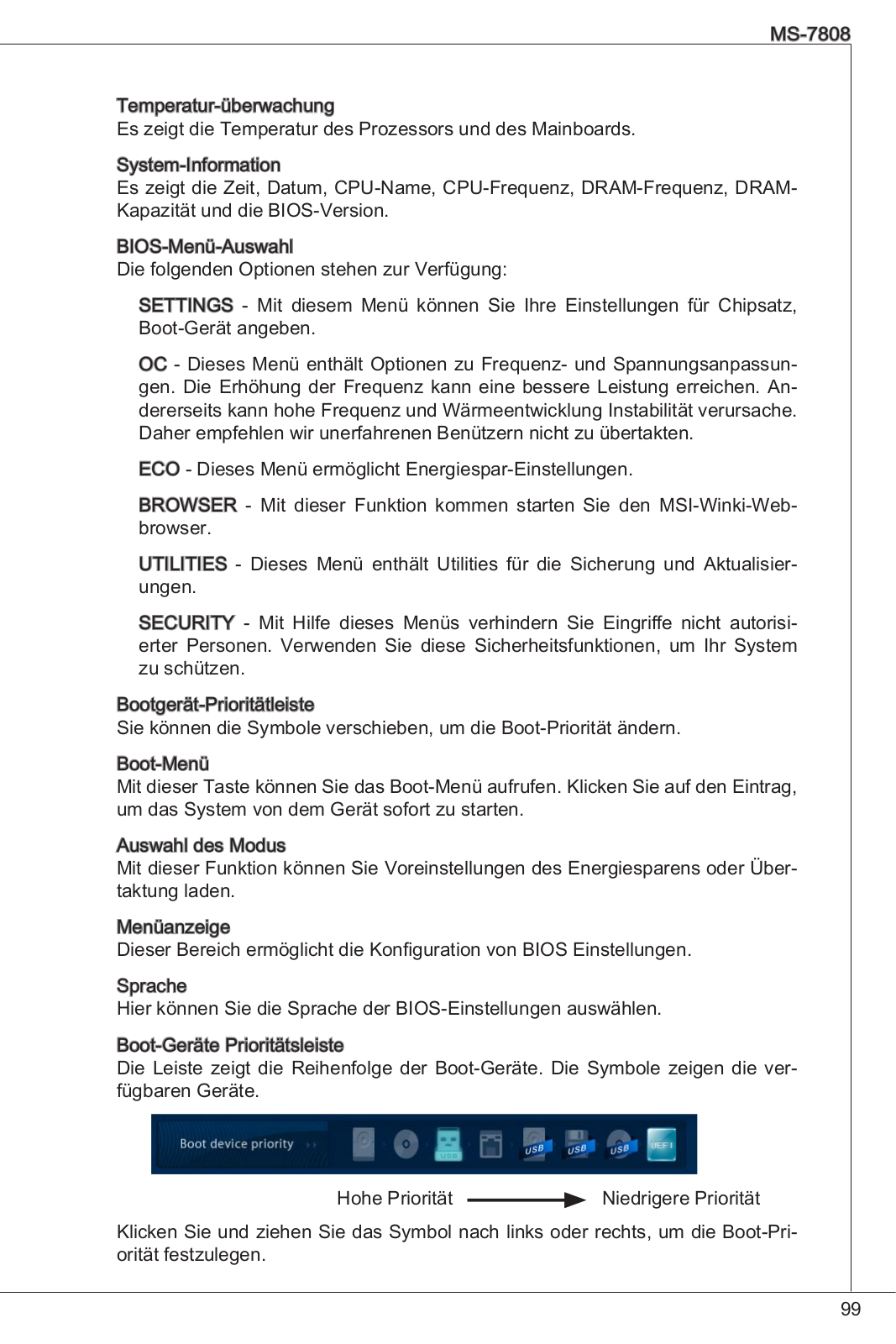

System information

This block shows the time, date, CPU name, CPU frequency, DRAM frequency, DRAM capacity and the BIOS version.

BIOS menu selection

The following options are available:

SETTINGS - Use this menu to specify your settings for chipset features and boot devices.

OC - This menu contains items of the frequency and voltage adjustments. Increasing the frequency can get better performance, however high frequency and heat can cause instability, we do not recommend general users to overclock.

ECO - This menu is related to energy-saving settings.

BROWSER - This feature is used to enter the MSI Winki web browser. UTILITIES - This menu contains utilities for backup and update.

SECURITY - The security menu is used to keep unauthorized people from making any changes to the settings. You can use these security features to protect your system.

Boot device priority bar

You can move the device icons to change the boot priority.

Boot menu

This button is used to open a boot menu. Click the item to boot the system from the device instantly.

Mode selection

This feature allows you to load presets of energy saving or overclocking.

Menu display

This area provides BIOS settings and information to be configured.

Language

This allows you to select the language of the BIOS setting.

Boot device priority bar

This bar shows the priority of the boot devices. The lighted icons indicate that the devices are available.

High priority Low priority Click and draw the icon to left or right to specify the boot priority.

27

OC

Important

*Overclocking your PC manually is only recommended for advanced users.

*Overclocking is not guaranteed, and if done improperly, can void your warranty or severely damage your hardware.

*If you are unfamiliar with overclocking, we advise you to use OC Genie for easy overclocking.

Current CPU / DRAM Frequency

These items show the current clocks of CPU and Memory speed. Read-only.

Adjust CPU Ratio

Controls the multiplier that is used to determine internal clock speed of the processor. This feature can only be changed if the processor supports this function.

Adjusted CPU Frequency

It shows the adjusted CPU frequency. Read-only.

Adjust CPU Ratio in OS

Enable this item to allow CPU ratio changes in the OS by using MSI Control Center.

EIST

Enhanced Intel SpeedStep technology allows you to set the performance level of the microprocessor whether the computer is running on battery or AC power. This field only appears with installed CPUs that support this technology.

28

MS-7808

IntelTurbo Boost

Enables or disables Intel Turbo Boost which automatically boosts CPU performance above rated specifications (when applications requests the highest performance state of the processor).

My OC Genie

This item is used to select whether OC Genie parameters are customized by user. Setting to [MSI] OC Genie will use default OC related parameters to overclock the system. Selecting [Customize] allows you to configure the following related “My OC Genie option” sub-menu manually for OC Genie.

My OC Genie option

Press <Enter> to enter the sub-menu.

My OC Genie GT Overclocking

This item allows you to enable/ disable the overclocking of integrated graphics for OC Genie function.

My OC Genie GT Ratio

This item allows you to specific the GT ratio for OC Genie function.

Adjusted My OC Genie GT Ratio

It shows the iGPU frequency when OC Genie is started. Read-only.

DRAM Reference Clock

This item allows you to specific the DRAM Reference Clock for CPU. Please note the overclocking behavior is not guaranteed.

DRAM Frequency

This item allows you to adjust the DRAM frequency. Please note the overclocking behavior is not guaranteed.

Adjusted DRAM Frequency

It shows the adjusted DRAM frequency. Read-only.

Extreme Memory Profile (X.M.P)

This item is used to enable/disable the Intel Extreme Memory Profile (XMP). For further information please refer to Intel’s official website.

DRAM Timing Mode

Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following “Advanced DRAM Configuration” sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Link] or [Unlink] allows users to configure the DRAM timings for each channel and the following related “Advanced DRAM Configuration” sub-menu manually.

Advanced DRAM Configuration Press <Enter> to enter the sub-menu.

Command Rate

This setting controls the DRAM command rate.

29

tCL

Controls CAS latency which determines the timing delay (in clock cycles) of starting a read command after receiving data.

tRCD

Determines the timing of the transition from RAS (row address strobe) to CAS (column address strobe). The less clock cycles, the faster the DRAM performance.

tRP

Controls number of cycles for RAS (row address strobe) to be allowed to precharge. If insufficient time is allowed for RAS to accumulate before DRAM refresh, the DRAM may fail to retain data. This item applies only when synchronous DRAM is installed in the system.

tRAS

Determines the time RAS (row address strobe) takes to read from and write to memory cell.

tRFC

This setting determines the time RFC takes to read from and write to a memory cell.

tWR

Determines minimum time interval between end of write data burst and the start of a pre-charge command. Allows sense amplifiers to restore data to cell.

tWTR

Determines minimum time interval between the end of write data burst and the start of a column-read command; allows I/O gating to overdrive sense amplifies before read command starts.

tRRD

Specifies the active-to-active delay of different banks.

tRTP

Time interval between a read and a precharge command.

tFAW

This item is used to set the tFAW (four activate window delay) timing.

tWCL

This item is used to set the tWCL (Write CAS Latency) timing.

tCKE

This item is used to set the Pulse Width for DRAM module.

tRTL

This item is used to set Round Trip Latency settings.

Advanced Channel 1/ 2 Timing Configuration

Press <Enter> to enter the sub-menu. And you can set the advanced memory timing for each channel.

30

Loading...
+ 174 hidden pages
