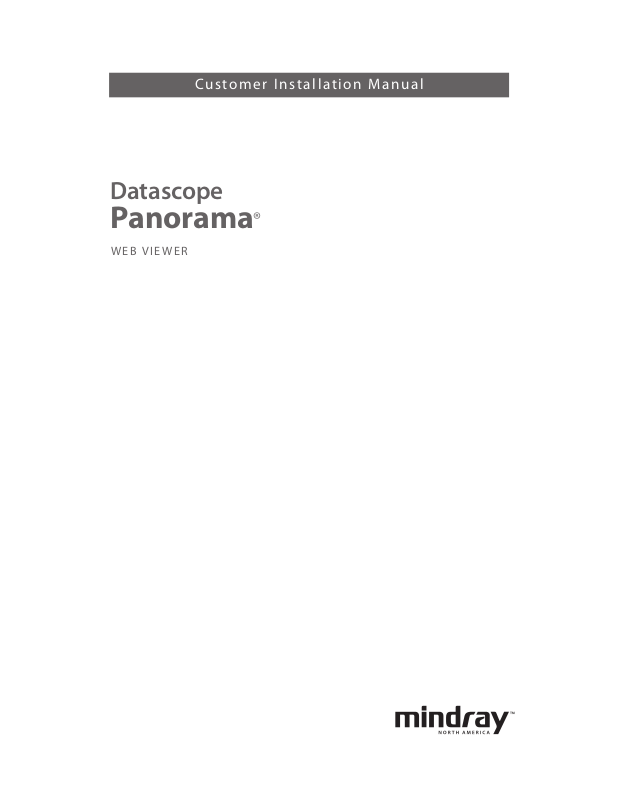

Customer Installation Manual
Datascope
Panorama®
W E b V i e w e r
Panorama® is a U.S. trademark of Mindray DS USA, Inc.
Copyright © Mindray DS USA, Inc. 2008.. All rights reserved. Contents of this publication may not be reproduced in any form without permission of Mindray DS USA, Inc.
Panorama® Web Viewer Customer Installation Manual |
0070-10-0688 |
Table of Contents
Foreword ....................................................................................................................................................... |
v |
|
Warnings, Precautions and Notes..................................................................................................................... |
v |
|
Warnings ...................................................................................................................................................... |
v |
|
Precautions .................................................................................................................................................... |
vi |
|
Notes ............................................................................................................................................................ |
vi |
|
Phone Numbers and How To Get Assistance...................................................................................................... |
vii |
|
Overview of the Panorama Web Viewer............................................................................................................ |
viii |
|
Prerequisites..................................................................................................................... |
1 |
- 1 |
Server-Side Requirements ................................................................................................................................. |
1 - 1 |
|
Minimum Hardware Requirements ............................................................................................................. |
1 - 1 |
|
Software Requirements ............................................................................................................................. |
1 |
- 1 |
Network Configuration .................................................................................................................................... |
1 - 2 |
|
Server Configuration ....................................................................................................................................... |
1 - 2 |
|
Client Side Requirements ................................................................................................................................. |
1 - 3 |
|
Recommended Software ........................................................................................................................... |
1 |
- 3 |
Client Configuration ........................................................................................................................................ |
1 - 3 |
|
Installation ....................................................................................................................... |
2 |
- 1 |
Installing the Panorama Web Viewer ................................................................................................................ |
2 |
- 1 |
Uninstallation ................................................................................................................... |
3 |
- 1 |
Uninstalling the Panorama Web Viewer ............................................................................................................ |
3 |
- 1 |
Basic Operation ................................................................................................................ |
4 |
- 1 |
Administrative Login ........................................................................................................................................ |
4 - 1 |
|
User Management ................................................................................................................................... |
4 |
- 2 |
System Configuration ............................................................................................................................... |
4 |
- 3 |
User Login...................................................................................................................................................... |
4 - 4 |
|
Display Calibration.................................................................................................................................. |
4 |
- 5 |
Menu Selections ...................................................................................................................................... |
4 |
- 6 |
Exiting the Panorama Web Viewer Application .................................................................................................. |
4 |
- 7 |
Troubleshooting................................................................................................................ |
5 - 1 |
|
Panorama® Web Viewer Customer Installation Manual |
0070-10-0688 |
i |
Table of Contents
ii |
0070-10-0688 |
Panorama® Web Viewer Customer Installation Manual |
Foreword |
Introduction |
|
|
Foreword
This installation manual outlines the supported configurations and technical installation instructions for Panorama Web Viewer. It is designed for a technical person that has knowledge about simple networks, a basic knowledge of Microsoft Server, and has basic computer skills.
This publication may have been updated to reflect product design changes and/or manual improvements.
NOTE: |
Figures in this manual are provided for reference purposes |
|
only. |
Warnings, Precautions and Notes
Please read and adhere to all warnings, precautions and notes listed here and in the appropriate areas throughout this manual.
A WARNING is provided to alert the user to potential serious outcomes (death, injury, or serious adverse events) to the patient or the user.
A CAUTION is provided to alert the user to use special care necessary for the safe and effective use of the device. They may include actions to be taken to avoid effects on patients or users that may not be potentially life threatening or result in serious injury, but about which the user should be aware. Cautions are also provided to alert the user to adverse effects on this device of use or misuse and the care necessary to avoid such effects.
A NOTE is provided when additional general information is applicable.
Warnings
WARNING: Clinical judgment should be used when the Panorama Web
Viewer is utilized for patient care.
WARNING: The Panorama Web Viewer should be used only as an alternative means of viewing patient information.
WARNING: The Panorama Web Viewer application may lock up or shutdown due to hardware or operating system problems in the computer. Operator action in these cases is to restart the Internet Explorer application.
WARNING: There is a potential danger to the patient if an improperly configured Server is connected to the Panorama Network. This may interrupt the normal functions of the Central Stations and Patient Monitoring devices on the Panorama Network.
Panorama® Web Viewer Customer Installation Manual |
0070-10-0688 |
v |
Introduction |
Precautions |
|
|
Precautions
CAUTION: |
Panorama Web Viewer server software should reside on a |
|
separate server so that the integrity of the Panorama real- |
|
time network is not compromised. |
CAUTION: |
Panorama Central Station Warranties and Service |
|
Agreements DO NOT cover issues that may arise during the |
|
installation of the Panorama Web Viewer. |
CAUTION: |
For a proper understanding of the Panorama Web Viewer |
|
application, knowledge of the Panorama Central Station is |
|
required. For additional information regarding the |
|
Panorama Central Station and/or the Panorama Patient |
|
Monitoring Network, please refer to the Panorama Central |
|
Station Operating Instructions. |
CAUTION: |
Display calibration is required for the waveforms to be of |
|
diagnostic quality. |
CAUTION: |
The waveforms displayed at the Panorama Web Viewer |
|
may have less than a five (5) second latency in comparison |
|
to the corresponding patient monitor. [MR17965] |
CAUTION: |
When using Panorama Web Viewer, the operator should |
|
always verify that the correct patient is selected. |
Notes |
|
NOTE: |
For Panorama Web Viewer use, Panorama Central Station |
|
software must be version 8.4.X or 8.5.X and the E-LAN must |
|
be configured to either View Only or Full. |
NOTE: |
The switch that connects the E-LAN and C-LAN must be either |
|
a level 2 "smart" switch or a level 3 switch. The level 2 |
|
switch must support the IGMP feature. |
NOTE: |
If the E-LAN and C-LAN are already connected to individual |
|
3com 2250 Plus switches, then a patch cable can be used to |
|
connect these two switches. |
NOTE: |
Changing the session time while users are logged in, will |
|
cause the users to have to login in again. |
NOTE: |
Please refer to the Panorama Web Viewer Operations |
|
Manual included on the installation CD (P/N 0996-CD-0178- |
|
XXX) for more in depth directions in using the Panorama |
|
Web Viewer. |
vi |
0070-10-0688 |
Panorama® Web Viewer Customer Installation Manual |
Phone Numbers and How To Get Assistance |
Introduction |
|
|
Phone Numbers and How To Get Assistance
Prior to requesting service, perform a complete operational check of the instrument to verify proper control settings. If operational problems continue to exist, contact the Service Department at (800) 288-2121 or (201) 995-8116 for assistance in determining the nearest field service location.
Please include the instrument model number, the serial number, and a description of the problem with all requests for service.
Any questions regarding the warranty should be directed to the nearest authorized location. A list of international offices, along with their phone numbers, is provided at the end of this manual.
Panorama® Web Viewer Customer Installation Manual |
0070-10-0688 |
vii |
Introduction |
Overview of the Panorama Web Viewer |
|
|
Overview of the Panorama Web Viewer
The Panorama Web Viewer provides a web-based interface to the Panorama network for remote reviewing of real-time patient data, trending, and event data, on the Panorama Patient Monitoring Network. The Panorama Web Viewer is server-side software that resides on the Panorama network and acts as a gateway to a hospital network. It uses two network interface cards to partition network traffic in order to preserve the integrity of the real-time network.
CAUTION: Panorama Web Viewer server software should reside on a separate server so that the integrity of the Panorama realtime network is not compromised.
CAUTION: Panorama Central Station Warranties and Service Agreements DO NOT cover issues that may arise during the installation of the Panorama Web Viewer.
viii |
0070-10-0688 |
Panorama® Web Viewer Customer Installation Manual |
1.0 Prerequisites
1.1 Server-Side Requirements
1.1.1Minimum Hardware Requirements
•2.8 GHz Intel Pentium D CPU
•2 GB of RAM memory
•1 GB of available hard drive space
•Two 10/100 Mbps Network Interface Cards
•CD ROM drive
1.1.2Software Requirements
•Microsoft Windows Server 2003 Standard Edition SP2
•Microsoft Internet Information Service (IIS) 6.0
•Microsoft .NET Framework 2.0
•Microsoft SQL Server 2005 Express Edition or a greater
•Microsoft Visual C++ 2005 SP1 Redistributable Package
Panorama® Web Viewer Customer Installation Manual |
0070-10-0688 |
1 - 1 |
Network Configuration |
Prerequisites |
|
|
1.2 Network Configuration
The Panorama Network is composed of two separate networks, E-LAN (Patient LAN) and C- LAN (Central LAN). For Panorama Web Viewer to work properly, both networks must be plugged into the same switch and then connected to the server workstation via one of the network interface cards. The second card should be connected to the hospital intranet.
NOTE: |
For Panorama Web Viewer use, Panorama Central Station |
|
software must be version 8.4.X or 8.5.X and the E-LAN must |
|
be configured to either View Only or Full. |
NOTE: |
The switch that connects the E-LAN and C-LAN must be either |
|
a level 2 "smart" switch or a level 3 switch. The level 2 |
|
switch must support the IGMP feature. |
NOTE: |
If the E-LAN and C-LAN are already connected to individual |
|
3com 2250 Plus switches, then a patch cable can be used to |
|
connect these two switches. |
|
|
|
|
FIGURE 1-1 Panorama Web Viewer Network
1.3 Server Configuration
All server-side software must be previously installed in order for the web viewer installation to be successful. Only one Panorama Web Viewer should be installed per Panorama Network. One of the network cards must be set up to be exclusively dedicated to the Panorama Network. The IP must be statically set to 7.6.6.235, the subnet mask must be set to 255.0.0.0, and configured for 100 Mbps speed Half-Duplex mode. Bindings for this network card must be setup. Select “Client for Microsoft Networks” and choose “Internet Protocol (TCP/IP)” from the submenu and, if present, “NWLink IPX/SPX/NetBIOS Compatible Transport Protocol”. All other items must be unselected.
The other network card should be setup for the hospital intranet according to the hospital’s configurations.
1 - 2 |
0070-10-0688 |
Panorama® Web Viewer Customer Installation Manual |
Prerequisites |
Client Side Requirements |
|
|
WARNING: There is a potential danger to the patient if an improperly configured Server is connected to the Panorama Network. This may interrupt the normal functions of the Central Stations and Patient Monitoring devices on the Panorama Network.
If a browser window is closed without first logging off the Panorama Web Viewer, the corresponding user license will not be available until that session expires. To minimize the wait in this situation, the session timeout can be decreased to between five and ten minutes in the settings for IIS.
NOTE: |
Changing the session time while users are logged in, will |
|
cause the users to have to login in again. |
ASP.NET scripts should also be allowed to run. These can also be changed in the in IIS settings.
Panorama Web Viewer must be installed on the same server as the MS SQL database instance. SQL Authentication Mode must be set to “Mixed Mode (Windows Authentication and SQL Server Authentication)”.
1.4 Client Side Requirements
1.4.1Recommended Software
•Microsoft Windows 98SE, 2000, NT, XP or Vista
•Microsoft Internet Explorer (IE) 6 SP1, 6 SP2, 7.0
•Microsoft .NET Framework 2.0
•1024 x 768 display
1.5 Client Configuration
There is no client software needed to use Panorama Web Viewer aside from Internet Explorer. Since the Panorama Web Viewer uses Windows user controls that are written with
.NET Framework 2.0, real-time waveforms and graphic trending can be displayed. Both Microsoft IE and .NET 2.0 must be previously installed for the Panorama Web Viewer to function properly. Additionally, Microsoft IE should have cookies, active scripting components and plug-ins, and .NET components enabled. We also recommend adding the Web Viewer web page to the "Trusted Sites" list.
Panorama® Web Viewer Customer Installation Manual |
0070-10-0688 |
1 - 3 |
