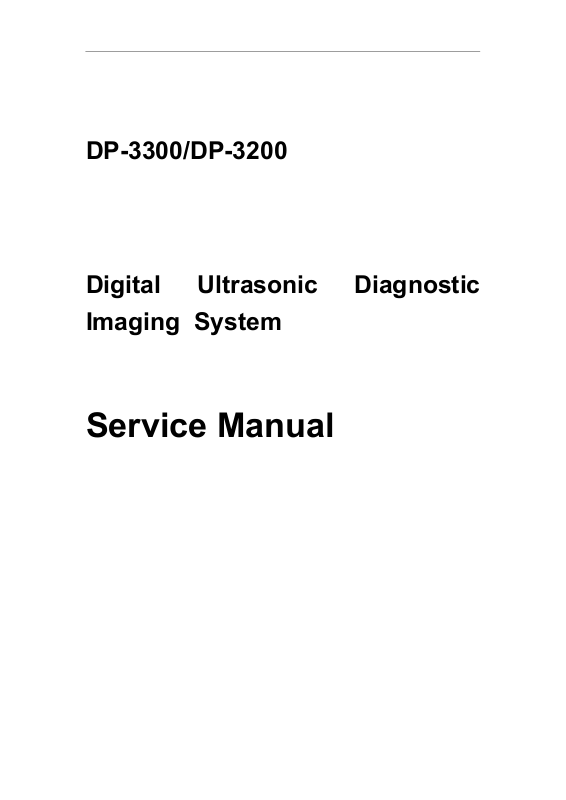

DP-3300/DP-3200
Digital Ultrasonic Diagnostic
Imaging System
Service Manual
© 2005-2006 Shenzhen Mindray Bio-medical Electronics Co., Ltd. All rights Reserved.
Product Information
Product Name: Digital Ultrasonic Diagnostic Imaging System
Model: DP-3300
Issued date of this manual: 2006-08
Version: 1.1
Intellectual Property Statement
SHENZHEN MINDRAY BIO-MEDICAL ELECTRONICS CO., LTD. (hereinafter called
Mindray) owns the intellectual property rights to this Mindray product and this manual. This
manual may refer to information protected by copyrights or patents and does not convey any
license under the patent rights of Mindray, nor the rights of others. Mindray does not assume
any liability arising out of any infringements of patents or other rights of third parties.
Mindray intends to maintain the contents of this manual as confidential information.
Disclosure of the information in this manual in any manner whatsoever without the written
permission of Mindray is strictly forbidden.
Release, amendment, reproduction, distribution, rent, adaptation and translation of this
manual in any manner whatsoever without the written permission of Mindray is strictly
forbidden.
DP-3300/DP-3200 Installation Manual （V1.1） I
, , , , are the registered trademarks or
trademarks owned by Mindray in China and other countries. All other trademarks that appear
in this manual are used only for editorial purposes without the intention of improperly using
them. They are the property of their respective owners.
II DP-3300/DP-3200 Installation Manual （V1.1）
Responsibility on the Manufacturer Party
Contents of this manual are subject to changes without prior notice.
All information contained in this manual is believed to be correct. Mindray shall not be liable
for errors contained herein nor for incidental or consequential damages in connection with the
furnishing, performance, or use of this manual.
Mindray is responsible for safety, reliability and performance of this product only in the
condition that:
•
all installation operations, expansions, changes, modifications and repairs of this product
are conducted by Mindray authorized personnel;
•
the electrical installation of the relevant room complies with the applicable national and
local requirements;
•
the product is used in accordance with the instructions for use.
WARNING:
It is important for the hospital or organization that employs
this equipment to carry out a reasonable
service/maintenance plan. Neglect of this may result in
machine breakdown or injury of human health.
Warranty
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR ANY PARTICULAR PURPOSE.
Exemptions
DP-3300/DP-3200 Installation Manual （V1.1） III
Mindray's obligation or liability under this warranty does not include any transportation or
other charges or liability for direct, indirect or consequential damages or delay resulting from
the improper use or application of the product or the use of parts or accessories not approved
by Mindray or repairs by people other than Mindray authorized personnel.
This warranty shall not extend to:
any Mindray product which has been subjected to misuse, negligence or accident;
any Mindray product from which Mindray's original serial number tag or product
identification markings have been altered or removed;
any product of any other manufacturer.
Return Policy
Return Procedure
In the event that it becomes necessary to return this product or part of this product to Mindray,
the following procedure should be followed:
1. Obtain return authorization: Contact the Mindray Service Department and obtain a
Customer Service Authorization (Mindray) number. The Mindray number must appear on
the outside of the shipping container. Returned shipments will not be accepted if the
Mindray number is not clearly visible. Please provide the model number, serial number,
and a brief description of the reason for return.
2. Freight policy: The customer is responsible for freight charges when this product is
shipped to Mindray for service (this includes customs charges).
3. Return address: Please send the part(s) or equipment to the address offered by
Customer Service department
IV DP-3300/DP-3200 Installation Manual （V1.1）
Company Contact
Manufacture: Shenzhen Mindray Bio-Medical Electronics Co., Ltd.
Address:
Mindray Building, Keji 12th Road South, Hi-tech Industrial
Park, Nanshan, Shenzhen, P.R.China,518057
Phone: +86 755 26582479 26582888
Fax: +86 755 26582500 26582501
EC-
Representative:
Shanghai International Holding Corp. GmbH(Europe)
Address: Eiffestrasse 80, 20537 Hamburg Germany
Phone: 0049-40-2513175
Fax: 0049-40-255726
DP-3300/DP-3200 Installation Manual （V1.1） V
Return Policy
Return Procedure
In the event that it becomes necessary to return a unit to Mindray, the following procedure
should be followed:
4. Obtain return authorization. Contact the Mindray Service Department and obtain a
Customer Service Authorization (Mindray) number. The Mindray number must appear on
the outside of the shipping container. Return shipments will not be accepted if the
Mindray number is not clearly visible. Please provide the model number, serial number,
and a brief description of the reason for return.
5.
Freight policy. The customer is responsible for freight charges when equipment is
shipped to Mindray for service (this includes customs charges).
Company Contact
Address: Mindray Building, 12th Keji Road South, Hi-tech
Industrial Park, Nanshan, Shenzhen, P.R.China
Phone: +86 755 26582888
Fax: +86 755 26582680
VI DP-3300/DP-3200 Installation Manual （V1.1）
Safety Precautions
Meaning of Signal Words
In this manual, the signal words
DANGER, WARNING
,
and
CAUTION
are used
regarding safety and other important instructions. The signal words and their meanings are
defined as follows. Please understand their meanings clearly before reading this manual.
Signal word Meaning
DANGER
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION Indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
Meaning of Safety Symbols
Symbol Description
Type-BF applied part
"Attention" (Refer to the operation manual.)
Safety Precautions
Please observe the following precautions to ensure patient and operator safety when using
this system.
DP-3300/DP-3200 Installation Manual （V1.1） VII
CAUTION:
1. Display the most suitable image and select the most suitable
measurement mode for the intended measurement. The results
must be determined by a specialist.
2. The basic measurement results are not displayed in the exam
report.
3. Be sure to perform measurement within images. If the area is
outside the image, incorrect diagnosis may result.
4. The detailed precautions for each measurement are described in
the corresponding section. Read and understand these
precautions before performing the measurement.
5. Data in temporary storage areas, such as the CINE memory, is
deleted when the power supply is turned OFF or when the
Patient switch is pressed. Such data may also occasionally be
deleted due to accidents. To minimize the possibility of
reexamination being required as a result of unintended data
deletion, back up the required images on external storage
media.
6. Refer to the Operation Manual (Fundamentals) for precautions
regarding the use of this system.
VIII DP-3300/DP-3200 Installation Manual （V1.1）
DP-3300/DP-3200 Service Manual（V1.1） I
Contents
Contents
RETURN POLICY ....................................................................................................................... VI
SAFETY PRECAUTIONS ......................................................................................................... VII
MEANING OF SIGNAL WORDS ............................................................................................................ VII
MEANING OF SAFETY SYMBOLS ......................................................................................................... VII
SAFETY PRECAUTIONS ...................................................................................................................... VII
CONTENTS.....................................................................................................................................1
CHAPTER 1 OVERVIEW ............................................................................................................ 1
1.1 FUNCTION INTRODUCTION ................................................................................................................ 1
1.2 INTRODUCTION OF COMPLETE MACHINE ............................................................................................. 1
1.2.1 Basic features ............................................................................................................................ 1
1.2.2 Basic composition ..................................................................................................................... 2
STRUCTURE AND ASSEMBLY/DISASSEMBLY OF THE MACHINE ............................... 1
1.3 STRUCTURE OF THE COMPLETE MACHINE ........................................................................................... 1
1.3.1 Appearance view of the main unit ............................................................................................ 1
1.3.2 Exploded view of the complete machine .................................................................................. 2
1.3.3 Keyboard assembly ................................................................................................................... 3
1.3.4 Exploded view of CRT assembly .............................................................................................. 5
1.3.5 Main unit cabinet assembly ....................................................................................................... 6
1.4 DISASSEMBLY ................................................................................................................................ 7
1.4.1 Disassembly of the rear cover ................................................................................................... 7
DP-3300/DP-3200 Service Manual（V1.1） 1
Contents
1.4.2 Disassembly of the cabinet tail board ....................................................................................... 9
1.4.3 Disassembly of the cabinet rear cover ...................................................................................... 9
1.4.4 Disassembly of the power board ............................................................................................. 10
1.4.5 Disassembly of the main board and the transducer board ...................................................... 13
1.4.6 Disassembly of CRT, CRT adjustment board and the connection board of the main unit .... 17
1.4.7 Disassembly of CRT screen filter ........................................................................................... 21

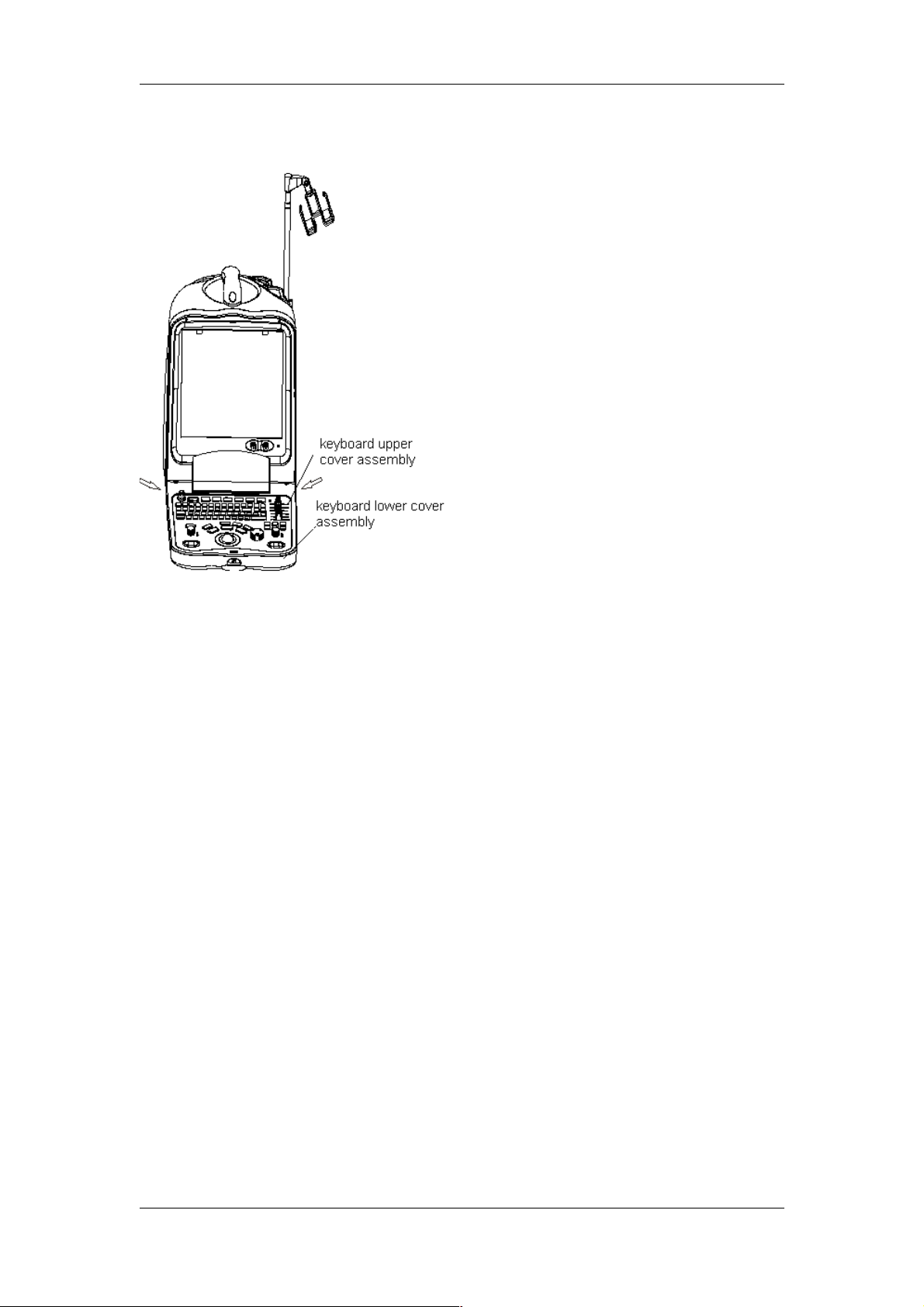

1.4.8 Disassembly of the keyboard, trackball and buzzer ............................................................... 22

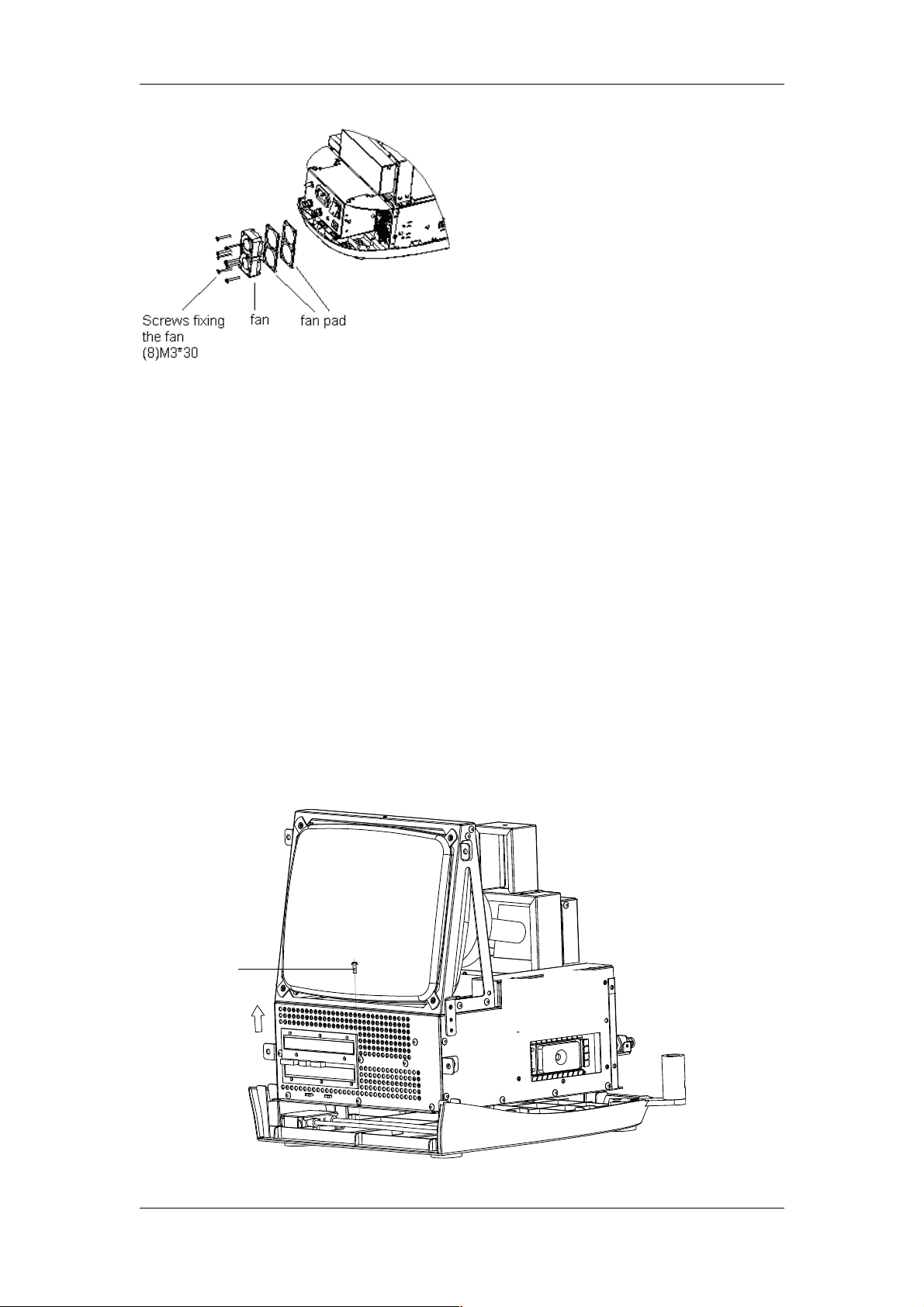

1.4.9 Disassembly of the fan ............................................................................................................ 27
1.4.10 Remove USB extension wire ................................................................................................ 28
CHAPTER 2 DESCRIPTION OF THE PRINCIPLE ................................................................ 1
2.1 PRINCIPLE OF THE HARDWARE .......................................................................................................... 1
2.1.1 Principle description of the main board .................................................................................... 1
2.1.2 Working principle of CPU ....................................................................................................... 11
2.2 PRINCIPLE OF THE SOFTWARE ......................................................................................................... 15
2.2.1 Features and functions of the real-time operating system ...................................................... 15
2.2.2 Description of the system software ......................................................................................... 16
CHAPTER 3 SYSTEM START-UP AND UPGRADE ................................................................ 1
3.1 SYSTEM START-UP .......................................................................................................................... 1
3.2 SOFTWARE UPGRADING ................................................................................................................... 1
3.2.1 Entering the upgrading procedure ............................................................................................. 1
3.2.2 Upgrading operation .................................................................................................................. 2
CHAPTER 4 TROUBLESHOOTING .......................................................................................... 1
2 DP-3300/DP-3200 Service Manual（V1.1）
Contents
4.1 BLACK SCREEN .............................................................................................................................. 1
4.2 NO RESPONSE FROM THE KEYBOARD ................................................................................................. 1
4.3 NO ECHO SIGNAL IN IMAGE AREA .................................................................................................... 2
4.4 BLACK AREA IN THE IMAGE
（
BLACK STRIP
）
.................................................................................. 3
4.5 IMAGE INTERFERENCE ...................................................................................................................... 3
4.6 BACK-END CIRCUITS FAULT ............................................................................................................. 4
4.7 OTHER FAULTS .............................................................................................................................. 5
CHAPTER 5 MAINTENANCE AND CLEANING .................................................................... 1
5.1 MAINTENANCE TO BE PERFORMED BY USER ...................................................................................... 1
5.1.1 Cleaning the system .................................................................................................................. 1
5.1.2 Creating a backup copy of the system hard disk ...................................................................... 3
5.2 MAINTENANCE TO BE PERFORMED BY SERVICE PERSONNEL ................................................................. 3
DP-3300/DP-3200 Service Manual（V1.1） 3
Structure and Assembly/Disassembly of the Machine
Chapter 1 Overview
1.1Function Introduction
The digital portable ultrasound diagnostic system DP-3300/3200
is intended to use for the
following studies:
fetal organs, abdomen, pediatrics, small parts, neonatal cephalic,
transvaginal, transrectal, peripheral vascular, superficial and conventional musculoskeletal
,
etc.
The Digital Ultrasonic Diagnostic System
DP-3300/3200
is intended to use for the
examinations such as
abdomen,
gynecology, obstetrics, small parts, and orthopedics
. The
DP-3300 system has the measurement and calculation functions of abdomen,
gynecology, obstetrics, and orthopedics
, and the DP-3200 system has the measurement
and calculation functions of abdomen and
obstetrics
.
1.2Introduction of Complete Machine
The DP-3300/3200 system is a digital portable ultrasound diagnostic system, which is
compact and cost-effective. The DP-3300/3200 system can work with three types of
transducers（big convex array, linear array and intra-cavity）, and can be used for
examinations of abdomen, gynecology, obstetrics, urology, pediatrics, small parts and
intra-cavity. This system adopts the imaging technologies such as digital beamforming,
continuous dynamic focusing, odd-even line discrepancy elimination, and multiple-focus
splicing. It has the functions of monitor output, performance testing report, and video
printing.
1.2.1Basic features
1. Supports the convex and linear array transducers
2. Supports the real-time adjustment of imaging parameters, so that the optimal images
can be acquired;
3. Transducer frequency: 2MHZ to 12MHZ;
DP-3300/DP-3200 Service Manual（V1.1） 1-1
Overview
4. One transducer socket（two sockets can be installed）;
5. Frequency-conversion B/M mode imaging;
6. B Cine review;
7. VGA display, 640*480;
8. VIDEO outlet, PAL/NTSC optional;
9. Video print control port;
10. USB interface（optional）;
11. Ethernet interface（DICOM3.0
）（
optional）;
12. Self-diagnosis; performance testing report.
1.2.2Basic composition
The system consists of transducer, transducer board, main board, connection board,
keyboard, power supply, monitor, software, and mechanical structure. The diagram of
the complete machine is shown as follows:
1-2 DP-3300/DP-3200 Service Manual（V1.1）
Structure and Assembly/Disassembly of the Machine
Figure 1-1 Diagram of the complete machine
DP-3300/DP-3200 Service Manual（V1.1） 1-3
Structure and Assembly/Disassembly of the Machine
Structure and Assembly/Disassembly of the
Machine
1.3Structure of the Complete Machine
1.3.1Appearance view of the main unit
Figure 2-2 Appearance view of the main unit
DP-3300/DP-3200 Service Manual（V1.1） 2-1
Overview
1.3.2Exploded view of the complete machine
1.3.2.1Exploded view of the complete machine
Figure 2-3 Exploded view of the complete machine
1.3.2.2Components of the complete machine
1 knobs of the monitor 2302-20-29084 2
2 screen filter fixing buckle 9901-20-23950 2
3 screen filter 2302-20-34425 1
4 keyboard hook 2302-20-29092 1
5 front cover 2302-20-34401 1
6 anti-collision pad of keyboard 2302-20-29091 2
7 rubber cap A of the handle 2302-20-34471 1
8 rubber cap B of the handle 2302-20-34472 1
9 handle 2302-20-34470 1
10 transducer holder 2302-20-29082 1
11 rear cover 2302-20-29079 1
12 transducer cable hook 2102-30-16949 1
13 cable winding rack 2302-20-29083 2
2-2 DP-3300/DP-3200 Service Manual（V1.1）
Structure and Assembly/Disassembly of the Machine
14 rubber cap of cable winding rack 2302-20-29088 2
15 hook holder 2302-20-29085 1
16 rubber pad of bottom plate 2302-20-29087 4
17 bottom plate 2302-20-34469 1
18 cover of USB interface 2302-20-34449 2
1.3.3Keyboard assembly
1.3.3.1Exploded view of the keyboard assembly（1
）
4. 2300-20-29074 4键盘拨钮
10. 2300- 20- 29139 1按键板连接线
8. 2300- 20-29065 1压簧
9. 2300- 20- 29064 1按键扣
7. 2300- 20- 29066 1限位件
6. 2300- 20- 29067 1空心轴
5. A 2300- 20-29071 1键盘旋钮
3. 2300- 20- 29076 2键盘硅胶帽
2. 2302- 30-34484 1键盘下盖组件
5
1. 2302- 30- 34427 1键盘上盖组件
9
8
7
3
4
1
6
2
Figure 2-4 Exploded view of the keyboard assembly（1
）
1.3.3.2Composition of the keyboard assembly（1
）
1 keyboard upper cover assembly 2302-30-34427 1
2 keyboard lower cover assembly 2302-30-34484 1
3 keyboard silicone rubber cap 2302-20-29076 2
4 keyboard toggle switch 2302-20-29074 4
5 keyboard knob A 2302-20-29071 1
6 hollow shaft 2302-20-29067 1
7 position limiter 2302-20-29066 1
8 compressing spring 2302-20-29065 1
9 keyboard buckle 2302-20-29064 1
DP-3300/DP-3200 Service Manual（V1.1） 2-3
Overview
1.3.3.3Exploded view of the keyboard assembly（2
）
1. 2302- 20-34400 1键盘上盖
2. 2302- 20- 34423 1防尘片
3. 2300- 21- 29142 1蜂鸣器
4. 2302- 20-34402 1硅胶按键
6. 0000- 10-10893 1轨迹球
7. 2300- 20- 29144 1轨迹球连接线
5. 2302- 20- 34405 1键盘板
1
2
3
4
5
6
Figure 2-5 Exploded view of the keyboard assembly（2
）
1.3.3.4Composition of the keyboard assembly（2
）
1 keyboard upper cover
2302-20-34400
1
2 dust plate 2302-20-34423 1
3 buzzer
2302-21-29142
1
4 silicone rubber key 2302-20-34402 1
5 keyboard PCB
2302-20-34405
1
6 trackball 0000-10-10893 1
2-4 DP-3300/DP-3200 Service Manual（V1.1）
Structure and Assembly/Disassembly of the Machine
1.3.4Exploded view of CRT assembly
1.3.4.1Exploded view of CRT assembly
5. 2300-20-29109 1防护板
3. CRT 2300-20- 29095 1绝缘垫片
1. CRT 2300- 21-29149 1组件 2.CRT 2300- 20-29094 1固定框
4. 2 2300- 20-29108 1手柄固定架
1 2 3 4 5
Figure 2-6 Exploded view of CRT assembly
1.3.4.2Composition of CRT assembly
DP-3300/DP-3200 Service Manual（V1.1） 2-5
