LC320WXN
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ● ) Final Specification
Title |
32.0” WXGA TFT LCD |
|
|
BUYER |
LGE |
MODEL
SUPPLIER |
LG.Display Co., Ltd. |
|
|
*MODEL |
LC320WXN |
|
|
SUFFIX |
SCA4 (RoHS Verified) |
|
|
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
SIGNATURE
DATE
/
/
/
Please return 1 copy for your confirmation with your signature and comments.
APPROVED BY
SIGNATURE
DATE
J. T Kim / Team Leader
REVIEWED BY
S. Y Lee / Project Leader
PREPARED BY
Y. H Lee / Engineer
TV Products Development Dept.
LG. Display LCD Co., Ltd
Ver. 3.0 |
1 / 43 |
|
|
LC320WXN
Product Specification
CONTENTS
Number |
ITEM |
Page |
|
|
|
|
COVER |
1 |
|
CONTENTS |
2 |
|
RECORD OF REVISIONS |
3 |
1 |
GENERAL DESCRIPTION |
4 |
2 |
ABSOLUTE MAXIMUM RATINGS |
5 |
3 |
ELECTRICAL SPECIFICATIONS |
6 |
3-1 |
ELECTRICAL CHARACTERISTICS |
6 |
3-2 |
INTERFACE CONNECTIONS |
8 |
3-3 |
SIGNAL TIMING SPECIFICATIONS |
10 |
3-4 |
LVDS SIGNAL SPECIFICATIONS |
11 |
3-5 |
COLOR DATA REFERENCE |
14 |
3-6 |

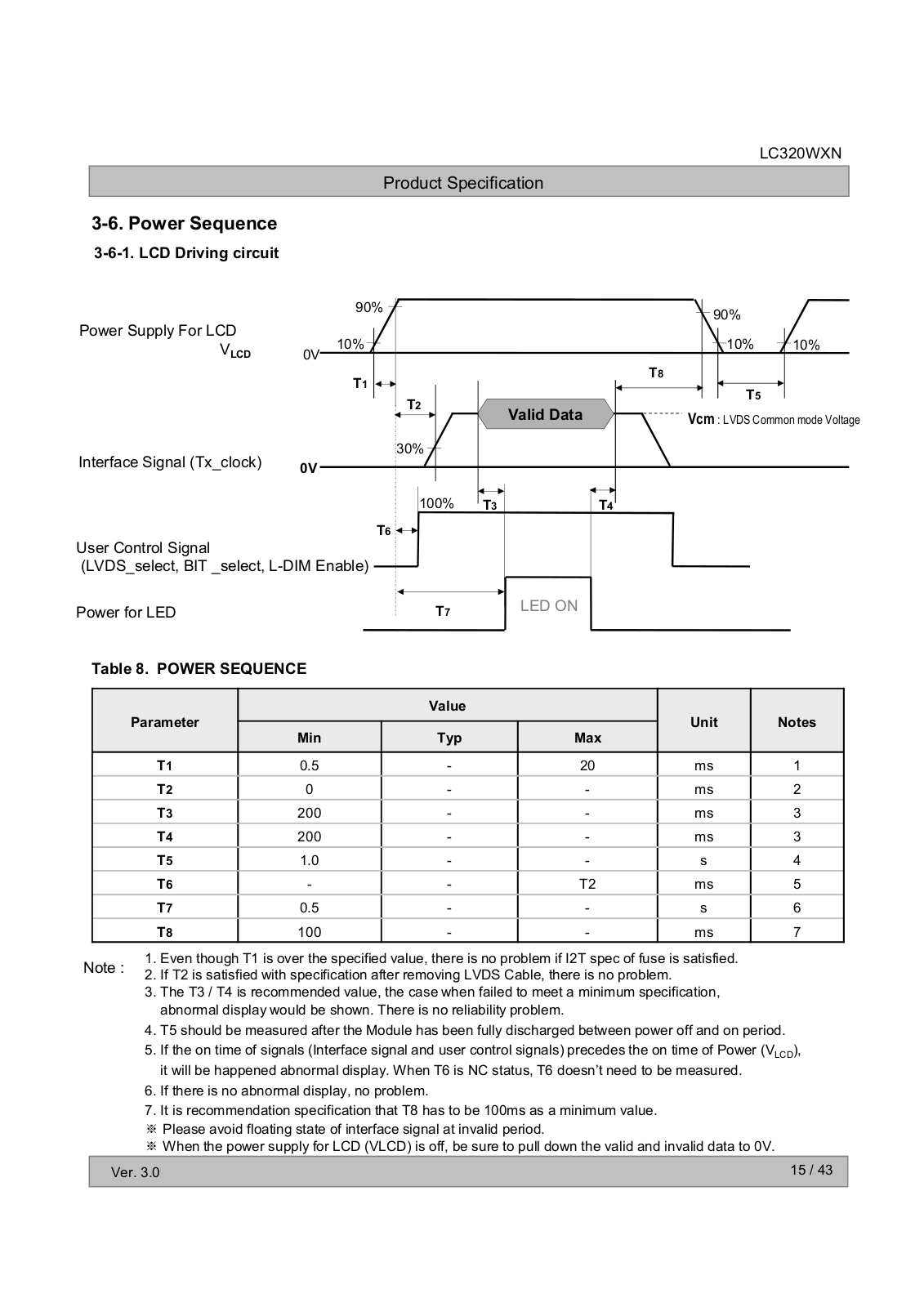

POWER SEQUENCE |
15 |
4 |
OPTICAL SPECIFICATIONS |
17 |
5 |
MECHANICAL CHARACTERISTICS |
21 |
6 |
RELIABILITY |
24 |
7 |
INTERNATIONAL STANDARDS |
25 |
7-1 |
SAFETY |
25 |
7-2 |
EMC |
25 |
7-3 |
ENVIRONMENT |
25 |
8 |
PACKING |
26 |
8-1 |
INFORMATION OF LCM LABEL |
26 |
8-2 |
PACKING FORM |
26 |
9 |

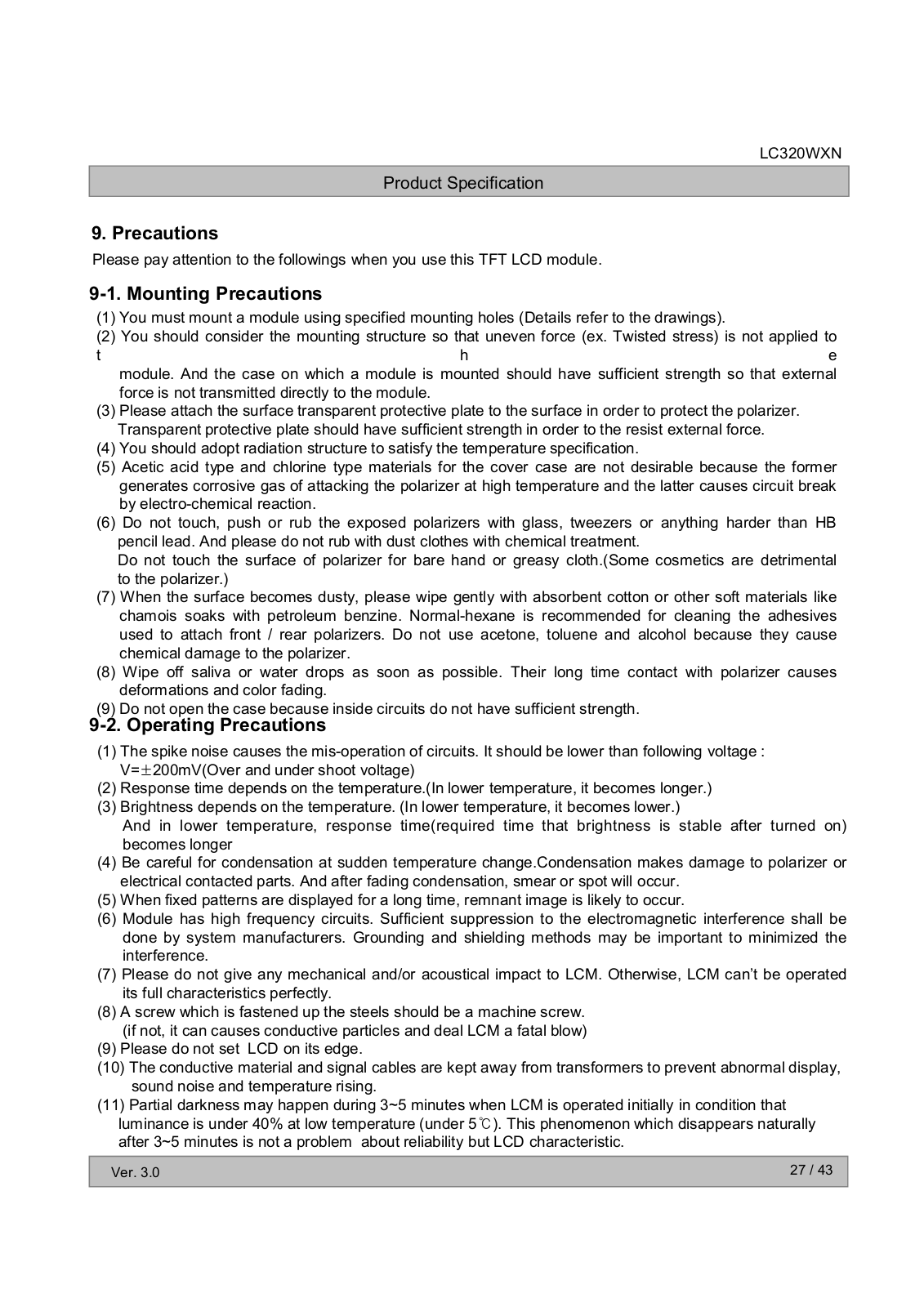

PRECAUTIONS |
27 |
9-1 |
MOUNTING PRECAUTIONS |
27 |
9-2 |
OPERATING PRECAUTIONS |
27 |
9-3 |
ELECTROSTATIC DISCHARGE CONTROL |
28 |
9-4 |
PRECAUTIONS FOR STRONG LIGHT EXPOSURE |
28 |
9-5 |
STORAGE |
28 |
9-6 |
HANDLING PRECAUTIONS FOR PROTECTION FILM |
28 |
|
|
|
Ver. 3.0 |
2 / 43 |
|
|
LC320WXN
|
|
|
Product Specification |
||
|
|
RECORD OF REVISIONS |
|||
|
|
|
|
|
|
Revision No. |
Revision Date |
Page |
|
Description |
|
|
|
|
|
|
|
1.0 |
Mar, 15, 2011 |
3 |
|
Updated General Features. |
|
|
|
6 |
|
Updated Electrical Characteristics of Backlight. |
|
|
|
|
|
|
|
|
|
9 |
|
Updated Signal Timing Specification. |
|
|
|
|
|
|
|
|
|
10 |
|
Updated Signal Timing Specifications. |
|
|
|
|
|
|
|
|
|
20 |
|
Updated Mechanical Characteristics. |
|
|
|
|
|
|
|
|
|
21, 22 |
|
Updated Mechanical Drawings. |
|
|
|
25 |
|
Updated Information of LCM Label. |
|
|
|
|
|
|
|
|
|
31 |
|
Added Production Site Information. |
|
2.0 |
June,30,2011 |
23 |
|
Updated Cover Bottom REAR View. |
|
|
|
|
|
|
|
3.0 |
July,05,2011 |
23 |
|
Updated Cover Bottom REAR View. |
|
|
|
|
|
|
|
|
|
- |
|
Final Specifications. |
|
|
|
|
|
|
|
4.0 |
Aug,29,2012 |
- |
|
Panel Fab. Multi(P8/P9) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ver. 3.0 |
3 / 43 |
|
|
LC320WXN
Product Specification
1. General Description
The LC320WXN is a Color Active Matrix Liquid Crystal Display with an integral External Electrode Fluorescent Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. Therefore, it can present a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.
Mini-LVDS(RGB)
|
|
|
|
|
EEPROM |
|
|
|
|
|
|
|
|
|
Source Driver Circuit |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
SCL |
SDA |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
OPC Enable |
|
|
|
|
|
|
|
|
|
|
S1 |
S1366 |
|||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||||
ExtVBR-B |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G1 |
|
|
|
|||
VBR-B out |
LVDS 1 |
|
|
Timing Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
LVDS Rx + OPC + DGA + ODC |
|
|
|
TFT - LCD Panel |
|
|
||||||||||||
LVDS |
(30pin) |
Option |
|
|
|
|
Integrated |
|
|
Control |
|
|
|
|
|
||||||
signal |
|
|
|
|
|
|
|
|
Signals |
|
|
(1366 × 768 X RGB pixels) |
|
|
|||||||
1Port |
CN1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[Gate In Panel] |
|
|
|
||
LVDS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select |
|
I2C |
|
|
|
|
|
|
|
Power Signals |
|
|
|
|
|
|
|
||||
|
|
|
Power Circuit |
|
|
G768 |
|
|
|
||||||||||||
+12.0V |
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXTVBR-B |
|
|
|
|
Block |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
3PinX1CN(High) |
|
|
|
|
|
|||||
|
Status |
|
|
|
|
|
|
|
|
|
|
|
Back light Assembly |
|
|||||||
|
|
|
|
|
Inverter |
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
+24.0V, GND |
|
|
|
|
|
|
|
|
3PinX1CN(High) |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
General Features |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Active Screen Size |
|
|
|
|
31.51 inches(800.4mm) diagonal |
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Outline Dimension |
|
|
|
|
760.0(H) x 450.0 (V) x 43.0 mm(D) including T-CON Cover Shield (Typ.) |
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Pixel Pitch |
|
|
|
|
|
0.51075 mm x 0.17025 mm x RGB |
|
|
|
|
|
|
|||||||||
Pixel Format |
|
|
|
|
|
1366 horiz. by 768 vert. Pixels, RGB stripe arrangement |
|
|
|
||||||||||||
Color Depth |
|
|
|
|
|
8bit , 16.7M colors |
|
|
|
|
|
|
|||||||||
Luminance, White |
|
|
|
|
450 cd/m2 (Center 1point ,Typ.) |
|
|
|
|
|
|
||||||||||
Viewing Angle (CR>10) |
|
|
|
|
Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.)) |
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Power Consumption |
|
|
|
|
Total 83.6 W (Typ.) (Logic=3.6 W, Backlight=80W) |
|
|
|
|||||||||||||
Weight |
|
|
|
|
|
|
5.0 Kg (Typ.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Display Mode |
|
|
|
|
|
Transmissive mode, Normally black |
|
|
|
|
|
|
|||||||||
Surface Treatment |
|
|
|
|
Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%) |
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ver. 3.0 |
4 / 43 |
|
|
LC320WXN
Product Specification
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or damage to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
|
|
|
|
Value |
|
|
|
|
Parameter |
Symbol |
|
|
|
Unit |
|
Note |
|
Min |
|
Max |
||||||
|
|
|
|
|
|
|
||
|
LCD Circuit |
VLCD |
-0.3 |
|
+14.0 |
VDC |
|
|
Power Input Voltage |
|
|
|
|
|
|
|
|
Inverter |
VBL |
-0.3 |
|
+ 27.0 |
VDC |
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
ON/OFF |
VOFF / VON |
-0.3 |
|
+5.5 |
VDC |
1 |
|
Inverter Control Voltage |
|
|
|
|
|
|
|
|
Brightness |
VBR |
0.0 |
|
+5.0 |
VDC |
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
T-Con Option Selection Voltage |
VLOGIC |
-0.3 |
|
+4.0 |
VDC |
|
|
|
|
|
|
|
|
|
|
|
|
Operating Temperature |
TOP |
0 |
|
+50 |
°C |
|
2,3 |
|
Storage Temperature |
TST |
-20 |
|
+60 |
°C |
|
||
|
|
|
||||||
Panel Front Temperature |
TSUR |
- |
|
+68 |
°C |
|
4 |
|
Operating Ambient Humidity |
HOP |
10 |
|
90 |
%RH |
|
|
|
Storage Humidity |
HST |
10 |
|
90 |
%RH |
|
2,3 |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
Note1. Ambient temperature condition (Ta = 25 ± 2 °C )
2.Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be Max 39°C, and no condensation of water.
3.Gravity mura can be guaranteed below 40°C condition.
4.The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber. Thermal management should be considered in final product design to prevent the surface temperature of display area from being over 68 . The range of operating temperature may degraded in case of improper thermal management in final product design.
90%
60
60%
50
Wet Bulb
Temperature [°C]
40
30
20
10
0
40%[(%)RH]Humidity
10%
Storage
Operation
-20 |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
|
|
Dry Bulb Temperature [°C] |
|
|
|
Ver. 3.0 |
5 / 43 |
|
|
LC320WXN
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the EEFL backlight and inverter circuit.
Table 2. ELECTRICAL CHARACTERISTICS
|
|
|
Value |
|
|
|
|
Parameter |
Symbol |
|
|
|
Unit |
Note |
|
Min |
Typ |
Max |
|||||
|
|
|
|
||||
|
|
|
|
|
|
|
|
Circuit : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Input Voltage |
VLCD |
10.8 |
12.0 |
13.2 |
VDC |
|
|
|
|
|
|
|
|
|
|
|
|
- |
300 |
390 |
mA |
1 |
|
Power Input Current |
ILCD |
|
|
|
|
|
|
- |
350 |
455 |
mA |
2 |
|||
|
|
||||||
|
|
|
|
|
|
|
|
Power Consumption |
PLCD |
|
3.6 |
4.68 |
Watt |
1 |
|
|
|
|
|
|
|
|
|
Rush current |
IRUSH |
- |
- |
3.0 |
A |
3 |
|
|
|
|
|
|
|
|
Note 1. The specified current and power consumption are under the VLCD=12.0V, Ta=25 ± 2°C, fV=60Hz condition whereas mosaic pattern(8 x 6) is displayed and fV is the frame frequency.
2.The current is specified at the maximum current pattern.
3.The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
White : 255 Gray
Black : 0 Gray
Mosaic Pattern(8 x 6)
Ver. 3.0 |
6 / 43 |
|
|
|
|
|
|
|
|
|
|
|
LC320WXN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Specification |
|
|
|
|
|
||
Table 3. ELECTRICAL CHARACTERISTICS (Continue) |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Values |
|
|
|
|
|
Parameter |
Symbol |
|
|
|
|
Unit |
Note |
|
||
Min |
Typ |
Max |
|
|
||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Inverter : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Power Supply Input Voltage |
VBL |
22.8 |
24.0 |
25.2 |
|
VDC |
1 |
|
||
|
|
|
|
|
|
|
|
|
|
|
Power Supply |
After Aging |
IBL_A |
- |
3.3 |
3.65 |
|
A |
1 |
|
|
Input Current |
Before Aging |
IBL_B |
- |
3.4 |
3.8 |
|
A |
2 |
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
VBL = 22.8V |
|
Power Supply Input Current (In-Rush) |
IRUSH |
- |
- |
6.0 |
|
A |
EXTVBR-B = 100% |
|
||
|
|
|
|
|
|
|
|
|
6 |
|
Power Consumption |
|
|
PBL |
- |
80 |
|
|
W |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
On/Off |
On |
VON |
2.5 |
- |
5.0 |
|
VDC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off |
VOFF |
-0.3 |
0.0 |
0.8 |
|
VDC |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
Brightness Adjust |
EXTVBR-B |
25 |
- |
100 |
% |
On Duty |
|
||
Input Voltage for |
7 |
|
||||||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Control System |
PWM Frequency for |
PAL |
|
100 |
|
|
Hz |
5 |
|
|
Signals |
|
|
|
|
||||||
|
NTSC & PAL |
NTSC |
|
120 |
|
|
Hz |
5 |
|
|
|
Pulse Duty |
High Level |
2.5 |
- |
5.0 |
|
VDC |
High: Lamp on |
|
|
|
Level (PWM) |
|
|
|
|
|
|
|
||
|
Low Level |
0.0 |
- |
0.8 |
|
VDC |
Low : Lamp off |
|
||
|
(Burst mode) |
|
|
|||||||
|
|
|
|
|||||||
Lamp: |
|
|
|
|
|
|
|
|
|
|
Discharge Stabilization Time |
Ts |
|
|
3 |
|
min |
3 |
|
||
Life Time |
|
|
|
50,000 |
60,000 |
|
|
Hrs |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
Note 1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 120 minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage 24Vand VBR (EXTVBR-B : 100%), it is total power consumption.
2.Electrical characteristics are determined within 30 minutes at 25±2°C. The specified currents are under the typical supply Input voltage 24V.
3.The brightness of the lamp after lighted for 5minutes is defined as 100%.
TS is the time required for the brightness of the center of the lamp to be not less than 95% at typical current. The screen of LCD module may be partially dark by the time the brightness of lamp is stable after turn on.
4.Specified Values are for a single lamp which is aligned horizontally.
The life time is determined as the time which luminance of the lamp is 50% compared to that of initial value at the typical lamp current (EXTVBR-B :100%), on condition of continuous operating at 25± 2°C
5.LGD recommend that the PWM freq. is synchronized with two times harmonic of Vsync signal of system.
6.The duration of rush current is about 10ms.
7.EXTVBR-B is based on input PWM duty of the inverter.
Ver. 3.0 |
7 / 43 |
|
|
LC320WXN
Product Specification
3-2. Interface Connections
This LCD module employs two kinds of interface connection, 30-pin connector is used for the module electronics and two 3-pin Balance PCB connectors are used for the integral backlight system.
3-2-1. LCD Module
- LCD Connector |
: FI-X30SSL-HF(manufactured by JAE) or IS100-L30B-C23(manufactured by UJU) |
|||
(CN1) |
Refer to below and next Page table |
|
||
- Mating Connector : FI-X30C2L(manufactured by JAE) or compatible |
|
|||
Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION |
|
|||
|
|
|
|
|
Pin No. |
|
Symbol |
Description |
Note |
|
|
|
|
|
1 |
|
VLCD |
Power Supply +12.0V |
|
2 |
|
VLCD |
Power Supply +12.0V |
|
3 |
|
VLCD |
Power Supply +12.0V |
|
4 |
|
VLCD |
Power Supply +12.0V |
|
5 |
|
GND |
Ground |
|
6 |
|
GND |
Ground |
|
7 |
|
GND |
Ground |
|
8 |
|
GND |
Ground |
|
9 |
|
LVDS Select |
‘H’ =JEIDA , ‘L’ or NC = VESA |
Appendix III-1,-2 |
10 |
|
OPC_Enable |
‘H’ = Enable , ‘L’ = Disable |
|
11 |
|
GND |
Ground |
|
12 |
|
RA- |
LVDS Receiver Signal(-) |
|
13 |
|
RA+ |
LVDS Receiver Signal(+) |
|
14 |
|
GND |
Ground |
|
15 |
|
RB- |
LVDS Receiver Signal(-) |
|
16 |
|
RB+ |
LVDS Receiver Signal(+) |
|
17 |
|
GND |
Ground |
|
18 |
|
RC- |
LVDS Receiver Signal(-) |
|
19 |
|
RC+ |
LVDS Receiver Signal(+) |
|
20 |
|
GND |
Ground |
|
21 |
|
RCLK- |
LVDS Receiver Clock Signal(-) |
|
22 |
|
RCLK+ |
LVDS Receiver Clock Signal(+) |
|
23 |
|
GND |
Ground |
|
24 |
|
RD- |
LVDS Receiver Signal(-) |
|
25 |
|
RD+ |
LVDS Receiver Signal(+) |
|
26 |
|
GND |
Ground |
|
27 |
|
OPC OUT |
OPC output (From LCM) |
|
28 |
|
Ext VBR-B |
External VBR (From System) |
|
29 |
|
GND |
Ground |
|
30 |
|
GND |
Ground |
|
Note 1. All GND(ground) pins should be connected together to the LCD module’s metal frame.
2.All VLCD (power input) pins should be connected together.
3.All Input levels of LVDS signals are based on the EIA 644 Standard.
4.Specific pins(pin No. # 10 & #27~#28) are used for OPC function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix III-4 for more information.)
Ver. 3.0 |
8 / 43 |
|
|
LC320WXN
Product Specification
3-2-2. Backlight Module
[ Master ]
-Inverter Connector : 20022WR-14B1(Yeonho) Mating Connector : 20022HS-14 or Equivalent
Table 5. INVERTER CONNECTOR PIN CONFIGULATION
Pin No |
Symbol |
Description |
Master |
Note |
|
|
|
|
|
|
|
1 |
|
VBL |
Power Supply +24.0V |
VBL |
|
2 |
|
VBL |
Power Supply +24.0V |
VBL |
|
3 |
|
VBL |
Power Supply +24.0V |
VBL |
|
4 |
|
VBL |
Power Supply +24.0V |
VBL |
|
5 |
|
VBL |
Power Supply +24.0V |
VBL |
|
6 |
|
GND |
Backlight Ground |
GND |
|
7 |
|
GND |
Backlight Ground |
GND |
|
8 |
|
GND |
Backlight Ground |
GND |
1 |
9 |
|
GND |
Backlight Ground |
GND |
|
10 |
|
GND |
Backlight Ground |
GND |
|
11 |
|
Status |
Backlight Status |
Status |
2 |
12 |
|
VON/OFF |
Backlight ON/OFF control |
VON/OFF |
|
|
|
|
|
|
|
13 |
|
NC |
No connection |
NC |
|
|
|
|
|
|
|
14 |
|
EXTVBR-B |
External PWM |
EXTVBR-B |
|
|
|
|
|
|
|
Note |
1. GND should be connected to the LCD module’s metal frame. |
|

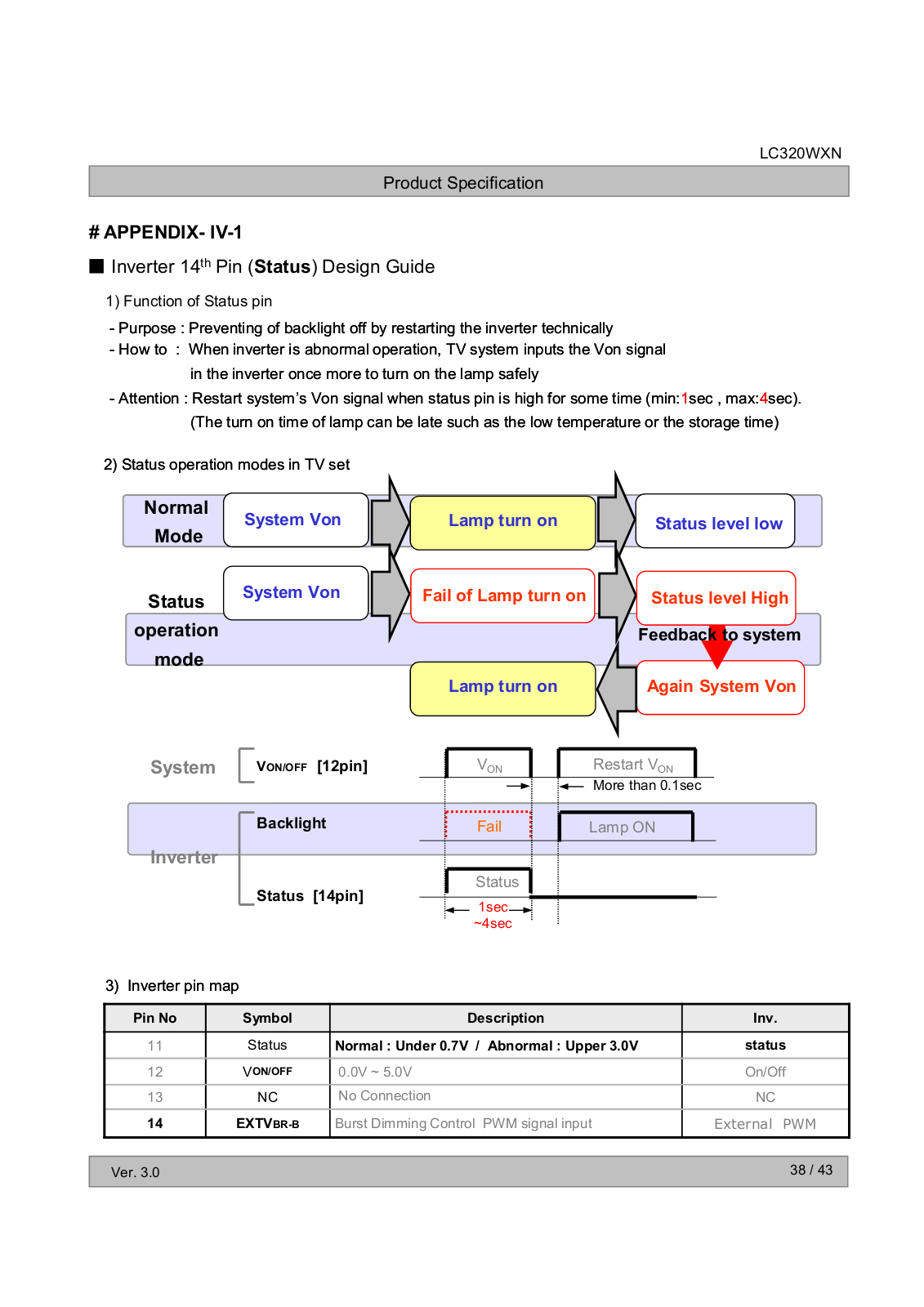

2.Normal : Low (under 0.7V) / Abnormal : High (upper 3.0V) Please see Appendix IV-1 for more information.
3.The impedance of pin #12 is over 50[KΩ] & the impedance of Pin #14 is over 50[KΩ].
Rear view of LCM
PCB
14
F |
F |
|
|
|
|
|
|
1
<Master>
Ver. 3.0 |
9 / 43 |
|
|
LC320WXN
Product Specification
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal timings should be satisfied with the following specification for normal operation.
Table 6-1. TIMING TABLE (DE Only Mode)
ITEM |
|
Symbol |
Min |
Typ |
Max |
Unit |
Note |
|
|
|
|
|
|
|
|
|
|
|
|
Display |
tHV |
- |
1366 |
- |
tclk |
|
|
|
Period |
|
|||||
|
|
|
|
|
|
|
|
|
Horizontal |
|
|
|
|
|
|
|
|
|
Blank |
tHB |
110 |
162 |
410 |
tclk |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Total |
tHP |
1476 |
1528 |
1776 |
tclk |
|
|
|
|
|
|
|
|
|
|
|
|
Display |
tVV |
- |
768 |
- |
tHP |
|
|
|
Period |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Blank |
tVB |
20 |
22 |
240 |
tHP |
1 |
Vertical |
|
(126) |
(180) |
(295) |
||||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Total |
tVP |
788 |
790 |
1008 |
tHP |
|
|
|
(894) |
(948) |
(1063) |
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
ITEM |
Symbol |
Min |
Typ |
Max |
Unit |
Note |
|
|
|
|
|
|
|
|
|
|
DCLK |
fCLK |
63.0 |
72.4 |
80.0 |
MHz |
|
|
|
|
|
|
|
|
|
|
Horizontal |
fH |
45 |
47.4 |
55 |
KHz |
2 |
Frequency |
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
Vertical |
fV |
57 |
60 |
63 |
Hz |
NTSC : |
|
(47) |
(50) |
(53) |
57~63Hz |
|||
|
|
|
|
||||
|
|
|
|
|
|
|
(PAL : 47~53Hz) |
|
|
|
|
|
|
|
|
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode). If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2.The performance of the electro-optical characteristics may be influenced by variance of the vertical refresh rate and the horizontal frequency
Timing should be set based on clock frequency.
Ver. 3.0 |
10 / 43 |
|
|
LC320WXN
Product Specification
3-4. LVDS Signal Specification
3-4-1. LVDS Input Signal Timing Diagram
0.7VDD
DE, Data
0.3VDD
tCLK
0.5 VDD
DCLK
First data |
|
Invalid data |
|
|
|
DE(Data Enable)
|
Valid data |
|
|
|
Pixel |
0,0 |
Pixel |
1,0 |
Invalid data |
|
tHV |
tHP |
|
1 |
768 |
DE(Data Enable) |
|
|
tVV |
tVP |
|
Ver. 3.0 |
11 / 43 |
|
|
LC320WXN
Product Specification
3-4-2. LVDS Input Signal Characteristics
1) DC Specification
LVDS |
- |
|
|
|
|
|
|
|
|
LVDS |
+ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
V CM |
V IN _ MAX V IN _ MIN |
||
|
# V CM = {(LVDS |
+) + ( LVDS -)}/2 |
|
|
|
|
|
|
|
0V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Description |
|
Symbol |
Min |
Max |
|
Unit |
|
Note |
|
|
|
|
|
|
|
|
|
|
|
LVDS Common mode Voltage |
|
VCM |
1.0 |
1.5 |
|
V |
|
- |
|
LVDS Input Voltage Range |
|
VIN |
0.7 |
1.8 |
|
V |
|
- |
|
Change in common mode Voltage |
|
∆VCM |
|
250 |
|
mV |
|
- |
|
|
|
|
|
|
|
|
|
|
|
2) AC Specification
Tclk
LVDS Clock
A
LVDS Data
|
tSKEW tSKEW |
|
(Fclk = 1/Tclk ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
|||
|
|
|
|
|
|
|
|
|
|
|||
LVDS 1’st Clock |
|
Tclk |
|
|
|
|
|
|
80% |
|||
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
||||
LVDS 2nd / 3rd / 4th Clock |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20% |
|
tSKEW_min tSKEW_max |
|
|
|
|
|
|
|
|
|
|
tRF |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
Description |
|
Symbol |
|
Min |
Max |
Unit |
|
|
|
Note |
||
LVDS Differential Voltage |
High Threshold |
|
VTH |
|
100 |
300 |
mV |
|
|
3 |
||
Low Threshold |
|
VTL |
|
-300 |
-100 |
mV |
|
|
||||
|
|
|
|
|
|
|
||||||
LVDS Clock to Data Skew Margin |
|
tSKEW |
|
|
|(0.25*Tclk)/7| |
ps |
|
|
- |
|||
LVDS Clock/DATA Rising/Falling time |
|
tRF |
|
260 |
(0.3*Tclk)/7 |
ps |
|
|
2 |
|||
Effective time of LVDS |
|
teff |
|
±360 |
|
ps |
|
|
- |
|||
LVDS Clock to Clock Skew Margin (Even to Odd) |
|
tSKEW_EO |
|
|
1/7* Tclk |
Tclk |
|
|
- |
Note 1. All Input levels of LVDS signals are based on the EIA 644 Standard.
2.If tRF isn’t enough, teff should be meet the range.
3.LVDS Differential Voltage is defined within teff
Ver. 3.0 |
12 / 43 |
|
|
V+ data
Vcm
V- data
V+ clk
Vcm
V- clk
LC320WXN
Product Specification
360ps
0.5tui |
tui |
|
|
VTH
VTL
360ps
teff
tui : Unit Interval
Ver. 3.0 |
13 / 43 |
|
|
