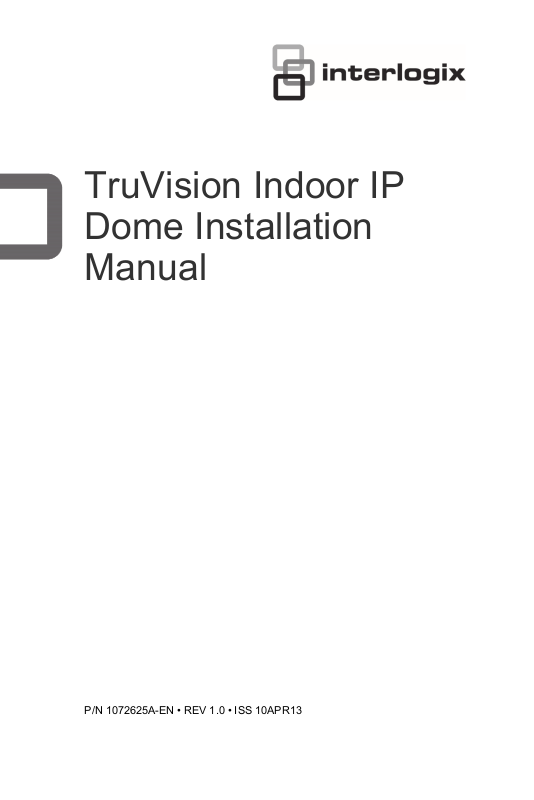

TruVision Indoor IP
Dome Installation
Manual
P/N 1072625A-EN • REV 1.0 • ISS 10APR13
Copyright
Trademarks and
patents
Manufacturer
Certification
FCC compliance
ACMA compliance
Canada
European Union
directives
Contact information
© 2013 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved.
The Product Name and logo are trademarks of United Technologies.
Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representative: UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
N4131
Class B: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Notice! This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-0330 du Canada.
12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.
For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
Content
Introduction 3
Product overview 3
Features 4
Installation 4
Installation environment 4 Package contents 5 Cable requirements 5 Camera description 6 Setting up the camera 6 Connecting the devices 7
Accessing the SDHC card 9
Mounting the dome cameras on a ceiling 10 Mounting the wedge dome cameras on a ceiling 12
Using the camera with an Interlogix NVR or Hybrid DVR and other systems 14 Using the camera with TruVision Navigator 14
Specifications 14
TruVision Indoor IP Dome cameras 14
IP wedge dome cameras 15
Pin definitions 16
Introduction
Product overview
This is the user manual for TruVision IP dome open-standard camera models:
TruVision IP dome: |
|
TVD-N210V-2-N(-P) |
(VGA) |
TVD-M1210V-2-N(-P) |
(1.3 megapixel) |
TVD-M2210V-2-N(-P) |
(2 megapixel) |
TVD-M3210V-2-N(-P) |
(3 megapixel) |
TruVision IP IR dome:
TVD-N245V-2-N(-P) |
(4CIF WDR, D/N, IR) |
TVD-M1225V-2-N(-P) |
(1.3 megapixel, D/N, IR) |
TVD-M2225V-2-N(-P) |
(2 megapixel, D/N, IR) |
TVD-M3225V-2-N(-P) |
(3 megapixel, D/N, IR) |
TVD-M5225V-4-N(-P) |
(5 megapixel, D/N, IR) |
Installation Manual |
3 EN |
TruVision IP wedge dome:
TVD-M1210W-2-N(-P) |
(1.3 megapixel) |
TVD-M1210W-2W-N(-P) |
(1.3 megapixel) |
TVD-N210W-4-N(-P) |
(VGA) |
TVD-M2210W-4-N(-P) |
(2 megapixel) |
Features
This section describes the camera features.
Supports TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, and NTP protocols
Programming and setup through a browser interface
Live viewing over the network
50/60 Hz selectable flicker control
Mono, bi-directional audio
Digital pan/tilt/zoom (PTZ)
Supports remote upgrades and maintenance
H.264 video compression with dual capability
Supports full HD, HD, 4CIF, 2CIF, CIF and QCIF
SD card for local storage (except wedge dome)
Installation
This chapter provides information on how to install the cameras.
Installation environment
When installing your product, consider these factors:
•Electrical: Install electrical wiring carefully. It should be done by qualified service personnel. Always use a proper PoE switch or a 12 VDC UL listed Class 2 or CE certified power supply to power the camera. Do not overload the power cord or adapter.
•Ventilation: Ensure that the location planned for the installation of the camera is well ventilated.
•Temperature: Do not operate the camera beyond the specified temperature, humidity or power source ratings. The operating temperature of the camera is between -10 to +60°C (14 to 140°F). Humidity is below 90%.
EN 4 |
Installation Manual |
•Moisture: Do not expose the camera to rain or moisture, or try to operate it in wet areas. Turn the power off immediately if the camera is wet and ask a qualified service person for servicing. Moisture can damage the camera and also create the danger of electric shock.
•Servicing: Do not attempt to service this camera yourself. Any attempt to dismantle or remove the covers from this product will invalidate the warranty and may also result in serious injury. Refer all servicing to qualified service personnel.
•Cleaning: Do not touch the sensor modules with fingers. If cleaning is necessary, use a clean cloth with some ethanol and wipe the camera gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensors from dirt.
Package contents
Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit; contact the supplier immediately. If the unit is returned, it must be shipped back in its original packaging.
Package contents:
Camera
Hex wrench
Installation manual
CD with Configuration Manual and TruVision Device Finder
CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE certified or LPS (limited power source) of the required output rating as listed on the unit.
Cable requirements
For proper operation, adhere to the following cable and power requirements for the cameras. Category 5 cabling or better is recommended. All network cabling must be installed according to applicable codes and regulations.
Table 1 below lists the requirements for the cables that connect to the camera.
Table 1: Recommended cable requirements
Cable type |
Requirements |
|
|
Data |
For RS-485: 22 gauge (0.64 mm) shielded, two-conductor, |
|
twisted-pair (STP) cable |
|
|
Video |
75 ohm RS-59 coaxial cable with BNC ends |
|
|
Installation Manual |
5 EN |
