CONTENTS

1	SAFETY INFORMATION ..................................................................................	3
2	PRODUCT DESCRIPTION ...............................................................................	5
3	CONTROL PANEL ..........................................................................................	6
4	BEFORE FIRST USE .....................................................................................	12
5	DAILY USE ...................................................................................................	13
6	WASHING HINTS ..........................................................................................	18
7	INTERNATIONAL WASH CODE SYMBOLS ...................................................	21
8	CARE AND CLEANING .................................................................................	21
9	TROUBLESHOOTING ...................................................................................	26
10	TECHNICAL DATA ........................................................................................	29
11	INSTALLATION .............................................................................................	30
12	ENVIRONMENT CONCERNS ........................................................................	32

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

ENGLISH 3

1. SAFETY INFORMATION

Conditions of use

This appliance is intended to be used in household and similar applications such as:

-Farm houses

-By clients in serviced apartments, holiday apartments and residential type environments.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings.

To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.

Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

1.1 GENERAL SAFETY

It is dangerous to alter the specifications or attempt to modify this product in anyway.

During high temperature wash program the door glass may get hot. Do not touch it!

Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using the appliance.

Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.

Only use the advised quantities of fabric softener and detergent. Damage to the fabric or appliance can occur if you overfill. Refer to the manufacturer’s recommendations of quantities.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not use your washing machine to wash articles with whalebones, material without hems or torn material.

Always unplug the appliance and turn off the water supply after use, clean and maintenance.

Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

1.2 INSTALLATION

This appliance is heavy. Care should be taken when moving it.

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

4 www.electrolux.com

After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable.

If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.

Always be sure, that there is no water leakage from hoses and their connections after the installation.

Any plumbing work required to install this appliance should be carried out by a qualified plumber.

Any electrical work required to install this appliance should be carried out by a qualified electrician.

1.3 USE

This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

Do not overload the appliance. See the relevant section in the user manual.

Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing.

Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

Never use the washing machine if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible.

1.4 CHILD SAFETY

This washing machine is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

Keep all detergents in a safe place out of children’s reach.

Make sure that children or pets do not climb into the drum.

This machine is provided child lock option ( ) to prevent the children play with the control panel. (see page 18)

1.5 CHILD SAFETY DEVICE

When you activate this device, you cannot close the door. This prevents children or pets to be locked in the drum.

To activate this device, rotate the button (WITHOUT pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

ENGLISH 5

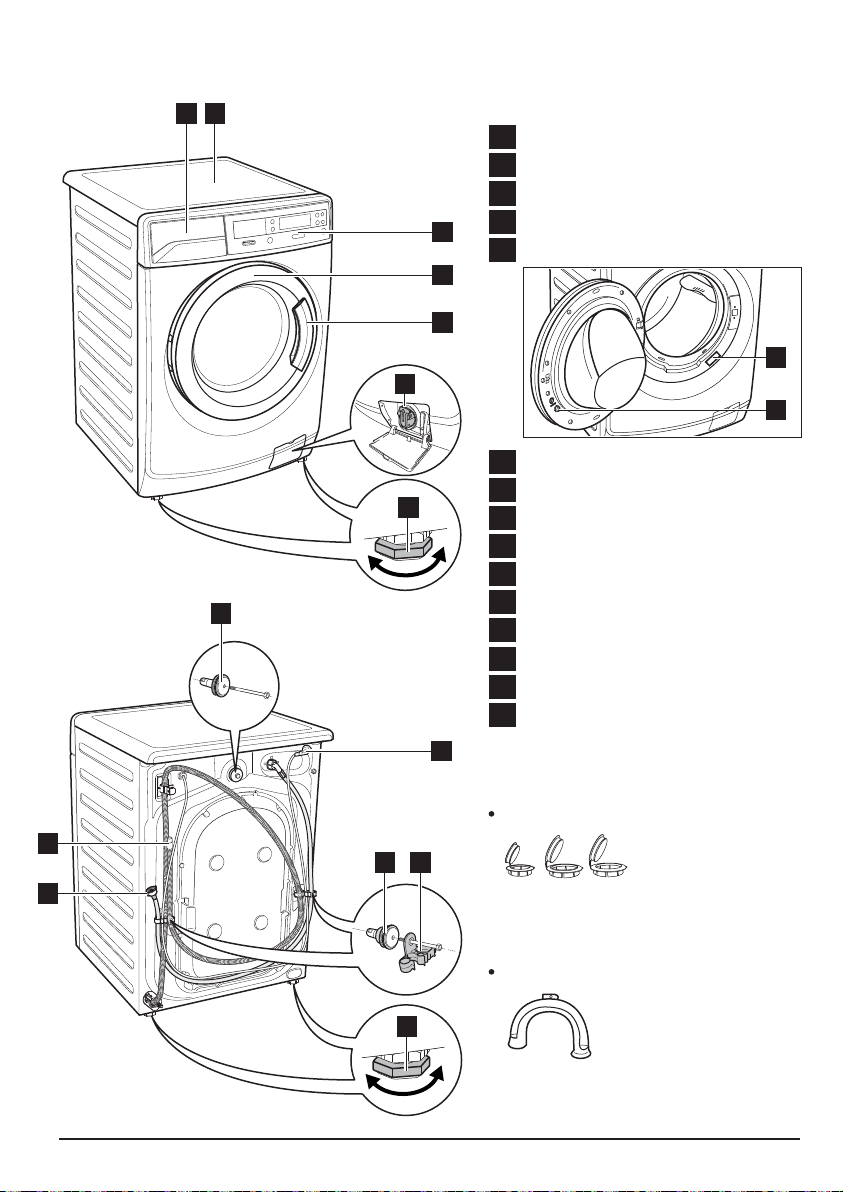

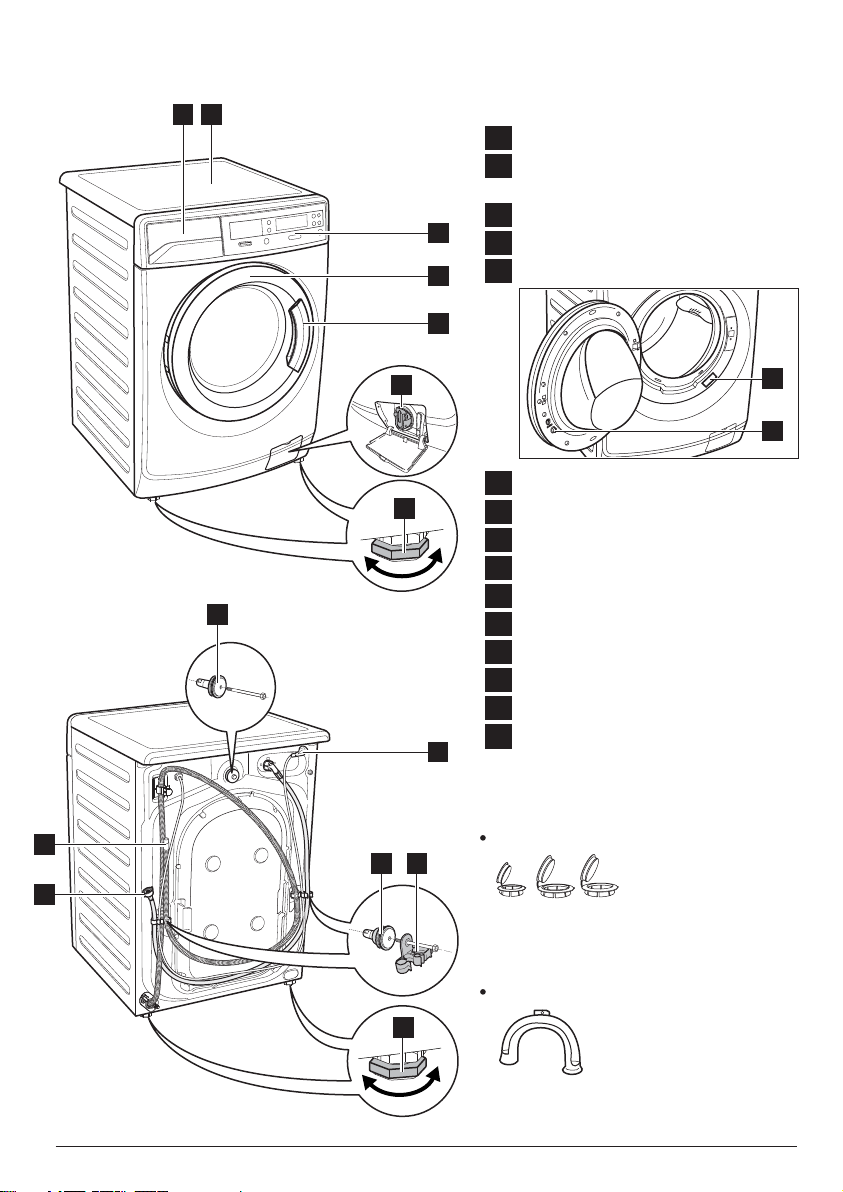

2. PRODUCT DESCRIPTION

2	1
				1	Worktop
				2	Detergent/Softener Dispenser
				3	Control Panel
			3	4	Door Handle
				5	Door
			5
			4
					14
		15
					13
				6	Level Adjustment Feet (Front)
		6		7	Mains Cable
				8	Water Inlet Hose
				9	Water Drain Hose
				10	Hose Support (2pcs)
	11			11	Transit Bolts (3pcs)
				12	Level Adjustment Feet (Back)
				13 Child Safety Device
				14 Rating Label
				15 Drain Pump Filter
			7
				ACCESSORIES

9

11 10 8

12

Plastic Caps

To close the holes on the rear side of the cabinet after the removal of the transit bolts.

Plastic Hose Guide

To connect the drain hose on the edge of a sink.

6 www.electrolux.com

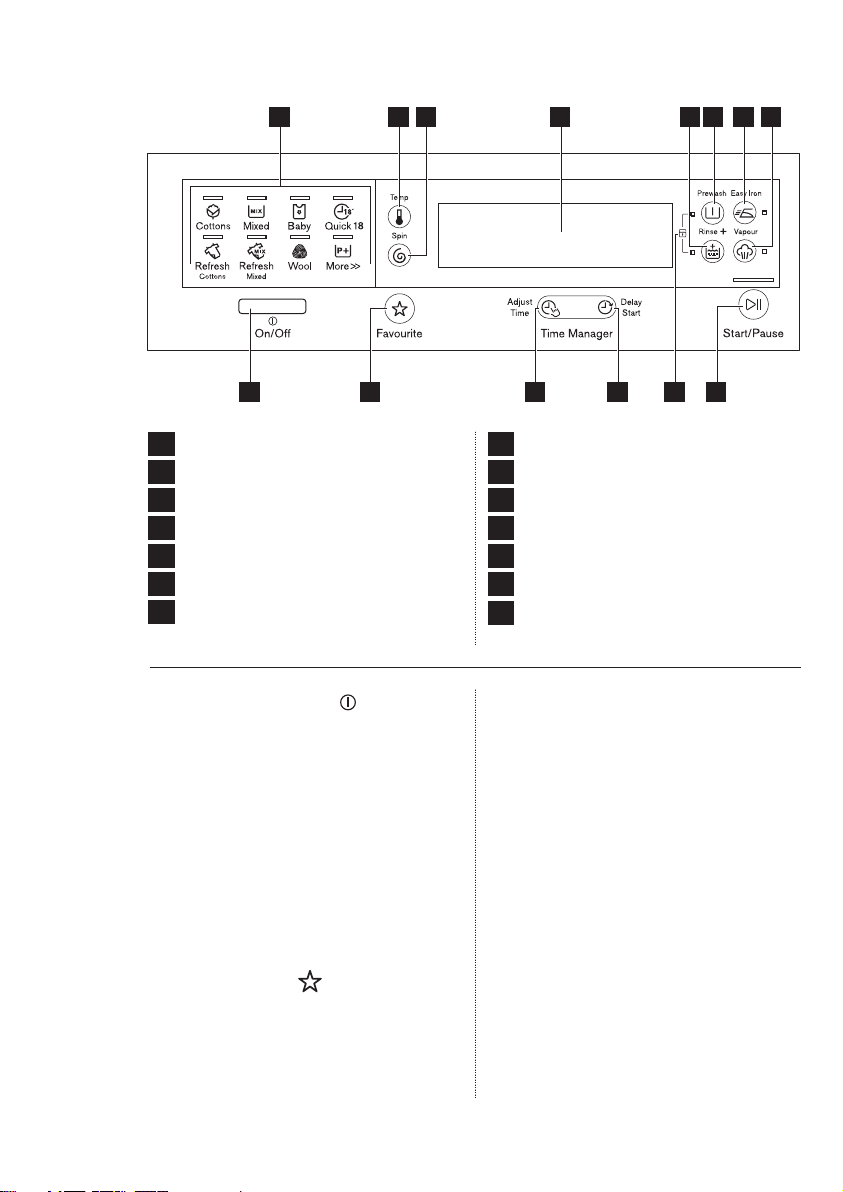

3. CONTROL PANEL

	2	4	5		8		9 10 11 12
	1	3		6	7	14	13
1	On/Off Button			8	Display
2	Program Touchpads			9	Rinse Plus Touchpad
3	Favourite Touchpad			10	Prewash Touchpad
4	Temperature Touchpad			11	Easy Iron Touchpad
5	Spin Selection Touchpad			12	Vapour Touchpad
6	Adjust Time Touchpad			13	Start/Pause Touchpad

7

Delay Start Touchpad

14

Child Lock Option (See Page 18)

3.1 On/Off Button ( )

On/Off button is used to turn on and turn off your washing machine.

3.2 Program Touchpads

Press the program icon to select the wash program. The relevant light will light up.

(See page 10)

3.3 Favourite Touchpad ()

Program settings that are frequently used can be saved (e.g. Cotton, 60°C, 1200 rpm, with Prewash and Rinse Plus).

To program/re-program Favourite with your own selections and save them, proceed as follows:

1.Put machine in Stand-by mode.

2.Select your desired wash settings.

3.To save the new program touch and hold “Favourite” button for 3 seconds.

To recall the favourite wash program, press “Favourite” button.

You will get acknowledgement on the screen the Favourite program is loaded.

You can recall a favourite wash program ONLY when the washing machine is in the program selection mode.

Otherwise touching Favourite will have no effect.

ENGLISH 7

3.4 Temperature Touchpad ( )

Press this touchpad repeatedly to increase or decrease the wash temperature if you want your laundry to be washed at a temperature different from the one proposed by the washing machine.

3.5 Spin Selection Touchpad ()

Press this touchpad repeatedly to increase or decrease the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine.

No Spin ( )

No spin option eliminates all the spin phases and increase the number of rinses.

Extra Silent ( )

By selecting this option, the machine will not drain the water of the last rinse to avoid wrinkling the laundry. All spinning phases are suppressed.

This washing cycle is very quiet, and can be selected at night or other appropriate times.

The door stays locked with the water in the drum. To continue the cycle you must press (Start/Pause).

Rinse Hold ( )

By selecting this option the water of the last rinse is not emptied out and the drum turns regularly to prevent the laundry creases.

The door is still locked to indicate that the water must be emptied out.

The door stays locked with the water in the drum. To continue the cycle you must press (Start/Pause).

3.6 Adjust Time Touchpad ( )

This option allows you to reduce washing time.

Press this touchpad repeatedly to decrease or return to default washing time.

This option will adjust the number of rinse according to selected washing time.

3.7 Delay Start Touchpad ( )

This option makes it possible to delay the start of the program by 30 min, 60 min or 90 min and then by every hour from 2 to 20 hours.

The delay you have selected is indicated on the display. The end time will increase in order to show you the selected delay.

You must select this option after you have set the program and before you press the Start/Pause button.

If you wish to add laundry in the machine during the delay time press Start/Pause touchpad to put the machine in pause mode. Add laundry, close the door and press Start/Pause touchpad again.

You can cancel the delay time at any moment, by pressing ‘Delay Start’ touchpad repeatedly till the display shows delay time ‘’, then press the Start/Pause touchpad.

8www.electrolux.com

3.8Display

	D	E	F	G		H	J	K	L
C	A	B			N	O	I		M

	A	Rinse hold icon					I	Text bar
	B	Spin speed					J	Time manager icon
	C	Extra silent icon					K	Washing cycle time/
								Delay start time
	D	Wash temperature
							L	Delay start icon
	E	Cold water icon
							M	Child lock icon
	F	Door lock icon
							N	Prewash Icon
	G	Load weight
							O	UltraMix System Icon
	H	Maximum load capacity of selected program
		The display shows		and		indicators
			G		H
		when the door is open.

3.9 Rinse Plus Touchpad ( )

This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

Press it to add rinsing phases to a program.

The indicator of this option comes on.

ENGLISH 9

3.10 Prewash Touchpad ( )

Select this option if you wish your laundry to be pre-washed before the main wash. Use this option for heavy soil.

The indicator of this option comes on.

When you set this function, put the detergent into the “ ” compartment. (Refer page 15-16)

This function increases the program duration.

3.11 Easy Iron Touchpad ( )

When selecting this option the laundry is gently washed and spun to avoid creasing. In this way ironing is easier.

The indicator of this option comes on.

3.12 Vapour Touchpad ( )

Select this option to add approximately 60 minutes of tumbling in vapour during the wash cycle. Vapour helps open fabric fibers up to allow laundry additives to release tough stains.

The indicator of this option comes on.

NOTE:

Vapour may not necessarily be visible inside the drum during a vapour wash cycle. Vapour is created below the drum and allowed to naturally rise into the clothes.

Vapour may not be present during the entire vapour wash cycle.

Vapour function is more effective with half load.

At the end of the Vapour cycle the clothes will be warmer, softer and detached from the drum.

If Vapour option is selected, rinse temperatures will be elevated.

During a vapour cycle you may notice vapour exiting from the drain hose of the washing machine, this is normal and there is no cause for alarm.

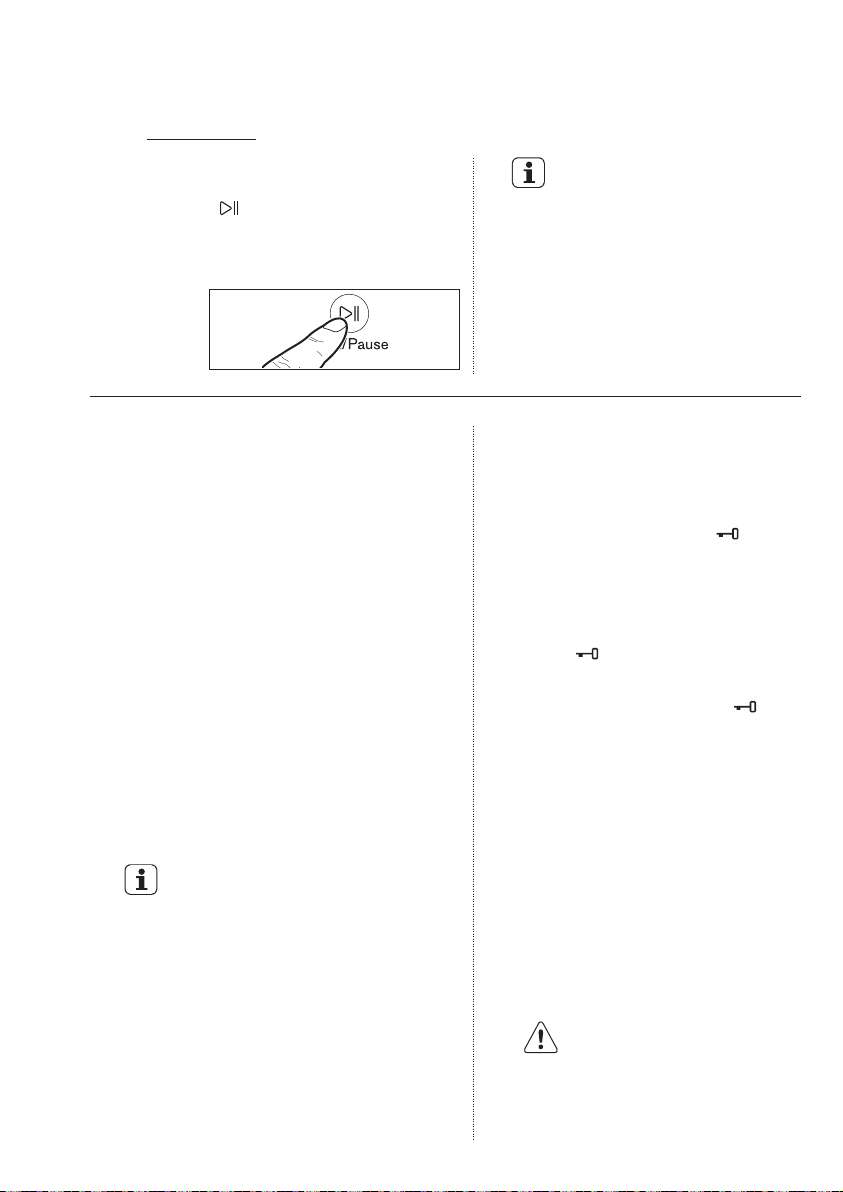

3.13 Start/Pause Touchpad ( )

To start the selected program, press the ‘Start/Pause’.

To interrupt a program which is running, press the ‘Start/Pause’ to pause the machine.

To restart the program from the point at which it was interrupted, press the ‘Start/Pause’ again.

If you have chosen a delayed start, after pressing ‘Start/Pause’ the machine will begin the countdown.

3.14 Buzzer Sounds

The buzzer sounds operate when: The program is completed.

The appliance has a malfunction.

If you want to disable the buzzer sound (except for event of appliance malfunction), press “Rinse +” and “Vapour” touchpads at the same time for 3 seconds, and listen for “BEEP, BEEP”.

To return to default configuration press these 2 touchpads at the same time for 3 seconds, and listen for “BEEP”.

10www.electrolux.com

3.15Programs + Options

Program;	Type of load; Max. weight	Cycle	Options can be	UltraMix
Temperature	of load (dry clothes)	description	combined	( )

			White and coloured cotton	- Wash	Spin: 400 to 1400 rpm,
Cottons /	3)	;	with heavy level of soil;	- Rinses	No Spin, Rinse Hold,
			max. load 11 kg.	- Long spin	Extra Silent			Active
(Cold water)					Prewash, Easy Iron,
to
					Rinse +, Vapour 1) ,
90 °C					Adjust Time, Delay Start
			Synthetic or mixed fabric	- Wash	Spin: 400 to 1200 rpm,
Mixed;			items with normal level of	- Rinses	No Spin, Rinse Hold,
			soil;	- Short spin	Extra Silent			Active
(Cold water)
			max. load 4 kg.		Prewash, Easy Iron,
to					Rinse +, Vapour	1)	,
60 °C
					Adjust Time, Delay Start
			Baby cotton clothes and	- Wash	Spin: 400 to 1200 rpm,
Baby;			delicate knitting items with	- Rinses	No Spin, Rinse Hold,
			normal soil;	- Short spin	Extra Silent			Active
(Cold water)
			max. load 4 kg		Prewash, Rinse +,
to					Vapour 1) , Delay Start
40 °C
			Synthetic and mixed fabric	- Wash	Spin: 400 to 800 rpm,
Quick 18;			items. Light soil and items to	- Rinses	No Spin, Rinse Hold,			Active
			freshen up;	- Short spin	Delay Start
30 °C			max. load 1.5 kg
			Vapour program for White and	- Clothes	Delay Start
Refresh			coloured cotton. This cycle	tumble in				No
			removes odours and helps to	vapour.
Cottons
			dewrinkle the laundry;
			max. load 1.5 kg.
			Vapour program for synthetic	- Clothes	Delay Start
Refresh			or mixed fabric items. This	tumble in				No
			cycle removes odours and	vapour.
Mixed
			helps to dewrinkle the laundry;
			max. load 1.5 kg
			Specially tested program for	- Wash	Spin: 400 to 1200 rpm,
Wool;			woollen garments bearing the	- Rinses	No Spin, Rinse Hold,
			‘Pure new woollen,	- Short spin	Extra Silent			Active
(Cold water)
			non-shrink, machine		Delay Start
to			washable’ label;
40 °C
			max. load 2 kg.

			ENGLISH		11
Program;	Type of load; Max. weight	Cycle	Options can be	UltraMix
Temperature	of load (dry clothes)	description	combined	(	)
	More >>
Delicates;	Delicate fabrics as acrylics,	- Wash	Spin: 400 to 1200 rpm,
(Cold water)	viscose, polyester items	- Rinses	No Spin, Rinse Hold,
to	with normal soil;	- Short spin	Extra Silent	Active
40 °C	max. load 4 kg		Prewash, Rinse +,
			Vapour 1) , Adjust Time,
			Delay Start
Bedding;	Special program for one	- Wash	Spin: 400 to 800 rpm,
(Cold water)	synthetic blanket, duvet,	- Rinses	No Spin,	Active
to	bedspread and so on;	- Long spin	Vapour 1) , Adjust Time,
60 °C	max. load 3 kg.		Delay Start
Energy Saver;	White and colourfast,	- Wash	Spin: 400 to 1400 rpm,
40 °C	cotton with normal soil. Set	- Rinses	No Spin, Rinse Hold,
to	this program to have a	- Long spin	Prewash, Rinse +,
60 °C 2)	good washing results and		Vapour 1) , Adjust Time,	Active
	decrease the energy		Delay Start
	consumption. The time of
	the washing program is
	extended; max. load 11 kg.
Rinse	To rinse and spin the	- Three	Spin: 400 to 1400 rpm,
	laundry;	rinses with	No Spin, Rinse Hold,
	max. load 11 kg.	softener	Delay Start	Active
		- Spin phase
Spin	To spin the laundry and	- Drain	Spin: 400 to 1400 rpm,
	drain the water in the	- Spin phase	No Spin,	No
	drum;		Delay Start
	max. load 11 kg.

1)Vapour option can be combined with temperature 40 to 90 °C only.

2)Energy Saver program with 60 °C option selected is recommended for a full load of normally soiled cottons, and is the water and energy rating label program.

3)Anti allergen ( ) program is available on Cottons 60 °C with vapour action option for up to 4 kg load.

WOOLMARK CERTIFICATE

The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the

manufacturer of this washing machine. Washer authorization number: M1354

12www.electrolux.com

4.BEFORE FIRST USE

1.Ensure that the electrical and water connections comply with the installation instructions.

2.Put 2 litres of water in the detergent compartment for washing phase. This activates the drain system.

3.Select a Cottons cycle at 90 °C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub then start the machine.

Detergent Quantity Setting

The text bar also gives the indication about the detergent quantity, when the door is closed after the laundry load.

By default, the detergent quantity indication is given as a percentage. 100% is the maximum detergent quantity that you can put in the compartment of the detergent drawer.

You can set the indication as ml to have more precision, by pressing and at the same time for some seconds.

The message “Set dosage detergent” comes on in the text bar.

Press repeatedly to set the detergent dosage to maximum manufacturer recommendation on the packaging which is the 100% equivalent.

For the maximum detergent quantity see the detergent manufacturer recommendation on packaging.

Press to confirm.

ENGLISH 13

5.DAILY USE

Connect the mains plug to the mains socket.

Turn the water tap on.

5.1 Four Steps Start Up Guide

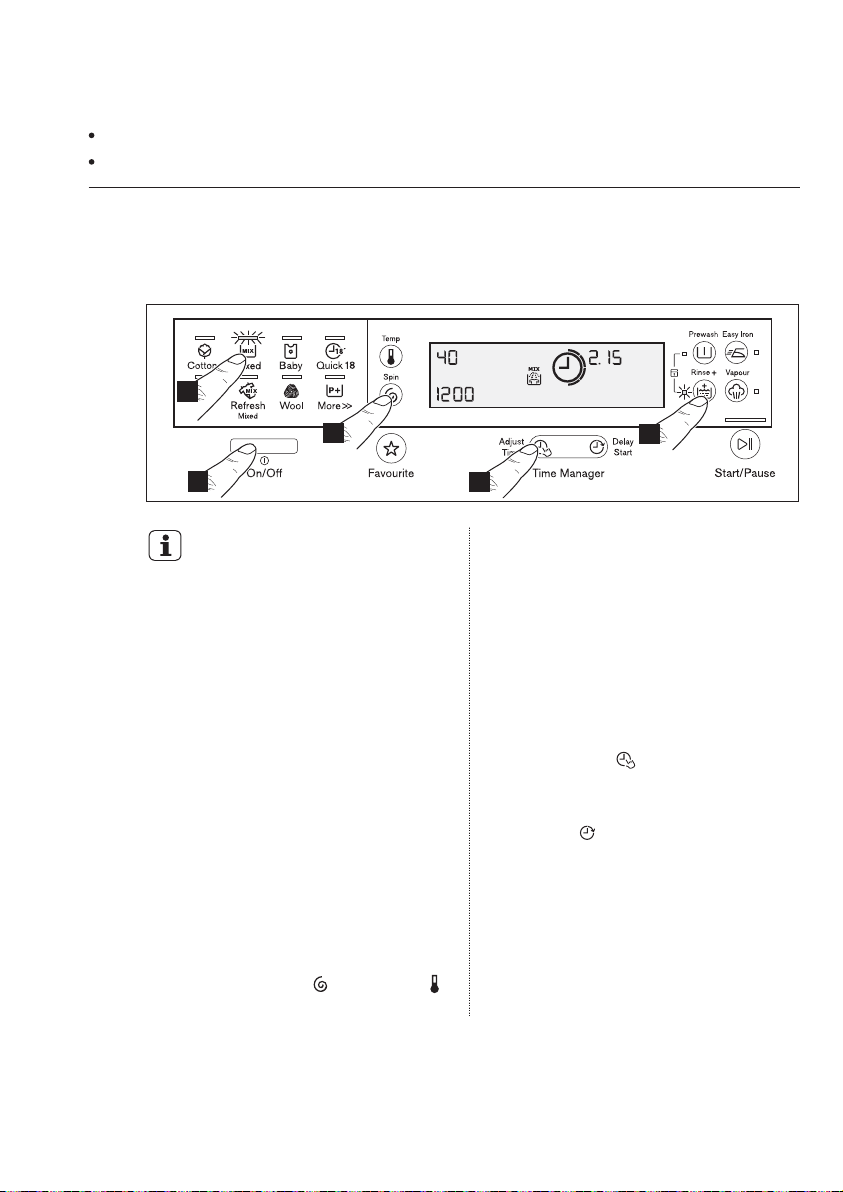

Step 1 - Setting A Program For Washing

2	Press Start
3	4
1	5

1. 2.

3.

For a correct operation of the weight sensor, activate the appliance and set a wash program BEFORE loading the laundry in the drum.

Press the On/Off button to turn on the washing machine.

Touch one of the Program ICONS, to choose the wash program you require.

-The relevant light will light up.

-Once you selected a wash program, the program selected will stay at that position for the whole of the wash.

-The display shows the level of the Time Manager, the program duration and the indicators of the phases of the program.

If you want your laundry to be spun or use temperature different from the one proposed by the washing machine,

pess the Spin “ ” and the temperature “ ” touchpads repeatedly to change the spin speed and temperature.

4.

5.

Press the option touchpads, if you want your laundry to be washed with special functions.

Different functions can be combined which is dependent on the program selected.

When these touchpads are pressed, the corresponding pilot lights come on. When they are pressed again, the pilot lights go out.

If you want to reduce washing time, press the ‘Adjust Time ’ touchpad repeatedly to reduce washing time.

If you want to delay the start of the washing program, press the ‘Delay Start ’ touchpad repeatedly to choose your washing machine delay time.

14 www.electrolux.com

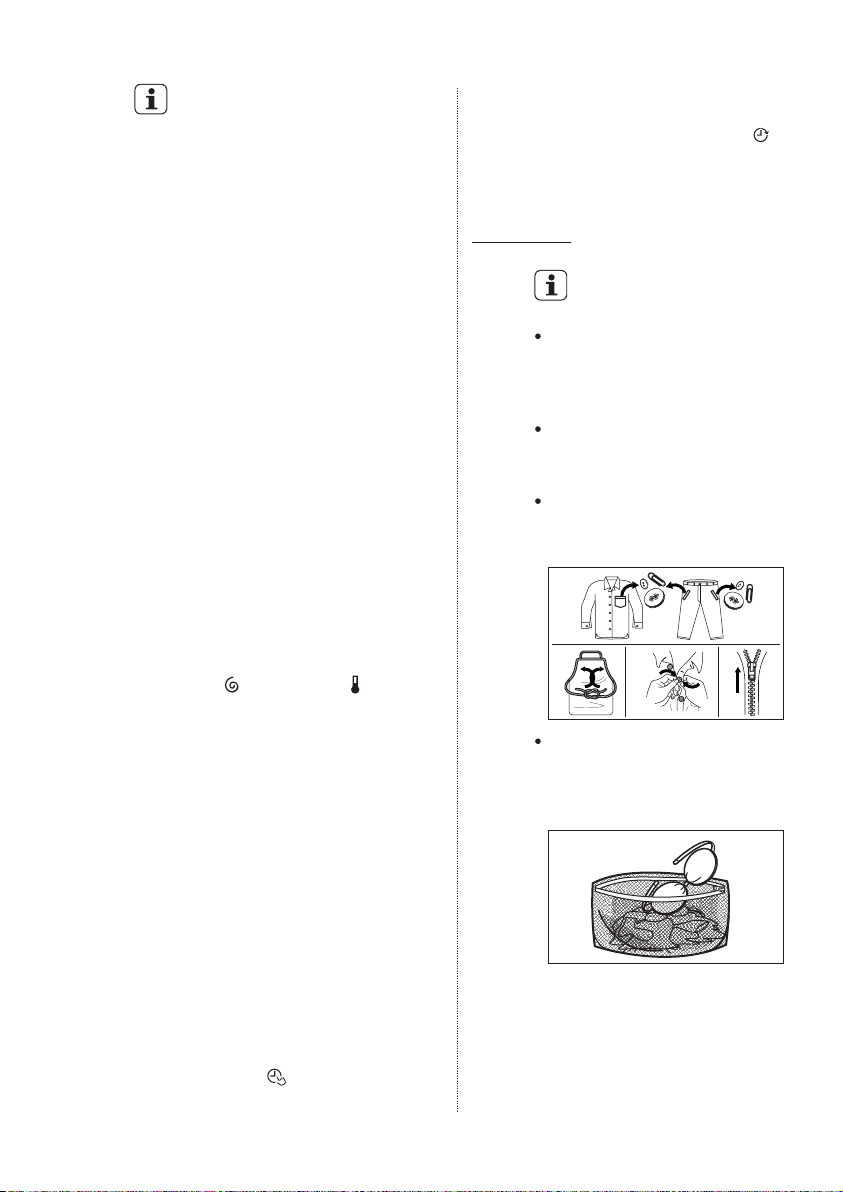

Step 2 - Loading The Laundry

1.Before loading the laundry, please make sure:

IMPORTANT !

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Make sure that you wash lint collectors separately from lint producers.

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Wash bras, pantyhose and other delicates in a mesh laundry bag, which you can purchase from your supermarket.

Remove hooks or tie them up in a bag or net.

2.Open the door by carefully pulling the door handle outwards.

Check and remove objects (if there are any) that could be trapped in the fold.

3.Place the laundry in the drum, one item at a time, shaking them out as much as possible.

This machine has “Load Sensing Device” which shows how much load you put in the machine and maximum load recommended for selected wash program.

Load Weight Maximum load capacity of selected program.

The display shows these indicators when the door is open.

The display will show “Loading completed” when max limit is reached for selected program.

On the display, the weight of the laundry updates by 0.5 kg steps.

The weight is a general indication that changes with the type of the laundry.

The weight shown on display is an approximate weight only.

4.Make sure that no laundry remains between the seal and the door.

5.Close the door.

Step 3 - Using Detergent And Additives

IMPORTANT:

Please read the detergents instructions on page 21 before use.

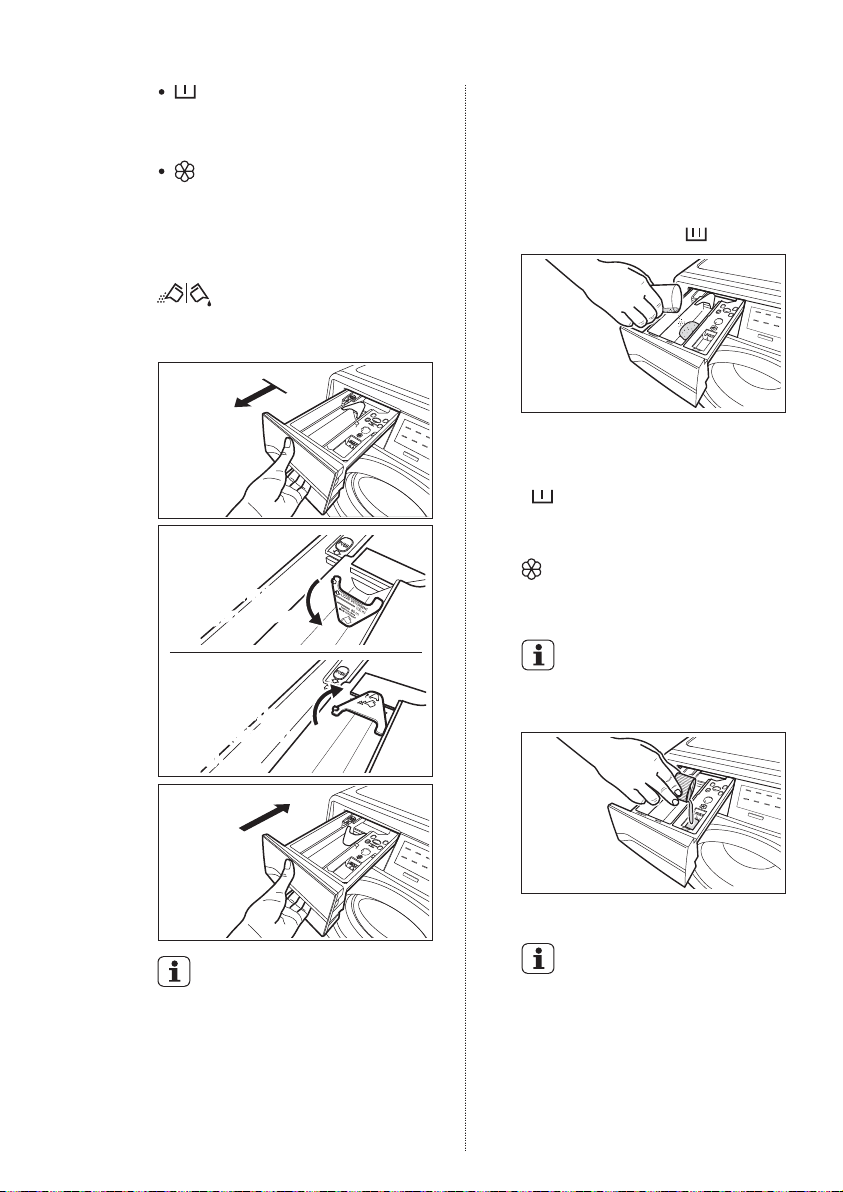

1. Detergent Dispenser Drawer

ENGLISH 15

Powder or liquid detergent.

Detergent flap

Flap for powder or liquid detergent.

2
Position down :
for liquid
detergent.
Position up :
for powder	POWDERPOSITION
detergent		USING
	DETERGENT
(factory setting).
3

The detergent dispenser is divided into three compartments.

- Compartment “MAIN WASH” This compartment is used for detergent on all programs.

- Compartment “PREWASH” This compartment is only used for detergent when a Prewash is selected.

- Compartment “SOFTENER”

This compartment is used for fabric conditioner and starching agent.

When you use the liquid detergent:

-Do not use gelatinous or thick liquid detergents.

-Do not put more liquid than the maximum level.

-Do not set the PREWASH phase.

-Do not set the DELAY START.

2.Measure out the detergent and the fabric softener;

-Pull out the dispenser drawer until it stops.

-Measure out the amount of detergent required, pour it into the main wash compartment.

16 www.electrolux.com

-If you wish to carry out the “Prewash” phase, pour it into the compartment marked .

-If required, pour fabric softener into the compartment marked (the amount used must not exceed the “MAX” mark in the

drawer).

If you use thick softeners it is recommended to dilute with water.

- Close the drawer gently.

After washing cycle finish, residues of detergent, softener and water may remain in the dispenser. It is recommended to clean the dispenser regularly to remove any residue.

Step 4 - Starting a program

To start a program, press the Start/Pause ( ) touchpad, the corresponding pilot light will stop flashing and a default program duration will be displayed on the screen.

After approx. 15 minutes from the start of a program:

-The appliance will automatically adjust the selected program duration according to the type and size of the load.

-The display will show adjusted program duration.

5.2Interruption Of A Program

-To pause press Start/ Pause. The indicator will start flashing.

-Press the Start/Pause again. The program will continue.

5.3Changing A Program

Changing a running program is possible only by switching off the appliance.

-Press the ‘On/Off’ button to cancel the program and to turn off the appliance.

-Press the ‘On/Off’ button again to start the appliance.

Now, you can set a new washing program.

The appliance will not drain the water.

5.4 Changing The Options

It is possible to change only some option after the program has started.

ENGLISH 17

1.Press the touchpad Start/Pause. The indicator will start flashing.

2.Change the options.

3.Press Start/Pause again. The program will continue.

5.5Opening The Door

While a program or the Delay Start is operating, the appliance door is locked and the display shows the indicator ‘’.

First set the machine to PAUSE by pressing the “Start/Pause” touchpad. Wait until the door lock indicator ‘ ’ goes off, then the door can be opened.

If the door lock indicator ‘ ’ does not disappear, this means that the machine is already heating and the water level is above the bottom edge of the door or the drum is turning. In this case the door CAN NOT be opened.

If you can not open the door but you need to open it you have to switch the machine off by pressing the ‘On/Off’ button to deactivate the appliance. After about 5 minutes the door can be opened.

CAUTION: Pay attention to the water level and water temperature.

5.6At The End Of The Program

-The appliance stops automatically.

-The acoustic signal will operate.

-The display will show ‘ ’.

-The indicator of the touchpad Start/Pause goes off.

-The door lock indicator ‘ ’ goes off.

-Remove the laundry from the appliance. Make sure that the drum is empty.

-Keep the door ajar, to prevent the mildew and odours.

-Turn off the water tap.

At the end of the program the time remaining can suddenly decrease from 7 minutes or less to 0 due to the overestimated total program time during the load sensing phase. In some cases (with perfectly balanced load) the program time can be shorter than the time estimated after the load sensing phase is completed. This is a normal behavior of the machine and not a cause for concern as it does not compromise its performance.

5.7When The Washing Program Is Completed, But There Is Water In The Drum

-The drum turns regularly to prevent the creases in the laundry.

-The door lock indicator ‘ ’ is on. The door stays locked.

You must drain the water to open the door.

To drain the water:

1.Set the “Spin” program.

2.If necessary, decrease the spin speed.

3.Press the touchpad Start/Pause. The appliance will drain the water and spin.

4.When the program is completed and the door lock indicator ‘ ’ goes off, you can open the door.

5.Press the ‘On/Off’ button to deactivate the appliance.

5.8AUTO Stand-by Option

The AUTO Stand-by option automatically deactivates the appliance to decrease the energy consumption when:

18 www.electrolux.com

You do not press any buttons for 5 minutes before you press “Start/Pause”.

Press the “On/Off” button to activate the appliance again.

After 5 minutes from the end of the washing program.

Press the “On/Off” button to activate the appliance again.

The display shows “Cycle end” and “Remove laundry” alternately, to tell you should be removed the laundry from the drum.

5.9 Child Lock Feature ( )

Your appliance is provided with CHILD SAFETY LOCK which permits you to leave the appliance unsupervised with the door closed without having to worry that children might be injured by or cause damage to the appliance.

Set this option after pressing the Start/Pause touchpad.

To set “Child Lock” option:

To activate the function, press “Prewash” and “Rinse +” touchpads at the same time until the display shows the symbol “ ”.

The touchpads are locked (except for the On/Off “ ” button).

To deactivate the function, press “Prewash” and “Rinse +” touchpads at the same time until the symbol

“ ” goes off.

This function remains enabled even after the appliance is switched off.

6. WASHING HINTS

6.1 Sorting The Laundry

Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

6.2 Temperatures

	For normally soiled white cottons and
90°C	linen (e.g. teacloths, towels,
	tablecloths, sheets...).
	For normally soiled, colourfast
60°C	garments (e.g. shirts, night dresses,
50°C	pyjamas....) in linen, cotton or
40°C	synthetic fibres and for lightly soiled
	white cotton (e.g.underwear).
	For delicate items (e.g. net curtains),
30°C	mixed laundry including synthetic
	fibres and woollens bearing the label
Cold	pure new wool, machine washable,
	non-shrink.

6.3 Before Loading The Laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing.

Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or a net.

6.4 Maximum Loads

Recommended loads are indicated in the program charts. General rules:

drum full but not Cotton, linen: too tightly packed;

	Synthetics:	drum no more
		than half full;
	Delicate	drum no more
	fabrics and
		than one third full.
	woollens:

Washing a maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size.

6.5 Removing Stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used in cold water. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

ENGLISH 19

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone (*) as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

(*) do not use acetone on artificial silk.

20 www.electrolux.com

6.6Detergents Type and Quantity of Detergent

Low sudsing detergent is required for this washing machine to prevent oversudsing problems, unsatisfied washing result and harm to the machine. Low sudsing detergents designed for front load washing machines are labelled “Front Loading”, “high efficiency”, “HE”, such as Cold Power for Front Loaders or “Matic”.

Do not use wrong types of detergent, such as Top Loading, Handwash detergent or Soap-Based products in your frontload washing machine. This can result in excessive suds, longer cycle time, low spin speeds, poor rinsing and overloading of the motor.

Quantity of detergent to be used

The choice of detergent and use of correct quantities not only affects your washing performance, but helps to avoid waste and protect the environment.

Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature.

The choice and quantity of detergent will depend on ;

type of fabric (delicates, woollens, cottons, etc.) ;

the colour of clothes ;

size of the load ;

degree of soiling ;

washing temperature ; and

hardness of the water used.

Water hardness is classified by so-called “degrees” of hardness.

Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

You may have to try using the detergent quantity as per the product manufacturers’ instructions then compare the washing result to the list below and adjust the amount of detergent for the next time accordingly.

Not enough washing powder causes:

the washload to turn grey, greasy clothes.

Too much washing powder causes:

sudsing,

reduced washing effect, inadequate rinsing.

Use less detergent if:

you are washing a small load,

the laundry is lightly soiled,

large amounts of foam during washing.

NOTE:

Use only low sudsing front load type detergents and REDUCE the amount of detergent if oversudsing occurs.

Due to the “UltraMix ( )” feature, which enhances detergent activation, you can SAVE ON DETERGENT dosage. It is recommended to use only half the amount of your usual detergent.

If SUD is full on glass door or overfoaming occurs, it means the detergent dosage is still above the necessary quantity. In such a situation, please reduce the dosage accordingly.

ENGLISH 21

7. INTERNATIONAL WASH CODE SYMBOLS

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

Max. wash

Max. wash

Max. wash

Max. wash Hand wash DO NOT

temperature

temperature

temperature

temperature

wash at all

95 °C

60 °C

40 °C

30 °C

Delicate wash

Bleaching

Bleach in cold water

DO NOT bleach

Ironing

Hot iron

Warm iron

Lukewarm iron

DO NOT iron

max. 200 °C

max. 150 °C

max. 110 °C

Dry cleaning in

Dry cleaning in

Dry cleaning

Dry cleaning in

DO NOT

all solvents

perchlorethylene,

petrol, pure alcohol

dry clean

petrol, pure alcohol,

and R 113

R 111 & R 113

High

temperature

Low

Drying

temperature

Flat

On the line

On clothes

Tumble dry

DO NOT

hanger

tumble dry

8. CARE AND CLEANING

WARNING!

You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

8.1 External Cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

CAUTION!

Do not use alcohol, solvents or chemical products.

8.2 Descaling

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.

Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions.

This will help to prevent the formation of lime deposits.

22 www.electrolux.com

8.3 After Each Wash

Leave the door open for a while. This helps to prevent mould and stagnant smells forming inside the appliance. Keeping the door open after a wash will also help to preserve the door seal.

8.4 Maintenance Wash

With the use of low temperature washes it is possible to get a build up of residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

The drum should be empty of laundry.

Select the hottest cotton wash program.

Use a normal measure of detergent, must be a powder with biological properties.

8.5Cleaning The Dispenser Drawer

The washing powder and additive dispenser drawer should be cleaned regularly.

Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder.

1

2

3

To aid cleaning, the top part of the additive compartment should be removed.

8.6 Cleaning The Drawer Recess

Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse program without any clothes in the drum.

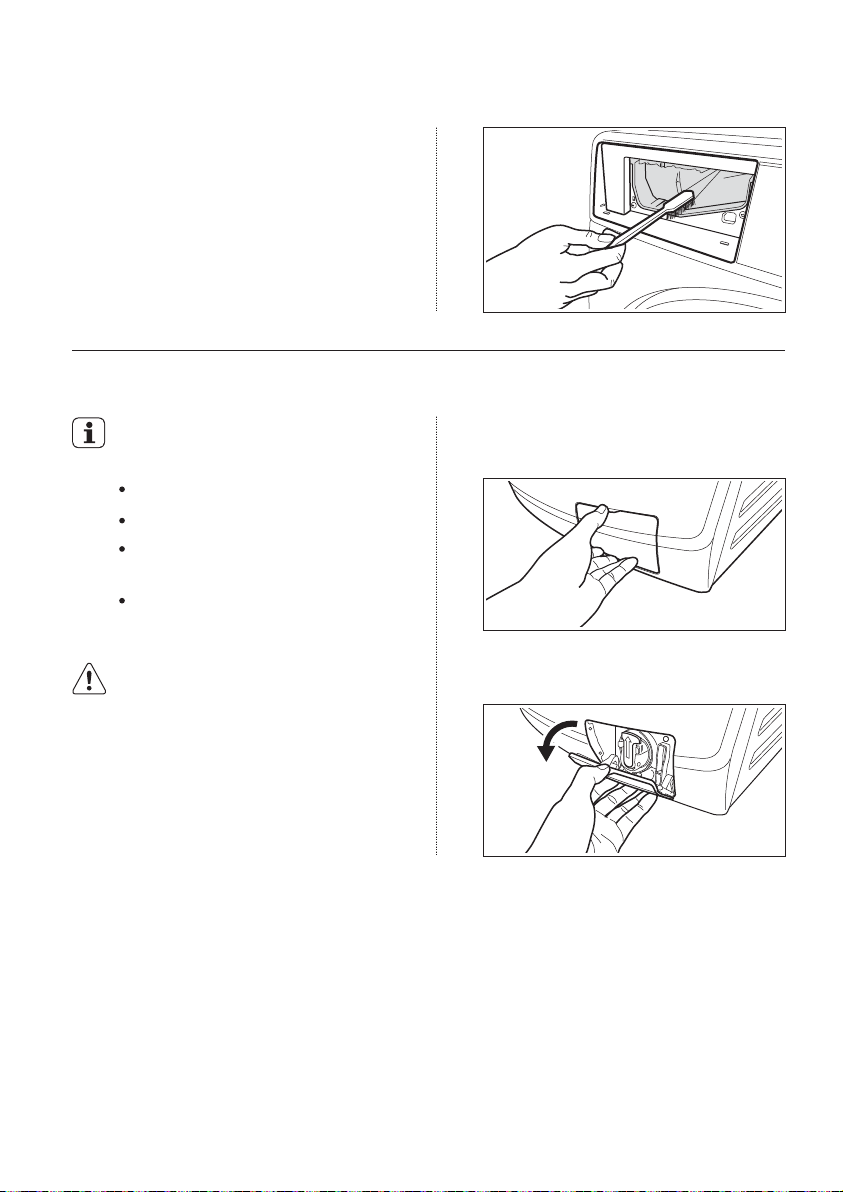

8.7 Cleaning The Pump

Regularly examine the drain pump and make sure that it is clean.

Clean the pump if:

The appliance does not drain the water.

The drum cannot turn.

The appliance makes an unusual noise because of the blockage of the drain pump.

The display shows an alarm code because of the problem with water drain.

WARNING!

1.Disconnect the mains plug from the mains socket.

2.Do not remove the filter while the appliance operates. Do not clean the drain pump if the water in the appliance is hot. The water must be cold before you clean the drain pump.

To clean the drain pump:

1.Open the drain pump door.

2.Pull the flap down, then squeeze the legs on both sides of the cover together and pull out (as picture).

ENGLISH 23

1

2

pull out

3.Place a suitable water container below the recess of the drain pump to collect the water that flows out.

Press the two levers and pull forward the drainage duct to let the water flow out.

24www.electrolux.com

4.When the container is full of water, put the drainage duct back again and empty the container. Do step 3 again and again until no more water flows out from the drain pump.

7.Make sure that the impeller of the pump can turn. If this does not occur, contact the service centre.

8. Clean the filter under the water tap.

5. Pull back the drainage duct and turn the filter anti-clockwise to remove it.

1

2

6.Remove fluff and objects from the pump (if there are any).

9.Put the filter back in the pump into the special guides. Make sure that you tighten correctly the filter to prevent leakages.

10.Put the flap back and close the drain pump door.

ENGLISH 25

8.8 Cleaning The Water Inlet Filter

If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time.

To clean the water inlet filters:

1.Close the water tap.

2.Remove the water inlet hose from the water tap.

3.Clean the filter in the inlet hose with a stiff brush.

4.Remove the inlet hose behind the appliance.

5.Clean the filter in the valve with a stiff brush or a towel.

6.Install again the inlet hose. Make sure that the couplings are tight to prevent leakages.

7.Open the water tap.

8.9 The Dangers Of Freezing

If the machine is exposed to temperatures below 0°C, certain precautions should be taken.

Disconnect the mains plug from the mains socket.

1.Turn off the water tap.

2.Unscrew the inlet hose.

3.Put a bowl below the recess of the drain pump to collect the water that flows out.

4.Remove the drain hose from the rear support and unhook it from sink or spigot.

Put the ends of the drain and inlet hose in a container. Let the water flow out of the hoses.

5.When no more water flows, install the inlet hose and the drain hose again.

Make sure that the temperature is more than 0 °C before you use the appliance again.

26 www.electrolux.com

9. TROUBLESHOOTING

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the red Start/Pause pilot light flashes to indicate that the machine is not working. Once the problem has been eliminated, press the Start/Pause button to restart the program. If after all checks, the problem persists, contact your local Service Centre.

	Malfunction	Possible cause				Solution
		The door has not been				Close the door firmly.
		closed. (Error code:			)
		The plug is not properly				Insert the plug into the power
		inserted in the power socket.				socket.
		There is no power at the				Please check your domestic
		socket.				electrical installation.
	The washing	The Start/Pause button has				Press the Start/Pause button.
		not been pressed.
	machine does
		The delay start has been				If the laundry are to be washed
	not start:
		selected.				immediately, cancel the delay start.
		The Main supply is unstable.				Wait until the main supply is
		(If	appears in the			stable and the appliance
		display.)				automatically starts operating.
		The water tap is closed.				Open the water tap.
		(Error code:		)
		The inlet hose is squashed or				Check the inlet hose
	The machine	kinked. (Error code:			)	connection.
	does not fill the	The filter in the inlet hose is				Clean the water inlet hose
	water:	blocked. (Error code:			)	filter.
		The door is not properly				Close the door firmly.
		closed. (Error code:			)
	The machine fills	The end of the drain hose is				Refer to relevant paragraph in
	then empties	too low. (Error code:			)	“water drainage” section.
	immediately:
		The drain hose is squashed				Check the drain hose
		or kinked. (Error code:			)	connection.
	The machine	The drain pump is clogged.				Clean the drain filter.
		(Error code:		)
	does not empty
		The option “Rinse Hold” or				Press Start/Pause to drain the
	and/or does not
	spin:	“No Spin” has been				water.
		selected.				Slelect spin program.
		The laundry is not evenly				Pause the machine and
		distributed in the drum.				redistribute laundry manually.

		ENGLISH 27
Malfunction	Possible cause	Solution
	Too much detergent or unsuitable	Reduce the detergent
	detergent (creates too much foam)	quantity or use another one.
	has been used.
There is water	Check whether there are any leaks	Check the water inlet hose
	from one of the inlet hose fittings. It is	connection.
on the floor:
	not always easy to see this as the
	water runs down the hose; check to
	see if it is damp.
	The drain hose is damaged.	Change it with a new one.
	Too little detergent or unsuitable	Increase the detergent
	detergent has been used.	quantity or use another one.
Unsatisfactory	Stubborn stains have not been	Use commercial products
	treated prior to washing.	to treat the stubborn stains.
washing
	The correct temperature was not	Check if you have selected
results:
	selected.	the correct temperature.
	Excessive laundry load.	Reduce load.
	The program is still running.	Wait until the end of
		washing cycle.
	The door lock has not been released.	Wait about 5 minutes.
The door will	There is water in the drum.	Select ‘Spin’ program to
		empty out the water.
not open:
	This problem may be caused by a	Contact the Service. If you
	failure of the appliance.	need to open the door,
		please read carefully
		“Emergency door opening”.
		on next page.
	The transit bolts and packing have	Check the correct
	not been removed.	installation of the appliance.
	The support feet have not been	Check the correct levelling
The machine	adjusted.	of the appliance.
	The laundry is not evenly distributed	Pause the machine and
vibrates or is
	in the drum.	redistribute laundry manually.
noisy:
	There is very little laundry in the drum.	Load more laundry.
	Unstable floors eg. wooden floors.	Refer to relevant paragraph
		in “Positioning” section.
	Detergent over dose.	Reduce the detergent
Cycle time		quantity or use another one.
	Machine unbalance.	Redistribute laundry manually
longer than
		in the drum and start the spin
displayed:
		phase again. Refer to relevant
		paragraph in “Positioning”
		section.

28 www.electrolux.com

	Malfunction	Possible cause	Solution
		The electronic unbalance detection	Pause the machine and
		device has cut in because the	redistribute laundry
		laundry is not evenly distributed in	manually.
		the drum. The laundry is
		redistributed by reverse rotation of
	Spinning starts	the drum.
		This may happen several times
	late or the
		before the unbalance disappears
	machine does
		and normal spinning can resume. If,
	not spin:
		after 10 minutes, the laundry is still
		not evenly distributed in the drum,
		the machine will not spin. In this
		case, redistribute the load manually
		and select the spin program.
		Machine not installed properly.	Make sure the levelling of the
			appliance is correct. Refer to
			“Installation”.
	The machine
		Transit bolts or packaging	Make sure that the packaging
	makes an
		not removed.	and/or the transit bolts are
	unusual noise:
			removed. Refer to “Unpacking”.
		The load may be too small.	Add more laundry in the
			drum.
	No water is	Machines based on modern
		technology operate very
	visible in the
		economically using very little water
	drum:
		without affecting performance.

Emergency Door Opening

In case of power failure or appliance failure the appliance door remains locked. The washing programe continues, when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock feature.

Before opening the door:

WARNING!

Make sure that the water temperature and the laundry are not hot. Wait till they cool down, if necessary.

WARNING!

Make sure that the drum is not rotating. Wait till the drum stops rotating, if necessary.

WARNING!

Make sure that the water level inside the drum is not too high. Proceed with an emergency drain, if necessary (refer to “Care and cleaning” chapter).

ENGLISH 29

To open the door, proceed as follows:

1.Press the button to switch the appliance off.

2.Disconnect the mains plug from the mains socket.

3.Open the filter flap.

4.Keep the emergency unlock trigger (red object) pulled downward and, at the same time, open the appliance door.

5.Take out the laundry.

6.Close the filter flap.

If you are unable to identify or solve the problem, contact our service centre.

Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

10. TECHNICAL DATA

	Dimensions (Width / Height / Depth)	59.6 X 84.8 X 66.5 cm
	Power supply (Voltage / Frequency)	220-240 V / 50 Hz
	Total power absorbed		2200 W
	Minimum fuse protection		10 A
	Water supply pressure (Maximum / Minimum)	0.8 MPa / 0.05 MPa
		Cottons	11	Kg
		Mixed	4	Kg
		Baby	4 Kg
		Quick 18	1.5	Kg
		Refresh Cottons	1.5	Kg
	Maximum dry	Refresh Mixed	1.5	Kg
	clothes capacity	Wool	2 Kg
		Delicates	4	Kg
		Bedding	3	Kg
		Energy Saver	11	Kg
		Rinse	11	Kg
		Spin	11	Kg
	Spin speed (Maximum / Minimum)	1400 rpm / 400 rpm
