Making Life Easier and Safer
Introduction
Staying in touch with your family and friends is convenient and easy when using your microTALK® radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall.
Belt Clip |
Secure your microTALK® |
|
radio while on the go. |
Carrying your microTALK® radio with you is easy when using the belt clip or optional wrist strap.
The belt clip easily attaches to your belt, purse, or backpack.
Customer Assistance
For Assistance in the U.S.A.
In this user’s manual, you should find all the information you need to operate your microTALK® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:
Automated Help Desk
English only. 24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators
English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone).
Questions
English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance
English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. frsradios@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer |
©2015 Cobra Electronics Corporation |
|
6500 West Cortland Street |
A1 |
Chicago, Illinois 60707 USA |
www.cobra.com |
Product Features
Introduction
1
2
11
HI / LO
10
|
15 |
|
|
14 |
|
|
16 |
|
|
12 |
|
|
13 |
17 |
SCAN |
6 |
|
|
|
9 |
|
5 |
|
|
|
|
20 |
8 |
|
3 |
|
|
|
||
4 |
|
7 |
|
|
|
||
|
|
|
18 |
|
|
|
19 |
1. |
Antenna |
10. |
Talk Button |
2. |
External Speaker/ |
11. |
Memory/Escape Button |
|
Microphone/ USB Charge Jack |
12. |
Max Range Hi/Lo Button |
3. |
Mode/Power Button |
13. |
Scan Button |
4. |
Call/Lock Button |
14. |
Wrist Strap Connection |
5. |
Channel Up/Down |
15. |
Belt Clip |
|
Buttons |
16. |
Battery Compartment |
6. |
Backlit LCD Display |
17. |
Battery Door Latch |
7. |
Speaker/Microphone |
18. |
Rubberized Grips |
8. |
Volume Up/Down Buttons |
19. |
LED Flashlight |
9. |
LED Light Button |
20. |
Weather Button |
NOTES
|
|
Product Features |
|
Introduction |
|
|
|
|
Features |
Backlit LCD Display |
|
|
•22 Channels
Seven shared with FRS/GMRS, seven FRS only, eight GMRS only.
•10 Channel Weather Radio
•Weather Alert
•121 Privacy Codes
(38 CTCSS codes/
83 DCS codes)
•Hands-Free Operation (VOX)
•VibrAlert® Silent Paging
•Scan
Channels, privacy codes
•Backlit LCD Display
•LED Flashlight
•Call Alert
Ten selectable tones
•Button Lock
•Speaker/
Microphone/ Charge Jack
•Roger Beep
Selectable On/Off
•Battery/Power Saver
•Keystroke Tones
•Battery Level Indicator
•Low Battery Audible Alert
•Auto Squelch
•Maximum Range Extender
•Belt Clip
2 |
3 |
4 |
5 |
|
|
||
1 |
|
|
9 |
|
|
16 |
|
6 |
|
|
|
|
|
7 |
|
|
|
|
|
13 |
|
|
8 |
|
|
|
12 15 11 10 14
1.Battery Level Indicator
2.Roger Beep Icon
3.VOX Icon
4.Weather Icon
5.Lock Icon
6.Hi/Low Power Icon
7.DCS/CTCSS Icons
8.Scan/Memory Icon
9.Weather Alert Icon
10.DCS/CTCSS Privacy Code Numbers
11.Power Saver Icon
12.Channel Numbers
13.Receive/Transmit Icon
14.Memory Channel Number
15.VibrAlert® / Call Alert Icon
16.Key Tone Icon
Important FCC Licensing Information
This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 19 for licensing and other related information.
Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.
A2 |
A3 |
|
|
|
|
|
|
|
Introduction |
Operation |
Customer Assistance |
Warranty |
|
Caring for Your microTALK® Radio |
• |
|
Your microTALK® radio will give you years of trouble-free service |
||
|
if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures.
Installing Batteries |
• |
|
To install or replace batteries:
Remove Belt Clip
Pull Up LockLatch
Insert Batteries
Radio Charger Jack
1.Remove belt clip by releasing belt clip latch and sliding clip up.
2.Pull up on the battery door latch to remove the battery compartment cover.
3.Insert the supplied three AA rechargeable batteries or non-rechargeable alkaline batteries. Position batteries according to polarity markings.
4.Replace battery compartment cover and belt clip.
•Do not attempt to charge alkaline batteries.
•Do not mix old and new batteries.
•Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
To charge batteries in radio:
1.Check to see that the batteries have been inserted properly.
2.Insert the cable into the charge jack located at the top of the radio.
3.Plug the cable into USB power source.
Use only the supplied rechargeable batteries and charger for recharging your Cobra microTALK radio.
Cobra recommends your radio is turned off while being charged. Non-rechargeable alkaline batteries can also be used in your radio.
Nothing Comes Close to a Cobra® 1
Using Your Radio
Operation
For charging microTALK radio(s) in desktop charger:
1.Insert radio(s) into desktop charger as shown.
2.Insert the micro-USB cable into jack on back of charger.
3.Plug the cable into USB-compatible power port. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
If charging light is not on, check position of radio. Radio should be upright. The charge indicator light will stay on as long as the radio is in the charging well, and the light will go off when the charging is complete.
Note: To charge a single radio, you can bypass the desktop charger and simply insert the micro-USB’s connector directly into the charge jack located on the top of the radio.
The radio will display flashing battery icon while charging.
Cobra recommends your radio be turned off while being charged. Non-rechargeable alkaline batteries can also be used in your radio.

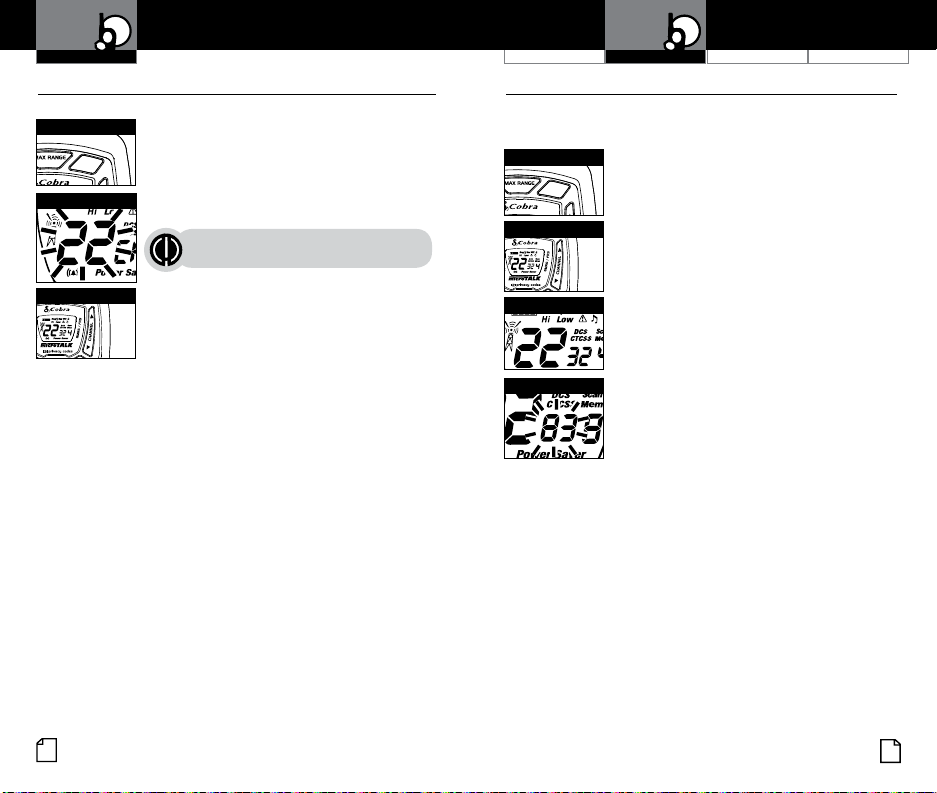

Quick Start
1.Press and hold the Mode/Power button to turn on your radio.
2.Press the Channel Up or Channel Down button to select a channel.
Both radios must be tuned to the same channel/privacy code to communicate.
3.Press and hold the Talk button while speaking into the microphone.
4.When finished talking, release the Talk button and listen for a response.
Mode/Power |
2
•
Press and hold the Mode/Power button until you hear a series of audible tones indicating the radio is on.
Your microTALK® radio is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode except when the Talk, Call or Mode/Power buttons are pressed.
Introduction |
Operation |
Customer Assistance Warranty |
Battery Low |
When battery power is low, the final bar in the Battery• |
|
Battery Low |
||
|
Low icon will blink and an audible tone will sound twice |
|
|
before the radio shuts off. Your batteries should be |
|
|
replaced or recharged, if using rechargeable batteries. |
|
|
The radio will display flashing battery icon |
|
|
while charging. |
|
Auto Battery Save |
• |
|
Battery Save Mode |
If there are no transmissions within 10 seconds, |
|
|
the radio will automatically switch to Battery Save |
|
|
mode and the Power Saver icon will flash in the |
|
|
display. This will not affect the radio’s ability to |
|
|
receive incoming transmissions. |
|
Communicating with Another Person |
• |
|||
Talk Button |
1. Press and hold the Talk button. |
|||
|
||||
|
|
2. With the microphone about two inches (5 cm) from |
||
|
|
your mouth, speak in a normal voice. |
|
|
|
|
3. Release the Talk button when you are |
|
|
Two Inches (5 cm) |
finished talking and listen for a response. |
|
||
from Mouth |
You cannot receive incoming calls while |
|
||
|
|
|
||
|
|
pressing the Talk button. |
|
|
|
|
Both radios must be tuned to the same |
|
|
|
|
channel/privacy code to communicate. |
|
|
To Select a Channel |
• |
|||
|
|
With the radio on, select any of the 22 channels by |
||
HI / LO |
SCAN |
|
||
Channel Button |
|
|||
|
|
pressing the Channel Up or Channel Down button. |
||
|
|
Both radios must be tuned to the |
|
|
|
|
same channel to communicate. |
|
Channel Number Channels 1 through 7 are shared with FRS/ GMRS. Channels 8 through 14 are FRS only. Channels 15
through 22 are GMRS only.
See page 18 for FRS/GMRS frequency allocations and compatibility charts.
Nothing Comes Close to a Cobra® 3
