 Service Source

iBook (14.1 LCD)

Updated June 30, 2003



iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD)

Keyboard

Replacement Instructions

Follow the instructions in this sheet carefully. Failure to follow these instructions could damage your equipment and void its warranty.

Note:

Written and video instructions covering customer-installable parts are available at

http://www.info.apple.com/installparts/.

Warning: During this procedure, keep small parts away from children.

Tools Required

• Coin

• #0 Phillips screwdriver

• Jeweler’s ﬂat-b lade scre wdriver (if keyboard is locked)

• Small soft cloth (if an optional AirPort Card is installed)

Opening the Computer

Warning: Always shut down your computer before opening it to avoid damaging its internal components or causing injury. After you shut down the computer, the internal components can be very hot. Let the computer cool down before continuing.

1. Place your computer on a clean, ﬂat surface.

2. Shut down your computer and wait thirty minutes before continuing.

3. Disconnect the power cord and any other cables connected to the computer.

073-0614 Rev. D

4. Close the computer, turn it over, and locate the battery latch. Use a coin to turn the battery latch 1/4 turn clockwise to unlock the battery. Gently

remove the battery. Removing the battery will prevent you from accidentally turning on the computer.

Warning: Removing the battery before shutting down your computer may result in data loss.

Figure 1

5. Turn over the computer.

(Figure 1)

6. Raise the display so you can access the keyboard.

7. Make sure the keyboard loc king scre w, located in the small plastic tab to the left of the Num Lock key keyboard unlock ed, so unless y ou or someone else loc ked the k e yboard, y ou can skip this step.

To unlock the keyboard, turn the screw 1/2 turn.

Figure 2

(Figure 2)

, is not in the locked position. Your iBook comes with the

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

8. Release the keyboard by pulling do wn on the ke yboard release tabs (located to the left of the F1 and F12 keys) and toward the display.

Figure 3

(Figure 3)

, then lift the top portion of the keyboard up slightly,

9. Flip the keyboard over and lay it on the palm rests and trackpad.

Figure 4

(Figure 4)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

10. Touch a metal surface on the inside of the computer to discharge any static electricity, as shown.

(Figure 5)

Important:

touching the computer’s framework before you touch any parts or install any components inside the computer. To avoid static electricity building back up in your body, do not walk around the room until you have completed the installation and closed the computer.

Figure 5

To avoid electrostatic discharge damage, always ground yourself by

Removing the Installed Keyboard

1. If your computer has the optional AirPort Card installed, unlatch the ﬂexible wire holder that secures the card.

2. Use the pull-tab on the card to remove it from the slot. (You do not need to disconnect the antenna.)

Note:

To avoid scratching the computer’s case, place a soft cloth between the

AirPort Card and the surface of your iBook.

Figure 6

(Figure 6)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

3. If an AirPort Card is not installed, unlatch the ﬂexible wire holder to release the AirPort Card antenna cable.

4. Remove the screws that secure the RAM shield.

Figure 7

5. Lift the RAM shield out of the computer. Carefully pulling up on the wire holder may help to remove the shield.

Figure 8

(Figure 8)

(Figure 7)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

6. Locate the keyboard cable connector.

7. Firmly grasp the cable as shown in the illustration.

8. Carefully pull straight up on the cable until the connector releases.

(Figure 9)

Important:

Note:

Figure 9

9. Set the keyboard aside.

Pull straight up, do not twist or pull the cable sideways.

If needed, use your fingers to pry up the connector from side to side.

Installing the Replacement Keyboard

1. Lay the replacement keyboard in the correct orientation over the keyboard opening, then ﬂip it toward you and la y it f ace down on the palm rests and trac kpad to e xpose its connector cable.

2. Firmly insert the keyboard cable connector into its connector on the computer.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

3. Insert the RAM shield.

4. Verify that the end of the wire of the wire holder (where it is attached to the RAM shield, on the keyboard side) does not catch on the side of the compartment. The screw holes on the shield and computer should align and the shield should lay uniformly ﬂat.

5. Verify that the AirPort antenna cable routes through the notch in the RAM shield without pinching.

6. Replace the RAM shield screws.

Figure 10

(Figure 10)

7. If you do not have an AirPort Card, ﬂip down the wire holder over the AirPort Card antenna cable and secure it by inserting the prongs of the holder into the slots in the RAM shield.

Figure 11

(Figure 11)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

8. If you have an AirPort Card, gently slide it (with the AirPort ID number and bar code

facing up) under the wire bracket and securely into the AirPort Card slot.

9. Use the wire holder to secure the AirPort Card in place by inserting its prongs into the slots in the RAM shield.

Figure 12

(Figure 12)

Closing the Computer

1. Flip the keyboard back toward the keyboard opening in the case.

2. Hold the keyboard at a 45-degree angle above the keyboard opening, and insert the tabs on the bottom edge of the keyboard into the slot under the edge of the opening.

(Figure 13)

Important:

against the edge of the opening.

3. Lay the keyboard ﬂat into the keyboard opening.

Figure 13

Make sure that all the tabs are seated and that the keyboard rests flush

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

4. Pull down on the keyboard release tabs and then press do wn on the top portion of the keyboard.

Figure 14

5. Let go of the keyboard release tabs to secure the keyboard in place.

6. Close the display and turn the iBook over.

7. Replace the battery into the battery compartment. Hold the battery ﬂush and use a coin to turn the latch counterclockwise 1/4 turn to lock the battery into place.

(Figure 15)

(Figure 14)

Figure 15

8. Turn your iBook over and open the display.

9. Reconnect the power cord and any other cables that w ere connected and restart your computer.

Note:

You may need to reset the date and time (using the Date & Time control

panel).

Warning: Never turn on your computer unless all of its internal and external parts are in place and it is fully reassembled. Operating the computer when it is missing parts can damage your computer or cause injury.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -

 Apple Computer, Inc.

written consent of Apple. The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other

countries. Use of the “keyboard” Apple logo (Option-Shift-K) for commercial purposes without the prior written consent of Apple may constitute trademark infringement and unfair competition in violation of federal and state laws.

Every effort has been made to ensure that the information in this document is accurate. Apple is not responsible for printing or clerical errors.

Apple Computer, Inc. 1 Inﬁnite Loop Cupertino, CA 95014-2084 USA + 1 408 996 1010 http://www.apple.com

Apple and the Apple logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

iBook is a trademark of Apple Computer, Inc.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Keyboard -



iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD

AirPort Card

Replacement Instructions

Follow the instructions in this sheet carefully. Failure to follow these instructions could damage your equipment and void its warranty.

Note:

Written and video instructions covering customer-installable parts are available at

http://www.info.apple.com/installparts/.

Warning: During this procedure, keep small parts away from children.

)

Tools Required

• Coin

• Jeweler’s ﬂat-b lade scre wdriver (if keyboard is locked)

Opening the Computer

1. Place your computer on a clean, ﬂat surface.

2. Shut down your computer and wait thirty minutes before continuing.

3. Disconnect the power cord and any other cables connected to the computer.

4. Close the computer, turn it over, and locate the battery latch. Use a coin to turn the battery latch 1/4 turn clockwise to unlock the battery. Gently

remove the battery. Removing the battery will prevent you from accidentally turning on the computer.

Warning: Removing the battery before shutting down your computer may result in data loss.

Figure 1

5. Turn over the computer.

(Figure 1)

6. Raise the display so you can access the keyboard.

To unlock the keyboard, turn the screw 1/2 turn.

Figure 2

(Figure 2)

, is not in the locked position. Your iBook comes with the

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -

8. Release the keyboard by pulling do wn on the ke yboard release tabs (located to the left of the F1 and F12 keys) and toward the display.

Figure 3

(Figure 3)

, then lift the top portion of the keyboard up slightly,

9. Flip the keyboard over and lay it on the palm rests and trackpad.

Figure 4

(Figure 4)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -

10. Touch a metal surface on the inside of the computer to discharge any static electricity, as shown.

(Figure 5)

Important:

Figure 5

To avoid electrostatic discharge damage, always ground yourself by

Removing the Installed AirPort Card

1. Unlatch the ﬂexible wire holder that secures the card.

Figure 6

2. Use the pull-tab on the card to remove it from the slot.

3. Disconnect the antenna cable from the AirPort Card by pulling straight back on its connector.

(Figure 6)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -

Installing the Replacement AirPort Card

1. If the AirPort Card came with the AirPort adapter

(Figure 7)

, remove the metal clip (A) and pull the AirPort Card (B) from the adapter (C). The adapter and metal clip are not used with your iBook.

Figure 7

2. Locate the AirPort antenna cable connector and plug it into the port (located just below the pull-tab) on the end of the AirPort Card. Make sure the connector is straight before inserting it into the card.

(Figure 8)

3. To install the AirPort Card, gently slide it (with the AirPort ID number and bar code facing up) under the wire bracket and securely into the AirPort Card slot.

Figure 8

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -

4. Use the wire holder to secure the AirPort Card in place by inserting its prongs into the

slots in the RAM shield.

Figure 9

(Figure 9)

Closing the Computer

1. Flip the keyboard back toward the keyboard opening in the case.

2. Hold the keyboard at a 45-degree angle above the keyboard opening, and insert the tabs on the bottom edge of the keyboard into the slot under the edge of the opening.

(Figure 10)

Important:

against the edge of the opening.

3. Lay the keyboard ﬂat into the keyboard opening.

Figure 10

Make sure that all the tabs are seated and that the keyboard rests flush

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -

4. Pull down on the keyboard release tabs and then press do wn on the top portion of the keyboard.

Figure 11

5. Let go of the keyboard release tabs to secure the keyboard in place.

6. Close the display and turn the iBook over.

7. Replace the battery into the battery compartment. Hold the battery ﬂush and use a coin to turn the latch counterclockwise 1/4 turn to lock the battery into place.

(Figure 12)

(Figure 11)

Figure 12

8. Turn your iBook over and open the display.

9. Reconnect the power cord and any other cables that w ere connected and restart your computer.

Note:

You may need to reset the date and time (using the Date & Time control

panel).

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -

 Apple Computer, Inc.

written consent of Apple. The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other

Every effort has been made to ensure that the information in this document is accurate. Apple is not responsible for printing or clerical errors.

Apple Computer, Inc. 1 Inﬁnite Loop Cupertino, CA 95014-2084 USA + 1 408 996 1010 http://www.apple.com

Apple and the Apple logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

iBook and AirPort are trademarks of Apple Computer, Inc.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) AirPort Card -



iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD

Memory Card

Replacement Instructions

Follow the instructions in this sheet carefully. Failure to follow these instructions could damage your equipment and void its warranty.

Note:

Written and video instructions covering customer-installable parts are available at

http://www.info.apple.com/installparts/.

Warning: During this procedure, keep small parts away from children.

Warning: Memory cards come in various speciﬁcations. Only install memory cards that are approved for your iBook.

)

Tools Required

• Coin

• #0 Phillips screwdriver

• Jeweler’s ﬂat-b lade scre wdriver (if keyboard is locked)

• Small soft cloth (if an optional AirPort Card is installed)

Opening the Computer

1. Place your computer on a clean, ﬂat surface.

2. Shut down your computer and wait thirty minutes before continuing.

3. Disconnect the power cord and any other cables connected to the computer.

4. Close the computer, turn it over, and locate the battery latch. Use a coin to turn the battery latch 1/4 turn clockwise to unlock the battery. Gently

remove the battery. Removing the battery will prevent you from accidentally turning on the computer.

Warning: Removing the battery before shutting down your computer may result in data loss.

Figure 1

5. Turn over the computer.

(Figure 1)

6. Raise the display so you can access the keyboard.

To unlock the keyboard, turn the screw 1/2 turn.

Figure 2

(Figure 2)

, is not in the locked position. Your iBook comes with the

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

8. Release the keyboard by pulling do wn on the ke yboard release tabs (located to the left of the F1 and F12 keys) and toward the display.

Figure 3

(Figure 3)

, then lift the top portion of the keyboard up slightly,

9. Flip the keyboard over and lay it on the palm rests and trackpad.

Figure 4

(Figure 4)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

10. Touch a metal surface on the inside of the computer to discharge any static electricity, as shown.

(Figure 5)

Important:

Figure 5

To avoid electrostatic discharge damage, always ground yourself by

Removing the Installed Memory Card

1. If your computer has the optional AirPort Card installed, unlatch the ﬂexible wire holder that secures the card.

2. Use the pull-tab on the card to remove it from the slot. (You do not need to disconnect the antenna.)

Note:

To avoid scratching the computer’s case, place a soft cloth between the

AirPort Card and the surface of your iBook.

Figure 6

(Figure 6)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

3. If an AirPort Card is not installed, unlatch the ﬂexible wire holder to release the AirPort Card antenna cable.

4. Remove the screws that secure the RAM shield.

Figure 7

5. Lift the RAM shield out of the computer. Carefully pulling up on the wire holder may help to remove the shield.

Figure 8

(Figure 8)

(Figure 7)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

6. Locate the installed memory card and brackets that secure the card on both sides.

(Figure 9)

7. Carefully spread the brackets apart until the card releases on each side. Pull the card up and out of the memory slot.

Figure 9

Installing the Replacement Memory Card

1. Line up the notch in the replacement memory card with the small tab in the memory slot. Hold the card at a 30-degree angle, then push the card into the slot until it is ﬁrmly seated.

(Figure 10)

Note:

Figure 10

If you feel resistance when inserting the card, try pushing one side at a time.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

2. Gently push the top of the card down until the brackets snap onto both sides of the memory card to lock it into place.

Figure 11

(Figure 11)

3. Insert the RAM shield.

5. Verify that the AirPort antenna cable routes through the notch in the RAM shield without pinching.

6. Replace the RAM shield screws.

Figure 12

(Figure 12)

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

7. If you do not have an AirPort Card, ﬂip down the wire holder over the AirPort Card antenna cable and secure it by inserting the prongs of the holder into the slots in the RAM shield.

Figure 13

8. If you have an AirPort Card, gently slide it (with the AirPort ID number and bar code facing up) under the wire bracket and securely into the AirPort Card slot.

9. Use the wire holder to secure the AirPort Card in place by inserting its prongs into the slots in the RAM shield.

(Figure 13)

(Figure 14)

Figure 14

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

Closing the Computer

1. Flip the keyboard back toward the keyboard opening in the case.

2. Hold the keyboard at a 45-degree angle above the keyboard opening, and insert the tabs on the bottom edge of the keyboard into the slot under the edge of the opening.

Important:

against the edge of the opening.

3. Lay the keyboard ﬂat into the keyboard opening.

Figure 15

4. Pull down on the keyboard release tabs and then press do wn on the top portion of the keyboard.

Make sure that all the tabs are seated and that the keyboard rests flush

(Figure 15)

(Figure 16)

Figure 16

5. Let go of the keyboard release tabs to secure the keyboard in place.

6. Close the display and turn the iBook over.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

7. Replace the battery into the battery compartment. Hold the battery ﬂush and use a coin to turn the latch counterclockwise 1/4 turn to lock the battery into place.

(Figure 17)

Figure 17

8. Turn your iBook over and open the display.

9. Reconnect the power cord and any other cables that w ere connected and restart your computer.

Note:

You may need to reset the date and time (using the Date & Time control

panel).

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -

 Apple Computer, Inc.

written consent of Apple. The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other

Every effort has been made to ensure that the information in this document is accurate. Apple is not responsible for printing or clerical errors.

Apple Computer, Inc. 1 Inﬁnite Loop Cupertino, CA 95014-2084 USA + 1 408 996 1010 http://www.apple.com

Apple and the Apple logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

iBook is a trademark of Apple Computer, Inc.

iBook (Dual USB) / iBook (Late 2001) / iBook (14.1 LCD) Memory Card -



iBook (14.1 LCD)

Bottom Case

Replacement Instructions

The following instructions explain ho w to replace the bottom case on the iBook (14.1 LCD) computer.

Tools

This procedure requires the following tools:

• Soft cloth

• Torx T8 screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

• #0 Phillips screwdriver

Preliminary Steps

Before you begin, remove the battery.

Procedure

1. Place the computer upside down on a soft cloth.

Updated: 2002-01-07

Important:

slip out of the screw head during removal. Remove the three screws (two identical screws in the back, one shorter screw in the

center of the bottom case).

3. Using a black stick, peel up the three rubber feet from the metal sockets.

To avoid damaging the case, be careful that the screwdriver tip does not

Note: When reassembling the computer, do not reuse the feet. Install three new

rubber feet.

iBook (14.1 LCD) Bottom Case -

4. Remove the three identical Phillips screws from the metal sockets.

5. Use a black stick to lift out the metal sockets.

Note: When reassembling the computer, note that the metal sockets are keyed.

Rotate them until they sit flat against the bottom case.

6. Remove the two identical Phillips screws next to the battery connector.

iBook (14.1 LCD) Bottom Case -

7. Note the locations of the slots on the bottom case. The computer frame has tabs that ﬁt into slots within the bottom case (six tabs in front; two on each side; three in back). When using a black stick to pry off the bottom case, it helps to know where the slots are as you free the tabs from the slots.

8. In the battery compartment, lift up the corner of the bottom case, and use a black stick or jeweler’s ﬂat-blade screwdriver to gently pry up the slot from the inner tabs on the frame.

iBook (14.1 LCD) Bottom Case -

9. Starting at the battery compartment, use a black stick to carefully pry up the bottom case from the computer.

10.

Warning: To avoid damaging the sleep light and other delicate components, do not insert the black stick too far into the computer as you free the bottom case from the computer. Use just the tip of the black stick to pry up the bottom case.

iBook (14.1 LCD) Bottom Case -

11. Carefully work the black stick around the corners of the bottom case.

12. The bottom case ﬁts snugly. Use moderate force to remove the remaining tabs from the slots.

13. When all tabs have been freed from the slots, lift up the bottom case.

Note:

When reassembling the computer, be careful not to pinch any cables as you press the bottom case back onto the computer. Check that the bottom case shows no raised surfaces and is fully snapped into place before installing the remaining screws, sockets, and feet.

iBook (14.1 LCD) Bottom Case -

14. If you are replacing any additional parts at this time, remove the two springs from the battery compartment so they do not fall out and get lost.

Note:

When reassembling the computer, make sure that the two springs in the battery connector are in place before installing the bottom case. Each spring has a plastic cap on one end. The cap should fit securely on the spring, and the curved side of the cap should be positioned against the inner frame.

15. Install the replacement bottom case, and reassemble and test the computer.

iBook (14.1 LCD) Bottom Case -



iBook (14.1 LCD)

Bottom Shield

Replacement Instructions

The following instructions explain ho w to replace the bottom shield in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, remove the f ollowing screws from the bottom shield:

• nine identical 6-mm long Phillips screws (two of the screws may be concealed

under foil tape at the display hinge)

• two identical 14.5-mm long Phillips screws

• one 5-mm long Phillips screw

iBook (14.1 LCD) Bottom Shield -

2. Using a black stick, peel up—but do not remove— the strips of tape.

Note: Check for foil tape by the computer latch as well as the areas shown below.

Warning: Do not bend the bottom shield.

Lift the bottom shield off the computer, being careful where it might catch on the tape.

iBook (14.1 LCD) Bottom Shield -

4. If necessary, use a black stick to separate the foil tape on the bottom shield from the I/O bezel shield.

Note:

The two springs in the battery connector can become loose. When reassembling the computer, make sure that the two springs in the battery connector are in place before installing the bottom case. Each spring might have grease on the coils, and each has a plastic cap on one end. Make sure the cap ﬁts securely on the spring, and the curved side of the cap is positioned against the inner frame.

6. Install the replacement bottom shield, and reassemble and test the computer.

iBook (14.1 LCD) Bottom Shield -



iBook (14.1 LCD)

Fan

Replacement Instructions

The following instructions explain how to replace the fan in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Bottom shield

Procedure

1. With the computer on a soft cloth, remove the single screw from the fan bracket.

Updated: 2002-01-07

2. Lift the fan and bracket from the computer, and disconnect the connector from the logic board. (Use a black stick, if necessary.)

Note:

When installing the replacement fan, make sure that the fan cable routes

underneath the fan bracket.

3. Install the replacement fan, and reassemble and test the computer.

iBook (14.1 LCD) Fan -



iBook (14.1 LCD)

Top Case

Replacement Instructions

The following instructions explain how to replace the top case on the iBook (14.1 LCD) computer.

Tools

This procedure requires the following tools:

• Soft cloth

• Black stick (or other nonconductive nylon or plastic tool)

• Magnetized #0 Phillips screwdriver

• Metal paper clip

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Keyboard

• AirPort Card

• Bottom case

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth and the bottom shield facing up, remove the nine screws shown:

• three 14.5-mm long screws

• three 5-mm long screws

• three 3-mm long screw

iBook (14.1 LCD) Top Case -

2. Turn over the computer. Using a black stick, pry up the sides of the trackpad cable connector to release the trackpad cable.

3. Remove the three screws from the keyboard well:

• two 6-mm long Phillips screws

• one 8-mm long Phillips screw

4. Using a straightened paper clip, open the optical drive.

iBook (14.1 LCD) Top Case -

Warning: When performing this step, make sure the speaker cable and power switch cable are not strained.

Starting near the left speaker end of the top case, lift up the top case near the front. Tilt the top case so that it clears the DC connector.

Tilt the top case up away from the computer latch.

Use a black stick to loosen the top case from the optical drive.

6. With the top case loosened, disconnect the speaker cable from the logic board.

7. Disconnect the power switch cable from the logic board.

iBook (14.1 LCD) Top Case -

8. Remove the top case from the computer.

Note: When installing the replacement top case, first connect the power switch cable

connector followed by the speaker cable connector. Do not strain the cables. Then make sure you attach the case over the DC connector.

iBook (14.1 LCD) Top Case -

9. Before installing the replacement top case, make sure it includes the following:

• Speaker set

• Power button and board (under left speaker)

• Speaker cable and power switch cable

• Trackpad assembly with board and cable

• Display latch

• Battery magnet

10.

Important:

from the old top case to the replacement top case. You can use a black stick to carefully peel up a corner of the label. Then peel off the label completely and apply it to the replacement top case. Make sure that the labels lie completely ﬂat so they do not interfere with the battery compartment.

Make sure you transf er the original serial number label and Ethernet label

11. Install the replacement top case.

Warning: When reassembling the computer, be careful not to pinch any cables as you press the top case back onto the computer. Check that the top case shows no raised surfaces and is fully snapped into place before installing the remaining screws.

iBook (14.1 LCD) Top Case -

12. Reassemble and test the computer.

Note: When reinstalling the RAM shield, insert the edge next to the trackpad cable

first. Then make sure the RAM shield lays flat and the two screw holes align with the two holes in the heat spreader before installing the screws.

iBook (14.1 LCD) Top Case -



iBook (14.1 LCD)

Top Shield

Replacement Instructions

The following instructions explain how to replace the top shield in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Keyboard

• Airport Card

• Top case

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, remove the 16 Phillips screws:

• nine 6-mm long screws

• two 5-mm long screws

• five 3-mm long screws

2. Using a black stick, carefully peel up, but do not remove, the foil strips and pieces of tape.

Note: When reassembling the computer, reuse the foil and tape to secure the

replacement top shield.

iBook (14.1 LCD) Top Shield -

3. Lift up the foil tape near the trackpad cable.

4. Before lifting up the top shield, note that the shield ﬁts over posts on the computer frame.

Note: When reinstalling the top shield, make sure the holes in the shield align with

the screw holes and posts.

iBook (14.1 LCD) Top Shield -

Warning: Do not bend the top shield.

Lift the top shield off the computer, being careful where it might catch on the highlighted areas shown.

6. Install the replacement top shield, and reassemble and test the computer.

iBook (14.1 LCD) Top Shield -



iBook (14.1 LCD)

I/O Bezel

Replacement Instructions

The following instructions explain how to replace the I/O bezel in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Bottom shield

• Keyboard

• Airport Card

• Top case

• Top shield

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, remove the screw from the I/O bezel.

2. Tilt down the I/O bezel and remove it from the computer frame.

Note: When reassembling the computer, make sure that the I/O bezel is level and

fits over all ports.

iBook (14.1 LCD) I/O Bezel -

3. Install the replacement I/O bezel, and reassemble and test the computer.

Note: When installing the replacement I/O bezel, make sure the bezel shield and the

mylar panel fits over the underside of the logic board, as shown below.

iBook (14.1 LCD) I/O Bezel -



iBook (14.1 LCD)

Hard Drive

Replacement Instructions

The following instructions explain how to replace the hard drive in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• Black stick (or other nonconductive nylon or plastic tool)

• Torx T8 screwdriver

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Keyboard

• Airport Card

• Top case

• Top shield

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, note the location of the hard drive and how the ﬂex cable is routed.

2. Remove the 5-mm long Phillips screw at the corner of the hard drive.

Warning: pins could become bent and damaged.

Using even force, pull the looped handle straight up to disconnect the flex cable from the connector at the side of the hard drive.

Note:

connector is labeled "TO MAIN BOARD" on the flex cable.

If the ﬂex cable connector is pulled up unevenly, some connector

When installing the flex cable at the side of the replacement drive, this

iBook (14.1 LCD) Hard Drive -

4. Lift up the fabric tape to release the microphone cable.

Note: When reassembling the computer, reuse the tape to secure the microphone

cable to the replacement drive.

5. From the corner bracket, tilt up the hard drive, and slide it out from under the microphone cable.

iBook (14.1 LCD) Hard Drive -

Warning: Handle the hard drive at the sides only. Do not touch or press anywhere else on the drive.

Warning: If the flex cable connector is pulled out unevenly, some connector pins could become bent and damaged.

Using even force,

connector on the end of the hard drive.

Note:

When installing the flex cable to the end of the replacement drive, this

connector is labeled "TO HDD" on the flex cable.

pull the looped handle to disconnect the ﬂex cable from the

iBook (14.1 LCD) Hard Drive -

7. Holding the drive by the corners as shown, pull off the side rails (with grommets attached).

Note: When reassembling the computer, transfer the side brackets (including the

grommets) to the replacement hard drive so the grommets fit over the screw heads.

8. Install the replacement hard drive, and reassemble and test the computer.

Note: Each connector on the flex cable is labeled for reinstallation.

iBook (14.1 LCD) Hard Drive -



iBook (14.1 LCD)

Modem

Replacement Instructions

The following instructions explain how to replace the modem in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Keyboard

• Airport Card

• Top case

• Top shield

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, remove the Phillips screw from the corner of the modem board.

Warning: When removing the modem, be careful not to strain the LVDS (low voltage data signal) cable.

Note the routing of the LVDS cable that is taped to the plastic modem sleeve.

3. Without straining the LVDS cable, peel off the clear tape.

iBook (14.1 LCD) Modem -

4. Tilt up the end of the modem board to disconnect it from the logic board.

Important:

Gently move the LVDS cable aside, and pivot the modem board to reach the 2pin cable connector located under the plastic sleeve.

6. Disconnect the connector from the modem. Slide the modem board out from under the LVDS cable.

Do not strain or remove the LVDS cable.

Note:

When reassembling the computer, reuse the tape that secures the flat LVDS

cable to the modem sleeve.

7. Install the replacement modem, and reassemble and test the computer.

iBook (14.1 LCD) Modem -



iBook (14.1 LCD)

Display Module

Replacement Instructions

The following instructions explain how to replace the display module in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Keyboard

• Airport Card

• Top case

• Top shield

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, note the routing of the black microphone cable. Disconnect the microphone cable from the logic board and release the cable from the black fabric tape on the hard drive.

2. Pull up the ﬂexible tab to disconnect the LVDS (low voltage data signal) cable from the logic board.

iBook (14.1 LCD) Display Module -

3. Remove the two screws securing the ﬂat section of the LVDS cable.

Warning: Be careful not to strain the LVDS cable.

4. Peel up the clear tape that attaches the LVDS cable to the modem sleeve.

5. Gently guide the LVDS cable and the microphone cable up from the computer chassis.

6. Peel the tape off of the computer frame, and disconnect the ﬂat backlight cable from the logic board.

iBook (14.1 LCD) Display Module -

7. Route the cables up through the channel past the optical drive.

Warning: To prevent damage, support the back of the display while performing this step.

Remove the screw at each display hinge.

iBook (14.1 LCD) Display Module -

Warning: When lifting the display, be careful not to strain the cables.

Tilt the display up slightly from the computer.

10. Install the replacement display, and reassemble and test the computer.

iBook (14.1 LCD) Display Module -



iBook (14.1 LCD)

Optical Drive

Replacement Instructions

The following instructions explain how to replace the optical drive in the iBook (14.1 LCD) computer.

Note:

The optical drive in this computer is a combination CD-RW/DVD-ROM drive.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Bottom shield

• Keyboard

• Airport Card

• Top case

• Top shield

Updated: 2002-01-07

Procedure

1. Use a straightened paper clip to release the drive tray.

2. With the drive tray open, carefully turn over the computer.

3. On the underside of the drive, notice the tabs near each end of the drive bezel.

4. Using the pointed end of a black stick, press the recessed middle of the smaller tab, and loosen that end of the bezel.

iBook (14.1 LCD) Optical Drive -

5. Press the wider tab, and pull the bezel off of the drive.

6. With the bezel removed, press the drive tray in until it is completely closed.

7. Tilt up the computer, and support the optical drive as you remove the two screws beneath the optical drive.

iBook (14.1 LCD) Optical Drive -

8. Turn the computer upright, and without straining the backlight cable, loosen the tape that secures the cable to the computer frame.

Warning: Handle the optical drive at the sides only. Do not touch or press anywhere else on the drive.

Tilt up the optical drive so the corner tab clears the backlight cable. Without straining the optical drive flex cable, remove the tape and tilt the drive up

from the computer frame.

iBook (14.1 LCD) Optical Drive -

10. Remove the two screws holding the cable bracket to the optical drive.

11. Remove the cable bracket.

Note:

When reassembling the computer, transfer the cable bracket to the

replacement drive.

12. Disconnect the ﬂex cable.

Note:

When reassembling the computer, transfer the ﬂex cable to the replacement

drive. The connector is labeled "TO CD-ROM" on the flex cable.

iBook (14.1 LCD) Optical Drive -

13. Remove the two screws that hold the mounting bracket to the optical drive.

Important:

replacement drive.

14. Install the replacement optical drive, and reassemble and test the computer.

Note:

drive after the optical drive is installed in the computer.

When reassembling the computer, transfer the mounting bracket to the

When installing the replacement optical drive, press the bezel onto the

iBook (14.1 LCD) Optical Drive -



iBook (14.1 LCD)

DC Board

Replacement Instructions

The following instructions explain how to replace the DC board in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Bottom shield

• Keyboard

• Airport Card

• Top case

• Top shield

Updated: 2002-01-07

Procedure

1. With the computer on a soft cloth, remove the 6-mm long screw that secures the DC board to the computer frame.

2. Tilt up the DC board and route it through the opening in the computer frame.

iBook (14.1 LCD) DC Board -

3. Disconnect the ﬂat power cable from the connector on the logic board.

Note: When reassembling the computer, make sure the flat power cable is taped to

the underside of the computer frame.

4. Peel up the tape holding the ﬂat cable to the computer frame.

5. Install the replacement DC board, and reassemble and test the computer.

iBook (14.1 LCD) DC Board -



iBook (14.1 LCD)

Logic Board

Replacement Instructions

The following instructions explain how to replace the logic board in the iBook (14.1 LCD) computer.

Tools

• Soft cloth

• #0 Phillips screwdriver

• Black stick (or other nonconductive nylon or plastic tool)

Note:

To organize the screws you remove from the computer, use a tray with divided

compartments (such as a plastic ice cube tray).

Preliminary Steps

Before you begin, remove the following:

• Battery

• Bottom case

• Bottom shield

• Keyboard

• Airport Card

• Fan

• Top case

• Top shield

• I/O bezel

• Display module

• Modem

• Hard drive

• Optical drive

Updated: 2002-01-07

Procedure

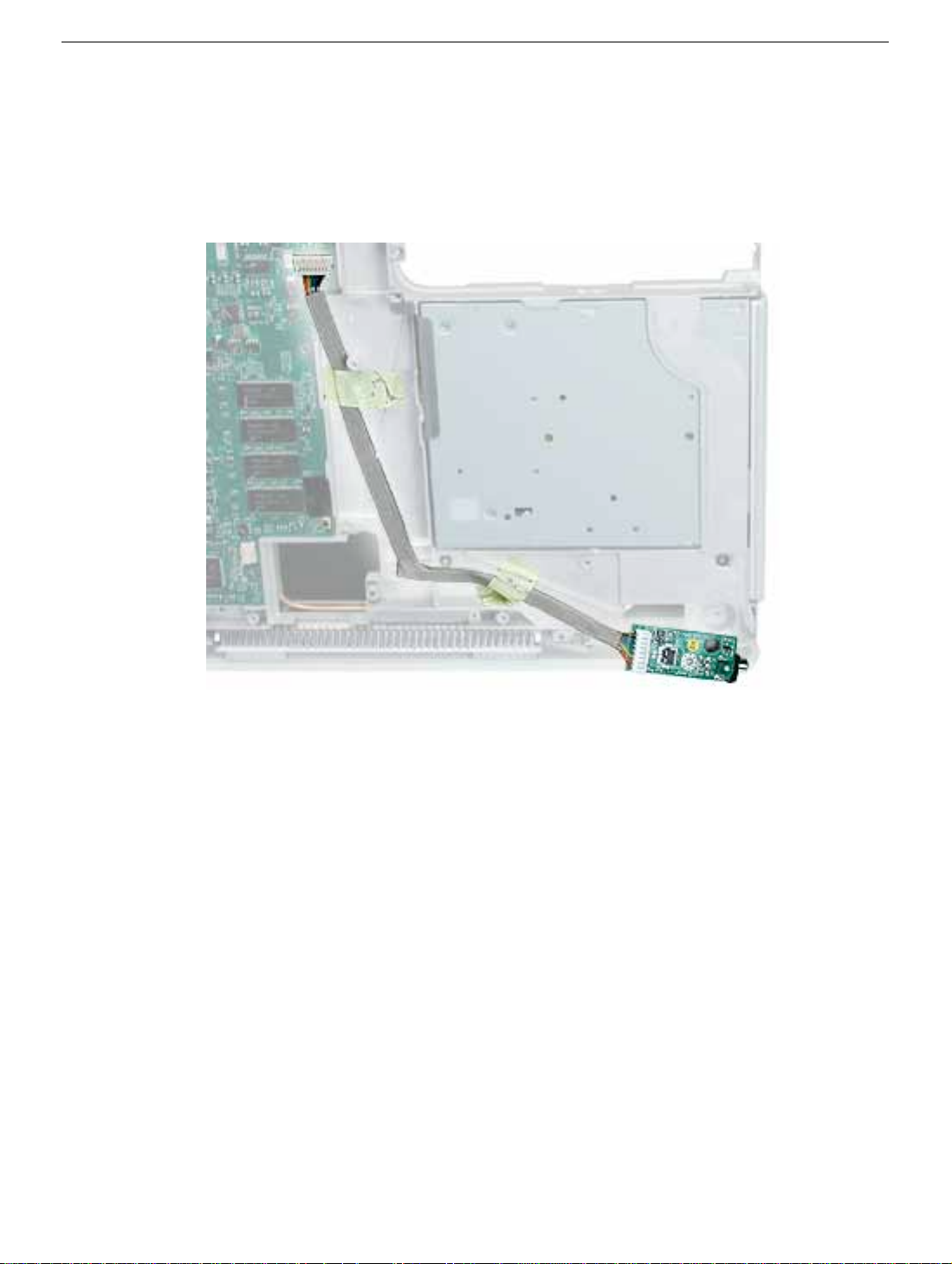

1. With the computer on a soft cloth, note the location of the sleep light board connected to the logic board and outer frame.

Note: When reassembling the computer, make sure the sleep light board is

positioned as shown and does not get caught between the top and bottom case.

2. Using a black stick, disconnect the sleep light board connector from the logic board.

iBook (14.1 LCD) Logic Board -

3. Remove the screw from the reset b utton board, and disconnect the connector from the logic board.

4. Remove the two screws holding the vent cover to the heat spreader.

5. Remove the remaining screw at the heat spreader plate.

iBook (14.1 LCD) Logic Board -

6. Tilt up the heat spreader and lift it off the logic board and out of the frame.

7. Turn over the heat spreader and notice the placement of the thermal pad on the other side. If replacing the heat spreader, make sure it has the thermal pad.

iBook (14.1 LCD) Logic Board -

8. Turn over the frame, and remove the following:

• Two7.5 mm long screws at battery transfer board

• Two 3.5 mm long logic board screws

• One 6 mm long logic board screw

• Two 4 mm long logic board screws

9. Disconnect the DC board connector.

Note: When reassembling the computer, make sure that the underside of the

replacement logic board includes the t

chip.

Note: When reassembling the computer, make sure that you transfer the following

items from the original logic board to the top of the replacement logic board:

• Memory card(s)

• Strip of foil tape extending from the top of the Ethernet port, over the top of the

modem port, and folding down the side of the modem port

hermal transfer pad covering the large

iBook (14.1 LCD) Logic Board -

10. Lifting the logic board at the back ports, tilt up the logic board to remove it from the frame.

11. Disconnect the logic board from the battery transfer board connector.

12. Install the replacement logic board, and reassemble and test the computer.

iBook (14.1 LCD) Logic Board -

13. If replacing the battery transfer board, remove the two scre ws that connect the battery transfer board to the rib frame. Then disconnect the battery transfer board from the logic board.

iBook (14.1 LCD) Logic Board -

iBook (14.1LCD) Screw Locator - 1 of 5

Keyboard and Memory Replacement

Two identical #0 Phillips 3 mm

Bottom Case Replacement

Three identical #0 Phillips, 6 mm long

Two identical Torx T8, 20 mm long

Bottom Shield Replacement

Nine identical #0 Phillips 6 mm long

One Torx T8, 10 mm long

Two identical #0 Phillips 5 mm long

One #0 Phillips 5 mm long

6 mm

20 mm

14.5 mm

6 mm

5 mm

20 mm

10 mm

6 mm

6 mm6 mm

6 mm

5 mm

14.5 mm

6 mm

Two identical #0 Phillips

14.5 mm long

Fan Replacement

One #0 Phillips 6 mm long

6 mm

iBook (14.1 LCD) Screw Locator - 2 of 5

Top Case Replacement

Three identical #0 Phillips, 3 mm long

Three identical #0 Phillips, 5 mm long

Two identical #0 Phillips, 6 mm long

One #0 Phillips, 8 mm long

Three identical #0 Phillips,

14.5 mm long

8 mm

5 mm

3 mm

14.5 mm

3 mm

5 mm

14.5 mm

5 mm

Top Shield Replacement

Nine identical #0 Phillips, 6 mm long

Five identical #0 Phillips, 3 mm long

I/O Bezel Replacement

Two identical #0 Phillips, 5 mm long

6 mm

3 mm

6 mm

3 mm

6 mm

5 mm5 mm

6 mm

3 mm

3 mm 3 mm

One #0 Phillips, 6 mm long

iBook (14.1 LCD) Screw Locator - 3 of 5

Hard Drive Replacement

One #0 Phillips, 5 mm long

Modem Replacement

One #0 Phillips,

3.5 mm long

Display Module Replacement

Two identical #0 Phillips,

3.5 mm long

Two identical #0 Phillips, 5 mm long

iBook (14.1 LCD) Screw Locator - 4 of 5

Optical Drive Replacement

Two identical #0 Phillips, 6 mm long

Two identical #0 Phillips, 3 mm long

DC Board Replacement

One #0 Phillips, 6 mm long

iBook (14.1 LCD) Screw Locator - 5 of 5

Logic Board Replacement

One #0 Phillips,

3.5 mm long

Three identical #0 Phillips, 6 mm long

Two identical #0 Phillips,

4 mm long

Two identical#0 Phillips,

7.5 mm long

One #0 Phillips, 6 mm long

One #0 Phillips,

3.5 mm long

6 mm

7.5 mm

3.5 mm

4 mm

7.5 mm

3.5 mm

4 mm

iBook (14.1 LCD) Screw Reference Sheet

This sheet shows the types of screws used in the iBook (14.1 LCD) computer. To see where the screws are located in the computer, refer to "iBook (14.1 LCD) Screw Locator."

RAM Shield 2 @ 3 mm

Bottom Case 3 @ 6 mm

Bottom Case 2@ 20 mm

Bottom Case 1 @ 10 mm

Bottom Case: Battery 2 @ 5 mm

Bottom Shield 9 @ 6 mm

Bottom Shield 2 @ 14.5 mm

Bottom Shield 1 @ 5 mm

Fan 1@ 6 mm

Top Case: Battery 3 @ 3 mm

Top Case 3 @ 5 mm

Top Case 3 @ 14.5 mm

Top Case: Keyboard 2 @ 6 mm

Top Case: Keyboard 1 @ 8 mm

Top Shield 9 @ 6 mm

I/O Bezel 1 @ 6 mm

Hard Drive 1 @ 5 mm

Modem 1 @ 3.5 mm

Display 2 @ 3.5 mm

Display: Hinge 2 @ 5 mm

Optical Drive 2 @ 6 mm

Optical Drive: Cable 2 @ 3 mm

DC Board 1 @ 6 mm

Logic Board: Reset Board 1 @ 3.5 mm

Logic Board: Heat Spreader 3 @ 6 mm

Logic Board 2 @ 4 mm

Logic Board 2 @ 7.5 mm

Logic Board 1@ 6 mm

Logic Board 1 @ 3.5 mm

Top Shield 5 @ 3 mm

Top Shield 2@ 5 mm

RAM Shield

922-4587

I/O Panel

(Not Offered)

Top Case 922-4748

Top Shield

(Not Offered)

Modem 661-2572

iBook (14.1 LCD) Exploded View

Keyboard 922-5186

Display Assembly 661-2613

Heat Spreader

922-4753

Hard Drive 20GB 661-2556 30GB 661-2551

Hard Drive

Brackets

076-0887

Sleep Light Board

922-4749

Hard Drive/

Optical Drive Cable

922-4755

SDRAM 128 MB 661-2562 256 MB 661-2643 512 MB 661-2564

Battery Transfer

Board

922-5218

Bottom Shield

(Not Offered)

Power Switch Board 922-4751

Fan 922-4752

Rib Frame (Not Offered)

Optical Drive CD-RW/DVD-ROM 661-2580

Bezel CD-RW/DVD-ROM 922-4754

DC Board 922-5012

Logic Board 661-2612

Bottom Case

922-4747

Battery

661-2611

Service Source

Troubleshooting

iBook (14.1 LCD)

Troubleshooting Symptom Charts/How to Use the Symptom Charts - 1

Symptom Charts

How to Use the Symptom Charts

The Symptom Charts included in this chapter will help you diagnose specific symptoms related to the product.

The steps to solve a symptom are listed sequentially. You might not need to perform every step before the symptom is solved. Start with the first step, and then test for the symptom. If the symptom persists, replace any modules you removed, go to the next step, and test again. Continue down the list until the symptom is solved.

AirPort Card

AirPort Card not recognized

The battery won't charge

1 Use Software Update in Mac OS X system preferences (or the

Software Update control panel in Mac OS 9) or see the Apple Software Updates web page to make sure the latest version of

AirPort software is installed. 2 Boot using Mac OS All extensions setting. 3 Reseat AirPort Card and make sure AirPort antenna cable is

fully connected. 4 Remove and reinstall the AirPort software. 5 Replace with known-good AirPort Card. 6 Replace logic board.

Battery

1 Remove any connected peripherals. 2 Try known-good power outlet. 3 Try known-good power adapter and power cord.

Note:

Verify that power adapter connector glows amber or green. If the power adapter light is green, turn over the computer and press the battery button. The battery lights should glow green and stay on if the power adapter is operating correctly.

4 Try known-good battery. 5 Turn off the computer. Reset the power manager by pressing

the reset button (located above and right of the Audio/Video port). Wait five seconds before continuing. Press the power button to start the computer.

Note: Make sure the reset button is not caught under the

button opening.

Troubleshooting Symptom Charts/Error Beeps - 2

Warning: Resetting the power manager will permanently remove a RAM disk, if present, and all of its contents. You will also need to reset the date and time (using the Date & Time control panel).

6 Replace battery transfer board. 7 Replace logic board.

Error Beeps

The computer automatically performs a power-on self test when it is turned on after being fully shut down (not a restart). This section describes what to do if beeps are heard during the startup.

Note:

The iBook (14.1 LCD) has one memory expansion slot that accepts a 1.25-inch (or shorter) PC-100 compliant, SO-DIMM memory card. Refer to the Memory Replacement instructions for removal and installation.

Computer beeps once at startup

Computer beeps twice at startup

Computer beeps three times at startup

Computer beeps four times at startup

1 One beep means that no RAM is detected. 2 If a RAM card is installed in the expansion slot, remove it and

put in known-good and compatible RAM and restart.

• If symptom does NOT repeat, replace RAM card.

• If symptom repeats, replace logic board.

3 If no RAM card is installed, replace logic board.

1 Two beeps means that EDO memory is installed in the

expansion slot. The iBook does not accept EDO memory.

2 Replace RAM card with known-good and compatible RAM and

restart.

• If symptom repeats, replace logic board.

1 Three beeps means that no RAM banks passed memory testing. 2 If a RAM card is installed in the expansion slot, remove it and

put in known-good and compatible RAM and restart.

• If symptom does NOT repeat, replace RAM card.

• If symptom repeats, replace logic board.

3 If no RAM card is installed, replace logic board.

1 Four beeps indicates a bad checksum for the remainder of the

boot ROM. The ROM (which is located on the logic board) is bad.

2 If a RAM card is installed in the expansion slot, remove it and

put in known-good and compatible RAM and restart.

• If symptom does NOT repeat, replace RAM card.

• If symptom repeats, replace logic board.

3 If no RAM card is installed, replace logic board.

Troubleshooting Symptom Charts/Hard Drive - 3

Related articles: 58442: Power On Self-Test Beep Definition - Part 2 95136: iBook (Dual USB): Installing or Replacing Memory

Hard Drive

Hard drive will not initialize

The internal hard drive does not spin

1 Boot from iBook Software Install CD and see if the hard drive

mounts on the desktop.

2 If in Mac OS X, boot from the Mac OS X software install CD.

Under the File menu, select Disk Utilities and initialize the disk or run Disk First Aid.

3 If in Mac OS 9, launch Drive Setup and update hard drive

driver.

4 If no hard drive is found in Drive Setup, verify the hard

drive cable connections.

5 Replace hard drive cable.(This is the same cable that attaches

to the optical drive.)

6 Replace hard drive.

Important:

recovery is required, refer to Article 31077: Hard Drive Data Recovery & Warranty Implications, for important information.

1 Disconnect any connected peripherals. 2 Try known-good power outlet. 3 Try known-good power adapter and power cord. 4 Boot from a Mac OS system CD. 5 Verify Drive Setup does not recognize the hard drive. 6 Verify cable connections.

If the computer is under warranty and data

No response from any key on keyboard

The keyboard lock is damaged or won't lock

Keyboard

1 Remove any connected peripherals. 2 Boot from a Mac OS system CD to verify that it is not a

software problem.

3 Turn off the computer. Disconnect the keyboard connector and

inspect connectors. 4 Replace keyboard. 5 Replace logic board.

1 Verify that keyboard is installed properly so the lock lines up

with the notch in the top case. 2 Replace keyboard.

Troubleshooting Symptom Charts/Modem - 4

Modem

No modem dial tone 1 Check that the correct modem is selected. In Mac OS X, check

Network Setup. In Mac OS 9, check the Modem control panel. 2 Verify known-good analog (not digital) telephone line. 3 Verify known-good RJ11 telephone cable. 4 Verify RJ11 cable is not plugged into Ethernet port. 5 Inspect RJ11 connector and modem port for pin damage. 6 Verify RJ11 telephone cable is firmly installed in the modem

port. 7 If using Apple Remote Access, select Ignore Dial Tone in the

Modem control panel. If the modem connects with this settings

selected, try another phone line. If using a terminal or

communications program, enter atx1 to disable tone

detection. To reset the modem back to the factory settings,

enter atz. 8 Verify modem 2-pin connector is plugged into modem

correctly. 9 Replace the modem 2-pin connector cable. 10 Replace modem.

The optical drive does not accept CD or DVD disc (mechanical failure)

The disc icon does not show up on the desktop, or a dialog box appears to initialize disc

The FireWire or USB port is not recognizing devices

Optical Drive

1 Verify disc is not warped. 2 Verify disc is properly seated in the carrier. 3 Replace optical drive.

1 Verify the correct type of disc is being used. 2 Try cleaning the disc. It may not mount if dirty or scratched. 3 Try a different disc. 4 Select “Mac OS All” in the Extensions Manager control panel

and restart. 5 Replace optical drive cable. (This is the same cable that

attaches to the hard drive.) 6 Replace optical drive.

Ports

1 Completely shut down, then press the power button to start

the computer. 2 Use Software Update in Mac OS X system preferences (or the

Software Update control panel in Mac OS 9) to verify that the

latest software is installed.

Troubleshooting Symptom Charts/Sound - 5

3 Use Apple System Profiler to verify that the computer is

recognizing the bus. 4 For USB, test ports with an Apple keyboard or mouse. 5 For FireWire, test by connecting another computer in

FireWire Target Disk Mode. Refer to article 58583: How to

Use FireWire Target Disk Mode. 6 Verify that drivers are installed properly for third party, if

needed. 7 If in Mac OS 9, boot with Mac OS All extension set. 8 Try other port if available. 9 Try a different cable. 10 If self powered make sure that the power supply is connected

and device's LED indicates that it is getting power. 11 Replace logic board.

A USB device not recognized by computer

Note:

If you are trying to use a serial device with a USB/Serial adapter, check with the manufacturer of the adapter for compatibility. 1 Completely shut down, then press the power button to start

the computer.

2 Try known-good Apple USB keyboard or mouse to verify the

port is working properly. 3 Verify current driver for the device is installed. 4 If a camera, turn on camera after initiating download with

camera application. 5 Try the other USB port. 6 Try different USB device on same port. 7 Eliminate chain by plugging in only one peripheral. 8 If in Mac OS 9, select “Mac OS All” in the Extensions

Manager control panel and restart. 9 If in Mac OS 9, troubleshoot extensions and perform a clean

installation of system software. 10 Replace logic board.

Sound

Distorted sound from speakers

No sound from speaker(s)

1 Verify sound is correct with external speakers/headphones.

If sound is correct, replace top case. 2 In Mac OS X check balance. 3 Compare same sound with two different units to make sure

that sound is actually distorted. 4 Replace logic board.

1 Use the Software Update control panel to verify that the latest

audio update has been installed.

Troubleshooting Symptom Charts/Startup - 6

2 Press the F3 key (with the fn key pressed and not pressed) to

verify that mute mode is not enabled. 3 Press the F4 or F5 key (with the fn key pressed and not

pressed) to check the volume setting. 4 Verify no external speakers or headphones are plugged in. 5 Check the speakers tab on the Sound control panel to confirm

that the software is correctly seeing that there are no

external speakers or headphones connected. 6 Shutdown computer and restart. 7 Reset PRAM (Press the power button, then hold down the

Option-Command-P-R keys until you hear the startup chime

at least one additional time after the initial startup chime). 8 Verify that the speaker cable is connected properly to logic

board. 9 Replace top case. 10 Replace logic board Related article: 58463: iBook: Sound Capabilities

The computer will not power on

Startup

1 Remove any connected peripherals. 2 Try known-good power outlet. 3 Try known-good power adapter and power cord. 4 Remove battery. 5 Press Caps Lock key to see if light on key comes on. If it does,

hold power button down for six seconds to shut down the

computer and restart. 6 Reset the power manager by pressing the reset button

(located above and right of the Audio/Video port). Wait five

seconds before continuing. Press the power button to start the

computer.

Note:

Make sure the reset button is not caught under the button

opening.

Warning: Resetting the power manager will permanently remove a RAM disk, if present, and all of its contents. You will also need to reset the date and time (using the Date & Time control panel).

7 Disconnect keyboard completely. Inspect connectors. Restart

with keyboard disconnected. 8 Remove any additional RAM 9 Remove AirPort Card. 10 Try known-good DC board. 11 Verify power button is connected properly to logic board, if

Apple iBook (14.1-inch) 03-06 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

iBook (14.1 LCD)

Keyboard

AirPort Card

Memory Card

Bottom Case

Bottom Shield

Top Case

Top Shield

I/O Bezel

Hard Drive

Modem

Display Module

Optical Drive

DC Board

Logic Board

Troubleshooting

Symptom Charts

How to Use the Symptom Charts

AirPort Card

Battery

Error Beeps

Hard Drive

Keyboard

Modem

Optical Drive

Ports

Sound

Startup
