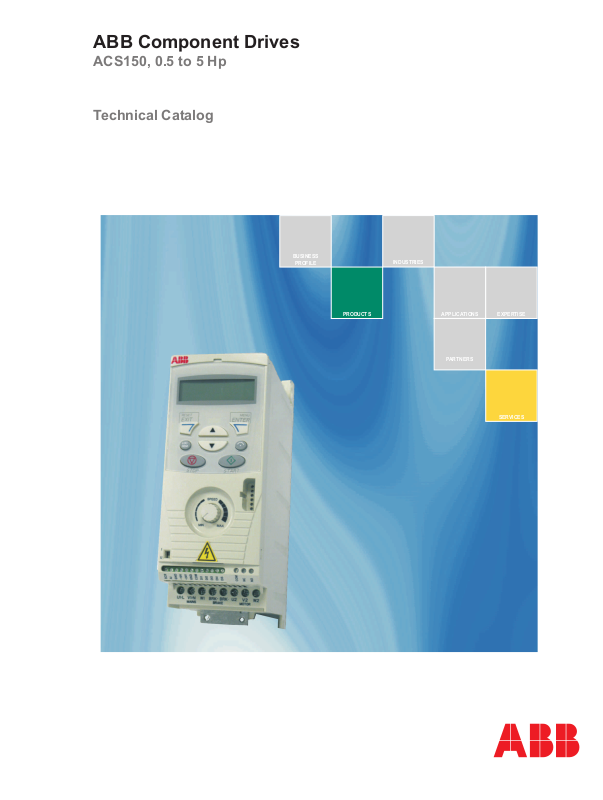

ABB Component Drives
ACS150, 0.5 to 5 Hp
Technical Catalog
BUSINESS
PROFILE
PRODUCTS
INDUSTRIES
APPLICATIONS EXPERTISE
PARTNERS
SERVICES
Contents
Choice 1: Simply contact your local ABB drives sales ofce
and let them know what you want. Use page 4 as a reference
section for more information.
Type code
Product series
ACS150 - 01U - 02A4 - 2
1
Ratings and Types
2
Voltages
3
Construction (number of phases for power)
4
OR
Choice 2: Build up your own ordering code using the
simple 7-step approach below. Then, contact your local
ABB Drives sales ofce.
5
6
7
Dimension
Options
Technical Data
Control connections
2
ABB Component Drive, ACS150
ABB Component Drives............................................................. 4
Features ....................................................................................4
Technical Specication ..............................................................5
Output current rating ................................................................. 6
Input voltage rating ....................................................................6
Phases....................................................................................... 6
Electro Magnetic Compatibility (EMC) ....................................... 6
1
2
3
4
Dimensions ................................................................................ 6
FlashDrop .................................................................................. 7
NEMA 1 kit .................................................................................7
Brake resistors........................................................................... 8
Cooling ......................................................................................8
Fuse selections.......................................................................... 8
Connection examples ................................................................ 9
5
6
7
7
9
3
ABB Component Drives
ACS150 - 01U - 02A4 - 2
What is the ACS150 customer value?
Dramatically reduced programming time and costs
- Replicate parameters in seconds with no power to
the drive with new FlashDrop technology
- Pre-congure drives prior to delivery
- Replicate parameter sets across machines
- Hide selected parameters
- Spare drives are congured
Optimal installation layout with unied height and
depth for all frames.
Reduced cost with built-in brake chopper and EMC
lter
Reduced wiring time and costs for I/O and quick,
simple and easy access control connections
The ABB component drives meet the requirements of
OEMs, system integrators and panel builders. It is a
component that is bought together with other components.
The drive is stocked, and the number of options and variants
are optimized for distribution.
Highlights
FlashDrop- easy to set and select parameters without
power
Integral operator interface - clear display with buttons
Integral potentiometer for frequency setting
Integrated EMC lter for 2nd environment
Built-in brake chopper as standard
Coated boards as standard
Unied height and depth
NEMA 1 Kit
Flexible installation
RoHS (verify label)
Applications
Fans
Pumps
Gate control
Material handling
Conveyors
Where can it be used?
ABB component drives are designed to meet the
requirements of an extensive range of machinery
applications. The drive is ideal for food and beverage,
material handling, textile, printing, rubber and plastics and
woodworking applications.
What are the ACS150's main features and benets supporting customer value?
Features Benets Notes
FlashDrop Easy and time-saving.
Cost-saving for machine builders.
Fixed interface Integrated non-removable control panel.
Clear LCD display with backlight and buttons.
Fixed potentiometer Integrated potentiometer.
Settings shown on the control panel
Built-in EMC lter No extra space, parts, time and cost required 2nd environment built in lter complying with IEC61800-3 as
Built-in brake chopper Reduced cost.
Gives freedom to choose the resistor supplier.
Flexible installation All units t in the same sized cabinet Unied height and depth for all frame sizes for optimal use of
Coated boards Longer lifetime in hostile environments.
Reduced service.
Fast and trouble free parameter set up without power.
Simple to use
Easy speed setting.
standard
100% braking capability.
cabinet space.
Sideways, side by side and DIN-rail mounting conguration
Protection against moisture and hostile particles as standard
4
