CDC-845/745
Natural Sound Compact Disc Player
5-Disc Carousel Auto-Changer
PLAYXCHANGE; Disc Changing Capability while Playing Another
Random Access Programmable Play
Random-Sequence Play
Single Track/Entire Disc/All Disc Repeat Play
Automatic Tape-Programming
Automatic Peak Level Searching Capability
Program Data Filing Capability
Disc Scanning Capability Useful for Disc Searching or Disc Checking
Display Brightness Changing Capability
CD Synchronized Recording with a Compatible YAMAHA Tape Deck
Optical Digital Output
Remote Control Capability
Thank you for selecting this YAMAHA Compact Disc Player.
OWNER’S MANUAL |
|
CONTENTS |
|
Safety Instructions.................... |
2 |
Connections ............................. |
4 |
Identification of Components.... |
5 |
Loading Discs/Disc Play........... |
7 |
Random-Sequence Play ........ |
11 |
Program Play.......................... |
12 |
Repeat Play............................ |
16 |
Index Search .......................... |
16 |
Track Programming for |
|
Recording to Tape ................... |
17 |
CD Synchronized Recording... |
21 |
Notes about the Remote |
|
Control Transmitter ................. |
22 |
Notes about Handling |
|
Compact Discs ....................... |
22 |
Troubleshooting ...................... |
23 |
Specifications ......................... |
23 |
IMPORTANT!
Please record the serial number of this
unit in the space below.
Model:
Serial No.:
The serial number is located on the rear
of the unit.
Retain this Owner’s Manual in a safe place for future reference.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
• Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the
presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance
(servicing) instructions in the
literature accompanying the appliance.
1Read Instructions – All the safety and operating instructions should be read before the unit is operated.
2Retain Instructions – The safety and operating instructions should be retained for future reference.
3Heed Warnings – All warnings on the unit and in the operating instructions should be adhered to.
4Follow Instructions – All operating and other instructions should be followed.
5Water and Moisture – The unit should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
6Carts and Stands – The unit should be used only with a cart or stand that is recommended by the manufacturer.
6A A unit and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.
7Wall or Ceiling Mounting – The unit should be mounted to a wall or ceiling only as recommended by the manufacturer.
8Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
9Heat – The unit should be situated away from heat sources such as radiators, stoves, or other appliances that produce heat.
10Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the unit.
11Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
12Cleaning – The unit should be cleaned only as recommended by the manufacturer.
13Nonuse Periods – The power cord of the unit should be unplugged from the outlet when left unused for a long period of time.
14Object and Liquid Entry – Care should be taken so that objects do not fall into and liquids are not spilled into the inside of the unit.
15Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A.The power-supply cord or the plug has been damaged; or
B.Objects have fallen, or liquid has been spilled into the unit; or
C.The unit has been exposed to rain; or
D.The unit does not appear to operate normally or exhibits a marked change in performance; or
E.The unit has been dropped, or the cabinet damaged.
16Servicing – The user should not attempt to service the unit beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.
17Power Lines – An outdoor antenna should be located away from power lines.
18Grounding or Polarization – Precautions should be taken so that the grounding or polarization is not defeated.
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT
1To ensure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2Install your unit in a cool, dry, clean place – away from windows, heat sources, and too much vibration, dust, moisture or cold. Avoid sources of hum (transformers, motors). To prevent fire or electrical shock, do not expose to rain and water.
3Do not operate the unit upside-down. It may overheat, possibly causing damage.
4Never open the cabinet. If a foreign object drops into the set, contact your dealer.
5Do not use force on switches, knobs or cords. When moving the set, first turn the unit off. Then gently disconnect the power plug and the cords connecting to other equipment. Never pull the cord itself.
6Do not attempt to clean the unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
7Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that your unit is faulty.
CAUTION FOR CARRYING THIS UNIT
Be sure not to carry or tip the unit with discs remaining in it.
CAUTION FOR MOVING THIS UNIT
When moving this unit, first remove all discs from the disc tray and close the tray by pressing the OPEN/CLOSE button, and then switch off the power after you confirm that the display has turned as follows.
Never switch off the power if the display does not turn as above, otherwise the unit will get out of order during moving because the internal mechanism is not locked.
2
WARNING
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
DANGER
Invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personel only.
To avoid electrical shock, do not open the unit. Refer servicing to qualified personnel only.
DANGER: The use of optical instrument with this product will increase eye hazard.
The apparatus is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the apparatus itself is turned off.
FCC INFORMATION
1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT! |
Compliance with FCC regulations does not guarantee that |
|
This product, when installed as indicated in the |
interference will not occur in all installations. If this product |
|
instructions contained in this manual, meets FCC |
is found to be the source of interference, which can be |
|
requirements. Modifications not expressly approved by |
determined by turning the unit “OFF” and “ON”, please try |
|
Yamaha may void your authority, granted by the FCC, to |
to eliminate the problem by using one of the following |
|
use the product. |
measures: |
|
2. IMPORTANT : When connecting this product to |
Relocate either this product or the device that is being |
|
accessories and/or another product use only high quality |
affected by the interference. |
|
shielded cables. Cable/s supplied with this product |
Utilize power outlets that are on different branch (circuit |
|
MUST be used. Follow all installation instructions. |
||
breaker or fuse) circuits or install AC line filter/s. |
||
Failure to follow instructions could void your FCC |
||
In the case of radio or TV interference, relocate/reorient the |
||
authorization to use this product in the USA. |
||
3. NOTE : This product has been tested and found to |
antenna. If the antenna lead-in is 300 ohm ribbon lead, |
|
change the lead-in to coaxial type cable. |
||
comply with the requirements listed in FCC Regulations, |
||
If these corrective measures do not produce satisfactory |
||
Part 15 for Class “B” digital devices. Compliance with |
||
these requirements provides a reasonable level of |
results, please contact the local retailer authorized to |
|
assurance that your use of this product in a residential |
distribute this type of product. If you can not locate the |
|
environment will not result in harmful interference with |
appropriate retailer, please contact Yamaha Electronics |
|
other electronic devices. |
Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA |
|
This equipment generates/uses radio frequencies and, if |
90620. |
|
|
||
not installed and used according to the instructions |
The above statements apply ONLY to those products |
|
found in the users manual, may cause interference |
distributed by Yamaha Corporation of America or its |
|
harmful to the operation of other electronic devices. |
subsidiaries. |
We Want You Listening For A Lifetime
YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is
often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.
3
●Before making any connections, switch OFF the power to the unit and the amplifier or other component.
●Connections should be made to the correct input terminals of the amplifier or other component.
●If the placement of this unit causes noise to other equipment, such as a tuner, separate them from each other.
This unit
LINE OUT |
DIGITAL |
|
AUDIO |
|
OUT |
|
OPTICAL |
To AC outlet
|
|
|
Optical fiber cable (not included)
Connection cord (included)
Amplifier
OPTICAL
CD |
DIGITAL IN |
Choose one of the ways listed below to connect this unit to your amplifier.
When the LINE OUT (analog) terminals of this unit are used ( )
●Be sure that the left (“L”) and right (“R”) LINE OUT terminals are connected to the corresponding (left and right) terminals of the amplifier or other component.
●Connect the “LINE OUT” terminals to the “CD” (or “AUX”) terminals of the amplifier. If the amplifier does not have
such terminals, use the “TAPE PB” terminals. For additional details concerning these connections, refer to the operation instructions for the amplifier being used.
●Adjust the level of signals output into an amplifier, etc. by using the OUTPUT LEVEL control.
When the DIGITAL AUDIO OUT (OPTICAL) terminal of this unit is used ( )
●Before using this terminal, remove the terminal’s cover by pulling it.
●Make the connection from this terminal to the digital input terminal of an amplifier or D/A (digital-to-analog) converter by using a commercially available optical fiber cable.
●Be sure to attach the terminal’s cover when this terminal is not being used, in order to protect the terminal from dust.
*Use an optical fiber cable that conforms to EIAJ standards. Other cables might not function correctly.
●When this terminal is used for the connection, set the OUTPUT LEVEL control to maximum.
4
CDC-845
* ( ) indicates the page number on which the control part is best described. |
DISC SKIP button (p. 7) |
|
FRONT PANEL |
OPEN/CLOSE button (p. 7) |
|
Disc play MODE select button (p. 7) |
STOP button (p. 8) |
|
POWER switch (p. 7) |
PLAYXCHANGE |
|
FILE/SAVE button (p. 14) |
||
button (p. 7) |
||
|
||
CLEAR button (p. 13) |
PLAY/PAUSE |
|
button (p. 7) |
||
|
||
Disc tray (p. 7) |
RANDOM |
|
TAPE button (p. 17) |
||
button (p. 11) |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
PLAYXCHANGE |
OPEN/CLOSE |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
PLAY/ |
STOP |
DISC SKIP |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
PAUSE |
||||
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
DISC |
|
4 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
||||
POWER |
PROG |
TAPE |
CLEAR FILE/SAVE MODE |
REPEAT RANDOM |
|
SKIP |
|
SEARCH |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FILE |
+10 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
0 |
TIME |
|
|
|
|
PHONES |
SAVE |
|
|
|
|
|
|
|
|
|
|
|
OUTPUT LEVEL |
|
|
|||
|
|
|
|
|
|
|
|
|
|
PEAK |
DOWN |
UP |
|
|
|||
AUTO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DISPLAY OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PROG button (p. 12) |
REPEAT |
|
|
button (p. 16) |
||
Remote control sensor |
|
||
Numeric buttons (p. 8) |
SKIP button (p. 8) |
||
(p. 22) |
|||
|
|
PEAK button (p. 20) |
|
|
TIME display mode select button (p. 9) |
||
Display panel |
SEARCH button (p. 9) |
||
|
|
||
|
|
OUTPUT LEVEL button (p. 10) |
|
|
|
PHONES jack (p. 10) |
|
REMOTE CONTROL TRANSMITTER |
DISC-select buttons (p. 7) |
||
|
The control functions on the main unit and on the remote control transmitter are virtually identical, with the exceptions described below.
OPEN/CLOSE DIMMER TIME
PROG TAPE REPEAT RANDOM
1 2 3 MODE
4 5 6 +10
7 |
8 |
9 |
0 |
DISC SKIP |
DISC |
|
|
|
|
|
|
|
|
SCAN |
|
|
SKIP |
PAUSE |
PLAY |
|
SEARCH |
INDEX |
STOP |
|
|
– OUTPUT LEVEL + |
SYNCHRO SYNCHRO button (p. 21)
DIMMER button (p. 10)
DISC SCAN button (p. 9)
INDEX button (p. 16)
OUTPUT LEVEL buttons (p. 10)
(“+” is identical withUP“ ” and “–” withDOWN“ ” of the
OUTPUT LEVEL control on the main unit.)
*The PLAY/PAUSE button on the main unit has both the functions of the PLAY button and the PAUSE button on the remote control transmitter.
*Remote control transmitter has two DISC SKIP buttons. Pressing each button will search discs in the direction shown by the arrow.
This manual mainly describes how to operate this unit by using the front panel buttons. To operate this unit on the remote control transmitter, use buttons with the same name as those on the front panel.
5
CDC-745
* ( ) indicates the page number on which the control part is best described.
FRONT PANEL |
|
|
DISC SKIP button (p. 7) |
|
|
OPEN/CLOSE button (p. 7) |
|
|
|
|
|
POWER switch (p. 7) |
DISC-select buttons (p. 7) |
STOP button (p. 8) |
|
Disc tray (p. 7) |
|
|
PLAYXCHANGE button (p. 7) |
|
|
|
|
|
|
PLAY/PAUSE button (p. 7) |
|
|
TIME display mode |
SEARCH button (p. 9) |
|
|
select button (p. 9) |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PLAYXCHANGE |
OPEN/CLOSE |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
PLAY/ |
STOP DISC SKIP |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
PAUSE |
||||
|
TIME |
1 |
2 |
DISC |
|
4 |
5 |
|
SKIP |
|
|
SEARCH |
FILE/ |
|
REPEAT |
RANDOM |
|
POWER |
3 |
|
|
|
|
SAVE MODE |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
FILE |
|
|
|
|
|
|
|
|
|
|
|
|
OUTPUT LEVEL |
PHONES |
|||
SAVE |
+10 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
0 |
PROG TAPE |
|||||
DOWN |
|
UP |
|
||||||||||||||
AUTO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DISPLAY OFF |
|
|
|
|
|
|
|
|
|
|
PEAK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Numeric buttons (p. 8)
Display panel
Remote control sensor (p. 22)
REMOTE CONTROL TRANSMITTER
SKIP button (p. 8)
PEAK button (p. 20)
PROG button (p. 12)
TAPE button (p. 17)
FILE/SAVE button (p. 14)
OUTPUT LEVEL button (p. 10)
MODE-select button (p. 7)
REPEAT button (p. 16)
PHONES jack (p. 10)
RANDOM button (p. 11)
The control functions on the main unit and on the remote control transmitter are virtually identical, with the exceptions described below.
OPEN/CLOSE DIMMER TIME
PROG TAPE REPEAT RANDOM
1 2 3 MODE
4 5 6 +10
7 |
8 |
9 |
0 |
DISC SKIP |
DISC |
|
|
|
|
|
|
|
|
SCAN |
|
|
SKIP |
PAUSE |
PLAY |
|
SEARCH |
INDEX |
STOP |
|
|
– OUTPUT LEVEL + |
SYNCHRO SYNCHRO button (p. 21)
DIMMER button (p. 10)
DISC SCAN button (p. 9)
INDEX button (p. 16)
OUTPUT LEVEL buttons (p. 10)
(“+” is identical withUP“ ” and “–” withDOWN“ ” of the
OUTPUT LEVEL control on the main unit.)
*The PLAY/PAUSE button on the main unit has both the functions of the PLAY button and the PAUSE button on the remote control transmitter.
*Remote control transmitter has two DISC SKIP buttons. Pressing each button will search discs in the direction shown by the arrow.
This manual mainly describes how to operate this unit by using the front panel buttons. To operate this unit on the remote control transmitter, use buttons with the same name as those on the front panel.
6
|
|
LOADING DISCS/DISC PLAY |
|
||||||
CDC-845 |
|
|
|
CDC-745 |
|
|
|
|
|
|
5 |
6 |
2, 4 |
|
|
|
6 |
6 |
2, 4 |
1 |
|
|
3, 6 |
1 |
|
|
|
|
3, 6 |
|
|
6 |
|
|
|
|
5 |
||
|
|
|
|
|
|
|
|
||
1 |
POWER |
|

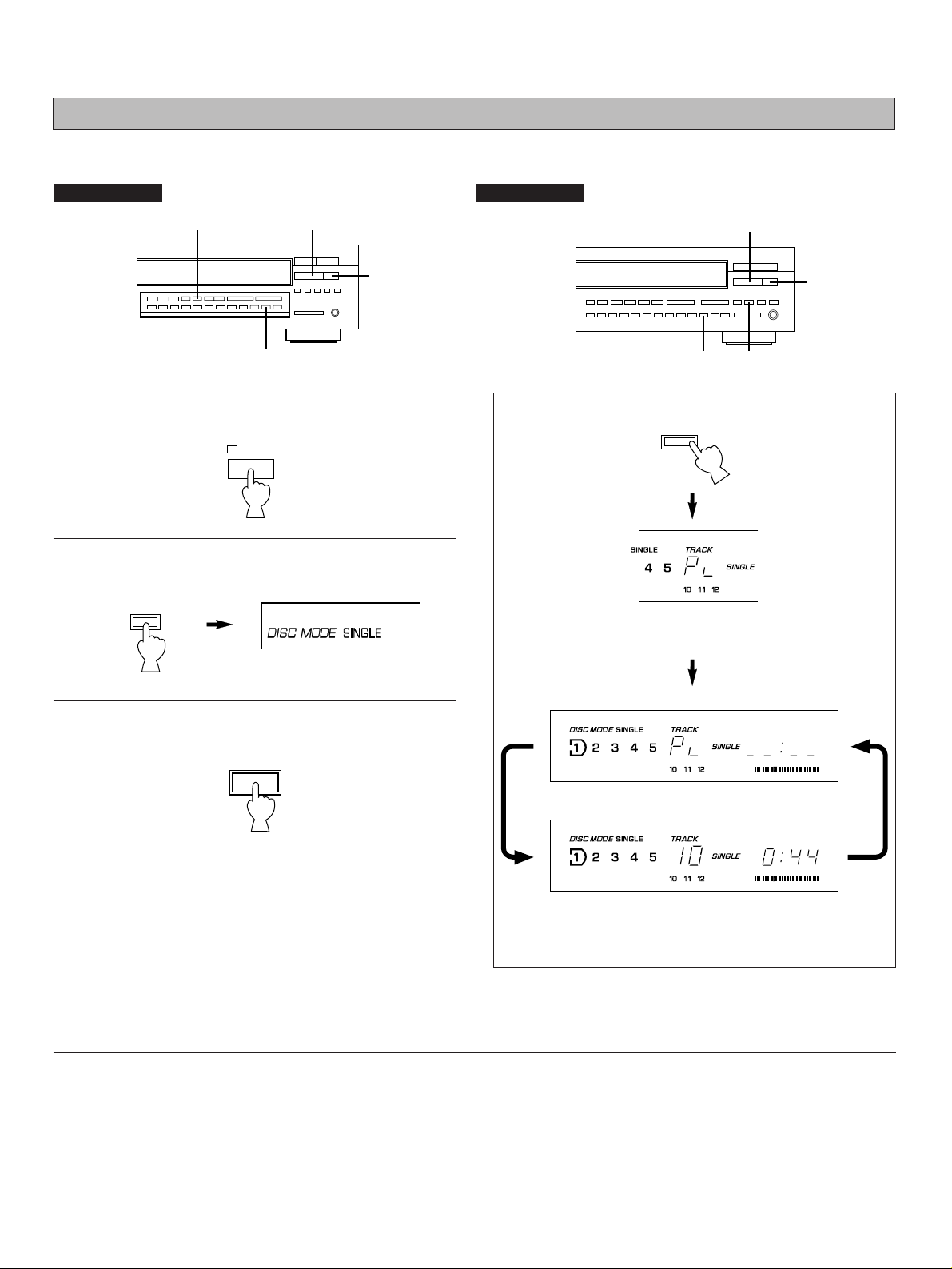

5 Select the disc play mode (DISC MODE: SINGLE or |
||||||
|
|
|
|||||||
|
|
|
|
ALL) while watching the display. |
|
||||
|
|
|
|
MODE |
|
|
|
|
|
2 |
|
Label side |
|
|
|
|
|
Shows the selected disc |
|
|
|
|
|
|
|
mode. |
|
||
|
|
upward |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPEN/CLOSE |
|
|
|
“SINGLE” mode: The unit will play a designated disc only. |
|||||
|
|
|
|
||||||
|
|
|
|
“ALL” mode: The unit will play all discs in the tray in |
|||||
|
|
|
|
|
|
sequence. |
|
|
|
|
|
|
Disc tray |
6 |
|
|
|
PLAY/ |
|
|
|
|
|
|
|
PAUSE |
|
||
3 |
|
|
|
|
|
|
|
|
|
DISC SKIP |
|
|
|
* If necessary, select a desired disc by using a DISC-select |
|||||
|
|
|
|
||||||
|
|
|
|
button or the DISC SKIP button. |
DISC SKIP |
||||
|
|
|
|
CDC-845 |
|
|
|
|
|
|
|
|
|
1 |
2 |
DISC |
4 |
5 |
|
|
|
|
|
3 |
|
||||
|
|

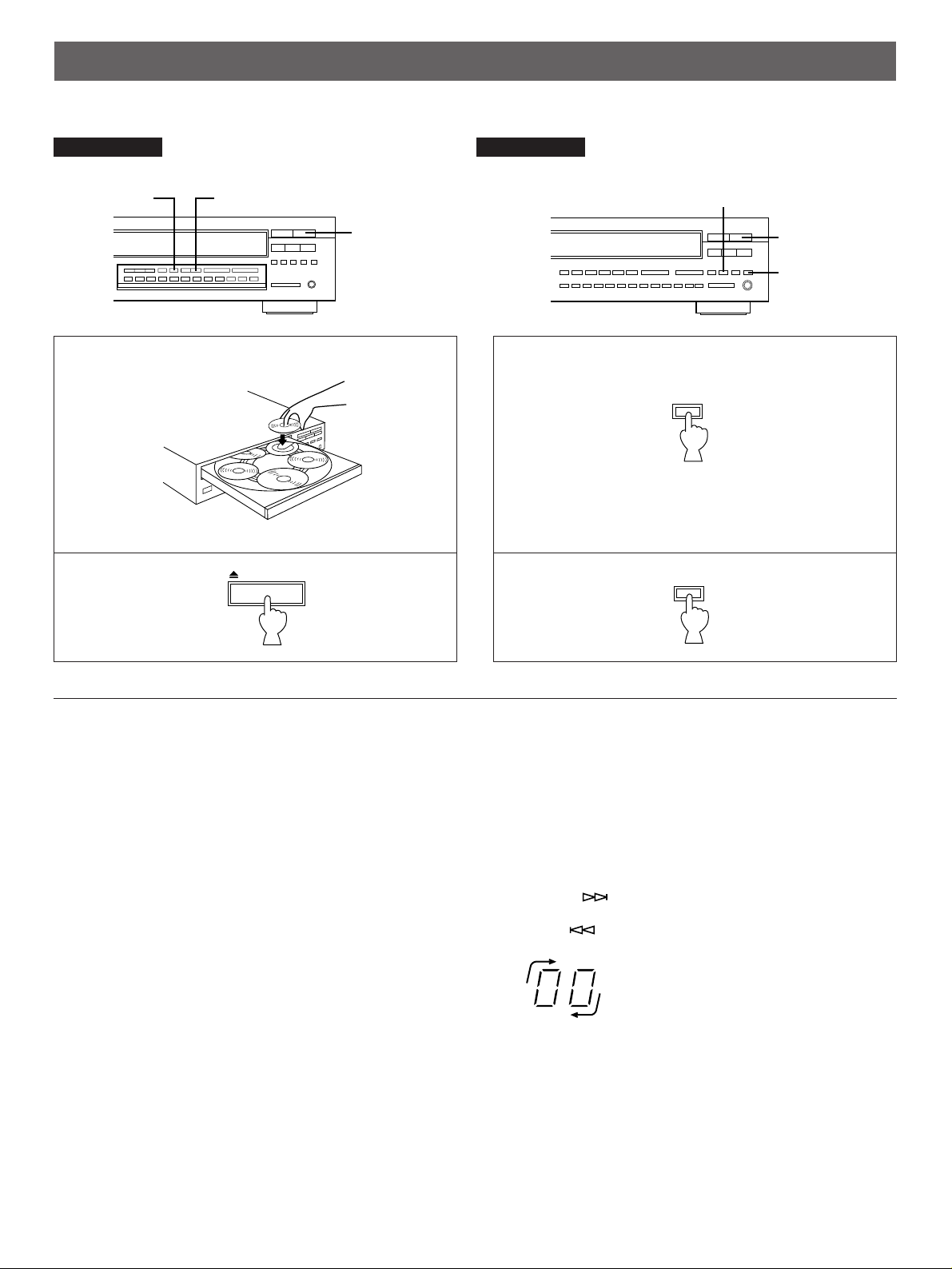

Load the fifth disc. |
|
|
|
|
|
|
|
4 |
|
OPEN/CLOSE |
|
CDC-745 |
|
|
|
|
PLAY/ |
|
|
|
|
DISC |
|
|
|||
|
|
|
1 |
2 |
4 |
5 |
PAUSE |
||
|
|
|
|
3 |
|
Notes
●After closing the disc tray by pressing the OPEN/CLOSE button in the stop mode or after selecting any disc by using the DISC SKIP button, the display shows the total number of tracks and the total recorded time of the disc to be played for a few seconds.
●Additionally, you can close the disc tray by pressing the PLAY/PAUSE button, a DISC-select button, a numeric button or the RANDOM button, or by pressing the front edge of the disc tray gently. If the tray is closed in these ways, play will begin automatically, however, the display will not show the total number of tracks and the total recorded time of the first disc to be played.
PLAYXCHANGE
During play, you can open the disc tray by pressing the PLAYXCHANGE button without interrupting disc play. However, in this case, pressing the DISC SKIP button has no effect.
7
To stop play temporarily
PLAY/ |
|
PAUSE |
PAUSE |
*To resume play, press the PLAY/PAUSE button again
(or press the PLAY or PAUSE button on the remote control transmitter).
To stop play completely
STOP
To play a desired track on the disc
DIRECT PLAY
Select a desired track by using the numeric buttons.
+10 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
0 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The selected track number is displayed.
SKIP PLAY
●To play from the beginning of the track following the one now playing
SKIP
● To play from the beginning of the track now playing
SKIP
Example: To select track 25
Press twice, then immediately press once.
+10 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
0 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*If a track number higher than the highest track number on the disc is selected, the last track on the disc will be played.
●To play from the beginning of the track before the one now playing
SKIP
(twice)
*These operations can also be performed when the unit is in the pause or stop mode.

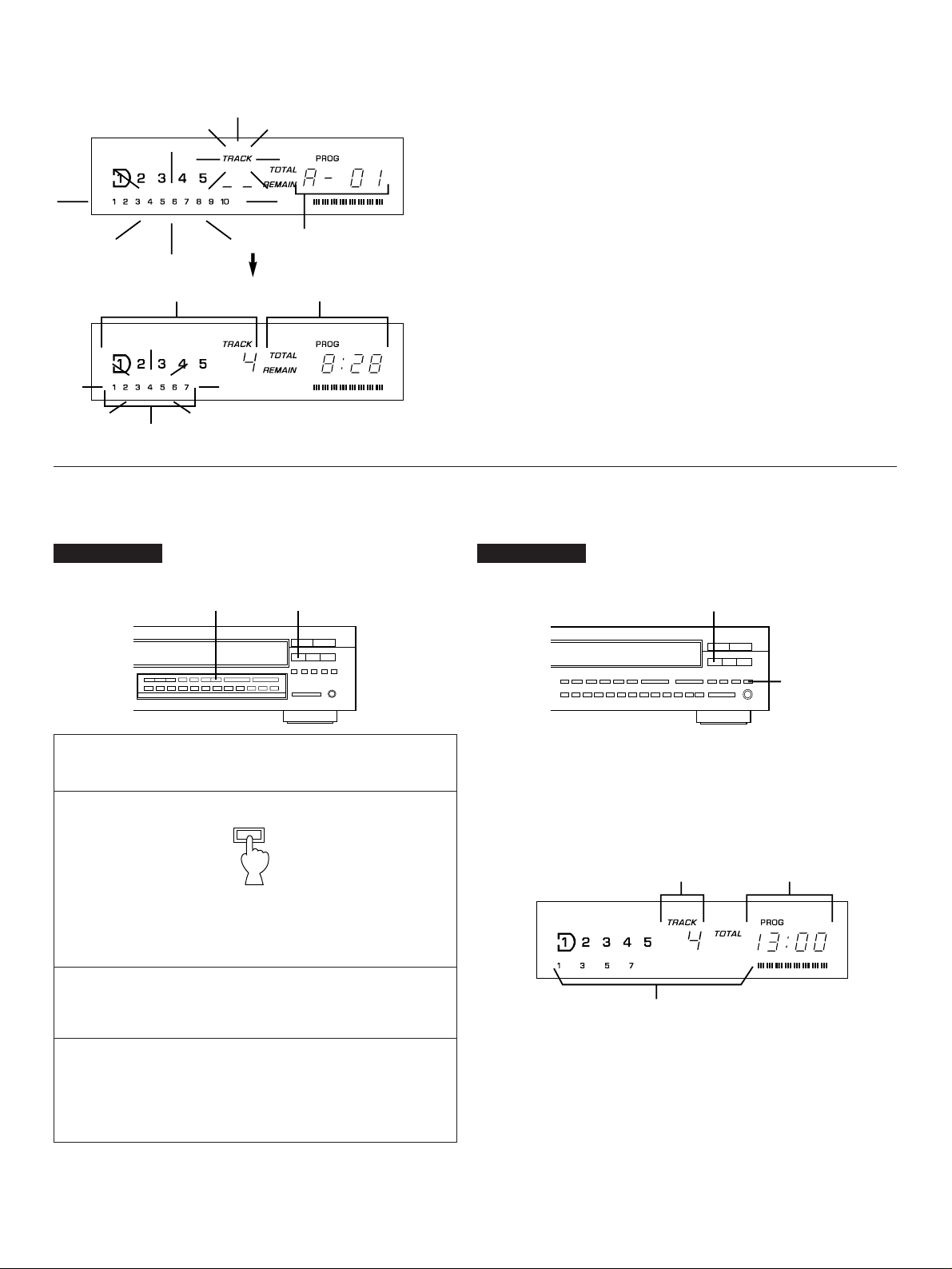

Display information at disc play |
|
|
|
|
|
|
|
|
|
|
|
|
|
Encloses the tray number of the selected disc. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shows the tray numbers with discs. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shows the selected track number. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

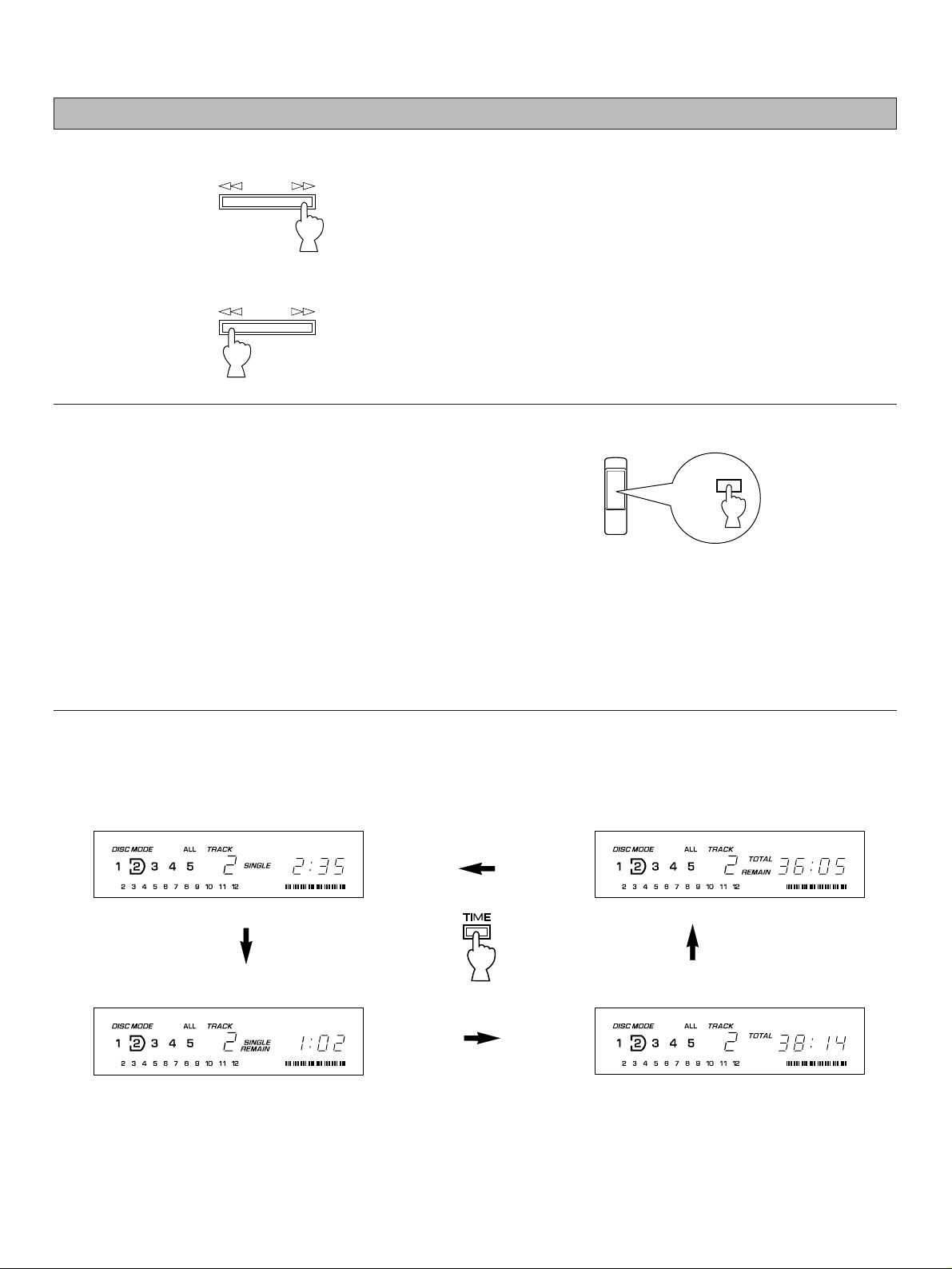

Shows the time displays. (Refer to “Selecting time |
|
|
|
|
|
|
|
|
|
|
|
displays” on page 9.) |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays the numbers that correspond to the numbers of |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the tracks (as high as number 15) on the disc. After each |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
track is played, its corresponding number disappears so the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
number of remaining tracks (and their numbers) can be |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
seen at a glance. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shows the level of signals output into an amplifier or the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
headphone level adjusted by using the OUTPUT LEVEL |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
control. |
8
