Yamaha CDC-765 User Manual

CDC-765/665/565

Natural Sound Compact Disc Player

Lecteur de disque audionumérique de la série “Natural Sound”

Thank you for selecting this YAMAHA Compact Disc Player.

Nous vous remercions d’avoir porté votre choix sur ce lecteur de disque audionumérique YAMAHA.

			OWNER’S MANUAL			MODE D’EMPLOI
	CONTENTS					TABLE DES MATIERES
	..................................................Safety Instructions				2	..................................................Caractéristiques							26
	.................................................................Features				4	.............................................................Attention							27
	...........................................................Connections				5	.........................................................Connexions							28
	.................................Identification of Components				6	............................Identification des composants							29
						....................................Fonctionnement de base							31
	.....................................................Basic Operation				8
	Random-Sequence Play ......................................				13	...........................Lecture en séquence aléatoire							36
						Lecture programmée ..........................................							37
	.......................................................Program Play				14	Lecture repetée ..................................................							41
	Repeat Play..........................................................				18
						..............................................Recherche d’index							41
	........................................................Index Search				18
	CD Synchronized Recording				19	Enregistrement synchronise d’un
	Track Programming for Recording to Tape					........................................disque audionumérique							42
						Programmation des plages pour
	......................for CDC-765 and CDC-665 only				20	enregistrement sur bande
	Notes about the Remote Control						CDC-765 et CDC-665 seulement ....................						43
	...........................................................Transmitter				24	..........Remarques concernant la télécommande							47
	.................Notes about Handling Compact Discs				24	....Remarques concernant la manipulation des disques							47
	....................................................Troubleshooting				25	..........................................Dépistage de pannes							48
	.......................................................Specifications				25	...............................Caractéristiques techniques							48

SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

UNIT TO RAIN OR MOISTURE.

1Read Instructions – All the safety and operating instructions should be read before the unit is operated.

2Retain Instructions – The safety and operating instructions should be retained for future reference.

3Heed Warnings – All warnings on the unit and in the operating instructions should be adhered to.

4Follow Instructions – All operating and other instructions should be followed.

5Water and Moisture – The unit should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

6Carts and Stands – The unit should be used only with a cart or stand that is recommended by the manufacturer.

6A A unit and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.

7Wall or Ceiling Mounting – The unit should

be mounted to a wall or ceiling only as recommended by the manufacturer.

8Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9Heat – The unit should be situated away from heat sources such as radiators, stoves, or other appliances that produce heat.

10Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the unit.

11Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

12Cleaning – The unit should be cleaned only as recommended by the manufacturer.

13Nonuse Periods – The power cord of the unit should be unplugged from the outlet when left unused for a long period of time.

14Object and Liquid Entry – Care should be taken so that objects do not fall into and liquids are not spilled into the inside of the unit.

15Damage Requiring Service – The unit should be serviced by qualified service personnel when:

A.The power-supply cord or the plug has been damaged; or

B.Objects have fallen, or liquid has been spilled into the unit; or

C.The unit has been exposed to rain; or

D.The unit does not appear to operate normally or exhibits a marked change in performance; or

E.The unit has been dropped, or the cabinet damaged.

16Servicing – The user should not attempt to service the unit beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.

17Power Lines – An outdoor antenna should be located away from power lines.

18Grounding or Polarization – Precautions should be taken so that the grounding or polarization is not defeated.

IMPORTANT!

Please record the serial number of this unit in the space below.

Model:

Serial No.:

The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference

2

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT

1 To ensure the finest performance, please read this manual	9 To prevent damage by lightning, disconnect the power
carefully. Keep it in a safe place for future reference.	cord from the household AC outlet during an electrical
	storm.

2Install your unit in a cool, dry, clean place – away from windows, heat sources, and too much vibration, dust, moisture or cold. Avoid sources of hum (transformers, motors). To prevent fire or electrical shock, do not expose to rain and water.

3Do not operate the unit upside-down. It may overheat, possibly causing damage.

4Never open the cabinet. If a foreign object drops into the set, contact your dealer.

5Do not use force on switches, knobs or cords. When moving the set, first turn the unit off. Then gently disconnect the power plug and the cords connecting to other equipment. Never pull the cord itself.

6Do not attempt to clean the unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.

7Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that your unit is faulty.

8Do not place another component on top of this unit, because to do so will discolor or damage the surface of the unit.

10When disconnecting the power cord from the household AC outlet, grasp the plug; do not pull the cord.

11When moving the unit, be sure to first disconnect the power cord from the household AC outlet, and disconnect cords connected to other equipment.

CAUTION FOR CARRYING THIS UNIT

Be sure not to carry or tip this unit with discs remaining in it.

CAUTION FOR MOVING THIS UNIT

When moving this unit, first remove all discs from the disc tray and close the tray by pressing the OPEN/CLOSE button. After you confirm that the display lights up as shown below, switch off the power by pressing the POWER switch, and then disconnect the power plug from the AC outlet.

Never switch off the power untill the display lights up as above, otherwise this unit will break down during moving because the internal mechanism is not locked.

WARNING

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

Laser Diode Properties

•Material: GaAlAs

•Wavelength: 780nm

•Emission Duration: continuous

•Laser Output: max. 44.6µW*

*This output is the value measured at a distance of about 200mm from the objective lens surface on the Optical Pickup Block.

As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personel only.

To avoid electrical shock, do not open the unit. Refer servicing to qualified personnel only.

DANGER: The use of optical instrument with this product will increase eye hazard.

The apparatus is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the apparatus itself is turned off.

We Want You Listening For A Lifetime (for US customers only)

YAMAHA and the Electronic Industries Association’s	often undetectable until it is too late, YAMAHA
Consumer Electronics Group want you to get the most out of	and the Electronic Industries Association’s
your equipment by playing it at a safe level. One that lets the	Consumer Electronics Group recommend you to
sound come through loud and clear without annoying blaring or	avoid prolonged exposure from excessive
distortion – and, most importantly, without affecting your	volume levels.
sensitive hearing. Since hearing damage from loud sounds is

English

3

FCC INFORMATION (for US customers only)

	1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!	Compliance with FCC regulations does not guarantee that
	This product, when installed as indicated in the	interference will not occur in all installations. If this product
	instructions contained in this manual, meets FCC	is found to be the source of interference, which can be
	requirements. Modifications not expressly approved by	determined by turning the unit “OFF” and “ON”, please try
	Yamaha may void your authority, granted by the FCC, to	to eliminate the problem by using one of the following
	use the product.	measures:
	2. IMPORTANT : When connecting this product to	Relocate either this product or the device that is being
	accessories and/or another product use only high quality	affected by the interference.
	shielded cables. Cable/s supplied with this product	Utilize power outlets that are on different branch (circuit
	MUST be used. Follow all installation instructions.
		breaker or fuse) circuits or install AC line filter/s.
	Failure to follow instructions could void your FCC
		In the case of radio or TV interference, relocate/reorient the
	authorization to use this product in the USA.
	3. NOTE : This product has been tested and found to	antenna. If the antenna lead-in is 300 ohm ribbon lead,
		change the lead-in to coaxial type cable.
	comply with the requirements listed in FCC Regulations,
		If these corrective measures do not produce satisfactory
	Part 15 for Class “B” digital devices. Compliance with
	these requirements provides a reasonable level of	results, please contact the local retailer authorized to
	assurance that your use of this product in a residential	distribute this type of product. If you can not locate the
	environment will not result in harmful interference with	appropriate retailer, please contact Yamaha Electronics
	other electronic devices.	Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA
	This equipment generates/uses radio frequencies and, if	90620.
	not installed and used according to the instructions	The above statements apply ONLY to those products
	found in the users manual, may cause interference	distributed by Yamaha Corporation of America or its
	harmful to the operation of other electronic devices.	subsidiaries.
	CAUTION (FOR CANADA MODEL)	FOR CANADIAN CUSTOMER
	TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF	THIS CLASS B DIGITAL APPARATUS MEETS ALL
	PLUG TO WIDE SLOT AND FULLY INSERT.	REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING
		EQUIPMENT REGULATIONS.

FEATURES

●5-Disc Carousel Auto-changer

●Full Opening Disc Tray for Changing 5 Discs at a Time

●PLAYXCHANGE; Disc Changing Capability while Playing Another

●Random Access Programmable Play

●Random-Sequence Play

●Single Track/Entire Disc/All Disc Repeat Play

●Adjustable Display Brightness

●Remote Control Capability

●Disc Scanning Capability Useful for Disc Searching or Disc Checking

●CD Synchronized Recording with a Compatible YAMAHA Tape Deck

CDC-765 and CDC-665 only

●Automatic Programming for Recording to Tape

●Automatic Peak Level Searching Capability

●Optical Digital Output

CDC-765 only

● Program Data Filing Capability

4

CONNECTIONS

●Before making any connections, switch OFF the power to the unit and the amplifier or other component.

●Connections should be made to the correct input terminals of the amplifier or other component.

CDC-565

LINE OUT

To AC outlet

Connection cord (included)

Connection cord (included)

●If the placement of this unit causes noise to other equipment, such as a tuner, separate them from each other.

CDC-765, CDC-665

LINE OUT	DIGITAL
	AUDIO
	OUT
	OPTICAL

To AC outlet

Optical fiber cable (not included)

Amplifier

OPTICAL

CD	DIGITAL IN

English

Choose one of the ways listed below to connect this unit to your amplifier.

When the LINE OUT (analog) terminals of this unit are used ( )

●Be sure that the left (“L”) and right (“R”) LINE OUT terminals are connected to the corresponding (left and right) terminals of the amplifier or other component.

●Connect the “LINE OUT” terminals to the “CD” (or “AUX”) terminals of the amplifier. If the amplifier does not have

such terminals, use the “TAPE PB” terminals. For additional details concerning these connections, refer to the operation instructions for the amplifier being used.

●CDC-765 and CDC-665 only

Adjust the level of signals output into an amplifier, etc. by using the OUTPUT LEVEL button.

CDC-765 and CDC-665 only

When the DIGITAL AUDIO OUT (OPTICAL) terminal of this unit is used ( )

●Before using this terminal, remove the terminal’s cover by pulling it.

●Make the connection from this terminal to the optical input terminal of an amplifier by using a commercially available optical fiber cable.

*Use an optical fiber cable that conforms to EIAJ standards. Other cables might not function correctly.

●Be sure to attach the terminal’s cover when this terminal is not being used, in order to protect the terminal from dust.

●Set the level of signals output into an amplifier to max. by using the OUTPUT LEVEL button.

●This terminal can also be connected to the optical input terminal of a digital audio tape deck (DAT) etc. to record CD onto tape directly.

For Custom Installer For U.S.A. and Canada models of CDC-765 only

REMOTE CONTROL (IN, OUT) terminals

These terminals are used for custom installation system.	By connecting the REMOTE CONTROL OUT terminal of
When this unit is connected to the components for custom	this unit to the REMOTE CONTROL IN terminal of the other
installation system, you can operate this unit with the	component, you can also operate it with the system remote
system remote control.	control. In this way, up to 6 components can be connected
Connect the REMOTE CONTROL IN terminal of this unit to	in series.
the output terminal of the central controller for custom
installation system.

5

IDENTIFICATION OF COMPONENTS

* ( ) indicates the page number on which the control and its function are best described.

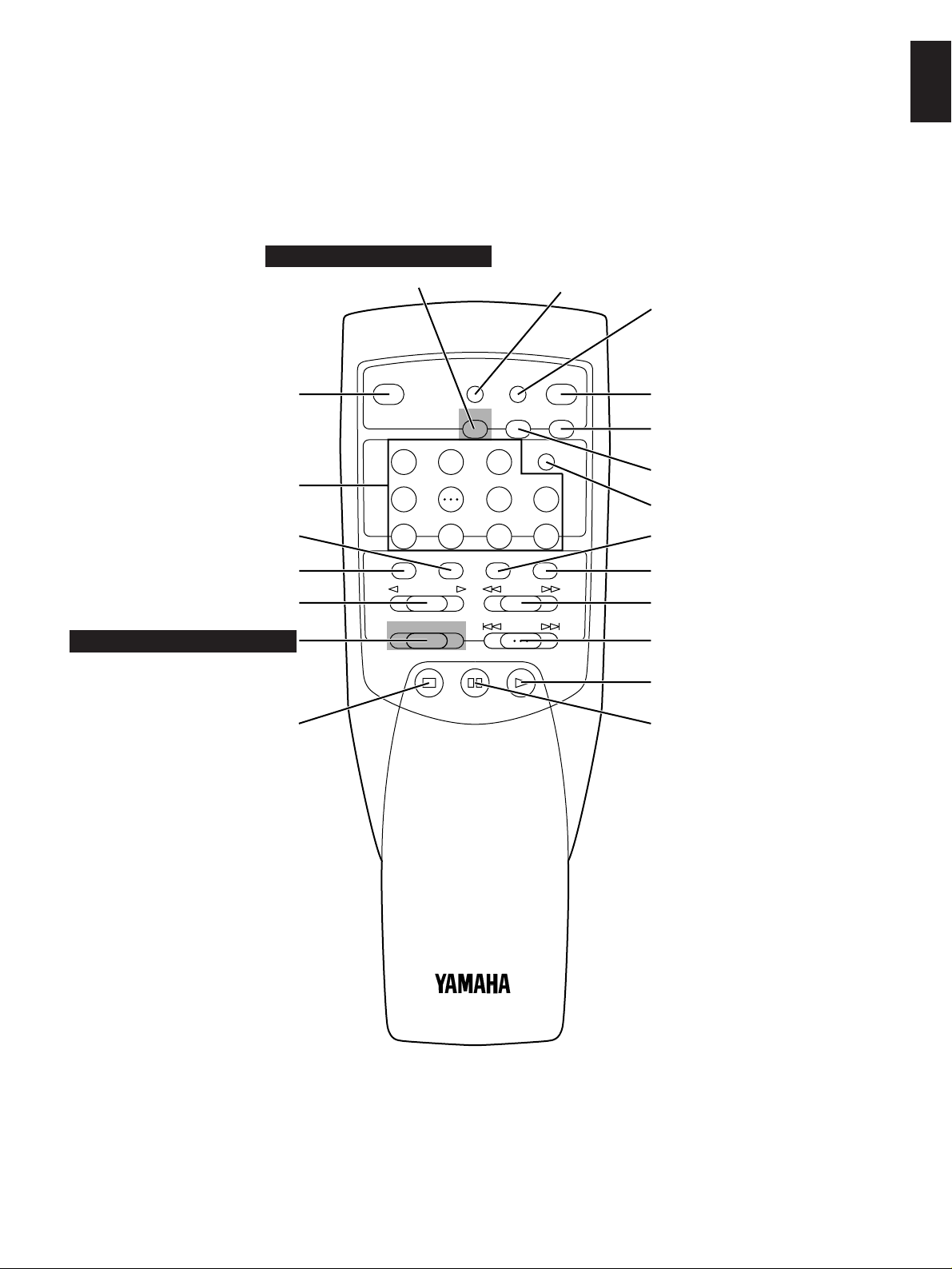

FRONT PANEL

*The control functions on the main unit and on the remote control transmitter are virtually identical, with the exceptions below.

*The (PLAY/PAUSE) button on the main unit has both the functions of the PLAY button and the PAUSE button on the remote control transmitter.

*The SKIP/SEARCH buttons on the main unit have both the functions of the SKIP button and the SEARCH button on the remote control transmitter.

CDC-765, CDC-665

		CDC-765 only
		FILE/SAVE button (p. 16)
					PHONES jack (p. 12)
CDC-765 only
AUTO DISPLAY OFF indicater (p. 12)
				PLAYXCHANGE button (p. 9)
	Disc tray (p. 8)		DISC-select buttons (p. 8)

NATURAL SOUND COMPACT DISC PLAYER
												/	OPEN/CLOSE
													PLAYXCHANGE
	FILE/						DISC
AUTO	SAVE	PROG		1		2	3		4		5		SKIP/SEARCH
DISPLAY OFF
POWER
	+10	1	2	3	4	5	6	7	8	9	0		PHONES
												OUTPUT LEVEL
											PEAK	–	+

Display panel

Remote control sensor (p. 24) PEAK button (p. 23)

POWER switch (p. 8)

Parts in the shaded areas are provided for CDC-765 only.

CDC-565

POWER switch (p. 8)			PLAYXCHANGE button (p. 9)
Disc tray (p. 8)		DISC-select buttons (p. 8)

	NATURAL SOUND COMPACT DISC PLAYER
					/	OPEN/CLOSE
						PLAYXCHANGE
POWER			DISC
	1	2	3	4	5	SKIP/SEARCH

Display panel

Remote control sensor (p. 24)

6

* ( ) indicates the page number on which the control button is best described.

REMOTE CONTROL TRANSMITTER

CDC-765 and CDC-665 only
TAPE button (p. 20)	DIMMER button (p. 12)
	TIME display mode-select button
	(p. 11)

SYNCHRO button (p. 19)

Numeric buttons (p. 10)

Disc play MODE-select button (p. 8)

DISC SCAN button (p. 11)

DISC SKIP button (p. 8)

CDC-765 and CDC-665 only

OUTPUT LEVEL button (p. 12)

STOP button (p. 9)

	SYNCHRO	DIMMER	TIME	OPEN/
				CLOSE
				OPEN/CLOSE button (p. 8)
		TAPE	CLEAR	PROG
	1	2	3	PROG button (p. 14)
				INDEX
	4	5	6	CLEAR button (p. 15)
				+10
	7	8	9	INDEX button (p. 18)
				0
				REPEAT button (p. 18)
	DISC SCAN	MODE REPEAT RANDOM
				RANDOM button (p. 13)
	DISC SKIP		SEARCH
				SEARCH button (p. 10)
	– OUTPUT LEVEL +		SKIP

SKIP button (p. 10)

STOP PAUSE PLAY

PLAY button (p. 8)

PAUSE button (p. 9)

English

Parts in the shaded areas are provided for CDC-765 and CDC-665 only.

7

This manual describes how to operate this unit by using the remote control transmitter.

To operate this unit on the front panel, use the corresponding buttons on the front panel.

BASIC OPERATION

CDC-765, CDC-665								CDC-565
	SYNCHRO		DIMMER		TIME	OPEN/	2, 3		SYNCHRO		DIMMER		TIME	OPEN/	2, 3
						CLOSE								CLOSE
				TAPE	CLEAR	PROG							CLEAR	PROG
	1	2		3		INDEX			1	2		3		INDEX
4	4	5		6		+I0		4	4	5		6		+I0
	7	8		9		0			7	8		9		0
POWER	DISC SCAN MODE			REPEAT RANDOM					DISC SCAN MODE			REPEAT RANDOM
5	DISC SKIP				SEARCH			5	DISC SKIP				SEARCH
	– OUTPUT LEVEL +				SKIP		5						SKIP
		STOP	PAUSE		PLAY					STOP	PAUSE		PLAY		5
1

1 Turn the power on.		4 Select a desired disc play mode (1DISC or 5DISC)
		confirming it on the display.
	POWER
		MODE	1DISC 5DISC
			Shows the selected disc
			mode.
2 Open the disc tray and load discs.		“1DISC” mode: The unit will play a designated disc only.
		“5DISC” mode: The unit will play all discs on the tray in
	Label side	sequence.
OPEN/	upward	5 Start play from the first track of the disc 1.
CLOSE
			PLAY

Disc tray

3 Close the disc tray	* If necessary, select a desired disc by using the DISC SKIP
	button or a DISC-select button.
OPEN/	DISC SKIP
CLOSE
		DISC
	2	3	4
	PLAY
		(On the front panel)

To turn off the power

Press the POWER switch again.

8
