BEFORE USING THE APPLIANCE

Please ready all instructions carefully before using this product. When using this appliances, should always follow this instruction to reduce the risk of fire, electric shock, and injury to person.

Please keep this manual. If you deliver the appliance to other users, do handover this manual together. These instructions shall also be available on website: www.whirlpool.eu.

SAFETY PRECAUTIONS

•The Installation and service/repair must be performed by a qualified technician, in compliance with the producer's instructions and following local safety norms. Do not repair or replace any parts of the appliance unless it is specifically written in the user instructions.

•Do not pull the power supply cord to remove it from the socket. Do not twist or press the power supply cord, and make sure it is not broken.

•Do not touch the power plug, circuit breaker and emergency button when your hands are wet.

•Do not insert your fingers or foreign substances into the air inlet/outlet of indoor&outdoor unit.

•Never block the air inlet or outlet of indoor and outdoor unit.

•Physically or mentally disabled people, children and people without any experience with the product are only allowed to use

the appliance if they have had specific training on how to operate the appliance by a person responsible for their security and well-being. The appliance is not intended for use by disabled people and very young children without supervision.

•Children should be supervised to ensure that they do not play with the appliance (including remote control).

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4

AIR CONDITIONER PRECAUTIONS

Please strictly follow the below instructions:

•Long and direct exposure to cool air might be harmful to health. It is advisable to set the louvers in order to avoid direct cool air and deflect it within the room.

•Upon malfunctioning first turn the appliance off by pressing the ON/OFF button on the remote control, then disconnect it from power supply.

•Always turn off the air conditioner by remote control first. Do not use the power supply circuit breaker or pull off the plug to turn it off.

•Do not switch the appliance on and off too often as this can damage the appliance.

•Do not place any objects on the outdoor unit.

•Disconnect the air conditioner from the power supply if it is to be left unused for a long period of time or during a thunder/lightning storm.

•This product contains Fluorinated Greenhouse Gases covered by the Kyoto Protocol, the refrigerant gas being in a hermetically sealed system. Refrigerant gas: R410a has a Global Warming Potential (GWP) 2087.5.

SAFEGUARDING THE ENVIRONMENT

•This appliance has been made of recyclable or re-usable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used.

•For more detailed information on handling and recycling of this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance.

SCRAPPING OF PACKAGING

•The packaging can be 100% recycled as confirmed by the recycling symbol . The various parts of the packaging must not be dispersed in the environment, but must be scrapped in line with local authority regulations.

SCRAPPING OF APPLIANCE

•This appliance is marked according to the European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

•By ensuring that this product is disposed of correctly, you will help to prevent potentially negative consequences for the environment and for human health.

•The symbol on the product or on the documents accompanying the product indicates that this appliance should not be treated as household waste, but must be given to the appropriate local gathering place where electric and electronic appliances are stored and recycled.

5

PRODUCT DESCRIPTION

Indoor unit

Outdoor unit

	Indoor unit					Outdoor unit
	1.	Air Intake				12.	Air Intake
	2.	Front Panel				13.	Pipes and Power Connection Cord
	3.	Display panel				14.	Drain Hose
	4.	Air Outlet				Note: Condensate water drains at COOLING or
	5.	Electrical box
						DRY operation.
	6.	Filter reset button
						15.	Air Outlet
	7.	Vertical Adjustment Louver
	8.	Horizontal Adjustment Louver
	9.	Air Filter
	10.	Remote Control
	11.	On-off Switch

Images in the user instructions are based on external views of standard models, shape and design vary according to the model.

6

CONTROL PANEL DISPLAY INDICATORS DESCRIPTION

Temperature indicator (1)

Displays set temperature.

It shows "FC" as a reminder to clean the filter.

Running indicator (2)

It lights up during operation.

It flashes during outside unit defrosting.

Timer indicator (3)

It lights up during the set time.

It goes off when timer operation ends.

Sleep indicator (4)

It lights up once sleep mode is set, "Running" indicator will flash for 10 times then the whole display will light off.

Filter monitor indicator (5)

It flashes when the filter needs to be cleaned.

Filter monitor indicator flashes after 200 hours of usage as reminder to clean the filter.

After filter cleaning, press the filter reset button located on the indoor unit behind the front panel in order to interrupt the flashing of the filter monitor indicator.

7

REMOTE CONTROL FUNCTIONS

AND INDICATORS

1.ON/OFF BUTTON

Starts and/or Stops the appliance by pressing this button.

2.MODE BUTTON

Used to select the operation mode.

3.FAN BUTTON

Used to select fan speed in sequence auto, high, medium or low.

4-5. TEMPERATURE BUTTON

Used to select the room temperature. Used to set time in timer mode and real time clock.

6.6TH SENSE BUTTON

Sets or cancels 6th sense operation.

7.SWING BUTTON

Stops or starts horizontal adjustment louver swinging and sets the desired up/down airflow direction.

8.SLEEP BUTTON

Sets or cancels Sleep Mode operation.

9.AROUND U BUTTON

Used to set or cancel Around U function.

10.TIMER ON/CLOCK BUTTON

Used to set the current time.

Used to set or cancel the timer on operation.

11TIMER OFF BUTTON

Used to set or cancel the timer off operation.

12. JET BUTTON

13.DIM BUTTON

Used to turn on or turn off display light on indoor unit.

14.POWER SAVE BUTTON

Used to start or stop the power save operation.

Used to start or stop the fast cooling or heating.

INDICATOR SYMBOLS ON RC DISPLAY

Cooling indicator		6th Sense indicator
Dry indicator		Sleep indicator
Fan only indicator		Around U indicator
Heating indicator		Jet indicator
Auto fan speed		Signal transmission
High fan speed	ON	Display set timer
	OFF
Medium fan speed		Display current time
Low fan speed		Display set temperature
		Power save indicator

8

STORAGE AND TIPS FOR USING THE

REMOTE CONTROL

How to insert the batteries

1.Insert a pin and gently press down on the battery cover and push in the direction of the arrow to remove, as shown.

2.Insert 2 AAA batteries (1.5V) into the compartment.

Ensure that "+" and "-" polarity is correctly positioned.

3.Close the battery cover on the remote control.

How to remove the batteries

Remove the battery cover in the direction of the arrow.

Press the positive pole of the battery softly with your fingers, then draw the batteries out of the compartment. All this should be done by adults, children are forbidden to remove the batteries from the remote control in order to avoid danger of swallow.

Disposal of the batteries

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Precautions

•When replacing the batteries, do not use new batteries with old batteries, or different types of batteries as this may cause the remote control to malfunction.

•If you do not expect to use the remote control for some time, take the batteries out to prevent leakage of battery acid in the remote control.

•Operate the remote control within effective range. Keep the remote control at least 1 meter from any TV set or HI-FI equipment.

•If the remote control does not work normally, take the batteries out and reinstall after 30 seconds. If it still does not work install new batteries.

•To operate the appliance by remote control, point the remote control at the receiving device on the indoor unit, to ensure receiving sensibility.

•To send a message from remote control, the

symbol will flash for 1 second. On receipt of the message, the appliance will emit a beep.

Signal receptor

•The remote control will operate the air conditioner at a distance of up to 7m.

•Each time the batteries are replaced in the remote control, the remote control is pre-set at Heat Pump mode.

9

OPERATING MODE DESCRIPTION

Operation Modes:

1. Selecting mode

Each time MODE button is pressed, the operation mode is changed in sequence:

COOLING → DRY → FAN ONLY → HEATING

↑

Heating mode is not available for cooling only air conditioners.

COOLING mode: used to cool your room to let you feel cool and comfort in the hot season. DRY mode: used to remove moisture to let you feel comfort in a humid climate.

FAN ONLY mode: used to ventilate your room, the air conditioner operates like a fan. HEATING mode: used to heat your room to let you feel warm in the cold season.

Note: In order to prevent cool air blowing, 2-5 minutes are necessary to preheat the indoor unit at HEATING operation start. The indoor fan will not work during preheating.

2. Setting fan speed

Each time the "FAN" button is pressed, the fan speed is changed in sequence:

Auto → High → Medium → Low

↑

At "FAN ONLY" mode, only "High","Medium" and "Low" are available.

At "DRY" mode, Fan speed is set at "Auto" automatically, "FAN" button is ineffective in this case.

3. Setting temperature

Press once to raise temperature setting by 1 raise °C

Press once to lower temperature setting by 1 lower °C

Press these two button and hold consistently, you can change the number quickly.

Range of available set temperature

*HEATING, COOLING	18°C~32°C
DRY	+/-2°C
FAN ONLY	unable to set

*Note: Heating mode is NOT available for cooling only models.

4 3

1 2

4. Turning on

Press button, when the appliance receives the signal, the RUNNING indicator of the indoor unit lights up.

During mode changes wait a few seconds and repeat the operation if the unit does not respond at once.

When selection the heating operation, air flow will start after 2-5 minutes.

10

AIRFLOW DIRECTION CONTROL

5. Airflow direction control

Horizontal airflow is automatically adjusted to a certain angle in accordance with the operation mode after turning on the unit.

The direction of airflow can be also adjusted to your own requirement by pressing the "SWING" button of the remote control.

Operation mode	Direction of airflow
COOLING, DRY	horizontal
*HEATING, FAN ONLY	downward

*Heating mode is only available for heat pump models.

Horizontal airflow control (using the remote control)

Use the remote control to set the flow angles.

Swinging airflow

Pressing "SWING" button once, the horizontal adjustment louver will swing up and down automatically.

Desired direction airflow

Pressing the "SWING" button again to hold the horizontal adjustment louver when the louvers swing to a suitable angle as desired.

Vertical airflow control (by hands)

Turn the control rods of the vertical adjustment louvers to change vertical air flow as shown.

Note: The shape of the unit may look different from that of the air conditioner you have selected.

A - Do not turn the horizontal adjustment louvers manually, otherwise malfunction may occur. If that happens, turn off the unit first and cut off the power supply, then restore power supply again.

B - It is better not to let the horizontal adjustment louver tilt downward for a long time at COOLING or DRY mode to prevent condensed water from dripping.

control rod of vertical adjustment louvers

11

MODE AND FUNCTION DESCRIPTIONS

6th SENSE MODE

Press the button, the unit enters 6th sense mode directly regardless of the unit is on or off. In this mode, temperature and fan speed are automatically set based on the actual room temperature.

Operation mode and temperature are determined by indoor temperature.

Heat pump models

Indoor	Operation	Target
temperature	mode	temperature
21°C or below	HEATING	22°C
21°C-23°C	FAN ONLY
		Room
		temperature
23°C-26°C	DRY	decrease 2°C
		after operating
		for 3 minutes
Over 26°C	COOLING	26°C

Button is ineffective in Jet mode.

Note: Temperature, airflow and direction are controlled automatically in 6th sense mode. However, a decrease or rise of up to 2°C can be set with the remote control if you still feel uncomfortable.

What you can do in 6th sense mode

Your feeling	button	adjustment procedure
Uncomfortable because of unsuitable		Indoor fan speed alternates among High, Medium
air flow volume.		and Low each time this button is pressed.
Uncomfortable because of unsuitable		Press it once, horizontal adjustment louver swings
flow direction.		to change horizontal airflow direction. Press it
		again, swings stops. For vertical airflow direction
		please refer to the chapter "Airflow direction
		control".

12

Clock function

You can adjust the real time by pressing TIMER ON/CLOCK button. Press this button and hold for over 3 seconds to activate the clock setting, clock digit will flash, then using and buttons to get the correct time, press this button again, the real time is set.

SLEEP mode

SLEEP mode can be set in COOLING, HEATING or DRY operation mode.

This function gives you a more comfortable environment with low noise level for sleep. In SLEEP mode,

•The appliance will turn off automatically after operating for 8 hours.

•Fan speed is automatically set at low speed.

•Set temperature will rise by max 1°C if the appliance operates in cooling mode for 1 hour.

•Set temperature will decrease by 3°C at most if the appliance operates in heating mode for 3 hours.

Note: In cooling mode, if room temperature is 26°C or above, set temperature will not change. Heating is NOT available for cooling only air conditioner.

Once sleep mode is set, "sleep" indicator on front panel display will light up and "Running" indicator will flash for 10 times, then the whole display will light off.

JET mode

•JET mode is used to start or stop fast cooling or Heating.

Fast cooling operates at high fan speed, and set temperature automatically to 18°C.

Fast heating operates at auto fan speed,changing set temperature automatically to 32 °C.

•In JET mode, you can set airflow direction or timer. If you want to quit from JET mode, press any - JET, MODE, FAN, ON/OFF or TEMPERATURE SETTING button, the display will return to the original mode.

Note:

•SLEEP and 6th Sense buttons are not available in JET mode.

•The appliance will continue working in JET mode if you don't quit from it by pressing any of the buttons mentioned.

13

Timer function

It is convenient to set the timer on by pressing the TIMER ON/CLOCK button to achieve a comfortable room temperature at the time you get home.

You can also set timer off by pressing the TIMER OFF button to enjoy a good sleep at night.

How to set TIMER ON

TIMER ON/CLOCK button can be used to set the timer programming as wished in order to switch on the appliance at your desired time.

i) Press TIMER ON/CLOCK button, when "ON 12:00" flashes on the LCD, then you can press the or buttons to select your desired time for appliance on.

Press the or button once to increase or decrease the time setting by 1 minute.

Press the or button for 5 seconds to increase or decrease the time setting by 10 minutes.

Press the or button for a longer time to increase or decrease the time by 1 hour.

Note: If you don't see the time in 10 seconds after you press TIMER ON/CLOCK button, the remote control will exit the TIMER ON mode automatically.

ii)When your desired time displayed on LCD, press the TIMER ON/CLOCK button and confirm it.

A "beep" can be heard. "ON" stops flashing.

The TIMER indicator on the indoor unit lights up.

iii)After the time set displayed for 5 seconds the clock will be displayed on the LCD of the remote control instead of set timer.

How to cancel TIMER ON

Press the TIMER ON/CLOCK button again, a "beep" can be heard and the indicator disappears, the TIMER ON mode has been canceled.

Note: It is similar to set the TIMER OFF, you can make the appliance switch off automatically at your desired time.

Increase

ON

Decrease

14

Around U function

When you press this button, will display, remote control transmits the actual room temperature around it to the indoor unit, and the appliance will operate according to this temperature to let you feel more comfortable. Please keep the remote control in a location where it can transmit the signal to the indoor unit properly.

Press once to set and press again to cancel.

DIM function

Press this button to turn on or turn off display light on indoor unit control panel.

Press once to turn off the indoor unit display light, press again or press any other buttons to turn it on.

If you press the other buttons when the indoor unit display light is off, press once to turn on the light, press the second time for activating the function.

POWER SAVE function

POWER SAVE mode can be available in

COOLING, HEATING, DRY and FAN ONLY operation mode.

When pressing this button, will display on remote control.

POWER SAVE function under COOLING, HEATING and DRY mode, the appliance will set the temperature at 25°C with low fan speed. POWER SAVE function under FAN ONLY mode: the appliance will set at low fan speed.

Change mode or press the power save button again to cancel this function.

Note: Fan speed and temperature can not be adjusted under this mode.

15

EMERGENCY OPERATION

Under emergency situation or when remote control is missing, you can control the unit by pressing the on/off swith located on the indoor unit.

• Turn on the appliance: when the unit is off, press this button, it will start up and operate in 6th SENSE mode.

• Turn off the appliance: when the unit is on, press

this button, the unit will stop working.
Note: Do not press this button for a long time as	on/off switch
it will cause malfunction.

Auto-Restart Function

If you want to set auto-restart, switch on the power supply, press the ON/OFF button on the indoor unit and hold for over 5 seconds, auto-restart is set with buzz sound.

If the auto-restart has been set, press the ON/OFF button on the indoor unit and hold for over 5 seconds, auto-restart function will be cancelled with a buzz sound and air conditioner is on standby mode.

PROTECTION

Operating condition

The protective device maybe trip and stop the appliance in the cases listed below.

		Outdoor air temperature is over 24°C
	Heating	Outdoor air temperature is below -7°C
		Room temperature is over 27°C
	Cooling	Outdoor air temperature is over 43°C
		Room temperature is below 21°C

Dehumidifying Room temperature is below 18°C

If the air conditioner runs in COOLING or DRY mode with door or window opened for a long time when relative humidity is above 80%, dew may drip down from the outlet.

Features of protection device

Wait at least 3 minutes before restarting the unit after operation stops or changing mode during operation. After connecting to power supply and turning on the appliance immediately, a delay of 20 seconds may occur before it starts to operate. If all operation has stopped, press ON/OFF button again to restart. Timer should be set again if it has been cancelled.

Features of COOLING mode Anti-freezing

When the temperature of the indoor heat exchanger drops to 0° or below, compressor will stop working to protect the appliance.

Features of HEATING mode

Preheating

In order to prevent cool air blowing, 2-5 minutes are necessary to preheat the indoor unit at HEATING operation start. The indoor fan will not work during preheating.

Defrosting

In HEATING operation the appliance will defrost (de-ice) automatically to raise efficiency. This procedure usually lasts 6-10 minutes. During defrosting, fan stops running and running indicator flashes.

After defrosting is completeed, it returns to HEATING mode automatically.

16

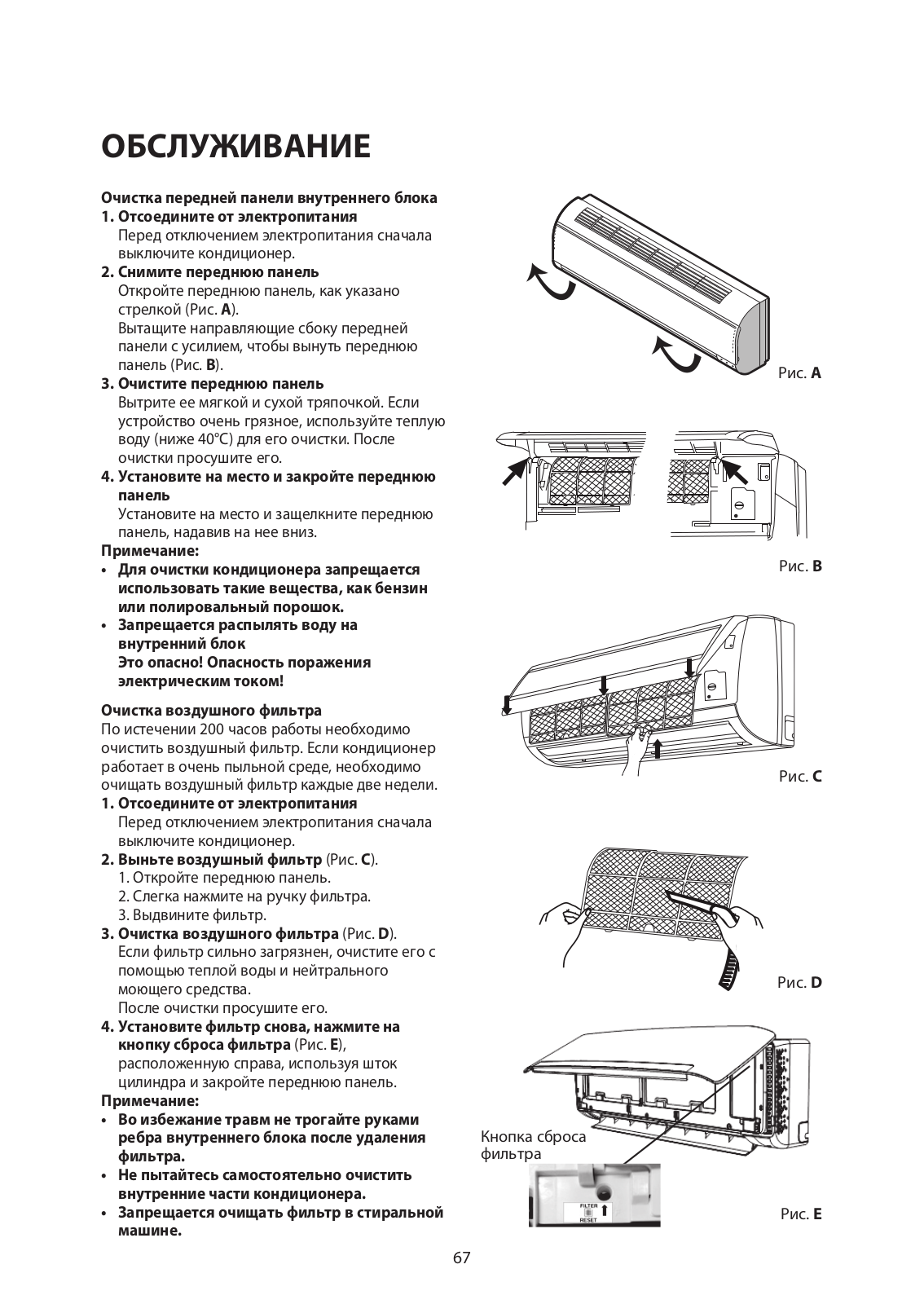

MAINTENANCE

Clean front panel of Indoor Unit

1. Disconnect from the power supply

Turn off the appliance first before disconnecting from power supply.

2. Remove the front panel

Open the front panel as shown by the arrow (Fig. A).

Pull the slots at the side of the front panel with force to take out the front panel (Fig. B).

3. Clean the front panel

Wipe it with a soft and dry cloth. Use lukewarm water (below 40°C) to clean if the appliance is very dirty. After cleaning let it dry.

4. Refit and close the front panel.

Refit and close the front panel by pushing it downward.

Note:

•Do not use substances such as gasoline or polishing powder to clean the appliance.

•Do not sprinkle water onto the indoor unit Dangerous! Electric shock!

Clean Air filter

It is necessary to clean the air filter after using it for about 200 hours.Clean the air filter every two weeks if the air conditioner operates in an extremely dusty environment.

1.Disconnect from the power supply

Turn off the appliance first before disconnecting from power supply.

2.Take out air filter (Fig. C).

1. Open the front panel.

2. Press the handle of the filter gently.

3. Slide out the filter.

3. Cleaning the air filter (Fig. D).

If the filter is very dirty, clean it with a solution of lukewarm water and neutral detergent. After cleaning let it dry.

4. Refit the filter, press the filter reset button

(Fig. E) at right side by using a cylinder pin and close the front panel.

Note:

• To avoid injury, do not touch the fins of indoor unit with your fingers after removing the filter.

• Do not attempt to clean the inside of the

Filter Reset button

air conditioner by yourself.

• Do not clean the filter in washing machine.

Fig. A

Fig. B

Fig. C

Fig. D

Fig. E

17

TROUBLESHOOTING

Operation problems are often due to minor causes, please check and refer to the following chart before contacting the service. This may save time and unnecessary expenses.

	Trouble	Analysis
		• Is the protection device or fuse blown?
		• Please wait for 3 minutes and start again, protection device may be preventing
	Does not run	unit to work.
		• Are the remote control batteries low?
		• Is the plug not properly plugged?
		• Is the air filter dirty?
	No cooling or	• Are the intakes and outlets of the air conditioner blocked?
	heating air	• Is the temperature set properly?
		• Are doors or windows open?
		• Has there been a strong interference (from excessive static electricity discharge,
	Ineffective control	power supply voltage abnormality)? Note that operation will be abnormal, in this
		case unplug from the power supply and re-plug after 2-3 seconds.
	Does not operate	• 3 minute delay will occur when changing mode during operation.
	immediately
	Peculiar smell	• This smell may come from another source such as furniture, cigarette etc, which
		is sucked in the unit and blown out with the air.
	A sound of running	• Normal behaviour caused by the flow of refrigerant in the air conditioner.
	water	• Defrosting sound in heating mode.
	Cracking sound	• The sound may be generated by the expansion or contraction of the front panel
		due to temperature changes.
	Mist sprays from	• Mist is present in the room with low temperature? Normal behaviour due to
		cool air discharged from indoor unit during COOLING or DRY operation
	the outlet
		mode.
	Running indicator	• The unit is shifting from heating mode to defrost. The indicator will light off and
	flashes but indoor
		return to heating mode.
	fan stops.

Note: If the problems still have, turn off the appliance and disconnect from power supply, then contact the nearest Whirlpool Authorized Service Center. Do not attempt to move, repair, disassemble, or modify the appliance by yourself.

18

INSTALLATION INSTRUCTIONS

Installation diagram

Distance from ceiling

Distance from wall

should be over 200mm

should be over 50mm

Indoor unit

Distance from floor should be over 2500mm

Outdoor unit

Air intake distance from the wall should be over 250mm

Distance from the wall should be over 50mm

Air intake distance from the wall should be over 250mm

Air	outlet
should		be		distance
			over			from
					500mm		the	wall

Over 250mm

NOTE: The figure above is only a simple presentation of the unit, it may not match the external appearance of the product you purchased. Installation must be performed in accordance with the national wiring standards by authorized service people only.

19

INSTALLATION SERVICE

Before installation

1.Please read this manual carefully before installation.

2.The appliance must be installed according to national wiring rules and according to this manual by qualified technicians.

3.Any change of installation position must be handled by professionals;

4.Check the product to verify that it has not been damaged before installation.

5.Mount with the lowest moving parts of indoor unit at least 2.5m above floor or grade Level.

6.After installing, the consumer must operate the appliance correctly according to this manual, keep a suitable storage for maintenance and move of it in the future.

SAFETY PRECAUTION

1.The power supply must be of rated voltage with special circuitry for the appliance. The normal operating range of voltage is 90%~110% of rated voltage. The diameter of the power cord must comply with requirements.

2.The user power supply shall have a reliable grounding terminal. It is prohibited to connect the grounding wire to the following items:

1)Water Supply Pipe

2)Gas Pipe

3)Sewage Pipe

4)Other positions that are considered unsafe.

3.Ensure safe grounding and a grounding wire connected with the special grounding system of the building, installed by professionals. The appliance must be fitted with electrical leakage protection switch and an auxiliary circuit breaker with sufficient capacity. The circuit breaker must also have a magnetic and a thermal tripping function to ensure protection in case of short-circuit and overload.

	Type	Model	Required Capacity
			of air break switch
	Split On/off	7/9K	10A
		12/18K	16A

20

SAFETY PRECAUTION

4.Make sure that the power supply cord is long enough to allow the right connection. Do not use any extension cord for power supply.

5.If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard;

6.An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

7.Risk of electric shock can cause injury or death: Disconnect all electric power supplies before servicing.

8.The connection of power cord and the cable connection between indoor unit and outdoor unit shall be in accordance with the wiring diagram attached on the appliance.

9. Once installation is completed, the electric components must not be accessible to the users.

10.Use two or more people to move and install the appliance to avoid excessive weight hazard.

11.After unpacking the air conditioner, keep all packaging materials well out of the reach of must also have a magnetic and a thermal children.

12.According to the character of refrigerant the pressure of the tube is very high, so be sure to careful when you install and repair the appliance.

21

Select the best location

Location for Installing Indoor Unit

•Where there is no obstacle near the air outlet and air can be easily blown to every corner of room.

•Where piping and wall hole can be easily arranged.

•Observe the required distance from ceiling and wall according to the installation diagram.

•Where the air filter can easily be removed.

•Keep the unit and remote control 1m or more from television, radio etc.

•To prevent the effects of a fluorescent lamp, keep the unit as far as possible from it.

•Do not put anything near the air inlet that could obstruct it.

•In a place that can bear the weight and will not increase operating noise and vibrations.

•The indoor unit is not suitable to be installed in areas used for laundry.

Location for Installing Outdoor Unit

•Install in a convenient and well-ventilated place.

•Avoid installing it where flammable gas could leak.

•Observe the required distance from the wall according to the installation diagram.

•The distance between Indoor and outdoor unit should be 3 meters and can go up to maximum 15 meters with additional refrigerant charge.

•Do not install the outdoor unit in a dirty or greasy place, near a vulcanization gas exit.

•Avoid installing it at the roadside where it could be soiled with muddy water.

•A fixed base where operating noise will not increase.

•Where the air outlet is not obstructed.

•The installation position shall be able to withstand the weight and vibration of the outdoor unit and ensure safe installation;

•Where drained water does not become any problem.

•Install the outdoor unit at a place where the air discharged and the operation noise would not disturb your neighbours.

		Indoor unit
		Pipe length is
		3~15 meters
should	than 5m	Outdoor unit
Height	be less

Outdoor unit

Pipe length is 3~15 meters

Height should be less than 5m

Indoor unit

Model	Standard tubing	Limit of Tubing	Limit of Elevation	Required extra
	Length (m)	Length (m)	Difference H (m)	refrigerant when
				the connecting
				tube over 5m (g/m)
7K/9K/12K/18K	5	15	5	20

22

INDOOR UNIT INSTALLATION

1. Installing the Mounting Plate

Mounting plate

• Select a location to install the mounting plate according to the indoor unit location and piping direction.

• Adjust the mounting plate horizontally with a gradienter or plumb line.

• Drill holes 32mm in deep on the wall.

• Insert the plastic plugs in the hole, then fix the mounting plate with tapping screws.

• Check that the mounting plate is well fixed.

NOTE: The shape of your mounting plate may be different from the one above, but installation method is similar.

2.Drill a Hole for Piping

• Decide the position of the hole for piping

according to the location of mounting plate.
• Drill a hole with diameter around 70mm on						Wall hole sleeve
the wall. The hole should slightly be inclined	Indoor				Outdoor	(hard polythene tube
• Install a sleeve through the wall hole to keep						prepared by user)
downward toward outside.
the wall tidy and clean.								5mm
								(downward
3. Indoor Unit Piping Installation								inclination)

•Fit the piping (liquid and gas pipe) and cables through the wall hole from outside or fit them from inside after completing indoor piping and

cables connections so as to connect to outdoor unit.

•Decide whether saw off the plastic part in accordance with the piping direction (as shown below).

Piping direction

trough
Unloading	4
piece
	1

Saw the unloading piece off	3
along the trough

2

NOTE:

When fixing the pipe along directions 1, 2 or 4, saw the corresponding plastic part off the indoor unit base.

•After connecting the piping as required, install the drain hose. Then connect the power connecting cable. After connecting, wrap the piping, cable and drain hose together with thermal insulating materials.

NOTE: do not connect to power supply during installation.

23

IMPORTANT:

Piping Joints Thermal Insulation:

Wrap the piping joints with thermal insulating materials and then wrap with a vinyl tape.

Wrapped with vinyl type

Thermal insulation

Thermal Insulation piping:

a.Place the drain hose under the piping.

b.Insulation material: polythene foam over 6mm in thickness.

NOTE: drain hose is prepared by user.

•Drain hose should point downward for easy drain flow. Do not twist the drain pipe, leave it sticking out or waving around, do not immerse the end in water. If an extension drain hose is connected to the drain pipe, make sure to be thermally insulated when passing it through the indoor unit.

•When the piping is directed to the right, piping, power cable and drain hose should be thermally insulated and fixed at the rear of the unit.

Piping Connection:

a.Connect indoor unit pipes with two wrenches. Pay special attention to the torque allowed as shown below to prevent the pipes, connectors and flare nuts from being deformed and damaged.

b.At first fingers-tighten them, then use the wrenches.

NOTE: do not cut the piping if the connection pipe is over requirement.

Power connecting cable

Large pipe	Thermally
	insulated tube
	Small pipe

Drain hose (prepared by user)

Pipe size	Torque	Nut width	Min. thickness
Liquid Side (1/4 inch)	15~20N.m	17mm	0.5mm
Liquid Side (3/8 inch)	30~35N.m	22mm	0.6mm
Gas Side (3/8 inch)	30~35N.m	22mm	0.6mm
Gas Side (1/2 inch)	50~55N.m	24mm	0.6mm
Gas Side (5/8 inch)	60~65N.m	27mm	0.6mm
Gas Side (3/4 inch)	70~75N.m	32mm	1.0mm

24

4. Connecting the Cable

•Indoor Unit

1)Open the front panel, remove the covering plate by loosening the screw.

2)Connect the power connecting cord to the indoor unit by connecting the wires to the terminals on the control board individually according to wiring diagram.

3)Secure the power connecting cord on the control board with cable clamp.

4)Refit the covering plate and tighten the screw.

NOTE: (depending on the model) It is necessary to remove the cabinet to perform connections with the indoor unit terminal.

Cabinet

•Outdoor Unit

1)Remove the access door from the unit by loosening the screw. Connect the wires to the terminals on the control board individually in accordance with the indoor unit connection.

2)Secure the power connecting cord on the control board with cable clamp.

3)Refit the access door in the original position and tighten the screw.

4)Use a recognized circuit breaker for 24K model between the power source and the unit. A disconnecting device to adequately disconnect all supply lines must be fitted.

CAUTION:

Covering plate

Power Connection

Cable

Front panel	Terminal (inside)

Indoor unit

Access door Terminal (inside)

Outdoor unit

1.Make sure that the colour of wires and the terminal number of the outdoor unit are the same as those of the indoor unit.

2.Use an individual power circuit specifically for the air conditioner. As for the wiring method, refer to the circuit diagram on the appliance.

3.Check that the cable specification conforms to the table as follows.

4.Check the wires and make sure that they are all tightly fastened after cable connection. The cable should be tighly fastened by cable clamp.

5.Be sure to install an earth leakage circuit breaker in a wet or moist area.

Cable Specifications

	Type	Capacity	Power cord		Power connecting cable	Main power
		(Btu/h)				supply (Note)
		7k	H05VV-F, 3G x 1.0 mm	2	H05RN-F, 3G 1.0 mm2;	To indoor
					H05RN-F, 2G 0.75 mm2
		9k	H05VV-F, 3G x 1.0 mm	2	H05RN-F, 3G 1.0 mm2;	To indoor
	On/Off				H05RN-F, 2G 0.75 mm2
		12k	H05VV-F, 3G x 1.0 mm	2	H05RN-F, 3G 1.0 mm2;	To indoor
					H05RN-F, 2G 0.75 mm2
		18k	H05VV-F, 3G x 1.5 mm	2	H07RN-F, 3G 1.5 mm2;	To indoor
					H05RN-F, 2G 0.75 mm2

25

Drain hose (prepare by user)

WIRING DIAGRAM

Heat pump

Indoor unit

Outdoor unit

Terminal

Terminal

Orange

Orange

Purple

Purple

Power connecting cord 1

Brown

Brown

Blue

Blue

Power connecting cord

Yellow/Green

Yellow/Green

Electric Box

Note:

For 7k, 9k, 12k models, the power supply are connected from indoor unit with a plug. For 18k models, the power supply are connected from indoor unit with a circuit breaker.

OUTDOOR UNIT INSTALLATION

1. Install Drain Port and Drain Hose

The condensate drains from the outdoor unit when the unit operates in heating mode. In order not to disturb your neighbours and protect the environment, install a drain port and a drain hose to direct the condensate water. Just install the drain port on the chassis of the outdoor unit, then connect a drain hose to the port as shown in the figure on the right.

2. Install and Fix Outdoor Unit

Fix with bolts and nuts tightly on a flat and strong floor. If installed on the wall or roof, make sure to

fix the supporter well to prevent it from shaking due to serious vibration or strong wind.

Recommend: it's better to insert rubber pad

(optional part) under the ODU foot in order to absorb the vibration during running.

Chassis

Drain port

3.Outdoor Unit Piping Connection

•Remove the valve caps from the 2-way and 3-way valve.

•Connect the pipes to the 2-way and 3-way valves separately according to the required torque.

4.Outdoor Unit Cable Connection (see previous page)

26

AIR PURGING

Air containing moisture remaining in the refrigeration cycle may cause a malfunction on the compressor. After connecting the indoor and outdoor units, evacuate air and moisture from refrigerant cycle using a vacuum pump, as shown below.

Note: Because the system pressure is high and also to protect the environment, be sure not to discharge the refrigerant to the air directly.

Connect to indoor unit

	3-way valve diagram
	Open position
Vacuum pump	Connect to outdoor unit
	Spindle

unit Indoor

Refrigerant flow direction

Needle

Service port cap

2-way valve	Valve core

	3-way valve
			(6) Open 1/4 turn
	(7) Turn to fully		(7) Turn to fully open the valve
	open the valve
			Valve cap
Service port			(1) Turn
		(1) Turn	(8) Tighten
		(8) Tighten
	Valve cap
	(2) Turn
	(8) Tighten

How to Purge Air Tubes:

1.Unscrew and remove caps from 2 and 3-way valves.

2.Unscrew and remove cap from service valve.

3.Connect vacuum pump flexible hose to the service valve.

4.Start vacuum pump for 10-15 minutes until it reaches an absolute vacuum of 10 mm Hg.

5.With vacuum pump still running close the low pressure knob on vacuum pump manifold. Then stop vacuum pump.

6.Open 2-way valve 1/4 turn, then close it after 10 seconds. Check tightness of all joints using liquid soap or an electronic leak detector.

7.Turn 2 and 3-way valves stem. Disconnect vacuum pump flexible hose.

8.Replace and tighten all valve caps.

27

AFTER SALES SERVICE

Before contacting the Customer Care Centre:

1.Try to solve the problem yourself based on the descriptions given in the "Troubleshooting".

2.Turn the appliance off and restart it to see if the fault persists.

If after carrying out the above checks, the fault persists, contact the Customer Care Centre.

Please give:

•a short description of the fault;

•the exact model of the air conditioner;

•the service number (this is the number found below the word Service on service sticker which is located on the side or on the bottom of the indoor unit).

The service number can also be found in the warranty booklet;

•your full address;

•your telephone number.

If repair work has to be carried out, contact the Customer Care Centre (Use of original spare parts and a proper repair is guarenteed).

You will need to present the original invoice.

Failure to comply with these instructions could compromise the safety and quality of your product.

28

AVANT D’UTILISER L’APPAREIL

Lisez attentivement toutes les instructions avant d’utiliser ce produit. Afin de réduire le risque d’incendie, de choc électrique et de blessures corporelles lors de l’utilisation de ce type d’appareil, ces instructions doivent être systématiquement respectées.

Conservez le présent manuel. Si l’appareil est cédé à un tiers, n’oubliez pas de lui remettre le présent manuel avec l’appareil.

Ces instructions seront également disponibles sur le site web : www.whirlpool.eu.

CONSIGNES DE SÉCURITÉ

•Toute opération d’installation, d’entretien et de réparation doit être réalisée par un technicien qualifié, conformément aux instructions du fabricant et aux normes sécuritaires en vigueur localement. Ne réparez ou ne remplacez que les pièces spécifiées dans le mode d’emploi.

•Ne tirez pas sur le cordon d’alimentation pour le retirer de la prise. Évitez de tordre/d’écraser le cordon d’alimentation ; vérifiez qu’il n’est pas cassé.

•Ne touchez pas la prise, le disjoncteur et le bouton d’arrêt d’urgence avec les mains mouillées.

•N’introduisez pas vos doigts ou des corps étrangers dans les ouvertures d’entrée/sortie de l’unité intérieur et extérieure. •N’obstruez pas les ouvertures d’entrée/de sortie des unités

intérieure et extérieure. •Les personnes (y compris les

enfants) qui, en raison de leurs capacités physiques, sensorielles

ou mentales, de leur inexpérience ou de leur méconnaissance, ne sont pas en mesure d’utiliser l’appareil en toute sécurité, doivent se servir de celui-ci uniquement sous la surveillance ou avec les instructions d’une personne responsable.

•Surveillez les enfants pour vous assurer qu’ils ne jouent pas avec l’appareil (y compris avec la télécommande).

•Cet appareil peut être utilisé par des enfants de plus de 8 ans et des personnes aux capacités physiques, mentales ou sensorielles réduites ou qui manquent d’expérience et de connaissances s’ils ont reçu des instructions concernant l’utilisation sans danger et qu’ils comprennent les risques qu’ils encourent. Les enfants ne doivent pas jouer avec l’appareil. Le nettoyage et l’entretien ne doivent pas être effectués par des enfants sans surveillance.

29

PRÉCAUTIONS À OBSERVER

Veuillez observer scrupuleusement les instructions suivantes :

•Une exposition directe et de longue durée au flux d’air froid peut être nuisible pour votre santé. Il est conseillé d’orienter les déflecteurs de façon à éviter toute exposition directe au flux d’air froid.

•En cas de mauvais fonctionnement, éteignez l’appareil en appuyant sur la touche Marche/Arrêt de la télécommande, puis débranchezle.

•Éteignez toujours l’appareil à partir de la télécommande. N’utilisez pas le disjoncteur et ne débranchez pas la prise.

•Évitez d’allumer et d’éteindre l’appareil de manière répétée, sous peine de l’endommager.

•Ne déposez aucun objet sur l’unité extérieure.

•Débranchez le climatiseur de l’alimentation secteur si vous prévoyez de ne pas l’utiliser pendant une longue période ou pendant un orage.

•Ce produit contient des gaz à effet de serre fluorés visés par le protocole de Kyoto, le gaz réfrigérant étant contenu à l’intérieur d’un circuit hermétique. Gaz réfrigérant : le R134a a un potentiel de réchauffement global (GWP) de 2087,5.

CONSEILS POUR LA PROTECTION DE L’ENVIRONNEMENT

•Cet appareil est fabriqué à partir de matériaux recyclables et réutilisables. La mise au rebut de cet appareil doit s’effectuer en respectant les dispositions locales en matière d’élimination des déchets. Avant de mettre votre appareil au rebut, sectionnez le cordon d’alimentation de façon à le rendre inutilisable.

•Pour plus d’informations sur la manutention et le recyclage de cet appareil, contactez le service compétent de votre municipalité ou le magasin où vous avez acheté l’appareil.

ÉLIMINATION DES EMBALLAGES

•Les emballages sont 100 % recyclables et

portent le symbole de recyclage . Ne jetez pas les différents éléments d’emballage dans la nature, mais éliminez-les conformément aux dispositions locales en vigueur en matière d’élimination des déchets.

MISE AU REBUT DE L’APPAREIL

•Cet appareil porte le symbole de recyclage, conformément à la Directive européenne 2002/96/CE concernant l’élimination des équipements électriques et électroniques (WEEE ou DEEE).

•En procédant correctement à la mise au rebut de votre appareil, vous contribuerez à éviter toute conséquence négative sur l’environnement et la santé de l’homme.

•Le symbole apposé sur l’appareil et figurant dans la documentation qui l’accompagne indique que cet appareil ne doit en aucun cas être traité comme un déchet ménager, et doit par conséquent être remis au centre de collecte local des déchets électriques et électroniques pour y être recyclé.

30
